INSTRUCTION MANUAL
21 Bottle Wine Cellar
MODEL: 272 03 21
Please read care fully and follow all safety rules and ope rating instructions.
Page 2
Contents:
1. Your Wine Cellar
2. Technical Data
3. Important Safety Instructions
4. Problems Disposal
5. Installation Instructions
6. Electrical Connection
7. Operating Your Wine Cooler
8. Care And Maintenance
9. Limited Warranty
Page 3
Model no.
272 03 21
Capacity
70L
Climate class
SN;N
Input power
140W
Power Consumption(KW.h/24h)
1.1(59°F)
20.4×38.19×26.77IN
Your Wine Cellar
1. HINGE 2. LIGHT 3. SHELF
4. FAN MASK 5. FOOT 6. WA TER TRAY
7. GLASS 8. DOOR SEAL 9. LOWER HINGE
10. LED DISPLAY 11. TEMPERATURE DOWN 12. TEMPERATURE UP
13. LIGHT 14. Handl e
Technical Data
Voltage 115V/60HZ
Current
Protection class
Temperature Control Range
Net weight 43.00LBS
Gross weight 59.40LBS
Shape size (W×H×D) 13.58×31.65×20.28IN
Carton box packing size (W X H X D)
1A( 77°F)
Ⅰ
44-64°F/51-64°F
Page 4
appliance, follows these basic precautions;

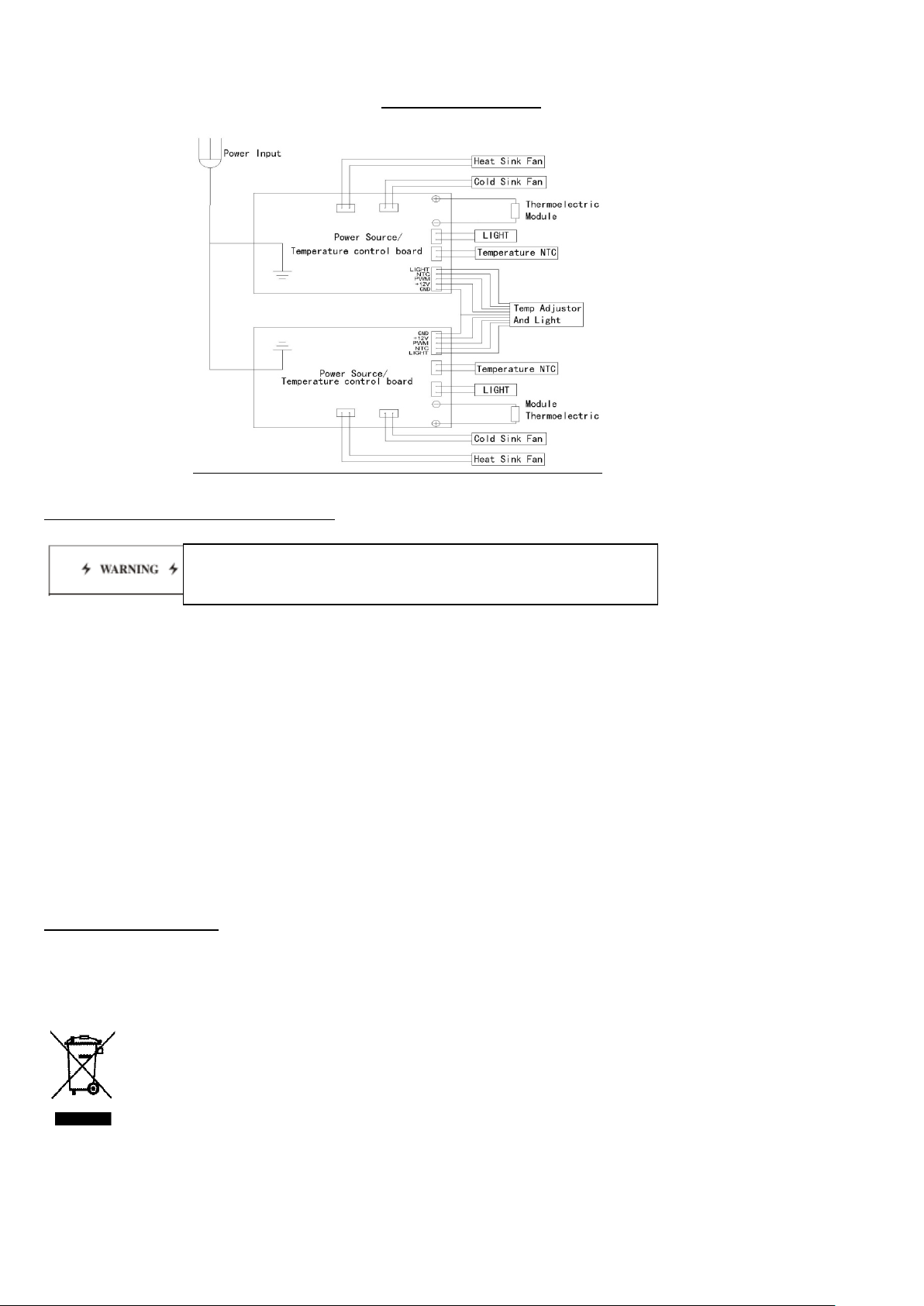

Electric Diagram
Important Safety Instructions
To reduce the risk of fire, electrical shock, or injury when using your
Read all instructions before using the wine cooler.
DANGER or WARNING: risk of child entrapment.
Junked or abandoned appliances are dangerous …even if they “just sit in the garage a few days.”
Before you throw away your old wine cooler: take off the door and leave the shelves in place so that children
may not easily climb inside.
Never allow children to operate, play with, or crawl inside the appliance.
Never clean appliance parts with flammable fluids. The fumes can create a fire hazard or explosion.
Do not store or use gasoline or any other flammable vapors and liquids in the vicinity of this or any other appliance. The
fumes can create a fire hazard or explosion.
Do not store food in wine cooler, as interior temperature may not get cool enough to prevent spoilage.
Problems Disposal
1. Please remove the door before you dispose your refrigerator
2. Do not dispose this product as unsorted municipal waste. Collection of such waste separately for special treatment is
necessary.
Save these instructions
Page 5
Installation Instructions
Before using your wine cooler
Remove the exterior and interior packing
Check to be sure the following parts are included:
7 Slide out shelves.
1 Instruction manual.
Before connecting the appliance to the power source, let it stand upright for approximately 2 hours. This will reduce the
possibility of a malfunction in the cooling system from handling during transportation.
Clean the interior surface with lukewarm water using a soft cloth.
Place your appliance on a floor that is strong enough to support the appliance when it is fully loaded.
To level your appliance, adjust the front legs at the bottom of the appliance.
Not designed for placement in adage or basement.
The appliance is for indoor use only.
Electrical Connection
Improper use of the grounded plug can result in the risk of electrical shock. If the power
cord is damaged, have it replaced by an authorized service center.
This unit should be properly grounded for your safety. The power cord of this unit is equipped with a 3-pin plug which mates
with 3-pin wall outlets to minimize the possibility of electrical shock. Do not under any circumstances cut or remove the ground
wine from the power cord supplied.
Use of extension cords is not recommended.
This unit requires a standard 115V-60HZ electrical outlet with 3-pin plug.
The cord should be secured behind the wine cooler and not let exposed or dangling to prevent accidental injury.
Warning
Operating Your Wine cooler
It is recommended that you install the wine cooler in a place where the ambient temperature is between 51°F - 80°F. If the
ambient temperature is above or below recommended temperatures, the performance of the unit may be affected. For example,
placing in extreme cold or hot conditions may cause interior temperature to fluctuate. The range of 44 - 64°F may not be
reached.
The temperature may fluctuate depending on whether or not the interior light is on or off or whether the bottles are located on
the upper, middle or lower section.
How to set the temperature:
There are three touch-buttons on the control panel:
• When you are facing the wine cooler, the keys on your left are to control the upper zone, and keys on your right are to
control the lower zone.
• “ ” and “ ” increases or decreases the set temperature by 1°F (temp range is 44-64°for upper zone and 51-64°F
for lower zone).
• “ ” button turns on or off the interior light.
Page 6
PROBLEM
POSSIBLE CAUSE
breaker may be tripped or a fuse may be blown.
Vibrations
Check to assure that the wine cooler is level.
LED display not working
Main control board does not work.
There is a problem with the plug.
Note:
• When the ambient temperature is 70°F or less, unit is capable of maintaining a set temperature range between 44-64°
F.
• When the ambient temperature around 77°F, or less, unit can maintain a temperature range between 51-64°F.
Care And Maintenance
Cleaning your wine cooler
Unplug the wine cooler and remove the bottles.
Wash the inside with a warm water and baking soda solution. The solution should be about 2 tablespoons of baking soda to
a quart of water.
The outside of wine cooler should be cleaned with mild detergent and warm water.
Draw out the water box at the bottom, and wash.
Moving your wine cooler
Remove all the bottles.
Securely tape down all loose items inside your wine cooler.
Turn the leveling legs up to the base to avoid damage.
Tape the door.
Be sure the wine cooler stays in the upright position during transportation.
T rouble Shooting
You can solve many common wine cooler problems easily, saving you the cost of a possible service call. Try the suggestions
below to see if you can solve the problem before calling the service center.
Wine cooler does not operate Not plugged or using different voltage. The circuit
Wine cooler is not cold enough Check the temperature control setting.
External environment may require a higher setting.
The door is has been opened too often.
The door is not closed completely.
The door seal does not seal properly.
The wine cooler does not have the correct clearance.
The light does not work Check to see if the bulb has burned out.
The wine cooler seems to make too much
noise
The door will not close properly The wine cooler is not level.
The wine cooler is not level.
Check the fan.
The doors were reversed and not properly installed.
The seal is weak.
The shelves are out of position.
LED display error Weak quality of display.
Buttons are not functional Temperature controller panel is damaged
PCB Problem.
Temperature is off.
Page 7
Limited Warranty
Please speak to your Retailer before calling Wine Enthusiast if you did not purchase your Wine Cellar directly from Wine
Enthusiast.
Limited warranty – The Wine Enthusiast com panies, i n agreement with our m anufactur ers, warranties all wine c ellars to
be free from defects due to workmanship or material under normal use and service for a period of (1) year from receipt for
both parts and labor. For customer s ervice, please contact Wine Enthusiast b y e-mail ([email protected]
by phone (800.648.6058).
If your wine cellar is not operating within the Manufacturers' specifications, Wine Enthusiast, and/or the Manufacturer,
reserves the right to repair or replace the wine cellar. Wine Enthusiast may request the consumer contact a local
refrigeration com pany to service the wine cellar. All cost for labor and m aterials is covered for 1 full year f rom date of
receipt. If Wine Enthusiast deems the unit not repairable, Wine Enthusiast will use the value of your original order toward a
replacement. However, the custom er will be res ponsib le f or all shi pping cos ts o n the rep lacem ent af ter the i nitial 90 da ys.
Extended warranties are availabl e for an addit ional cost at the time of purchase or up to the se venth month f rom date of
purchase. These warranties will extend the 1 year warranty to 2, 3 or 5 years
) or
