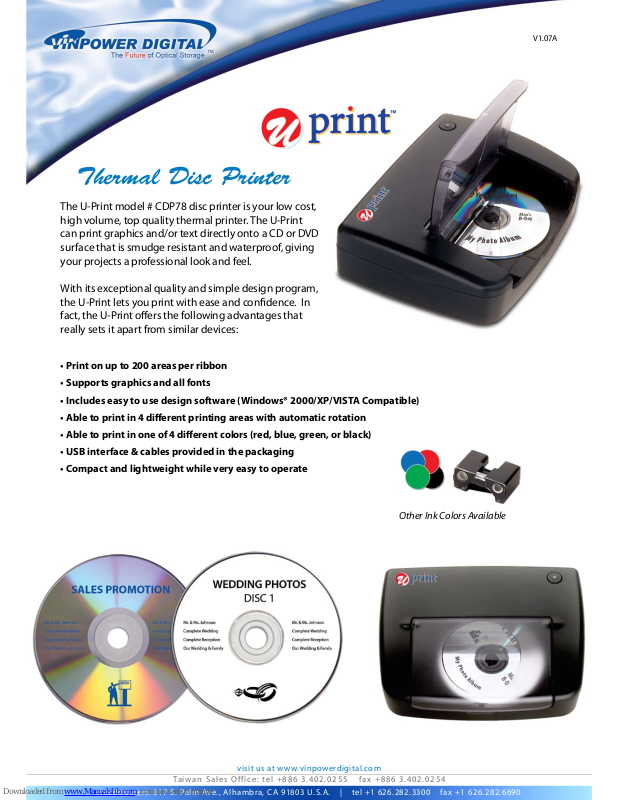

Vinpower U-Print CDP78 Specifications

The U-Print model # CDP78 disc printer is your low cost,
high volume, top quality thermal printer. The U-Print
can print graphics and/or text directly onto a CD or DVD
surface that is smudge resistant and waterproof, giving
your projects a professional look and feel.

With its exceptional quality and simple design program,
the U-Print lets you print with ease and condence. In
fact, the U-Print oers the following advantages that
really sets it apart from similar devices:

• Print on up to 200 areas per ribbon

• Supports graphics and all fonts

• Includes easy to use design software (Windows® 2000/XP/VISTA Compatible)

• Able to print in 4 dierent printing areas with automatic rotation

• Able to print in one of 4 dierent colors (red, blue, green, or black)

• USB interface & cables provided in the packaging

• Compact and lightweight while very easy to operate

Thermal Disc Printer

Other Ink Colors Available

V1.07A

www.vinpowerdigital.com

Ta iwa n Sa l es O ff ic e : te l +8 8 6 3 . 402 . 02 5 5 fa x +8 8 6 3 . 40 2 . 02 5 4

Headquaters: 817 S . Pa lm Ave., Alh ambra, CA 91803 U.S. A. | te l +1 626 .282.330 0 fax + 1 626.282.6 690

visit us at www. vinpowerdigital.com

Specications are accurate as of date printed. For the most updated specs and product details, please visit www.vinpowerdigital.com

†

Printer Specifications

Model: U-Print # CDP78
Print Resolution: 200 dpi
Ribbon Colors: Red, Blue, Green, Black
Print Area: 4 x 90 degree rotation function supports 4 printed areas
Speed: Less than 30 seconds per area
Top & Bottom: 2 x 24 mm x 60 mm
Left & Right: 2 x 24 mm x 40 mm
Input Power: 100 - 240V
Output Power: 24V DC
Power Consumption: Max 14.4W
Dimension of Printer: (WxDxH) 190 mm x 235 mm x 70 mm
Operating Temperature: 100C (500F) / 350C (950F)
Storage Temperature: 200C (680F) / 600C (1400F)
Regulations: FCC, CE, UL

Functions & Features

1. Design-

Use the included Label Design application
software to design your label with up to
4 print areas - with text, arched text, or
graphics.

2. Load-

3. Print-

Place your printable disc in the CD/DVD
Label Printer

Press “PRINT” on the screen and your label
is printed onto the CD/DVD disc.

Black ink cartridge included.

Design and create with Label Design
software included for Windows OS.

Various prints cartridges are available
in 4 single color choices of Red, Blue,
Green, and Black.

U-Print’s Direct to Disc Printing that is easy, fast and
inexpensive. Create professional looking discs in
minutes. Label a disc in 3 easy steps:
