Page 1

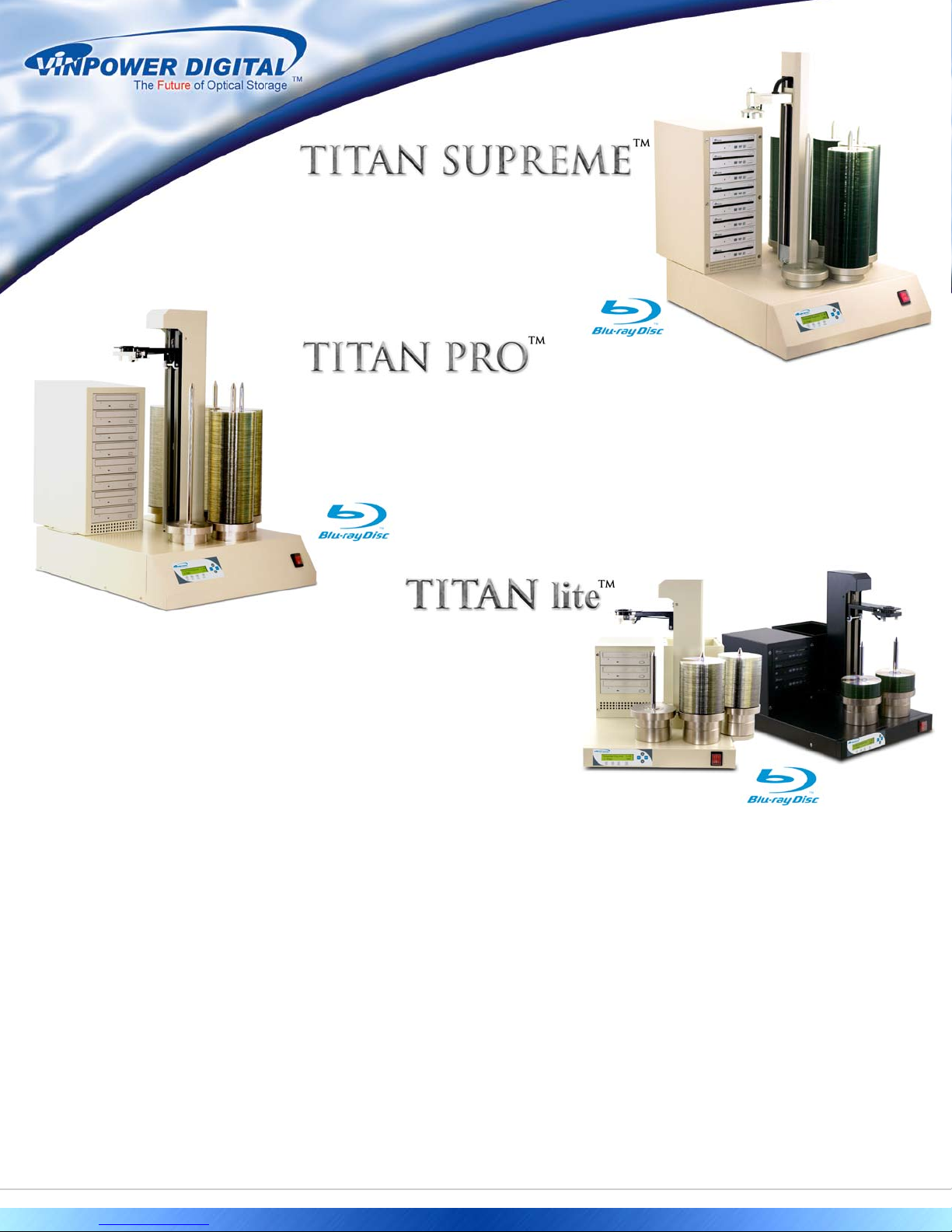

The TITAN SUPREME is an industrial strength large capacity robotic
optical media autoloader duplicator. When your business requires the
added edge in overnight continuous duplication with the highest degree of
reliability and functionality, the TITAN SUPREME is the answer. This unit oers all the
exceptional abilities of our TITAN series with a more modular design for easier hardware
upgradeability and maintenance in the future.
The TITAN PRO is the most reliable large capacity robotic optical media autoloader
duplicator at a very aordable price. When your business needs a reliable autoloader that
can duplicate large volumes of optical media overnight at a price that ts anyone’s budget,
the TITAN PRO is the solution. This unit oers the user the freedom to focus on other matters
while they rest assured that their duplication job will be completed accurately day and night.
V1.17
The TITAN lite is the compact 100/200 disc capacity robotic optical media
autoloader duplicator with the ability to run day or night unattended. When you
don’t have the production that warrants a larger TITAN series autoloader, but also
don’t have the time to dedicate to a manual tower, the TITAN lite is your solution.
With a price comparable to a large manual tower, the TITAN lite can give you all of the
conveniences of a TITAN series autoloader but remain light on your wallet.
Advanced Features:
Complete Standalone Operation - No PC required to operate the duplicator.
Improved Multi-Master Recognition Technology (MMRT) - Can load multiple masters at once to run multiple
duplication jobs in succession. In addition able to load the master content to HDD while copying rst run of discs.
Improved Upgraded Sticky Media Separator & Handling Option - Higher probability to separate sticky media.
Provides additional setting “Detect Sticky Media” to stop the job when 2 or more media are detected in any tray.
New Supports Automatic Writer Disable Feature - When specied “Maximum Failures/Per Recorder” is reached.
New Supports Automatic Job Abort Feature - When specied “Maximum Total Failures” is reached.
Supports Automatic Eject and Closure of the Tray - When the media wasn’t properly placed.
Auto-Copy Feature - System starts duplication process automatically by assuming the 1st disc in the input spindle is the
master disc and remaining are the blanks.
New Supports Manual Duplication Mode
New Dynamic Hard Drive Partitioning - The HDD partitions are created with exible 1GB partitions that can be used in
combination to match the size of the project being stored. This process saves space and allows for more projects to be stored
on the HDD.
New Supports All Common CD Formats - With Additional Special format including CD-TEXT, CD+G, ISRC, Over-Burned CD.
Ability to copy Blu-ray, HD DVD, and CD+G format depends on whether the writer drive supports those formats.
†
visit us at www.vinpowerdigital.com
Ta iwan S al es O ff ic e: t el + 886 3 .4 02 .025 5 fax + 88 6 3. 40 2.02 54
Headquaters: 81 7 S. Palm Ave., Alhambra, CA 91803 U.S.A. | tel +1 626.28 2.3300 fax +1 62 6.282.6690
Page 2
Specifications
Model:
Disc Capacity:
Target:
Hard Drive Options:
Throughput Capacity Per Hour:
• 2.5 GB DVD
• 300 MB CD
Max Writing Speed* for
Supported Reading Formats:
Display:
Buer Memory:
Partition Naming:
Account Management:
Auto Counter:
Supported Reading Formats:
Supported Writing Formats:
Burn Proof Support:
Power Supply:
Operating Humidity:
Temperature Extremes:
Regulations:
TITAN SUPREME
Autoloader
Standalone
1,000 Discs 500 Discs or 1,000 Discs 100 Discs / 200 Discs
4, 6, & 8 3
Built in 250 GB HDD (Capable of selecting higher capacity HDD) Built in 250 GB HDD
4 Drives: 48 DVDs / 68 CDs
6 Drives: 66 DVDs / 90 CDs
8 Drives: 72 DVDs / 104 CDs
4x BD-R Single Layer 4x BD-RE Single Layer 4x BD-R DL 4x BD-RE DL
20x DVD-R 12x DVD-R DL 8x DVD-RW 8x DVD+RW
20x DVD+R 12x DVD+R DL 48x CD-R 32x CD-RW
20 x 2 LCD
128 MB / 256 MB
Up to 8 characters per partition
32 users (Standard License) / 64 users (Premium License)
Up to 9,999 per title
BD-Rom, BD-R, BD-R DL, BD-RE, BD-RE DL, DVD-ROM, DVD-Video, DVD-Audio,
DVD+R DL, DVD-R DL, DVD-R, DVD-RW, DVD+R, DVD+RW, Mode 1: CD-ROM, CD-I,
Multi-session CD, CD-Plus, 61mm Business Card CD-R, 3” Mini CD-R, CD-ROM Data Mode 2
BD-R, BD-R DL, BD-RE, BD-RE DL, DVD+R DL, DVD-R DL, DVD+R, DVD+RW, DVD-R, DVD-RW,
61mm Business Card CD-R, 3” Mini CD-R, Orange Book standard 74 min/80 min CD-R/RW
Yes
Input : 90 ~240 V, 500 WATT max
20% ~ 80%
400C (1040F) / 50C (410F)
FCC, CE, RoHS
TITAN PRO
Autoloader
Standalone
**
TITAN lite
Autoloader
Standalone
3 Drives: 36 DVDs / 54 CDs
SPECIAL FEATURE (MMRT)
The TITAN series autoloaders feature the Multi-Master Recognition Technology (MMRT). Traditionally, autoloaders can
only handle one duplication job at a time and additional manpower is needed to load a new duplication job (ex. Load
new master disc, insert more blank discs, etc.) Now, with this totally revolutionized auto-master recognition technology, the
TITAN series can handle multiple duplication jobs per run by itself.
For example, if you want to make 30 copies of job A, 50 copies of job B, and 20 copies of job C. Traditional autoloaders will
only process one job per run and need someone to load job B and job C to the autoloader. However, with the TITAN series
featuring MMRT, it will process all three jobs sequentially per run by itself, without the need to load and reload additional
master discs. This process aords the user more time to dedicate to other matters rather than keeping a constant eye on
the autoloader.
Range of speed determined by the writer drive used and the blank media writing speed.
*
The power supply will dier based on the number of target.
**
Specications are accurate as of date printed. For the most updated specs and product details, please visit www.vinpowerdigital.com
†
