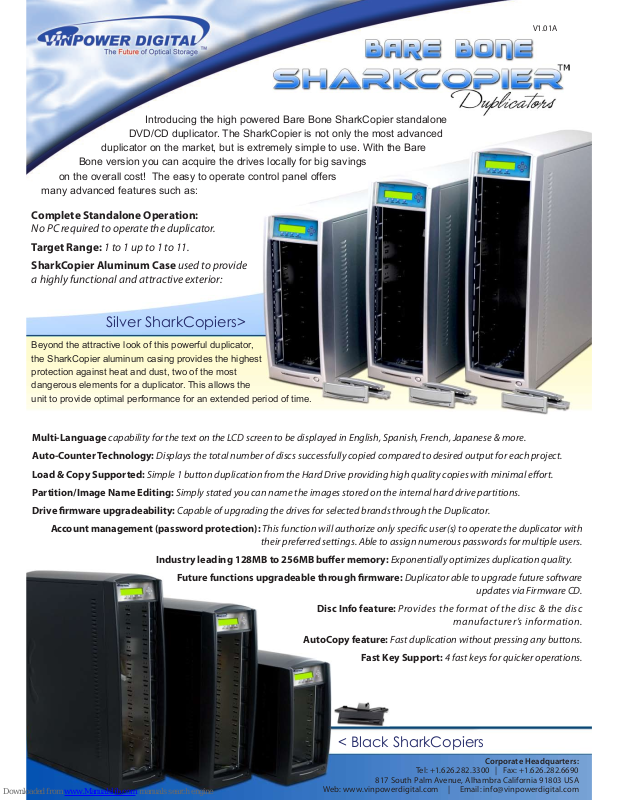

Vinpower SharkCopier Specifications

Introducing the high powered Bare Bone SharkCopier standalone

DVD/CD duplicator. The SharkCopier is not only the most advanced

duplicator on the market, but is extremely simple to use. With the Bare

Bone version you can acquire the drives locally for big savings

on the overall cost! The easy to operate control panel offers

many advanced features such as:

Complete Standalone Operation:

No PC required to operate the duplicator.

Target Range: 1 to 1 up to 1 to 11.

SharkCopier Aluminum Case used to provide

a highly functional and attractive exterior:

< Black SharkCopiers

Multi-Language capability for the text on the LCD screen to be displayed in English, Spanish, French, Japanese & more.

Auto-Counter Technology: Displays the total number of discs successfully copied compared to desired output for each project.

Load & Copy Supported: Simple 1 button duplication from the Hard Drive providing high quality copies with minimal eort.

Partition/Image Name Editing: Simply stated you can name the images stored on the internal hard drive partitions.

Drive rmware upgradeability: Capable of upgrading the drives for selected brands through the Duplicator.

Account management (password protection): This function will authorize only specic user(s) to operate the duplicator with

their preferred settings. Able to assign numerous passwords for multiple users.

Industry leading 128MB to 256MB buer memory: Exponentially optimizes duplication quality.

Future functions upgradeable through rmware: Duplicator able to upgrade future software

updates via Firmware CD.

Disc Info feature: Provides the format of the disc & the disc

manufacturer’s information.

AutoCopy feature: Fast duplication without pressing any buttons.

Fast Key Support: 4 fast keys for quicker operations.

Beyond the attractive look of this powerful duplicator,
the SharkCopier aluminum casing provides the highest
protection against heat and dust, two of the most
dangerous elements for a duplicator. This allows the
unit to provide optimal performance for an extended period of time.

Silver SharkCopiers>

V1.01A

Corporate Headquarters:

Tel: [phone] | Fax: [phone]

817 South Palm Avenue, Alhambra California 91803 USA

Web: www.vinpowerdigital.com | Email: [e-mail]

We can customize the controller and the LCD faceplate to best match your needs, whether it’s a small name

change or a more complex alteration of the entire programming, if it’s feasible we can make it happen.

Specications

Model:

Bare Bone SharkCopier DVD/CD Stand-Alone Manual Tower Duplicator

Target: 2 Bay, 4 Bay, 6 Bay, 8 Bay, 10 Bay, 12 Bay
Hard Drive Options: Supports PATA HDD for this range 80GB, 120GB, 160GB, 200GB, 250GB, 300GB or up
Display: 20 x 2 LCD
Buer Memory: 128 MB or 256 MB
Language Support: English, Spanish, French, Japanese, etc.
Partition Naming: * Up to 8 characters per partition
Account Management: 32 users (Standard License) or 64 users (Premium License)
Auto Counter: Up to 9999 per Title
Drive Firmware Update: Yes
System Firmware Update: Yes
Load & Copy Supported: * Yes
Burn Proof Support: Yes
Power Supply:** Input : 90 ~240 AV, 500 WATT Max
Operating Humidity: 20% ~ 80%
Temperature Extremes: 400C (1040F) / 50C (410F)
Regulations:*** FCC, CE, & UL

The 2 most dangerous elements for any drive are heat and dust. While the drives are in use, they generate a signicant
amount of heat. To further prevent the drives from overheating and burning out, a fan is needed to pull the hot air out
and suck in fresh air to cool the drives down. The problem is, the fresh air has to enter the duplicator through the front
of the unit going directly through the drives. This causes the second major threat to a drive, the culmination of dust on
the laser head. As the air is sucked through the front of the duplicator, dust particles will collect inside the drives and
cloud the laser head. The laser head is the optical nerve center of the drive and conducts the process of burning onto
the discs. As dust accumulates, it makes it harder for the laser to perform, forcing the drive to work harder and
reducing the lifespan of the drive. The SharkCopierTM is specially designed with a special “gill” venting system on each
side of the case to allow the air ow into the machine without passing through the drive face. This eliminates approx.
80% of the harmful dust from entering into the drive itself and landing on the laser head. To further prevent dust from
entering the drives, the SharkCopierTM is equipped with exterior drive door covers to block harmful dust particles.
In addition, the SharkCopierTM case is made out of aluminum, which diuses harmful heat up to 3 times faster than
a standard steel case. By decreasing the amount of heat and dust from disrupting the capabilities of the drives, the
SharkCopierTM can extend the life of the drives by an average of 20% ~ 30%.

How The SharkCopierTM Aluminum Case Extends The Life Of The Duplicator

Drives:

Requires a Hard Drive to be installed.
The power supply will dier based on the number of targets.
The UL marking only applies to specic units.
Specications are accurate as of date printed. For the most updated specs and product details, please visit www.vinpowerdigital.com

*

**

***

†
