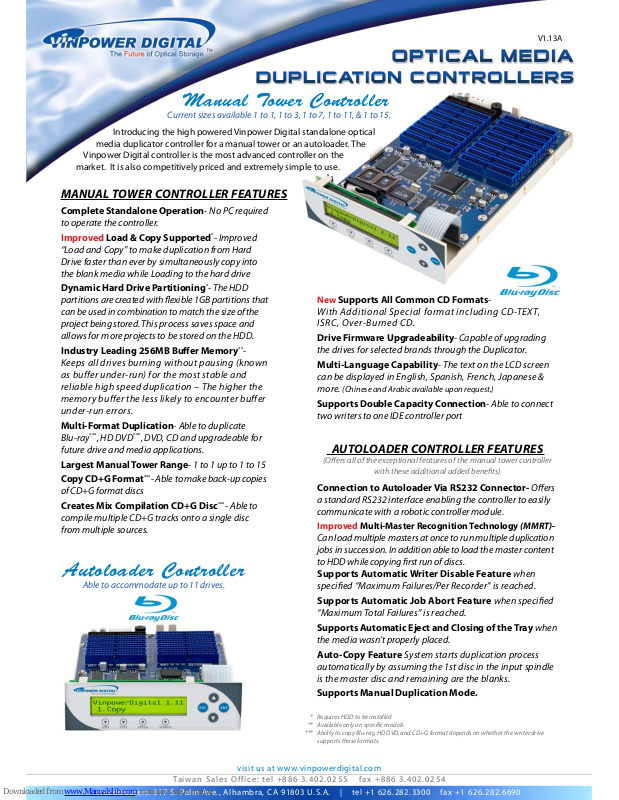

Vinpower Manual Tower Controller Specifications
V1.13A
Manual Tower Controller
Current sizes available 1 to 1, 1 to 3, 1 to 7, 1 to 11, & 1 to 15.
Complete Standalone Operation- No PC required
to operate the controller.
Improved Load & Copy Supported*- Improved
“Load and Copy” to make duplication from Hard
Drive faster than ever by simultaneously copy into
the blank media while Loading to the hard drive
Dynamic Hard Drive Partitioning*- The HDD
partitions are created with exible 1GB partitions that
can be used in combination to match the size of the
project being stored. This process saves space and
allows for more projects to be stored on the HDD.
Industry Leading 256MB Buer Memory**-
Keeps all drives burning without pausing (known
as buffer under-run) for the most stable and
reliable high speed duplication – The higher the
memory buffer the less likely to encounter buffer
under-run errors.
Multi-Format Duplication- Able to duplicate
Blu-ray
***
, HD DVD
***
, DVD, CD and upgradeable for
future drive and media applications.
Largest Manual Tower Range- 1 to 1 up to 1 to 15
Copy CD+G Format
***
- Able to make back-up copies
of CD+G format discs
Creates Mix Compilation CD+G Disc
***
- Able to
compile multiple CD+G tracks onto a single disc
from multiple sources.
Autoloader Controller
Able to accommodate up to 11 drives.
New Supports All Common CD Formats-
With Additional Special format including CD-TEXT,
ISRC, Over-Burned CD.
Drive Firmware Upgradeability- Capable of upgrading
the drives for selected brands through the Duplicator.
Multi-Language Capability- The text on the LCD screen
can be displayed in English, Spanish, French, Japanese &
more. (Chinese and Arabic available upon request.)
Supports Double Capacity Connection- Able to connect
two writers to one IDE controller port
Requires HDD to be installed
Available only on specific models
Ability to copy Blu-ray, HD DVD, and CD+G format depends on whether the writer drive
supports those formats.
*
**
***
Ta iwan Sa le s Of fi ce : tel + 88 6 3. 402.02 55 fa x +886 3 .4 02 .0254
Head qu aters: 817 S. Pal m Ave., Al hambra, CA 91 803 U. S.A. | tel +1 626. 282.3300 f ax +1 626 .2 82.6690
MANUAL TOWER CONTROLLER FEATURES
Introducing the high powered Vinpower Digital standalone optical
media duplicator controller for a manual tower or an autoloader. The
Vinpower Digital controller is the most advanced controller on the
market. It is also competitively priced and extremely simple to use.
AUTOLOADER CONTROLLER FEATURES
(Oers all of the exceptional features of the manual tower controller
with these additional added benets)
Connection to Autoloader Via RS232 Connector- Oers
a standard RS232 interface enabling the controller to easily
communicate with a robotic controller module.
Improved Multi-Master Recognition Technology (MMRT)-
Can load multiple masters at once to run multiple duplication
jobs in succession. In addition able to load the master content
to HDD while copying rst run of discs.
Supports Automatic Writer Disable Feature when
specied “Maximum Failures/Per Recorder” is reached.
Supports Automatic Job Abort Feature when specied
“Maximum Total Failures” is reached.
Supports Automatic Eject and Closing of the Tray when
the media wasn’t properly placed.
Auto-Copy Feature System starts duplication process
automatically by assuming the 1st disc in the input spindle
is the master disc and remaining are the blanks.
Supports Manual Duplication Mode.
visit u s at www.vinpowerdigi tal.com
We can customize the controller to best match your needs, whether it’s a small name change or a more complex alteration of
the entire programming, if it’s feasible we can make it happen!
MANUAL TOWER CONTROLLER
The most important component in a duplicator is the controller. Our controller (the duplicator’s motherboard) is
specially programmed to oer the highest quality performance of any controller on the market. We design our
controllers to better meet your needs for both performance and aesthetics. The quality of the controller can make all the
dierence between making perfect CD and DVD copies or ending up with failed or low quality copies. In fact, if you took
two identical duplicators with the only variables being the controllers, our controller will produce a better PIPO number
every time (scale for measuring DVD disc quality). In addition to compatibility, we make a more powerful controller that
ensures proper functioning and more reliability. The added power allows our controller to oer better performance and
more options. Our 7 target and above controllers come standard with up to 128MB ~ 256MB memory buer for the best
reading performance of any duplicator on the market.
AUTOLOADER CONTROLLER
Since Vinpower Digital developed our own standalone robotic autoloader duplicator, we are uniquely qualied to
provide a controller that is specially designed to work for any number of dierent autoloader designs. The duplication
quality and functionality will be the same exceptional quality as our manual tower controller, but our autoloader controller
was developed specically to interface with a robotic autoloader. Our autoloader controller oers a standard RS232 interface
enabling the controller to easily communicate with the robotic controller module. When working with Vinpower Digital, we
can integrate your robotic protocol into our controller for ideal communication between the two devices. You deserve the
best, you deserve Vinpower Digital!
Spec varies based on the size and number of targets – May require controller upgrade request at time of purchase.
Requires HDD to be installed.
Available for autoloader controllers only.
Specications are accurate as of date printed. For the most updated specs and product details, please visit www.vinpowerdigital.com
*
**
***
†
Specifications
Model:
VPD1T, VPD3T, VPD7T, VPD11T, VPD15T,
Optical Media Standalone Duplicator Controller
Target: 1 to 1, 1 to 3, 1 to 7, 1 to 11, 1 to 15
Hard Drive Options: Supports all PATA HDD sizes
Display: 20 x 2 LCD
Buer Memory: Up to 256 MB* (The largest memory buer available on the market)
Language Support:
English, Spanish, French, Japanese, German, Italian, Portuguese and more.
(Chinese and Arabic available upon request)
Partition Naming:
**
Up to 8 characters per partition
Account Management: 32 users (Standard License) / 64 users (Premium License)
Auto Counter: Up to 9,999 per title
Load & Copy Support:
**
Yes (Enhanced)
Burn Proof Support: Yes
Drive Firmware Update: Yes
System Firmware Update: Yes
RS232 connection:
***
Yes
MMRT Capable:
***
Yes
Operating Humidity : 20% ~ 80%
Temperature Extremes: 50C (410F) / 400C (1040F)
Regulations: FCC & CE, RoHS
