Your Beverage Cooler
This unit can be used for Storage and/or Service. The cooler has a glass door
and interior light.
General Operating Instructions
Remove all external and internal packaging from your beverage cooler. Be
sure that all parts have been included before discarding any packaging
materials. You may want to keep the box and packing materials for use at a
later date.
Upon receipt and inspection of unit, the supply cord must be replaced if it is
damaged. Contact our customer service at 1-800-777-8466 or
[email protected].
• Let the unit rest, UNPLUGGED for 12 hours once you have it placed in
your home.
• Please fully read the instruction manual.
Please read and follow all safety rules
and operating instructions before using.
2
WWW.VINOTEMP.COM
Page 3
TABLE OF CONTENTS
IMPORTANT SAFETY INSTRUCTIONS................................................3
PARTS AND IDENTIFICATION..........................................................4
INSTALLATION .............................................................................4
ELECTRICAL CONNECTION .............................................................4
START-UP PROCEDURES ................................................................5
LIGHT CONTROL ...........................................................................5
MAINTENANCE..............................................................................5
CIRCUIT DIAGRAM........................................................................6
TROUBLESHOOTING......................................................................6
TERMS OF SALE AND WARRANTY ....................................................7
IMPORTANT SAFETY INSTRUCTIONS
To reduce the risk of fire, electric shock, or injury when using your cooler,
please note the following basic precautions:
• Use this appliance only as described. Other uses are not recommended
and may cause fire, electric shock, or injury.
• This product is intended for freestanding installation only. Unit requires 4
inch clearance at rear for proper operation. Not intended for garage or
basement use.
• Do not immerse unit, plug or cord in water or other liquids. Avoid locating
the unit in moist areas.
• Never allow children to operate, play with, or crawl inside the unit.
• To disconnect the appliance, grip the plug and pull it from the wall outlet.
Never pull by the cord.
• Do not operate the appliance with a damaged cord or plug. If the product
malfunctions, or if it is dropped or damaged in any manner, do not use.
• Do not install your cooler in direct sunlight or near a range of heat or fire.
• Never clean appliance parts with flammable fluids. Also do not store or
use gasoline or any other flammable vapors and liquids in the vicinity of
this or any other appliance. The fumes can create a fire or explosion.
WARNING: Risk of child entrapment. Before you throw away this or an old
beverage cooler, take off the door and leave the shelves in place so that
children may not easily climb inside.
17631 South Susana Road, Rancho Dominguez, California 90221
3
Page 4

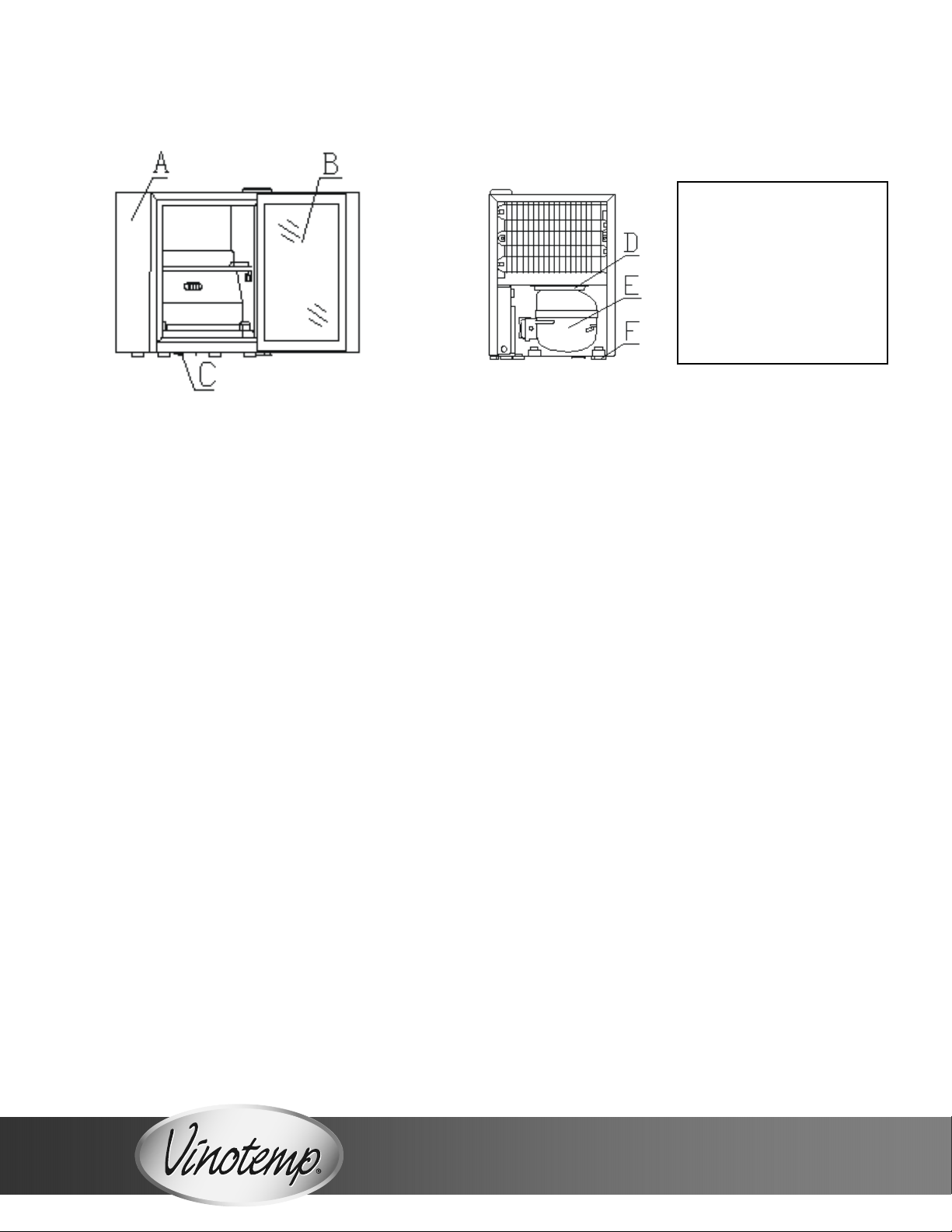

PARTS AND IDENTIFICATION
A. Cabinet
B. Glass Door
C. Lock
D. Drip Pan
E. Compressor
F. Adjusting Leg
INSTALLATION
• Remove all packing material before using your cooler.
• Clean the interior surface with a soft cloth and lukewarm water.
• Locate the cooler in a dry and airy place.
• Install your cooler on a solid and level floor (other than carpet). This will
ensure a vibration and noise-free operation.
• Coolers transported in the horizontal position, must be returned to the
upright position, and not plugged in for minimum 1 to 12 hours. This is
essential for proper operation.
• Cooler transported in the horizontal position requires the drip pan,
located on top of the compressor, be checked for proper positioning.
• Do not locate the appliance close to walls; this could damage the electric
cord and may block the air circulation to the appliance. Keep the cooler a
distance of at least 4 inches from wall.
• Do not block the air intake that ventilates the condenser unit.
ELECTRICAL CONNECTION
• This unit operates with a 115V~60Hz power supply. Check the electrical
outlet for proper voltage.
• Warning: Do not plug other electrical appliances into cooler outlet. The
coolers are supplied with 8ft length electric cord. Do not use extension
cords. Provide an outlet just for the cooler. If the cord is damaged,
replace it and do not try to repair it.
• For your own safety and for protection of the cooler, verify the existence
of the ground circuit in the electrical power supply. In case of doubts, ask
the assistance of an authorized electrician.
4
WWW.VINOTEMP.COM
Page 5
START-UP PROCEDURES
• Plug the cabinet into the electrical outlet; operate the cooler for at least
three hours. This will aid in refrigeration performance.
• Do not attempt to adjust the temperature control. The temperature
control is factory set to provide maximum performance.
LIGHT CONTROL
The inside light is controlled by the power. Plug in to turn on unit and light.
MAINTENANCE
Cleaning
• Before cleaning the appliance, always remember to unplug it.
• Unplug the cooler at the electrical outlet; never pull the service cord.
• Do not use sharp or pointed objects for cleaning.
• Clean the inside cabinet of the cooler with a clean damp cloth or with
neutral soap. Avoid damage by never using abrasive or flammable
cleaning products.
• Clean the condenser at least once a month with a vacuum cleaner or a
brush to eliminate the dust accumulation.
Power failure
• Please minimize the frequency of opening the door during a power failure.
Most power failures are corrected within a few hours and the temperature
of your beverages will not be affected.
• If the power will be off for an extended period, proper procedure should
be followed for the stored cans.
Non-use for extended time frames:
• If your cooler is unused for extended periods, it is best to remove the
cans, unplug and clean your cooler. Also please open the door to avoid
possible formation of condensation, mold or odors.
Moving the cooler
• Take out all the cans.
• Secure all loose parts inside the cooler.
• Tape the door shut.
• During transportation, make sure that the cooler is in the upright position.
Drip pan
• When the compressor stops working, water drops will drain through the
outlet in the inner back wall into the drain pan (above the compressor).
• If the drain pan needs to be cleaned, pull the drain pan forward gently
and reinstall it after cleaning.
17631 South Susana Road, Rancho Dominguez, California 90221
5
Page 6
TROUBLESHOOTING
If your cooler does not work properly, please note the following suggestions
before you attempt to repair or replace the unit.
Your cooler does not work:
• Check the electrical outlet for power and that the plug is properly plugged
in.
• Check the condenser for proper cleaning.
• The circuit breaker is tripped or the fuse is blown.
Your cooler makes too much noise:
• Check that the cooler is level.
Compressor turns on and off frequently:
• The room temperature is higher than normal.
• The door is not closed completely.
• The door gasket is not sealed well.
• There is insufficient clearance around the cooler.
• The cycling frequency will reduce when all of the cans reach the set
temperature.
The following is not a malfunction:
• It is normal to hear gurgling sounds caused by the flow of refrigerant
when each cooling cycle ends.
6

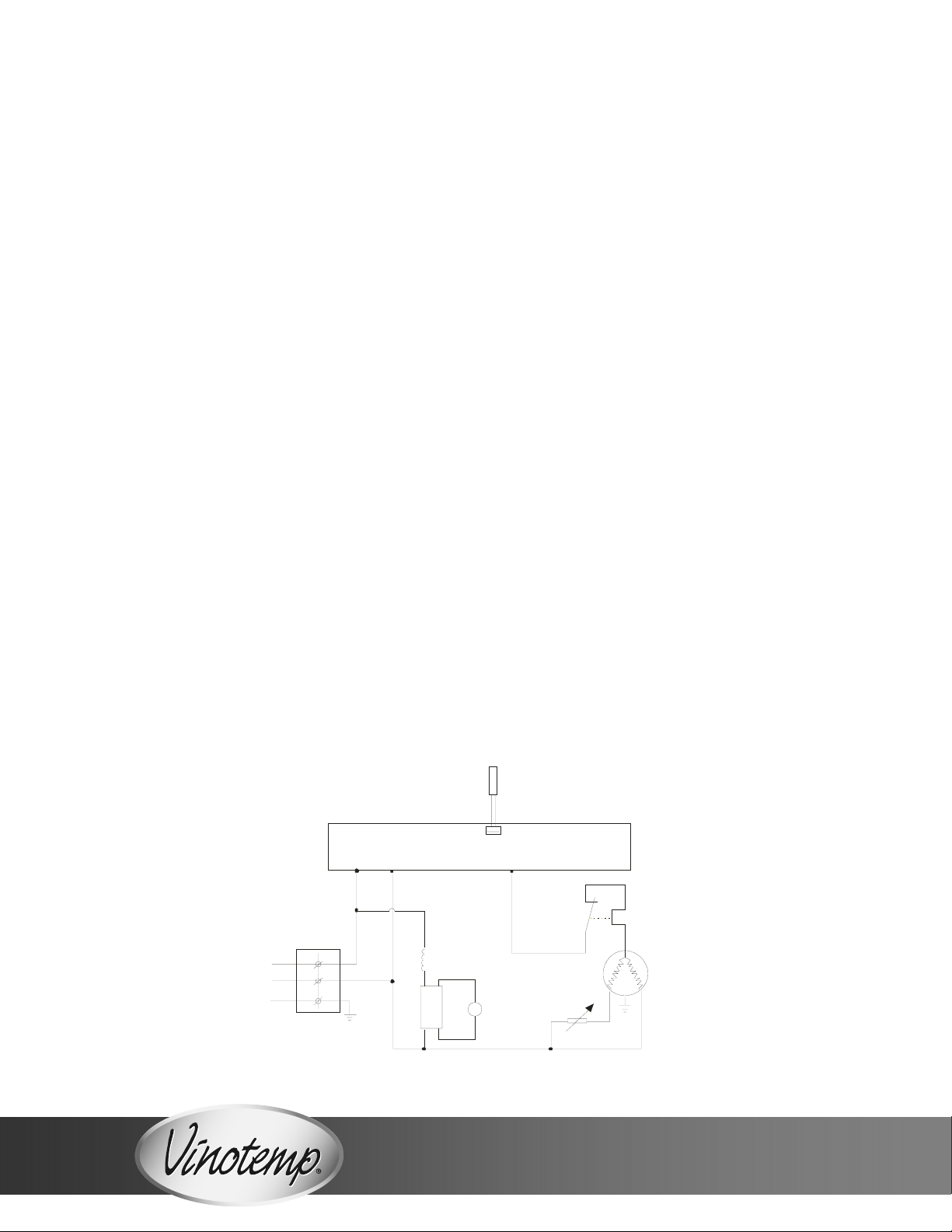

CIRCUIT DIAGRAM
sensor
Computerized Controller
Overload
115V 60Hz
L
N
E
Control Enclosure
Impedance coil
t
h
g
i
L
WWW.VINOTEMP.COM
Protector
CompressorC
S
StarterS
PTC Starter
M
Page 7
