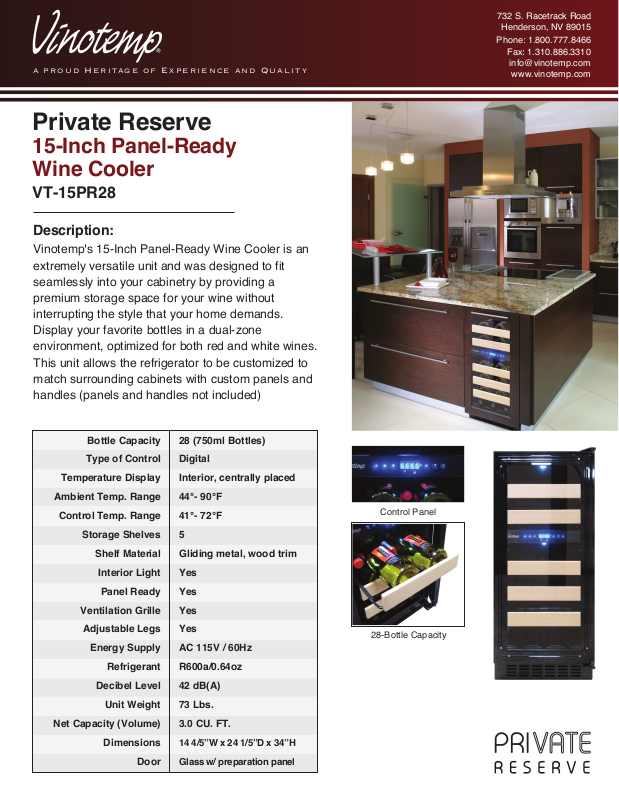

Page 1
a p r o u d H e r i tage of E x p e r i e n c e a n d Q u a l i t y
Private Reserve
15-Inch Panel-Ready
Wine Cooler
VT-15PR28
Description:
Vinotemp's 15-Inch Panel-Ready Wine Cooler is an
extremely versatile unit and was designed to fit
seamlessly into your cabinetry by providing a
premium storage space for your wine without
interrupting the style that your home demands.
Display your favorite bottles in a dual-zone
environment, optimized for both red and white wines.
This unit allows the refrigerator to be customized to
match surrounding cabinets with custom panels and
handles (panels and handles not included)
732 S. Racetrack Road
Henderson, NV 89015
Phone: 1.800.777.8466
Fax: 1.310.886.3310
www.vinotemp.com
Bottle Capacity
Type of Control
Temperature Display
Ambient Temp. Range
Control Temp. Range
Storage Shelves
Shelf Material
Interior Light
Panel Ready
Ventilation Grille
Adjustable Legs
Energy Supply
Refrigerant
Decibel Level
Unit Weight
Net Capacity (Volume)
28 (750ml Bottles)
Digital
Interior, centrally placed
44°- 90°F
41°- 72°F
5
Gliding metal, wood trim
Yes
Yes
Yes
Yes
AC 115V / 60Hz
R600a/0.64oz
42 dB(A)
73 Lbs.
3.0 CU. FT.
Control Panel
28-Bottle Capacity
Dimensions
Door
14 4/5”W x 24 1/5”D x 34”H
Glass w/ preparation panel
Page 2
a p r o u d H e r i tage of E x p e r i e n c e a n d Q u a l i t y
VT-15PR28
Features:
• 5 gliding wood lipped shelves
• Easy to use touch screen control panel
55 55
with blue LED readout
• Dual-zone
• Designed for built-in installation
• Blue LED interior lights
• Panel Ready
Energy Supply: AC 115V / 60Hz
Door Hinge: Right
Door: Glass with preparation panel
Unit and Installation Dimensions
min 25 1/5”
640 2/25 mm
732 S. Racetrack Road
Henderson, NV 89015
Phone: 1.800.777.8466
Fax: 1.310.886.3310
www.vinotemp.com
15 3/10”
388 31/50 mm
Top
View
13 47/50”
354mm
(width with
door at 90°)
24 1/5”
614 17/25 mm
90°
36 11/50” / 920mm
(depth with door at 90°)
14 4/5”
375 23/25 mm
34 1/4” / 869 19/20 mm
34” / 863 3/5 mm
Page 3
a p r o u d H e r i tage of E x p e r i e n c e a n d Q u a l i t y

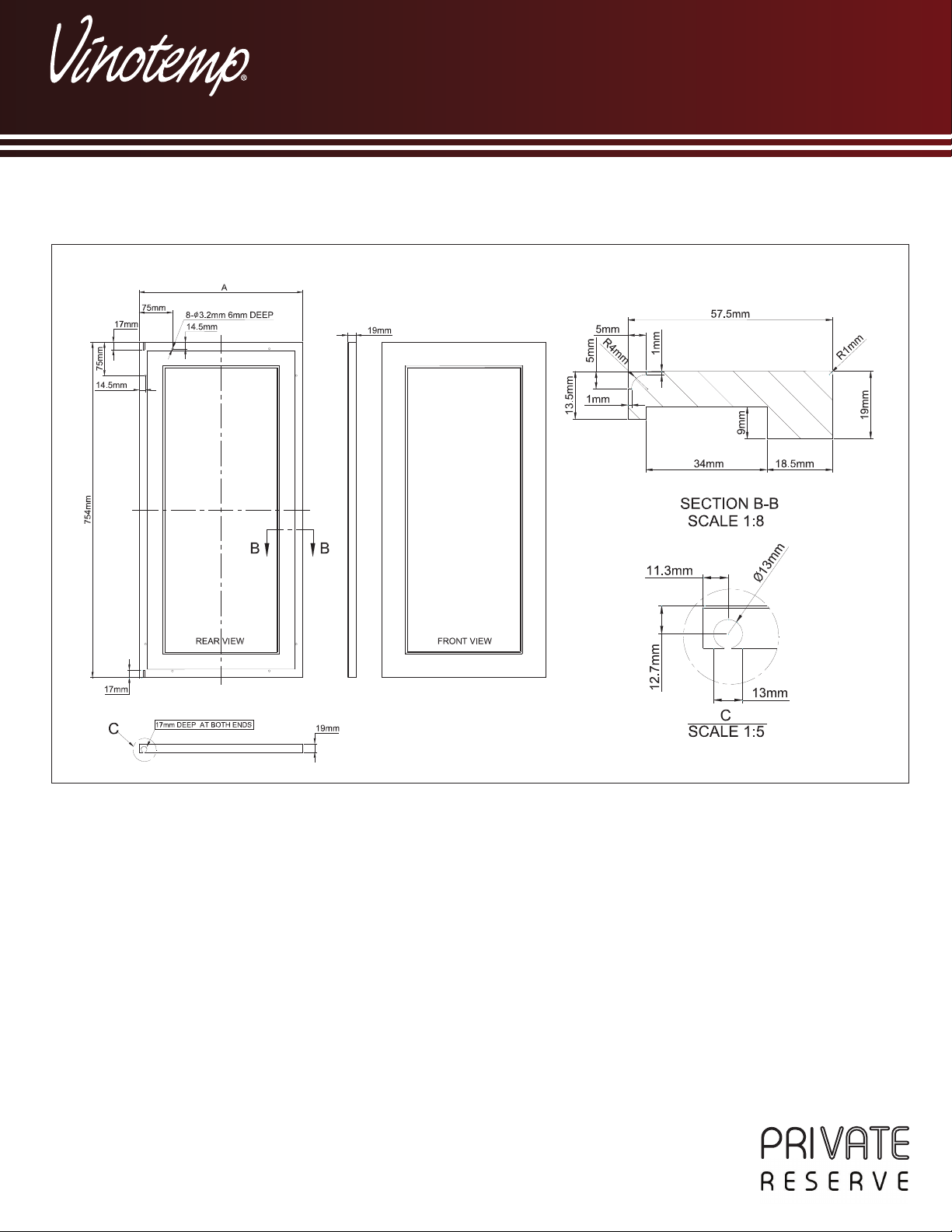

Wood Overlay Glass Panel Preparation
A
376 mm
732 S. Racetrack Road
Henderson, NV 89015
Phone: 1.800.777.8466
Fax: 1.310.886.3310
www.vinotemp.com
