INSTRUCTION MANUAL
FOR WINE COOLER
Thanks for buying our wine cooler, Hope our advanced product will give your wine a
different joyful taste. Before use, please read and follow all safety rules and
operating instructions.
2
WARNING!
IMPORTANT SAFETY INSTRUCTIONS
WARNING
To reduce the risk of fire, electrical shock,
or injury when using your appliance, follow
these basic precautions:
Read all instructions before using the Wine cooler.
DANGER or WARNING: Risk of child entrapment.
Child entrapment and suffocation are not problems of the past. Junked or abandoned
appliances are still dangerous . . . even if they will “just sit in the garage a few days”.
Before you throw away your old Wine cooler: Take off the door. Leave the shelves
in place so that children may not easily climb inside.
Never allow children to operate, play with, or crawl inside the appliance.
Never clean appliance parts with flammable fluids. The fumes can create a fire hazard
or explosion.
Do not store or use gasoline or any other flammable vapors and liquids in the vicinity of
this or any other appliance. The fumes can create a fire hazard or explosion. Do not
store explosive substances such as aerosol cans with a flammable propellant in this
appliance.
keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of
obstruction;
Do not use mechanical devices or other means to accelerate the defrosting process,
other than those Recommended by the manufacturer;
To avoid a hazard due to instability of the appliance, it must be fixed in accordance with
the instructions.
Do not damage the refrigerant circuit;
Do not use electrical appliances inside the food storage compartments of the appliance,
unless they are the type recommended by the manufacturer.
The refrigerant of these appliances are R600a , Flammable and explosive articles
should not be put in or near the cabinet, to avoid the fire or explode caused.
-Save these instructions-
To prevent damaging the door gasket, make sure to have the door all the way
opened when pulling shelves out of the rail compartment.
The appliance must be positioned so that the plug is accessible. Release the electric
cord. Move your cabinet to its final location. Do not move your Cabinet while
loaded with wine. You might distort the body. The wine cellar should be installed in
a suitable place in order to avoid Touching the compressor with the hand.
The appliance must be positioned so that the plug is accessible. Release the electric
This appliance can be used by children aged from 8 years and above and persons with
reduced physical, sensor and mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning use of the appliance in a
safe way and understand the hazards involved. Children shall not play with the
appliance. Cleaning and user maintenance shall not be made by children without
supervision.
Children should be supervised to ensure to ensure that they do not play with the
appliance.
If the supply cord is damaged, it must be replaced by manufacturer of its Service
agent or a similarly qualified person in order to avoid a hazard.
PLEASE DON’T TRY TO PLUG INTO OR EXTENSION THE CABLE IN ANY
CASE.
3
INSTALLATION INSTRUCTIONS
Before Using Your Wine cooler
Remove the exterior and interior packing.
Before connecting the Wine cooler to the power source, let it stand upright for
approximately 2 hours. This will reduce the possibility of a malfunction in the cooling
system from handling during transportation.
Clean the interior surface with lukewarm water using a soft cloth.
This appliance is intended to be used in household and similar applications such as
– staff kitchen areas in shops, offices and other working environments;
– farm houses and by clients in hotels, motels and other residential type
environments;
– bed and breakfast type environments;
– catering and similar non-retail applications.
When disposing your appliance, please choose an authorized disposal site.
Installation of Your Wine Cooler
This appliance is designed to be for free standing installation or built-in (fully
recessed) (Refer to sticker location the back of this appliance).
This appliance is intended to be used exclusively for the storage of wine.
Place your Wine cooler on a floor that is strong enough to support it when it is fully
loaded. To level your Wine cooler, adjust the front leveling leg at the bottom of the
Wine cooler.
This appliance is using flammability refrigerant. So never damage the cooling pipe
work during the transportation. Locate the Wine cooler away from direct sunlight and
sources of heat (stove, heater, radiator, etc.). Direct sunlight may affect the acrylic
coating and heat sources may increase electrical consumption. Extreme cold
ambient temperatures may also cause the unit not to perform properly.
Avoid locating the unit in moist areas.
Plug the Wine cooler into an exclusive, properly installed-grounded wall outlet. Do
not under any circumstances cut or remove the third (ground) prong from the power
cord. Any questions concerning power and/or grounding should be directed toward a
certified electrician or an authorized Products service center.
Attention
Store wine in sealed bottles;
Do not overload the cabinet;
Do not open the door unless necessary;
Do not cover shelves with aluminum foil or any other shelf material which may
prevent air circulation;
Should the Wine cooler be stored without use for long periods it is suggested, after a
careful cleaning, to leave the door ajar to allow air to circulate inside the cabinet in
order to avoid possible formations of condensation, mold or odors.
4
OPERATING YOUR WINE COOLER
Ambient Room Temperature Limits
This appliance is designed to operate in ambient temperatures specified by its temperature
class marked on the rating plate.
Class
Symbol
Ambient Temperatures range(℃)
Extended Temperate
SN
﹢10 to﹢32
Temperate
N
﹢16 to﹢32
Subtropical
ST
﹢16 to﹢38
Tropical
T
﹢16 to﹢43
The above temperatures may fluctuate depending on whether or not the interior bulb is ON
or OFF or whether the bottles are located on the upper/ lower section.
Vinobox
○
C
50 1T

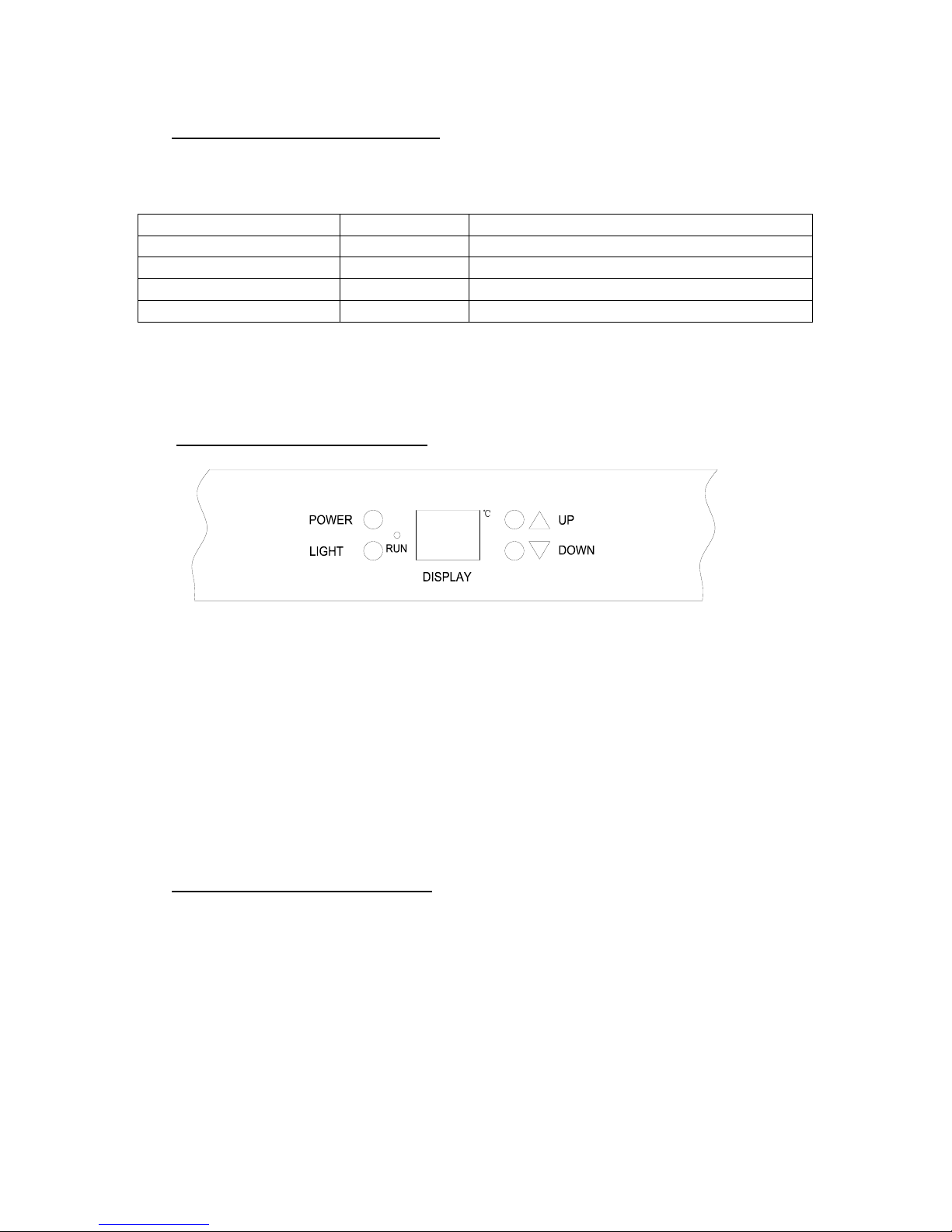

The controls of your wine Cooler
LIGHT
Control the interior light ON/OFF
RUN
When it’s ON, the cooling system runs.
POWER
control this appliance turn on/off. ( press and hold this buttons for approximately
3 seconds);
“UP” BUTTON
Press once the “UP” button, the temperature will raise 1 ℃.
“DOWN” BUTTON
Press once the “DOWN” button, the temperature will lower 1 ℃.
“DISPLAY”
Display the actual temperature indoor.
Setting The Temperature Controls
You can set the temperature as you desire by pushing the UP or DOWN button. When
you push the two buttons for the first time, the LED readout will show the original
temperature set at previous time.
The temperature that you desire to set will increase 1ºC if you push the UP button once,
on the contrary the temperature will decrease 1ºC if you push the DOWN button once.
To view the “set” temperature. (anytime) press and hold the corresponding button for
approximately 5 seconds, the “set” temperature will temporarily “flash” in the LED
display for 5 seconds.
The temperature setting can be adjusted from 5℃ to 18℃.
The temperature preset at the factory is 12℃.
5
Vinobox
○
C
50 2T

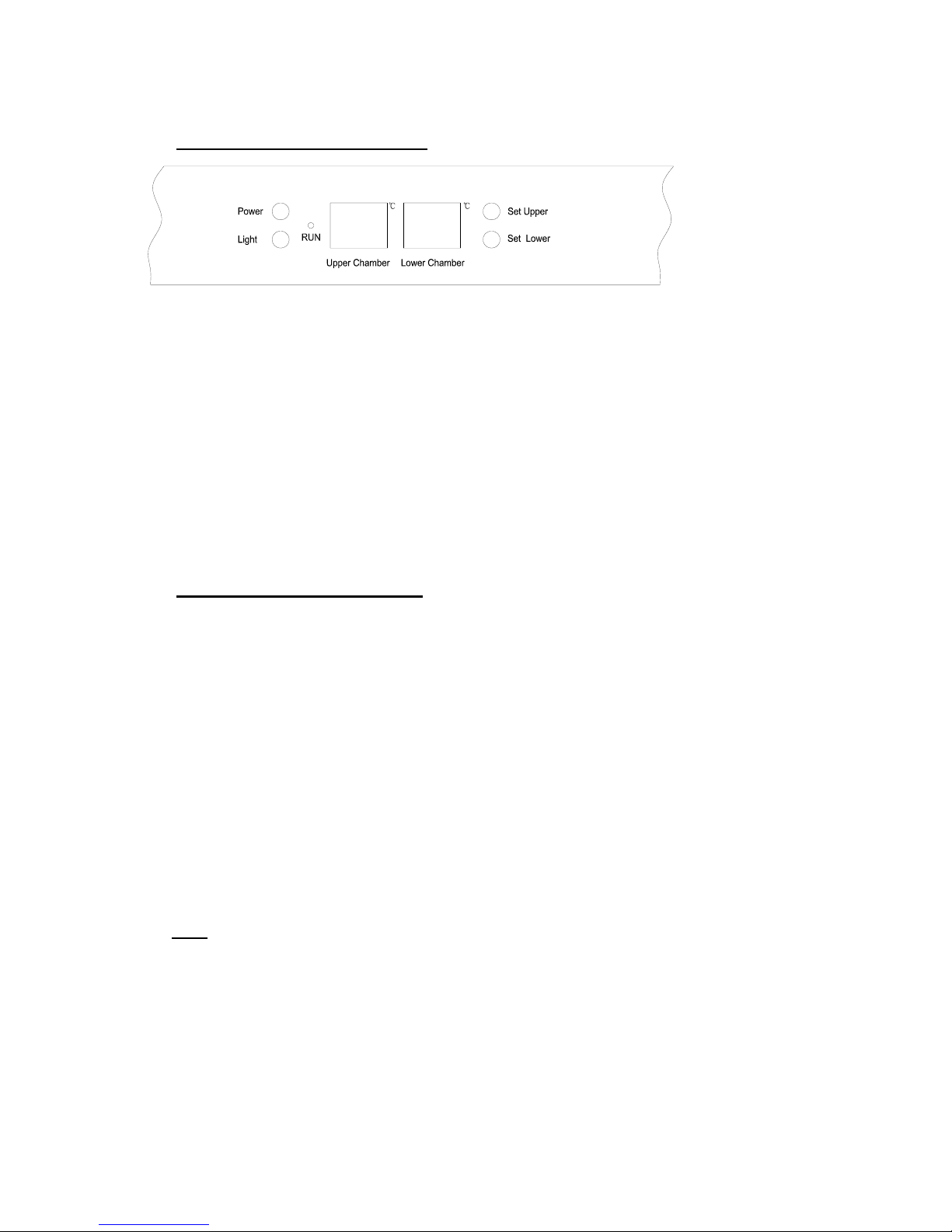

The controls of your wine Cooler
RUN
Indicator light illuminates to signify the cooling mode is currently in operation.
Light
To control the inner light turn on/off.
Power
To control this appliance turn on/off.
“Set Upper” Button
To set the temperature of the upper chamber.
“Set Lower” Button
To set the temperature of the lower chamber.
“Up chamber”
To shows the temperature of the up chamber.
“Lower chamber”
To shows the temperature of the lower chamber.
Setting the Temperature Control
Each cooling compartment of the wine cooler (upper & lower) is independently
controlled. To set the temperature:
Connect the power cord to a properly grounded outlet. In the event of a power
interruption, all previous temperature settings are automatically erased and each
compartment will default to a preset temperature setting of: 6℃ for upper compartment
and 12℃ for lower compartment.
Set the desired cooling temperature by pressing the buttons adjacent to the “set
upper/set lower” program. Each depression of the buttons will scroll through the
available temperature settings (for each compartment) in increments of 1 degree. The
temperature selected will flash in the LED display for approximately 5 seconds, then
revert back to display the temperature of the internal cabinet
Upper compartment: The temperature setting can be adjusted from 5℃ to 10℃.
Lower compartment: The temperature setting can be adjusted from 10℃ to 18℃.
To view the “set” temperature. (anytime) press and hold the corresponding button for
approximately 5 seconds, the “set” temperature will temporarily “flash” in the LED display
for 5 seconds.
Note
If the unit is unplugged, power lost, or turned off, you must wait 3 to 5 minutes before
restarting the unit. If you attempt to restart before this time delay, the Wine Cooler will
not start.
When you use the wine cooler for the first time or restart the wine cooler after having
been shut off for a long time, there could be a few degrees variance between the
temperature you select and the one indicated on the LED readout. This is normal and it
is due to the length of the activation time. Once the wine cooler is running for a few
hours everything will be back to normal.
6
Shelves
To prevent damaging the door gasket, make sure to have the door all the way opened
when pulling shelves out of the rail compartment.
For easy access to the storage content, you must pull the shelves approximately 1/3 out
of the rail compartment, however this unit was designed with a notch on each sides of
the shelf tracks to prevent bottles from falling.
When removing any of these shelves out of the rail compartment, To fit or remove the
shelf, tilt the shelf as per the diagram and simply pull out, or push in the shelf until it sits on
the support brackets securely.

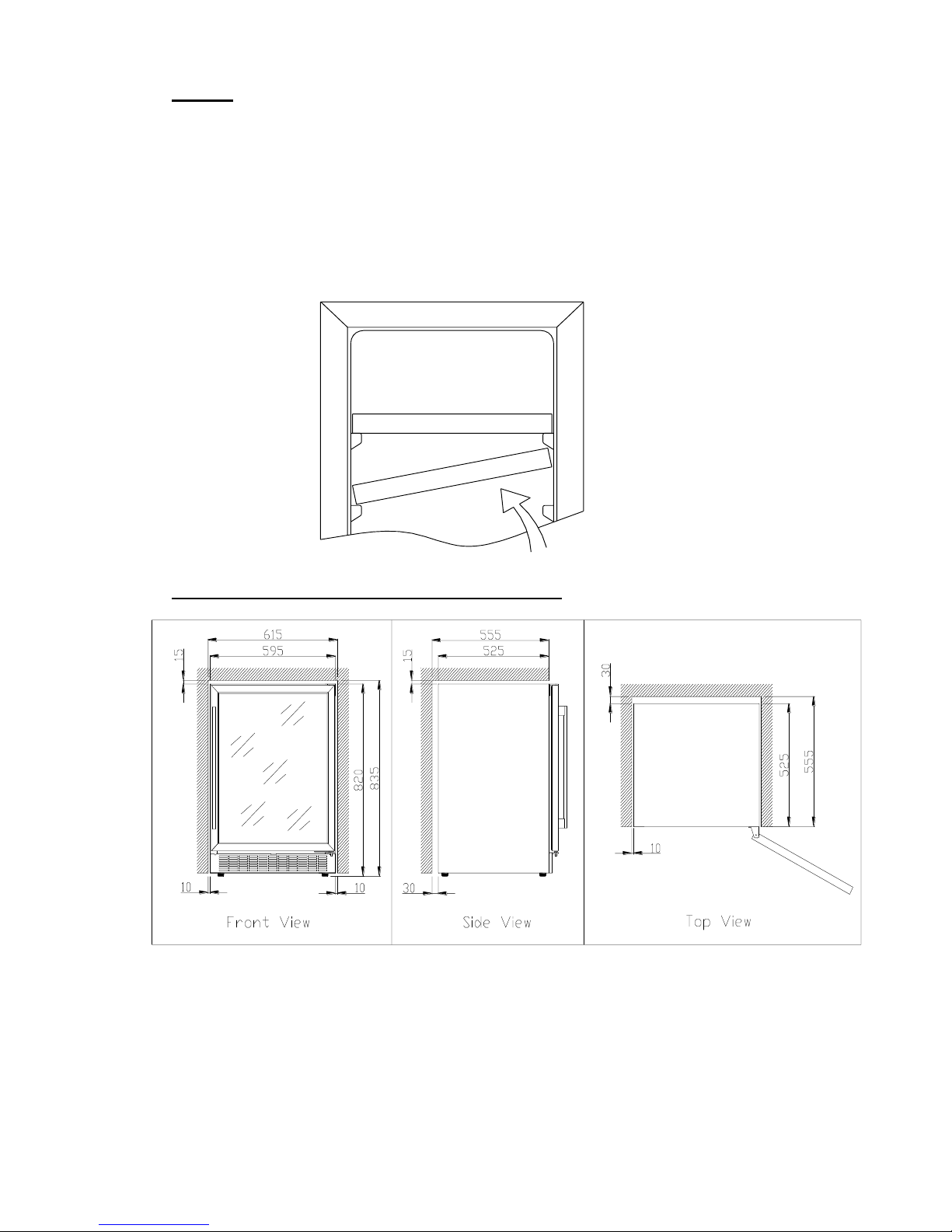

Installation specifications for built-in purposes
7
CARE AND MAINTENANCE
Cleaning Your Wine Cooler
Turn off the power, unplug the appliance, and remove all items including shelves and
rack.
Wash the inside surfaces with a warm water and baking soda solution. The solution
should be about 2 tablespoons of baking soda to a quart of water.
Wash the shelves with a mild detergent solution.
Wring excess water out of the sponge or cloth when cleaning area of the controls, or
any electrical parts.
Wash the outside cabinet with warm water and mild liquid detergent. Rinse well and
wipe dry with a clean soft cloth.
Power Failure
Most power failures are corrected within a few hours and should not affect the
temperature of your appliance if you minimize the number of times the door is
opened. If the power is going to be off for a longer period of time, you need to take
the proper steps to protect your contents.
Vacation Time
Short vacations: Leave the Wine Cooler operating during vacations of less than three
weeks.
Long vacations: If the appliance will not be used for several months, remove all items
and turn off the appliance. Clean and dry the interior thoroughly. To prevent odor
and mold growth, leave the door open slightly: blocking it open if necessary.
Moving Your Wine Cooler
Remove all items.
Securely tape down all loose items (shelves) inside your appliance.
Turn the adjustable leg up to the base to avoid damage.
Tape the door shut.
Be sure the appliance stays secure in the upright position during transportation. Also
protect outside of appliance with a blanket, or similar item.
Energy Saving Tips
The Wine Cooler should be located in the coolest area of the room, away from heat
producing appliances, and out of the direct sunlight.
8
PROBLEMS WITH YOUR WINE COOLER?
You can solve many common Wine Cooler problems easily, saving you the cost of a
possible service call. Try the suggestions below to see if you can solve the problem before
calling the servicer.
TROUBLESHOOTING GUIDE
PROBLEM
POSSIBLE CAUSE
Wine Cooler does not operate.
Not plugged in.
The appliance is turned off.
The circuit breaker tripped or a blown fuse.
Wine Cooler is not cold enough.
Check the temperature control setting.
External environment may require a higher
setting.
The door is opened too often.
The door is not closed completely.
The door gasket does not seal properly.
Turns on and off frequently.
The room temperature is hotter than normal.
A large amount of contents has been added
to the wine cooler.
The door is opened too often.
The door is not closed completely.
The temperature control is not set correctly.
The door gasket does not seal properly.
The light does not work.
Not plugged in.
The circuit breaker tripped or a blown fuse.
The bulb has burned out.
The light button is “OFF”.
Vibrations.
Check to assure that the Wine Cooler is
level.
The Wine Cooler seems to make too much
noise.
The rattling noise may come from the flow of
the refrigerant, which is normal.
As each cycle ends, you may hear gurgling
sounds caused by the flow of refrigerant in
your Wine Cooler.
Contraction and expansion of the inside
walls may cause popping and crackling
noises.
The Wine Cooler is not level.
The door will not close properly.
The Wine Cooler is not level.
The door was reversed and not properly
installed.
The gasket is dirty.
The shelves are out of position.
This marking indicates that this product should not be disposed with other household
wastes throughout the EU. To prevent possible harm to the environment or human health from
uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material
resources. To return your used device, please use the return and collection systems or contact
the retailer where the product was purchased. They can take this product for environmental safe
recycling.
Loading...
