Please read this manual carefully and follow all safety rules and
operating instructions before using the appliance.
PARTS AND FEATURES
INSTALL YOUR WINE COOLER
CHANGING THE LIGHT BULB
OPERATING YOUR WINE COOLER
CARE AND MAINTENANCE
MAINTENANCE
TROUBLE SHOOTING GUIDE
1
2-4
5
6
7-8
9
10-11
MODEL:Vinobox 28 GC
MODEL:Vinobox 12 GC
PARTS AND FEATURES
FLUSH BACK
DESIGN
REVERSIBLE DOOR
control PCB
VINYL COATED
SLIDE OUT
SHELVES
ADDITIONAL
SPACE FOR
LARGE BOTTLES
TEMPERED-GLASS
DOOR
ADJUSTABLE LEVELING LEG
1
INST
YOUR WINE COOLER
ALL
Before using your wine cooler
Keep 50 mm of space between the back of the appliance
and the wall and 100 mm between the side and the wall.
The appliance is only applied with power supply of single
phase alternating current of 220V~ 50 Hz.
It is advisable to install a fuse of 6 A in the circuit. Use a
special socket instead of a common one with other electric
appliance.
Do not lengthened the power cord or folded into coil during
operation. keep the power cord away from the compressor
because high surface temperature.
, remove the exterior, interior packing and any other thing.
±
±
E
N
2
INST ALL YOUR WINE COOLER
Avoid locating the appliance in moist areas. Too
much moisture in the air will cause its metal parts
rusty. Do not spray water to the appliance, this will
cause electriy shock.
Locate the wine cooler away from direct sunlight
and sources of heat(stove, heater, radiator,
etc.).Direct sunlight may affect the acrylic
coating and heat sources may increase electrical
consumption.
Place your wine cooler on a floor that is strong
enough to support the freezer when it is fully
loaded. Do not place the wine cooler on any soft
material such as foam plastic, etc. Do not place
anything that can make echo near the wine cooler.
To level your wine cooler, adjust the legs at the
front of the wine cooler.
3
INST ALL YOUR WINE COOLER

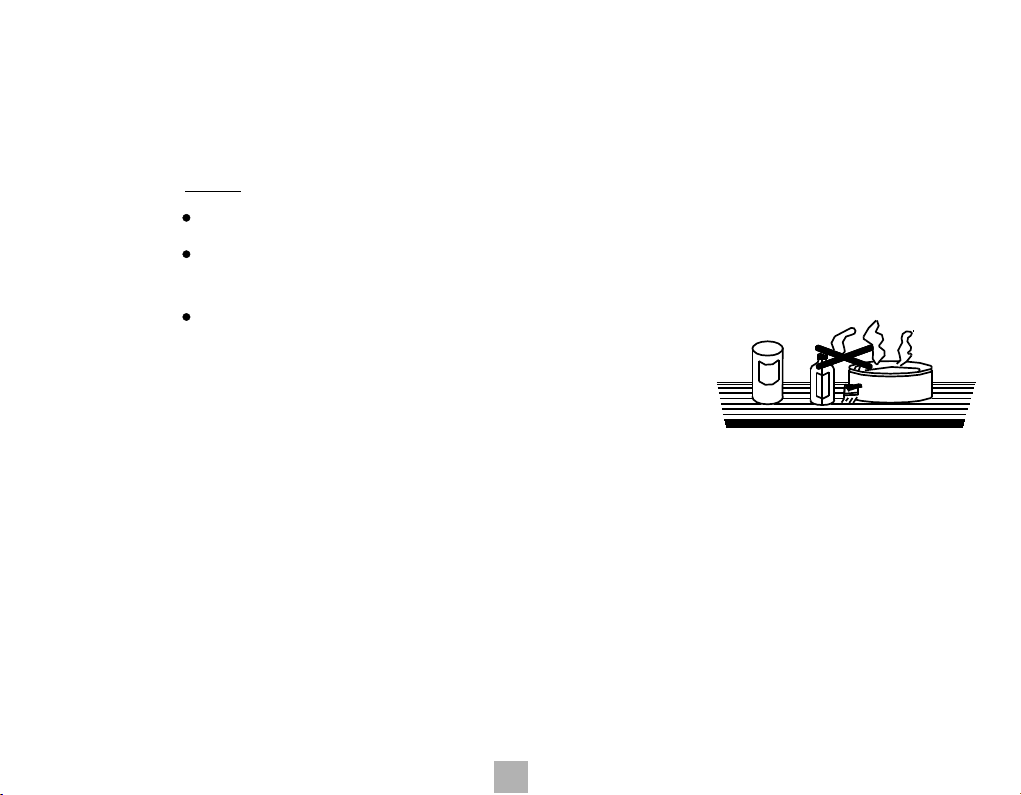

Keep your wine cooler away from any volatilizable or
combustibles such as gas, petrol, alcohol, lacquer
and banana oil, etc. The above-mentioned objects
can not be stored in the freezer.
Be sure the wine cooler stays in the upright position
during transportation.
。
4
5
4
Changing the Light Bulb
NOTE:
All parts removed must be saved to do the replacement of the light bulb.
Before removing the light bulb, either unplug the refrigerator or disconnect the
electricity leading into the refrigerator at the main power supply. Failure to do
so could result in electrical shock or personal injury.
Remove the light bulb cover by pulling the bottom end of the light bulb cove
4
gently.
Remove the tow screws
Replace the Pcb board.
Replace the light bulb cover .
1
2
1
Pcb board
2
Screws
3
Line
2
1
4
3
4
Bulb Cover
4
5
OPERATING YOUR WINE COOLER
Temperature Control
When the power is through, the product will begin cooling, the cooling temperature is 8 degree.
If you want to adjust temperature, you can press “ ” and “ ”. When press “ ” again,
temperature will rise 1 degree, press the “ ” temperature will decline 1 degree.
If you want to open product internal light, you just need to press “ ” one time. When you press
this button again, internal light will close in 10 minutes.
When compressor working more than 8 hours, compressor will stop working for 15 minutes,
during this time compressor will begin removing frost automatically.
Adjusting temperature range of produce is 5-20 degree.
If you want to cut off the power of product, please pull off the power plug.
6
CARE AND MAINTENANCE
Cleaning Your WINE COOLER
Before cleaning, pull off the power plup.
Clean your wine cooler once every two months.
Wash the inner and outer surface with a wet cloth.
If the wine cooler is very dirty, wash it with a neutral
detergent first, then use clean cloth to wipe it.
Care the Plastic Products.
Be careful to protect the sealing rubber bars ofthe
door, it should be kept clean at all of the time.
If the plastic parts in wine cooler remain
contaminated by oil(animal or vegetable) for a
long time, they willbe easily aged and cracked
and smell bad. so you should get the habit of
cleaning it regularly.
This part is used to hold liquid
and juice for fear they damage
door gasket. please wipe the
liquid and juice out if there are
any.
7
CARE AND MAINTENANCE
Notes
Be sure to unplug the wine cooler before cleaning.
Do not spray water on the wine cooler, the water will cause the metal partsrusty
and weaken the insulation.
The following things will damage the lacquer coat
and plastics, so you cannot use to clean. hot water,
diluent, petrol, alcohol, kerosene, washing powder,
cleanser, aikailinous detergent, acid, Chemical cloth,
etc.
8
This appliance is not intended for use by persons(including children) with
reduced physical, sensory or mental capabilities,or lack of experience
and knowledge, unless they have been given supervision or instruction
concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the
appliance.
WARNING:Do not damage the refrigerant circult,and keep ventilation
openings, in the appliance enclosure or in the built-in structure,clear of
obstruction .
Don't use mechanical devices or other means to accelerate the
defrosting process, other than those recommended by the manufacturer.
Don't use electrical appliances inside the food storage compartments of
the appliance, unless they are of the type recommended by the
manufacturer.
TROUBLESHOOTING GUIDE
You can solve many common freezer problems easily, saving you the cost of a possible
service call. Try the suggestions below to see if you can solve the problem before
calling the service.
Wine cooler does not
operate.
Wine cooler is too cold. The temperature control dial may be set too high
Wine cooler is not cold
enough.
The defrosting water
overflows inside the
wine cooler and onto
the floor.
A sound of flow can
be heard.
Not plugged in.
The circuit breaker tripped or blown fuse.
Check if
External environment may require a higher setting.
The door is opened too often.
The door is not closed completely.
The door gasket does not seal properly.
The wine cooler does not have the correct clearances.
Check if the drain pan is full.
It is the sound of refrigerant flowing, not a fault.
the temperature control setting is
too high.
10
TROUBLE SHOOTING GUIDE
the cabinet's side
panel heat up.
Condensation forms
on the outside of the
wine cooler.
The wine cooler
seems to make too
much noise.
In winter, the wine
cooler does not
operate.
In summer, the wine
cooler does not stop.
It result from the dissipation of the heat from inside
the cabinet, not mean something is wrong with the
wine cooler.
Condensation will form on the outside ofthe wine
cooler if it operate in moist areas,it does not a fault,
just wipe it dry.
The wine cooler is not level.
The wine cooler bump the wall.
The temperature control dial may be set
too high.
The temperature control dial may be set too low.
There is bad ventilating around the wine cooler.
The door is not closed completely
The door gasket does not seal properly.
The door is opened too often.
