Vinobox110 GC/PC
Vinobox168 GC/PC

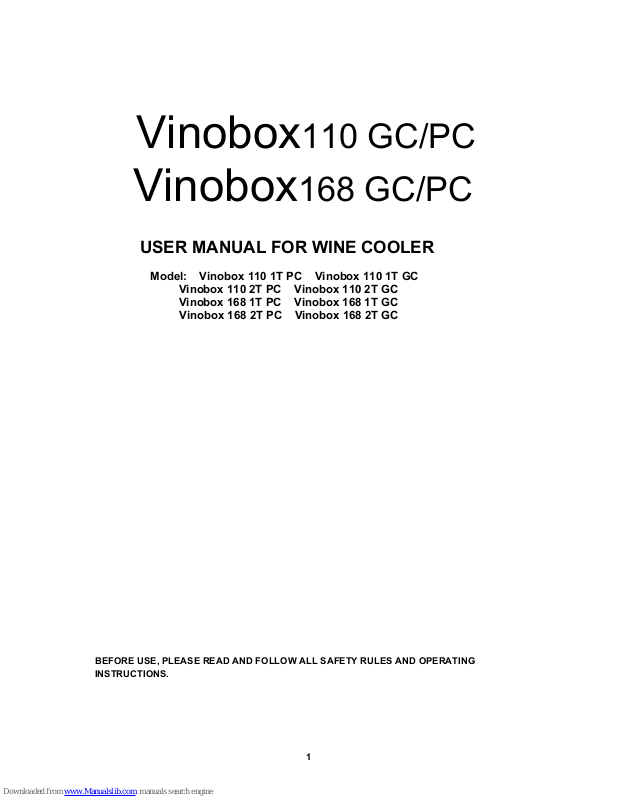

USER MANUAL FOR WINE COOLER
Model: Vinobox 110 1T PC Vinobox 110 1T GC
Vinobox 110 2T PC Vinobox 110 2T GC
Vinobox 168 1T PC Vinobox 168 1T GC
Vinobox 168 2T PC Vinobox 168 2T GC
BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES AND OPERATING
INSTRUCTIONS.
2
WARNING
IMPORTANT SAFETY INSTRUCTIONS
INSTALLATION INSTRUCTIONS
Before Using Your Wine Cooler
• Remove the exterior and interior packing.
• Before connecting the Wine Cooler to the power source, let it stand upright for approximately
2 hours. This will reduce the possibility of a malfunction in the cooling system from handling
during transportation.
• Clean the interior surface with lukewarm water using a soft cloth.
• When replace the illuminating lamp, please select the lamp which comply with the rated
power input of lamp according to the rating label. Shut off the power supply before replacing
the lamp.
• When disposing your appliance, please choose an authorized disposal site.
WARNING
To reduce the risk of fire, electrical shock, or
injury when using your appliance, follow
these basic precautions:
• Read all instructions before using the Wine cooler.
• DANGER or WARNING: Risk of child entrapment.
Child entrapment and suffocation are not problems of the past. Junked or abandoned
appliances are still dangerous . . . even if they will “just sit in the garage a few days”.
• Before you throw away your old Wine cooler: Take off the door. Leave the
shelves in place so that children may not easily climb inside.
• Never allow children to operate, play with, or crawl inside the appliance.
• Never clean appliance parts with flammable fluids. The fumes can create a fire
hazard or explosion.
• Do not store or use gasoline or any other flammable vapors and liquids in the vicinity
of this or any other appliance. The fumes can create a fire hazard or explosion.
-Save these instructions-
To prevent damaging the door gasket, make sure to have the door all the way opened
when pulling shelves out of the rail compartment.
The appliance must be positioned so that the plug is accessible.Release the electric cord.
Move your cabinet to its final location. Do not move your Cabinet while loaded with wine. You
might distort the body. The wine cooler should be installed in a suitable place in order to avoid
Touching the compressor with the hand.
If the supply cord is damaged, it must be replaced by manufacturer of its Service agent or a
similarly qualified person in order to avoid a hazard.
3
Installation of Your Wine Cooler
• This appliance is designed to be for free standing installation only.
• Place your Wine Cooler on a floor that is strong enough to support it when it is fully loaded.
To level your Wine Cooler, adjust the front leveling leg at the bottom of the Wine Cooler.
• Locate the Wine Cooler away from direct sunlight and sources of heat (stove, heater, radiator,
etc.). Direct sunlight may affect the acrylic coating and heat sources may increase electrical
consumption. Extreme cold ambient temperatures may also cause the unit not to perform
properly.
• Avoid locating the unit in moist areas.
• Plug the Wine Cooler into an exclusive, properly installed-grounded wall outlet. Do not under
any circumstances cut or remove the third (ground) prong from the power cord. Any questions
concerning power and/or grounding should be directed toward a certified electrician or an
authorized Products service center.
Attention
Store wine in sealed bottles.
Do not overload the cabinet.
Do not open the door unless necessary
Do not cover shelves with aluminum foil or any other shelf material which may prevent air
circulation.
Should the wine Cooler be stored without use for long periods it is suggested, after a careful
cleaning, to leave the door ajar to allow air to circulate inside the cabinet in order to avoid
possible formations of condensation, mold or odors.
Reversing the Door Swing of Your Appliance
This appliance has the capability of the door opening from either the left or right side. The unit is
delivered to you with the door opening from the left side.

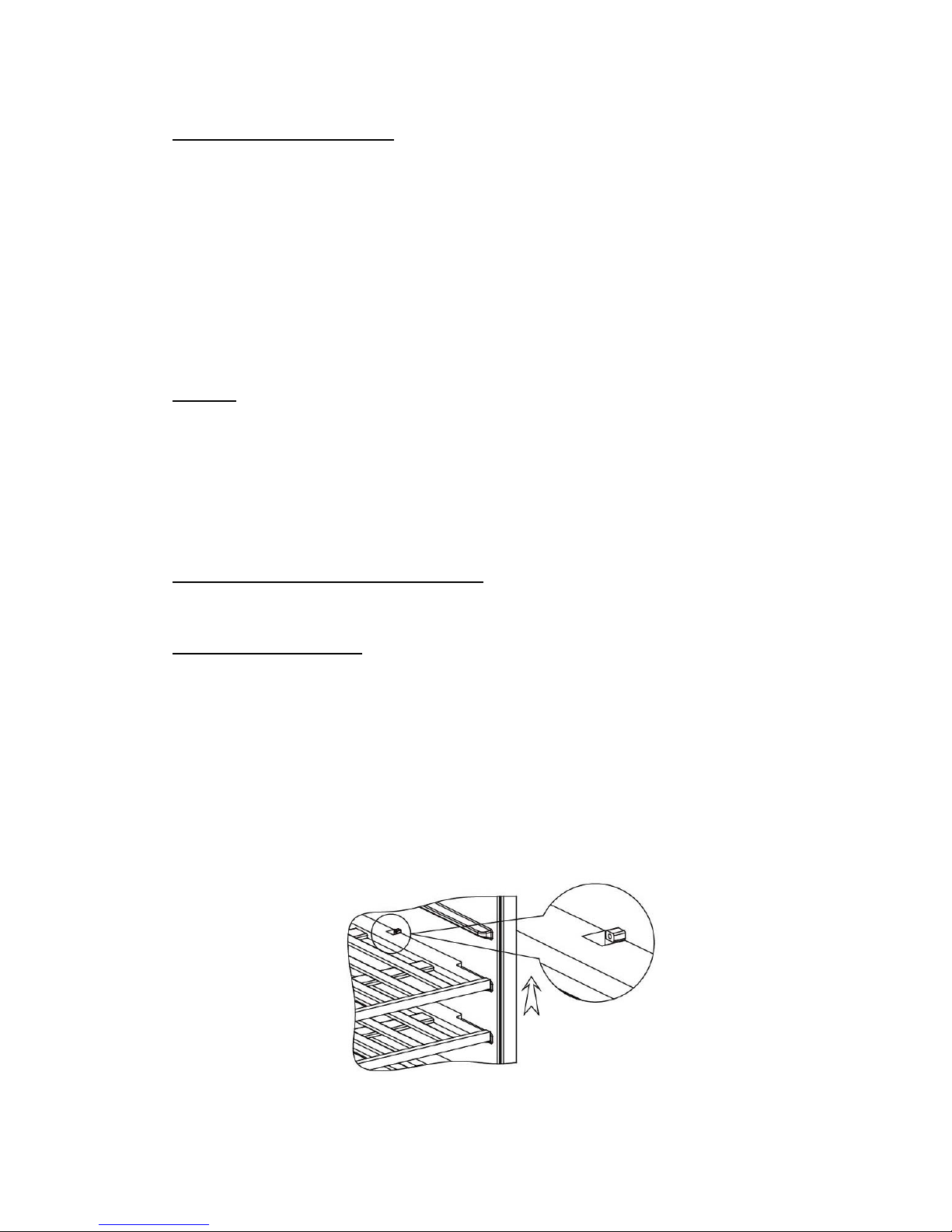

How to remove the Shelves
• To prevent damaging the door gasket, make sure to have the door all the way opened when
pulling the shelf out of the rail compartment.
• For easy access to the storage content, you must pull the shelf approximately 1/2 out of the rail
compartment, however this unit was designed with a plastic post on each sides of the shelf track
to prevent bottles from falling.
• When removing the shelf out of the inner rail, make sure to remove all items first. Then move the
shelf to the position where the notch of shelf is exactly under the plastic post and lift the shelf. In
order to replace the shelf, repeat steps described above in reverse.
OPERATING YOUR WINE COOLER
4
The Wine Cooler should be placed in where the ambient temperature is between 32-95 degrees
Fahrenheit(0-35℃). If the ambient temperature is above or below this range, the performance of the
unit may be affected. For example, placing your unit in extreme cold or hot conditions may cause
interior temperatures to fluctuate. The range of 5-18 may not be reached.
For Vinobox 110 1T PC Vinobox 110 1T GC Vinobox 168 1T PC Vinobox 168 1T GC
Recommended Temperatures for Chilling Wine.
Red Wines: 15-18℃ (58-64° F)
Dry/White Wines 9-14℃ (48-57° F)
Sparkling Wines 5- 8℃ (41-47° F)
The above temperatures may fluctuate depending on whether or not the interior bulb is ON or OFF or
whether the bottles are located on the upper/middle or lower section.

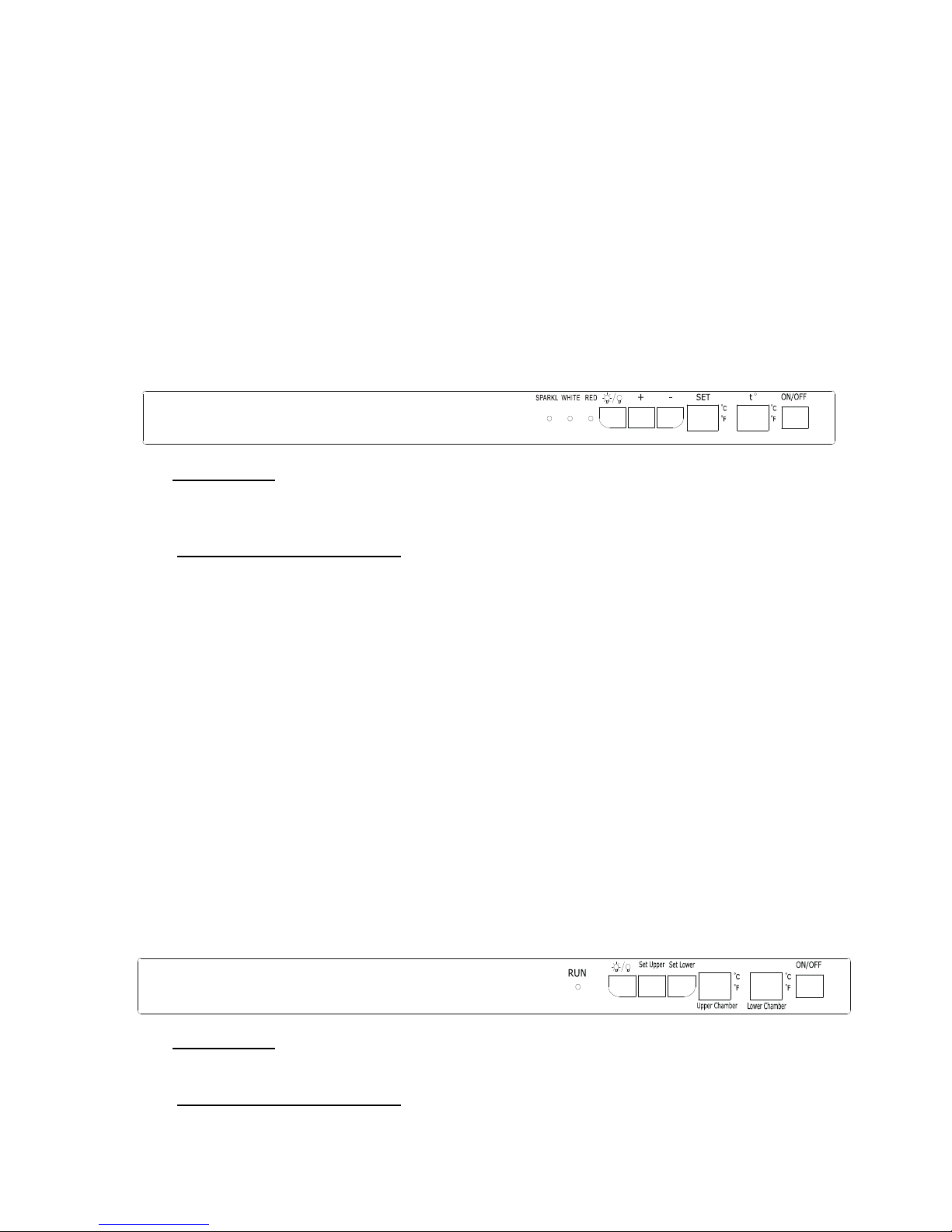

ON/OFF Power
To turn OFF the appliance, press the ON/OFF button. (Press and hold the button for approximately
2 seconds)
Setting the Temperature Control
• You can set the temperature as you desire by pushing the UP(+) or DOWN(-) button. When you
push the two buttons for the first time, the LED readout will show the original temperature set at
previous time (the temperature preset at the factory is 54ºF(12℃).
• The temperature that you desire to set will increase 1ºF or 1ºC if you push the UP(+) button once,
on the contrary the temperature will decrease 1ºF or 1ºC if you push the DOWN(-) button once.
• When you store mostly red wines, the temperature which you control by pushing the above two
buttons need to be set at between 58 to 64° F(15-18℃) and the LED lamp under “RED” will be lit
red.
• When you store mostly white wines, the temperature needs to be set at between 48 to 57° F(9-14
℃) and the LED lamp under “WHITE” will be lit green.
• When you store mostly sparkling wines, the temperature needs to be set at between 41 to 47° F
(5-8℃)and the LED lamp under “SPARKL” will be lit amber.
• You can select temperature display setting from Fahrenheit to Celsius degree by pushing the
UP(+) and DOWN(-) button at the same time for 5 seconds. Fahrenheit and Celsius degrees
indicator will appear in green color in the “SET” window. (Due to different market, some units can
only display Fahrenheit or Celsius)
For Vinobox 110 2T PC Vinobox 110 2T GC Vinobox 168 2T PC Vinobox 168 2T GC
The above temperatures may fluctuate depending on whether or not the interior bulb is ON or OFF or
whether the bottles are located on the upper/middle or lower section.
ON/OFF Power
To turn ON/OFF the appliance, press the ON/OFF button. (Press and hold the button for
approximately 2 seconds)
Setting the Temperature Control
5
• Each cooling compartment of the Beverage Coolers (upper & lower) is independently controlled.
To set the temperature:
Connect the power cord to a properly grounded outlet. In the event of a power interruption, all
previous temperature settings are automatically erased and each compartment will default to a
preset temperature setting of: 6℃ (43℉) for upper compartment and 12℃(54℉) for lower
compartment.
Set the desired cooling temperature by pressing the buttons adjacent to the “set upper/set lower”
program. Each depression of the buttons will scroll through the available temperature settings (for
each compartment) in increments of 1 degree. The temperature selected will flash in the LED
display for approximately 5 seconds, then revert back to display the temperature of the internal
cabinet
Upper compartment: The temperature setting can be adjusted from 5 to 12 (41 to 54).
Lower compartment: The temperature setting can be adjusted from 12 to 18 (54 to 64).
To view the “set” temperature. (anytime) press and hold the corresponding button for
approximately 5 seconds, the “set” temperature will temporarily “flash” in the LED display for 5
seconds.
• This unit has the option to display temperatures in either Celsius or Fahrenheit. To change the
setting, press and hold both buttons (Set Upper/Set Lower) simultaneously for approximately 5
seconds, a prompt (beep) will sound and the blue pilot light adjacent to the C or F mode
illuminates. (Due to different market, some units can only display Fahrenheit or Celsius)
NOTE:
• If the unit is unplugged, power lost, or turned off, you must wait 3 to 5 minutes before restarting
the unit. If you attempt to restart before this time delay, the Wine Cooler will not start.
• When you use the wine cooler for the first time or restart the wine cooler after having been shut
off for a long time, there could be a few degrees variance between the temperature you select
and the one indicated on the LED readout. This is normal and it is due to the length of the
activation time. Once the wine cooler is running for a few hours everything will be back to
normal.
Interior Light
You can turn the interior light ON or OFF by pushing the button marked with the “bulb” symbol .
Door Lock
Your unit is provided with a lock and key combination.
The keys are located inside the plastic bag that contains the User’s Guide. Insert the key into the lock
and turn it counterclockwise to unlock the door. To lock the door do the reverse operation making
sure metal pin is engaged completely. Remove the key and place it in a secure place for safekeeping.
CARE AND MAINTENANCE
6

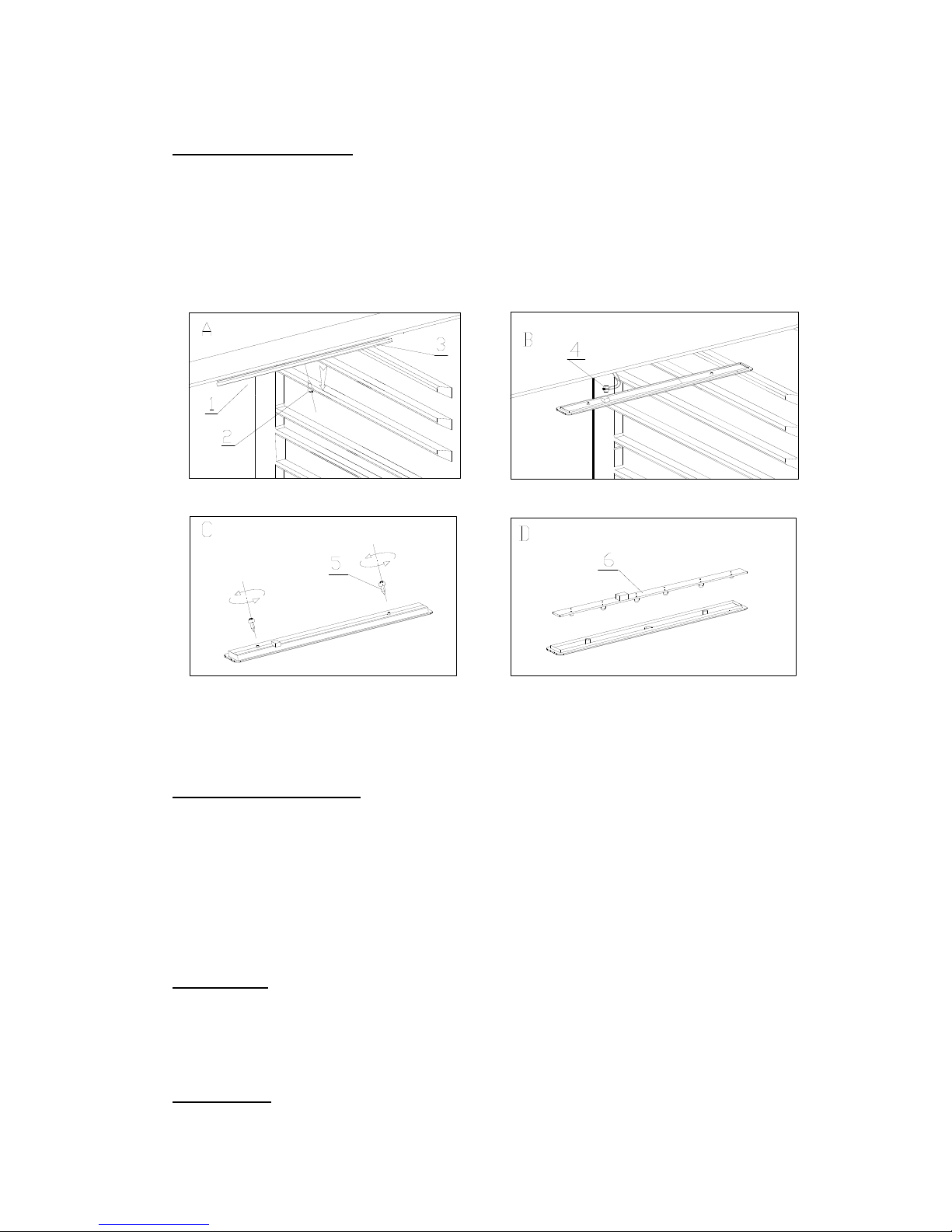

Replacing Your LED Light
• Please remove 2 the top shelves. (Attention: LED light is covered by electrical box.)
• Please take out lock screw by “+” type head screwdriver first, then take out the light cover.
(Fig.A)
• Please pull out Housing 4 from 6 of LED light board. (Fig. B)
• Please take out 2pcs of screw 5 by “+” type head screwdriver. (Fig.C)
• Please pull out LED light board 6 from light cover. (Fig.D)
• Please replace new LED light according above method.
1. Inner liner 3. Lamp cover 5. Screws
2. Lock screws 4. Housing 6. LED light
Cleaning Your Wine Cooler
• Turn off the power, unplug the appliance, and remove all items including shelves and rack.
• Wash the inside surfaces with a warm water and baking soda solution. The solution should be
about 2 tablespoons of baking soda to a quart of water.
• Wash the shelves with a mild detergent solution.
• Wring excess water out of the sponge or cloth when cleaning area of the controls, or any
electrical parts.
• Wash the outside cabinet with warm water and mild liquid detergent. Rinse well and wipe dry
with a clean soft cloth.
Power Failure
• Most power failures are corrected within a few hours and should not affect the temperature of
your appliance if you minimize the number of times the door is opened. If the power is going to be
off for a longer period of time, you need to take the proper steps to protect your contents.
Vacation Time
• Short vacations: Leave the Wine Cooler operating during vacations of less than three weeks.
7
• Long vacations: If the appliance will not be used for several months, remove all items and turn
off the appliance. Clean and dry the interior thoroughly. To prevent odor and mold growth, leave
the door open slightly: blocking it open if necessary.
Moving Your Wine Cooler
• Remove all items.
• Securely tape down all loose items (shelves) inside your appliance.
• Turn the adjustable leg up to the base to avoid damage.
• Tape the door shut.
• Be sure the appliance stays secure in the upright position during transportation. Also protect
outside of appliance with a blanket, or similar item.
Energy Saving Tips
• The Wine Cooler should be located in the coolest area of the room, away from heat producing
appliances, and out of the direct sunlight.
8
PROBLEMS WITH YOUR WINE COOLER?
You can solve many common Wine Cooler problems easily, saving you the cost of a possible service
call. Try the suggestions below to see if you can solve the problem before calling the servicer.
TROUBLESHOOTING GUIDE
PROBLEM
POSSIBLE CAUSE
Wine Cooler does not operate.
Not plugged in.
The appliance is turned off.
The circuit breaker tripped or a blown fuse.
Wine Cooler is not cold enough.
Check the temperature control setting.
External environment may require a higher
setting.
The door is opened too often.
The door is not closed completely.
The door gasket does not seal properly.
Turns on and off frequently.
The room temperature is hotter than normal.
A large amount of contents has been added to
the wine cooler.
The door is opened too often.
The door is not closed completely.
The temperature control is not set correctly.
The door gasket does not seal properly.
The light does not work.
Not plugged in.
The circuit breaker tripped or a blown fuse.
The bulb has burned out.
The light button is “OFF”.
Vibrations.
Check to assure that the Wine Cooler is level.
The Wine Cooler seems to make too much noise.
The rattling noise may come from the flow of the
refrigerant, which is normal.
As each cycle ends, you may hear gurgling
sounds caused by the flow of refrigerant in your
Wine Cooler.
Contraction and expansion of the inside walls
may cause popping and crackling noises.
The Wine Cooler is not level.
The door will not close properly.
The Wine Cooler is not level.
The door was reversed and not properly installed.
The gasket is dirty.
The shelves are out of position.
Loading...
