BSWT-6T Loudspeaker Installation Guide
Item Number
Item Name
Description
2131000137
BSWT-6T
On-wall speaker, 100V, IP65, 6W

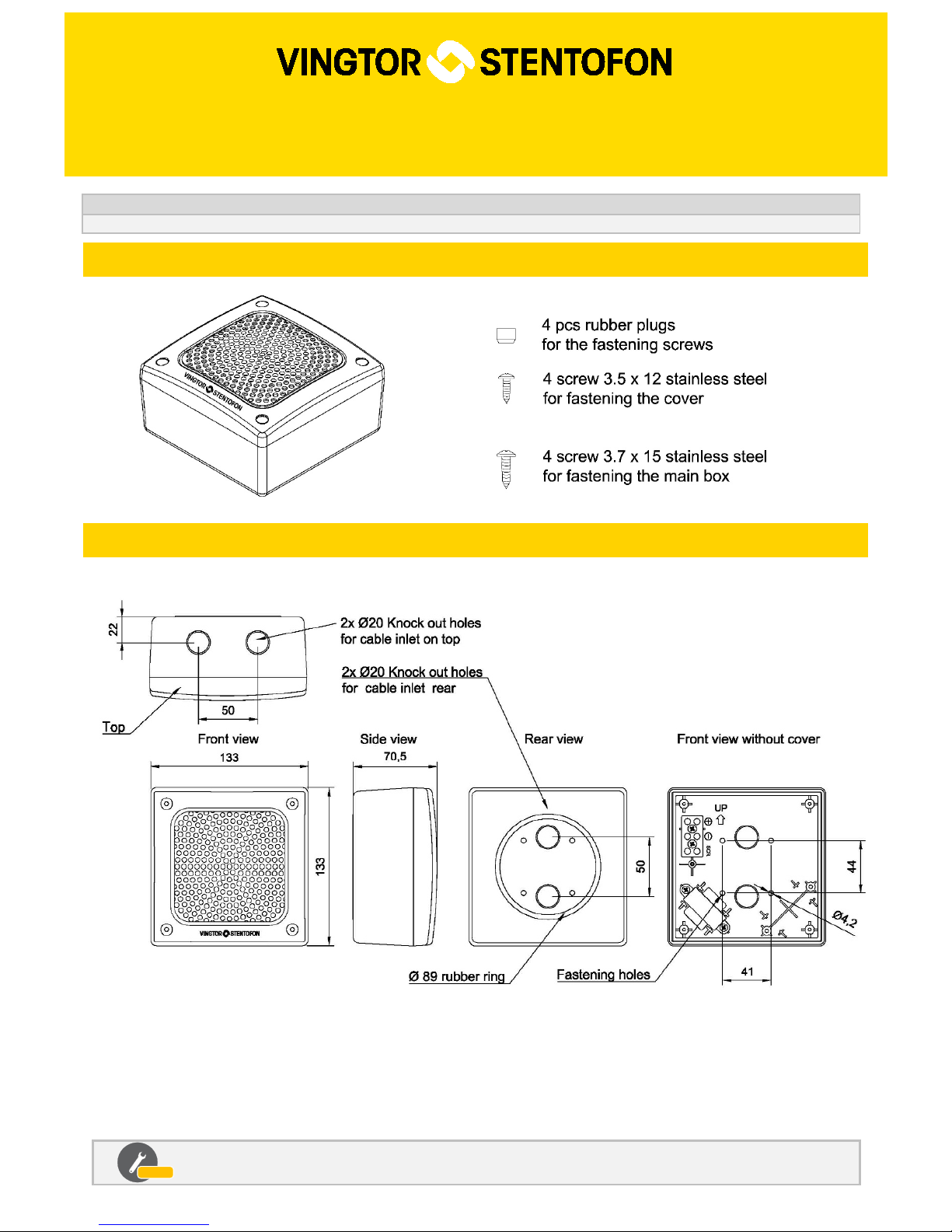

1 Contents of the delivery
2 Dimension and mounting details
• Fastening the rear box to wall or ceiling by using the 4x sc rew 3.7 x 15mm stainless steel
or other suitable screws depending on the material of the surface
• Lead the cable through the cable inlet side by knocking out the two Ø20 holes or by using cable gland type
M20. Cable inlet rear by knocking out two Ø20
If
the rear cable inlet is used and the loudspeaker is mount ed on plane surface, the rubber ring
will replace cable glands
Observe
3 Connections
Do
not open loudspeaker when energized
•
Cable requirements:
Approved ships cable 0,5 – 1,5 mm
2
with outer braided tinned copper screen. The screens m ust be
interconnected and grounded in a common ground point in the central unit only
• Optional tapping 1.5W, 3W or 6W by changing cable position as shown in the figure. C is common
The loudspeaker must be connected to a 100V voltage
amplifier line
4 Specifications
Dimensions 133 x 133 x 70,5 mm
Woofer size 3"
Mounting Screw Mount
IP rating IP-65
Operating temperature range
-20℃ ~ + 70℃
Rated Power 6W
Max Power 10W
Power tapping 6-3-1.5W
Sensitivity SPL 1W / 1m 89dB
Sensitivity Max SPL, 1m 97dB
Rated Voltage 100V
Frequency range 150 ~ 16 KHZ
Termination Ceramic Terminal Block With thermal fuse
Color White RAL 9010
Weight 0.68 kg
Observe
Observe
A100K11809
