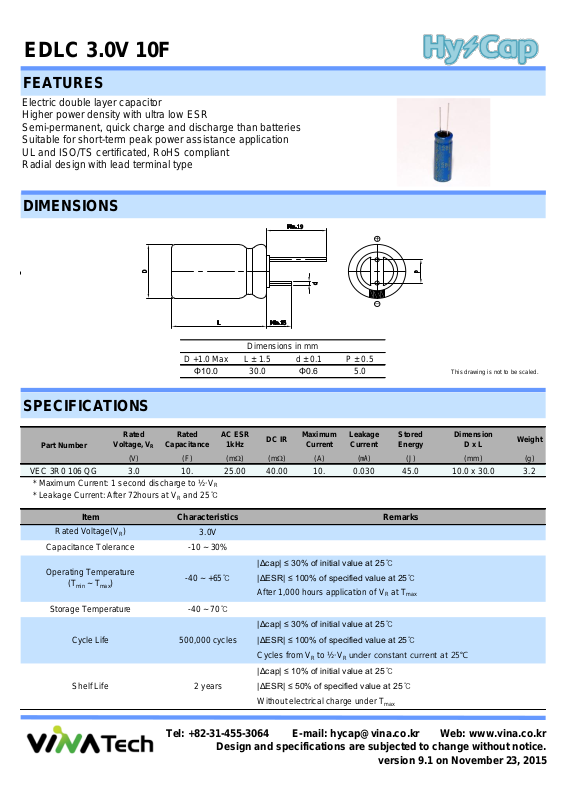

EDLC 3.0V 10F
FEATURES
Electric double layer capacitor
Higher power density with ultra low ESR
Semi-permanent, quick charge and discharge than batteries
Suitable for short-term peak power assistance application
UL and ISO/TS certificated, RoHS compliant
Radial design with lead terminal type

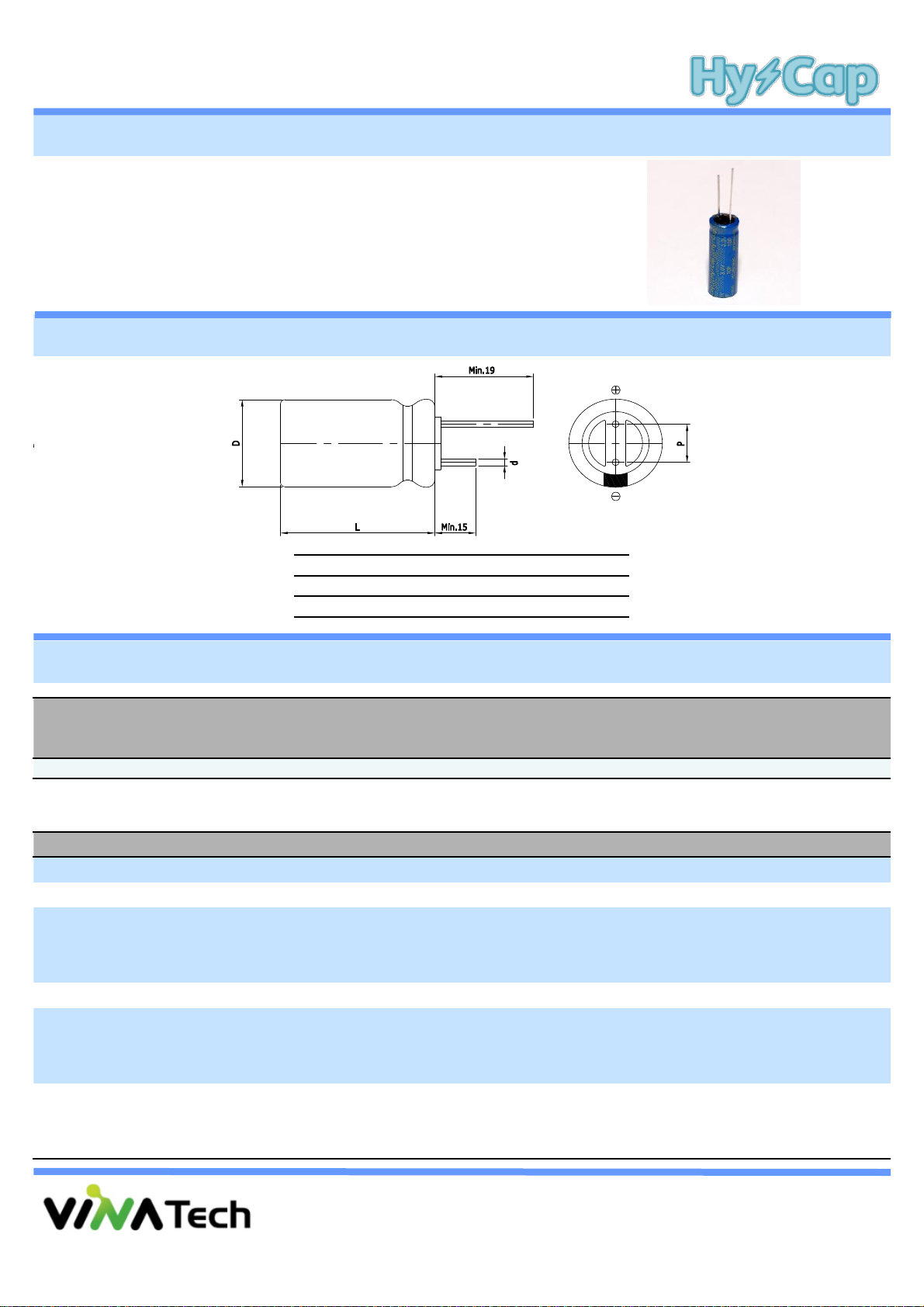

DIMENSIONS
SPECIFICATIONS
Rated
Voltage, V
R
Rated
Capacitance
AC ESR
1kHz
DC IR
Maximum
Current
Leakage
Current
Stored
Energy
Dimension
D x L
Weight
(V) (F)
(mΩ) (mΩ)
(A)
(㎃)
(J) (mm) (g)
VEC 3R0 106 QG 3.0 10. 25.00 40.00 10. 0.030 45.0 10.0 x 30.0 3.2
* Maximum Current: 1 second discharge to ½ ·V
R
Without electrical charge under T
max
Cycle Life
500,000 cycles
|Δcap| ≤ 30% of initial value at 25℃
|ΔESR| ≤ 100% of specified value at 25℃
Cycles from VR to ½ ·V
R
under constant current at 25℃
Shelf Life
2 years
|Δcap| ≤ 10% of initial value at 25℃
|ΔESR| ≤ 50% of specified value at 25℃
Operating Temperature
(T
min
~ T
max
)
-40 ~ +65℃
|Δcap| ≤ 30% of initial value at 25℃
|ΔESR| ≤ 100% of specified value at 25℃
After 1,000 hours application of VR at T
max
Storage Temperature
-40 ~ 70℃
Capacitance Tolerance
-10 ~ 30%
Item
Characteristics
Remarks
Rated Voltage(VR)
3.0V
Part Number
* Leakage Current: After 72hours at VR and 25℃
2015-12-01 09:00:03
Tel: +82-31-455-3064 E-mail: [email protected] Web: www.vina.co.kr
Design and specifications are subjected to change without notice.
version 9.1 on November 23, 2015
This drawing is not to be scaled.
Dimensions in mm Dimensions in mm
D +1.0 Max L ± 1.5 d ± 0.1 P ± 0.5
Φ10.0 30.0 Φ0.6 5.0
