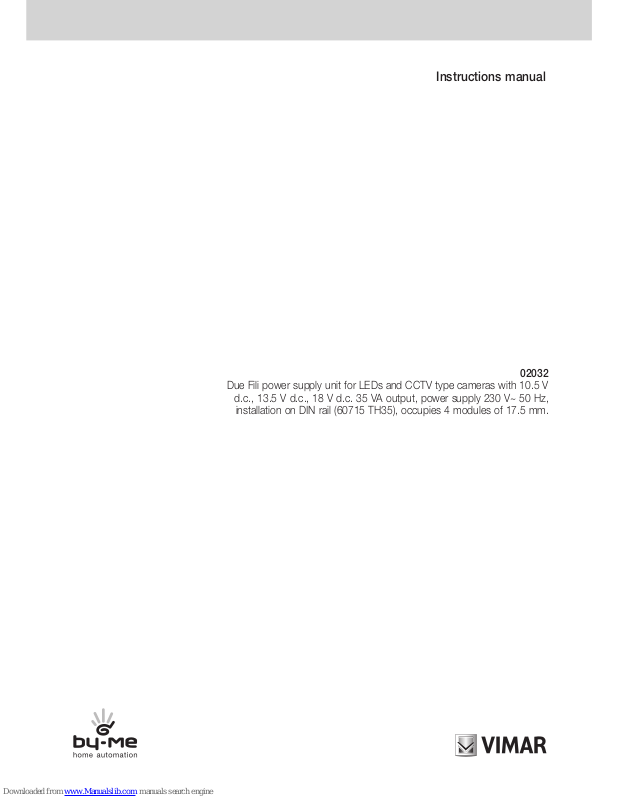

02032
Due Fili power supply unit for LEDs and CCTV type cameras with 10.5 V
d.c., 13.5 V d.c., 18 V d.c. 35 VA output, power supply 230 V~ 50 Hz,
installation on DIN rail (60715 TH35), occupies 4 modules of 17.5 mm.
Instructions manual
2
1. DESCRIPTION
Art. 02032 is a programmable power supply unit for surface or panel mounting with omega DIN bar size 4 modules. It is equipped with an input (+I), an
output (+U) and terminals (A,B,C,D) that, appropriately connected together, determine different voltages at the output.
The power supply unit is used for:
1- Parallel video door entry unit power supply
2- Power supply of video camera and video distributors
3- Video amplifier power supply
2. CHARACTERISTICS
• Power supply voltage 230Va.c. 50Hz
• Maximum input power: 35VA
• Protection of the primary winding of the transformer: PTC SIEMENS TYPE C860.
• Protection of the internal electronics and shorting on the outputs: PTC SIEMENS TYPE C945
3. CONNECTIONS
A-B= 18 V d.c. not stabilized with piloting 0.8A, intermittent cycle 90 sec ON 90 sec OFF
A-B-C = 13.5 V d.c. stabilized with piloting 250mA, intermittent cycle 90 sec ON 90 sec OFF
A-B-D = 10.5 V d.c. stabilized with piloting 250mA, intermittent cycle 90 sec ON 90 sec OFF
B-C = 13.5 V d.c. stabilized (always) 250mA, continuous cycle
B-D = 10.5 V d.c. stabilized (always) 250mA, continuous cycle
Fig. 1
Fig. 2
Fig. 3
Fig. 4
Fig. 5
Description - Characteristics - Connections
3
4.1 POWER SUPPLY OF VIDEO DOOR ENTRY UNITS IN PARALLEL (INTERMITTENT SERVICE)
The power supply unit must be inserted in the video door entry system to switch on two or more video door entry units simultaneously: the first monitor
must be connected directly to the system’s power supply unit, all the subsequent ones must each be powered by a power unit Art. 02032.
Make the connection as in the diagram representing the connection of just the conductors + and - ; then complete the connections following the diagram
supplied with the power units Art. 6580, 6581 and 6680, bearing in mind that, to switch on 2 or more video door entry units simultaneously it is sufficient
to connect in parallel the terminals no. 8 (call) of the standard monitors or the terminals 6E of the Sound System series monitors, etc.
Input voltage: +I - , 10 to 20Vd.c.
Output voltage: +U - , 18Vd.c. 0.8A not stabilized
N.B. Make a bridge between the terminals A and B.
4. CONNECTION DIAGRAMS
The following diagrams illustrate some examples of the main applications using the power supply unit 02032.
Connection Diagrams
6
1
3
2
4
5
11
8
7
9
10
V
14
13
M
14
6
2
1
3
4
5
10
8
7
9
11
13
V
M
14
6
2
1
5
4
3
10
9
7
8
13
12 12 12
11
M
V
oppure
CN2
6E
6S
6P
6
7
AU
2
3
5
CN1
CN1
M
+A
CH
+D
-
+
V2
V3
M
V1
1
CH
6
6P
6S
AU
3
5
6E
1
2
CN1
7
CN2
V3
+
+D
-
+A
V1
M
M
V2
CH
6
6S
6P
AU
3
6E
5
2
1
7
CN1 CN2
V3
+
-
+D
+A
V1
V2
M
M
V3
7
2
1
3
5
4
6
11
9
8
10
12
13
V1
M
V2
V3V3
7
2
1
3
5
4
6
11
9
8
10
12
13
7
2
1
3
5
4
6
11
9
8
10
12
13
V1
M
V2
V1
M
V2
-
+U +I BCA D
PRI
123CH-+SV
+
123
-
SV
CH +-
65
PRI
+U-+I ABC D
V
V
PRI
-
+U +I A B DC
CHV-+
6V5
POWER SUPPLY
ART. 02032
NETWORK
MONITOR
GIOTTO series
5600 series
5601 series
5604 series
6300 series
6500 series
Max 2 monitor
Art. 6300
Art. 6301
Art. 6303
NETWORK
POWER SUPPLY
ART. 02032
TO THE OTHER MONITORS
TO THE OTHER MONITORS
TO POWER SUPPLY
Art. 6580 - 6581 - 6680
TO POWER SUPPLY
Art. 6580 - 6581 - 6680
20550 + 01961
01951 - 01953
4
Connection Diagrams
4.2 VIDEO DISTRIBUTOR POWER SUPPLY (INTERMITTENT SERVICE)
The power supply unit is inserted in the video door entry system together with the video distributor Art. 5556/004 to share the video signal of a video camera
over a number of pillars (or a number of buildings). In this case the power supply unit delivers stabilized voltage with the command of the central power unit
Art. 6580-6581- 6680.
Input voltage: +I - , 5 to 13 Vd.c.
Output voltage: +U - , 10.5Vd.c. 0.25A stabilized and protected against shorting.
N.B. Make a bridge between the terminals A, B and D.
MONITOR TERMINAL
BLOCKS
NETWORK
POWER SUPPLY
ART. 02032
TO THE VIDEO CAMERA
TO THE POWER SUPPLY
ART. 6580 - 6581 - 6680
DISTRIBUTOR
ART. 5556/004
1st 2nd 3rd 4th pillar
5
4.3 POWER SUPPLY OF VIDEO CAMERAS ASSIGNED TO CCTV
The power supply unit is used in CCTV systems to power video cameras operating at 12Vd.c. The power unit always delivers 0.25A.
POWER SUPPLY
ART. 02032
RETE
VIDEO CAMERA
ART. 5000
ART. 5020-5A20-5B20
ART. 5A10-5B10-5C10
NETWORK
MONITOR TVCC
PRI
D+U-BAC+I
+
-
-
Vi
Vu
OFF
ON
75 Ohm
BNC - VIDEO
VIDEO
CAMERA
Art. 5AL6
Art. 5BL6
MONITOR TVCC
NETWORK
NETWORK
POWER SUPPLY
ART. 02032
Connection Diagrams
6
4.4 VIDEO DISTRIBUTOR POWER SUPPLY (INTERMITTENT SERVICE)
The power supply unit designed for this function can provide a voltage of 13Vd.c. 0.25A stabilized and protected against shorting.
The diagram shows the connection of the video signal amplifier Art.5559 in a CCTV system.
Input voltage: +I - , 0 V
Output voltage: +U - , + 13.5Vd.c. 0.25A stabilized and protected against shorting.
N.B. Make a bridge between the terminals B and C
VIDEO CAMERA
ART. 5000
ART. 5020-5A20-5B20
ART. 5A10-5B10-5C10
NETWORK
AMPLIFIER
ART. 5559
MONITOR TVCC
POWER SUPPLY
ART. 02032
NETWORK
Connection Diagrams
7
Installation Rules - Standard Compliance
5. INSTALLATION RULES
Installation should be carried out in compliance with the current regulations
regarding the installation of electrical systems in the country where the products
are installed.
- Carefully read the instructions given in this document as they provide important information on safety for installation, use and maintenance.
- After removing the packing, check the integrity of the appliance. The packing materials (plastic bags, foam polystyrene, etc.) must not be left within the reach of
children as they are a potential source of hazard. The system must be made in compliance with current CEI standards.
- Above the power supply there must be a bipolar circuit breaker that is easily accessible with a contact gap of at least 3mm.
- Before connecting the appliance make sure that the panel data conform to the data of the distribution network.
- This appliance must be intended solely for the use for which it has been expressly designed, and that is for audio door entry systems. Any other use is to be con-
sider improper and therefore dangerous. The manufacturer cannot be held liable for any damage deriving from improper, erroneous or unreasonable use.
- Warning: To prevent injury, this appliance must be secured to the floor/wall in accordance with the installation instructions.
- Before doing any cleaning or maintenance, disconnect the appliance from the electric supply mains, turning the system switch off.
- In the event of faulty and/or poor operation of the appliance, cut off the power supply with the switch and do not tamper with it. For any repair work, contact only
a technical support centre authorised by the manufacturer. Failure to comply with the above may jeopardise the safety of the appliance.
- Do not obstruct the openings or slots for ventilation or heat disposal and do not subject the appliance to drips or splashes of water.
- The installer must make sure the user information is given on the derived appliances.
- All the appliances forming the system must be intended solely for the use for
which they have been designed.
- The installer must make sure the user information is given on the appliances.
- This document must always remain enclosed with the system’s documentation.
6. STANDARD COMPLIANCE
EMC directive
Standards EN 61000-6-1, EN 61000-6-3
49400241A0 EN 02 1204
VIMAR - Marostica - Italy
Viale Vicenza, 14
I 36063 Marostica VI
Tel. +39 0424 488 600
Fax +39 0424 488 188
http://www.vimar.eu
