Villa ProCtrl iTop Twist User Manual

-14
Villa Dutch Design
Sluiskade 134 9581 JR Musselkanaal Netherlands
by ProCtrl
iTop Twist Aluminum iPad Floor Stand User Manual
1
DESCRIPTION
User Manual
Date
06-14-2012
PROJECT
iTop Twist Floor Stand
PROJECT NO.
09051201
DRAWN BY
T.Koops
by ProCtrl
Villa Dutch Design
by ProCtrl
Villa Dutch Design
by ProCtrl
-14
Villa Dutch Design
Sluiskade 134 9581 JR Musselkanaal Netherlands
by ProCtrl
Thank you for purchasing this iTop Twist Floor Stand for the iPad2 and new iPad by Villa ProCtrl.
High design, functionality and quality were top of mind when developing this product, as we did not make any concessions in its construction and our choice of materials.
This iPad Stand is made out of high grade Aluminum and DuPont Corian, the solid non-porous material approved for use in specialized environments (including laboratories and hospitals) and high-traffic places. Most importantly, Corian is easy to clean and small surface damage can be sanded out. The frame and support structure is made out of Alumimum, adding to the overall look, while increasing its weight for increased stability.
Reducing the environmental impact has also been a key factor in the development and production of this product. All of the materials used can be recycled, including all paper and the carton, that comply with the international FSC standards.
We are confident that you will enjoy this product and will appreciate our attention to detail.
Thank you for taking the time to read this manual. We recommend that you keep it for future reference.
The Villa ProCtrl team
Important Safety Instructions:
For your own safety, please read the following important instructions carefully in their entirety, before assembling the stand -
1. Read and follow these instructions fully.
2. Keep these instructions.
3. Heed all warnings.
4. Clean only as instructed in this manual.
5. Protect the USB cord from being walked on or pinched or from getting stuck into the stand. 6 Use this stand only with the Apple iPad version 2 or new iPad
7. While we take great care to remove all of the sharp edges from the Aluminum components, please be careful when handling.
8. Avoid injury when moving the stand, as it is heavy.
9. While the stand has been designed for maximum stability, please place it on a level and solid surface, in a location that minimizes the possibility of it being accidentally tipped over. In cases where this is a distinct possibility, please bolt the stand to the floor or a floor­board [Order the option for having 4 holes drilled into the Stainless Steel base plate].
10. The stand is for indoor use only!

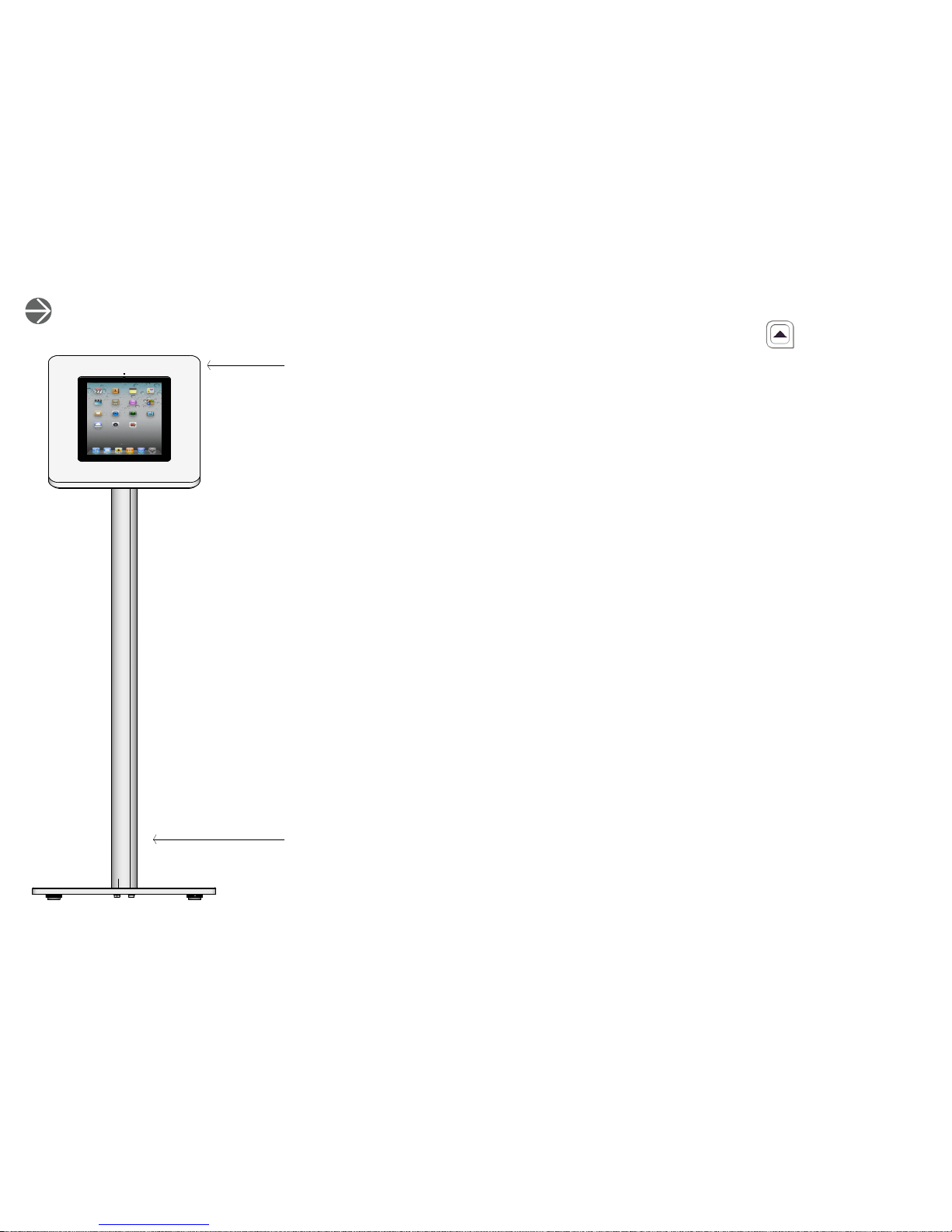

Introduction
2
-14
Villa Dutch Design
Sluiskade 134 9581 JR Musselkanaal Netherlands
by ProCtrl
Anchor disk
Allen Keys 3 mm for M5 5 mm for M6
Parts
4 x felt self adhesive pads
(4x) M6 washer
3
Column

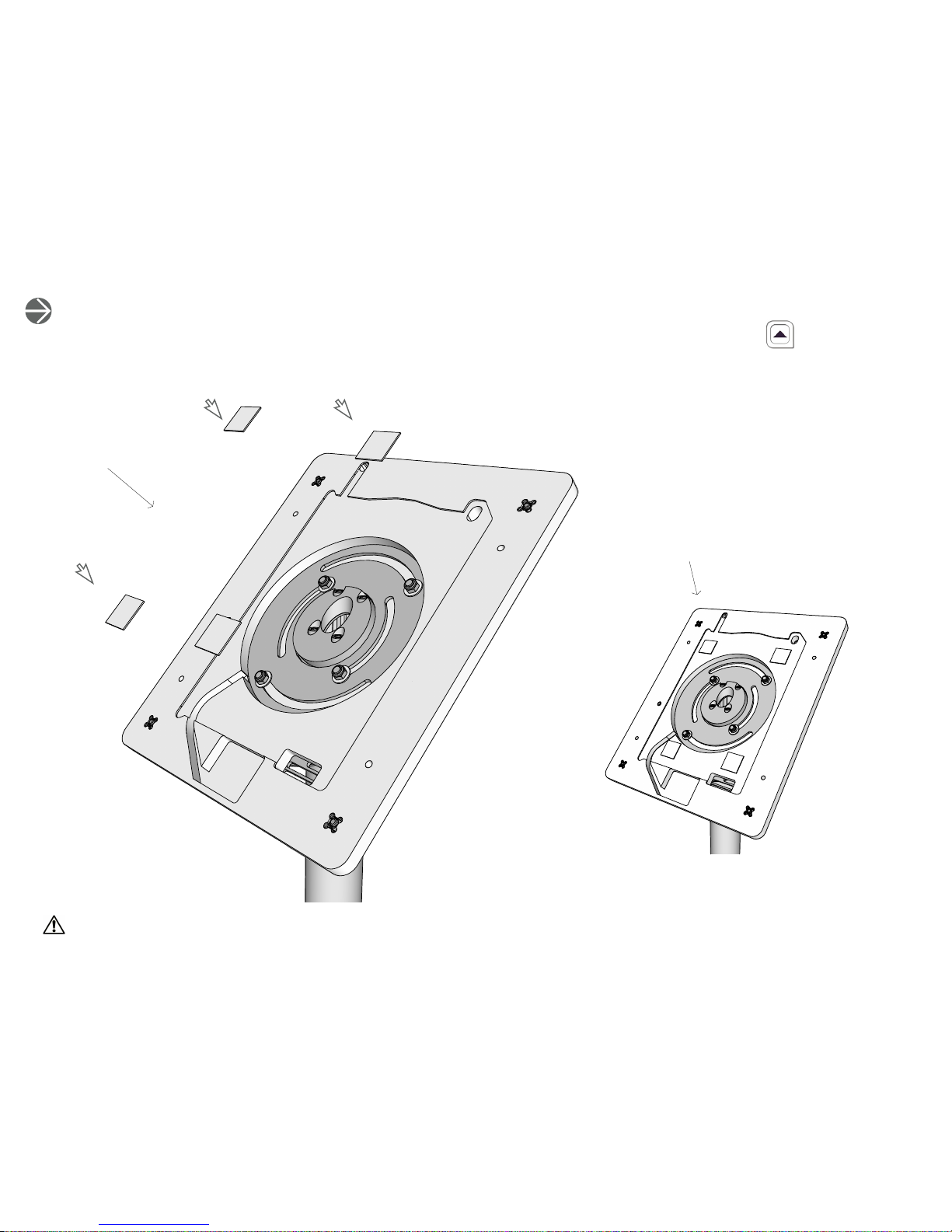

Rotation assembly
iPad bottom shell
(4 x) felt feet holder/insert
iPad top shell
Base plate

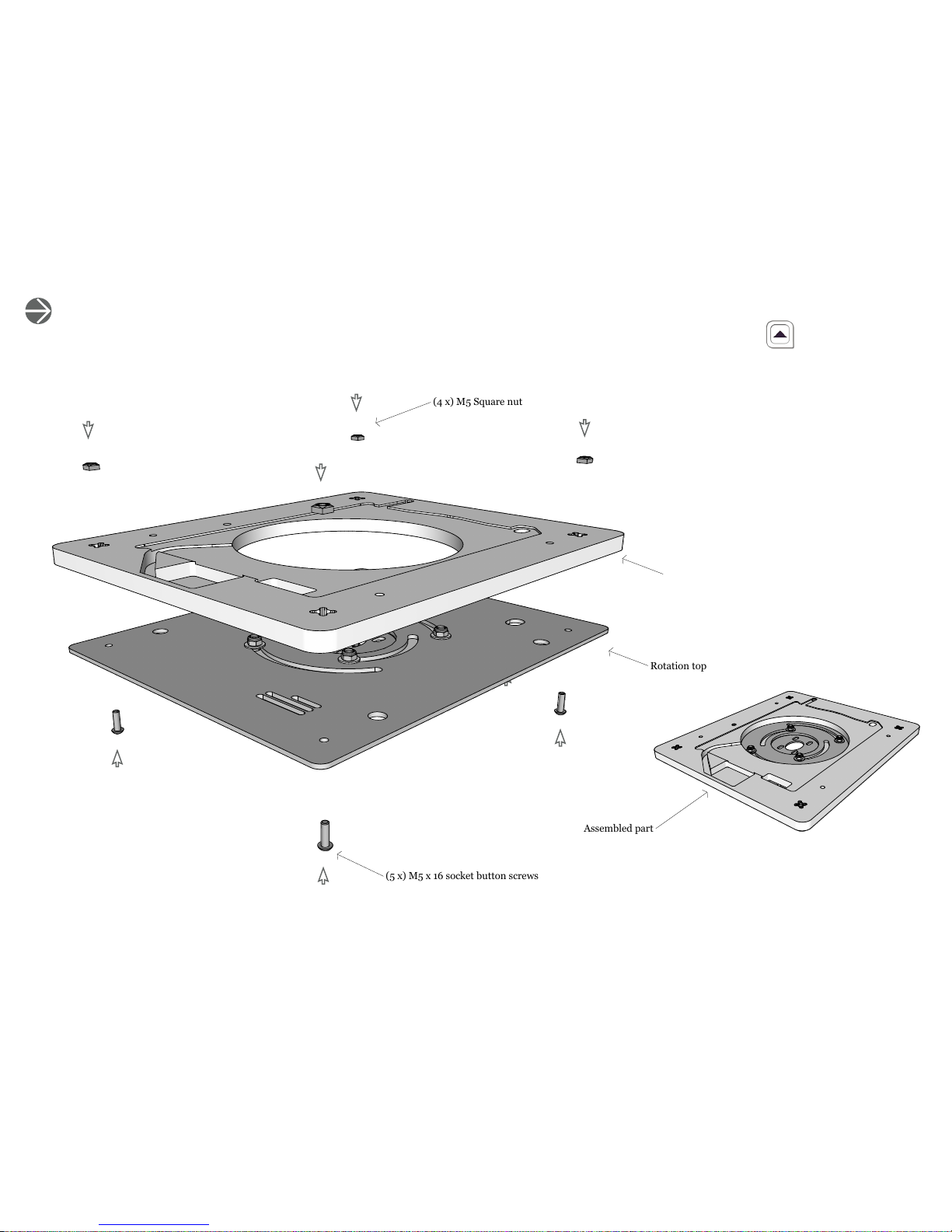

(9 x) M5 x .8 - 16 button head cap screw 18-8SS
(8 x) M6 x 1 30 mm socket head capscrew 18-8 SS (4 x) M5 x square nut
1
1
1
One of these parts will be included depending on chosen model.
-14
Villa Dutch Design
Sluiskade 134 9581 JR Musselkanaal Netherlands
by ProCtrl
Protective foil under site
Base plate or Base plate with M6 holes
Felt Feet holder placement
- Place a self adhesive feet holder on each corner as shown.
- Align felt inserts as shown and press tightly into feet holder.
4
-14
Villa Dutch Design
Sluiskade 134 9581 JR Musselkanaal Netherlands
by ProCtrl

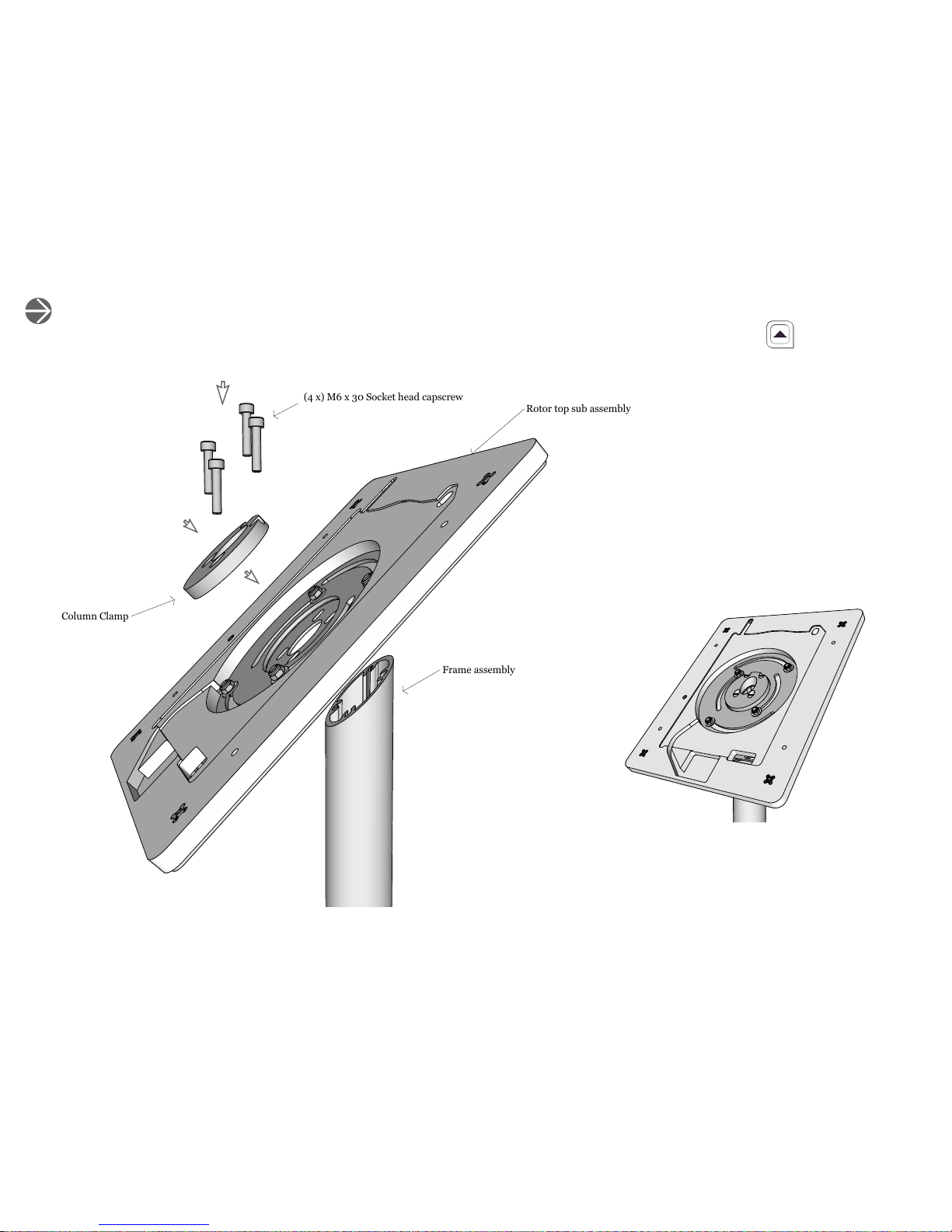

(4 x) M6 x 30 Socket head capscrew
(4x) M6 Washer
Column
- Base plate
- Base plate with M6 holes
Frame assembly
- Align parts as shown and tighten (4x) M6 x 16 socket button screws with Allen key
5
