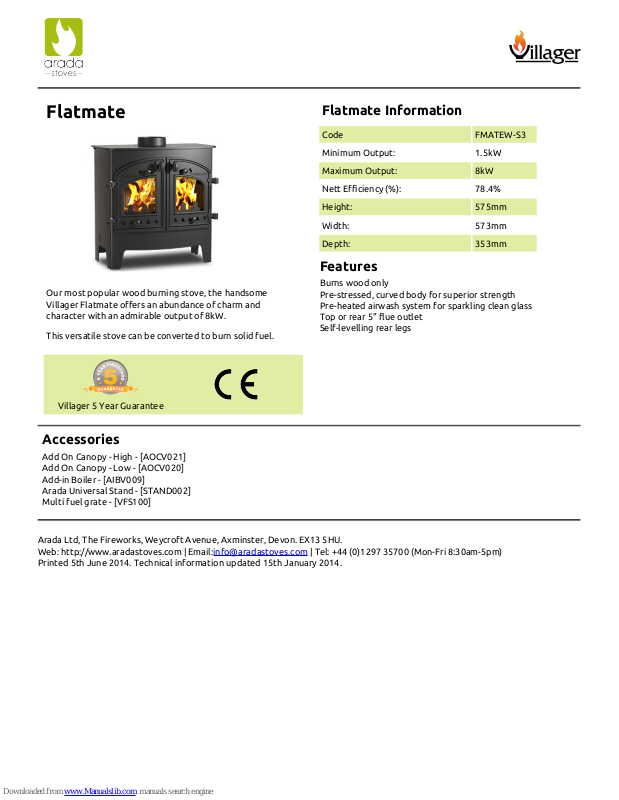

Villager FMATEW-S3 Technical Information
Flatmate
Our most popular wood burning stove, the handsome
Villager Flatmate offers an abundance of charm and
character with an admirable output of 8kW.
This versatile stove can be converted to burn solid fuel.
Villager 5 Year Guarantee
Flatmate Information
Code FMATEW-S3
Minimum Output: 1.5kW
Maximum Output: 8kW
Nett Efficiency (%): 78.4%
Height: 575mm
Width: 573mm
Depth: 353mm
Features
Burns wood only
Pre-stressed, curved body for superior strength
Pre-heated airwash system for sparkling clean glass
Top or rear 5" flue outlet
Self-levelling rear legs
Accessories
Add On Canopy - High - [AOCV021]
Add On Canopy - Low - [AOCV020]
Add-in Boiler - [AIBV009]
Arada Universal Stand - [STAND002]
Multi fuel grate - [VFS100]
Arada Ltd, The Fireworks, Weycroft Avenue, Axminster, Devon. EX13 5HU.
Web: http://www.aradastoves.com | Email:info@aradastoves.com | Tel: +44 (0)1297 35700 (Mon-Fri 8:30am-5pm)
Printed 5th June 2014. Technical information updated 15th January 2014.
Flatmate - Technical Information
Code FMATEW-S3
Minimum Output: 1.5kW
Maximum Output: 8kW
Nett Efficiency: 78.4 %
Height: 575mm
Width: 573mm
Depth: 353mm
Height to Centre of Rear Flue: 460mm
Height of Add On Low Canopy: 180mm
Height of Add On High Canopy: 260mm
Added Height When on Stand: 200mm
Depth of Back to Centre of Top Flue: 110mm
Flue Diameter: 127mm
Suitable for 12mm Hearth: No
Hearth Temperature: 79.9°C
Suitable for Direct Air Supply Kit: No
Weight Packed: 67kg
Ideal Log Length: 400mm
Minimum Distance To Combustibles
To Rear of Stove 800 mm
To Sides of Stove 600 mm
Boiler Tapping Measurements
Distance A 479 mm
Distance B 372 mm
Distance C 303 mm
Add In Boiler Tapping Measurements.
Rear view example shown. Not to scale.
