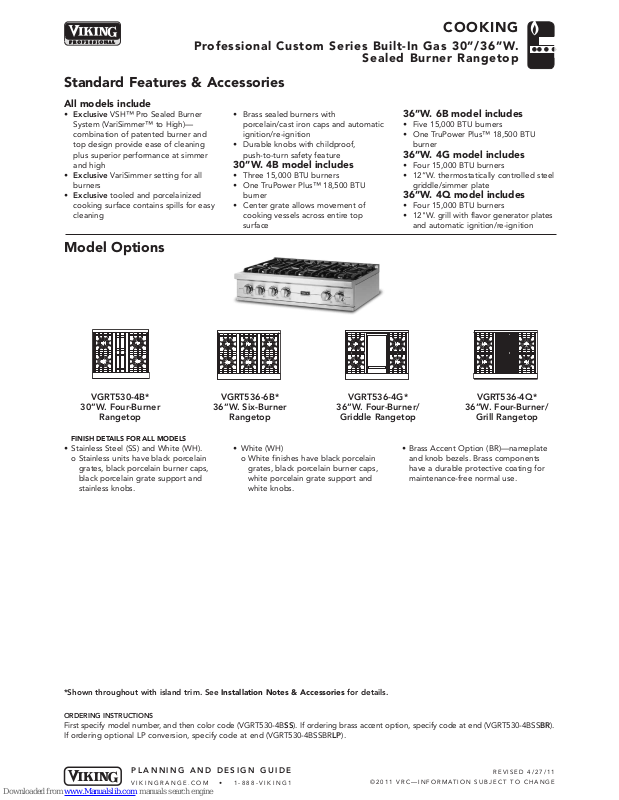

Viking Range VGRT530-4B, VGRT536-6B, VGRT536-4G, VGRT536-4Q Quick Manual

Professional Custom Series Built-In Gas 30”/36”W.

Standard Features & Accessories

All models include

• Exclusive VSH™ Pro Sealed Burner System (VariSimmer™ to High)— combination of patented burner and top design provide ease of cleaning plus superior performance at simmer and high

• Exclusive VariSimmer setting for all burners

• Exclusive tooled and porcelainized cooking surface contains spills for easy cleaning

• Brass sealed burners with porcelain/cast iron caps and automatic ignition/re-ignition

• Durable knobs with childproof, push-to-turn safety feature

30”W. 4B model includes

• Three 15,000 BTU burners

• One TruPower Plus™ 18,500 BTU burner

• Center grate allows movement of cooking vessels across entire top surface

Model Options

COOKING

Sealed Burner Rangetop

36”W. 6B model includes

• Five 15,000 BTU burners

• One TruPower Plus™ 18,500 BTU burner

36”W. 4G model includes

• Four 15,000 BTU burners

• 12”W. thermostatically controlled steel griddle/simmer plate

36”W. 4Q model includes

• Four 15,000 BTU burners

• 12"W. grill with flavor generator plates and automatic ignition/re-ignition

VGRT530-4B*

30”W. Four-Burner

Rangetop

FINISH DETAILS FOR ALL MODELS

• Stainless Steel (SS) and White (WH). o Stainless units have black porcelain

grates, black porcelain burner caps, black porcelain grate support and stainless knobs.

VGRT536-6B*

36”W. Six-Burner

Rangetop

• White (WH) o White finishes have black porcelain

grates, black porcelain burner caps, white porcelain grate support and white knobs.

VGRT536-4G*

36”W. Four-Burner/

Griddle Rangetop

• Brass Accent Option (BR)—nameplate and knob bezels. Brass components have a durable protective coating for maintenance-free normal use.

VGRT536-4Q*

36”W. Four-Burner/

Grill Rangetop

*Shown throughout with island trim. See Installation Notes & Accessories for details.

ORDERING INSTRUCTIONS

First specify model number, and then color code (VGRT530-4BSS). If ordering brass accent option, specify code at end (VGRT530-4BSSBR). If ordering optional LP conversion, specify code at end (

P L A N N I N G A N D D E S I G N G U I D E

V I K I N G R A N G E . C OM • 1 - 8 8 8 - V I K I N G 1

VGRT530-4B

SSBRLP).

R E V I S E D 4 / 2 7 / 1 1

COOKING

2

9

-

7

/

8

”

(

7

5

.

9

c

m

)

3

5

-

7

/

8

”

(

9

1

.

1

c

m

)

8-1/8”

(20.6 cm)

1-5/8” (4.1 cm)

1” (2.5 cm)

28-9/16” (72.6 cm)

24-5/16” (61.8 cm)

Professional Custom Series Built-In Gas 30”/36”W.

Sealed Burner Rangetop

Please see



Installation Notes &

Accessories

for important

installation

information,

including island

trim, backguard,

and high-shelf.

ALL MODELS

Star-K Kosher Certification for use on the Jewish Sabbath or Jewish holidays

Dimensions & Specifications

PRODUCT DIMENSIONS

VGRT530-4B

30”W. Four-Burner

Rangetop

VGRT536-6B

36”W. Six-Burner

Rangetop

VGRT536-4G

36”W. Four-Burner/

Griddle Rangetop

VGRT536-4Q

36”W. Four-Burner/

Grill Rangetop

30”W. Models 36”W. Models

VGRT530 VGRT536

Overall width 29-7/8” (75.9 cm) 35-7/8” (91.1 cm) Overall height (from bottom)

To top of grate 9-1/4” (23.5 cm)

To top of island trim 9-1/8” (23.2 cm)

Additions to base height

To top of backguard Add 8” (20.3 cm)

To top of high shelf Add 23-1/2” (72.9 cm)

Overall depth (from rear)

To end of side panel 24-5/16” (61.8 cm) To end of landing ledge 28-1/16” (71.3 cm) To end of knobs 28-9/16” (72.6 cm)

P L A N N I N G A N D D E S I G N G U I D E

V I K I N G R A N G E . C O M • 1 - 8 8 8 - V I K I N G 1

R E V I S E D 4 / 2 7 / 1 1

Professional Custom Series Built-In Gas 30”/36”W.

4

2

” m

i

n

.

(

1

0

6

.

7

c

m)

1

3

”

m

a

x

.

(

3

.

0

c

m

)

6

” m

i

n

.

(

1

5

.

2

c

m)

A

1

8

”

m

i

n

.

(

4

5

.

7

c

m

)

3

/

8

”

(

0

.

9

5

c

m

)

8

-1

/

8

”

(

2

0

.

6

c

m

)

2

5

-

3

/

4

”

(

6

5

.

4

c

m

)

A 30”W. 29-7/8“ (75.9 cm) 36”W. 35-7/8“ (91.1 cm)

Dimensions & Specifications

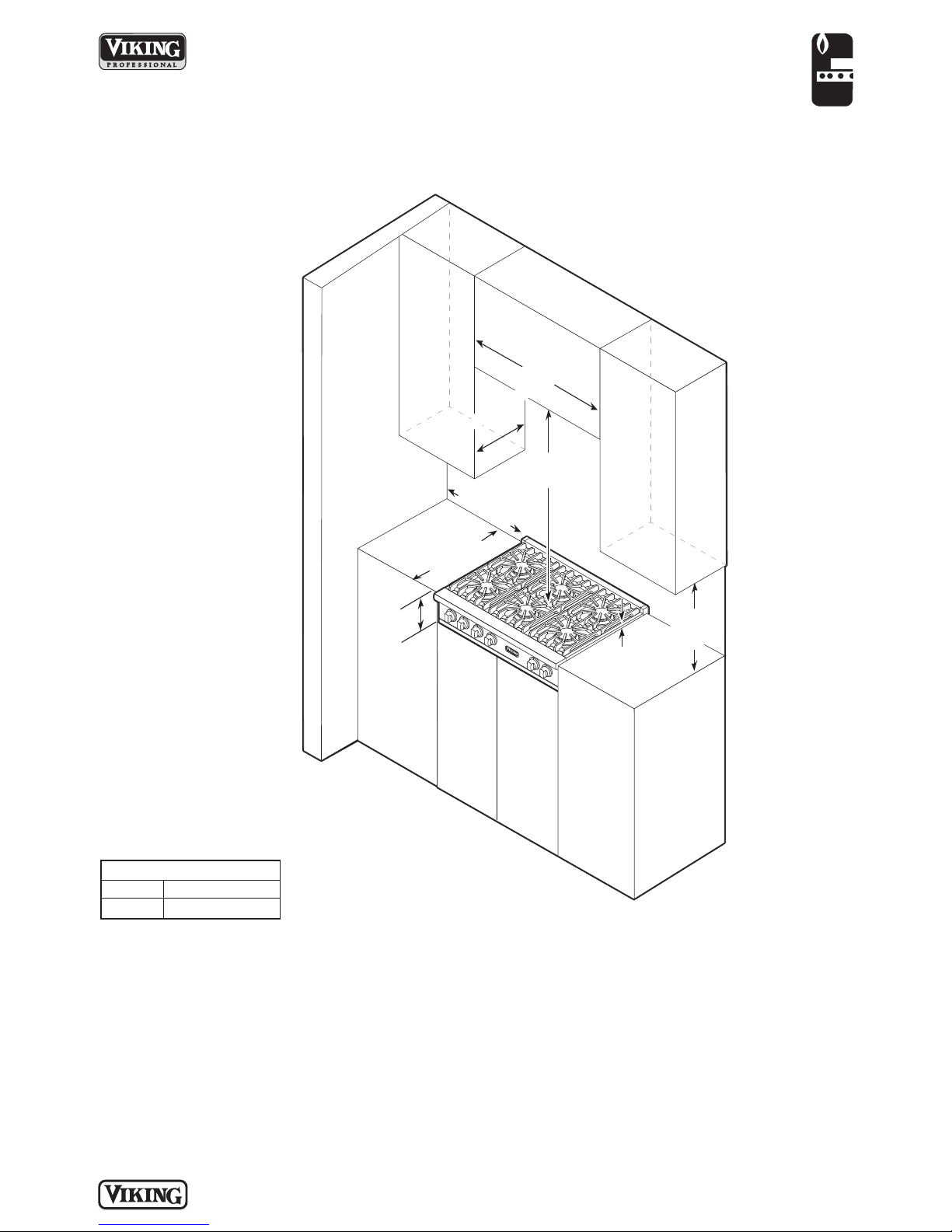

CLEARANCE DIMENSIONS

COOKING

Sealed Burner Rangetop

Minimum clearances from adjacent combustible construction

• Cooking surface and below, i.e., 36” (91.4 cm) and below o Sides—0” o Rear—0” with backguard or

highshelf; 0” with island trim and non-combustible rear wall; 6” (15.2 cm) with island trim and combustible rear wall.

P L A N N I N G A N D D E S I G N G U I D E

V I K I N G R A N G E . C O M • 1 - 8 8 8 - V I K I N G 1

• Above cooking surface, i.e. above 36" (91.4 cm) o Sides—6” (15.2 cm) o Within 6” (15.2 cm) side clearance,

o Wall cabinets directly above product

must be minimum 42” (106.7 cm) above cooking surface.

wall cabinets no deeper than 13” (33.0 cm) must be minimum 18” (45.7 cm) above cooking surface.

R E V I S E D 4 / 2 7 / 1 1

COOKING

1

-1

/

2

”

(

3

.

8

c

m

)

*

2

4

”

m

a

x

.

(

6

1

.

0

c

m

)

t

o

2

5

-

3

/

4

”

m

a

x

.

(

6

5

.

4

c

m

)

3

”

(

7

.

6

c

m

)

Professional Custom Series Built-In Gas 30”/36”W.

Sealed Burner Rangetop

UTILITY

REQU IR EMENT S

GAS

o Shipped natural or

propane gas; field convertible with conversion kit.

o Accepts standard

residential 1/2” (1.3 cm) ID gas service line

o Gas manifold

pressure

o Natural gas 5.0”

W.C.P.

o LP/Propane

10.0" W.C.P.

ELECTRICAL

• Four-foot (121.9 cm) cord included with rangetop

• Three-wire with ground/threeprong plug

• 120 V/60 Hz

• Max. amp usage— o 4B—0.5 o 6B—0.5 o 4G—0.5 o 4Q—0.5

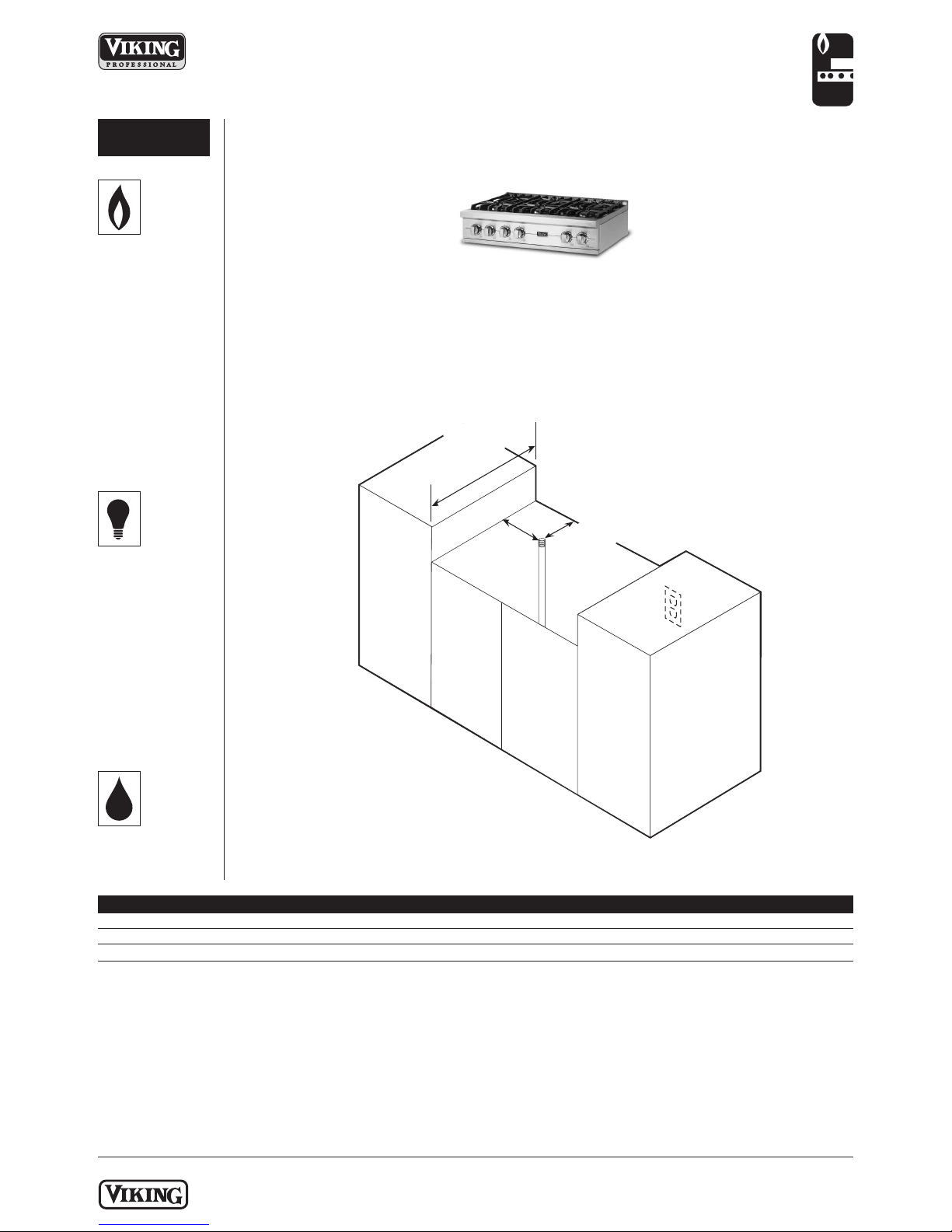

Installation Requirements

ACCESS REQUIREMENTS

VGRT530-4B

30”W. Four-Burner

Rangetop

VGRT536-6B

36”W. Six-Burner

Rangetop

VGRT536-4G

36”W. Four-Burner/

Griddle Rangetop

VGRT536-4Q

36”W. Four-Burner/

Grill Rangetop

PLUMBING

Not applicable

Cutout width 30” (76.2 cm) 36” (91.4 cm) 36” (91.4 cm) 36” (91.4 cm)

Cutout height 7-5/8” (19.4 cm)

Cutout depth 24” (61.0 cm) min. to 25-3/4” (65.4 cm) max.

Surface burner rating

TruPower Plus™ burner 18,500 BTU Nat. (5.4 kW)/ 18,500 BTU Nat. (5.4 kW)/ 15,000 BTU Nat. (4.4 kW)/ 15,000 BTU Nat. (4.4 kW)/ (front right) 16,600 BTU LP (4.9 kW) 16,600 BTU LP (4.9 kW) 13,500 BTU LP (4.0 kW) 13,500 BTU LP (4.0 kW)

Other Burners 15,000 BTU Nat. (4.4 kW)/ 15,000 BTU Nat. (4.4 kW)/ 15,000 BTU Nat. (4.4 kW)/ 15,000 BTU Nat. (4.4 kW)/

Griddle 18,000 BTU Nat. (5.3 kW)/ 15,000 BTU Nat. (4.4 kW)/

Grill 18,000 BTU Nat. (5.3 kW)/ 15,000 BTU Nat. (4.4 kW)/

*Note: 120 VAC/50Hz within 48” (121.9 cm) of right rear of rangetop

VGRT530-4B VGRT536-6B VGRT536-4G VGRT536-4Q

13,500 BTU LP (4.0 kW) 13,500 BTU LP (4.0 kW) 13,500 BTU LP (4.0 kW) 13,500 BTU LP (4.0 kW)

P L A N N I N G A N D D E S I G N G U I D E

V I K I N G R A N G E . C O M • 1 - 8 8 8 - V I K I N G 1

16,000 BTU LP (4.7 kW) 12,500 BTU LP (3.7 kW)

R E V I S E D 4 / 2 7 / 1 1

COOKING

Professional Custom Series Built-In Gas 30”/36”W.

Sealed Burner Rangetop

Installation Notes & Accessories



A backguard, high-shelf, or island trim must be used for all installations.

Island Trim

• Stainless Steel (SS)

Coordinates with all finishes

•

• For island/peninsula installation

• Included and shipped standard

Model Description Approx. ship wt. lbs. (kg)

30TII 30”W. island trim 10 (4.5)

P

36TII 36”W. island trim 11 (5.0)

P

8”H. Backguard

• Stainless Steel (SS)

• Coordinates with all finishes

Model Description Approx. ship wt. lbs. (kg)

P30BG8 30”W. backguard 14 (6.3) P36BG8 36”W. backguard 17 (7.7)

High-shelf

• Stainless Steel (SS)

• Coordinates with all finishes

• Shelf comes attached to a 24”H. backguard

Model Description Approx. ship wt. lbs. (kg)

B30HS24 30”W. high-shelf 45 (20.3) B36HS24 36”W. high-shelf 50 (22.5)

Countertop Side Trim

• Stainless Steel (SS)

• Coordinates with all finishes

• Installs on side of unit; overlaps countertop

• One pair of trim

Model Description Approx. ship wt. lbs. (kg)

P24CST 24”D. side trim 2 (0.9)

Countertop Rear Trim

• Stainless Steel (SS)

Model Description Approx. ship wt. lbs. (kg)

P30CRT 30”W. countertop rear trim 2 (0.9) P36CRT 36”W. countertop rear trim 2 (0.9)

LP/Propane Conversion Kit

• Allows for field conversion of range from natural gas to LP

Model Description Approx. ship wt. lbs. (kg)

LPKPDR Natural to LP/propane conversion kit 2 (0.9)

Compliance Information

WARRANTY INFORMATION*

• Three-year full warranty—complete product

• Five-year limited warranty—surface burners, griddle burners and grill burners

• Ninety-day limited warranty—cosmetic parts such as glass, painted, and decorative items

* For complete warranty see Use & Care Guide. Warranty valid on Viking products shipped within the United States and Canada.
