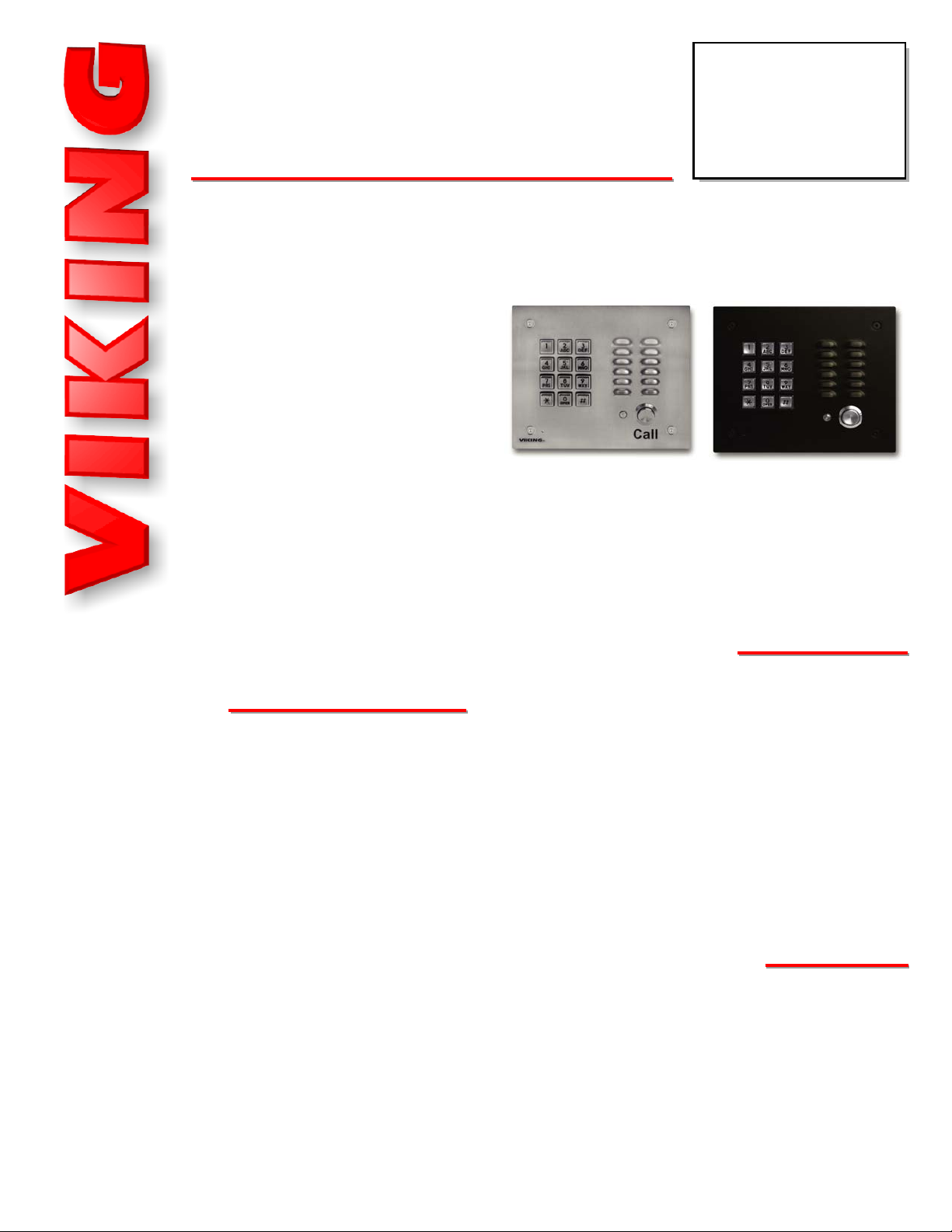

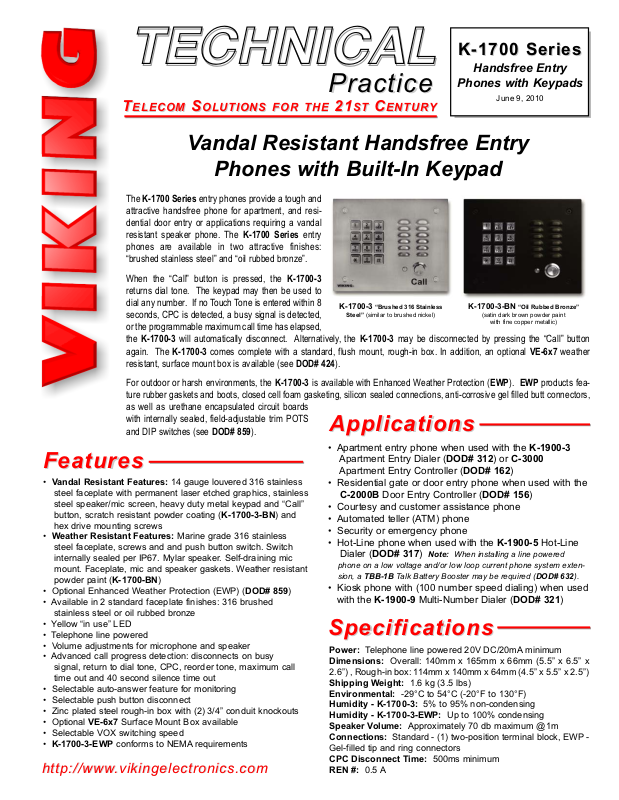

Page 1
• Vandal Resistant Features: 14 gauge louvered 316 stainless
steel faceplate with permanent laser etched graphics, stainless
steel speaker/mic screen, heavy duty metal keypad and “Call”
button, scratch resistant powder coating (K-1700-3-BN) and
hex drive mounting screws
• Weather Resistant Features: Marine grade 316 stainless
steel faceplate, screws and and push button switch. Switch
internally sealed per IP67. Mylar speaker. Self-draining mic
mount. Faceplate, mic and speaker gaskets. Weather resistant
powder paint (K-1700-BN)
• Optional Enhanced Weather Protection (EWP) (DOD# 859)
• Available in 2 standard faceplate finishes: 316 brushed
stainless steel or oil rubbed bronze
• Yellow “in use” LED
• Telephone line powered
• Volume adjustments for microphone and speaker
• Advanced call progress detection: disconnects on busy
signal, return to dial tone, CPC, reorder tone, maximum call
time out and 40 second silence time out
• Selectable auto-answer feature for monitoring
• Selectable push button disconnect
• Zinc plated steel rough-in box with (2) 3/4” conduit knockouts
• Optional VE-6x7 Surface Mount Box available
• Selectable VOX switching speed
• K-1700-3-EWP conforms to NEMA requirements
K-1700 Series
K-1700 Series
Handsfree Entry
Phones with Keypads
June 9, 2010
PPrraaccttiicce
e
T
T
EELLEECCOOM
M
S
S
OOLLUUTTIIOONNSSFFOORRTTHHE
E
221
1
SST
T
C
C
EENNTTUURRY
Y
TECHNICAL
TECHNICAL
Vandal Resistant Handsfree Entry
Phones with Built-In Keypad
The K-1700 Series entry phones provide a tough and
attractive handsfree phone for apartment, and residential door entry or applications requiring a vandal
resistant speaker phone. The K-1700 Series entry
phones are available in two attractive finishes:
“brushed stainless steel” and “oil rubbed bronze”.
When the “Call” button is pressed, the K-1700-3
returns dial tone. The keypad may then be used to
dial any number. If no Touch Tone is entered within 8
seconds, CPC is detected, a busy signal is detected,
or the programmable maximum call time has elapsed,
the K-1700-3 will automatically disconnect. Alternatively, the K-1700-3 may be disconnected by pressing the “Call” button
again. The K-1700-3 comes complete with a standard, flush mount, rough-in box. In addition, an optional VE-6x7 weather
resistant, surface mount box is available (see DOD# 424).
For outdoor or harsh environments, the K-1700-3 is available with Enhanced Weather Protection (EWP). EWP products feature rubber gaskets and boots, closed cell foam gasketing, silicon sealed connections, anti-corrosive gel filled butt connectors,
as well as urethane encapsulated circuit boards
with internally sealed, field-adjustable trim POTS
and DIP switches (see DOD# 859).
FFeeaattuurrees
s
Power: Telephone line powered 20V DC/20mA minimum
Dimensions: Overall: 140mm x 165mm x 66mm (5.5” x 6.5” x
2.6”) , Rough-in box: 114mm x 140mm x 64mm (4.5” x 5.5” x 2.5”)
Shipping Weight: 1.6 kg (3.5 lbs)
Environmental: -29°C to 54°C (-20°F to 130°F)
Humidity - K-1700-3: 5% to 95% non-condensing
Humidity - K-1700-3-EWP: Up to 100% condensing
Speaker Volume: Approximately 70 db maximum @1m
Connections: Standard - (1) two-position terminal block, EWP -
Gel-filled tip and ring connectors
CPC Disconnect Time: 500ms minimum
REN #: 0.5 A
SSppeecciiffiiccaattiioonns
s
hhttttpp::////wwwwww..vviikkiinnggeelleeccttrroonniiccss..ccoom
m
K-1700-3 “Brushed 316 Stainless
Steel” (similar to brushed nickel)
K-1700-3-BN “Oil Rubbed Bronze”
(satin dark brown powder paint
with fine copper metallic)
AApppplliiccaattiioonns
s

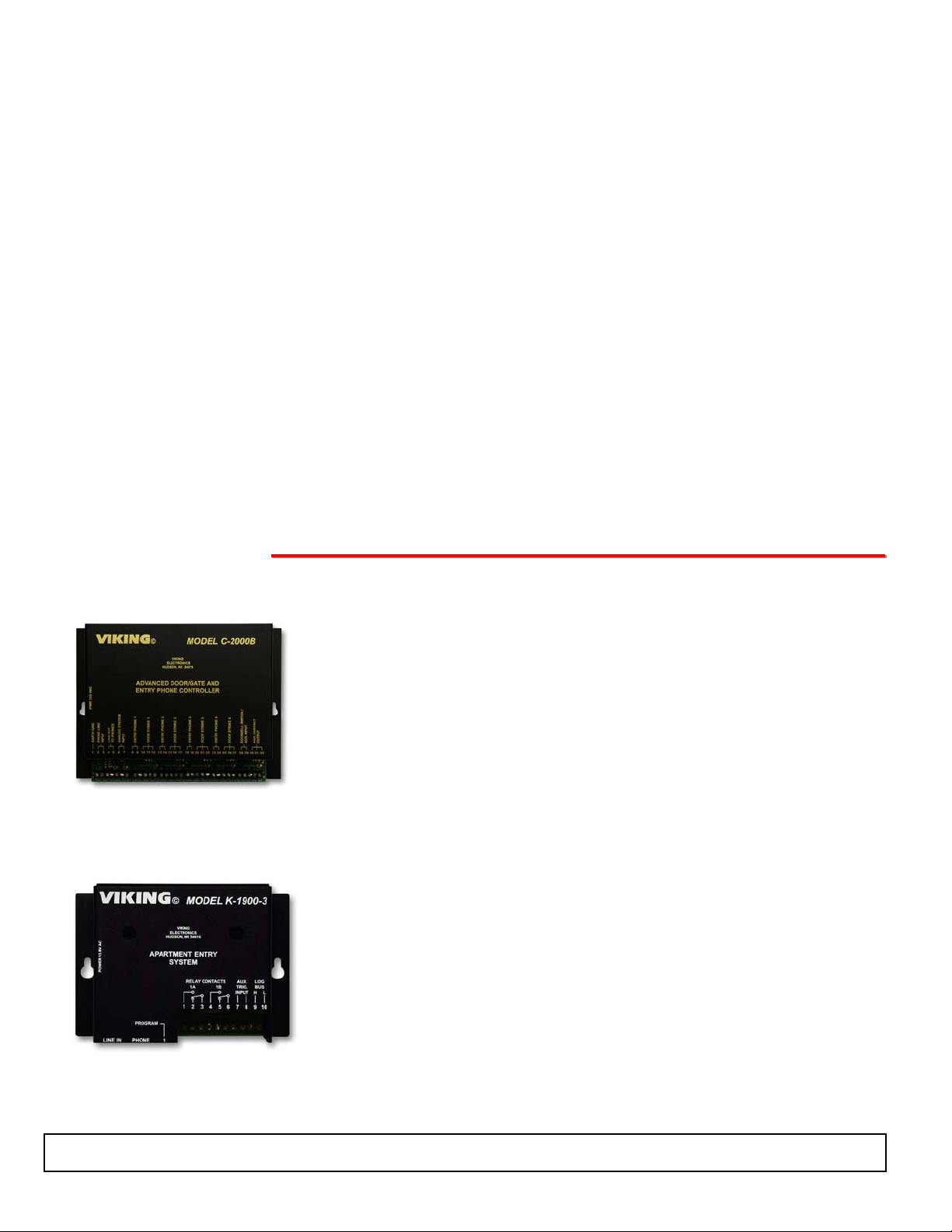

• Apartment entry phone when used with the K-1900-3
Apartment Entry Dialer (DOD# 312) or C-3000
Apartment Entry Controller (DOD# 162)
• Residential gate or door entry phone when used with the
C-2000B Door Entry Controller (DOD# 156)
• Courtesy and customer assistance phone
• Automated teller (ATM) phone
• Security or emergency phone
• Hot-Line phone when used with the K-1900-5 Hot-Line
Dialer (DOD# 317)
Note: When installing a line powered
phone on a low voltage and/or low loop current phone system extension, a TBB-1B Talk Battery Booster may be required (DOD# 632).
• Kiosk phone with (100 number speed dialing) when used
with the K-1900-9 Multi-Number Dialer (DOD# 321)
Page 2
(1) .74”
diameter
Rear View of Optional
VE-6x7 (not included)
3.0” 3.3”
3.0”
Front View of Optional
VE-6x7 (not included)
2.25”
Condensation
Drain Hole
5.64”
6.72”
3.25”
(2) 0.2 x 0.43 slots
(4) 0.38” diameter
4.5”
2.5”
3/4” Conduit
Knockouts
Adhere gasket to front panel,
centering over mounting holes
5.5”
Condensation
Drain Hole
Rough-In Box
(included)
1
2
A
B
C
3
D
E
F
4
G
H
I
5
J
K
L
6
M
N
O
7
P
R
S
8
T
U
V
9
W
X
Y
0
O
P
E
R
#
Call
VIKING
©
12
A
B
C
3
D
E
F
4
G
H
I
5
J
K
L
6
M
N
O
7
P
R
S
8
T
U
V
9
W
X
Y
0
O
P
E
R
#
P
re
s
s
"C
a
ll"b
u
tt
o
n
th
e
n
e
n
t
e
r te
n
a
n
t
c
o
d
e
Optional Instruction Label (included) - Clean
surface and adhere label when using a K-1700-3
with a K-1900-3 Apartment Entry Dialer.
(4) 6-32 X 3/4” Marine grade 316 stainless steel,
flat head, 5/64" hexdrive, screws (included)
Marine grade 316 stainless steel faceplate
and push button switch (sealed per IP67)
For more information on the VE-6x7, see DOD# 424.
Permanent laser etched graphics
IInnssttaallllaattiioon
n

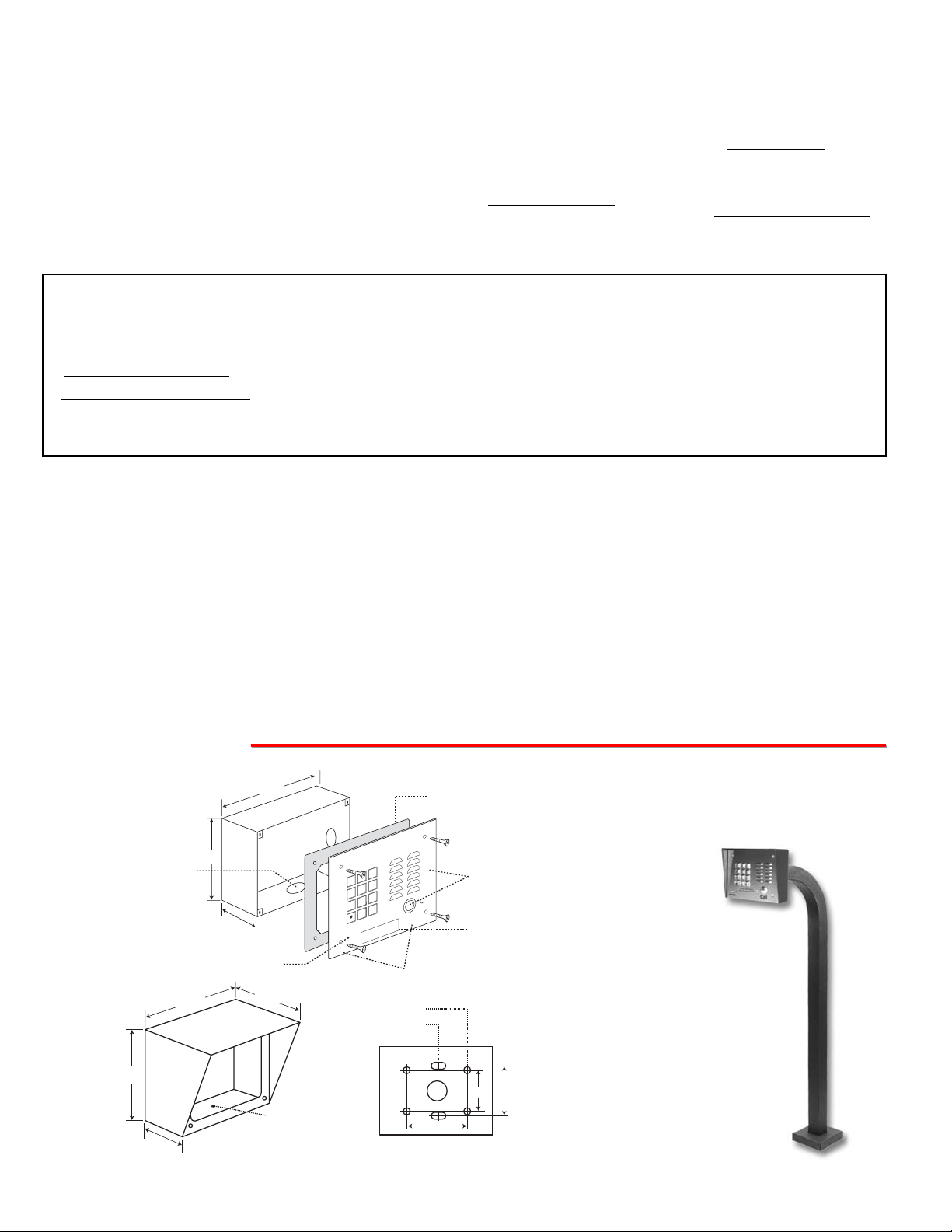

The optional VE-6x7 Surface Mount
Box is designed to be surface
mounted to a single gang box, double gang box or VE-GNP gooseneck
pedestal (right).
K-1700-3-EWP
shown with VE-6x7
and VE-GNP
Gooseneck Pedestal
(not included,
see DOD# 424)
A. Mounting
IF YOU HAVE A PROBLEM WITH A VIKING PRODUCT, PLEASE CONTACT: VIKING TECHNICAL SUPPORT AT (715) 386-8666
Our Technical Support Department is available for assistance Monday 8am - 4pm and Tuesday through Friday 8am - 5pm central time. So that we can give you better service, before you call please:
1. Know the model number, the serial number and what software version you have (see serial label).
2. Have your Technical Practice in front of you.
3. It is best if you are on site.
RETURNING PRODUCT FOR EXCHANGE
The following procedure is for equipment that has failed out-of-box (within 10 days of purchase):
1. Customer must contact Viking’s Technical Support at 715-386-8666 to determine possible causes for the problem. The
customer MUST be able to step through recommended tests for diagnosis.
2. If the Technical Support Product Specialist determines that the equipment is defective based on the customer's input
and troubleshooting, a Return Authorization (R.A.) number will be issued. This number is valid for fourteen (14)
calendar days from the date of issue.
3. After obtaining the R.A. number, return the approved equipment to your distributor, referencing the R.A. number. Your
distributor will then replace the product over the counter at no charge. The distributor will then return the product to
Viking using the same R.A. number.
4. The distributor will NOT exchange this product without first obtaining the R.A. number from you. If you haven't
followed the steps listed in 1, 2 and 3, be aware that you will have to pay a restocking charge.
RETURNING PRODUCT FOR REPAIR
The following procedure is for equipment that needs repair:
1. Customer must contact Viking's Technical Support Department at 715-386-8666 to obtain a Return Authorization (RA)
number. The customer MUST have a complete description of the problem, with all pertinent information regarding the
defect, such as options set, conditions, symptoms, methods to duplicate problem, frequency of failure, etc.
2. Packing: Return equipment in original box or in proper packing so that damage will not occur while in transit. Static
sensitive equipment such as a circuit board should be in an anti-static bag, sandwiched between foam and individual-
ly boxed. All equipment should be wrapped to avoid packing material lodging in or sticking to the equipment. Include
ALL parts of the equipment. C.O.D. or freight collect shipments cannot be accepted. Ship cartons prepaid to:
Viking Electronics, 1531 Industrial Street, Hudson, WI 54016
3. Return shipping address: Be sure to include your return shipping address inside the box. We cannot ship to a PO Box.
4. RA number on carton: In large printing, write the R.A. number on the outside of each carton being returned.
the necessary modifications to maintain uninterrupted service.
If trouble is experienced with the K-1700 Series, for repair or warranty information, please contact:
Viking Electronics, Inc., 1531 Industrial Street, Hudson, WI 54016 (715) 386-8666
If the equipment is causing harm to the telephone network, the telephone company may request that you disconnect the
equipment until the problem is resolved.
Connection to Party Line Service is subject to State Tariffs. Contact the state public utility commission, public service commission or corporation commission for information.
WHEN PROGRAMMING EMERGENCY NUMBERS AND (OR) MAKING TEST CALLS TO EMERGENCY NUMBERS:
Remain on the line and briefly explain to the dispatcher the reason for the call. Perform such activities in the off-peak
hours, such as early morning or late evenings.
It is recommended that the customer install an AC surge arrester in the AC outlet to which this device is connected. This
is to avoid damaging the equipment caused by local lightning strikes and other electrical surges.
PART 15 LIMITATIONS
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference
when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause
harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause
harmful interference in which case the user will be required to correct the interference at his own expense.
FCC REQUIREMENTS
This equipment complies with Part 68 of the FCC rules and the requirements adopted by the ACTA. On the side of this
equipment is a label that contains, among other information, a product identifier in the format US:AAAEQ##TXXXX. If
requested, this number must be provided to the telephone company.
The REN is used to determine the number of devices that may be connected to a telephone line. Excessive REN's on a
telephone line may result in the devices not ringing in response to an incoming call. In most but not all areas, the sum of
the REN's should not exceed five (5.0) To be certain of the number of devices that may be connected to a line, as determined by the total REN's, contact the local telephone company. For products approved after July 23, 2001, the REN for
this product is part of the product identifier that has the format US:AAAEQ##TXXXX. The digits represented by ## are the
REN without a decimal point (e.g., 03 is a REN of 0.3). For earlier products, the REN is separately shown on the label.
The plug used to connect this equipment to the premises wiring and telephone network must comply with the applicable
FCC Part 68 rules and requirements adopted by the ACTA. If your home has specially wired alarm equipment connected
to the telephone line, ensure the installation of this K-1700 Series does not disable your alarm equipment. If you have
questions about what will disable alarm equipment, consult your telephone company or a qualified installer.
If the K-1700 Series causes harm to the telephone network, the telephone company will notify you in advance that temporary discontinuance of service may be required. But if advance notice isn't practical, the telephone company will notify
the customer as soon as possible. Also, you will be advised of your right to file a complaint with the FCC if you believe it
is necessary.
The telephone company may make changes in its facilities, equipment, operations, or procedures that could affect the
operation of the equipment. If this happens, the telephone company will provide advance notice in order for you to make
LIMITED WARRANTY
Viking warrants its products to be free from defects in the workmanship or materials, under normal use and service, for a period of one year from the date of purchase from any authorized Viking distributor or 18 months from the date manufactured, which ever is greater. If at any time during the warranty period, the product is deemed defective or malfunctions, return the product to Viking Electronics, Inc., 1531 Industrial Street, Hudson, WI., 54016. Customer must contact Viking's
Technical Support Department at 715-386-8666 to obtain a Return Authorization (R.A.) number.
This warranty does not cover any damage to the product due to lightning, over voltage, under voltage, accident, misuse, abuse, negligence or any damage caused by use of the product by the purchaser or others.
NO OTHER WARRANTIES
. VIKING MAKES NO WARRANTIES RELATING TO ITS PRODUCTS OTHER THAN AS DESCRIBED ABOVE AND DISCLAIMS ANY EXPRESS OR IMPLIED WARRANTIES OR MERCHANTABILITY OR FIT-
NESS FOR ANY PARTICULAR PURPOSE.
EXCLUSION OF CONSEQUENTIAL DAMAGES
. VIKING SHALL NOT, UNDER ANY CIRCUMSTANCES, BE LIABLE TO PURCHASER, OR ANY OTHER PARTY, FOR CONSEQUENTIAL, INCIDENTAL, SPECIAL OR EXEMPLARY DAM-
AGES ARISING OUT OF OR RELATED TO THE SALE OR USE OF THE PRODUCT SOLD HEREUNDER.
EXCLUSIVE REMEDY AND LIMITATION OF LIABILITY. WHETHER IN AN ACTION BASED ON CONTRACT, TORT (INCLUDING NEGLIGENCE OR STRICT LIABILITY) OR ANY OTHER LEGAL THEORY, ANY LIABILITY OF VIKING SHALL
BE LIMITED TO REPAIR OR REPLACEMENT OF THE PRODUCT, OR AT VIKING'S OPTION, REFUND OF THE PURCHASE PRICE AS THE EXCLUSIVE REMEDY AND ANY LIABILITY OF VIKING SHALL BE SO LIMITED.
IT IS EXPRESSLY UNDERSTOOD AND AGREED THAT EACH AND EVERY PROVISION OF THIS AGREEMENT WHICH PROVIDES FOR DISCLAIMER OF WARRANTIES, EXCLUSION OF CONSEQUENTIAL DAMAGES, AND EXCLUSIVE REMEDY AND LIMITATION OF LIABILITY, ARE SEVERABLE FROM ANY OTHER PROVISION AND EACH PROVISION IS A SEPARABLE AND INDEPENDENT ELEMENT OF RISK ALLOCATION AND IS INTENDED TO BE ENFORCED
AS SUCH.
Page 3
PPrrooggrraammmmiinng
g

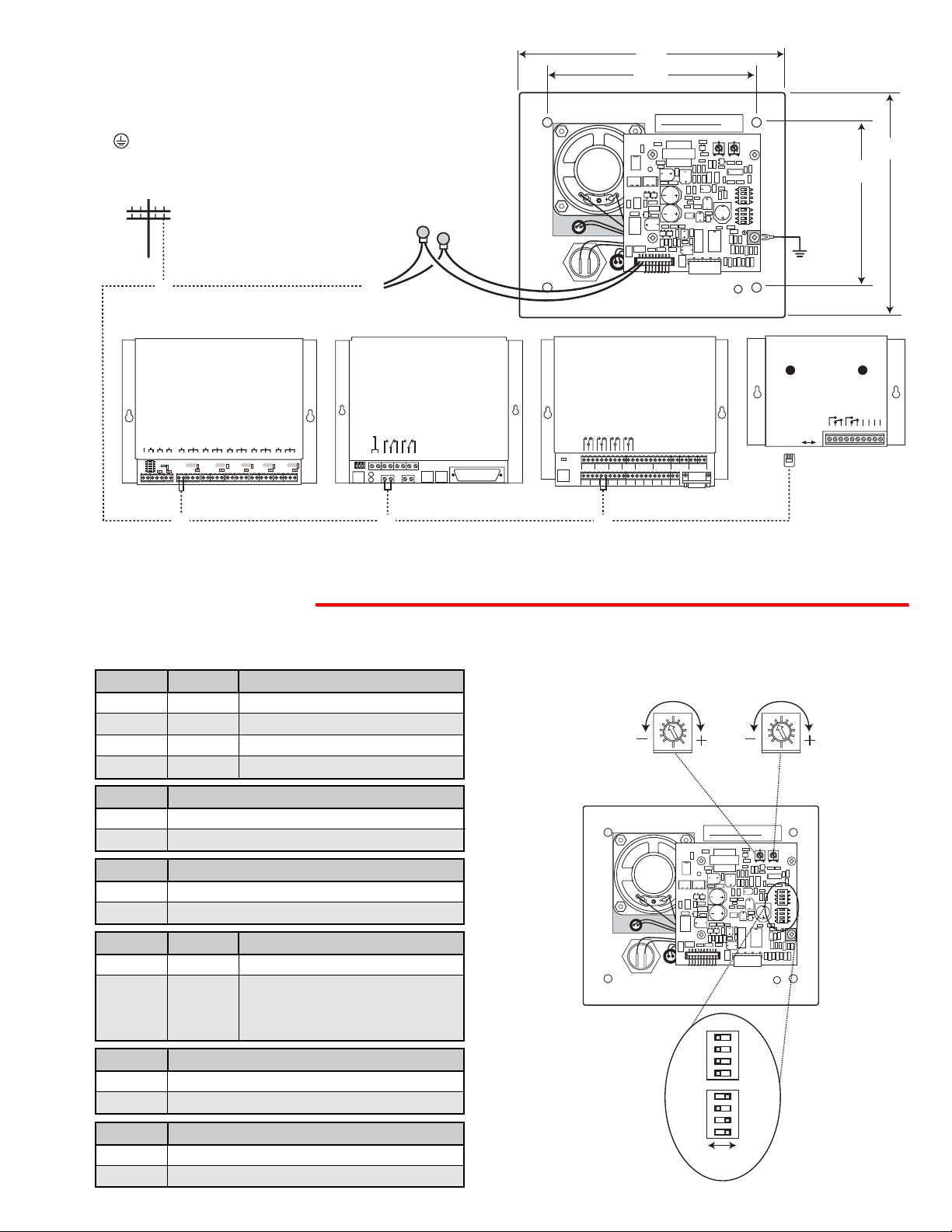

A. DIP Switch Programming / Speaker and Microphone Adjustments
Switch 1
OFF
ON
OFF
ON
Switch 2
OFF
OFF
ON
ON
Maximum Call Time
Disabled (default)
1 minute
3 minutes
9 minutes
1 2 3
on
4 5
Rear View of
the K-1700-3
Switch 3
OFF
ON
Disconnect on Dial Tone
Off
On (default)
Switch 7
OFF
ON
Auto Answer Feature
Automatic answer disabled
Automatic answer enabled (default)
Switch 8
OFF
ON
Push Button Feature
Connects calls only
Connects/disconnects calls (default)
Switch 4
OFF
ON
VOX Switching Speed
Fast, 0.2 seconds (default)
Slow, 0.7 seconds
Optional K-1900-3 Apartment
Entry Dialer (not included)
DOD# 312
Optional C-2000B Advanced Door
Entry Controller (not included)
DOD# 156
Optional C-3000 Apartment
Entry System (not included)
DOD# 162
*** Note: To increase surge protection, loosen the PCB mounting screw
labeled (as shown right) and fasten a wire with spade terminal (included)
from the mounting screw to Earth Ground (grounding rod, water pipe, etc.)
** Note: The gel-filled (water-tight)
butt connectors are designed for insulation displacement on 19-26 gauge
wire with a maximum insulation of
0.082 inches. Cut off the stripped wire
ends prior to terminating.
* Note: When installing a line powered phone on a low voltage and/or low loop current phone
system extension, a TBB-1B Talk Battery Booster may be required (DOD# 632).
Optional C-4000 Apartment/
Office Entry Controller (not
included) DOD# 164
B. Wiring
Switch 5
ON
OFF
Switch 6
ON
OFF
Audio Detection
Normal audio detection
Increase audio detect sensitivity for
low level lines. Useful in applications
in which voice or busy signals have
trouble breaking over the speaker.
** Gel-Filled
Butt Connectors
(included)
Red (Ring)
Green (Tip)
* C.O. Line
or Analog
PABX/KSU
Station
or
6.5”
5.12”
Model:
K-1700-3
Complies with FCC Part 15 and 68 Reg. No: AH3USA-32531-TE-E
REN: 1.0B
VIKING
Serial No:
P/N: DEV:
261099-2
Viking Electronics, Inc. (715) 386-8861
1531 Industrial St., Hudson, WI 54016
XXXXXXXX
RoHS
5.5”
4.04”
Spade
Terminal
(included)
*** Earth
Ground
(optional)
VIKING
PWR 13.8 VAC
EARTH GND
1 2 3 4 5 6 78910 11 12 13 15 16 17 1819 20 21 22 23 24 25 26 27 28 29 30 31 32
PHONE LINE
INPUT
on
LINE OUT
TO PHONES
LED1 LED2
C C
ANALOG STATION
INPUT
©
MODEL C-2000B
VIKING
ELECTRONICS
HUDSON, WI 54016
ADVANCED DOOR/GATE AND
ENTRY PHONE CONTROLLER
ENTRY PHONE 1
DOOR STRIKE 1
ENTRY PHONE 2
DOOR STRIKE 2
ENTRY PHONE 3
DOOR STRIKE 3
J8-
J7-
1
1
2
1
3
3
2
LED3
LED5
LED4
ENTRY PHONE 4
DOOR STRIKE 4
DOORBELL SWITCH /
AUX. INPUT
AUX. CONTACT
OUTPUT
J10-
J9-
J11-
3
3
12
2
2
1
LED7
LED6
CCCC
or
VIKING
ENTRY CONTROLLER MODULE
DOOR
POSTAL
STRIKE
LOCK
1
INPUT
DIP
SWITCH
3456712
1 2 3
ENTRY 1 ENTRY 2
or
12 UNIT APARTMENT
DOOR
STRIKE
POWER
13.8 VAC
3
C
MODEL C-3000
©
VIKING
ELECTRONICS
HUDSON, WI 54016
2
8
MULTI-MODULE
INTERCONNECT
OUT IN
RJ21X
12 APARTMENT LINES IN/OUT
VIKING
POWER
13.8 VAC
PROGRAM
PHONE
LED1
C
PROGRAM
PHONE
APARTMENT OR OFFICE
DOOR STRIKE RELAYS
N.O. COM N.C.
N.O. COM N.C.
DOOR STRIKE 1
DOOR STRIKE 2
C.O. LINE
AUX
ENTRY
INPUT
LINE
PHONE 1
or
©
MODEL C-4000
VIKING
ELECTRONICS
HUDSON, WI 54016
ENTRY CONTROLLER
N.O. COM N.C.
N.O. COM N.C.
BLK RED GRN WHT
DOOR STRIKE 3
DOOR STRIKE 4
ENTRY 1
ENTRY
ENTRY
ENTRY
REX1REX2REX3REX4H L
PHONE 2
PHONE 3
PHONE 4
WIEGAND INPUTS
BLK RED GRN WHT
ENTRY 2
Microphone Volume
Rear View of
the K-1700-3
(see section B)
Off
BLK RED GRN WHT
ENTRY 3
LOG BUS
RS-232 PORT
BLK RED GRN WHT
APARTMENT ENTRY
SYSTEM
ELECTRONICS
HUDSON, WI 54016
VIKING©
MODEL K-1900-3
POWER 13.8 VAC
PROGRAMMING
OFF ON
LINE IN PHONE
ENTRY 4
Speaker Volume
(see section B)
Off
Model:
Serial No:
XXXXXXXX
K-1700-3
Complies with FCC Part 15 and 68 Reg. No: AH3USA-32531-TE-E
P/N: DEV:
261099-2
VIKING
REN: 1.0B
Viking Electronics, Inc. (715) 386-8861
1531 Industrial St., Hudson, WI 54016
RoHS
VIKING
RELAY CONTACTS
AUX.
1A 1B
TRIG.
INPUT
1 2 3 4 5 6 7 8 9 10
18 VDC
200mA
- +
DIP Switches (shown
in default positions)
ON OFF
8
7
6
5
4
3
2
1
Page 4
Due to the dynamic nature of the product design, the information contained in this document is subject to change without notice. Viking Electronics, and its affiliates and/or subsidiaries
assume no responsibility for errors and omissions contained in this information. Revisions of this document or new editions of it may be issued to incorporate such changes.
Fax Back Doc 157
ZF310000 Rev J
Printed in the U.S.A.
The K-1900-3 converts any Touch Tone phone into a multi-number auto dialer that
will store up to 150 telephone numbers in non-volatile E2memory. Use with Viking’s
K-1700-3 or K-1900-8 phones to provide vandal resistant handsfree or handset com-
munication.
When a call initiated by the K-1900-3 is answered by an apartment or business tenant, a built-in contact closure may be activated to control an electric gate or door
strike. Up to 150 keyless entry codes may also be programmed, providing tenants
with keyless entry. The K-1900-3 can be programmed locally or remotely using a
standard Touch Tone phone. The K-1900-3 has built-in user dialing restriction to help
prevent unauthorized calls and toll fraud.
B. K-1900-3 Apartment/Office Entry Dialer
AApppplliiccaattiioonns
s
The C-2000B allows up to 4 entry phones to call into your existing residential or business phones or phone system. Tenants may answer the call, converse with the visitor and activate a contact closure to control electronic gates or door strikes.
The C-2000B provides “Caller ID,” “Call Waiting ID” and “Call Waiting” tone when the
phone line is in use. Tenants may gain entry at each gate by entering a Touch Tone
keyless entry code.
Tenants may call out to each entry phone for monitoring purposes. An auxiliary input
is also available for connecting a common garage door opener/receiver and auxiliary
keyless entry keypads.
A. C-2000B Advanced Door/Gate and Entry Phone Controller
PPrroodduuccttSSuuppppoorrttLLiinnee......771155..338866..8866666
6
FFaaxxBBaacckkLLiinnee......771155..338866..4433445
5
B. Volume Adjustments
C. Auto-Answer Feature
(DIP Switch 7)
With DIP switch 7 in the “ON” position (default), the K-1700-3 will automatically answer the line during the first incoming ring. This feature is useful for monitoring entrances. In the “OFF” position, the K-1700-3 will not automatically
answer incoming calls.
1. Microphone: Certain noisy locations (background traffic, machinery or wind) may cause one way talk path (only microphone
audio is heard). In this case, the microphone volume may need to be decreased as shown above.
2. Speaker: To increase, decrease or turn off the speaker (for monitoring purposes only), adjust the speaker volume control as
shown above.
D. Push Button Hang Up (DIP Switch 8)
With DIP switch 8 in the “ON” position (default), the “Call” button alternately connects and disconnects calls. In the
“OFF” position, the “Call” button is only used to connect and the K-1700-3 must rely on call progress (busy, return to
dial tone, silence time-out, or maximum call time) for an automatic disconnect.
With DIP switch 4 in the “OFF” position (default), the VOX switching speed (delay time between talk and listen mode)
is set to fast (0.2 seconds). In the “ON” position, it is set to slow (0.7 seconds).
E. VOX (Talk/Listen) Switching Speed (DIP Switch 4)
The K-1700-3 will output 3 beeps and automatically hang-up after detecting any of the following: busy signal (standard
or fast/reorder), CPC (short break in line current when called party hangs up), return to dial tone (with DIP switch 3
ON), maximum call time (if enabled) or 40 second silence time out.
F. Advanced Call Progress Detection
Model C-2000B
(DOD# 156)
Model K-1900-3
(DOD# 312)
Loading...
