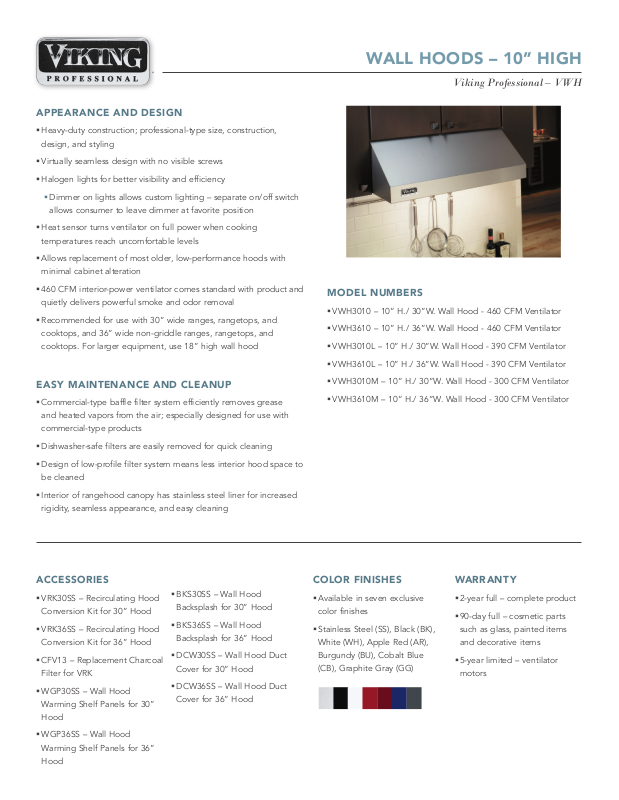

Viking VWH3010MCY, VWH3010CY Specifications
®
APPEARANCE AND DESIGN
§ Heavy-duty construction; professional-type size, construction,
design, and styling
§ Virtually seamless design with no visible screws
§ Halogen lights for better visibility and efficiency
§ Dimmer on lights allows custom lighting – separate on/off switch
allows consumer to leave dimmer at favorite position
§ Heat sensor turns ventilator on full power when cooking
temperatures reach uncomfortable levels
§ Allows replacement of most older, low-performance hoods with
minimal cabinet alteration
WALL HOODS – 10” HIGH
Viking Professional – VWH
§ 460 CFM interior-power ventilator comes standard with product and
quietly delivers powerful smoke and odor removal
§ Recommended for use with 30” wide ranges, rangetops, and
cooktops, and 36” wide non-griddle ranges, rangetops, and
cooktops. For larger equipment, use 18” high wall hood
EASY MAINTENANCE AND CLEANUP
§ Commercial-type baffle filter system efficiently removes grease
and heated vapors from the air; especially designed for use with
commercial-type products
§ Dishwasher-safe filters are easily removed for quick cleaning
§ Design of low-profile filter system means less interior hood space to
be cleaned
§ Interior of rangehood canopy has stainless steel liner for increased
rigidity, seamless appearance, and easy cleaning
ACCESSORIES
§ VRK30SS – Recirculating Hood
Conversion Kit for 30” Hood
§ VRK36SS – Recirculating Hood
Conversion Kit for 36” Hood
§ CFV13 – Replacement Charcoal
Filter for VRK
§ WGP30SS – Wall Hood
Warming Shelf Panels for 30”
Hood
§ BKS30SS – Wall Hood
Backsplash for 30” Hood
§ BKS36SS – Wall Hood
Backsplash for 36” Hood
§ DCW30SS – Wall Hood Duct
Cover for 30” Hood
§ DCW36SS – Wall Hood Duct
Cover for 36” Hood
MODEL NUMBERS
§ VWH3010 – 10” H./ 30”W. Wall Hood - 460 CFM Ventilator
§ VWH3610 – 10” H./ 36”W. Wall Hood - 460 CFM Ventilator
§ VWH3010L – 10” H./ 30”W. Wall Hood - 390 CFM Ventilator
§ VWH3610L – 10” H./ 36”W. Wall Hood - 390 CFM Ventilator
§ VWH3010M – 10” H./ 30”W. Wall Hood - 300 CFM Ventilator
§ VWH3610M – 10” H./ 36”W. Wall Hood - 300 CFM Ventilator
COLOR FINISHES
§ Available in seven exclusive
color finishes
§ Stainless Steel (SS), Black (BK),
White (WH), Apple Red (AR),
Burgundy (BU), Cobalt Blue
(CB), Graphite Gray (GG)
WARRANTY
§ 2-year full – complete product
§ 90-day full – cosmetic parts
such as glass, painted items
and decorative items
§ 5-year limited – ventilator
motors
§ WGP36SS – Wall Hood
Warming Shelf Panels for 36”
Hood
WALL HOODS – 10” HIGH
®
Viking Professional – VWH
10” WALL HOODS WITH VENTILATOR
DESCRIPTION VWH3010 VWH3610
Overall Width 29-7/8” (75.9 cm) 35-7/8” (91.1 cm)
Overall Height 10” (25.4 cm)
Overall Depth 21” (53.3 cm)
Interior ventilator kit Standard 460 CFM / L–390 CFM / M-300 CFM
Interior duct size** 7” (17.8 cm)
Interior - Maximum amps
Approximate Shipping Weight 56 lbs. (25.2 kg) 60 lbs. (27 kg)
Please do not prepare installation from brochure data only. See installation instructions for important clearance/installation information.
** Disregard when using recirculating kits. 460 CFM blower is shipped with hood. Maximum duct run is 50 ft.
4.9
12 ”
(30.5 cm)
10”
(25.4 cm)
3
”
(
7
.
6
cm)
A
21”
(53.3 cm)
A (Hood width)
30”W. 29-7/8“ (76.2 cm)
36”W 35-7/8” (91.1 cm)
36”
(91.4 cm
)
60”min.
(152.4 cm
to
63”max.
)
(160.0 cm
)
24”min.
(61.0 cm
to
27”max.*
(68.6 cm
)
)
VIKING R ANGE, LLC 111 FRONT STREET GREENWOOD, MISSISSIPPI 38930 USA
For detailed product information, model numbers, or to request a quote call 1-888-845-4641 or visit vikingrange.com
© 2014 Viking Range, LLC All rights reserved. Specifications subject to change without notice.
F60379 0415
