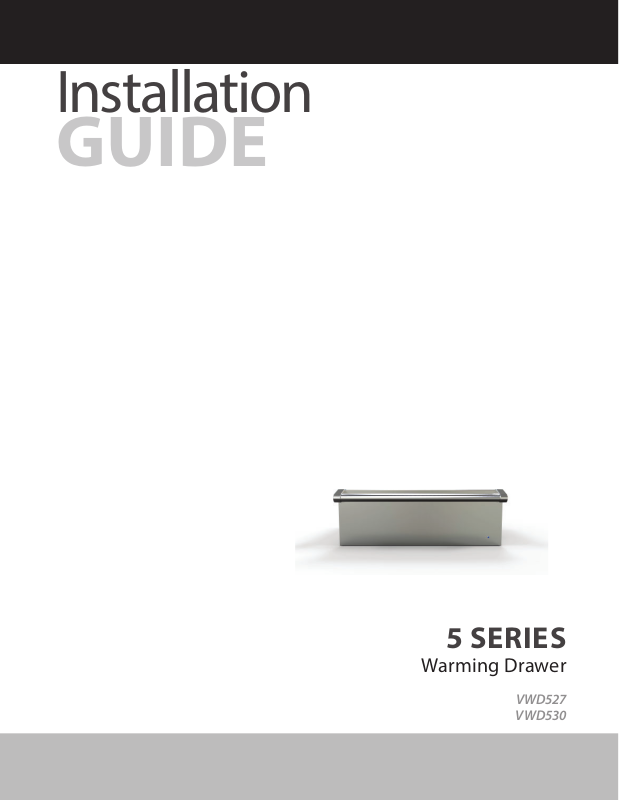

Viking VWD527, VWD530 Installation Guide
Installation
GUIDE
5 SERIES
Warming Drawer
VWD527
VWD530
1
Table of Contents
Important Safety Instructions __________________________________________________________________________ 2
Dimensions _________________________________________________________________________________________ 3
Speci cations _______________________________________________________________________________________ 4
Cutout Dimensions___________________________________________________________________________________ 4
Electrical Requirements _______________________________________________________________________________ 5
General Information __________________________________________________________________________________ 5
Installation _________________________________________________________________________________________ 6
Final Preparation ____________________________________________________________________________________ 7
Service & Registration ________________________________________________________________________________ 7
Important Safety Instructions– Read and Follow!
Before beginning, please read these instructions completely and carefully.
WARNING
If the information in this manual is not followed exactly,
a re or explosion may result causing property damage,
personal injury or death.
• DO NOT remove permanently a xed labels, warnings, or
plates from product. This may void the warranty.
• All local and national codes and ordinances must be
observed. Installation must conform with local codes,
or in the absence of codes, the National Electrical Code,
ANSI/NFPA-70 – latest edition.
• The installer must leave these instructions with the
consumer who should retain for local inspector’s use and
for future reference.
In Canada: Installation must be in accordance with the
current CSA C22.1 Canadian Electrical Codes Part 1 and/or
local codes.
WARNING
To prevent possible damage to cabinets and cabinet
fi nishes, use only materials and fi nishes that will not
discolor or delaminate and will withstand temperatures up
to 194°F (90°C). Heat resistant adhesive must be used
if the product is to be installed in laminated cabinetry.
Check with your builder or cabinet supplier to make sure
that the materials meet these requirements.
DANGER
Hazards or unsafe practices which WILL result in
severe personal injury or death
WARNING
Hazards or unsafe practices which COULD result in death
or severe personal injury
CAUTION
Hazards or unsafe practices which COULD result in minor
personal injury. All safety messages will identify the hazard,
tell you how to reduce the chance of injury, and tell you
what can happen if the instructions are not followed.
WARNING
To reduce the risk of re, electric shock, or injury to
persons, installation work and electrical wiring must
be done by quali ed people in accordance with all
applicable codes and standards, including re-rated
conditions.
WARNING
ELECTRICAL SHOCK HAZARD
This appliance is equipped with a 3-prong power cord
with a grounding plug for your protection against
shock hazard and should be plugged directly into a
properly grounded receptacle. Only use power cord
supplied with the unit.
2
Dimensions
Side View
10-1/4”
(26.0 cm)
VWD527 22-3/4” (57.8 cm)
VWD530 25-3/4” (65.4 cm)
VWD527 26-1/2” (67.3 cm)
VWD530 29-1/2” (74.9 cm)
21-1/4”
(54.0 cm)
22-3/4”
(57.8 cm)
25-1/2”
(64.7 cm)
1-1/2”
(3.8 cm)
Rear View
2” (5.1 cm)
2-1/2”
(6.4 cm)
1-3/4”
(4.4 cm)
25-1/2”
(64.8 cm)
VWD527 24-3/4” (62.9 cm)
VWD530 27-3/4” (70.5 cm)
120 VAC
Electrical Connection
21-1/4”
(54.0 cm)
9”
(22.9 cm)
3
