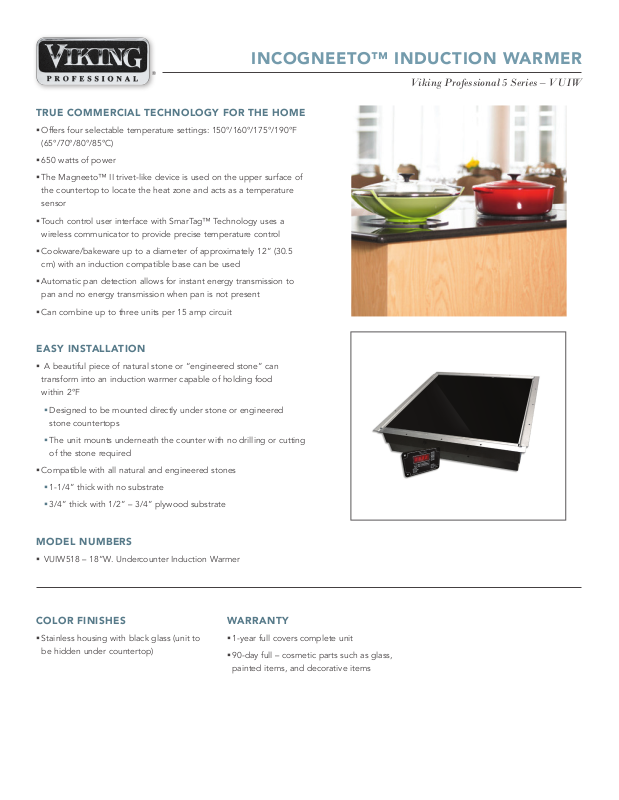

Viking VUIW518 Specifications

INCOGNEETO™ INDUCTION WARMER

TRUE COMMERCIAL TECHNOLOGY FOR THE HOME

§ Offers four selectable temperature settings: 150°/160°/175°/190°F (65°/70°/80°/85°C)

§ 650 watts of power

§ The Magneeto™ II trivet-like device is used on the upper surface of the countertop to locate the heat zone and acts as a temperature sensor

§ Touch control user interface with SmarTag™ Technology uses a wireless communicator to provide precise temperature control

§ Cookware/bakeware up to a diameter of approximately 12” (30.5 cm) with an induction compatible base can be used

§ Automatic pan detection allows for instant energy transmission to pan and no energy transmission when pan is not present

§ Can combine up to three units per 15 amp circuit

EASY INSTALL ATI O N

§ A beautiful piece of natural stone or “engineered stone” can transform into an induction warmer capable of holding food within 2°F

§ Designed to be mounted directly under stone or engineered

stone countertops

§ The unit mounts underneath the counter with no drilling or cutting

of the stone required

§ Compatible with all natural and engineered stones

§ 1-1/4” thick with no substrate

§ 3/4” thick with 1/2” – 3/4” plywood substrate

Viking Professional 5 Series – VUIW

MODEL NUMBERS

§ VUIW518 – 18”W. Undercounter Induction Warmer

COLOR FINISHES

§ Stainless housing with black glass (unit to be hidden under countertop)

WARRANTY

§ 1-year full covers complete unit

§ 90-day full – cosmetic parts such as glass, painted items, and decorative items

INCOGNEETO™ INDUCTION WARMER

Viking Professional 5 Series – VUIW

INCOGNEETO™ INDUCTION WARMER

DESCRIPTION VUIW518

Dimensions 17.5” x 17.5” x 4.5” (44.5 x 44.5 x 11.4 cm)

Power Range 100-650W

Amperage 5A (max)

Voltage 100-120VAC, 50/60 Hz

Power Requirements 100-120VAC, 1Ph

Preset Temperatures 150, 160, 175, 190°F/65, 70, 80, 85°C

Approximate Shipping Weight

Please do not prepare installation from brochure data only. See installation instructions for important clearance/installation information.

Dimensions

A 17-1/2” (4.5 cm)

B 4-1/2” (1.8 cm)

20 lb. (9 kg)

C 2-7/8” (7.4 cm)

D 2-1/4” (5.7 cm)

E 3-1/4” (8.3 cm)

F 1-3/16” (3.0 cm)

G 2-1/2” (6.3 cm)

H 3-13/16” (9.7 cm)

I 1” (2.5 cm)

VIKING R ANGE, LLC 111 FRONT STREET GREENWOOD, MISSISSIPPI 38930 USA

For detailed product information, model numbers, or to request a quote call 1-888-845-4641 or visit vikingrange.com © 2015 Viking Range, LLC All rights reserved. Specifications subject to change without notice.

F60380 0615
