Undercounter/Freestanding 15”W./24”W. Ref. Beverage Centers
Standard Features & Accessories
OUTDOOR—REFRIGERATION
All models include
• Agency-certified for outdoor use
o A stainless steel exterior cabinet
surrounds the unit and forms a
water-resistant seal
o Insulated electrical terminals, sealed
electrical contacts, and a waterresistant thermostat provide optimal
performance in all weather elements
• Normal operating range between
110°F (43.4°C) and 40°F (4.4°C)
(Viking recommends that units be shut
off in temperatures outside these limits)
• Heavy-duty commercial-type
construction, design, and styling
• Automatic cycle defrost
• Adjustable leveling legs
• Interior light turns on when door is
opened, or by switch
Model Options
• Undercounter or freestanding
installation
o Can be installed as a single unit,
double stacked, or side-by-side in
standard-depth residential cabinets
VUAR1531T model includes
• 3.0 cubic feet of storage
• Hidden touchpad electronic controls
with digital temperature readout
• Inside temperature can be adjusted
from 40 – 65
• Two full-depth adjustable wire shelves
pull out for easy access
• One full-depth, tempered-glass shelf
creates a distinct temperature zone for
wine storage
• Wine rack in bottom cradles four
bottles horizontally and pulls out for
easy access
°F
VUAR1431T model includes
• 6.1 cubic feet of storage
• Combined, shelves hold 128 12-oz.
cans
o Shelves can be removed to store
larger bottles
• Hidden touchpad electronic controls
with digital temperature readout
• Inside temperature can be adjusted
from 40 – 65
• Top wire shelf has 6-1/2" split flip-up
section to chill or store open wine
bottles or large containers
• Full-depth, tempered-glass shelf
creates distinct temperature zone for
wine storage
• Two wine shelves in bottom cradle 12
bottles horizontally, and pull out for
easy access
°F
VUAR1531T
15”W. Refrigerated
Beverage Center
FINISH DETAILS FOR ALL MODELS
•
Stainless Steel (SS)
•
White interior
ORDERING INSTRUCTIONS
First specify model number, followed by hinge preference (“R” for right or “L” for left)—(VUAR1531TRSS).
VUAR1431T
24”W. Refrigerated
Beverage Center
P LA N N I N G A ND DE SI GN G U ID E
V I K I N G R A N G E . C O M • 1 - 8 8 8 - V I K I N G 1
R E L E A S E D 7 / 3 0 / 1 0
© 2 0 1 0 V R C — INFORMATION SUBJECT TO CHANGE
3
0
-
3
/
4
”
(
7
8
.
1
c
m
)
2
2
”
(
5
5
.
9
c
m
)
2
4
-
3
/
8
”
(
6
1
.
9
c
m
)
2
6
-
7
/
8
”
(
6
3
.
3
c
m
)
2
3
-
7
/
8
”
(
6
0
.
6
c
m
)
3
4
”
(
8
6
.
4
c
m
)
m
i
n
.
t
o
3
4
-
3
/
4
”
(
8
8
.
3
c
m
)
m
a
x
.
3
0
-
3
/
4
”
(
7
8
.
1
c
m
)
2
1
-
3
/
1
6
”
(
5
3
.
8
c
m
)
2
3
-
5
/
8
”
(
6
0
.
0
c
m
)
3
4
”
(
8
6
.
4
c
m
)
m
i
n
.
t
o
3
4
-
3
/
4
”
(
8
8
.
3
c
m
)
m
a
x
.
2
6
-
1
/
8
”
(
6
6
.
4
c
m
)
1
4
-
3
/
4
”
(
3
7
.
5
c
m
)
14-3/4”
(37.5 cm)
1
4
-
3
/
4
”
(
3
7
.
5
c
m
)
OUTDOOR—REFRIGERATION
Undercounter/Freestanding 15”W./24”W. Ref. Beverage Centers
Please see
Installation Notes &
Accessories
for important
information.

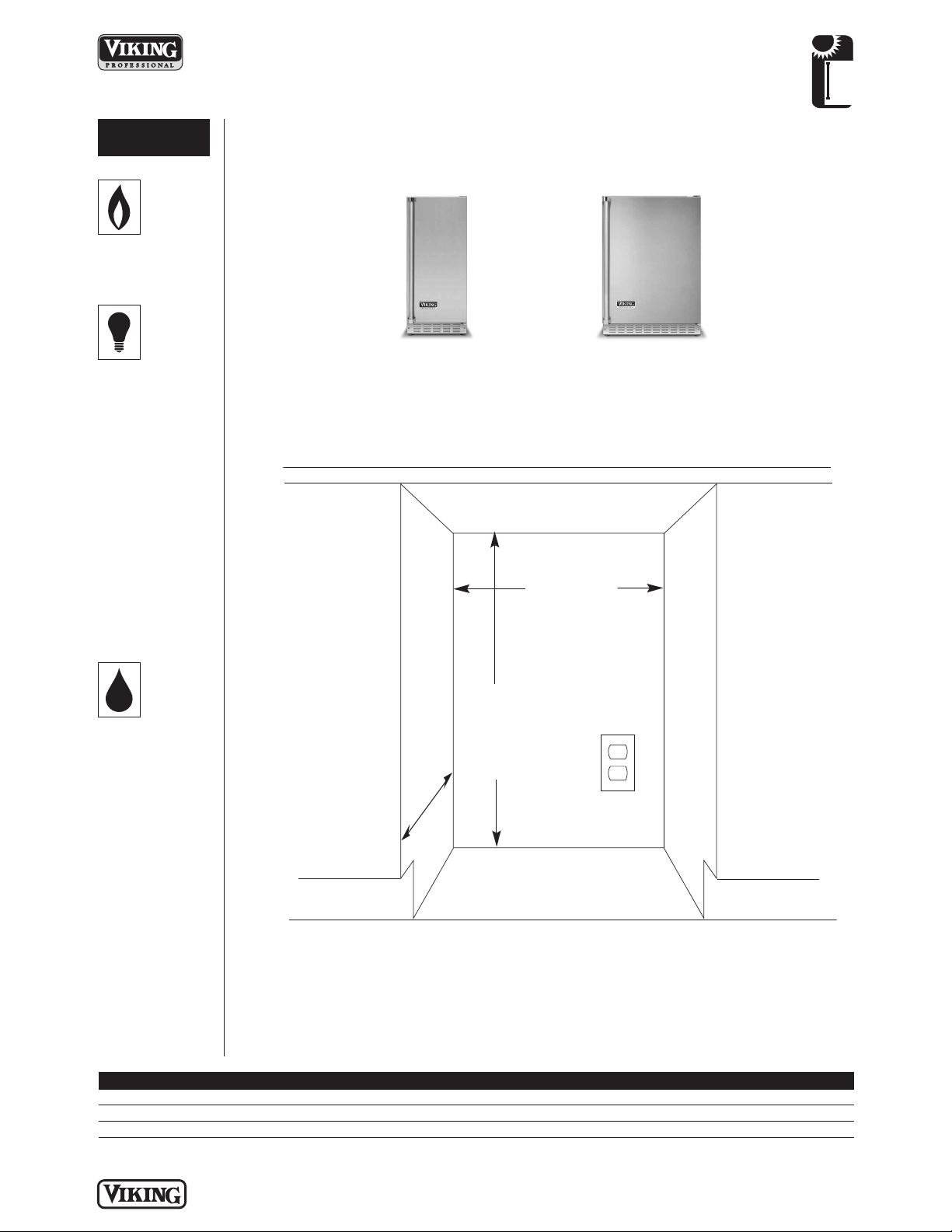

Dimensions & Specifications
PRODUCT DIMENSIONS
VUAR1531T
15”W. Beverage Center
VUAR1431T
24”W. Beverage Center
14-3/4” (37.5 cm) 14-3/4” (37.5 cm) 23-7/8” (60.6 cm)
Overall height (from bottom) 34” (86.4 cm) min. to
(w/leveling legs fully extended) 34-3/4” (88.3 cm) max.
Overall depth (from rear)
To front of handle 26-1/8” (66.4 cm) 26-7/8” (68.3 cm)
With door fully open 37-3/16” (94.5 cm) 47-1/4” (120.0 cm)
Approx. ship weight 110 lbs. (49.5 kg) 140 lbs. (63.0 kg)
P LA N N I N G A ND DE SI GN G U ID E
V I K I N G R A N G E . C O M • 1 - 8 8 8 - V I K I N G 1
VUAR1531T VUAR1431T
VUAR1531T VUAR1431T Overall width
R E L E A S E D 7 / 3 0 / 1 0
© 2 0 1 0 V R C — INFORMATION SUBJECT TO CHANGE
14-3/4”
(37.5 cm)
21-3/16”
(53.8 cm)
90.0°
37-3/16”
(94.5 cm)
2-1/2”
(6.4 cm)
Undercounter/Freestanding 15”W./24”W. Ref. Beverage Centers
23-7/8”
(60.6 cm)
22”
(55.9 cm)
90.0°
47-1/4”
(120.0 cm)
2-1/2”
(6.4 cm)
Dimensions & Specifications
DOOR SWING
OUTDOOR—REFRIGERATION
VUAR1531T
15”W. Refrigerated
Beverage Center
VUAR1531T
VUAR1431T
24”W. Refrigerated
Beverage Center
P LA N N I N G A ND DE SI GN G U ID E
V I K I N G R A N G E . C O M • 1 - 8 8 8 - V I K I N G 1
VUAR1431T
R E L E A S E D 7 / 3 0 / 1 0
© 2 0 1 0 V R C — INFORMATION SUBJECT TO CHANGE
OUTDOOR—REFRIGERATION
34-1/4”
(87.0 cm) min.
to
35”
(88.9 cm) max.
2
4
”
(
6
1
.
0
c
m
)
m
i
n
.
15” VUAR1531T
(38.1 cm)*
24” VUAR1431T
(61.0 cm)**
Undercounter/Freestanding 15”W./24”W. Ref. Beverage Centers
UTILITY
REQUIREMENTS
GAS
Not applicable
ELECTRICAL
• 2-wire cord with
grounded,
3-prong plug
attached to
product
o VUAR models—
6-1/2’ cord
o VUIM model—
7’ (2.1 m) cord
• 115 VAC/60 Hz;
15-amp
dedicated circuit
• Max. amp usage
o VUAR150T—3.0
o VUAR/
VURI140T—3.3
Installation Requirements
ACCESS REQUIREMENTS
VUAR1531T
15”W. Beverage Center
VUAR1431T
24”W. Beverage Center
PLUMBING
• Not applicable to
VUAR models
• VURI model
• Inlet waterline
requirements—
1/8” (0.6 cm)
copper tubing
• 20 psi min.; 100
psi max.
Cutout width 15” (38.1 cm)* 24” (61.0 cm)**
Cutout height 34-1/4” (87.0 cm) min. to 35” (88.9 cm) max.
Cutout depth 24” (61.0 cm) min.
*15” (38.1 cm) width for cabinet only; If door is recessed between cabinets, cutout must be 15-1/4” (38.7 cm).
**24” (61.0 cm) width for cabinet only; If door is recessed between cabinets, cutout must be 24-1/4” (61.6 cm).
VUAR1531T VUAR1431T
P LA N N I N G A ND DE SI GN G U ID E
V I K I N G R A N G E . C O M • 1 - 8 8 8 - V I K I N G 1
© 2 0 1 0 V R C — INFORMATION SUBJECT TO CHANGE
R E L E A S E D 7 / 3 0 / 1 0
OUTDOOR—REFRIGERATION
Undercounter/Freestanding 15”W./24”W. Ref. Beverage Centers
Installation Notes & Accessories
Stainless Steel Cabinetry-Bases
• Stainless Steel (SS)
• For use with 15”W. & 24”W. Viking outdoor refrigeration products
See individual product pages (storage section) for more information and additional specifications
•
Model Description Approx. ship wt. lbs. (kg)
URO2400 Base for 15”W outdoor refrigerator 115 (52.2)
V
URO3200 Base for 24”W outdoor refrigerator 125 (56.7)
V
Stainless Steel Cabinetry-Oven Towers
• Stainless Steel (SS)
• For installation of 24” beverage center with oven
• See individual product pages (storage section) for more information and additional specifications
Model Description Approx. ship wt. lbs. (kg)
VERO3200 32”W. tower (for 24”W. beverage center+ smoker oven) 271 (122.9)
VGRO3200 32”W. tower (for 24”W. beverage center+ gas oven) 271 (122.9)
Compliance Information
WARRANTY SUMMARY*
• One-year full warranty—complete unit
• Five-year limited warranty—sealed refrigeration system (includes compressor, condenser,
dryer/strainer, evaporator, and connecting tubing)
• Ninety-day limited warranty—cosmetic parts such as glass, painted items, and decorative items
*For complete warranty see Use & Care Guide. Warranty valid on Viking products shipped within the United States and Canada.
P LA N N I N G A ND DE SI GN G U ID E
V I K I N G R A N G E . C O M • 1 - 8 8 8 - V I K I N G 1
© 2 0 1 0 V R C — INFORMATION SUBJECT TO CHANGE
R E L E A S E D 7 / 3 0 / 1 0
