Undercounter/Freestanding 15”W./24”W. Ref. Beverage Center &
24”W. Ref. Beverage Center/Icemaker Combo
Standard Features & Accessories
OUTDOOR—REFRIGERATION
All models include
• Agency-certified for outdoor use
o A stainless steel exterior cabinet
surrounds the unit and forms a
water-resistant seal
o Insulated electrical terminals, sealed
electrical contacts, and a waterresistant thermostat provide optimal
performance in all weather elements
• Normal operating range between
110°F (43.4°C) and 40°F (4.4°C)
(Viking recommends that units be shut
off in temperatures outside these limits)
• Heavy-duty commercial-type
construction, design, and styling
• Automatic cycle defrost
• Adjustable leveling legs
• Interior light turns on when door is
opened, or by switch
• Undercounter or freestanding
installation
o Can be installed as a single unit,
double stacked, or side-by-side in
standard-depth residential cabinets
Model Options
VUAR153T model includes
• 3.0 cubic feet of storage
• Hidden touchpad electronic controls
with digital temperature readout
• Inside temperature can be adjusted
from 40 – 65°F
• Two full-depth adjustable wire shelves
pull out for easy access
• One full-depth, tempered-glass shelf
creates a distinct temperature zone for
wine storage
• Wine rack in bottom cradles four
bottles horizontally and pulls out for
easy access
VUAR143T model includes
• 6.1 cubic feet of storage
• Combined, shelves hold 128 12-oz.
cans
o Shelves can be removed to store
larger bottles
• Hidden touchpad electronic controls
with digital temperature readout
• Inside temperature can be adjusted
from 40 – 65
°F
• Top wire shelf has 6-1/2" split flip-up
section to chill or store open wine
bottles or large containers
• Two full-depth, tempered-glass
shelves create distinct temperature
zone for wine storage
• Two wine shelves in bottom cradle 12
bottles horizontally, and pull out for
easy access
VURI140T model includes
• 6.1 cubic feet of storage
• Ice bin stores up to 5 lbs. of ice
• Inside temperature can be adjusted
from 33 – 45
beverage section, and 5 – 15°F (–15.0
to –9.4°C) in icemaker section
• Icemaker produces up to 2 lbs. of ice
per day
• One full-depth removable wire shelf
• Three door shelves
°F (0.6 – 7.2°C) in
VUAR153T
15”W. Refrigerated
Beverage Center
FINISH DETAILS FOR ALL MODELS
•
Stainless Steel (SS)
* Black interior not available on outdoor model
ORDERING INSTRUCTIONS
First specify model number, followed by hinge preference (“R” for right or “L” for left)—(VUAR153TRSS).
P L A N N I N G A N D DE S I G N GU I D E
V I K I N G R A N G E . C O M • 1 - 8 8 8 - V I K I N G 1
VUAR143T
24”W. Refrigerated
Beverage Center
24”W. Refrigerated
Beverage Center/Icemaker
© 2 0 0 7 V RC —INFORMATION SUBJECT TO CHANGE
VURI140T
R E L E AS ED 6 / 1 0 / 08
3
0
-
3
/
4
”
(
7
8
.
1
c
m
)
22
”
(
5
5
.
9
c
m
)
2
4
-
3
/
8
”
(
6
1.
9
c
m)
2
6
-
7
/
8
”
(
6
3
.
3
c
m)
2
3
-
7/
8
”
(
6
0
.
6
c
m
)
3
4
-
1
/
4
”
(
8
7
.
0
c
m
)
m
i
n
.
t
o
3
5
”
(
88
.
9
c
m)
m
a
x
.
3
0
-
3
/
4
”
(
7
8
.
1
c
m)
2
1
-
3
/
1
6
”
(
5
3.
8
c
m)
2
3
-
5
/
8
”
(
6
0
.
0
c
m)
34
-
1
/
4
”
(
8
7
.
0
c
m)
m
i
n
.
t
o
35
”
(
8
8
.
9
c
m
)
m
a
x
.
2
6
-
1
/
8
”
(
6
6.
4
c
m)
14
-
3
/
4
”
(
3
7
.
5
c
m)
14-3/4”
(37.5 cm)
14-3/4”
(37
.5
cm)
OUTDOOR—REFRIGERATION
Undercounter/Freestanding 15”W./24”W. Ref. Beverage Center &
24”W. Ref. Beverage Center/Icemaker Combo
Please see
!
Installation Notes &
Accessories
for important
information.
Dimensions & Specifications
PRODUCT DIMENSIONS
VUAR153T
15”W. Beverage Center
VUAR143T
24”W. Beverage Center
VURI140T
24”W. Beverage
Center/Icemaker
Overall width 14-3/4” (37.5 cm) 23-7/8” (60.6 cm) 23-7/8” (60.6 cm)
Overall height (from bottom) 34-1/4” (87.0 cm) min. to
(w/leveling legs fully extended) 35” (88.9 cm) max.
Overall depth (from rear)
To front of handle 26-1/8” (66.4 cm) 26-7/8” (68.3 cm) 26-7/8” (68.3 cm)
With door fully open 37-3/16” (94.5 cm) 47-1/4” (120.0 cm) 47-1/4” (120.0 cm)
Approx. ship weight 110 lbs. (49.5 kg) 140 lbs. (63.0 kg) 140 lbs. (63.0 kg)
P L A N N I N G A N D DE S I G N GU I D E
V I K I N G R A N G E . C O M • 1 - 8 8 8 - V I K I N G 1
VUAR153T VUAR143T/VURI140T
VUAR153T VUAR143T VURI140T
R E L E AS ED 6 / 1 0 / 08
© 2 0 0 7 V RC —INFORMATION SUBJECT TO CHANGE
14-3/4”
(37.5 cm)
21-3/16”
(53.8 cm)
90.0°
37-3/16”
(94.5 cm)
2-1/2”
(6.4 cm)
Undercounter/Freestanding 15”W./24”W. Ref. Beverage Center &
23-7/8”
(60.6 cm)
22”
(55.9 cm)
90.0°
47-1/4”
(120.0 cm)
2-1/2”
(6.4 cm)
Dimensions & Specifications
DOOR SWING
OUTDOOR—REFRIGERATION
24”W. Ref. Beverage Center/Icemaker Combo
VUAR153T
15”W. Beverage Center
VUAR153T
VUAR143T
24”W. Beverage Center
VURI140T
24”W. Beverage Center/Icemaker
P L A N N I N G A N D DE S I G N GU I D E
V I K I N G R A N G E . C O M • 1 - 8 8 8 - V I K I N G 1
VUAR143T/VURI140T
R E L E AS ED 6 / 1 0 / 08
© 2 0 0 7 V RC —INFORMATION SUBJECT TO CHANGE
OUTDOOR—REFRIGERATION
34-1/2”
(87.6 cm) min.
to
35-1/8”
(89.2 cm) max.
2
4
”
(
6
1
.0
c
m
)
m
i
n
.
15” VUAR153T
(38.1 cm)*
24” VUAR143T/
VURI140T (61.0 cm)**
Undercounter/Freestanding 15”W./24”W. Ref. Beverage Center &
24”W. Ref. Beverage Center/Icemaker Combo
UTILITY
REQUIREMENTS
GAS
Not applicable
ELECTRICAL
• 2-wire cord with
grounded,
3-prong plug
attached to
product
o VUAR models—
6-1/2’ cord
o VUIM model—
7’ (2.1 m) cord
• 115 VAC/60 Hz;
15-amp
dedicated circuit
• Max. amp usage
o VUAR150T—3.0
o VUAR/
VURI140T—3.3
Installation Requirements

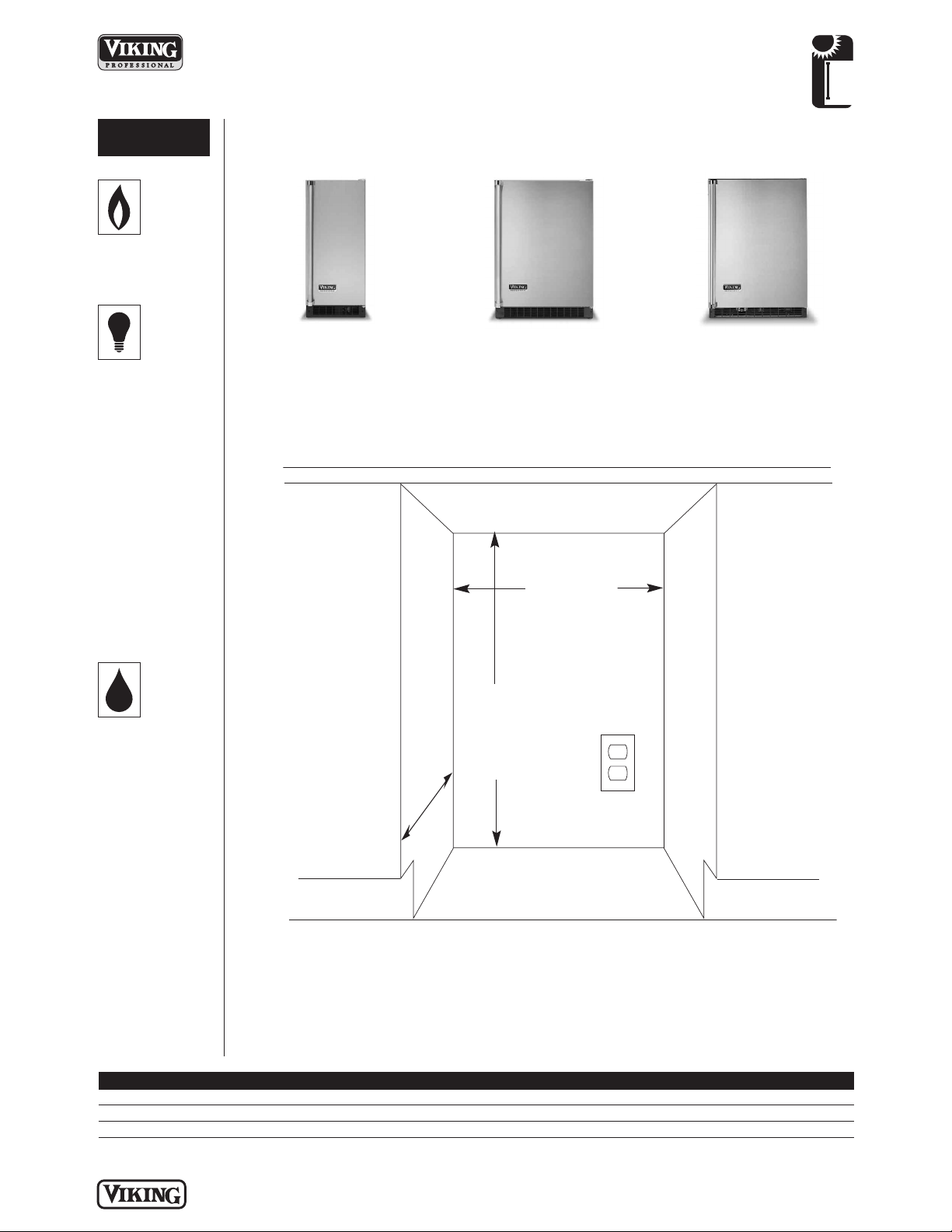

ACCESS REQUIREMENTS
VUAR153T
15”W. Beverage Center
24”W. Beverage Center
VUAR143T
VURI140T
24”W. Beverage
Center/Icemaker
PLUMBING
• Not applicable to
VUAR models
• VURI model
• Inlet waterline
requirements—
1/8” (0.6 cm)
copper tubing
• 20 psi min.; 100
psi max.
Cutout width 15” (38.1 cm)* 24” (61.0 cm)** 24” (61.0 cm)**
Cutout height 34-1/2” (87.6 cm) min. to 35-1/8” (89.2 cm) max.
Cutout depth 24” (61.0 cm) min.
P L A N N I N G A N D DE S I G N GU I D E
V I K I N G R A N G E . C O M • 1 - 8 8 8 - V I K I N G 1
*15” (38.1 cm) width for cabinet only; If door is recessed between cabinets, cutout must be 15-1/4” (38.7 cm).
**24” (61.0 cm) width for cabinet only; If door is recessed between cabinets, cutout must be 24-1/4” (61.6 cm).
VUAR153T VUAR143T VURI140T
R E L E AS ED 6 / 1 0 / 08
© 2 0 0 7 V RC —INFORMATION SUBJECT TO CHANGE
OUTDOOR—REFRIGERATION
Undercounter/Freestanding 15”W./24”W. Ref. Beverage Center &
24”W. Ref. Beverage Center/Icemaker Combo
Installation Notes & Accessories
!
Stainless Steel Cabinetry-Bases
• Stainless Steel (SS)
• For use with 15”W. & 24”W. Viking outdoor refrigeration products
See individual product pages (storage section) for more information and additional specifications
•
Model Description Approx. ship wt. lbs. (kg)
VURO2400 Base for 15”W outdoor refrigerator 115 (52.2)
VURO3200 Base for 24”W outdoor refrigerator 125 (56.7)
Stainless Steel Cabinetry-Oven Towers
• Stainless Steel (SS)
• For installation of 24” beverage center with oven
• See individual product pages (storage section) for more information and additional specifications
Model Description Approx. ship wt. lbs. (kg)
VERO3200 32”W. tower (for 24”W. beverage center+ smoker oven) 271 (122.9)
VGRO3200 32”W. tower (for 24”W. beverage center+ gas oven) 271 (122.9)
Brass Handle Kits
•
For use with Professional 15”W. & 24”W. Viking outdoor refrigeration products
Model Description Approx. ship wt. lb. (kg)
URHK30-BR Professional brass handle kit and logo for VUAR 6 (2.7)
P
Compliance Information
WARRANTY SUMMARY*
• One-year full warranty—complete unit
• Five-year limited warranty—sealed refrigeration system (includes compressor, condenser,
dryer/strainer, evaporator, and connecting tubing)
• Ninety-day limited warranty—cosmetic parts such as glass, painted items, and decorative items
*For complete warranty see Use & Care Guide. Warranty valid on Viking products shipped within the United States and Canada.
P L A N N I N G A N D DE S I G N GU I D E
V I K I N G R A N G E . C O M • 1 - 8 8 8 - V I K I N G 1
© 2 0 0 7 V RC —INFORMATION SUBJECT TO CHANGE
R E L E AS ED 6 / 1 0 / 08
