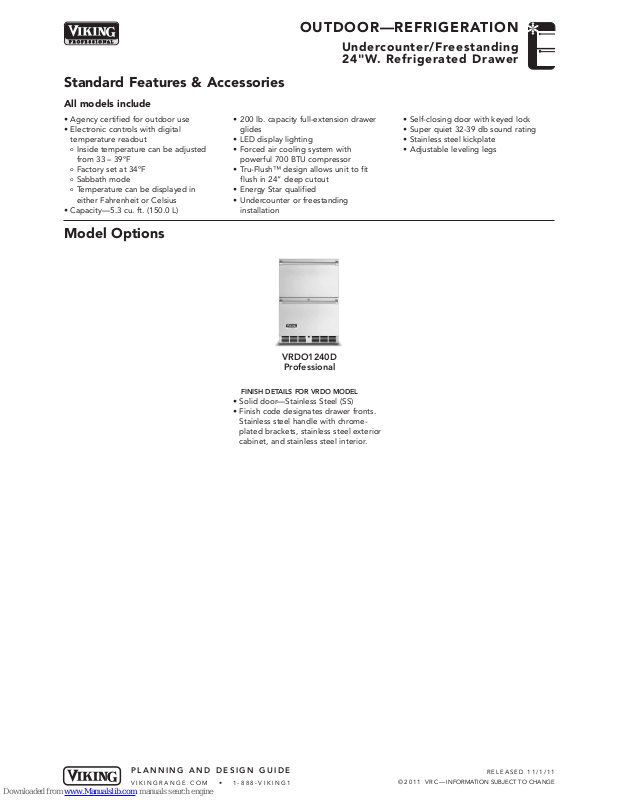

Page 1
Standard Features & Accessories
All models include
• Agency certified for outdoor use
• Electronic controls with digital
temperature readout
o
Inside temperature can be adjusted
from 33 – 39ºF
o
Factory set at 34ºF
o
Sabbath mode
o
Temperature can be displayed in
either Fahrenheit or Celsius
• Capacity—5.3 cu. ft. (150.0 L)
• 200 lb. capacity full-extension drawer
glides
• LED display lighting
• Forced air cooling system with
powerful 700 BTU compressor
• Tru-Flush™ design allows unit to fit
flush in 24” deep cutout
• Energy Star qualified
• Undercounter or freestanding
installation
Model Options
OUTDOOR—REFRIGERATION
Undercounter/Freestanding
24"W. Refrigerated Drawer
• Self-closing door with keyed lock
• Super quiet 32-39 db sound rating
• Stainless steel kickplate
• Adjustable leveling legs
VRDO1240D
Professional
FINISH DETAILS FOR VRDO MODEL
• Solid door—Stainless Steel (SS)
• Finish code designates drawer fronts.
Stainless steel handle with chromeplated brackets, stainless steel exterior
cabinet, and stainless steel interior.
P L A N N I N G A N D D E S I G N G U I D E
V I K I N G R A N G E . C OM • 1 - 8 8 8 - V I K I N G 1
R E L E A S E D 1 1 / 1 / 1 1
© 2 0 1 1 V R C — INFORMATION SUBJECT TO CHANGE
Page 2
OUTDOOR—REFRIGERATION
3
0
-
1
/
8
”
(
7
6
.
5
c
m
)
2
2
-
1
/
6
”
(
5
6
.
0
c
m
)
2
4
-
1
/
1
6
”
(6
1
.
1
c
m
)
2
6
-
9
/
1
6
”
(6
7
.
5
c
m
)
2
3
-
7
/
8
”
23-7/8”
(
6
0
.
6
c
m
)
(60.6 cm)
2
3
-
7
/
8
”
(
6
0
.
6
c
m
)
3
4
-
1
/
4
”
(
8
7
.
0
c
m
)
m
i
n
.
t
o
3
5
”
(
8
9
.
0
c
m
)
m
a
x
.
Undercounter/Freestanding
24"W. Refrigerated Drawer
Please see
✪
Installation Notes &
Accessories
for important
information,
including pan sets
and dividers.
Dimensions & Specifications
PRODUCT DIMENSIONS
VRDO1240D
Professional
Overall width 23-7/8" (60.6 cm)
Overall height 34-1/4” (87.0 cm) min. to 35” (89.0 cm) max.
Overall depth (from rear)
To front edge of handle 26-9/16” (67.5 cm)
With drawer fully extended 40” (102.0 cm)
Approx. ship wt. 215 lbs. (98.0 kg)
P L A N N I N G A N D D E S I G N G U I D E
V I K I N G R A N G E . C O M • 1 - 8 8 8 - V I K I N G 1
PROFESSIONAL
VRDO1240D
R E L E A S E D 1 1 / 1 / 1 1
© 2 0 1 1 V R C — INFORMATION SUBJECT TO CHANGE
Page 3
Dimensions & Specifications
40” (102.0 cm)
22-1/16” (56.0 cm)
24-1/16” (61.1 cm)
26-9/16” (67.5 cm)
DRAWER EXTENSION
OUTDOOR—REFRIGERATION
Undercounter/Freestanding
24"W. Refrigerated Drawer
VRDO1240D
Professional
PROFESSIONAL
P L A N N I N G A N D D E S I G N G U I D E
V I K I N G R A N G E . C O M • 1 - 8 8 8 - V I K I N G 1
R E L E A S E D 1 1 / 1 / 1 1
© 2 0 1 1 V R C — INFORMATION SUBJECT TO CHANGE
Page 4
OUTDOOR—REFRIGERATION
24” (61.0 cm)
34-1/2” (87.6 cm) min.
35-1/2” (90.2 cm) max.
2
4
”
(
6
1
.
0
c
m
)
Undercounter/Freestanding
24"W. Refrigerated Drawer
UTILITY
REQU IR EMENT S
GAS
Not applicable
ELECTRICAL
• Three-wire cord
with grounded
three-prong plug
attached to
product
• 115V/60 Hz; 15
amp dedicated
circuit
• Maximum amp
usage—3.0
Installation Requirements
ACCESS REQUIREMENTS
VRDO1240D
Professional
PLUMBING
Not applicable
Cutout width 24” (61.0 cm)
Cutout height 34-1/2” (87.6 cm) min. to 35-1/2” (90.2 cm) max.
Cutout depth 24” (61.0 cm)
All models
P L A N N I N G A N D D E S I G N G U I D E
V I K I N G R A N G E . C O M • 1 - 8 8 8 - V I K I N G 1
R E L E A S E D 1 1 / 1 / 1 1
© 2 0 1 1 V R C — INFORMATION SUBJECT TO CHANGE
Page 5
OUTDOOR—REFRIGERATION
Undercounter/Freestanding
24"W. Refrigerated Drawer
Installation Notes & Accessories
✪
Stainless Steel Cabinetry-Bases
• Stainless Steel (SS)
• For use with 24”W. Viking outdoor refrigeration products
See individual product pages (storage section) for more information and additional specifications
•
Model Description Approx. ship wt. lbs. (kg)
URO3200 Base for 24”W outdoor refrigerated drawer 125 (56.7)
V
Stainless Steel Cabinetry-Oven Towers
• Stainless Steel (SS)
• For installation of 24” refrigerated drawer with oven
• See individual product pages (storage section) for more information and additional specifications
Model Description Approx. ship wt. lbs. (kg)
VERO3200 32”W. tower (for 24”W. refrigerated drawer + smoker oven) 271 (122.9)
VGRO3200 32”W. tower (for 24”W. refrigerated drawer + gas oven) 271 (122.9)
Compliance Information
WARRANTY SUMMARY*
• One-year full warranty—complete unit
• Five-year limited warranty—sealed refrigeration system (includes compressor, condenser, dryer/strainer, evaporator
and connecting tubing)
• Ninety-day limited—cosmetic parts such as glass, painted, and decorative items
*For complete warranty, see Use & Care Guide. Warranty valid on Viking products shipped within the United States and Canada.
P L A N N I N G A N D D E S I G N G U I D E
V I K I N G R A N G E . C O M • 1 - 8 8 8 - V I K I N G 1
R E L E A S E D 1 1 / 1 / 1 1
© 2 0 1 1 V R C — INFORMATION SUBJECT TO CHANGE
