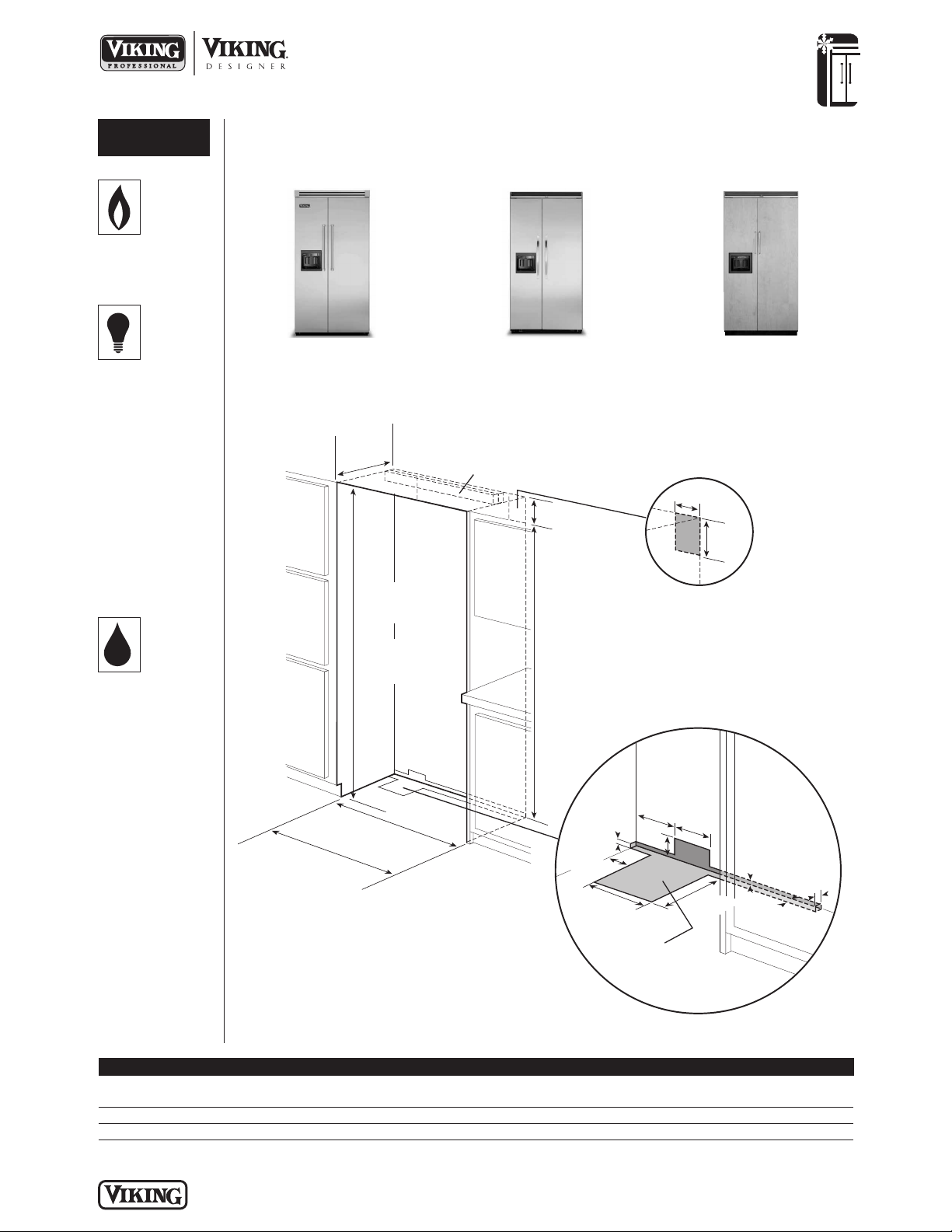

FINISH DETAILS FOR VCSB/VISB MODEL
• Stainless Steel (SS), Black (BK), White
(WH), Metallic Silver (MS), Graphite Gray
(GG), Stone Gray (SG), Taupe (TP), Biscuit
(BT), Cotton White (CW), Oyster Gray
(OG), Golden Mist (GM), Lemonade (LE),
Sage (SA), Mint Julep (MJ), Sea Glass
(SE), Iridescent Blue (IB), Viking Blue (VB),
Pumpkin (PM), Racing Red (RR), Apple
Red (AR), Burgundy (BU), Plum (PL),
Chocolate (CH), and Cobalt Blue (CB).
• Finish codes designate door fronts.
Stainless steel upper grille, side trim,
and handles (with chrome-plated
brackets); black lower kickplate.
• Brass Trim Option (BR)—nameplate,
handle/brackets, and side trim. Brass
components have a durable protective
coating for maintenance-free normal
use.
PLANNING AND DESIGN GUIDE
VIKINGRANGE.COM • 1-888-VIKING1
RELEASED 12/1/07
©2007 VRC—INFORMATION SUBJECT TO CHANGE
Model Options
REFRIGERATION
Built-In 42”W. Side-By-Side
Refrigerator/Freezer with Dispenser
All models include
• Total capacity—23.6 cu. ft. (667.9 L)
o 84”H./24”D.
• ProChill™ Temperature Management
System
o
Variable-speed, single compressor
system includes the quietest, most
technologically advanced compressor available
o
Electronic controls maintain the
temperature selection within 1ºF
o
Multi-channel airflow system
removes odors and excess humidity
• Frost-free refrigerator
o Capacity—15.0 cu. ft. (424.8 L)
o
Five adjustable tempered glass spillproof shelves
o
Convertible temperature-controlled
Meat Savor™/produce drawer with
precision ball-bearing glide
• Separate temperature control can
be set for produce or fresh meat
storage
• Quick-chill option chills foods and
beverages in minutes
o
Moisture adjustable see-through
produce drawer with precision
ball-bearing glides
o
Two in-the-door dairy compartments
o
Four adjustable aluminum door bins
o
Top-shelf provides quick chill-down
area
o
Egg bin and butter tray
• Frost-free freezer
o Capacity—8.6 cu. ft. (243.4 L)
o
Adaptive defrost
o
Factory-installed automatic ice
maker
o
Three wire shelves and slide-out
basket
o
Four adjustable aluminum door bins
o
Three large adjustable aluminum
door bins with tempered glass front
• Ice/water dispenser
o
Through-the-door dispenser
provides cubed/crushed ice and
water
o
Premium water filter removes bad
tastes, odors, sediment, and harmful
contaminants
• Open door alarm sounds and glows to
warn that door has been ajar for three
minutes
• Adjustable door stops standard—90°,
110°, or 120° swing
• Sabbath Mode
VCSB423D/VISB423D
Professional/Professional
Integrated
FINISH DETAILS FOR DFSB MODEL
• Handles not included—opt for custom
handles, or purchase a Viking
Professional Series or Designer Series
handle kit (see Installation Notes &
Accessories).
•See Custom Panels section for
more information and additional
specifications.
FINISH DETAILS FOR DDSB MODEL
• Stainless Steel (SS), Black (BK), White
(WH), Metallic Silver (MS), Graphite Gray
(GG), Stone Gray (SG), Taupe (TP), Biscuit
(BT), Cotton White (CW), Oyster Gray
(OG), Golden Mist (GM), Lemonade (LE),
Sage (SA), Mint Julep (MJ), Sea Glass
(SE), Iridescent Blue (IB), Viking Blue (VB),
Pumpkin (PM), Racing Red (RR), Apple
Red (AR), Burgundy (BU), Plum (PL),
Chocolate (CH), and Cobalt Blue (CB).
• Finish codes designate door fronts.
Stainless steel upper grille, side, trim,
and handles, with black lower kickplate.
• Brass Trim Option (BR)—handle. Brass
components have a durable protective
coating for maintenance-free normal
use.
DDSB423D
Designer
DFSB423D
Custom Front

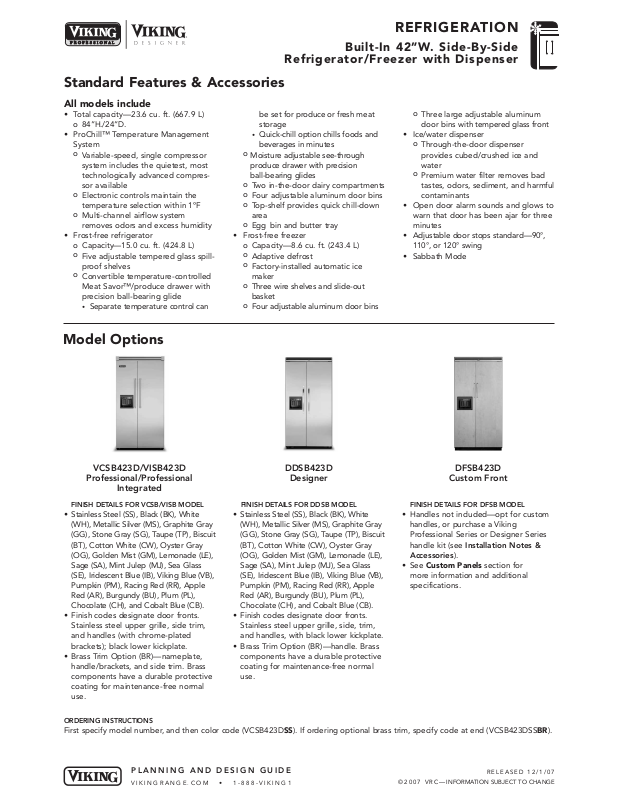

Standard Features & Accessories
ORDERING INSTRUCTIONS
First specify model number, and then color code (VCSB423DSS). If ordering optional brass trim, specify code at end (VCSB423DSSBR).
✪
Please see
Installation Notes &
Accessories
for important
information,
including panel and
handle kits, and
water filters.
Star-K Kosher
Certification for
use on the Jewish
Sabbath or Jewish
holidays
ALL MODELS
REFRIGERATION
Built-In 42”W. Side-By-Side
Refrigerator/Freezer with Dispenser
PLANNING AND DESIGN GUIDE
VIKINGRANGE.COM • 1-888-VIKING1
RELEASED 12/1/07
©2007 VRC—INFORMATION SUBJECT TO CHANGE

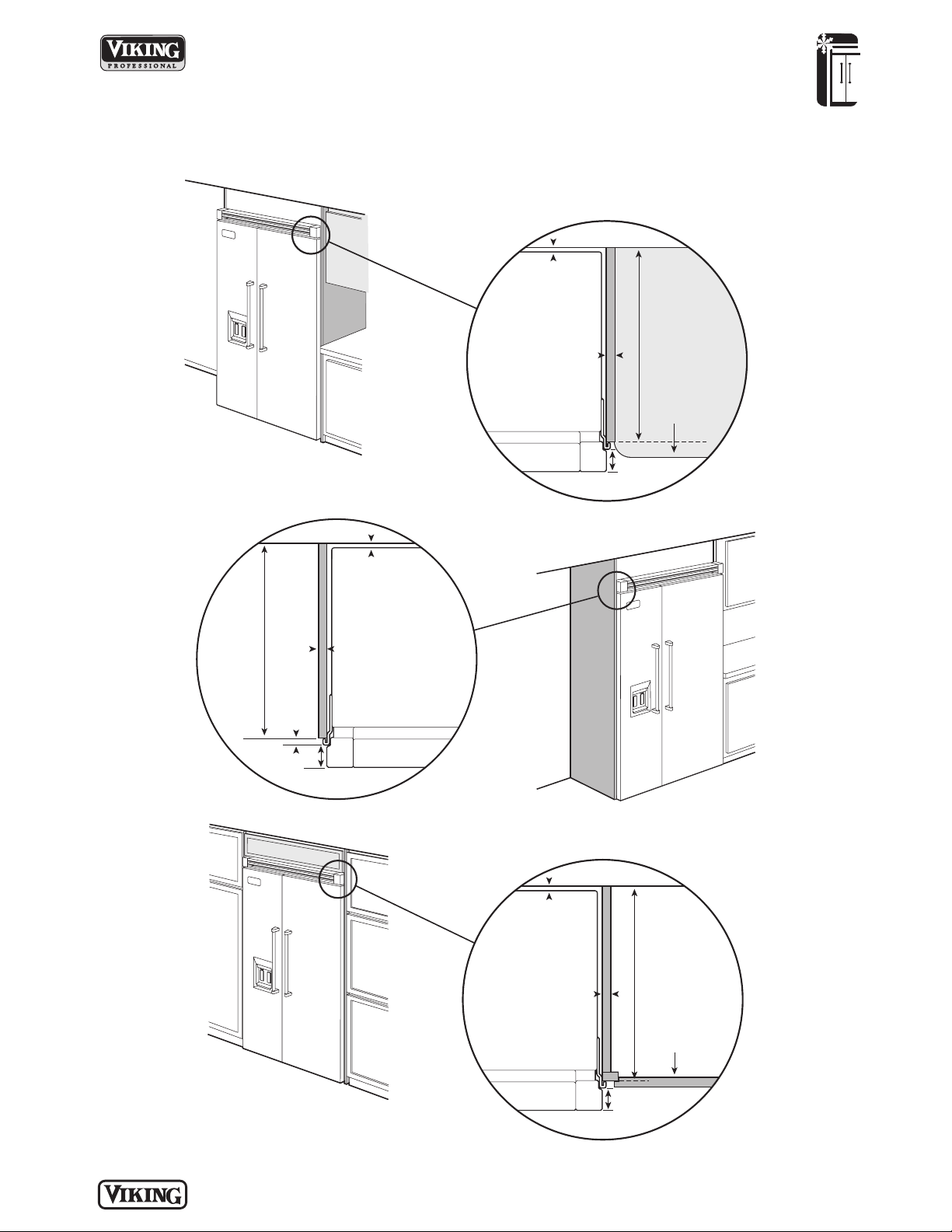

2
2
-
3
/1
6”
(56
.4 c
m)
24-11
/1
6”
(62
.7 c
m)
75-15/16”
(192.9
cm)
3-19/32”
(9.1 cm)
42”
(106.7 cm)
27-1/4”
(69
.2 cm
)
41”
(10
4
.1 cm)
82-3/
4”
(210.2 cm)
min.
to
84-
1/16
”
(2
1
3
.5 c
m)
max.
23-
3/8”
(5
9.4
c
m)
24”
(6
1.0
c
m)
75-15/16”
(192.9 cm)
42”
(106.7 cm)
41”
(104.1 cm)
82-3/4”
(210.2 cm)
min.
to
84-
1/16”
(21
3.5 c
m)
max.
26-
1/2”
(6
7.3 cm)
3-19/32”
(9.1 cm)
PROFESSIONAL PROFESSIONAL
INTEGRATED
VCSB423D VISB423D
Overall width 42” (106.7 cm)
Overall height (from bottom) 82-3/4” (210.2 cm) min. to 84-1/16” (213.5 cm) max.
Overall depth (from rear)
To front edge of side trim 22-3/16” (56.4 cm) 23-3/8” (59.4 cm)
To front of top grille 24-11/16” (62.7 cm) 24” (61.0 cm)
To front of handle 27-1/4” (69.2 cm) 26-1/2” (67.3 cm)
Approx. ship weight 676 lbs. (304.2 kg)
VCSB423D/VISB423D
Professional/Professional
Integrated

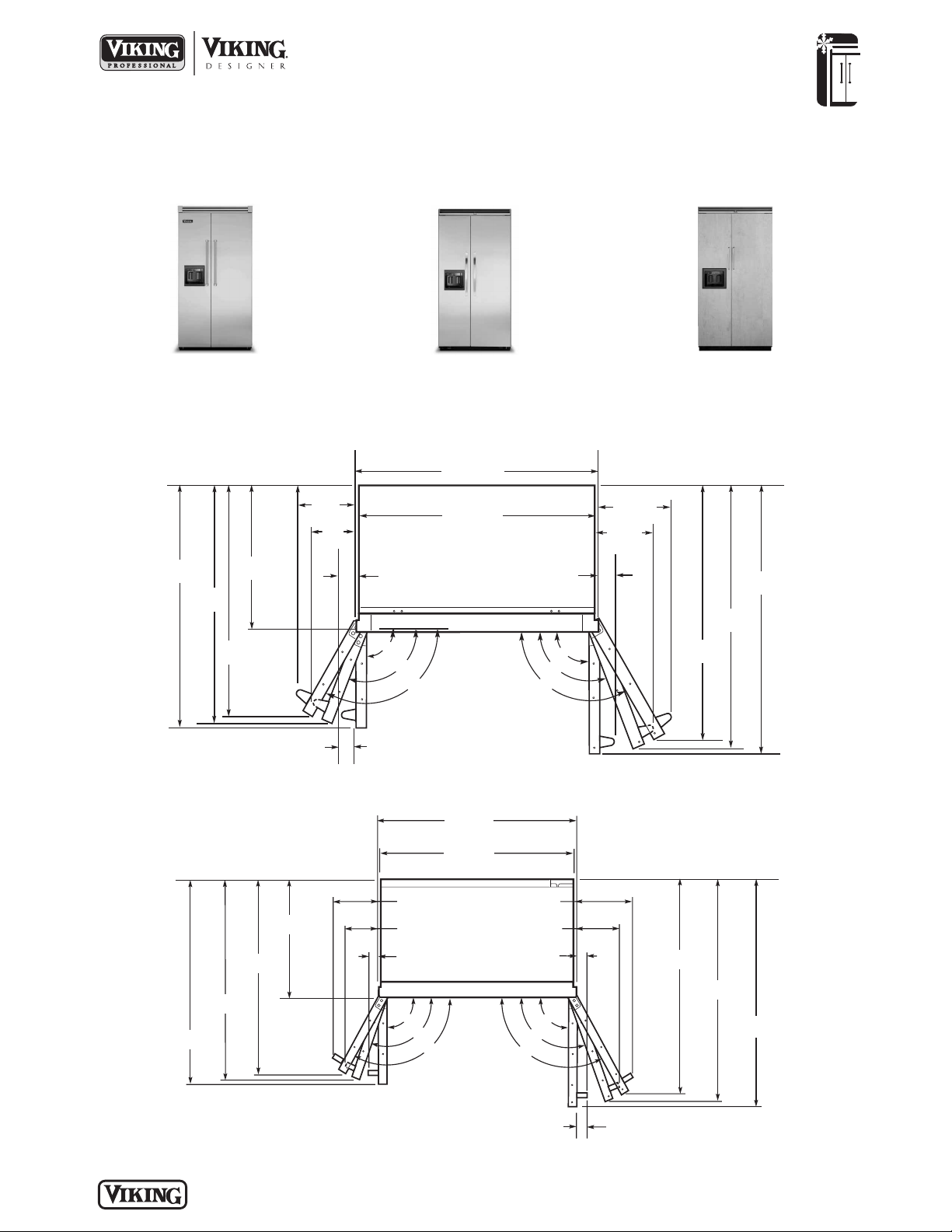

Dimensions & Specifications
PRODUCT DIMENSIONS
23-13/16
”
(60.5 cm)
24-
3/4”
(62.9 cm)
75-15/16”
(192.9 cm)
42”
(106.7 cm)
41”
(104
.1
cm)
82-3/
4”
(210.2 cm)
min.
to
84-1/1
6
”
(2
1
3
.5
c
m
)
max.
Varies
3-1/2”
(8.9 cm)
CUSTOM FRONT
REFRIGERATION
Built-In 42”W. Side-By-Side
Refrigerator/Freezer with Dispenser
PLANNING AND DESIGN GUIDE
VIKINGRANGE.COM • 1-888-VIKING1
RELEASED 12/1/07
©2007 VRC—INFORMATION SUBJECT TO CHANGE
✪
Please see
Installation Notes &
Accessories
for important
information,
including panel and
handle kits, and
water filters.
Star-K Kosher
Certification for
use on the Jewish
Sabbath or Jewish
holidays
ALL MODELS

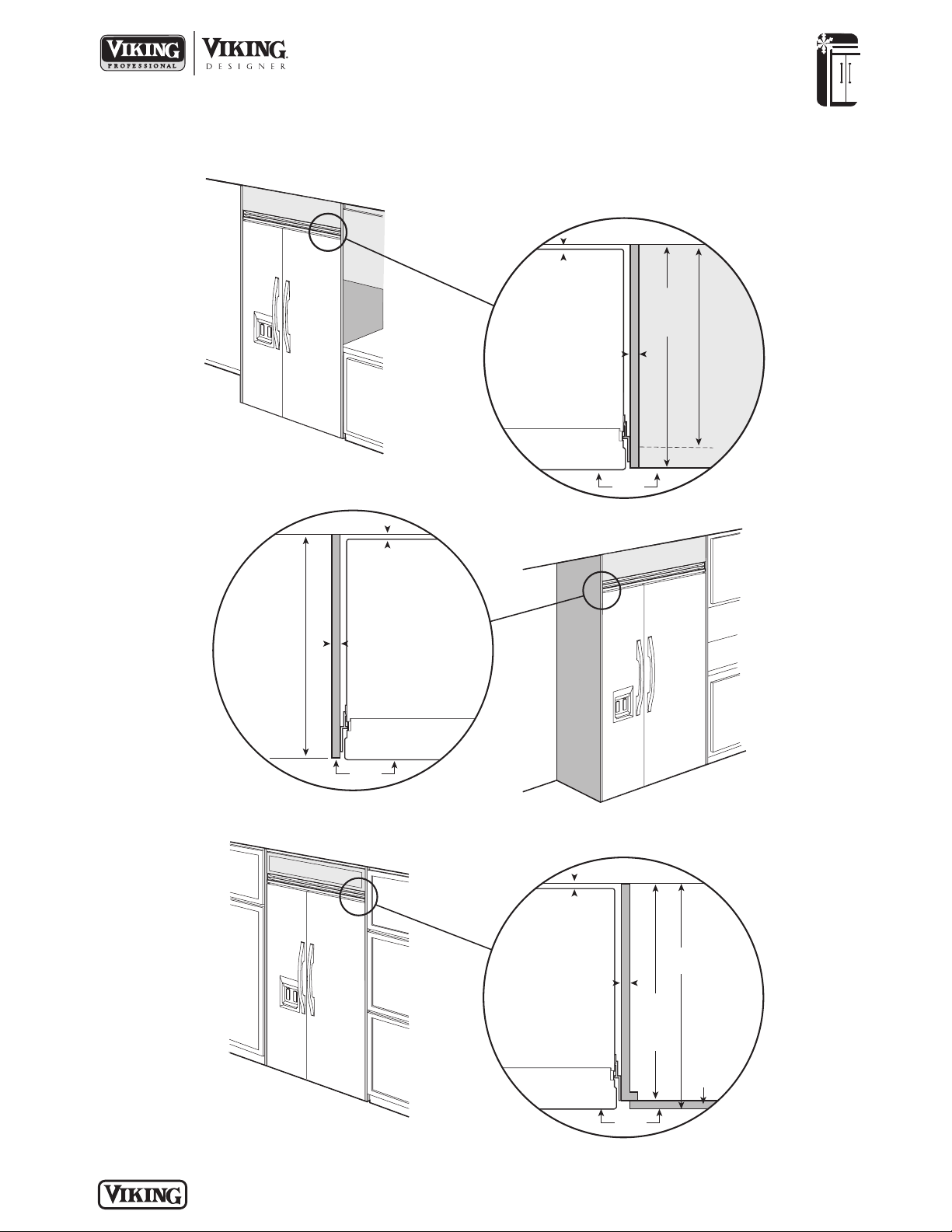

23-
3
/8”
(59.4 cm)
24”
(61.0 cm)
75-15/16”
(192.9 cm)
42”
(106.7 cm)
41”
(104
.1
cm)
82-3/
4”
(210.2 cm)
min.
to
84-1/1
6
”
(2
1
3
.5
c
m
)
max.
26”
(66
.0 cm
)
3-1/2”
(8.9 cm)
DESIGNER
DDSB423D DFSB423D
Overall width 42” (106.7 cm)
Overall height (from bottom) 82-3/4” (210.2 cm) min. to 84-1/16” (213.5 cm) max.
Overall depth (from rear)
To front edge of side trim 23-3/8” (59.4 cm) 23-13/16” (60.5 cm)
To front of top grille 24” (61.0 cm) 24-3/4” (62.9 cm)
To front of handle 26” (66.0 cm) Varies
Approx. ship weight 665 lbs. (299.3 kg) 525 lbs. (236.2 kg)
DDSB423D
Designer
DFSB423D
Custom Front
See Custom Panels section for
more information and additional
specifications.
Dimensions & Specifications
PRODUCT DIMENSIONS
