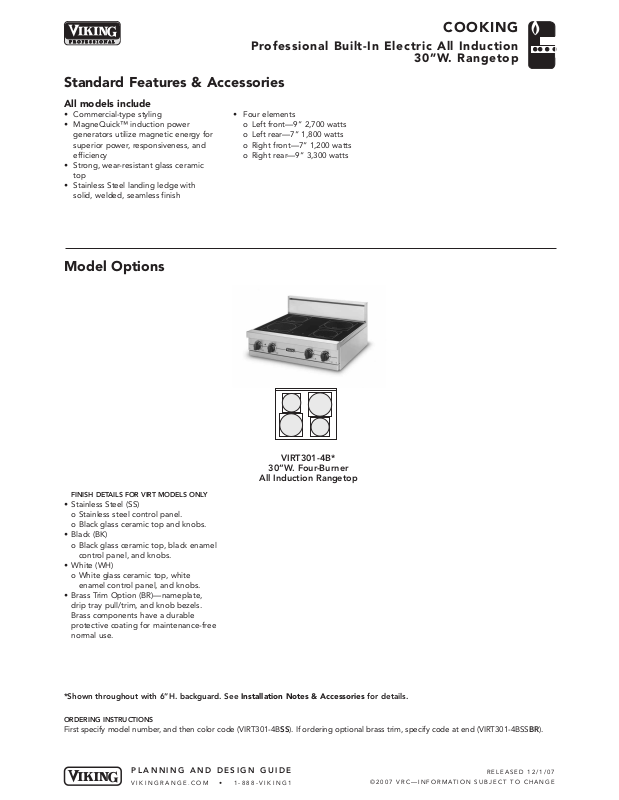

Viking VIRT301-4B User Manual

PLANNING AND DESIGN GUIDE

VIKINGRANGE.COM • 1-888-VIKING1

RELEASED 12/1/07

©2007 VRC—INFORMATION SUBJECT TO CHANGE

All models include

• Commercial-type styling

• MagneQuick™ induction power
generators utilize magnetic energy for
superior power, responsiveness, and
efficiency

• Strong, wear-resistant glass ceramic
top

• Stainless Steel landing ledge with
solid, welded, seamless finish

• Four elements
o Left front—9” 2,700 watts
o Left rear—7” 1,800 watts
o Right front—7” 1,200 watts
o Right rear—9” 3,300 watts

FINISH DETAILS FOR VIRT MODELS ONLY

• Stainless Steel (SS)
o Stainless steel control panel.
o Black glass ceramic top and knobs.

• Black (BK)
o Black glass ceramic top, black enamel

control panel, and knobs.

• White (WH)
o White glass ceramic top, white

enamel control panel, and knobs.

• Brass Trim Option (BR)—nameplate,
drip tray pull/trim, and knob bezels.
Brass components have a durable
protective coating for maintenance-free
normal use.

Standard Features & Accessories

Model Options

COOKING

Professional Built-In Electric All Induction

30”W. Rangetop

VIRT301-4B*

30”W. Four-Burner

All Induction Rangetop

*Shown throughout with 6”H. backguard. See Installation Notes & Accessories for details.

ORDERING INSTRUCTIONS

First specify model number, and then color code (VIRT301-4BSS). If ordering optional brass trim, specify code at end (VIRT301-4BSSBR).

24”

(61cm)

25-15/16”

(65

.9 cm)

27-7/16”

(69

.7 cm)

29-7/8”

(75.9 cm)

7-7/8”

(20.0 cm)

13-7/8”

(35.2 cm)

COOKING

Professional Built-In Electric All Induction

30”W. Rangetop

PLANNING AND DESIGN GUIDE

VIKINGRANGE.COM • 1-888-VIKING1

RELEASED 12/1/07

©2007 VRC—INFORMATION SUBJECT TO CHANGE

✪

Please see

Installation Notes &

Accessories

for important

installation

information,

including

backguard, high-

shelf, and island

trim.

VIRT301-4B

Overall width 29-7/8” (75.9 cm)
Overall height (from bottom)

To top of glass frame 7-7/8” (20.0 cm)
To top of island trim 9-1/8” (23.2 cm)
To top of 6” backguard 13-7/8” (35.2 cm)
To top of high shelf 31-3/8” (79.7 cm)

Overall depth (from rear)

To end of side panel 24” (61.0 cm)
To end of control panels 25-15/16” (65.9 cm)
To end of knobs 27-7/16” (69.7 cm)

Dimensions & Specifications

PRODUCT DIMENSIONS

VIRT301-4B

30”W. Four-Burner

All Induction Rangetop
