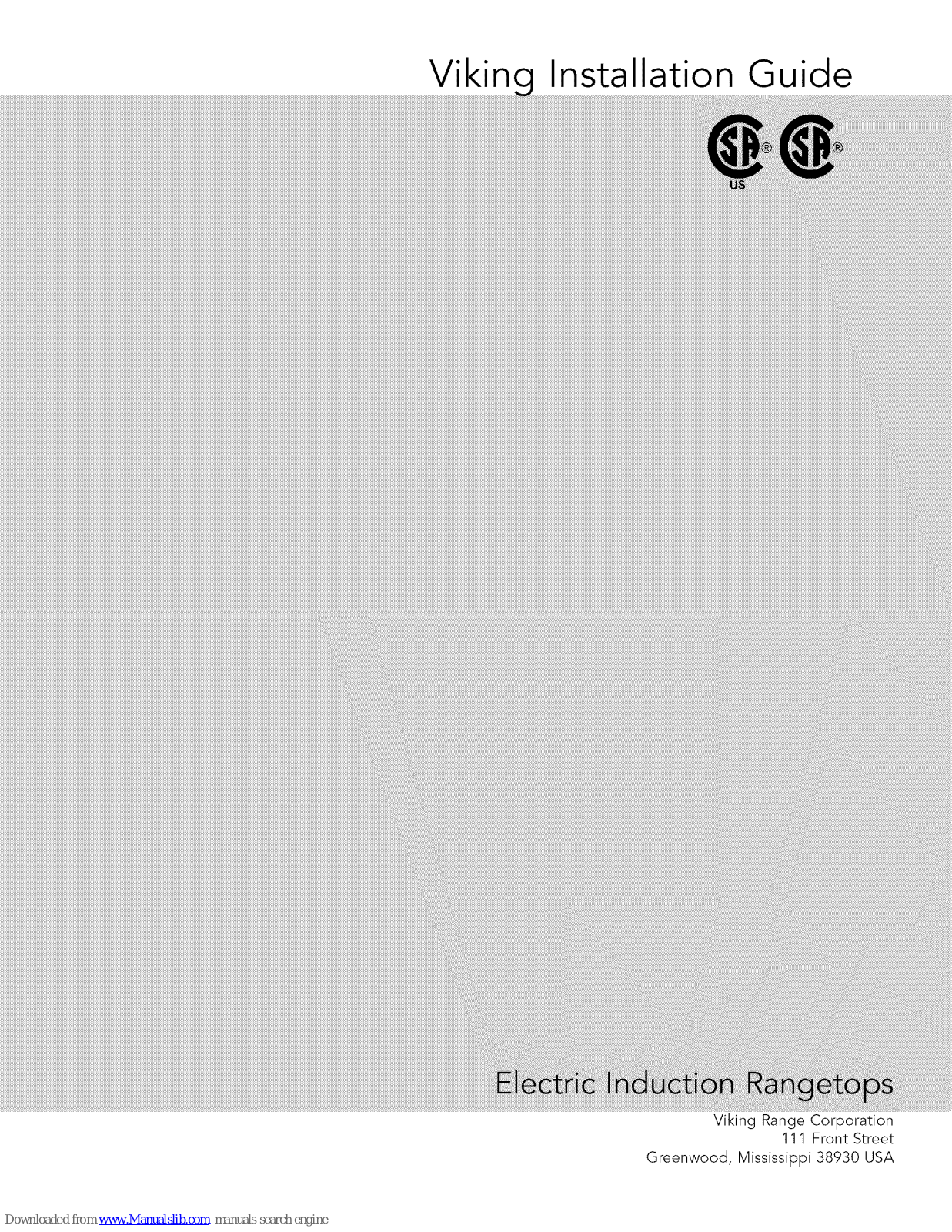

Viking VCRT300, VIRT300 Installation Manual

Viking Installation Guide

Viking Range Corporation

111 Front Street

Greenwood, Mississippi 38930 USA

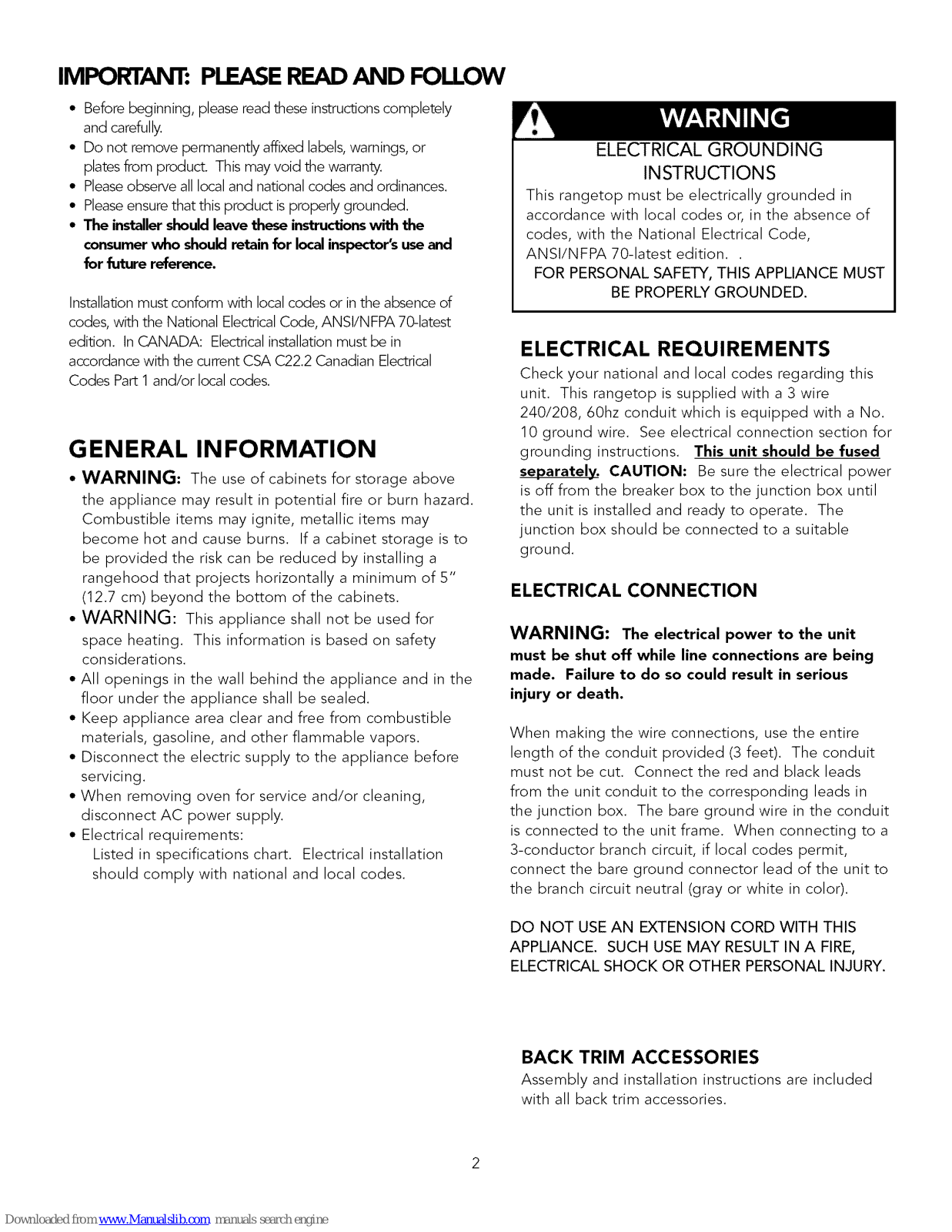

IMPORTANT: PLEASE READ AND FOLLOW

• Before beginning, please read these instructions completely
and carefully.

• Do not remove permanently affixed labels, warnings, or
plates from product. This may void the warranty.

• Please observe all local and national codes and ordinances.

• Please ensure that this product is properly grounded.

• The installer should leave these instructions with the

consumer who should retain for local inspector's use and

for future reference.

Installationmust conform with local codes or inthe absence of

codes, with the National ElectricalCode, ANSI/NFPA 70-latest
edition. In CANADA: Electricalinstallationmust be in
accordancewith the currentCSA C22.2 CanadianElectrical

Codes Part 1 and/or local codes.

GENERAL INFORMATION

• WARNING: The use of cabinets for storage above

the appliance may result in potential fire or burn hazard.

Combustible items may ignite, metallic items may
become hot and cause burns. If a cabinet storage is to
be provided the risk can be reduced by installing a

rangehood that projects horizontally a minimum of 5"
(12.7 cm) beyond the bottom of the cabinets.

• WARNING: This appliance shall not be used for

space heating. This information is based on safety
considerations.

• All openings in the wall behind the appliance and in the

floor under the appliance shall be sealed.

• Keep appliance area clear and free from combustible

materials, gasoline, and other flammable vapors.

• Disconnect the electric supply to the appliance before

servicing.

• When removing oven for service and/or cleaning,

disconnect AC power supply.

• Electrical requirements:

Listed in specifications chart. Electrical installation

should comply with national and local codes.

ELECTRICAL GROUNDING

INSTRUCTIONS

This rangetop must be electrically grounded in
accordance with local codes or, in the absence of

codes, with the National Electrical Code,
ANBI/NFPA 70-latest edition..

FOR PERSONAL SAFETY, THIS APPLIANCE MUST

BE PROPERLY GROUNDED.

ELECTRICAL REQUIREMENTS

Check your national and local codes regarding this

unit. This rangetop is supplied with a 3 wire

240/208, 60hz conduit which is equipped with a No.

10 ground wire. Bee electrical connection section for

grounding instructions. This unit should be fused
separately. CAUTION: Be sure the electrical power

is off from the breaker box to the junction box until

the unit is installed and ready to operate. The
junction box should be connected to a suitable

ground.

ELECTRICAL CONNECTION

WARNING: The electrical power to the unit

must be shut off while line connections are being
made. Failure to do so could result in serious

injury or death.

When making the wire connections, use the entire
length of the conduit provided (3 feet). The conduit

must not be cut. Connect the red and black leads
from the unit conduit to the corresponding leads in

the junction box. The bare ground wire in the conduit
is connected to the unit frame. When connecting to a

3-conductor branch circuit, if local codes permit,
connect the bare ground connector lead of the unit to

the branch circuit neutral (gray or white in color).

DO NOT USE AN EXTENSION CORD WITH THIS
APPLIANCE. SUCH USE MAY RESULT IN A FIRE,

ELECTRICAL SHOCK OR OTHER PERSONAL INJURY.

BACK TRIM ACCESSORIES

Assembly and installation instructions are included
with all back trim accessories.

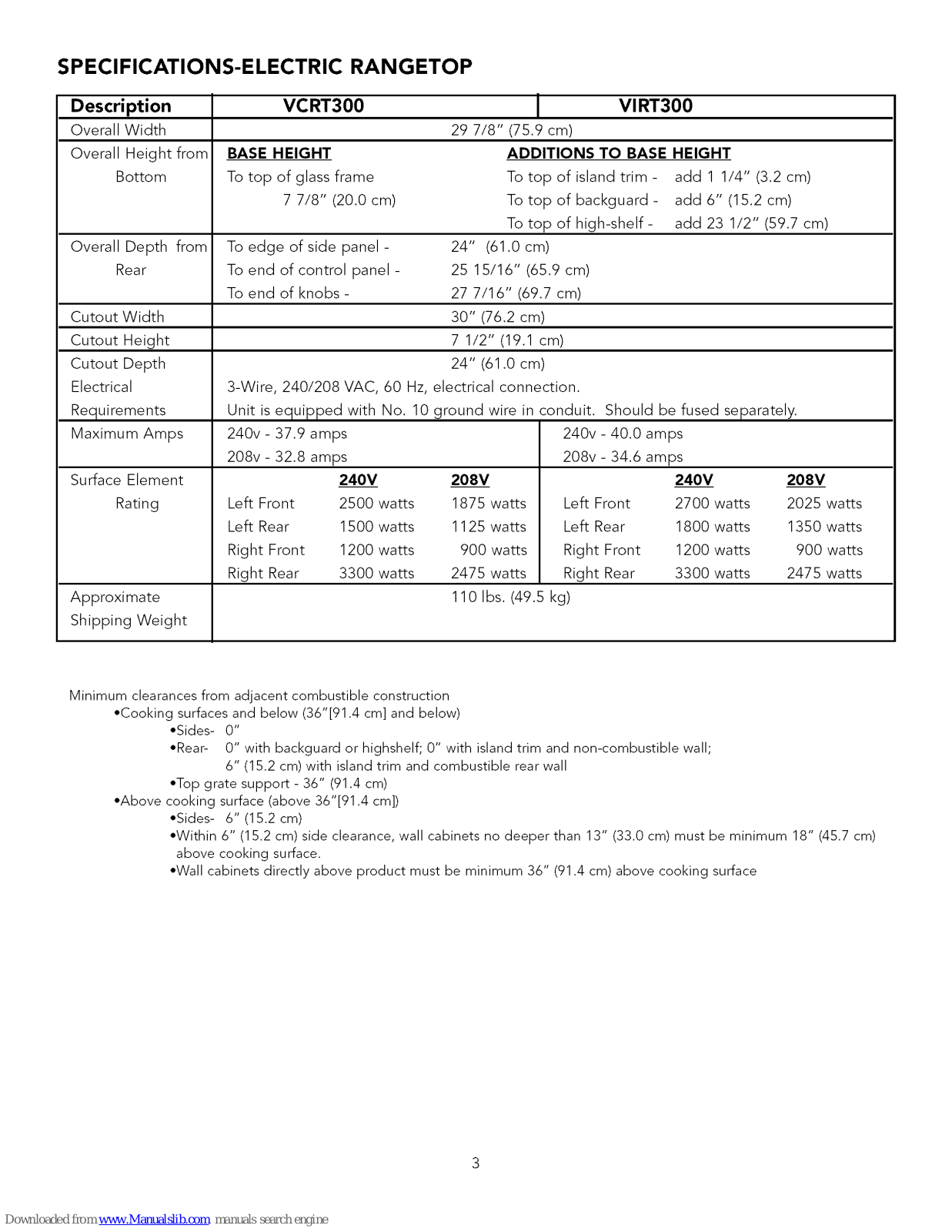

SPECIFICATIONS-ELECTRIC RANGETOP

Description

Overall Width
Overall Height from

Bottom

BASE HEIGHT

To top of glass frame

VCRT300

7 7/8" (20.0 cm)

29 7/8" (75.9 cm)

ADDITIONS TO BASE HEIGHT

To top of island trim -
To top of backguard -
To top of high-shelf -

Overall Depth from To edge of side panel -

Rear To end of control panel -

To end of knobs -

Cutout Width
Cutout Height

Cutout Depth

Electrical 3-Wire, 240/208 VAC, 60 Hz, electrical connection.
Requirements Unit is equipped with No. 10 ground wire in conduit. Should be fused separately.

Maximum Amps 240v- 37.9 amps

208v- 32.8 amps

Surface Element

Rating

Left Front 2500 watts 1875 watts
Left Rear 1500 watts 1125 watts

Right Front 1200 watts 900 watts
Right Rear 3300 watts 2475 watts

240V 208V

24" (61.0 cm)
25 15/16" (65.9 em)
27 7/16" (69.7 cm)
30" (76.2 cm)
7 1/2" (19.1 cm)
24" (61.0 cm)

240v - 40.0 amps
208v - 34.6 amps

Left Front 2700 watts 2025 watts
Left Rear 1800 watts 1350 watts

Right Front 1200 watts 900 watts
Right Rear 3300 watts 2475 watts

VI RT300

add 1 1/4" (3.2 cm)
add 6" (15.2 cm)
add 23 1/2" (59.7 em)

240V 208V

Approximate 110 Ibs. (49.5 kg)
Shipping Weight

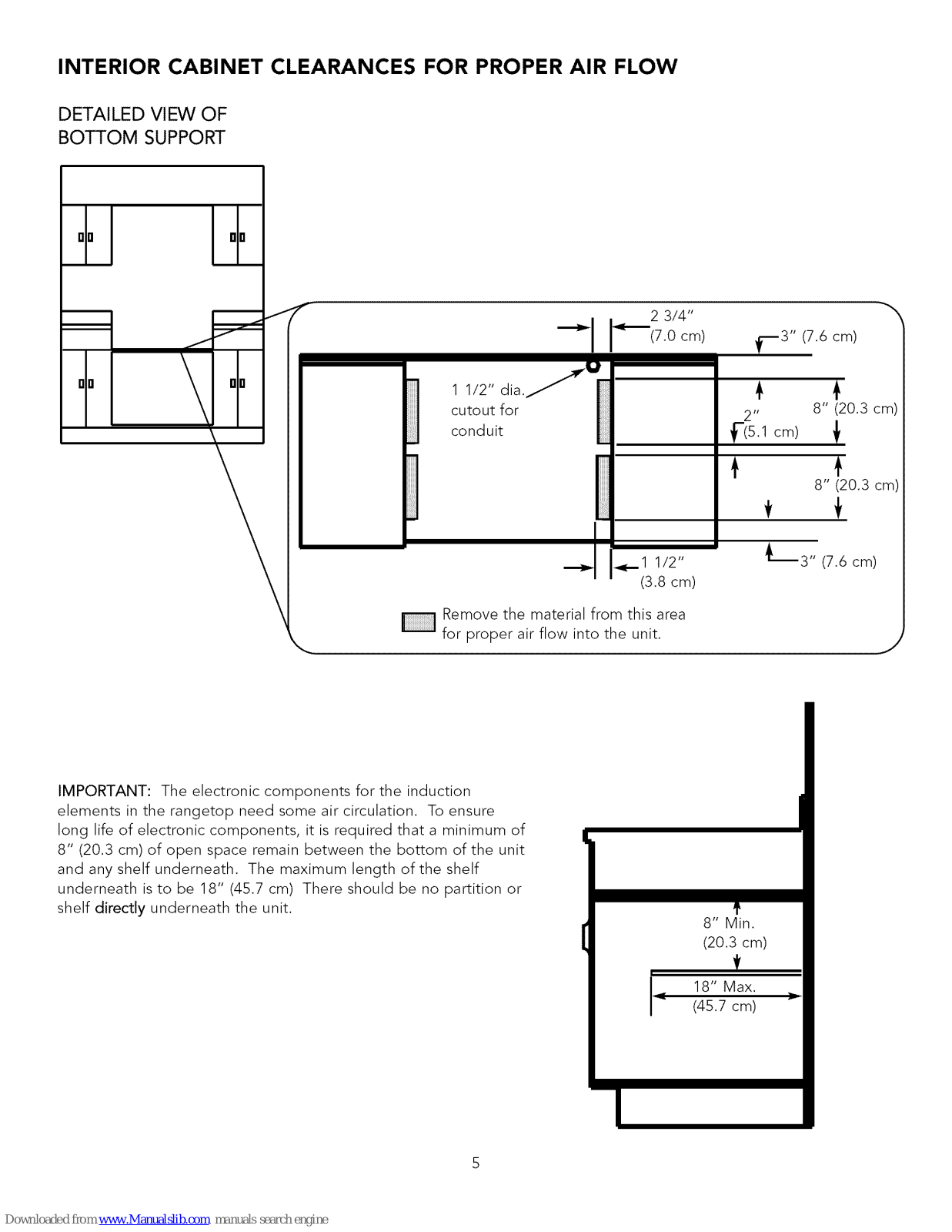

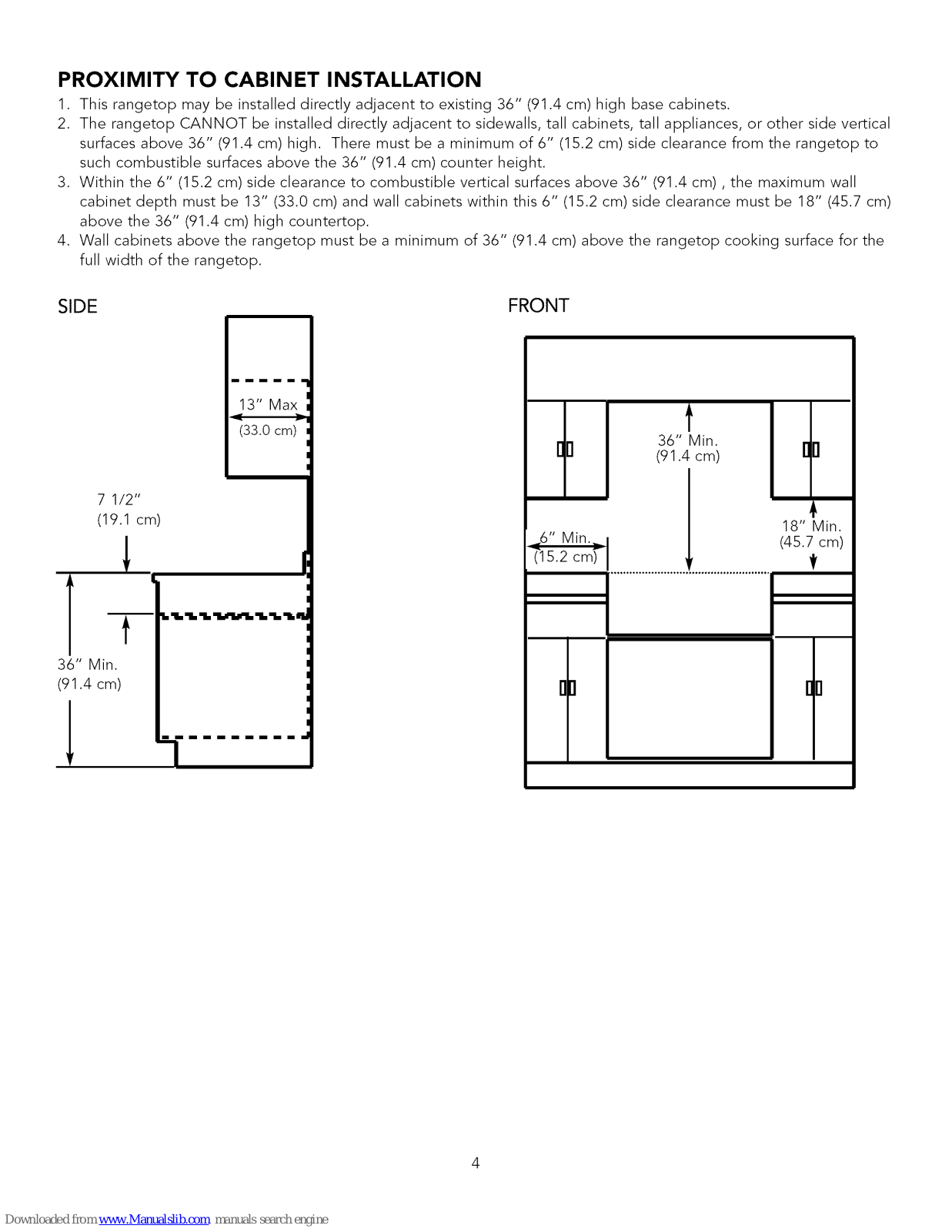

Minimum clearances from adjacent combustible construction

• Cooking surfaces and below (36"[91.4 cm] and below)

•Above cooking surface (above 36"[91.4 cm])

• Sides- 0"

• Rear- 0" with backguard or highshelf; 0" with island trim and non-combustible wall;
6" (15.2 cm) with island trim and combustible rear wall

•Top grate support - 36" (91.4 cm)

• Sides- 6" (15.2 cm)

•Within 6" (15.2 cm) side clearance, wall cabinets no deeper than 13" (33.0 cm) must be minimum 18" (45.7 cm)

above cooking surface.

•Wall cabinets directly above product must be minimum 36" (91.4 cm) above cooking surface
