Professional Performance for the Home

™

As a gourmet, you want to fill your kitchen

with only the freshest ingredients – including the air. And Viking ventilation

systems not only silently subdue even the most pungent cooking aromas,

they look fantastic doing it.

You also have plenty of looks to choose from. Although the styles

are divided into Professional Series and Designer Series, feel free to mix and

match. A Designer hood looks great above a Professional range, and vice

versa. It’s your kitchen. It’s your taste.

2 3

The Viking Professional Line

of ventilation products offers the classic Viking look – heavy-duty, yet stylish. It’s hard to

imagine something so bold could be so quiet. But be careful – it controls odors so well,

you might forget all about the fish stock simmering on the back burner.

Wall and island hoods

Appearance and design

10" high and 18" high models

Heavy-duty construction; professional-type size,

construction, design, and styling

Virtually seamless design with no visible screws

Halogen lights for better visibility and efficiency

 •Dimmer on lights allows custom lighting –

separate on/off switch allows consumer to leave

dimmer at favorite position

Heat sensor turns ventilator on full power when

cooking temperatures reach uncomfortable levels

Heat lamps are standard on all 18" high wall hoods;

24", 30", 36", and 42" wide hoods have one lamp; 48",

54", 60", and 66" wide hoods have two lamps

(250-watt bulbs not included)

Interior-, exterior-, or in-line-power ventilators

Variable speed controls for custom venting –

separate on/off switch allows consumer to leave

ventilator at favorite setting

18" High Wall and Island Hoods

 •Interior-power ventilator kits – 300 CFM (VINV300),

600 CFM (VINV600), or 1,200 CFM (VINV1200)

 •Exterior-power ventilator kits – 900 CFM (DEV900),

1,200 CFM (DEV1200), or 1,500 CFM (DEV1500)

 •In-line-power ventilator kits – 900 CFM (DIL900),

1,200 CFM (DIL1200)

 •See specification chart for compatibility

Chimney Wall and Island Hoods

 •Interior-power ventilator kits – 300 CFM (VINV300),

600 CFM (VINV600), or 1,200 CFM (VINV1200)

 •Exterior-power ventilator kits – 900 CFM (DEV900)

1,200 CFM (DEV1200), or 1,500 CFM (DEV1500)

 •In-line-power ventilator kits – 900 CFM (DIL900)

or 1,200 CFM (DIL1200)

 •See specification chart for compatibility

One ventilator, one duct run for any size hood/ventilator

Must use Viking ventilator kits with Viking hoods; use of

non-Viking kits voids product warranty

Easy cleanup

Commercial-type baffle filter system efficiently removes

grease and heated vapors from the air; especially

designed for use with commercial-type products

Dishwasher-safe filters are easily removed for

quick cleaning

All 18" high hoods have a removable trough which

catches liquefied grease, making cleanup quick and easy

Design of low profile filter system means less interior

hood space to be cleaned

Interior of rangehood canopy has stainless steel

liner for increased rigidity, seamless appearance, and

easy cleaning

10" high interior-power wall hoods

Allow replacement of most older, low-performance

hoods with minimal cabinet alteration

460 CFM interior-power ventilator comes standard

with product

Recommended for use with 24" wide ranges, 30" wide

ranges, rangetops, and cooktops, and 36" wide non-

griddle/grill ranges, rangetops, and cooktops; for larger

equipment, use 18" high wall hood

Heat lamps are a much-

appreciated convenience

when cooking large meals.

18" H. Professional Wall Hood

24" deep models

24" width – VWH24481

30" width – VWH30481

36" width – VWH36481

42" width – VWH42481

48" width – VWH48481

54" width – VWH54481

60" width – VWH60481

66" width – VWH66481

27" deep models

36" width – VWH36781

48" width – VWH48781

60" width – VWH60781

18" HIGH PROFESSIONAL WALL HOOD

Halogen lights with

dimmer controls provide

exceptional visibility.

18" H. Professional Island Hood

Professional Island Hood

Professional Chimney Wall Hood

36" width – VIH36081

42" width – VIH42081

54" width – VIH54081

66" width – VIH66081

30" width – VCWH30481

36" width – VCWH36481

42" width – VCWH42481

48" width – VCWH48481

54" width – VCWH54481

60" width – VCWH60481

66" width – VCWH66481

Professional Chimney Island Hood

10" High Professional Wall Hood with

Standard Interior-Power Ventilator

36" width – VCIH3608

42" width – VCIH4208

54" width – VCIH5408

66" width – VCIH6608

24" width – VWH2410

30" width – VWH3010

36" width – VWH3610

Built-in custom ventilation systems

Appearance and design

Custom Professional Systems

 •Wall hoods – 30" (VBCV30821), 36" (VBCV36821),

42" (VBCV42821), 48" (VBCV48821), 54" (VBCV54821),

60" (VBCV60821), and 66" (VBCV66821) widths

Easily installs into almost any custom hood application

Heavy-duty construction; professional-type design

and styling

Virtually seamless design

Halogen lights for better visibility and efficiency

 •Dimmer on lights allows custom lighting –

separate on/off switch allows consumer to leave

dimmer at favorite position

Heat sensor turns ventilator on full power when cooking

temperatures reach uncomfortable levels

Heat lamps are standard on wall hoods: 30", 36", and

42" wide hoods have one lamp; 48", 54", 60", and 66" wide

hoods have two lamps (250-watt bulbs not included)

Interior-, exterior-, or in-line-power ventilators

Variable speed controls for custom venting – separated

on/off switch allows consumer to leave ventilator at

favorite setting

Wall Hoods

 •Interior-power ventilator kits – 300 CFM (VINV300),

600 CFM (VINV600), or 1,200 CFM (VINV1200)

 •Exterior-power ventilator kits – 900 CFM (DEV900),

1,200 CFM (DEV1200), or 1,500 CFM (DEV1500)

 •In-line-power ventilator kits – 900 CFM (DIL900)

or 1,200 CFM (DIL1200)

 •See specification chart for compatibility

One ventilator, one duct run for any size hood/ventilator

Must use Viking ventilator kits with Viking hoods; use of

non-Viking kits voids product warranty

Easy cleanup

Commercial-type baffle filter system efficiently removes

grease and heated vapors from the air; especially

designed for use with commercial-type products

Dishwasher-safe filters are easily removed for quick

cleaning

Removable trough catches liquefied grease; making

cleanup quick and easy

Design of low profile filter system means less interior

hood space to be cleaned

Interior of rangehood canopy has stainless steel

liner for increased rigidity, seamless appearance, and

easy cleaning

VBCV36821 – 36" wide

custom ventilator and hood

Wall Hood Custom Ventilator

Convection microwave hood

Professional features

Instant sensor settings for cooking, reheating foods,

and popping popcorn

Four convection settings: ConvecBroil, ConvecRoast,

ConvecBake, and a manual convection setting option

Low Mix Bake and High Mix Roast settings offer use of

convection heat to seal and brown outside of foods

while using microwave energy to ensure the interior

is cooked

Add-A-Minute allows a minute of extra cooking time

to be added with the touch of a button

Child Lock safety feature locks the control panel to

prevent unwanted operation

Convection microwave cookbook comes standard

with unit

Built-in exhaust system

 •300 CFM

 •Unit shipped assembled to recirculate; may also

be vented out of the rear or vertically

Spacious oven cavity

1.1 (31.2 liters) cubic ft. oven capacity

13" (33.0 cm) diameter turntable

Interior light

Installation options

For use with Viking 24" or 30" wide non-grill

cooking products

Convection Microwave Hood

VMOR205 – 30" wide

convection microwave hood

Four convection cooking modes

and an exhaust system offer the

performance to go from light and

fluffy to seared and juicy.

MODELS WITH CONTROLS

ON DOWNDRAFT

30" width – VIPR102

36" width – VIPR162

48" width – VIPR182

MODELS WITH REMOTE-

MOUNTED CONTROLS

30" width – VIPR102R

36" width – VIPR162R

48" width – VIPR182R

VersaVentTM rear downdrafts

Retractable downdrafts quietly

do their job, then disappear

into your countertop.

Appearance and design

For use with Viking Professional rangetops (non-grill

models only) and cooktops

Suitable for island and wall installations

Downdraft raises and lowers at the touch of a button

 •When not in use, unit retracts and rests flush with

cooking surface

Four variable fan speeds ensure efficient ventilation

Delay/off feature allows operation for 10 minutes

before automatically shutting off

Removable, easy-to-clean filters are dishwasher-safe

and sized

 •Filter alert reminds user to clean filters after

approximately 30 hours of use

Can be ordered with controls on intake top or with a

separate remote-mounted control which can be

installed on the countertop

 •Remote-mounted control allows user to operate

the downdraft without having to reach over

cooking surface/vessels

 •Remote-mounted control must be used when

downdraft is installed with Viking rangetops

Must use Viking ventilator kits with Viking downdrafts;

use of non-Viking kits voids product warranty

Interior- or exterior-power ventilators available

 •Interior-power ventilator kit – 500 CFM (VIDV500)

 •Exterior-power ventilator kits – 900 CFM (VEDV900)

or 1,200 CFM (VEDV1200) (for use with 48" wide

downdraft only)

Do not install with a Viking rangetop that has a gas

char-grill or wok; warranty is voided and performance

may be below expectations

 •When selecting the power and high performance

of a Viking gas char-grill, a Viking 18" high

overhead hood is highly recommended

Stainless steel finish

Variable fan speeds offer settings to tame

everything from boiled cabbage to pan-fried trout.

The Designer Series

ventilation systems definitely fit in with any Viking kitchen. They just present a bit

sleeker look to easily blend into the décor. These hoods also offer their own delay feature,

allowing the cook to set the vent to shut down after dinner is served and the air is clear.

16 17

Wall and island hoods

Appearance and design

6" high, 12" high, and 14" high models

Heavy-duty construction; elegant design and styling

Virtually seamless design with no visible screws

Halogen lights for better visibility and efficiency

 •Dimmer on lights allows custom lighting – separate

on/off switch allows consumer to leave dimmer at

favorite position

Heat sensor turns ventilator on full power when

cooking temperatures reach uncomfortable levels

Delay feature allows consumer to set the ventilator to

shut off on its own from 10 to 30 minutes later

12-hour timer built into ventilator controls; excellent

for use with Designer cooking products

Interior-, exterior-, or in-line-power ventilators

Variable speed controls for custom venting –

separate on/off switch allows consumer to leave

ventilator at favorite setting

Wall and Island Hoods

 •Interior-power ventilator kits – 300 CFM (VINV300),

600 CFM (VINV600), or 1,200 CFM (VINV1200)

 •Exterior-power ventilator kits – 900 CFM (DEV900),

1,200 CFM (DEV1200), or 1,500 CFM (DEV1500)

 •In-line-power ventilator kits – 900 CFM (DIL900) or

1,200 CFM (DIL1200)

 •See specification chart for compatibility

One ventilator, one duct run for any size hood/ventilator

Must use Viking ventilator kits with Viking hoods; use of

non-Viking kits voids product warranty

Easy cleanup

Mesh filters made entirely of stainless steel for durability

and long life; efficiently remove grease and heated vapors

from air

Dishwasher-safe filters are easily removed for

quick cleaning

Design of low profile filter system means less interior

hood space to be cleaned

Interior of rangehood canopy has stainless steel

liner for increased rigidity, seamless appearance,

and easy cleaning

Stainless steel mesh filters

efficiently clean your air – and

your dishwasher cleans them.

CLASSIC CHIMNEY

WALL HOOD

30" width – DCWH30421

36" width – DCWH3644

42" width – DCWH4244

48" width – DCWH4844

DCIH3604 – 36" wide chimney

island hood with rail

Sleek interface provides

easy control of lights, fan,

and timer settings.

6" high interior-power wall hoods

Allow replacement of most older, low-performance

hoods with minimal cabinet alteration

300 CFM interior-power ventilator comes standard

with product

Recommended for use with 30" wide ranges,

rangetops, and cooktops, and 36" wide non-griddle/grill

ranges, rangetops, and cooktops; for larger equipment,

use 14" high wall hood

12" high interior-power classic chimney wall hoods

DCH models offer the same features as other Designer

hoods and are excellent for builder projects

Available in 30" and 36" widths

460 CFM interior-power ventilator comes standard

with product

Recommended for use with 30" and 36" wide

non-griddle/grill ranges, rangetops, and cooktops;

for larger equipment, use 14" high wall hood

Designer hoods handle the most

pungent kitchen odors in style.

Classic Chimney Island Hood

36" width – DCIH3604

42" width – DCIH4204

54" width – DCIH5404

Tall Traditional Ledgeless Wall Hood

Slim Traditional Wall Hood

30" width – DTWN30481

36" width – DTWN36481

42" width – DTWN42481

48" width – DTWN48481

Classic Chimney Wall Hood with

Standard Interior-Power Ventilator

30" width – DTWS30491

36" width – DTWS36491

42" width – DTWS42491

48" width – DTWS48491

6" High Wall Hood with

Standard Interior-Power Ventilator

30" width – DCH3042

36" width – DCH3642

30" width – DWH3006

36" width – DWH3606

Built-in custom ventilation systems

Interior-, exterior-, or in-line-power ventilators

Variable speed controls for custom venting –

separate on/off switch allows consumer to leave

ventilator at favorite setting

Wall Hoods

 •Interior-power ventilator kits – 300 CFM (VINV300),

600 CFM (VINV600), or 1200 CFM (VINV1200)

 •Exterior-power ventilator kits – 900 CFM (DEV900),

1,200 CFM (DEV1200), or 1,500 CFM (DEV1500)

•In-line-power ventilator kits – 900 CFM (DIL900) or

1,200 CFM (DIL1200)

 •See specification chart for compatibility

One ventilator, one duct run for any size hood/ventilator

Must use Viking ventilator kits with Viking hoods; use of

non-Viking kits voids product warranty

Easy cleanup

Mesh filters made entirely of stainless steel for durability

and long life; efficiently remove grease and heated

vapors from air

Dishwasher-safe filters are easily removed for

quick cleaning

Design of low profile filter system means less interior

hood space to be cleaned

Interior of rangehood canopy has stainless steel

liner for increased rigidity, seamless appearance,

and easy cleaning

Variable speed

controls retain

preferred settings,

allowing for

custom venting.

Wall Hood Custom Ventilator

Appearance and design

Custom Designer Systems

 •Wall hoods – 30" (DBCV30821), 36" (DBCV36821),

42" (DBCV42821), and 48" (DBCV48821) widths

Easily installs into almost any custom hood application

Heavy-duty construction; elegant design and styling

Virtually seamless design

Halogen lights for better visibility and efficiency

 •Dimmer on lights allows custom lighting – separate

on/off switch allows consumer to leave dimmer at

favorite position

Heat sensor turns ventilator on full power when

cooking temperatures reach uncomfortable levels

Delay feature allows consumer to set the ventilator to

shut off on its own from 10 to 30 minutes later

12-hour timer built into ventilator controls; excellent for

use with Designer cooking products

DBCV36821 – 36" wide

custom ventilator and hood

25 26

Convection microwave hood

Professional features

Instant sensor settings for cooking, reheating foods,

and popping popcorn

Four convection settings: ConvecBroil, ConvecRoast,

ConvecBake, and a manual convection setting option

Low Mix Bake and High Mix Roast settings offer use of

convection heat to seal and brown outside of foods

while using microwave energy to ensure the interior

is cooked

Add-A-Minute allows a minute of extra cooking time

to be added with the touch of a button

Child Lock safety feature locks the control panel to

prevent unwanted operation

Convection microwave cookbook comes standard

with unit

Built-in exhaust system

 •300 CFM

 •Unit shipped assembled to recirculate; may also

be vented out of the rear or vertically

Spacious oven cavity

1.1 (31.2 liters) cubic ft. oven capacity

13" (33.0 cm) diameter turntable

Interior light

Installation options

For use with Viking 24" or 30" wide non-grill

cooking products

Multiple convection settings plus built-in

exhaust handle everything from

baking to broiling – and all

aromas in between.

Convection Microwave Hood

VMOR205 – 30" wide

convection microwave hood

Remote-mounted control

panels install anywhere on

your countertop.

VersaVentTM rear downdrafts

30" width – DIPR101R

36" width – DIPR161R

45" width – DIPR151R

Appearance and design

For use with Viking Designer rangetops and cooktops

Suitable for both island and wall installations

Available with remote-mounted control only

 •Installs on countertop and allows user to operate

downdraft without having to reach over cooking

surface/vessels

Downdraft raises and lowers at the touch of a button

 •When not in use, unit retracts and rests flush with

cooking surface

Four variable fan speeds ensure efficient ventilation

Delay/off feature allows operation for 10 minutes

before automatically shutting off

Removable, easy-to-clean filters are dishwasher-safe

and sized

Filter alert reminds user to clean filters after

approximately 30 hours of use

Must use Viking ventilator kits with Viking downdrafts;

use of non-Viking kits voids the product warranty

Interior- or exterior-power ventilators available

 •Interior ventilator kit – 500 CFM (VIDV500)

 •Exterior ventilator kits – 900 CFM (VEDV900) or

1,200 CFM (VEDV1200) (for use with 45" wide

downdraft only)

Stainless steel finish is standard; remote-mounted

control is black with stainless steel frame

No matter what you

cook, the downdraft

is right on top of it.

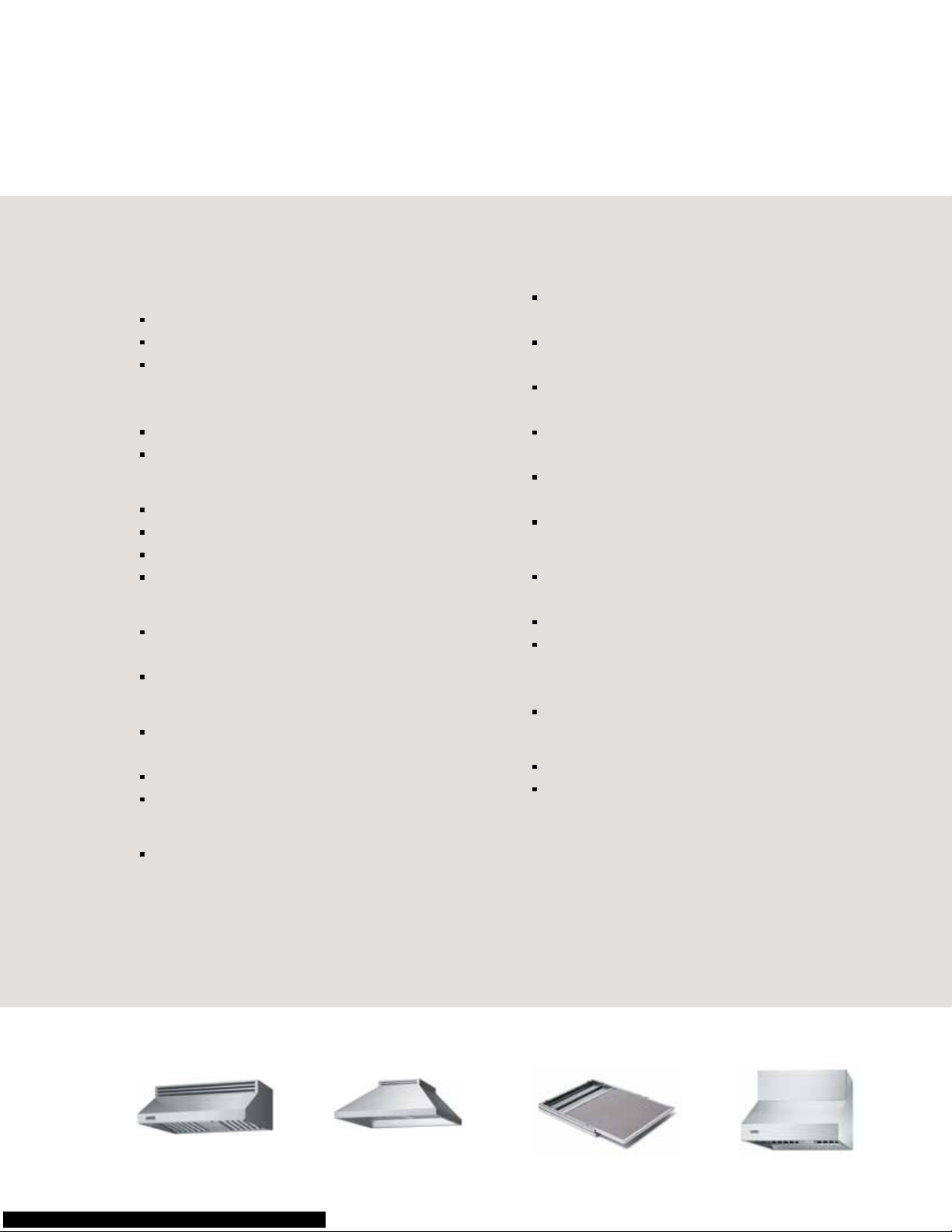

Optional accessories

Professional Series

Recirculating Hood Conversion Kits

Convert 10" high hoods to recirculating/ductless hoods

4" high grille easily installs on top of hood

Charcoal filters/frame (standard with kit) attach to

commercial-style stainless steel baffle filters included with

hood – (replacement charcoal filters sold separately)

24" (VRK24), 30" (VRK30), and 36" (VRK36) widths

Available in Stainless Steel (SS) only

Wall and Island Hood Duct Covers

Wall hood duct covers available in all widths

Island hood duct covers available in all widths

12" height

Available in finishes to match hood

Chimney Wall Hood Duct Covers

Adjustable duct cover comes standard – for ceilings

up to 9' high

Available in finishes to match hood

Chimney Wall Hood Duct Cover Extensions

Extend height of duct cover by up to 12 inches

(for 10' high ceilings)

Available in all widths

Available in finishes to match hood and duct cover

Chimney Island Hood Duct Covers

Available in all widths

Wall Hood Warming Shelf Panels

Hold cookware and condiments; may be used with a

heat lamp to keep food warm

Fold-up/down, heavy-duty warming shelves

 •15 7/8" wide by 10 1/8" deep

24" (WGP24) and 30" (WGP30) wide models have

one shelf

36" (WGP36), 42" (WGP42), 48" (WGP48), and

54" (WGP54) wide models have two shelves

60" (WGP60) and 66" (WGP66) wide models have

three shelves

Available in Stainless Steel (SS) only

Wall Hood Backsplashes

Protect wall space below hood and create a

continuous finish between cooking surface and hood

Low maintenance, easy to clean

24" (BKS24), 30" (BKS30), 36" (BKS36), 42" (BKS42),

48" (BKS48), 54" (BKS54), 60" (BKS60), and 66" (BKS66)

widths; 30" high

Available in Stainless Steel (SS) only

Accessory Rail

Decorative yet functional trim must be factory installed

Available in Chrome or Brass finish

 •Front of wall hoods (CR or BR)

 •Front and back of island hoods (CR2 or BR2)

 •Front, back, and sides of island hoods (CR4 or BR4)

Professional Recirculating Hood

Conversion Kit

Designer Recirculating Hood

Conversion Kit

Charcoal Filters

Duct Covers

Designer Series

Recirculating Hood Conversion Kits

Convert DCH Classic Chimney wall hoods with interior-

power ventilators to recirculating/ductless hoods

 •2" high grille easily installs on top of hood

 •Charcoal filters/frame (standard with kit) attach to

stainless steel mesh filters included with hood –

 •Replacement charcoal filters sold separately

(CF-D12, CF-D14)

 •30" (DRK30) and 36" (DRK36) widths

 •Available in Stainless Steel (SS) only

Wall and Island Hood Duct Covers

Classic Chimney wall hoods with standard interior-

power ventilator

 •Adjustable duct cover for ceilings up to 9' high

Classic Chimney wall hoods and Slim Traditional

wall hoods

 •Adjustable duct cover comes standard – for

ceilings up to 9' high

Tall Traditional wall hoods

 •Available in all widths

 •12" height

Classic Chimney island hoods

 •Available in all widths

 •Sizes available for installations with 8', 9', or 10'

high ceilings

Available in finishes to match hood

Duct Cover Extensions

Available for Classic Chimney, Classic Chimney with

Ledge, Classic Chimney Ledgeless, and Slim Traditional

hoods only

Extend height of duct cover by up to 12 inches

Available in all widths

Available in finishes to match hood and duct cover

Wall Hood Backsplashes

Protect wall space below hood and create a continuous

surface between cooking appliance and hood

Low maintenance, easy to clean

30" (BKS30), 36" (BKS36), 42" (BKS42), and 48" (BKS48)

widths; 30" high

Available in Stainless Steel (SS) only

Accessory Rail

Decorative yet functional trim must be factory installed

Available on all hoods except “ledge” and “ledgeless”

models; standard on Box wall hoods

Available in Chrome or Brass finish

 •Front of wall hoods (CR or BR)

 •Front, back, and sides of island hoods (CR4 or BR4)

Replacement Remote-Mounted Control

Available for Designer downdraft

Gray with stainless steel frame – for use with Designer

Stainless Steel/White glass cooktops

Wall Hood

Warming Shelf

Panels

Backsplashes

Wall Hood

Accessory Rail

Remote-Mounted Control

Design integrity

Exclusive finishes

Consistency in both performance and design should be

a major consideration when building or remodeling a

home. With the complete Viking indoor or outdoor

kitchen, every single product works together in form

and function with the same level of excellence. It’s

something Viking calls Design Integrity™.

Viking offers complete ultra-premium kitchens and truly

consistent design, while delivering the quality and

performance that makes Viking the true market leader.

Across all product categories, the knobs, handles,

bezels, curves, angles, and lines all follow the same

design cues – even the grain of stainless is the same

from product to product. This enables the designer to

create a perfectly harmonious kitchen in one of three

Viking product offerings – Professional Indoor, Designer

Indoor, or Professional Outdoor.

You wouldn’t install mismatched cabinets and drawers

or countertops. Yet design differences are even more

dramatic between multiple appliance manufacturers.

Traditional or contemporary. Stainless or color finish. No

matter the look you’re going for, no one can match the

Viking kitchen and Viking Design Integrity.

Hoods available in Stainless Steel (SS), Black (BK),

White (WH), Metallic Silver (MS), Graphite Gray (GG), Stone

Gray (SG), Taupe (TP), Biscuit (BT), Cotton White (CW),

Oyster Gray (OG), Golden Mist (GM), Lemonade (LE),

Sage (SA), Mint Julep (MJ), Sea Glass (SE), Iridescent

Blue (IB), Viking Blue (VB), Pumpkin (PM), Racing Red (RR),

Apple Red (AR), Burgundy (BU), Plum (PL), Chocolate (CH),

and Cobalt Blue (CB)

For brass trim, order Accessory Rail in brass (all

Professional hoods and Designer classic chimney wall and

island hoods only); all brass components have a durable,

protective coating for maintenance-free normal use

Rear downdrafts available in Stainless Steel (SS)

Convection microwave hoods available in

Stainless Steel (SS)

Viking uses the most up-to-date processes and best

materials available to produce all color finishes. However,

slight color variation may be noticed because of the

inherent differences in painted parts and porcelain parts,

as well as differences in room lighting, product locations,

and other factors.

stainless steel metallic silver graphite gray stone gray taupe biscuit cotton white white oyster gray golden mist lemonade sage

Warranty highlights

Professional and Designer Series wall and island hoods,

Professional downdraft

Three-year full – complete unit

Lifetime limited – stainless steel exterior

Five-year limited – all ventilator motors

Ninety-day limited – cosmetic parts such as glass,

painted items, and decorative items

Designer Series downdraft

One-year full – complete unit

Lifetime limited – stainless steel exterior

Five-year limited – all ventilator motors

Ninety-day limited – cosmetic parts such as glass,

painted items, and decorative items

mint julep sea glass iridescent blue viking blue pumpkin racing red apple red burgundy plum black chocolate cobalt blue

Model

Duct Covers

Width

Basic specifications – Professional hoods

A 1,200 CFM interior- or exterior-power ventilator should be used when installed over range/rangetop with gas char-grill.

It is recommended that the 1,500 CFM ventilator be used with longer duct runs. Please note: Maximum amp rating for hoods includes recommended ventilator kit rating; all products must be hard wired with 2-wire with ground. An interior- or exterior-power ventilator kit must be purchased for installation with all 18" high hoods.

Number

Lights

Number

Filters

Heat

Lamps

Recommended Ventilator Kits

Depth Height

Interior In-Line Exterior

WALL AND ISLAND HOODS

10" HIGH WALL HOODS – 21" DEEP (OPTIONAL DUCT COVER SOLD SEPARATELY)

A 460 CFM blower is shipped with hood.

24" W. VWH2410 23 7/8" 12" 12" 2 2 N/A N/A N/A N/A 7" N/A 5.6 5.6 N/A

30" W. VWH3010 29 7/8" 12" 12" 2 2 N/A N/A N/A N/A 7" N/A 5.6 5.6 N/A

36" W. VWH3610 35 7/8" 12" 12" 2 2 N/A N/A N/A N/A 7" N/A 5.6 5.6 N/A

18" HIGH WALL HOODS – 24" DEEP (OPTIONAL DUCT COVER SOLD SEPARATELY)

24" W. VWH2448 23 7/8" 12" 12" 2 2 1 VINV300/VINV600 DIL900/DIL1200 DEV900/DEV1200 7" 10" 4.9/5.9 6.0/7.9 8.7/6.1

30" W. VWH3048 29 7/8" 12" 12" 2 2 1

VINV300/VINV600/VINV1200

DIL900/DIL1200 DEV900/DEV1200 7"/10" 10" 4.9/5.9/8.9 6.0/7.9 8.7/6.0

36" W. VWH3648 35 7/8" 12" 12" 2 2 1

VINV300/VINV600/VINV1200*

DIL900/DIL1200 DEV900/DEV1200* 7"/10" 10" 4.9/5.9/8.9 6.0/7.9 8.7/6.0

42" W. VWH4248 41 7/8" 12" 12" 2 2 1 VINV600/VINV1200* DIL900/DIL1200 DEV900/DEV1200* 7"/10" 10" 5.9/8.9 6.0/7.9 8.7/6.0

48" W. VWH4848 47 7/8" 12" 12" 3 3 2 VINV1200 DIL1200 DEV1200/DEV1500** 10" 10" 11.5 10.3 8.5/9.2

54" W. VWH5448 53 7/8" 12" 12" 3 3 2 VINV1200 DIL1200 DEV1200/DEV1500** 10" 10" 11.5 10.3 8.5/9.2

60" W. VWH6048 59 7/8" 12" 12" 4 4 2 VINV1200 DIL1200 DEV1200/DEV1500** 10" 10" 11.9 10.7 8.9/9.2

66" W. VWH6648 65 7/8" 12" 12" 4 4 2 VINV1200 DIL1200 DEV1200/DEV1500** 10" 10" 11.9 10.7 8.9/9.2

18" HIGH WALL HOODS – 27" DEEP (OPTIONAL DUCT COVER SOLD SEPARATELY)

36" W. VWH3678 35 7/8" 12" 12" 2 2 1

VINV300/VINV600/VINV1200

DIL900/DIL1200 DEV900/DEV1200* 7"/10" 10" 4.9/5.9/8.9 6.0/7.9 8.7/6.0

48" W. VWH4878 47 7/8" 12" 12" 3 3 2 VINV1200 DIL1200 DEV1200/DEV1500** 10" 10" 11.5 10.3 8.5/9.2

60" W. VWH6078 59 7/8" 12" 12" 4 4 2 VINV1200 DIL1200 DEV1200/DEV1500** 10" 10" 11.9 10.7 8.9/9.2

18" HIGH CHIMNEY WALL HOODS – 24" DEEP (ADJUSTABLE DUCT COVER STANDARD)

30" W. VCWH3048 12" 12" 12"-24" 2 2 1 VINVV300/VINV600 DIL900/DIL1200 DEV900/DEV1200 7" 10" 4.9/5.9 6.0/7.9 8.7/6.0

36" W. VCWH3648 12" 12" 12"-24" 2 2 1 VINV300/VINV600* DIL900/DIL1200 DEV900/DEV1200* 7" 10" 4.9/5.9 6.0/7.9 8.7/6.0

42" W. VCWH4248 12" 12" 12"-24" 2 2 1 VINV600* DIL900/DIL1200 DEV900/DEV1200* 7" 10" 5.9 6.0/7.9 9.0/6.0

48" W. VCWH4848 18" 12" 12"-24" 3 3 2 VINV1200 DIL1200 DEV1200/DEV1500** 10" 10" 11.5 10.3 8.5/9.2

54" W. VCWH5448 18" 12" 12"-24" 3 3 2 VINV1200 DIL1200 DEV1200/DEV1500** 10" 10" 11.5 10.3 8.5/9.2

60" W. VCWH6048 24" 12" 12"-24" 4 4 2 VINV1200 DIL1200 DEV1200/DEV1500** 10" 10" 11.9 10.7 8.9/9.2

66" W. VCWH6648 24" 12" 12"-24" 4 4 2 VINV1200 DIL1200 DEV1200/DEV1500** 10" 10" 11.9 10.7 8.9/9.2

18" HIGH ISLAND HOODS – 30" DEEP (OPTIONAL DUCT COVER SOLD SEPARATELY)

36" W. VIH3608 35 7/8" 12" 12" 4 4 N/A VINV600 DIL900/DIL1200 DEV900/DEV1200* 7"/10" 10" 4.6 4.7/6.5 7.4/4.7

42" W. VIH4208 41 7/8" 12" 12" 4 4 N/A VINV600 DIL900/DIL1200 DEV900/DEV1200*/ 7"/10" 10" 4.6 4.7/6.5 7.7/7.4/4.8

DEV1500**

54" W. VIH5408 53 7/8" 12" 12" 6 6 N/A VINV1200 DIL1200 DEV1200/DEV1500** 10" 10" 8.5 7.3 5.5/6.2

66" W. VIH6608 65 7/8" 12" 12" 8 8 N/A VINV1200 DIL1200 DEV1200/DEV1500** 10" 10" 9.3 8.1 6.3/7.1

18" HIGH CHIMNEY ISLAND HOODS – 30" DEEP (OPTIONAL DUCT COVER SOLD SEPARATELY)

36" W. VCIH3608 12" 12"

12"-24"-36"

4 4 N/A VINV600* DIL900/DIL1200 DEV900/DEV1200* 7" 10" 4.6 4.7/6.5 7.4/4.7

42" W. VCIH4208 12" 12"

12"-24"-36"

4 4 N/A VINV600* DIL900/DIL1200 DEV900/DEV1200*/ 7" 10" 4.6 3.9/5.7 7.4/4.7/5.5

DEV1500**

54" W. VCIH5408 18" 12"

12"-24"-36"

6 6 N/A VINV1200 DIL1200 DEV1200/DEV1500** 10" 10" 8.9 7.4 5.6/6.4

66" W. VCIH6608 24" 12"

12"-24"-36"

8 8 N/A VINV1200 DIL1200 DEV1200/DEV1500** 10" 10" 9.3 7.4 6.3/6.4

Recommended

Duct Size

InteriorInterior In-Line ExteriorExterior

Maximum Amps

Basic specifications – Designer hoods

Model

Duct Covers

Width

A 1,200 CFM interior- or exterior-power ventilator should be used when installed over range/rangetop with gas char-grill.

It is recommended that the 1,500 CFM ventilator be used with longer duct runs.

Please note: Maximum amp rating for hoods includes recommended ventilator kit rating; all products must be hard wired with 2-wire with ground. Refer to chart on next page for additional information regarding use of Designer hoods with Professional cooking products. An interior- or exterior-power ventilator kit must be purchased for installation with all Designer hoods.

Number

Lights

Number

Filters

Recommended Ventilator Kits

Depth Height

Interior In-Line Exterior

WALL AND ISLAND HOODS

6" HIGH REPLACEMENT HOODS WITH STANDARD INTERIOR-POWER VENTILATOR – 20" DEEP

A 300 CFM blower is shipped with hood.

30" W./6"H. DWH3006 N/A N/A N/A 2 2 N/A N/A N/A 3.25"x10" N/A 5.0 N/A N/A

36" W./6"H. DWH3606 N/A N/A N/A 2 2 N/A N/A N/A 3.25"x10" N/A 5.0 N/A N/A

CLASSIC CHIMNEY WALL HOODS WITH STANDARD INTERIOR-POWER VENTILATOR – 24" DEEP (OPTIONAL DUCT COVER SOLD SEPARATELY)

A 460 CFM blower is shipped with hood.

30" W./12"H. DCH3042 16" 12" 18"-30" 2 2 N/A N/A N/A 7" N/A 5.6 5.6 N/A

36" W./12"H. DCH3642 16" 12" 18"-30" 2 2 N/A N/A N/A 7" N/A 5.6 5.6 N/A

CLASSIC CHIMNEY WALL HOODS – 24" DEEP (DUCT COVER STANDARD)

30" W./12" H. DCWH30421 10" 12" 18"-30" 2 2 VINV300/VINV600 DIL900/DIL1200 DEV900/DEV1200 7" 10" 2.8/3.8 3.9/5.7 6.6/3.9

36" W./14" H. DCWH3644 12" 12" 16"-28" 2 2 VINV300/VINV600* DIL900/DIL1200 DEV900/DEV1200* 7" 10" 2.8/3.8 3.9/5.7 6.6/3.9

42" W./14" H. DCWH4244 12" 12" 16"-28" 2 3 VINV600* DIL900/DIL1200 DEV900/DEV1200* 7" 10" 3.8 3.9/5.7 6.6/3.9

48" W./14" H. DCWH4844 18" 12" 16"-28" 3 3 VINV1200 DIL1200 DEV1200/DEV1500** 10" 10" 7.3 6.1 4.3/5.1

SLIM TRADITIONAL WALL HOODS – 24" DEEP (DUCT COVER STANDARD)

30" W./9" H. DTWS30491 12" 12" 21"-33" 2 2 VINV300/VINV600 DIL900/DIL1200 DEV900 7" 10" 2.8/3.8 5.7 6.6/3.9

36" W./9" H. DTWS36491 12" 12" 21"-33" 2 2 VINV300/VINV600 DIL900/DIL1200 DEV900/DEV1200 7" 10" 2.8/3.8 3.9/5.7 6.6/3.9

42" W./9" H. DTWS42491 12" 12" 21"-33" 2 3 VINV600 DIL900/DIL1200 DEV900/DEV1200 7" 10" 3.8 3.9/5.7 6.6/3.9

48" W./9" H. DTWS48491 20" 12" 21"-33" 3 3 VINV1200 DIL1200 DEV1200/DEV1500** 10" 10" 7.3 6.1 4.3/5.1

TALL TRADITIONAL LEDGELESS WALL HOODS – 24" DEEP (OPTIONAL DUCT COVER SOLD SEPARATELY)

30" W./18" H. DTWN30481 29 7/8" 12" 12" 2 2 VINV300/VINV600 DIL900/DIL1200 DEV900/DEV1200 7"/10" 10" 2.8/3.8 3.9/5.7 6.6/3.9

36" W./18" H. DTWN36481 35 7/8" 12" 12" 2 2 VINV300/VINV600 DIL900/DIL1200 DEV900/DEV1200* 7"/10" 10" 2.8/3.8 3.9/5.7 6.6/3.9

42" W./18" H. DTWN42481 41 7/8" 12" 12" 2 3 VINV600 DIL900/DIL1200 DEV900/DEV1200* 7"/10" 10" 3.8 3.9/5.7 6.6/3.9

48" W./18" H. DTWN48481 47 7/8" 12" 12" 3 3 VINV1200 DIL1200 DEV1200/DEV1500** 10" 10" 7.3 6.1 4.3/5.1

CLASSIC CHIMNEY ISLAND HOODS – 30" DEEP (OPTIONAL DUCT COVER SOLD SEPARATELY)

36" W./14" H. DCIH3604 12" 12" 16", 28", 4 2 VINV600 DIL900/DIL1200 DEV900/DEV1200 7" 10" 4.7 4.7/6.6 7.4/3.9 or 40"

42" W./14" H. DCIH4204 12" 12" 16", 28", 4 3 VINV600 DIL900/DIL1200 DEV900/DEV1200/ 7" 10" 4.3 4.7/6.6 7.4/4.8/ or 40" DEV1500** 5.5

54" W./14" H. DCIH5404 18" 12" 16", 28", 6 3 VINV1200 DIL1200 DEV1200/DEV1500** 10" 10" 8.5 7.3 5.5/6.2 or 40"

Recommended

Duct Size

InteriorInterior In-Line ExteriorExterior

Maximum Amps

Model

Basic specifications – Built-in custom ventilation systems – Professional

Built-in custom ventilation systems – Designer

A 1,200 CFM interior- or exterior-power ventilator should be used when installed over range/rangetop with gas char-grill.

It is recommended that the 1,500 CFM ventilator be used with longer duct runs.

An interior- or exterior-power ventilator kit must be purchased for installation with all Custom Ventilator Systems.

A 1,200 CFM interior- or exterior-power ventilator should be used when installed over range/rangetop with gas char-grill.

It is recommended that the 1,500 CFM ventilator be used with longer duct runs.

An interior- or exterior-power ventilator kit must be purchased for installation with all Custom Ventilator Systems.

Number

Lights

Number

Lights

Number

Filters

Number

Filters

Heat

Lamps

Recommended Ventilator Kits

Recommended

Duct Size

Recommended

Duct Size

Interior

In-Line

Exterior

BUILT-IN CUSTOM VENTILATION SYSTEMS

WALL HOODS – 22" DEEP

30" W. VBCV30821 2 2 1 VINV300/VINV600 DIL900/DIL1200 DEV900/DEV1200 7"/10" 10" 4.9/5.9 6.0/7.9 8.7/6.0

36" W. VBCV36821 2 2 1 VINV300/VINV600 DIL900/DIL1200 DEV900/DEV1200* 7"/10" 10" 4.9/5.9 6.0/7.9 8.7/6.0

42" W. VBCV42821 2 2 1 VINV600/VINV1200* DIL900/DIL1200 DEV900/DEV1200* 7"/10" 10" 59./8.9 6.0/7.9 8.7/6.0

48" W. VBCV48821 3 3 2 VINV1200 DIL1200 DEV1200/DEV1500** 10" 10" 11.5 10.3 8.5/9.2

54" W. VBCV54821 3 3 2 VINV1200 DIL1200 DEV1200/DEV1500** 10" 10" 11.5 10.3 8.5/9.2

60" W. VBCV60821 4 4 2 VINV1200 DIL1200 DEV1200/DEV1500** 10" 10" 11.9 10.7 8.9/9.2

66" W. VBCV66821 4 4 2 VINV1200 DIL1200 DEV1200/DEV1500** 10" 10" 11.9 10.7 8.9/9.2

WALL HOODS – 18" DEEP

30" W. DBCV30821 2 2 VINV300/VINV600 DIL900/DIL1200 DEV900/DEV1200 7" 10" 2.8/3.8 3.9/5.7 6.6/3.9

36" W. DBCV36821 2 2 VINV300/VINV600 DIL900/DIL1200 DEV900/DEV1200* 7" 10" 2.8/3.8 3.9/5.7 6.6/3.9

42" W. DBCV42821 2 3 VINV600 DIL900/DIL1200 DEV900/DEV1200* 7" 10" 3.8 3.9/5.7 6.6/3.9

48" W. DBCV48821 2 3 VINV1200 DIL1200 DEV1200/DEV1500** 10" 10" 6.8 6.1 4.3/5.1

Interior

In-Line

Exterior

Maximum Amps

Basic specifications – Microwave hood – Professional

MICROWAVE HOOD

Description

Overall Width

29 15/16" (76.1 cm)

VMOR205

Overall Height

Overall Depth

Electrical Requirements

Maximum Amp Usage

Overall Interior Dimensions

Approximate Shipping Weight

16 6/16" (41.7 cm)

15 5/16" (38.9 cm)

120 V, single phase, 60 Hz, AC only

1.6 kW, 13.2 A

Width: 17 1/8" (43.5 cm) Height: 8 1/16" (20.5 cm) Depth: 13 13/16" (35.1 cm) Overall: 1.1 cu. ft.

85 lb. (38.6 kg)

Microwave hood – Designer

MICROWAVE HOOD

Description

Overall Width

29 15/16" (76.1 cm)

DMOR205

Overall Height

Overall Depth

Electrical Requirements

Maximum Amp Usage

Overall Interior Dimensions

Approximate Shipping Weight

16 6/16" (41.7 cm)

15 5/16" (38.9 cm)

120 V, single phase, 60 Hz, AC only

1.6 kW, 13.2 A

Width: 17 1/8" (43.5 cm) Height: 8 1/16" (20.5 cm) Depth: 13 13/16" (35.1 cm) Overall: 1.1 cu. ft.

85 lb. (38.6 kg)

Rear downdrafts – Professional

Model

30" W. VIPR102(R)SS 2

36" W. VIPR162(R)SS

48" W. VIPR182(R)SS

Number of Filters

Recommended Ventilator Kits

Interior Exterior

VIDV500 VEDV900/VEDV1200

Rear downdrafts – Designer

Model

30" W. DIPR101RSS 2

36" W. DIPR161RSS

45" W. DIPR151RSS

Number of Filters

Recommended Ventilator Kits

Interior Exterior

VIDV500 VEDV900/VEDV1200

REAR DOWNDRAFTS

Recommended Duct Size

Interior Exterior

10" 10" 4.0 6.0

(can transition

to 6" round)

10" 10" 4.0 6.0

(can transition

to 6" round)

10" 10" 4.0 6.0

(can transition

to 6" round)

REAR DOWNDRAFTS

Recommended Duct Size

Interior Exterior

10" 10" 4.0 6.0

(can transition

to 6" round)

10" 10" 4.0 6.0

(can transition

to 6" round)

10" 10" 4.0 6.0

(can transition

to 6" round)

Maximum Amps

Interior Exterior

Maximum Amps

Interior Exterior

Designer hoods can be installed over Professional cooking products. However, when choosing a Professional range or rangetop with the gas char-grill feature, the following ventilator kits must be used to ensure proper performance:

Includes the following wall hoods: Classic Chimney, Classic Chimney with Ledge, Classic Chimney Ledgeless, Built-in Custom Ventilation Systems (for wall hoods), Tall Traditional with Ledge, and Tall Traditional Ledgeless. (Slim Traditional wall hoods, Box wall hoods, Classic Chimney island hoods, and Island Custom Ventilator Systems should not be installed over Professional ranges and rangetops with the gas char- grill feature.)

DESIGNER HOODS*

VENTILATOR KIT

(when used over ranges/rangetops with char-grill)

30", 33", 36", 39", 42", and 45" wide hoods – Classic Chimney models and Built-in Custom Ventilator Systems as noted below

36" and 42" wide hoods – Tall Traditional models as noted below

48" wide hoods – Tall Traditional models as noted below

48" and 51" wide hoods – Classic Chimney models and Built-in Custom Ventilator Systems as noted below

1,200 CFM exterior ventilator kit (DEV1200)

1,200 CFM interior or exterior ventilator kit (VINV1200 or DEV1200)

1,200 CFM interior or exterior ventilator kit (VINV1200 or DEV1200) or 1,500 CFM exterior ventilator kit (DEV1500)

Requirements for Designer hoods installed over Professional cooking products with char-grill feature

WALL AND ISLAND HOODS

All 18" high rangehood ventilator kits include rough-in kit, transition to round duct (7" round for VIV600 – all other 10" round), and damper (if applicable).

All ventilator kits use 120VAC/60Hz.

Proper installation is extremely important to ensure maximum performance from any ventilation product.

1. All CFMs stated based on tests with .1 static pressure; without applying static pressure (some brands consciously do not), CFM could be greatly overstated.

2. Duct run length is for general reference only; for longer duct runs, increase duct size and contact a qualified and trained installer.

•Straightrunsandgradual turnsarebest;forexample,each90-degree elbowisequalto5-10feet(1.52-3.05 m)ofstraightrun.

•Neveruseflexibleduct; itcreatesbackpressure/airturbulenceandgreatly reducesperformance.

•Properperformanceisdependent uponproperducting;makesurethata qualifiedandtrainedinstallerisused.

•Checkwitha qualifiedandtrainedinstallerorlocalcodes formakeupairrequirements,ifany.

DOWNDRAFTS

Model

Basic specifications – Ventilator kits – Professional and Designer

Interior

Ventilators

Exterior

Ventilators

In-Line

Ventilators

Exterior

Ventilators

Interior

Ventilators

PPROXIMATE CFM

RECOMMENDED DUCT SIZE

MAXIMUM DUCT RUN

MAXIMUM AMPS

300 600 1,200 900 1,200 900 1,200 1,500 500 900 1,200

See Specifications 3 1/4"x10" 10" round

(can transition

to 6" round)*

50 ft. (15.2 m)

75 ft.(22.8 m)

40 ft.(12.1 m)

See Specifications

4.0

6.0

VINV600 VINV1200VINV300 DEV900DIL1200DIL900 DEV1200 VIDV500 VEDV900 VEDV1200DEV1500

Notes

All ventilation

products

All models with standard equipment are design-certified for residential installation.

All ventilation

products

Please do not prepare installation from brochure data only. See installation instructions for important clearance/installation information.

To receive the most current specification sheets, call Dimension Express from your fax machine at (775) 833-3600 or visit their website at www.dexpress.com. Enter the code #8051 for Viking products. This will send you information on how to use the system and the corresponding model code numbers. Dimension Express Customer Service number is (775) 833-3633.

Viking Range Corporation

111 Front Street

Greenwood, Mississippi 38930 USA

(662) 455-1200

For product information,

call 1-888-VIKING1 (845-4641),

or visit the Viking website at

vikingrange.com

F60044K

RRD0811

Viking VIPR161RSS User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
