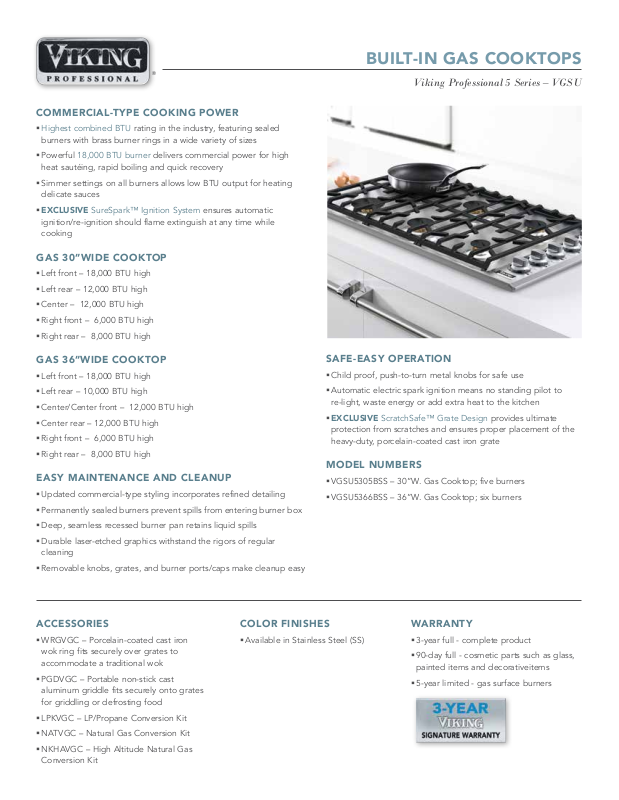

Viking VGSU5305BSSLP Specification Sheet
®
COMMERCIAL-TYPE COOKING POWER
§ Highest combined BTU rating in the industry, featuring sealed
burners with brass burner rings in a wide variety of sizes
§ Powerful 18,000 BTU burner delivers commercial power for high
heat sautéing, rapid boiling and quick recovery
§ Simmer settings on all burners allows low BTU output for heating
delicate sauces
§ EXCLUSIVE SureSpark™ Ignition System ensures automatic
ignition/re-ignition should flame extinguish at any time while
cooking
GAS 30”WIDE COOKTOP
§ Left front – 18,000 BTU high
§ Left rear – 12,000 BTU high
§ Center – 12,000 BTU high
§ Right front – 6,000 BTU high
§ Right rear – 8,000 BTU high
BUILT-IN GAS COOKTOPS
Viking Professional 5 Series – VGSU
GAS 36”WIDE COOKTOP
§ Left front – 18,000 BTU high
§ Left rear – 10,000 BTU high
§ Center/Center front – 12,000 BTU high
§ Center rear – 12,000 BTU high
§ Right front – 6,000 BTU high
§ Right rear – 8,000 BTU high
EASY MAINTENANCE AND CLEANUP
§ Updated commercial-type styling incorporates refined detailing
§ Permanently sealed burners prevent spills from entering burner box
§ Deep, seamless recessed burner pan retains liquid spills
§ Durable laser-etched graphics withstand the rigors of regular
cleaning
§ Removable knobs, grates, and burner ports/caps make cleanup easy
ACCESSORIES
§ WRGVGC – Porcelain-coated cast iron
wok ring fits securely over grates to
accommodate a traditional wok
§ PGDVGC – Portable non-stick cast
aluminum griddle fits securely onto grates
for griddling or defrosting food
§ LPKVGC – LP/Propane Conversion Kit
§ NATVGC – Natural Gas Conversion Kit
§ NKHAVGC – High Altitude Natural Gas
Conversion Kit
COLOR FINISHES
§ Available in Stainless Steel (SS)
SAFE-EASY OPERATION
§ Child proof, push-to-turn metal knobs for safe use
§ Automatic electric spark ignition means no standing pilot to
re-light, waste energy or add extra heat to the kitchen
§ EXCLUSIVE ScratchSafe™ Grate Design provides ultimate
protection from scratches and ensures proper placement of the
heavy-duty, porcelain-coated cast iron grate
MODEL NUMBERS
§ VGSU5305BSS – 30”W. Gas Cooktop; five burners
§ VGSU5366BSS – 36”W. Gas Cooktop; six burners
WARRANTY
§ 3-year full - complete product
§ 90-day full - cosmetic parts such as glass,
painted items and decorativeitems
§ 5-year limited - gas surface burners
30-3/4”
(78.1 cm)
21”
(53.3
cm)
Dimensions
30-3/4”
(78.1 cm)
21”
(53.3
cm)
36-3/4”
(93.3 cm)
21”
(53.3 cm)
30” VGSU Gas
Cooktop
36” VGSU Gas
Cooktop
30-3/4”
(78.1 cm)
21”
(53.3
cm)
36-3/4”
(93.3 cm)
21”
(53.3 cm)
®
36”min.
(91.4 cm)
28-1/8”
(71.4 cm)
5”
(12.7 cm) max.
(toe kick)
28-1/2”
(72.4 cm)
A
3”
(7.6 cm) min.
12-1/4”
(31.1 cm)
14-5/8”
(37.2 cm)
14-1/4”
(36.2 cm)
14-1/4”
(36.2 cm)
B
Downdraft Dimensions
30” W. Model 36” W. Model
A 30-3/4”
(78.1 cm)
36-3/4”
(93.3 cm)
B 27-3/4”
33-3/4”
Note: Refer to the oven installation instructions for undercounter dimensions. Installation will require
an elbow to be installed off of the regulator.
Cutout Dimensions
(Cooktop over Single Electric Oven)
Cooktop over 30”W. Electric Oven
30” W. Model
A 27-3/4” (70.5 cm) min. to
29-3/8” (74.6 cm) max.
B 18-3/4” (47.6 cm) min. to
19-7/8” (50.5 cm) max.
E
G
C
F
F
BUILT-IN GAS COOKTOPS
Viking Professional 5 Series – VGSU
GAS COOKTOPS
DESCRIPTION VGSU5305B VGSU5366B
Overall Width 30-3/4” (78.1 cm) 36-3/4” (93.3 cm)
Overall Height
(from bottom to top of grate)
Overall Depth from rear 21” (53.3 cm)
Cutout Width 27-3/4” (70.5 cm) minimum to
29-3/8” (74.6 cm) maximum
Cutout Height
Cutout Depth 19-1/8” (48.6 cm) minimum to 20-1/8” (51.1 cm) maximum
Gas Requirements
Shipped Natural or LP/Propane, eld convert with conversion kit (sold separately);
accepts standard residential 1/2” (1.3 cm) ID gas service line
Electrical Requirements 120 V 60 Hz; 4 ft. (121.9 cm), 3-wire cord with grounded 3-prong plug attached to product
Maximum Amp Us age
Surface Element Rating
Right front
Right rear
Center front
Center rear
Left front
Left rear
Bridge
Approximate Shipping Weight 67 lb. (30.2 kg) 80 lb. (36.0 kg)
Please do not prepare installation from brochure data only. See installation instructions for important clearance/installation information.
18,000 Nat./16,500 LP (BTU) (5.4 Nat./4.9 LP (kw)
12,000 Nat./11,000 LP (BTU) (3.6 Nat./3.3 LP (kw)
12,000 Nat./11,000 LP (BTU) (3.6 Nat./3.3 LP (kw)
N/A
6,000 Nat./6,000 LP (BTU) (1.8 Nat./1.8 LP (kw)
8,000 Nat./7,000 LP (BTU) (2.4 Nat./2.1 LP (kw)
4-1/2” (11.4 cm)
33-3/4” (85.7 cm) minimum to
35-3/8” (89.9 cm) maximum
2-3/4” (7.0 cm)
1.0 amps
18,000 Nat./16,500 LP (BTU) (5.4 Nat./4.9 LP (kw)
10,000 Nat./9,000 LP (BTU) (3.0 Nat./2.7 LP (kw)
12,000 Nat./11,000 LP (BTU) (3.6 Nat./3.3 LP (kw)
12,000 Nat./11,000 LP (BTU) (3.6 Nat./3.3 LP (kw)
6,000 Nat./6,000 LP (BTU) (1.8 Nat./1.8 LP (kw)
8,000 Nat./7,000 LP (BTU) (2.4 Nat./2.1 LP (kw)
30” GAS COOKTOP 36” GAS COOKTOP
B
A
C
2-3/4”
4-1/2”
(7.0 cm)
(11.4 cm)
FRONT VI EW SIDE VIEW
F60344 RRD1014
For detailed product information, model numbers, or to request a quote call 1-888-845-4641 or visit vikingrange.com
VIKING RANGE, LLC 111 FRONT STREET GREENWOOD, MISSISSIPPI 38930 USA © 2014 VIKING RANGE, LLC. ALL RIGHTS RESERVED.
7-7/16”
(18.9 cm)
1-5/8”
(4.1 cm)
© 2014 Viking Range, LLC | Specifications subject to change without notice.
1-1/16”
(2.5 cm)
A 27-3/4” (70.5 cm) min. to
B 19-1/8” (48.6 cm) min. to
C 3” (7.6 cm) min.
Note: Based on 24” deep cabinet with 3/4” backsplash
30”W. Model 36”W. Model
29-3/8 (74.6 cm) max.
33-3/4” (85.7 cm) min. to
35-3/8 (89.9 cm) max.
20-1/8 (51.1 cm) max.
