Viking Professional Custom VGSC548-4GQ, VGSC548-6Q, Professional Custom VGSC5484GQSS, VGSC548-6G, Professional Custom VGSC5486GSS Specifications

Professional Custom Series Freestanding Gas Self-Clean

Standard Features & Accessories

All models include

• Large, self-cleaning oven

• Right oven (convection bake/broil) o Overall capacity—4.0 cu. ft.

(23“W. x 16-1/8“H. x 18-3/4“D.)

o

AHAM Standard capacity—3.3 cu. ft. (23“W. x 15-3/8“H. x 17“D.)

o Three heavy-duty racks/six positions

and two halogen oven lights

• Left oven (bake, with electric spark ignition and “flame sensor” shut-off) o Overall capacity—2.1 cu. ft.

(12-1/8“W. x 16-1/8“H. x

o

AHAM Standard capacity—2.0 cu. ft. (12-1/8“W. x 16-1/8“H. x 18-1/8“D.)

o Two heavy-duty racks/six positions

and two halogen oven lights

• Exclusive VSH™ Pro Sealed Burner System (VariSimmer™ to High) – combination of unique patented

18-3/4

“D.)

burner and top design provides cleanability plus superior performance at simmer and high

• Exclusive SureSpark™ Ignition System for all burners

• Exclusive VariSimmer setting for all burners

• Exclusive one-piece tooled and porcelainized cooking surface contains spills for easy cleaning

•

Exclusive combination of single U-shaped bake burner and infrared broil burner, all with electric spark ignition

• Six functions – natural airflow bake, convection bake, infrared broil, convection infrared broil, convection dehydrate and convection defrost

• Shipped standard with heavy-duty metal knobs with stainless steel finish

COOKING

48”W. Sealed Burner Range

• Shipped standard with stainless steel island trim

• Standard kickspace height

8B models include

• Exclusive One TruPower Plus™ 18,500 BTU Burner (front right burner position)

• Seven 15,000 BTU brass sealed burners with porcelain/ cast iron caps and automatic ignition/re-ignition

6G models include

• Exclusive One TruPower Plus™ 18,500 BTU Burner (front right burner position)

• Five 15,000 BTU brass sealed burners with porcelain/cast iron caps and automatic ignition/re-ignition

• 12”W. thermostatically controlled steel griddle/simmer plate

• Removable grease trough holds two 1/2 cups of liquid

Model Options

VGSC548-8B*

FINISH DETAILS FOR ALL MODELS

• Stainless Steel (SS), Black (BK), White (WH), Metallic Silver (MS), Graphite Gray (GG), Stone Gray (SG), Taupe (TP), Biscuit (BT), Cotton White (CW), Oyster Gray (OG), Golden Mist (GM), Lemonade (LE), Sage (SA), Mint Julep (MJ), Sea Glass (SE), Iridescent Blue (IB), Viking Blue (VB), Pumpkin (PM), Racing Red (RR), Apple Red (AR), Burgundy (BU), Plum (PL), Chocolate (CH), and Cobalt Blue (CB). o Finish designates door front, lower

front panel, and side panels.

Eight-Burner

o Has black porcelain grates, black

• White (WH) o Finish designates door front, lower

o Has black porcelain grates and black

VGSC548-6G*

Six-Burner/Griddle Range

porcelain burner caps, black porcelain grate supports/burner bowls, and stainless steel knobs and black switches.

front panel, side panels, porcelain grate supports/burner bowls, porcelain center worktop, and knobs/switches.

porcelain burner caps.

• All finishes have stainless steel handle/chrome-plated brackets and stainless steel drip tray pull, control panel, and landing ledge.

• Brass Trim Option (BR)—nameplate, window trim, handle, drip tray pull, knob bezels, thermal-convection switch bezel, and grate support side trim. Brass components have a durable protective coating for maintenancefree normal use.

*Shown throughout with island trim. See Installation Notes & Accessories for details.

ORDERING INSTRUCTIONS

First specify model number, and then color code (VGSC548-8BSS). If ordering optional brass trim, specify code at end (VGSC548-8BSSBR). If ordering optional LP conversion, specify code at end (VGSC548-4GSSBRLP).

P L A N N I N G A N D D E S I G N G U I D E

V I K I N G R A N G E . C OM • 1 - 8 8 8 - V I K I N G 1

R E V I S E D 3 / 2 9 / 1 0

Professional Custom Series Freestanding Gas Self-Clean

Standard Features & Accessories

All models include

• Large, self-cleaning oven

• Right oven (convection bake/broil) o Overall capacity—4.0 cu. ft.

(23“W. x 16-1/8“H. x 18-3/4“D.)

o

AHAM Standard capacity—3.3 cu. ft. (23“W. x 15-3/8“H. x 17“D.)

o Three heavy-duty racks/six positions

and two halogen oven lights

• Left oven (bake, with electric spark ignition and “flame sensor” shut-off) o Overall capacity—2.1 cu. ft.

(12-1/8“W. x 16-1/8“H. x

o

AHAM Standard capacity—2.0 cu. ft. (12-1/8“W. x 16-1/8“H. x 18-1/8“D.)

o Two heavy-duty racks/six positions

and two halogen oven lights

• Exclusive VSH™ Pro Sealed Burner System (VariSimmer™ to High) – combination of unique patented burner and top design provides

18-3/4

“D.)

cleanability plus superior performance at simmer and high

• Exclusive SureSpark™ Ignition System for all burners

• Exclusive VariSimmer setting for all burners

• Exclusive one-piece tooled and porcelainized cooking surface contains spills for easy cleaning

• Exclusive combination of single U-shaped bake burner and infrared broil burner, all with electric spark ignition

• Six functions – natural airflow bake, convection bake, infrared broil, convection infrared broil, convection dehydrate and convection defrost

• Shipped standard with heavy-duty metal knobs with stainless steel finish

• Shipped standard with stainless steel island trim

• Standard kickspace height

COOKING

48”W. Sealed Burner Range

6Q models include

• Exclusive One TruPower Plus™ 18,500 BTU Burner (front right burner position)

• Five 15,000 BTU brass sealed burners with porcelain/cast iron caps and automatic ignition/re-ignition

• 12”W. grill with flavor generator plates and automatic ignition/re-ignition

• Exclusive two piece removable porcelainized drip pan holds three quarts of liquid

4GQ models include

• Four 15,000 BTU brass sealed burners with porcelain/cast iron caps and automatic ignition/re-ignition

• 12”W. thermostatically controlled steel griddle/simmer plate

• 12”W. grill with flavor generator plates and automatic ignition/reignition

Model Options

VGSC548-6Q*

Six-Burner/Grill Range

FINISH DETAILS FOR ALL MODELS

• Stainless Steel (SS), Black (BK), White (WH), Metallic Silver (MS), Graphite Gray (GG), Stone Gray (SG), Taupe (TP), Biscuit (BT), Cotton White (CW), Oyster Gray (OG), Golden Mist (GM), Lemonade (LE), Sage (SA), Mint Julep (MJ), Sea Glass (SE), Iridescent Blue (IB), Viking Blue (VB), Pumpkin (PM), Racing Red (RR), Apple Red (AR), Burgundy (BU), Plum (PL), Chocolate (CH), and Cobalt Blue (CB). o Finish designates door front, lower

front panel, and side panels.

Four-Burner/Grill/Griddle Range

o Has black porcelain grates, black

porcelain burner caps, black porcelain grate supports/burner bowls, and stainless steel knobs and black switches.

o All finishes have black porcelain

grates, black porcelain burner caps, and black knobs/switches.

• White (WH) o Finish designates door front, lower

front panel, side panels, porcelain grate supports/burner bowls, porcelain center worktop, and knobs/switches.

VGSC548-4GQ*

o Has black porcelain grates and black

porcelain burner caps.

• All finishes have stainless steel handle/chrome-plated brackets and stainless steel drip tray pull, control panel, and landing ledge.

• Brass Trim Option (BR)—nameplate, window trim, handle, drip tray pull, knob bezels, thermal-convection switch bezel, and grate support side trim. Brass components have a durable protective coating for maintenancefree normal use.

*Shown throughout with island trim. See Installation Notes & Accessories for details.

ORDERING INSTRUCTIONS

First specify model number, and then color code (VGSC548-6QSS). If ordering optional brass trim, specify code at end (VGSC548-6QSSBR). If ordering optional LP conversion, specify code at end (VGSC548-4GQSSBRLP).

P L A N N I N G A N D D E S I G N G U I D E

V I K I N G R A N G E . C O M • 1 - 8 8 8 - V I K I N G 1

R E V I S E D 3 / 2 9 / 1 0

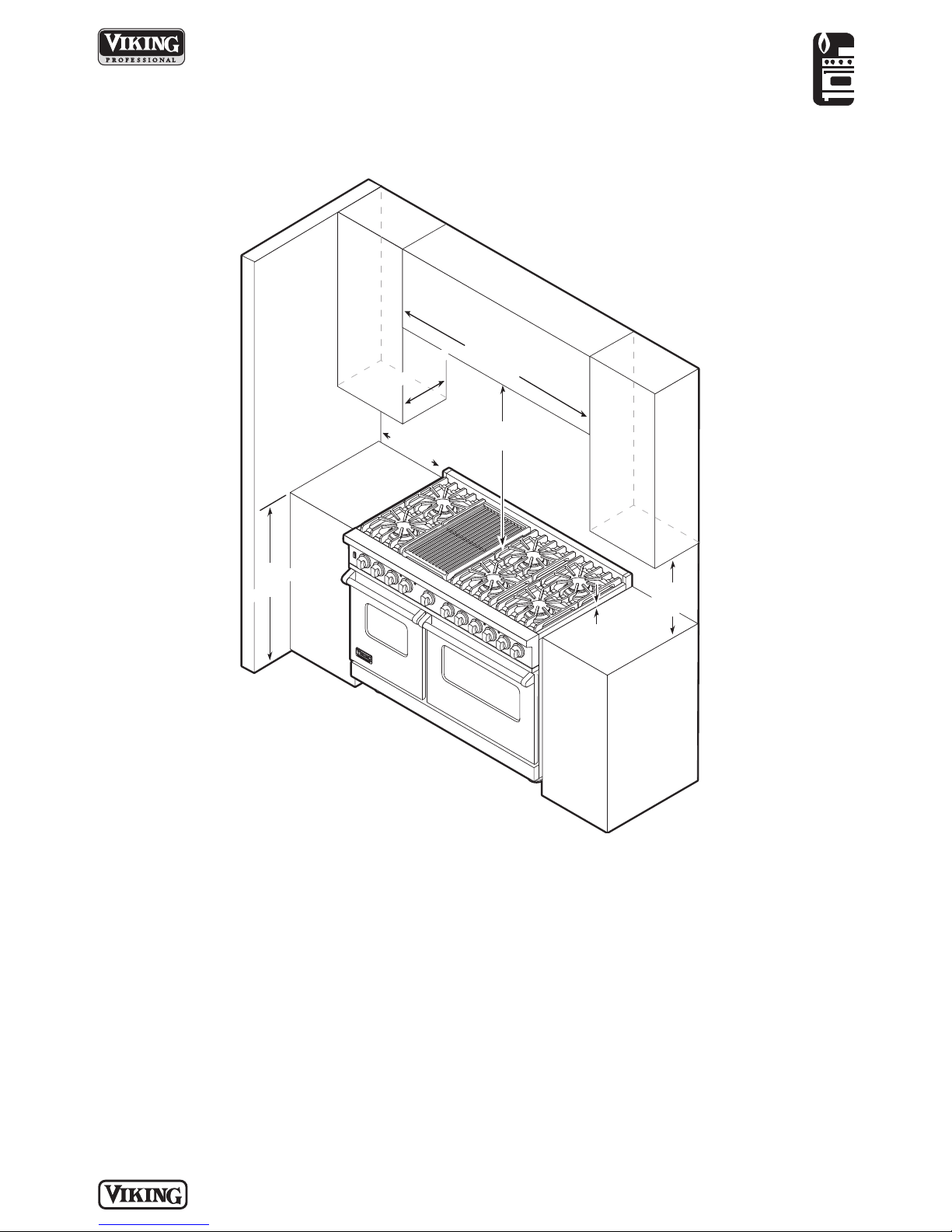

25-3/4” (65.4 cm)

45-1/8” (

114.6 cm)

19-3/8”

(

49.2 cm)

8-1/8”

(20.6 cm)

2

6-7/16”

(67.2 cm)

1-5/8”

(4.1 cm)

1” (2.5 cm)

35-7/8”

(

20.3 cm) min. to

37”

(94 cm) max.

24-5/16” (61.8 cm)

2

8-1/16”

(71.2 cm)

4

7

-

7

/

8

”

(

1

2

1

.

6

c

m

)

3

5-

7/

8

”

(

9

1

.

1

c

m

)

m

i

n

.

t

o

3

7”

(

9

4

c

m

)

m

a

x

.

1

”

(

2

.

5

c

m

)

COOKING

Professional Custom Series Freestanding Gas Self-Clean

48”W. Sealed Burner Range

Please see



Installation Notes &

Accessories

for important

installation

information

including

backguard, high-

shelf, island trim,

and curb base front.

ALL MODELS

Star-K Kosher Certification for use on the Jewish Sabbath or Jewish holidays

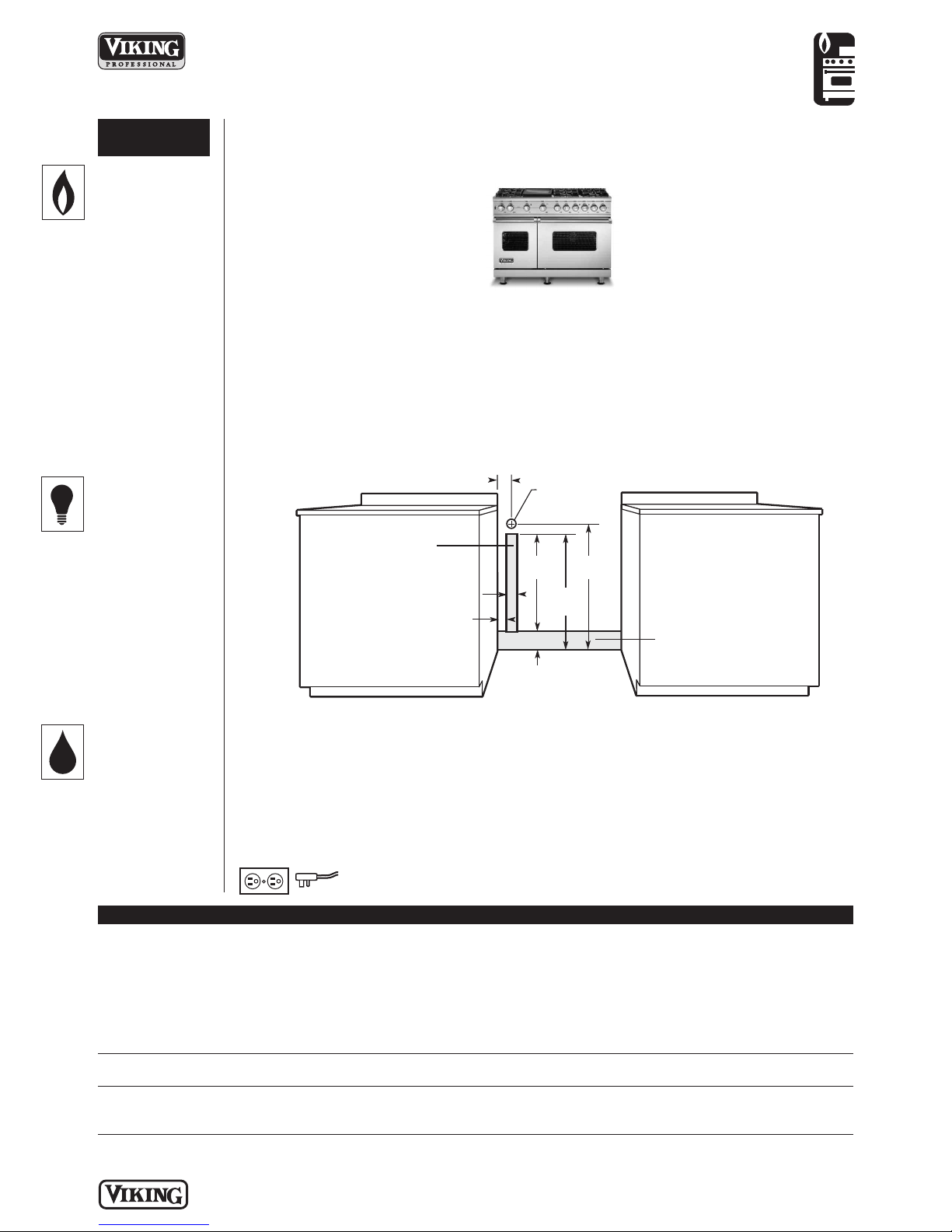

Dimensions & Specifications

PRODUCT DIMENSIONS & DOOR SWING

VGSC548-8B Eight-Burner

VGSC548-6G

Six-Burner/

Griddle Range

VGSC548-6Q

Six-Burner/ Grill Range

VGSC548-4GQ

Four-Burner/

Grill/Griddle Range

*Add 3/4” (1.9 cm) to overall depth for 48”W. VGSC models installed against a combustible wall. A standoff is included on the 48”W. VGSC model range and is required for installation against a combustible wall. These standoffs can be easily removed if installing against a non-combustible wall.

Overall width 47-7/8” (121.6 cm) Overall height

Base height

To top of side trim 35-7/8” (91.1 cm) min. to 37” (94.0 cm) max. Legs adjust (with “spindles” fully extended) 1-1/8” (2.9 cm)

Additions to base height

To top of island trim Add 1” (2.5 cm) To top of 8” backguard Add 8” (20.3 cm) To top of high-shelf Add 23-1/2” (59.7 cm)

Overall depth (from rear)*

To end of side panel 24-5/16” (61.8 cm) To front of door 25-3/4” (65.4 cm) To end of landing edge 28-1/16” (72.3 cm) To end of door handle 28-11/16” (72.9 cm)

Oven

Interior width

Right 23” (58.4 cm) Left 12-1/8” (30.8 cm)

Interior height

Right Overall – 16-1/8” (41.0 cm)/AHAM – 15-3/8” (39.1 cm) Left Overall – 16-1/8” (41.0 cm)/AHAM – 16-1/8” (41.0 cm)

Interior depth

Right Overall – 18-3/4” (47.6 cm)/AHAM – 17” (43.2 cm) Left Overall – 18-3/4” (47.6 cm)/AHAM – 18-1/8” (46.0 cm)

Overall interior size

Right Overall – 4.0 cu. ft./AHAM – 3.3 cu. ft. Left Overall – 2.1 cu. ft./AHAM – 2.0 cu. ft.
