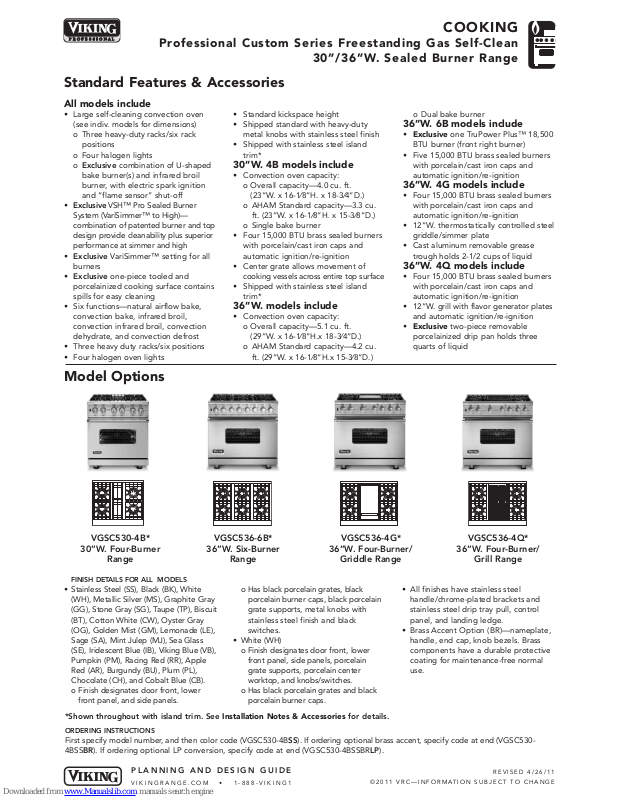

Viking VGSC530-4B*, VGSC536-4Q, VGSC536-4G, VGSC536-6B, VGSC530 Specifications

Professional Custom Series Freestanding Gas Self-Clean

Standard Features & Accessories

All models include

• Large self-cleaning convection oven
(see indiv. models for dimensions)
o Three heavy-duty racks/six rack

positions
o Four halogen lights
o Exclusive combination of U-shaped

bake burner(s) and infrared broil

burner, with electric spark ignition

and “flame sensor” shut-off

• Exclusive VSH™ Pro Sealed Burner
System (VariSimmer™ to High)—
combination of patented burner and top
design provide cleanability plus superior
performance at simmer and high

• Exclusive VariSimmer™ setting for all
burners

• Exclusive one-piece tooled and
porcelainized cooking surface contains
spills for easy cleaning

• Six functions—natural airflow bake,
convection bake, infrared broil,
convection infrared broil, convection
dehydrate, and convection defrost

• Three heavy duty racks/six positions

• Four halogen oven lights

• Standard kickspace height

• Shipped standard with heavy-duty
metal knobs with stainless steel finish

• Shipped with stainless steel island
trim*

30”W. 4B models include

• Convection oven capacity:
o Overall capacity—4.0 cu. ft.

(23“W. x 16-1⁄8“H. x 18-3⁄4“D.)

o AHAM Standard capacity—3.3 cu.

ft. (23“W. x 16-1⁄8“H. x 15-3⁄8“D.)

o Single bake burner

• Four 15,000 BTU brass sealed burners
with porcelain/cast iron caps and
automatic ignition/re-ignition

• Center grate allows movement of
cooking vessels across entire top surface

• Shipped with stainless steel island
trim*

36”W. models include

• Convection oven capacity:
o Overall capacity—5.1 cu. ft.

(29“W. x 16-1⁄8“H.x 18-3⁄4“D.)

o AHAM Standard capacity—4.2 cu.

ft. (29“W. x 16-1⁄8“H.x 15-3⁄8“D.)

COOKING

30”/36”W. Sealed Burner Range

o Dual bake burner

36”W. 6B models include

• Exclusive one TruPower Plus™ 18,500
BTU burner (front right burner)

• Five 15,000 BTU brass sealed burners
with porcelain/cast iron caps and
automatic ignition/re-ignition

36”W. 4G models include

• Four 15,000 BTU brass sealed burners
with porcelain/cast iron caps and
automatic ignition/re-ignition

• 12“W. thermostatically controlled steel
griddle/simmer plate

• Cast aluminum removable grease
trough holds 2-1/2 cups of liquid

36”W. 4Q models include

• Four 15,000 BTU brass sealed burners
with porcelain/cast iron caps and
automatic ignition/re-ignition

• 12“W. grill with flavor generator plates
and automatic ignition/re-ignition

• Exclusive two-piece removable
porcelainized drip pan holds three
quarts of liquid

Model Options

VGSC530-4B*

30”W. Four-Burner

Range

FINISH DETAILS FOR ALL MODELS

• Stainless Steel (SS), Black (BK), White
(WH), Metallic Silver (MS), Graphite Gray
(GG), Stone Gray (SG), Taupe (TP), Biscuit
(BT), Cotton White (CW), Oyster Gray
(OG), Golden Mist (GM), Lemonade (LE),
Sage (SA), Mint Julep (MJ), Sea Glass
(SE), Iridescent Blue (IB), Viking Blue (VB),
Pumpkin (PM), Racing Red (RR), Apple
Red (AR), Burgundy (BU), Plum (PL),
Chocolate (CH), and Cobalt Blue (CB).
o Finish designates door front, lower

front panel, and side panels.

*Shown throughout with island trim. See Installation Notes & Accessories for details.

ORDERING INSTRUCTIONS

First specify model number, and then color code (VGSC530-4BSS). If ordering optional brass accent, specify code at end (VGSC530-
4BSSBR). If ordering optional LP conversion, specify code at end (VGSC530-4BSSBRLP).

VGSC536-6B*

36”W. Six-Burner

Range

o Has black porcelain grates, black

porcelain burner caps, black porcelain
grate supports, metal knobs with
stainless steel finish and black
switches.

• White (WH)
o Finish designates door front, lower

front panel, side panels, porcelain
grate supports, porcelain center
worktop, and knobs/switches.

o Has black porcelain grates and black

porcelain burner caps.

VGSC536-4G*

36”W. Four-Burner/

Griddle Range

• All finishes have stainless steel

• Brass Accent Option (BR)—nameplate,

VGSC536-4Q*

36”W. Four-Burner/

Grill Range

handle/chrome-plated brackets and
stainless steel drip tray pull, control
panel, and landing ledge.

handle, end cap, knob bezels. Brass
components have a durable protective
coating for maintenance-free normal
use.

P L A N N I N G A N D D E S I G N G U I D E

V I K I N G R A N G E . C OM • 1 - 8 8 8 - V I K I N G 1

R E V I S E D 4 / 2 6 / 1 1

© 2 0 1 1 V R C — I N F O R M A T I O N S U B J E C T T O C H A N G E

COOKING

2

5-3/4”

(65.4 cm)

45-1/8” (114.6 cm)

19-3/8”

(49.2 cm)

8-1/8”

(

20.6 cm)

26-7/16” (67.2 cm)

1

-5/8”

(

4.1 cm)

1

”

(2.5 cm)

3

5-7/8”

(20.3 cm) min.

to

37”

(

94 cm) max.

24-5/16” (61.8 cm)

28-1/16” (71.2 cm)

3

5

-7
/

8

”

(

9

1

.

1

c

m

)

m

i

n

.

t

o

3

7

”

(

9

4

c

m

)

m

a

x

.

1

”

(

2

.

5

c

m

)

2

9

-7
/8

”

(7

5

.9

c

m

)

3

5

-7
/

8

”

(9

1

.1

c

m

)

3

5

-

7

/

8

”

(

9

1

.

1

c

m

)

m

i

n

.

t

o

3

7

”

(

9

4

.

0

c

m

)

m

a

x

.

1

”

(

2

.

5

c

m

)

Professional Custom Series Freestanding Gas Self-Clean

30”/36”W. Sealed Burner Range

Please see



Installation Notes &

Accessories

for important

installation

information

including

backguard, high-

shelf, island trim,

and curb base front.

ALL MODELS

Star-K Kosher
Certification for
use on the Jewish
Sabbath or Jewish
holidays

Dimensions & Specifications

PRODUCT DIMENSIONS & DOOR SWING

VGSC530-4B*

30”W. Four-Burner

Range

VGSC536-6B*

36”W. Six-Burner

Range

VGSC536-4G*

36”W. Four-Burner/

Griddle Range

VGSC536-4Q*

36”W. Four-Burner/

Grill Range

30”W. Models 36”W. Models

*Add 3/8” (1 cm) to overall depth for 30” VGSC models and 3/4” (1.9 cm) for 36” VGSC models installed against a
combustible wall. A standoff is included on each VGSC model range and is required for installation against a
combustible wall. These standoffs can be easily removed if installing against a non-combustible wall

VGSC530-4B VGSC536-6B VGSC536-4G VGSC536-4Q

Overall width 29-7/8” (75.9 cm) 35-7/8” (91.1 cm) 35-7/8” (91.1 cm) 35-7/8” (91.1 cm)
Overall height

Base height

To top of side trim 35-7/8” (91.1 cm) min. to 37” (94.0 cm) max.
Legs adjust (with “spindles” fully extended) 1-1/8” (2.9 cm)

Additions to base height

To top of island trim Add 1” (2.5 cm)
To top of 8” backguard Add 8” (20.3 cm)
To top of high-shelf Add 23-1/2” (59.7 cm)

Overall depth (from rear)*

To end of side panel 24-5/16” (61.8 cm)
To front of door 25-3/4” (65.4 cm)
To end of landing edge 28-1/16” (72.3 cm)
To end of door handle 28-11/16” (72.9 cm)

Oven

Interior width 23” (58.4 cm) 29” (73.7 cm) 29” (73.7 cm) 29” (73.7 cm)
Interior height 16-1/8” (41.0 cm)
Interior depth Overall - 18-3/4” (47.6 cm) AHAM - 15-3/8” (39.1 cm)
Overall interior size Overall 4.0 cu. ft. Overall 5.1 cu. ft. Overall 5.1 cu. ft. Overall 5.1 cu. ft.

P L A N N I N G A N D D E S I G N G U I D E

AHAM 3.3 cu. ft. AHAM 4.2 cu. ft. AHAM 4.2 cu. ft. AHAM 4.2 cu. ft.

V I K I N G R A N G E . C O M • 1 - 8 8 8 - V I K I N G 1

30” & 36”W. Models*

.

R E V I S E D 4 / 2 6 / 1 1

© 2 0 1 1 V R C — I N F O R M A T I O N S U B J E C T T O C H A N G E

4

2

”

m

i

n

.

(

1

0

6

.

7

c

m

)

1

3

”

m

a

x

.

(

3

3

.

0

c

m

)

6

”

m

i

n

.

(

1

5

.

2

c

m

)

1

8

”

m

i

n

.

(

4

5

.

7

c

m

)

3

/

8

”

(

0

.

9

5

c

m

)

3

6

”

(

9

1

.

4

c

m

)

A

(

o

p

e

n

i

n

g

w

i

d

t

h

)

Professional Custom Series Freestanding Gas Self-Clean

Dimensions & Specifications

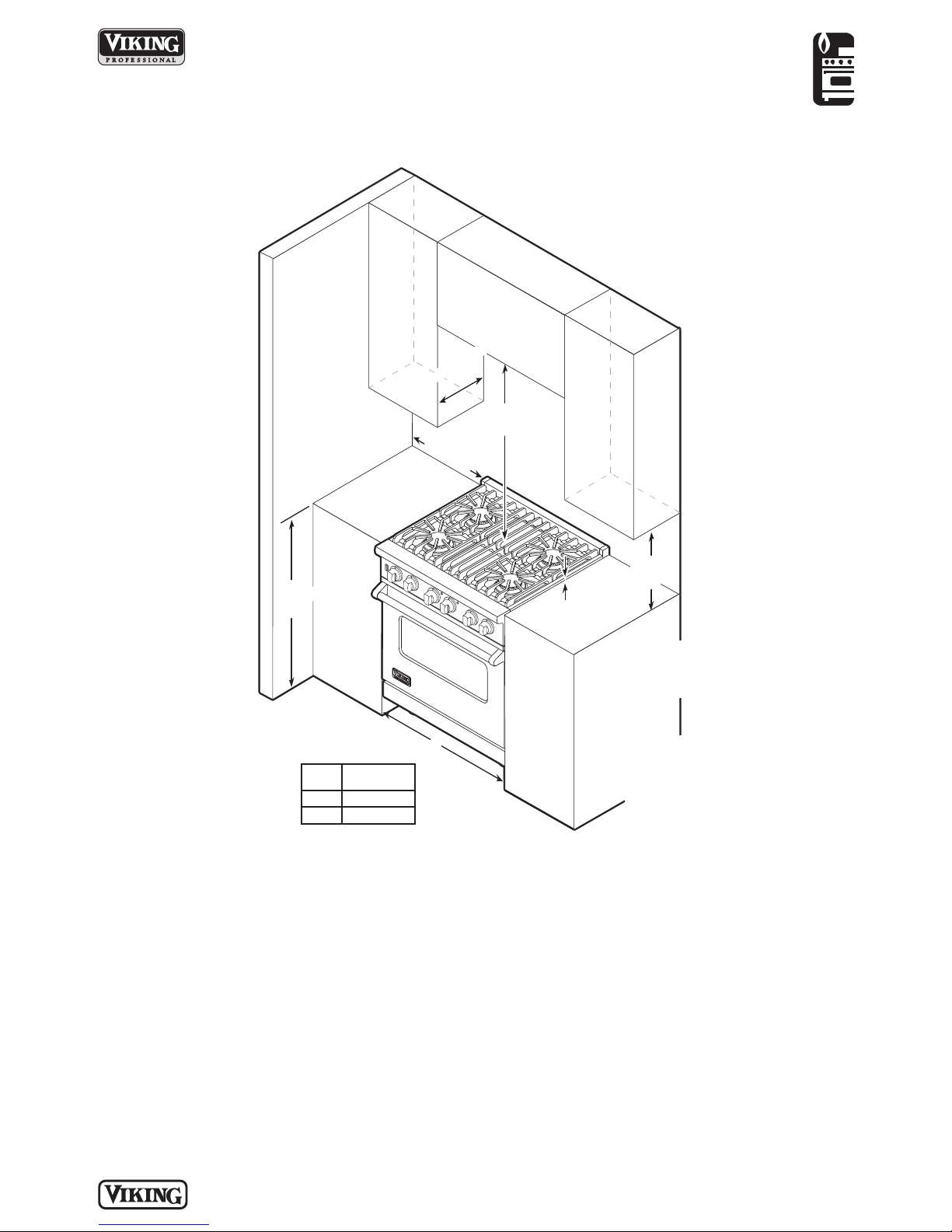

CLEARANCE DIMENSIONS

COOKING

30”/36”W. Sealed Burner Range

Minimum clearances from adjacent

Range

Width

30” 30” (76.2 cm)
36” 36” (91.4 cm)

combustible construction

• Cooking surface and below, i.e.,
36” (91.4 cm) and below

o Sides—0”
o Rear—0” with backguard or high-

shelf; 0” with island trim and
non-combustible rear wall; 6”
(15.2 cm) with island trim and
combustible rear wall

o Top grate support—36” (91.4 cm)

• Above cooking surface, i.e., above

36” (91.4 cm)
o Sides—6” (15.2 cm)
o Within 6” (15.2 cm) side clearance,

wall cabinets no deeper than 13”
(33.0 cm) must be minimum 18”
(45.7 cm) above cooking surface

P L A N N I N G A N D D E S I G N G U I D E

V I K I N G R A N G E . C O M • 1 - 8 8 8 - V I K I N G 1

“A”

Dimension

o Wall cabinets directly above product

must be minimum 42” (106.7 cm) for
sealed top burners above cooking
surface

• Use range only with factory supplied
legs

1.This range may be installed directly
adjacent to existing 36” (91.4 cm) high
base cabinets. Important: The top
grate support must be 3/8” (0.95 cm)
above the adjacent base cabinet
countertop. This may be accomplished
by raising the unit using the
adjustment spindles on the legs.

2.The range cannot be installed directly
adjacent to sidewalls, tall cabinets, tall
appliances, or other side vertical
surfaces above 36” (91.4 cm) high.

Note: Minimum clearance for back wall is
0” with backguard or high-shelf. See
Standoff Bracket Removal section in
Installation Guide to allow 0” clearance.

Important: This range comes with an
Island Trim. There must be a minimum of
6” (15.2 cm) clearance from rear of range
to a combustible wall or 0” clearance to
a non-combustible wall.

There must be a minimum of
6” (15.2 cm) side clearance from the
range to such combustible surfaces
above the 36” (91.4 cm) counter height.

3.Within the 6” (15.2 cm) side clearance
to combustible vertical surfaces above
36” (91.4 cm), the maximum wall
cabinet depth must be 13” (33.0 cm)
and wall cabinets within this 6” (15.2
cm) side clearance must be 18” (45.7
cm) above the 36” (91.4 cm) high
countertop.

4.Wall cabinets above the range must be
a minimum of 42” (106.7 cm) above
the range cooking surface for the full
width of the range. This minimum
height requirement does not apply if a
rangehood is installed over the
cooking surface.

R E V I S E D 4 / 2 6 / 1 1

© 2 0 1 1 V R C — I N F O R M A T I O N S U B J E C T T O C H A N G E

2”

(5.1 cm)

Dia.

2-3/4”

(7.0 cm)

4-3/8”

(11.1 cm)

2-1/2”

(6.4 cm)

1-3/4”

(4.4 cm)

31-1/16”

(78.9 cm)

28-5/16”

(71.9 cm)

23-7/16”

(

59.5 cm)

Gas or electrical
connection in
this area

Gas connection
in this area

COOKING

Professional Custom Series Freestanding Gas Self-Clean

30”/36”W. Sealed Burner Range

UTILITY

REQU IR EMENT S

GAS

• Shipped natural
gas standard; field
convert to
LP/propane with
optional accessory
kit or order as LP
by adding LP after
color code

• Accepts standard
residential 1/2” ID
gas service line

• Gas manifold
pressure
o Natural gas 5.0”

W.C.P.

o LP/Propane

10.0” W.C.P.

ELECTRICAL

• Four-foot (121.9
cm) cord included
with range

• Three-wire with
ground/three­prong plug

• 120 V/60 Hz

• Maximum amp
usage—

o

30”W. 4B—0.83

o

36”W. 6B—1.5

o

36”W. 4G—1.5

o

36”W. 4Q—1.5

Installation Requirements

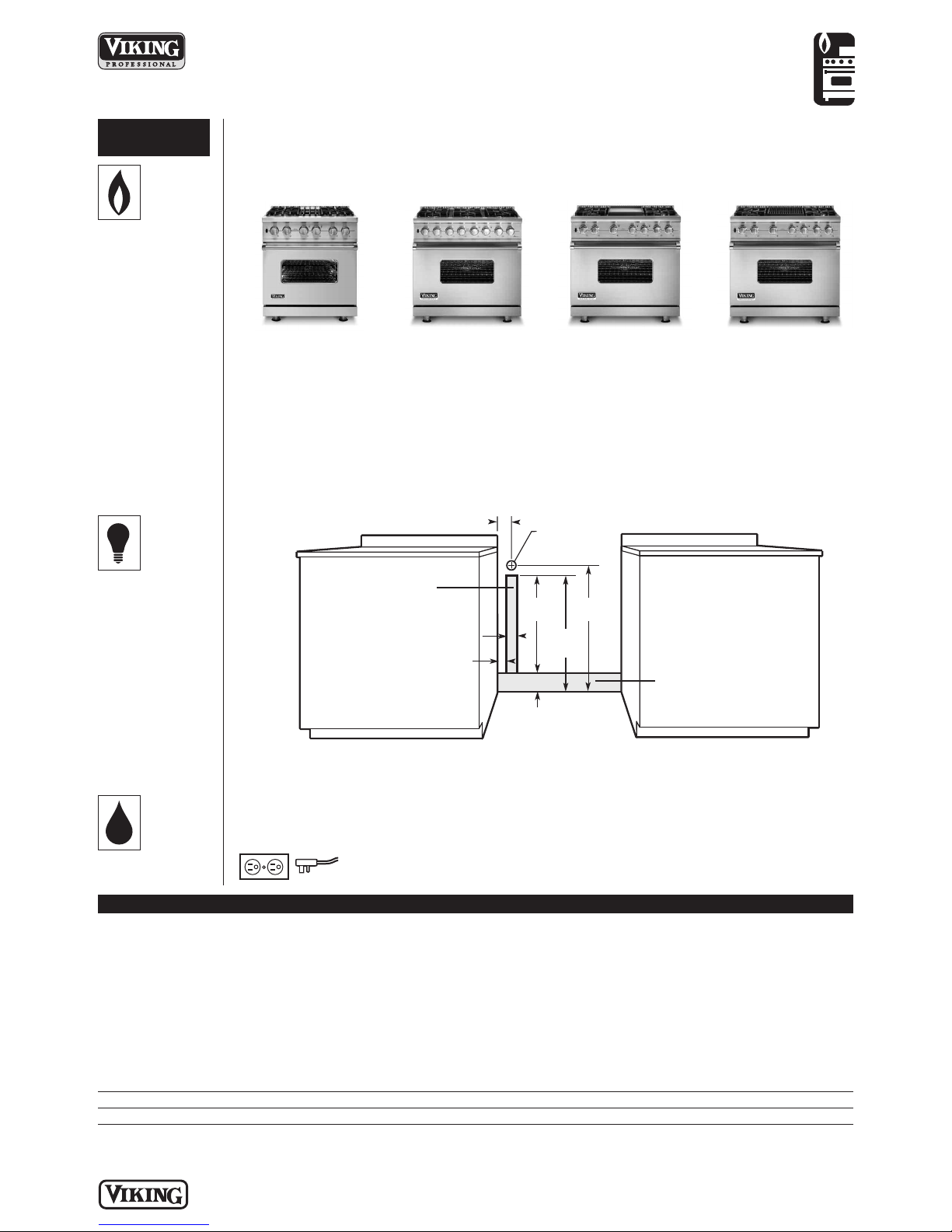

ACCESS REQUIREMENTS

VGSC530-4B*

30”W. Four-Burner

Range

VGSC536-6B*

36”W. Six-Burner

Range

VGSC536-4G*

36”W. Four-Burner/

Griddle Range

VGSC536-4Q*

36”W. Four-Burner/

Grill Range

PLUMBING

Not applicable

VGSC530-4B VGSC536-6B VGSC536-4G VGSC536-4Q

Surface burner rating

Surface burners 15,000 BTU Nat. (4.4 kW)/ 15,000 BTU Nat. (4.4 kW)/ 15,000 BTU Nat. (4.4 kW)/ 15,000 BTU Nat. (4.4 kW)/

12,500 BTU LP (3.7 kW) 12,500 BTU LP (3.7 kW) 12,500 BTU LP (3.7 kW) 12,500 BTU LP (3.7 kW)

Surface burners 18,500 BTU Nat. (5.4 kW)/

(front right) 16,600 BTU LP (4.9 kW)

One griddle 15,000 BTU Nat. (4.4 kW)/

One grill 18,000 BTU Nat. (5.3 kW)/

Broil burner rating 18,000 BTU Nat. (5.3 kW)/16,000 BTU LP (4.7 kW)
Bake burner rating 30,000 BTU Nat./LP (8.8 kW)

P L A N N I N G A N D D E S I G N G U I D E

V I K I N G R A N G E . C O M • 1 - 8 8 8 - V I K I N G 1

Note: Ground plug and electrical wire toward the direction of the electrical outlet.

12,500 BTU LP (3.7 kW)

16,000 BTU LP (4.7 kW)

© 2 0 1 1 V R C — I N F O R M A T I O N S U B J E C T T O C H A N G E

R E V I S E D 4 / 2 6 / 1 1

COOKING

Professional Custom Series Freestanding Gas Self-Clean

30”/36”W. Sealed Burner Range

Installation Notes & Accessories



A backguard, high-shelf, or island trim must be used for all installations.

Island Trim

• Stainless Steel (SS)

Coordinates with all finishes

•

• For island/peninsula installation

• Can replace backguard if wall is non-combustible

• Included and shipped automatically with 30”W. and 36”W. ranges.

Model Description Approx. ship wt. lbs. (kg)

30BG8 30”W. backguard 14 (6.3)

P

36BG8 36”W. backguard 17 (7.7)

P

8”H. Backguard

• Stainless Steel (SS)

• Coordinates with all finishes

Model Description Approx. ship wt. lbs. (kg)

B30HS24 30”W. high-shelf 45 (20.3)
B36HS24 36”W. high-shelf 50 (22.5)

High-shelf

• Stainless Steel (SS)

• Coordinates with all finishes

• Shelf comes attached to a 24”H. backguard

Model Description Approx. ship wt. lbs. (kg)

P30TII 30”W. island trim 10 (4.5)
P36TII 36”W. island trim 11 (5.0)

Countertop Side Trim

• Stainless Steel (SS)

• Coordinates with all finishes

• One pair of trim

• Installs on side of unit; overlaps countertop

Model Description Approx. ship wt. lbs. (kg)

P24CST 24”D. side trim 2 (0.9)

Countertop Rear Trim

• Stainless Steel (SS)

• Coordinates with all finishes

Model Description Approx. ship wt. lbs. (kg)

P30CRT 30”W. countertop rear trim 2 (0.9)
P36CRT 36”W. countertop rear trim 2 (0.9)

P L A N N I N G A N D D E S I G N G U I D E

V I K I N G R A N G E . C O M • 1 - 8 8 8 - V I K I N G 1

R E V I S E D 4 / 2 6 / 1 1

© 2 0 1 1 V R C — I N F O R M A T I O N S U B J E C T T O C H A N G E

COOKING

Professional Custom Series Freestanding Gas Self-Clean

30”/36”W. Sealed Burner Range

Installation Notes & Accessories



Curb Base Front Custom Curb Base Front

• Stainless Steel (SS) • Remove stainless steel front and recycle

• Coordinates with all finishes

Front only

•

• Conceals range legs • Completely assembled

•

Completely assembled • Easily clips onto range legs after range is installed

•

Easily clips onto range legs after range is installed

Model Description Approx. ship wt. lbs. (kg)

30CBF4 30”W. curb base front 9 (4.1)

P

36CBF4 36”W. curb base front 10 (4.5)

P

LP/Propane Conversion Kit

• Allows for field conversion of range from natural gas to LP

Model Description Approx. ship wt. lbs. (kg)

LPKPDR Natural to LP/propane conversion kit 2 (0.9)

•

Conceals range legs

•

ttach locally supplied trim

A

•

Provides drop-in range look

Compliance Information

WARRANTY INFORMATION*

• Three-year full warranty—complete product

• Ten-year limited warranty—porcelain oven and porcelain inner door panel

• Five-year limited warranty—surface burners, griddle burners, grill burners, and oven burner

• Ninety-day limited warranty—cosmetic parts such as glass, painted, and decorative items

* For complete warranty see Use & Care Guide. Warranty valid on Viking products shipped within the United States and Canada.

P L A N N I N G A N D D E S I G N G U I D E

V I K I N G R A N G E . C O M • 1 - 8 8 8 - V I K I N G 1

R E V I S E D 4 / 2 6 / 1 1

© 2 0 1 1 V R C — I N F O R M A T I O N S U B J E C T T O C H A N G E
