Viking VGSC367-68*, VGSC307-4BSS, VGSC367-4G Series, VGSC307-4BSSBR, Professional VGSC367-4GSS Specification Sheet

PLANNING AND DESIGN GUIDE

VIKINGRANGE.COM • 1-888-VIKING1

RELEASED 12/1/07

©2007 VRC—INFORMATION SUBJECT TO CHANGE

All models include

• Large self-cleaning convection oven
(see indiv. models for dimensions)
o Three heavy-duty racks/six rack

positions
o Four halogen lights
o Exclusive combination of U-shaped

bake burner(s) and infrared broil

burner, with electric spark ignition

and “flame sensor” shut-off

• Exclusive VSH™ Pro Sealed Burner
System (VariSimmer™ to High)—
combination of patented burner and top
design provide cleanability plus superior
performance at simmer and high

• Exclusive VariSimmer™ setting for all
burners

• Exclusive one-piece tooled and
porcelainized cooking surface contains
spills for easy cleaning

• Six functions—natural airflow bake,
convection bake, infrared broil,
convection infrared broil, convection

dehydrate, and convection defrost

• Standard kickspace height

30”W. 4B models include

• Convection oven capacity:
o Overall capacity—4.0 cu. ft.

(23“W. x 16-1⁄8“H. x 18-3⁄4“D.)

o AHAM Standard capacity—3.3 cu. ft.

(23“W. x 16-1⁄8“H. x 15-3⁄8“D.)

o Single bake burner

• Four 15,000 BTU brass sealed burners
with porcelain/cast iron caps and
automatic ignition/re-ignition

• Center grate allows movement of
cooking vessels across entire top
surface

• Shipped with 6“H. stainless steel
backguard*

36”W. 6B models include

• Convection oven capacity:
o Overall capacity—5.1 cu. ft.

(29“W. x 16-1⁄8“H.x 18-3⁄4“D.)

o AHAM Standard capacity—4.2 cu. ft.

(29“W. x 16-1⁄8“H.x 15-3⁄8“D.)

o Dual bake burner

• Six 15,000 BTU brass sealed burners
with porcelain/cast iron caps and
automatic ignition/re-ignition

36”W. 4G models include

• Four 15,000 BTU brass sealed burners
with porcelain/cast iron caps and
automatic ignition/re-ignition

• 12“W. thermostatically controlled steel
griddle/simmer plate

• Drip tray with roller bearing glides and
two-quart drip pan

36”W. 4Q models include

• Four 15,000 BTU brass sealed burners
with porcelain/cast iron caps and
automatic ignition/re-ignition

• 12“W. grill with flavor generator
plates and automatic ignition/
re-ignition

• Drip tray with roller bearing glides and
two-quart drip pan

• Stainless steel handle with chrome-plated

brackets, and stainless steel drip tray pull,
control panel, and landing ledge.

• Brass Trim Option (BR)—nameplate,

window trim, handle, drip tray pull,
knob bezels, thermal-convection switch
bezel, and grate support side trim.
Brass components have a durable
protective coating for maintenance­free normal use.

• Black porcelain grates, porcelain
burner caps, porcelain grate
supports/burner bowls, and
knobs/switches.

• White (WH)
o White door front, lower front panel,

side panels, porcelain grate
supports/burner bowls, porcelain
center worktop, and knobs/switches.

o Black porcelain grates and black

porcelain burner caps.

FINISH DETAILS FOR ALL MODELS

• Stainless Steel (SS), Black (BK), White
(WH), Metallic Silver (MS), Graphite Gray
(GG), Stone Gray (SG), Taupe (TP), Biscuit
(BT), Cotton White (CW), Oyster Gray
(OG), Golden Mist (GM), Lemonade (LE),
Sage (SA), Mint Julep (MJ), Sea Glass
(SE), Iridescent Blue (IB), Viking Blue (VB),
Pumpkin (PM), Racing Red (RR), Apple
Red (AR), Burgundy (BU), Plum (PL),
Chocolate (CH), and Cobalt Blue (CB).
o Finish designates door front, lower

front panel, and side panels.

Standard Features & Accessories

Model Options

COOKING

Professional Freestanding Gas Self-Clean 30”/36”W.

Sealed Burner Range

*Shown throughout with 6”H. backguard. See Installation Notes & Accessories for details.

ORDERING INSTRUCTIONS

First specify model number, and then color code (VGSC307-4BSS). If ordering optional brass trim, specify code at end (VGSC307-4BSSBR).
If ordering optional LP conversion, specify code at end (VGSC307-4BSSBRLP).

VGSC307-4B*

30”W. Four-Burner

Range

VGSC367-6B*

36”W. Six-Burner

Range

VGSC367-4G*

36”W. Four-Burner/

Griddle Range

VGSC367-4Q*

36”W. Four-Burner/

Grill Range

29-7/8”

(75.9 cm)

6”

(15.2 cm)

35-7/8”

(91.1 cm

)

min.

to

37-5/8”

(95.6 cm) max.

2

7-7

/8”

(70

.8

cm)

2

8-3

/8”

(72

.0

cm)

24-15/16”

(63

.3 c

m)

35-7/8”

(91.1 cm)

6”

(15.2 cm)

27-7/

8

”

(70.8 cm)

28-

3

/

8

”

(72

.0 c

m)

24-15/16”

(63

.3c

m)

35-7/8”

(91.1 cm) min.

to

37-5/8”

(95.6

cm) ma

x.

COOKING

Professional Freestanding Gas Self-Clean 30”/36”W.

Sealed Burner Range

PLANNING AND DESIGN GUIDE

VIKINGRANGE.COM • 1-888-VIKING1

RELEASED 12/1/07

©2007 VRC—INFORMATION SUBJECT TO CHANGE

✪

Please see

Installation Notes &

Accessories

for important

installation

information

including

backguard, high-

shelf, island trim,

and curb base front.

VGSC307-4B VGSC367-6B VGSC367-4G VGSC367-4Q

Overall width 29-7/8” (75.9 cm) 35-7/8” (91.1 cm) 35-7/8” (91.1 cm) 35-7/8” (91.1 cm)
Overall height

Base height

To top of grate support 35-7/8” (91.1 cm) min. to. 37-5/8” (95.6 cm) max

Legs adjust (with “spindles” fully extended) 1-3/4” (4.5 cm)

Additions to base height
To top of spider grate Add 1-1/8” (2.9 cm)
To top of island trim Add 1-1/4” (3.2 cm)
To top of 6” backguard Add 6” (15.2 cm)
To top of 10” backguard Add 10” (25.4 cm)
To top of high shelf Add 23-1/2” (59.7 cm)

Overall depth (from rear)

To end of side panel 24-15/16” (63.3 cm)
To end of control panels 27-7/8” (70.8 cm)
To end of knobs 28-3/8” (72.0 cm)

Oven

Interior width 23” (58.4 cm) 29” (73.7 cm) 29” (73.7 cm) 29” (73.7 cm)
Interior height 16-1/8” (41.0 cm)
Interior depth 15-3/8" (39.1 cm)
Overall interior size 3.3 cu. ft. 4.2 cu. ft. 4.2 cu. ft. 4.2 cu. ft.

Star-K Kosher
Certification for
use on the Jewish
Sabbath or Jewish
holidays

VGSC307-4B

30”W. Four-Burner

Range

VGSC367-6B

36”W. Six-Burner

Range

VGSC367-4G

36”W. Four-Burner/

Griddle Range

VGSC367-4Q

36”W. Four-Burner/

Grill Range

Dimensions & Specifications

PRODUCT DIMENSIONS & DOOR SWING

24-15/16” (63.3 cm)

42-5/16” (107.5 cm)

18” (45.7 cm)

6” (15.2 cm)

26-5/16” (66.8 cm)

2-1/8” (5.4 cm)

6” (15.2 cm)

30”W. Models 36”W. Models 30” & 36”W. Models

ALL MODELS

PLANNING AND DESIGN GUIDE

VIKINGRANGE.COM • 1-888-VIKING1

RELEASED 12/1/07

©2007 VRC—INFORMATION SUBJECT TO CHANGE

COOKING

Professional Freestanding Gas Self-Clean 30”/36”W.

Sealed Burner Range

42” min.

(106.7 cm)

13” max.
(33

.0 cm)

6” min.

(15.2 cm)

A

18” min.
(45.7 cm)

3

/8”

(0.95 cm)

36”

(91.4 cm)

A
30”W. 29-7/8“ (75.9 cm)
36”W. 35-7/8“ (91.1 cm)

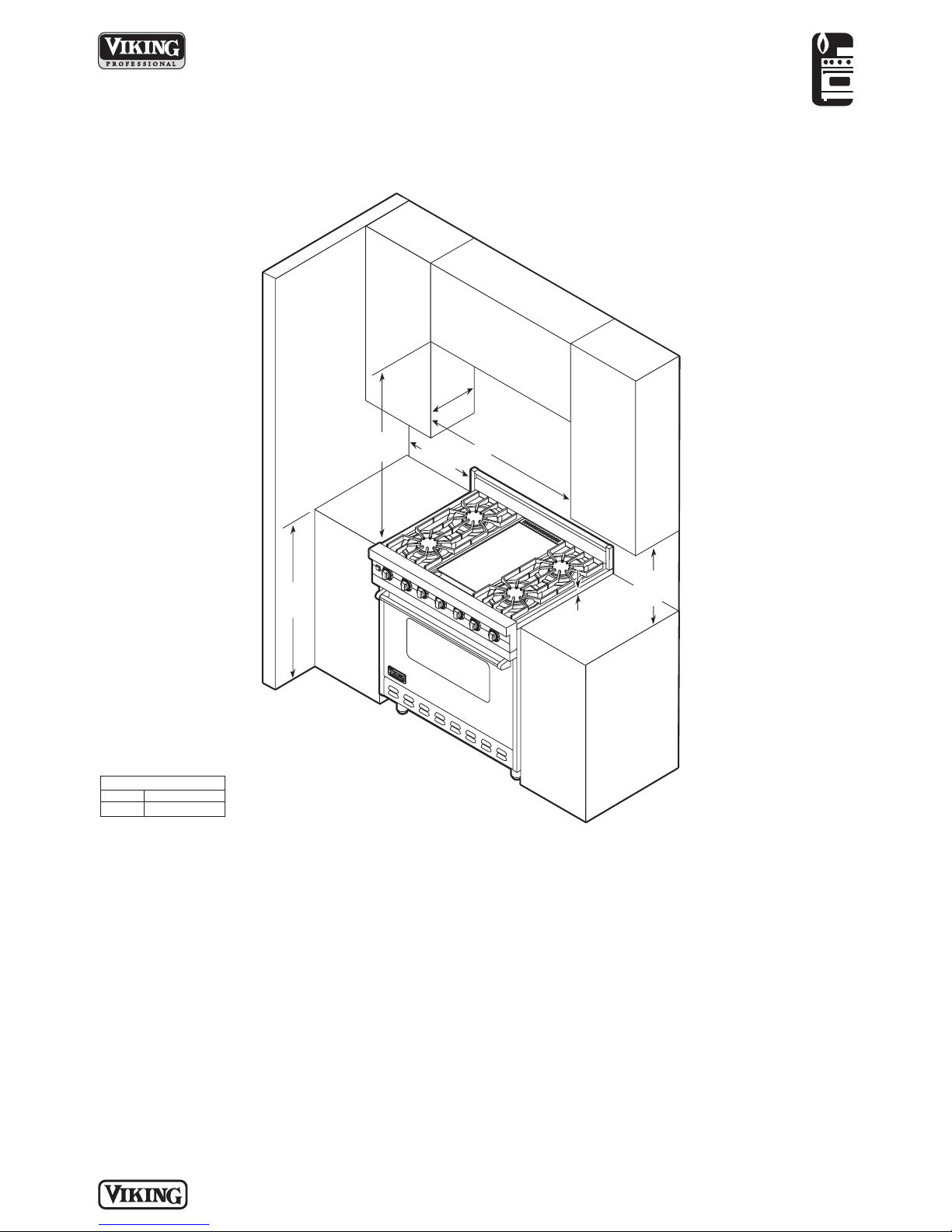

Minimum clearances from adjacent
combustible construction

• Cooking surface and below, i.e.,
36” (91.4 cm)
o Sides—0”
o Rear
o 0” with backguard or high-shelf
o 0” with island trim and non-

combustible rear wall

o 6” (15.2 cm) with island trim and

combustible rear wall

o Top grate support—36” (91.4 cm)

• Above cooking surface, i.e., above
36” (91.4 cm)
o Sides—6” (15.2 cm)
o Within 6” (15.2 cm) side clearance,

wall cabinets no deeper than 13”
(33.0 cm) must be minimum 18”
(45.7 cm) above cooking surface

o Wall cabinets directly above product

must be minimum 42” (106.7 cm) for
sealed top burners above cooking
surface

• Use range only with factory supplied
legs

1. This range may be installed directly

adjacent to existing 36” (91.4 cm) high
base cabinets. Important: The top
grate support must be 3/8” (0.95 cm)
above the adjacent base cabinet
countertop. This may be accomplished
by raising the unit using the
adjustment spindles on the legs.

2. The range cannot be installed directly

adjacent to sidewalls, tall cabinets, tall
appliances, or other side vertical
surfaces above 36” (91.4 cm) high.

There must be a minimum of 6” (15.2
cm) side clearance from the range to
such combustible surfaces above the
36” (91.4 cm) counter height.

3. Within the 6” (15.2 cm) side clearance
to combustible vertical surfaces above
36” (91.4 cm), the maximum wall
cabinet depth must be 13” (33.0 cm)
and wall cabinets within this 6” (15.2
cm) side clearance must be 18” (45.7
cm) above the 36” (91.4 cm) high
countertop.

4. Wall cabinets above the range must
be a minimum of 42” (106.7 cm)
above the range cooking surface for
the full width of the range. This
minimum height requirement does not
apply if a rangehood is installed over
the cooking surface.

Dimensions & Specifications

CLEARANCE DIMENSIONS

2”
(5.1 cm)

Dia.

2-3/4”
(7.0 cm)

4-3/8”

(11.1 cm)

2-1/2”

(6.4 cm)

1-3/4”

(4.4 cm)

31-1/16”

(78.9 cm)

28-5/16”

(71.9 cm)

23-7/16”

(59.5 cm)

Gas or Electrical
connection in
this area

Gas connection
in this area

VGSC307-4B VGSC367-6B VGSC367-4G VGSC367-4Q

Surface burner rating

Four grated burners (each) 15,000 BTU Nat. (4.4 kW)/ 15,000 BTU Nat. (4.4 kW)/ 15,000 BTU Nat. (4.4 kW)/

13,500 BTU LP (4.0 kW) 13,500 BTU LP (4.0 kW) 13,500 BTU LP (4.0 kW)

Six grated burners (each) 15,000 BTU Nat. (4.4 kW)/

13,500 BTU LP (4.0 kW)

One griddle 15,000 BTU Nat. (4.4 kW)/

13,500 BTU LP (4.0 kW)

One grill 18,000 BTU Nat. (5.3 kW)–gross/

16,000 BTU LP (4.7 kW)
Broil burner rating 18,000 BTU Nat. (5.3 kW)/16,000 BTU LP (4.7 kW)
Bake burner rating 30,000 BTU Nat./LP (8.8 kW)

VGSC307-4B

30”W. Four-Burner

Range

VGSC367-6B

36”W. Six-Burner

Range

VGSC367-4G

36”W. Four-Burner/

Griddle Range

VGSC367-4Q

36”W. Four-Burner/

Grill Range

COOKING

Professional Freestanding Gas Self-Clean 30”/36”W.

Sealed Burner Range

PLANNING AND DESIGN GUIDE

VIKINGRANGE.COM • 1-888-VIKING1

RELEASED 12/1/07

©2007 VRC—INFORMATION SUBJECT TO CHANGE

UTILITY

REQUIREMENTS

GAS

• Shipped natural gas

standard; field convert
to LP/propane with
optional accessory kit
or order as LP by
adding LP after color
code

• Accepts standard

residential 1/2” ID gas
service line

• Gas manifold pressure

• Natural gas 5.0” W.C.P.

• LP/Propane 10.0”

W.C.P.

ELECTRICAL

• Four-foot (121.9 cm)

cord included with
range

• Three-wire with

ground/three-prong
plug

• 120 V/60 Hz

• Maximum amp

usage—
o 4B—2.3
o 6B—2.3
o 4G—6.0
o 4Q—2.4

PLUMBING

Not applicable

Installation Requirements

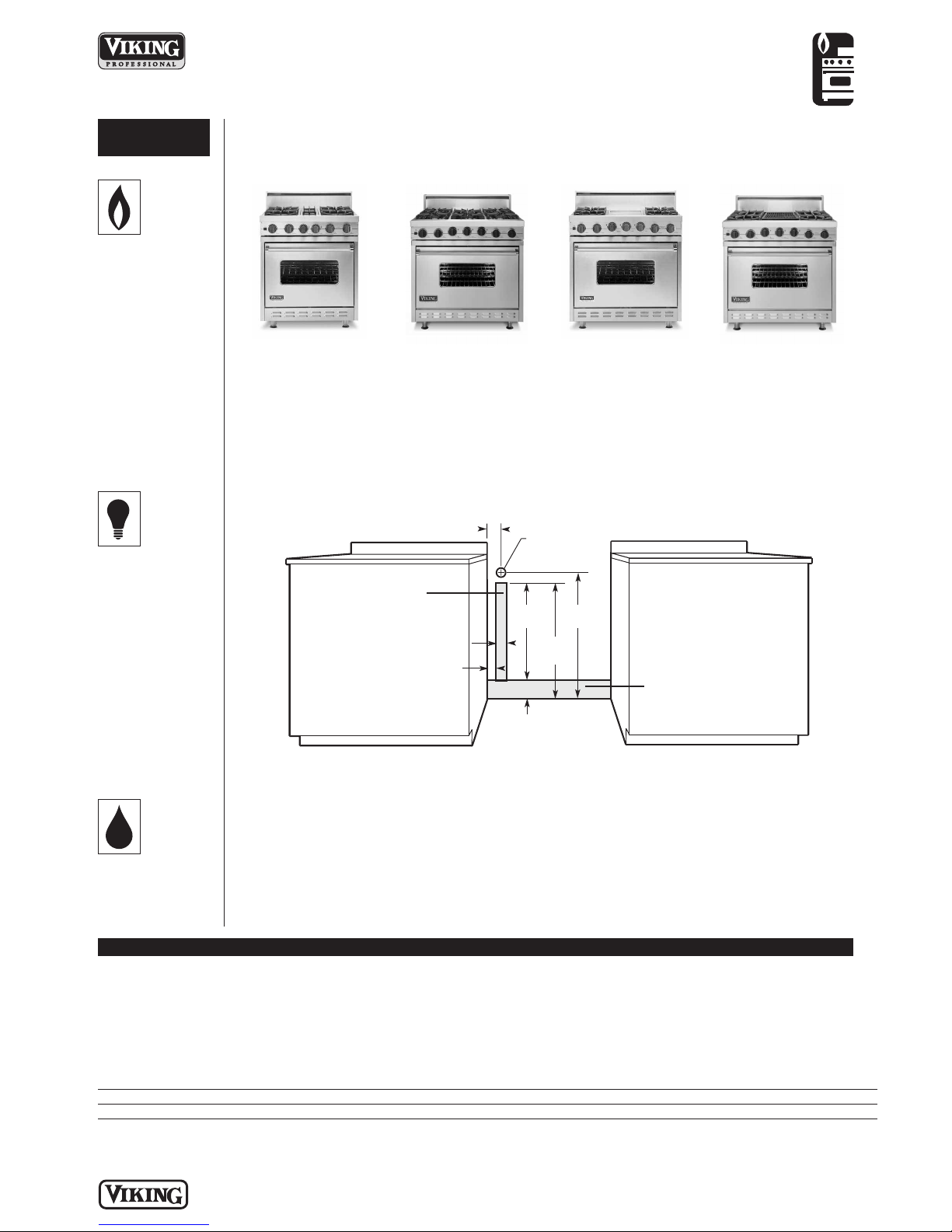

ACCESS REQUIREMENTS

Note: If the gas supply is installed through the rear wall, the location MUST be 31-1/16” (78.9 cm) above the

floor and 2-3/4” (7.0 cm) from the left hand side (when facing the unit) or within a maximum of 4-3/8” (11.1
cm) above the floor as specified in the drawing above.

6”H. & 10” Backguard

• Stainless Steel (SS)

• Coordinates with all finishes

• 6”H. backguard included (and shipped) automatically with 30”W. ranges, but not with 36”W. ranges.

10” Backguard

• Stainless Steel (SS)

• Coordinates with all finishes

• 10”H. backguard not available for 30”W. ranges

High-shelf

• Stainless Steel (SS)

• Coordinates with all finishes

• Shelf comes attached to a 24”H. backguard

Island Trim

• Stainless Steel (SS)

• Coordinates with all finishes

• For island/peninsula installation

• Can replace backguard if wall is non-combustible

Countertop Side Trim

• Stainless Steel (SS)

• Coordinates with all finishes

• One pair of trim

• Installs on side of unit; overlaps countertop

COOKING

Professional Freestanding Gas Self-Clean 30”/36”W.

Sealed Burner Range

PLANNING AND DESIGN GUIDE

VIKINGRANGE.COM • 1-888-VIKING1

RELEASED 12/1/07

©2007 VRC—INFORMATION SUBJECT TO CHANGE

✪

Installation Notes & Accessories

A backguard, high-shelf, or island trim must be used for all installations.

Model Description Approx. ship wt. lbs. (kg)

C30BG6 30”W. backguard 14 (6.3)
C36BG6 36”W. backguard 17 (7.7)

Model Description Approx. ship wt. lbs. (kg)

C30HS24 30”W. high-shelf 45 (20.3)
C36HS24 36”W. high-shelf 50 (22.5)

Model Description Approx. ship wt. lbs. (kg)

C30TII 30”W. island trim 10 (4.5)
C36TII 36”W. island trim 11 (5.0)

Model Description Approx. ship wt. lbs. (kg)

C36BG10 36”W. backguard 20 (9.0)

Model Description Approx. ship wt. lbs. (kg)

SE24CST 24”D. Side trim 2 (0.9)

COOKING

Professional Freestanding Gas Self-Clean 30”/36”W.

Sealed Burner Range

PLANNING AND DESIGN GUIDE

VIKINGRANGE.COM • 1-888-VIKING1

RELEASED 12/1/07

©2007 VRC—INFORMATION SUBJECT TO CHANGE

Curb Base Front Custom Curb Base Front

• Stainless Steel (SS) • Remove stainless steel front and recycle

• Coordinates with all finishes • Attach locally supplied trim

• Front only • Conceals range legs

• Conceals range legs • Completely assembled

• Completely assembled • Easily clips onto range legs after range is installed

• Easily clips onto range legs after range is installed • Provides drop-in range look

LP/Propane Conversion Kit

• Allows for field conversion of range from natural gas to LP

Compliance Information

WARRANTY INFORMATION*

• One-year full warranty—complete product

• Ten-year limited warranty—porcelain oven and porcelain inner door panel

• Five-year limited warranty—surface/tube burners, griddle burners, grill burners, and oven burner

• Ninety-day limited warranty—cosmetic parts such as glass, painted, and decorative items

* For complete warranty see

Use & Care Guide

. Warranty valid on Viking products shipped within the United States and Canada.

Model Description Approx. ship wt. lbs. (kg)

RS30CBF4 30”W. curb base front 9 (4.1)
RS36CBF4 30”W. curb base front 10 (4.5)

✪

Installation Notes & Accessories

Model Description Approx. ship wt. lbs. (kg)

LPKSBRR Natural to LP/propane conversion kit 2 (0.9)
