Viking VGRT5366BSS, VGRT5304BSS, VGRT5488BSS, VGRT5486GSS, VGRT5364GSS Quick Reference Guide

• Before beginning, please read these instructions completely and carefully.

• DO NOT remove permanently affixed labels, warnings, or plates from product. This may void the warranty.

• All local and national codes and ordinances must be observed. Installation must conform with local codes or in the absence of codes, the National Fuel Gas Code ANSI Z223.1 NFPA54-latest edition.

• The installer must leave these instructions with the consumer for local inspector’s use and for future reference.

Installation of any gas-fired equipment should be made by a licensed plumber. A manual gas shut-off valve must be installed in the gas supply line ahead of the

D A N G E R

Hazards or unsafe practices

which WILL result in severe personal

injury or death

Built-In Cooktops

Your safety and the safety of others is very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol. This symbol alerts you to hazards that can kill or hurt you and others.

All safety messages will be preceded by the safety alert symbol and the word “DANGER,” “WARNING” or “CAUTION.” These words mean:

W A R N I N G

Hazards or unsafe practices

which COULD result in severe personal

injury or death

C A U T I O N

Hazards or unsafe practices which

COULD result in minor personal injury or

property damage

All safety messages will identify the

hazard, tell you how to reduce the chance

of injury, and tell you what can happen if

the instructions are not followed.

FIRE/EXPLOSION HAZARD

IF THE INFORMATION IN THIS MANUAL IS NOT FOLLOWED

EXACTLY, A FIRE OR EXPLOSION MAY RESULT CAUSING PROPERTY DAMAGE, PERSONAL INJURY, OR

W A R N I N G

This appliance shall not be used for space heating. This information is based on safety considerations.

BURN HAZARD

The use of cabinets for storage above the appliance may result in a potential burn hazard. Combustible items may ignite, metallic items may become hot and cause burns. If a cabinet storage is to be provided the risk can be reduced by installing a

C A U T I O N

Before placing the cooktop into operation, always check for gas leaks with a soapy water solution or other acceptable method. DO NOT USE AN OPEN FLAME TO CHECK FOR LEAKS.

A qualified installer should carry out the following checks:

h Check top burner ignition. The low flame should

light at every port.

h Starting with the left

front burner, turn the corresponding knob to the HI position – see drawing for proper flame height.

IMPORTANT: Any conversion required must be performed by your dealer or a qualified licensed plumber or gas service company. The proper conversion kit must be ordered from your authorized service agency or dealer.

h Repeat steps for other burners.

Surface Operation

Lighting Burners

All burners are ignited by electric ignition. There are no open-flame, “standing” pilots.

Surface Burners/ Automatic Re-Ignition

To light the surface burners, push and turn the appropriate control knob counter clockwise to any position. This control is both a gas valve and an electric switch. Burners will ignite at any “ON” position with the automatic re-ignition system. If the flame goes out for any reason, the burners will automatically re-ignite if the gas is still flowing. When gas is permitted to flow to the burners, the electric igniters start sparking. On all surface igniters you should hear a “clicking” sound. If you do not, turn off the control and check that the unit is plugged in and that the fuse or circuit breaker is not blown or tripped.

Within a few moments, enough gas will have traveled to the burner to light. When the burner lights, turn the burner control to any position to adjust the flame size. Setting the proper flame height for the desired cooking process and selecting the correct cooking vessel will result in superior cooking performance, while also saving time and energy. If any one or more surface burners or grill burners extinguish, the electronic igniter automatically activates to re-light the flame. DO NOT TOUCH THE BURNERS WHEN THE IGNITERS ARE ACTIVE.

It is not uncommon to see extinguished flames, when:

• Proper ventilation is not used

• When the oven door is opened or closed rapidly

• When spillover of liquids or foods occur

• When the incorrect gas or impure gas is used

Surface Cooking Tips

• Use low or medium flame heights when cooking in vessels that are poor conductors of heat, such as glass, ceramic, and cast-iron. Reduce the flame height until it covers approximately 1/3 of the cooking vessel diameter. This will ensure more even heating within the cooking vessel and reduce the likelihood of burning or scorching the food.

• Reduce the flame if it is extending beyond the bottom of the cooking vessel. A flame that extends along the sides of the vessel is potentially dangerous, heats the utensil handle and kitchen instead of the food, and wastes energy.

• Reduce the flame height to the minimum level necessary to perform the desired cooking process. Remember that food cooks just as quickly at a gentle boil as it does at a rolling boil. Maintaining a higher boil than is necessary wastes energy, cooks away moisture, and causes a loss in food flavor and nutrient level.

• The minimum pot or pan (vessel) diameter recommended is 6” (15 cm). Use of pots or pans as small as 4” (10 cm) is possible but not recommended.

Surface Heat Settings

Note: The above information is given as a guide only.

You may need to vary the heat settings to suit your personal requirements.

Heat Setting

Use

Simmer

Melting small quantities Steaming rice Simmering sauces

Low

Melting large quantities

Med Low

Low-temperature frying (eggs, etc.) Simmering large quantities Heating milk, cream sauces, gravies,

and puddings

Med

Sauteing and browning, braising,

and pan-frying

Maintaining slow boil on large quantities

Med High

High-temperature frying Pan broiling Maintaining fast boil on large quantities

High

Boiling water quickly Deep-fat frying in large cookware

C A U T I O N

DO NOT heat empty cookware or let cookware boil dry. The cookware can absorb an excessive amount of heat very quickly, resulting in possible damage to the cookware and ceramic glass.

1. Left rear burner control knob

2. Left front burner control knob

3. Char-Grill control knob

4. Griddle control knob

5. Right rear burner control knob

6. Right front burner control knob

7. Griddle indicator light

8. Four 15,000 BTU sealed burners with porcelain/cast iron caps and automatic ignition/re-ignition

9. Stainless steel island trim

10. Char-Grill (optional)

11. Griddle (optional)

12. Identification plate

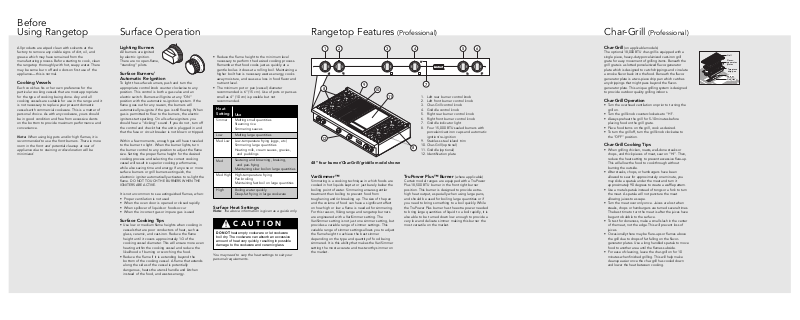

Rangetop Features (Professional)

48” four burner/Char-Grill/griddle model shown

VariSimmer™

Simmering is a cooking technique in which foods are cooked in hot liquids kept at or just barely below the boiling point of water. Simmering ensures gentler treatment than boiling to prevent food from toughening and/or breaking up. The size of the pan and the volume of food can have a significant effect on how high or low a flame is needed for simmering. For this reason, Viking range and rangetop burners are engineered with a VariSimmer setting. The VariSimmer setting is not just one simmer setting, but provides a variable range of simmer settings. This variable range of simmer settings allows you to adjust the flame height to achieve the best simmer depending on the type and quantity of food being simmered. It is this ability that makes the VariSimmer setting the most accurate and trustworthy simmer on the market.

TruPower Plus™ Burner (where applicable)

Certain model ranges are equipped with a TruPower Plus 18,500 BTU burner in the front right burner position. This burner is designed to provide extrahigh heat output, especially when using large pans, and should be used for boiling large quantities or if you need to bring something to a boil quickly. While the TruPower Plus burner has the extra power needed to bring large quantities of liquid to a boil rapidly, it is also able to be turned down low enough to provide a very low and delicate simmer making this burner the most versatile on the market.

All products are wiped clean with solvents at the factory to remove any visible signs of dirt, oil, and grease which may have remained from the manufacturing process. Before starting to cook, clean the rangetop thoroughly with hot, soapy water. There may be some burn off and odors on first use of the appliance—this is normal.

Cooking Vessels

Each cook has his or her own preference for the particular cooking vessels that are most appropriate for the type of cooking being done. Any and all cooking vessels are suitable for use in the range and it is not necessary to replace your present domestic vessels with commercial cookware. This is a matter of personal choice. As with any cookware, yours should be in good condition and free from excessive dents on the bottom to provide maximum performance and convenience.

Note: When using big pots and/or high flames, it is recommended to use the front burners. There is more room in the front and potential cleanup at rear of appliance due to staining or discoloration will be minimized.

Before Using Rangetop

Char-Grill

(Professional)

Char-Grill (on applicable models)

The optional 18,000 BTU char-grill is equipped with a single piece, heavy-duty porcelainized cast-iron grill grate for easy movement of grilling items. Beneath the grill grate is a slotted porcelainized flavor-generator plate which is designed to catch drippings and circulate a smoke flavor back into the food. Beneath the flavorgenerator plate is a two-piece drip pan which catches any drippings that might pass beyond the flavorgenerator plate. This unique grilling system is designed to provide outdoor quality grilling indoors.

Char-Grill Operation

• Turn the overhead ventilation on prior to turning the grill on.

• Turn the grill knob counterclockwise to “HI”.

• Always preheat the grill for 5-10 minutes before placing food on the grill grate.

• Place food items on the grill, cook as desired.

• To turn the grill off, turn the grill knob clockwise to the “OFF” position.

Char-Grill Cooking Tips

• When grilling chicken, roasts, well-done steaks or chops, and thick pieces of meat, sear on “HI”. Then, reduce the heat setting to prevent excessive flare-up. This will allow the food to cook through without burning the outside.

• After steaks, chops, or hamburgers have been allowed to sear for approximately one minute, you may slide a spatula under the meat and turn it approximately 90 degrees to create a waffle pattern.

• Use a metal spatula instead of tongs or a fork to turn the meat. A spatula will not puncture the meat allowing juices to escape.

• Turn the meat over only once. Juices are lost when steaks, chops or hamburgers are turned several times. The best time to turn the meat is after the juices have begun to bubble to the surface.

• To test for doneness, make a small slash in the center of the meat, not the edge. This will prevent loss of juices.

• Occasionally there may be flare-ups or flames above the grill due to drops of fat falling on the flavorgenerator plates. Use a long handled spatula to move food to another area until the flames subside.

• For ease of cleaning, leave the char-grill on for 10 minutes when finished grilling. This will help make cleanup easier once the char-grill has cooled down and lower the heat between cooking.

Burner

Drip tray

21 3 4

GRIDDLE

5 6

Grill

Flavorgenerator plates

Two-piece drip pan

Burner

Drip tray

Warnings

Warning and Important Safety Instructions appearing in this guide are not meant to cover all possible conditions and situations that may occur. Common sense, caution, and care must be exercised when installing, maintaining, or operating the appliance.

ALWAYS contact the manufacturer about problems or

conditions you do not understand.

Recognize Safety Symbols, Words, Labels

Read and follow all instructions before using this appliance to prevent the potential risk of fire, electric

shock, personal injury or damage to the appliance as a result of improper usage of the appliance. Use appliance only for its intended purpose as described in this guide.

To ensure proper and safe operation:

Appliance must be properly installed and grounded by a qualified technician. DO NOT attempt to adjust, repair, service, or replace any part of your appliance unless it is specifically recommended in this guide. All other servicing should be referred to a qualified servicer.

To Prevent Fire or Smoke Damage

• Be sure all packing materials are removed from the appliance before operating it.

• Keep area around appliance clear and free from combustible materials, gasoline, and other flammable vapors and materials.

• If appliance is installed near a window, proper precautions should be taken to prevent curtains from blowing over burners.

• NEVER leave any items on the rangetop. The hot air from the vent may ignite flammable items and may increase pressure in closed containers which may cause them to burst.

• Many aerosol-type spray cans are EXPLOSIVE when exposed to heat and may be highly flammable. Avoid their use or storage near an appliance.

• Many plastics are vulnerable to heat. Keep plastics away from parts of the appliance that may become warm or hot. DO NOT leave plastic items on the rangetop as they may melt or soften if left too close to a surface element.

• Combustible items (paper, plastic, etc.) may ignite and metallic items may become hot and cause burns. DO NOT pour spirits over hot foods.

In Case of Fire

Turn off appliance and ventilating hood to avoid spreading the flame. Extinguish flame, then turn on hood to remove smoke and odor.

• Smother fire or flame in a pan with a lid or cookie sheet. DO NOT use water on grease fires. Use baking soda, a dry chemical or foam-type extinguisher to smother fire or flame.

• NEVER pick up or move a flaming pan.

D A N G E R

Hazards or unsafe practices which WILL result in

severe personal injury or death

W A R N I N G

Hazards or unsafe practices which COULD result

in death severe personal injury or death

C A U T I O N

Hazards or unsafe practices which COULD

result in minor personal injury.

All safety messages will identify the hazard, tell you

how to reduce the chance of injury, and tell you what

can happen if the instructions are not followed.

W A R N I N G

If the information in this manual is not followed exactly, a fire or explosion may result causing property damage, personal injury or death.

WHAT TO DO IF YOU SMELL GAS:

• DO NOT try to light any appliance.

• DO NOT touch any electrical switch.

• DO NOT use any phone in your building.

• Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's instructions.

• If you cannot reach your gas supplier, call the fire department.

Installation and service must be performed by a qualified installer, service agency or the gas supplier.

Warnings (cont.)

F20638D EN (122112)

VIKING RANGE CORPORATION

111 Front Street • Greenwood, Mississippi

38930 USA • (662) 455-1200

Viking Quick Reference Guide

Professional Custom Built-In

Gas Rangetops

W A R N I N G

To avoid risk of property damage, personal injury or death; follow information in this guide exactly to

prevent a fire or explosion. DO NOT store or use gasoline or other flammable vapors and liquids in the vicinity of this or any appliance.

W A R N I N G

BURN OR ELECTRICAL

SHOCK HAZARD

To avoid risk of injury or death, make

sure all controls are “OFF” and surface

is COOL before cleaning. Failure to do

so can result in burns or electrical

shock.

C A U T I O N

DO NOT heat empty cookware or let cookware boil dry. The cookware can absorb an excessive amount of heat very quickly, resulting in possible damage to the cookware and ceramic glass.

C A U T I O N

To avoid the risk of property damage, DO NOT USE BRASS CLEANERS OR ABRASIVE CLEANERS ON ANY BRASS PARTS. All brass body parts should be wiped regularly with hot, soapy water and a soft, clean cloth. When hot, soapy water will not do the job, use everyday household cleaners that are not abrasive.

C A U T I O N

To prevent possible damage to cabinets and cabinet finishes, use only materials and finishes that will not discolor or delaminate and will withstand temperatures up to 194° F (90° C). Heat and moisture resistant adhesive must be used if the product is to be installed in laminated cabinetry. Check with your builder or cabinet supplier to make sure that the materials meet these requirements.

Griddle/Simmer Plate (on applicable models)

The optional 15,000 BTU griddle is constructed of machined steel with a blanchard finish and is uniquely designed to offer excellent cooking performance as well as easy cleanup. The griddle is equipped with an electronic thermostat to maintain an even temperature across the griddle once the desired temperature has been set. The griddle has a power “ON” indicator light which glows when the griddle thermostat has been turned on. This will cycle on and off as needed to indicate the thermostat is maintaining the selected temperature. Before the griddle is used it is important to season the griddle. This seasoning process will change the appearance of the griddle plate. However, it will also prevent food from sticking and protect the surface from moisture.

Seasoning the Griddle Before First Use:

• Scrub the griddle plate with a mixture of one quart warm water and 1/4 cup white vinegar, using a blue Scotch-Brite™ pad. Dry thoroughly.

• Wash griddle with warm, soapy water. Rinse off and dry thoroughly.

• Season griddle by thinly coating the surface with approximately 1/2 to 1 teaspoon unsalted vegetable oil. Apply to entire griddle using a paper towel or clean cloth. Let oil sit on griddle for approximately 1 hour and then wipe with a clean cloth or paper towel to absorb any residual oil. The griddle is now ready to be used.

Griddle/Simmer Plate Operation

• Turn the griddle control knob counterclockwise to the desired temperature setting. The power “ON” indicator light will glow indicating the griddle thermostat is on.

• The double griddle has two thermostat control knobs which control separate burners located beneath the griddle.

• When the griddle has reached the desired temperature, the power “ON” indicator light will turn off, indicating the griddle is preheated to the selected temperature.

• Use liquid cooking oil or butter for eggs, pancakes, French toast, fish, and sandwiches to prevent sticking.

• Routinely scrape loose food particles with a metal spatula during cooking to make the cleanup easier and to avoid the particles mixing with the food.

• To turn the griddle off, turn the thermostat knob clockwise to the “OFF” position.

• ALWAYS turn to the “OFF” position when not in use.

Griddle/Simmer Plate (Professional)

Griddle

Grease trough

Griddle
