Viking VGRT421-4G Series, VGRT421-6B, Professional VGRT4214QSS, Professional VGRT4216BSS, VGRT421-6B Series Specification Sheet

Standard Features & Accessories

COOKING

Professional Built-In Gas 42”W.

Open Burner Rangetop

All models include

• Exclusive VariSimmer™ setting for all burners

• Removable porcelain burner bowls

• Drip tray with roller bearing glides and two-quart drip pan

6B model includes

• Six 15,000 BTU stainless steel burners with porcelain/cast iron caps and automatic ignition/re-ignition

Model Options

4G model includes

• Four 15,000 BTU stainless steel burners with porcelain/cast iron caps and automatic ignition/re-ignition

• 18”W. thermostatically controlled steel griddle/simmer plate

4Q model includes

• Four 15,000 BTU stainless steel burners with porcelain/cast iron caps and automatic ignition/re-ignition

• 12”W. grill with flavor generator plates and automatic ignition/ re-ignition

VGRT421-6B*

42”W. Six-Burner

Rangetop

FINISH DETAILS FOR ALL MODELS

• Stainless Steel (SS), Black (BK), White (WH), Metallic Silver (MS), Graphite Gray (GG), Stone Gray (SG), Taupe (TP), Biscuit (BT), Cotton White (CW), Oyster Gray (OG), Golden Mist (GM), Lemonade (LE), Sage (SA), Mint Julep (MJ), Sea Glass (SE), Iridescent Blue (IB), Viking Blue (VB), Pumpkin (PM), Racing Red (RR), Apple Red (AR), Burgundy (BU), Plum (PL), Chocolate (CH), and Cobalt Blue (CB). o Finish designates color of enamel

control panel.

o Units have black porcelain grates,

black porcelain burner caps, black porcelain grate support/burner bowls and black knobs.

*Shown throughout with 6”H. backguard. See Installation Notes & Accessories for details.

• White (WH) o White finishes have white enamel

control panels, black porcelain grates, black porcelain burner caps, white porcelain grate support/burner bowls and white knobs.

• All finishes have stainless steel drip tray pull, and landing ledge.

• Brass Trim Option (BR)—nameplate,

drip tray pull, knob bezels and grate support side trim. Brass components have a durable protective coating for maintenance-free normal use.

VGRT421-4G*

42”W. Four-Burner/

Griddle Rangetop

VGRT421-4Q*

42”W. Four-Burner/

Grill Rangetop

ORDERING INSTRUCTIONS

First specify model number, and then color code (VGRT421-6BSS). If ordering optional brass trim, specify code at end (VGRT421-6BSSBR). If ordering optional LP conversion, specify code at end (

P L A N N I N G A N D D E S I G N G U I D E

V I K I N G R A N G E . C OM • 1 - 8 8 8 - V I K I N G 1

VGRT421-6B

SSBRLP).

R E V I S E D 3 / 2 9 / 1 0

COOKING

2

4

”

(

6

1

c

m

)

4

2

”

(

1

0

6

.

7

c

m

)

1

3

-

7

/

8

”

(

3

5

.

2

c

m

)

7-7/8”

(19.9 cm)

25-3/4” (65.4 cm)

27-3/4” (70.5 cm)

9-1/4”

(23.5 cm)

Professional Built-In Gas 42”W.

Open Burner Rangetop

Please see



Installation Notes &

Accessories

for important

installation

information,

including

backguard, high-

shelf, and island

trim.

ALL MODELS

Star-K Kosher Certification for use on the Jewish Sabbath or Jewish holidays

Dimensions & Specifications

PRODUCT DIMENSIONS

VGRT421-6B

42”W. Six-Burner

Rangetop

VGRT421-4G

42”W. Four-Burner/

Griddle Rangetop

VGRT421-4Q

42”W. Four-Burner/

Grill Rangetop

*Top of grate support should be 3/8” (1.0 cm) above countertop.

Overall width 42” (106.7) Overall height (from bottom)

To top of grate 9-1/4” (23.5 cm) To top of side trim 7-7/8” (19.9 cm)* To top of island trim 8-7/8” (22.5 cm) To top of 6” backguard 13-7/8” (35.2 cm) To top of high shelf 31-3/8” (79.7 cm)

Overall depth (from rear)

To end of side panel 24” (61.0 cm) To end of control panel 25-3/4” (65.4 cm) To end of knobs 27-3/4” (70.5 cm)

P L A N N I N G A N D D E S I G N G U I D E

V I K I N G R A N G E . C O M • 1 - 8 8 8 - V I K I N G 1

All models

R E V I S E D 3 / 2 9 / 1 0

1

8

”

m

i

n

.

(

4

5

.

7

c

m

)

6

”

m

i

n

.

(

1

5

.

2

c

m

)

3

6

”

(

9

1

.

4

c

m

)

1

3

”

m

a

x

.

(

3

.

0

c

m

)

4

2

-

1

/

8

”

(

1

0

7

c

m

)

4

2

”

m

i

n

.

*

(

1

0

6

.

7

c

m

)

7

-

1

/

2

”

(

1

9

.

1

c

m

)

Dimensions & Specifications

CLEARANCE DIMENSIONS

COOKING

Professional Built-In Gas 42”W.

Open Burner Rangetop

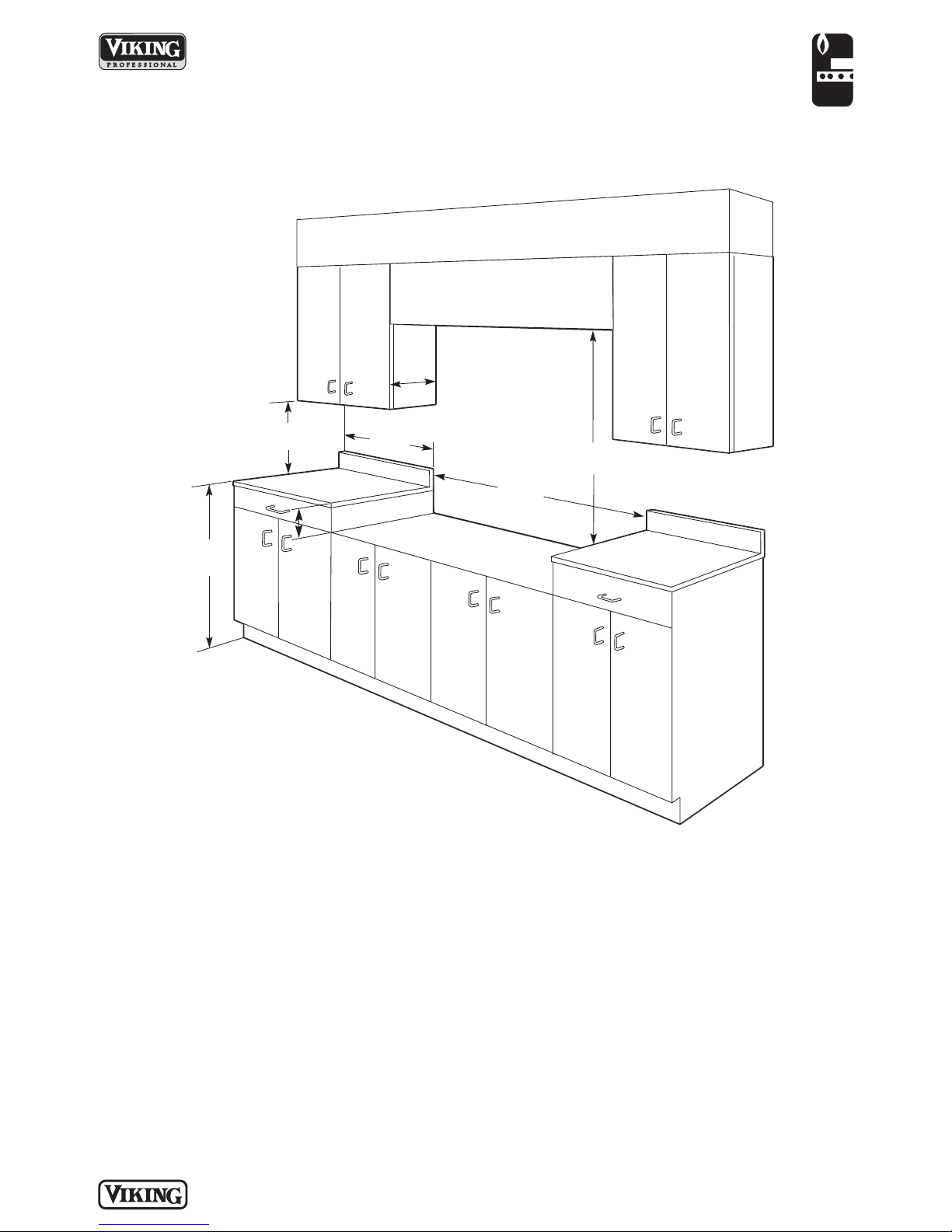

Minimum clearances from adjacent combustible construction

• Cooking surface and below, i.e., 36” (91.4 cm) and below o Sides—0” o Rear

• 0” with backguard or high-shelf

• 0” with island trim and non-

combustible rear wall

• 6” (15.2 cm) with island trim and

combustible rear wall.

o Top grate support—36”(91.4 cm)

Important: The top grate support must be 3/8” (.95 cm) above the

adjacent base cabinet countertop.

P L A N N I N G A N D D E S I G N G U I D E

V I K I N G R A N G E . C O M • 1 - 8 8 8 - V I K I N G 1

• Above cooking surface, i.e., above 36” (91.4 cm) o Sides—6” (15.2 cm) o Within 6” (15.2 cm) side clearance,

wall cabinets no deeper than 13” (33.0 cm) must be minimum 18” (45.7 cm) above cooking surface.

• Wall cabinets directly above product

must be minimum 42” (106.7 cm) for open top burners above cooking surface

* This minimum height requirement does

not apply if a rangehood is installed over the cooking surface.

Do not install two or more units side-by-side.

R E V I S E D 3 / 2 9 / 1 0

2

4

”

(

6

0

.

9

c

m)

m

i

n

.

2

5

-

3

/

4

”

(

6

5

.

4 c

m)

ma

x

.

3

/

4

”

(1

.

9

c

m

)

m

i

n

.

2

-

1

/

4

”

(

5

.

7

c

m

)

3

”

(7

.

6

c

m

)

*

7

-

1

/

2

”

*

(

1

9

.1

c

m

)

COOKING

Professional Built-In Gas 42”W.

Open Burner Rangetop

UTILITY

REQU IR EMENT S

GAS

o Shipped natural

gas standard; convert to LP/propane with standard convertible regulator

o Accepts standard

residential 1/2” (1.3 cm) ID gas service line

o Gas manifold

pressure

o Natural gas 5.0”

W.C.P.

o LP/Propane

10.0" W.C.P.

ELECTRICAL

• Four-foot (121.9 cm) cord included with rangetop

• Three-wire with ground/threeprong plug

• 120 V/60 Hz

• Maximum amp usage— o 6B—0.6 o 4G—3.9 o 4Q—0.6

Installation Requirements

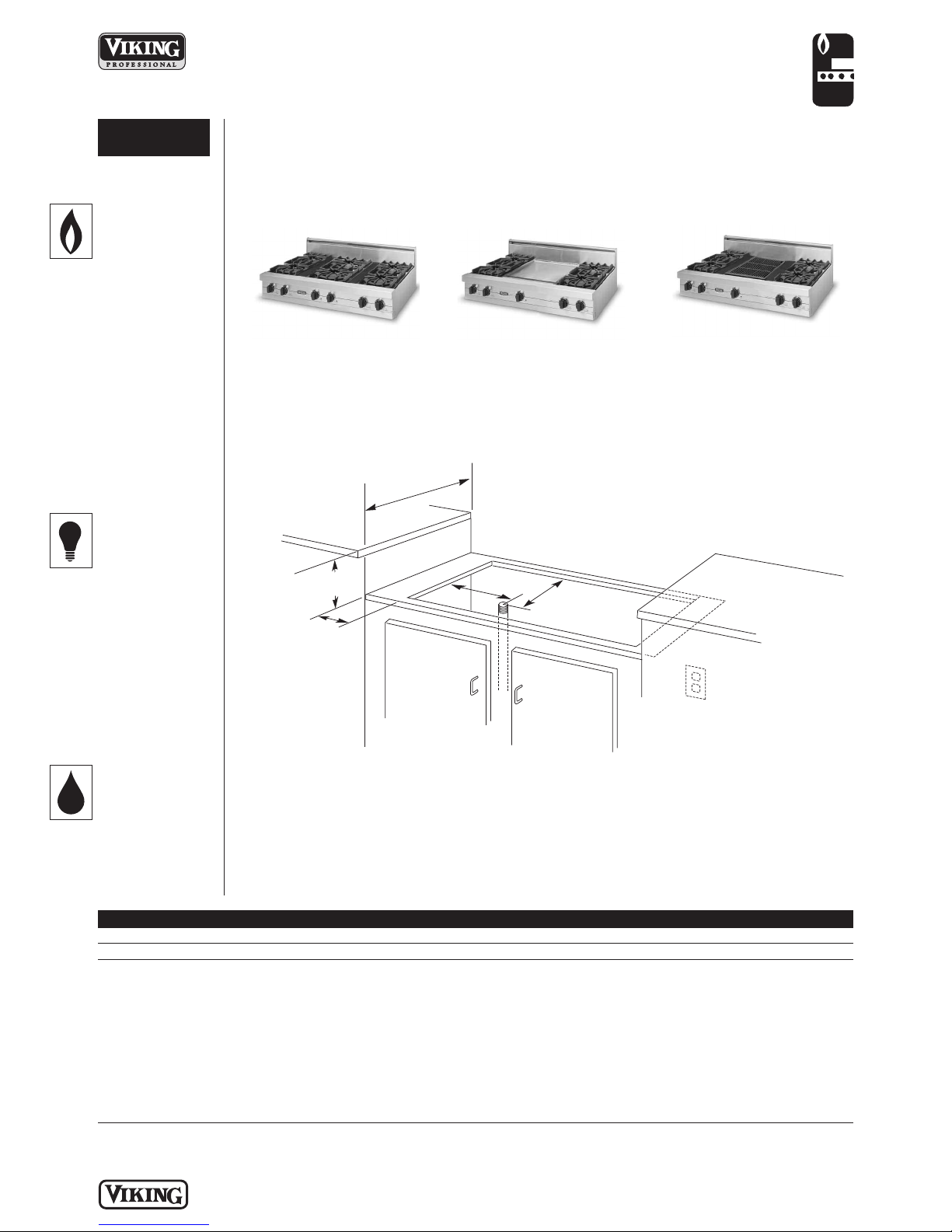

ACCESS REQUIREMENTS

VGRT421-6B

Six-Burner

Rangetop

VGRT421-4G Four-Burner/

Griddle Rangetop

VGRT421-4Q

Four-Burner/

Grill Rangetop

PLUMBING

Not applicable

*120 VAC/60 Hz within 48”(121.9 cm) of right rear of rangetop

VGRT421-6B VGRT421-4G VGRT421-4Q

Cutout width 42-1/8” (107.0 cm) Cutout height 7-1/2” (19.1 cm)** Cutout depth 24” (61.0 cm) min. 25-3/4” (65.4 cm) max.

Surface burner rating

Four grated burners 15,000 BTU Nat. (4.4 kW)/ 15,000 BTU Nat. (4.4 kW)/

Six grated burners 15,000 BTU Nat. (4.4 kW)/

One griddle 15,000 BTU Nat. (4.4 kW)/

One grill 18,000 BTU Nat. (5.3 kW)/

**Top of grate support should be 3/8” (1.0 cm) above countertop.

13,500 BTU LP (4.0 kW)

P L A N N I N G A N D D E S I G N G U I D E

V I K I N G R A N G E . C O M • 1 - 8 8 8 - V I K I N G 1

13,500 BTU LP (4.0 kW) 13,500 BTU LP (4.0 kW)

13,500 BTU LP (4.0 kW)

16,000 BTU LP (4.7 kW)

R E V I S E D 3 / 2 9 / 1 0

COOKING

Professional Built-In Gas 42”W.

Open Burner Rangetop

Installation Notes & Accessories



A backguard, high-shelf, or island trim must be used for all installations.

6”H. Backguard

• Stainless Steel (SS)

Coordinates with all finishes

•

Model Description Approx. ship wt. lbs. (kg)

T42BG6 42”W. backguard 21 (9.5)

High-shelf

• Stainless Steel (SS)

• Coordinates with all finishes

• Shelf comes attached to a 24”H. backguard

Model Description Approx. ship wt. lbs. (kg)

T42HS24 42”W. high-shelf 55 (24.8)

Island Trim

• Stainless Steel (SS)

• Coordinates with all finishes

• For island/peninsula installation

• Can replace backguard if wall is non-combustible

Model Description Approx. ship wt. lbs. (kg)

T42TII 42”W. island trim 13 (6.8)

Countertop Side Trim

• Stainless Steel (SS)

• Coordinates with all finishes

• Installs on side of unit; overlaps countertop

• One pair of trim

Model Description Approx. ship wt. lbs. (kg)

T24CST Side trim 2 (0.9)

LP/Propane Conversion Kit

• Allows for field conversion of range from natural gas to LP

Model Description Approx. ship wt. lbs. (kg)

LPKPDR Natural to LP/propane conversion kit 2 (0.9)

Compliance Information

WARRANTY INFORMATION*

• One-year full warranty—complete product

• Five-year limited warranty—surface burners, griddle burners, and grill burners

• Ninety-day limited warranty—cosmetic parts such as glass, painted, and decorative items

* For complete warranty see Use & Care Guide. Warranty valid on Viking products shipped within the United States and Canada.

P L A N N I N G A N D D E S I G N G U I D E

V I K I N G R A N G E . C O M • 1 - 8 8 8 - V I K I N G 1

R E V I S E D 3 / 2 9 / 1 0
