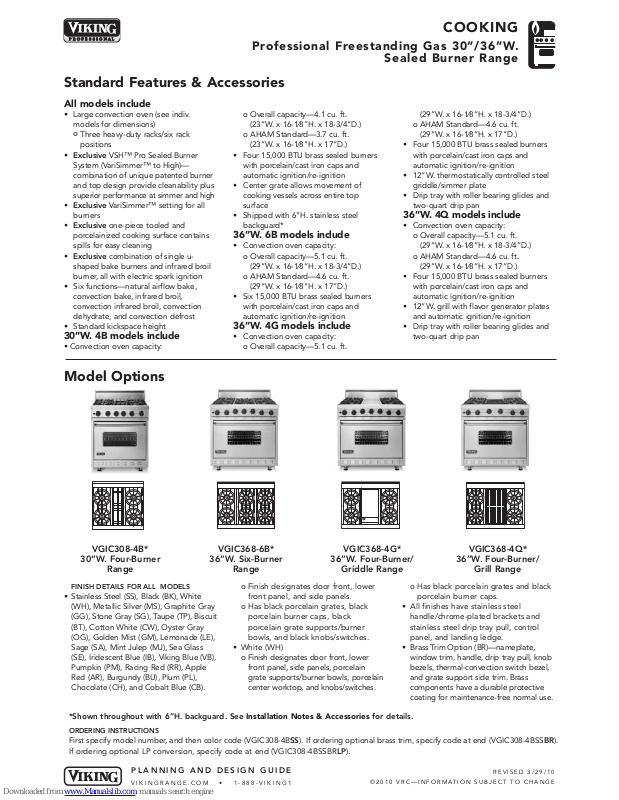

Viking VGIC486-4GQ*, VGIC486-4Q*, VGIC486-6G, VGIC486-6Q, VGIC308-4B Series Specification Sheet

Professional Freestanding Gas 30”/36”W.

Standard Features & Accessories

All models include

• Large convection oven (see indiv.
models for dimensions)

o

Three heavy-duty racks/six rack
positions

• Exclusive VSH™ Pro Sealed Burner
System (VariSimmer™ to High)—
combination of unique patented burner
and top design provide cleanability plus
superior performance at simmer and high

• Exclusive VariSimmer™ setting for all
burners

• Exclusive one-piece tooled and
porcelainized cooking surface contains
spills for easy cleaning

• Exclusive combination of single u-
shaped bake burners and infrared broil
burner, all with electric spark ignition

• Six functions—natural airflow bake,
convection bake, infrared broil,
convection infrared broil, convection
dehydrate, and convection defrost

• Standard kickspace height

30”W. 4B models include

• Convection oven capacity:

o Overall capacity—4.1 cu. ft.

(23”W. x 16-1⁄8”H. x 18-3/4”D.)

o AHAM Standard—3.7 cu. ft.

(23”W. x 16-1⁄8”H. x 17”D.)

• Four 15,000 BTU brass sealed burners
with porcelain/cast iron caps and
automatic ignition/re-ignition

• Center grate allows movement of
cooking vessels across entire top
surface

• Shipped with 6”H. stainless steel
backguard*

36”W. 6B models include

• Convection oven capacity:
o Overall capacity—5.1 cu. ft.

(29”W. x 16-1⁄8”H. x 18-3/4”D.)

o AHAM Standard—4.6 cu. ft.

(29”W. x 16-1⁄8”H. x 17”D.)

• Six 15,000 BTU brass sealed burners
with porcelain/cast iron caps and
automatic ignition/re-ignition

36”W. 4G models include

• Convection oven capacity:
o Overall capacity—5.1 cu. ft.

COOKING

Sealed Burner Range

(29”W. x 16-1⁄8”H. x 18-3/4”D.)

o AHAM Standard—4.6 cu. ft.

(29”W. x 16-1⁄8”H. x 17”D.)

• Four 15,000 BTU brass sealed burners
with porcelain/cast iron caps and
automatic ignition/re-ignition

• 12”W. thermostatically controlled steel
griddle/simmer plate

• Drip tray with roller bearing glides and
two-quart drip pan

36”W. 4Q models include

• Convection oven capacity:
o Overall capacity—5.1 cu. ft.

(29”W. x 16-1⁄8”H. x 18-3/4”D.)

o AHAM Standard—4.6 cu. ft.

(29”W. x 16-1⁄8”H. x 17”D.)

• Four 15,000 BTU brass sealed burners
with porcelain/cast iron caps and
automatic ignition/re-ignition

• 12”W. grill with flavor generator plates
and automatic ignition/re-ignition

• Drip tray with roller bearing glides and
two-quart drip pan

Model Options

VGIC308-4B*

30”W. Four-Burner

Range

FINISH DETAILS FOR ALL MODELS

• Stainless Steel (SS), Black (BK), White
(WH), Metallic Silver (MS), Graphite Gray
(GG), Stone Gray (SG), Taupe (TP), Biscuit
(BT), Cotton White (CW), Oyster Gray
(OG), Golden Mist (GM), Lemonade (LE),
Sage (SA), Mint Julep (MJ), Sea Glass
(SE), Iridescent Blue (IB), Viking Blue (VB),
Pumpkin (PM), Racing Red (RR), Apple
Red (AR), Burgundy (BU), Plum (PL),
Chocolate (CH), and Cobalt Blue (CB).

VGIC368-6B*

36”W. Six-Burner

Range

o Finish designates door front, lower

front panel, and side panels.

o Has black porcelain grates, black

porcelain burner caps, black
porcelain grate supports/burner
bowls, and black knobs/switches.

• White (WH)
o Finish designates door front, lower

front panel, side panels, porcelain
grate supports/burner bowls, porcelain
center worktop, and knobs/switches.

VGIC368-4G*

36”W. Four-Burner/

Griddle Range

• All finishes have stainless steel

• Brass Trim Option (BR)—nameplate,

VGIC368-4Q*

36”W. Four-Burner/

Grill Range

o Has black porcelain grates and black

porcelain burner caps.

handle/chrome-plated brackets and
stainless steel drip tray pull, control
panel, and landing ledge.

window trim, handle, drip tray pull, knob
bezels, thermal-convection switch bezel,
and grate support side trim. Brass
components have a durable protective
coating for maintenance-free normal use.

*Shown throughout with 6”H. backguard. See Installation Notes & Accessories for details.

ORDERING INSTRUCTIONS

First specify model number, and then color code (VGIC308-4BSS). If ordering optional brass trim, specify code at end (VGIC308-4BSSBR).
If ordering optional LP conversion, specify code at end (VGIC308-4BSSBRLP).

P L A N N I N G A N D D E S I G N G U I D E

V I K I N G R A N G E . C OM • 1 - 8 8 8 - V I K I N G 1

R E V I S E D 3 / 2 9 / 1 0

© 2 0 1 0 V R C — I N F O R M A T I O N S U B J E C T T O C H A N G E

24-15/16” (63.3 cm)

42-15/16” (109.0 cm)

18” (45.7 cm)

6

” (15.2 cm)

26-3/16” (66.5 cm)

1-5/8” (4.1 cm)

6” (15.2 cm)

2

9-

7/

8

”

(

75

.

9

cm

)

35-

7/

8”

(

9

1

.

1 c

m

)

m

in

.

t

o

37-

5/

8”

(

95

.

6

c

m

)

m

ax

.

6

”

(

15

.

2

cm

)

27

-

7/8

”

(

70

.

8

c

m

)

2

8

-

3

/

8

”

(

7

2

.

0

c

m

)

2

4

-

1

5/

16

”

(

6

3

.

3

cm

)

35

-

7/

8”

(91

.

1

c

m

)

35

-

7/

8”

(

9

1

.

1 c

m

)

m

i

n

.

t

o

37

-

5/

8”

(

9

5

.6

c

m)

ma

x

.

6”

(

15

.

2

c

m

)

2

7

-

7

/

8

”

(

7

0

.

8 c

m)

2

8-

3

/8

”

(

7

2

.

0

c

m

)

2

4

-

1

5

/

1

6

”

(

6

3

.

3 c

m

)

COOKING

Professional Freestanding Gas 30”/36”W.

Sealed Burner Range

Please see



Installation Notes &

Accessories

for important

installation

information

including

backguard, high-

shelf, island trim,

and curb base front.

ALL MODELS

Star-K Kosher
Certification for
use on the Jewish
Sabbath or Jewish
holidays

Dimensions & Specifications

PRODUCT DIMENSIONS & DOOR SWING

VGIC308-4B

30”W. Four-Burner

Range

VGIC368-6B

36”W. Six-Burner

Range

VGIC368-4G

36”W. Four-Burner/

Griddle Range

VGIC368-4Q

36”W. Four-Burner/

Grill Range

30”W. Models 36”W. Models

VGIC308-4B VGIC368-6B VGIC368-4G VGIC368-4Q

Overall width 29-7/8” (75.9 cm) 35-7/8” (91.1 cm) 35-7/8” (91.1 cm) 35-7/8” (91.1 cm)
Overall height

Base height

To top of grate support 35-7/8” (91.1 cm) min. to 37-5/8” (95.6 cm) max.

Legs adjust (with “spindles” fully extended) 1-3/4” (4.5 cm)

Additions to base height
To top of grate Add 1-1/8” (2.9 cm)
To top of island trim Add 1-1/4” (3.2 cm)

To top of 6” backguard Add 6” (15.2 cm)
To top of 10” backguard Add 10” (25.4 cm)
To top of high shelf Add 23-1/2” (59.7 cm)

Overall depth (from rear)

To end of side panel 24-15/16” (63.3 cm)
To end of control panels 27-7/8” (70.8 cm)
To end of knobs 28-3/8” (72.0 cm)

Oven

Interior width 23” (58.4 cm) 29” (73.7 cm) 29” (73.7 cm) 29” (73.7 cm)
Interior height 16-1/8” (41.0 cm)
Interior depth 17” (43.2 cm)
Overall interior size 3.7 cu. ft. 4.6 cu. ft. 4.6 cu. ft. 4.6 cu. ft.

P L A N N I N G A N D D E S I G N G U I D E

V I K I N G R A N G E . C O M • 1 - 8 8 8 - V I K I N G 1

30” & 36”W. Models

R E V I S E D 3 / 2 9 / 1 0

© 2 0 1 0 V R C — I N F O R M A T I O N S U B J E C T T O C H A N G E

4

2”

min

.

(

10

6

.

7

cm)

1

3

”

ma

x

.

(

33

.

0

c

m

)

6

”

mi

n

.

(

15

.2

c

m)

A

1

8”

mi

n.

(

45

.

7

c

m)

3

/

8

”

(

0.9

5

c

m)

3

6”

(91

.

4 c

m)

A
30”W. 29-7/8“ (75.9 cm)
36”W. 35-7/8“ (91.1 cm)

Dimensions & Specifications

CLEARANCE DIMENSIONS

COOKING

Professional Freestanding Gas 30”/36”W.

Sealed Burner Range

Minimum clearances from adjacent
combustible construction

• Cooking surface and below, i.e.,
36” (91.4 cm) and below

o Sides—0”
o Rear—0” with backguard or high

shelf; 0” with island trim and
non-combustible rear wall; 6”
(15.2 cm) with island trim and
combustible rear wall

o Top grate support—36” (91.4 cm)

• Above cooking surface, i.e., above

36” (91.4 cm)
o Sides—6” (15.2 cm)
o Within 6” (15.2 cm) side clearance,

wall cabinets no deeper than 13”
(33.0 cm) must be minimum 18”
(45.7 cm) above cooking surface

o Wall cabinets directly above product

P L A N N I N G A N D D E S I G N G U I D E

V I K I N G R A N G E . C O M • 1 - 8 8 8 - V I K I N G 1

must be minimum 42” (106.7 cm) for
sealed top burners above cooking
surface

• Use range only with factory supplied
legs

1.This range may be installed directly
adjacent to existing 36” (91.4 cm) high
base cabinets. Important: The top
grate support must be 3/8” (0.95 cm)
above the adjacent base cabinet
countertop. This may be accomplished
by raising the unit using the
adjustment spindles on the legs.

2.The range cannot be installed directly
adjacent to sidewalls, tall cabinets, tall
appliances, or other side vertical
surfaces above 36” (91.4 cm) high.
There must be a minimum of

6” (15.2 cm) side clearance from the
range to such combustible surfaces
above the 36” (91.4 cm) counter
height.

3.Within the 6” (15.2 cm) side clearance
to combustible vertical surfaces above
36” (91.4 cm), the maximum wall
cabinet depth must be 13” (33.0 cm)
and wall cabinets within this 6” (15.2
cm) side clearance must be 18” (45.7
cm) above the 36” (91.4 cm) high
countertop.

4.Wall cabinets above the range must be
a minimum of 42” (106.7 cm) above
the range cooking surface for the full
width of the range. This minimum
height requirement does not apply if a
rangehood is installed over the
cooking surface.

R E V I S E D 3 / 2 9 / 1 0

© 2 0 1 0 V R C — I N F O R M A T I O N S U B J E C T T O C H A N G E

2”

(5.1 cm)

Dia.

2-3/4”

(7.0 cm)

4-3/8”

(11.1 cm)

2-1/2”

(6.4 cm)

1-3/4”

(4.4 cm)

31-1/16”

(78.9 cm)

28-5/16”

(71.9 cm)

23-7/16”

(59.5 cm)

Gas or Electrical
connection in
this area

Gas connection
in this area

COOKING

Professional Freestanding Gas 30”/36”W.

Sealed Burner Range

UTILITY

REQU IR EMENT S

GAS

• Shipped natural
gas standard;
field convert to
LP/propane with
optional
accessory kit or
order as LP by
adding LP after
color code

• Accepts standard
residential 1/2” ID
gas service line

• Gas manifold
pressure

o

Natural gas 5.0”
W.C.P.

o

LP/Propane

10.0” W.C.P.

ELECTRICAL

• Four-foot (121.9
cm) cord included
with range

• Three-wire with
ground/three­prong plug

• 120 V/60 Hz

• Maximum amp
usage—

o

30”W. 4B—.83

o

6B—.83

o

4G—.96

o

4Q—.83

Installation Requirements

ACCESS REQUIREMENTS

VGIC308-4B

30”W. Four-Burner

Range

VGIC368-6B

36”W. Six-Burner

Range

VGIC368-4G

36”W. Four-Burner/

Griddle Range

VGIC368-4Q

36”W. Four-Burner/

Grill Range

PLUMBING

Not applicable

VGIC308-4B VGIC368-6B VGIC368-4G VGIC368-4Q

Surface burner rating

Four grated burners (each) 15,000 BTU Nat. (4.4 kW)/ 15,000 BTU Nat. (4.4 kW)/ 15,000 BTU Nat. (4.4 kW)/

Six grated burners (each) 15,000 BTU Nat. (4.4 kW)/

One griddle 15,000 BTU Nat. (4.4 kW)/

One grill 18,000 BTU Nat. (5.3 kW)/

Broil burner rating 18,000 BTU Nat. (5.3 kW)/16,000 BTU LP (4.7 kW)
Bake burner rating 30,000 BTU Nat./LP (8.8 kW)

P L A N N I N G A N D D E S I G N G U I D E

V I K I N G R A N G E . C O M • 1 - 8 8 8 - V I K I N G 1

13,500 BTU LP (4.0 kW) 13,500 BTU LP (4.0 kW) 13,500 BTU LP (4.0 kW)

Note: Ground plug and electrical wire toward the direction of the electrical outlet.

13,500 BTU LP (4.0 kW)

13,500 BTU LP (4.0 kW)

16,000 BTU LP (4.7 kW)

© 2 0 1 0 V R C — I N F O R M A T I O N S U B J E C T T O C H A N G E

R E V I S E D 3 / 2 9 / 1 0

COOKING

Professional Freestanding Gas 30”/36”W.

Sealed Burner Range

Installation Notes & Accessories



A backguard, high-shelf, or island trim must be used for all installations.

6”H. Backguard

• Stainless Steel (SS)

Coordinates with all finishes

•

• Included (and shipped) automatically with 30”W. ranges, but not with 36”W. ranges.

Model Description Approx. ship wt. lbs. (kg)

C30BG6 30”W. backguard 14 (6.3)
C36BG6 36”W. backguard 17 (7.7)

10”H. Backguard

• Stainless Steel (SS)

• Coordinates with all finishes

Model Description Approx. ship wt. lbs. (kg)

C36BG10 36”W. backguard 20 (9.0)

High-shelf

• Stainless Steel (SS)

• Coordinates with all finishes

• Shelf comes attached to a 24”H. backguard

Model Description Approx. ship wt. lbs. (kg)

C30HS24 30”W. high-shelf 45 (20.3)
C36HS24 36”W. high-shelf 50 (22.5)

Island Trim

• Stainless Steel (SS)

• Coordinates with all finishes

• For island/peninsula installation

• Can replace backguard if wall is non-combustible

Model Description Approx. ship wt. lbs. (kg)

C30TII 30”W. island trim 10 (4.5)
C36TII 36”W. island trim 11 (5.0)

Countertop Side Trim

• Stainless Steel (SS)

• Coordinates with all finishes

• One pair of trim

• Installs on side of unit; overlaps countertop

Model Description Approx. ship wt. lbs. (kg)

SE24CST 24”D. side trim 2 (0.9)

P L A N N I N G A N D D E S I G N G U I D E

V I K I N G R A N G E . C O M • 1 - 8 8 8 - V I K I N G 1

R E V I S E D 3 / 2 9 / 1 0

© 2 0 1 0 V R C — I N F O R M A T I O N S U B J E C T T O C H A N G E

COOKING

Professional Freestanding Gas 30”/36”W.

Sealed Burner Range

Installation Notes & Accessories



Curb Base Front Custom Curb Base Front

• Stainless Steel (SS) • Remove stainless steel front and recycle

• Coordinates with all finishes

Front only

•

• Conceals range legs • Completely assembled

•

Completely assembled • Easily clips onto range legs after range is installed

•

Easily clips onto range legs after range is installed

Model Description Approx. ship wt. lbs. (kg)

RS30CBF4 30”W. curb base front 9 (4.1)
RS36CBF4 36”W. curb base front 10 (4.5)

LP/Propane Conversion Kit

• Allows for field conversion of range from natural gas to LP

Model Description Approx. ship wt. lbs. (kg)

PKPDR Natural to LP/propane conversion kit 2 (0.9)

L

•

Conceals range legs

•

ttach locally supplied trim

A

•

Provides drop-in range look

Compliance Information

WARRANTY INFORMATION*

• One-year full warranty—complete product

• Ten-year limited warranty—porcelain oven and porcelain inner door panel

• Five-year limited warranty—surface burners, griddle burners, grill burners, and oven burner

• Ninety-day limited warranty—cosmetic parts such as glass, painted, and decorative items

* For complete warranty see Use & Care Guide. Warranty valid on Viking products shipped within the United States and Canada.
