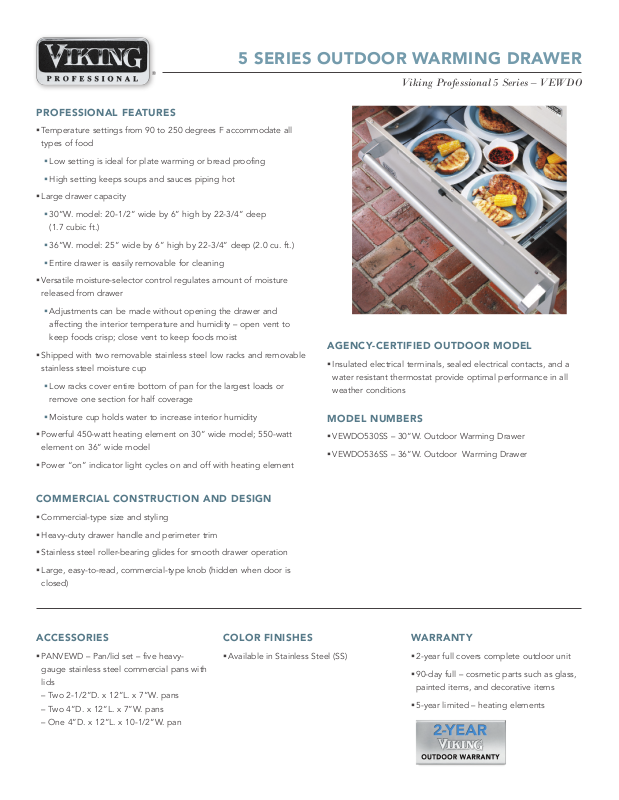

5 SERIES OUTDOOR WARMING DRAWER
®
Viking Professional 5 Series – VEWDO
PROFESSIONAL FEATURES
§§Temperature settings from 90 to 250 degrees F accommodate all types of food
§§Low setting is ideal for plate warming or bread proofing
§§High setting keeps soups and sauces piping hot
§§Large drawer capacity
§§30”W. model: 20-1/2” wide by 6” high by 22-3/4” deep (1.7 cubic ft.)
§§36”W. model: 25” wide by 6” high by 22-3/4” deep (2.0 cu. ft.)
§§Entire drawer is easily removable for cleaning
§§Versatile moisture-selector control regulates amount of moisture released from drawer
§§Adjustments can be made without opening the drawer and affecting the interior temperature and humidity – open vent to keep foods crisp; close vent to keep foods moist
§§Shipped with two removable stainless steel low racks and removable stainless steel moisture cup
§§Low racks cover entire bottom of pan for the largest loads or remove one section for half coverage
AGENCY-CERTIFIED OUTDOOR MODEL
§§Insulated electrical terminals, sealed electrical contacts, and a water resistant thermostat provide optimal performance in all weather conditions
§§Moisture cup holds water to increase interior humidity
§§Powerful 450-watt heating element on 30” wide model; 550-watt element on 36” wide model
§§Power “on” indicator light cycles on and off with heating element
MODEL NUMBERS
§§VEWDO530SS – 30”W. Outdoor Warming Drawer
§§VEWDO536SS – 36”W. Outdoor Warming Drawer
COMMERCIAL CONSTRUCTION AND DESIGN
§§Commercial-type size and styling
§§Heavy-duty drawer handle and perimeter trim
§§Stainless steel roller-bearing glides for smooth drawer operation
§§Large, easy-to-read, commercial-type knob (hidden when door is closed)
ACCESSORIES |
COLOR FINISHES |
WARRANTY |
§§PANVEWD – Pan/lid set – five heavy- |
§§Available in Stainless Steel (SS) |
§§2-year full covers complete outdoor unit |
gauge stainless steel commercial pans with |
|
§§90-day full – cosmetic parts such as glass, |
lids |
|
|
|
painted items, and decorative items |
|
– Two 2-1/2”D. x 12”L. x 7”W. pans |
|
|
|
§§5-year limited – heating elements |
|
– Two 4”D. x 12”L. x 7”W. pans |
|
|
|
|
|
– One 4”D. x 12”L. x 10-1/2”W. pan |
|
|
5 SERIES OUTDOOR WARMING DRAWER
®
|
|
|
Viking Professional 5 Series – VEWDO |
|
|
|
|
|
E L E C T R I C WA R M I N G D R AW E R S |
||
DESCRIPTION |
VEWDO530 |
|
VEWDO536 |
Overall Width |
29-1/2” (74.9 cm) |
|
35-1/4” (89.5 cm) |
|
|
|
|
Overall Height |
|
10-1/4” (26.0 cm) |
|
Overall Depth from Rear |
|
24-5/8” (62.5 cm) to front edge of trim |
|
|
|
To end of handle – 26-3/4” (67.9 cm) |
|
|
With drawer fully extended – 50-3/8” (128.0 cm) |
||
|
|
|
|
Cutout Width |
28-1/4” (71.8 cm) |
|
34” (86.4 cm) |
Cutout Height |
|
9 -1/4” (23.5 cm) |
|
|
|
|
|
Cutout Depth |
|
23-1/2" (59.7 cm) minimum |
|
|
|
||
Electrical Requirements |
120VAC/60Hz – hard wire direct with separate 15-amp minimum 2-wire with ground circuit |
||
Maximum Amp Usage |
3.8 amps/450 watts |
|
4.6 amps/550 watts |
|
|
|
|
Interior |
Width – 20-1/2” (52.1 cm) |
|
Width – 25” (63.5 cm) |
Dimensions |
Height – 6” (15.2 cm) |
|
Height – 6” (15.2 cm) |
|
Depth – 22-3/4” (57.8 cm) |
|
Depth – 22 3/4” (57.8 cm) |
|
Overall Size – 1.7 cu. ft. |
|
|
|
|
|
|
Approximate Shipping Weight |
90 lb. (40.5 kg) |
|
110 lb. (49.5 kg) |
|
|
|
|
Please do not prepare installation from brochure data only. See installation instructions for important clearance/installation information.
10- |
|
(26.1/4 |
|
0 |
” |
|
cm) |
8- |
|
31/328 ” |
|
(22. |
cm) |
|
A |
|
-1/4”) |
||
23 |
.1 |
c |
m |
|
|
|
|||
|
(59 |
|
|
|
|
|
|
|
|
|
27 |
-3/4”) |
||
|
.5 |
cm |
||
|
(70 |
|
|
|
|
|
|
|
C
|
|
|
|
120V Electrical Opening |
|
|
|
|
|
|
|
|
|
(When facing cabinet, opening is |
2” |
|
|
||
(5.1 cm) |
|
|
located on right side.) |
|
|
|
|
|
|
2” (5.1 cm)
|
VEWDO530 |
VEWDO536 |
A |
29-1/2” (74.9 cm) |
35-1/4” (89.5 cm) |
8-31/32”
(22.8 cm)
|
2” |
|
|
1min. |
|
|
(5. |
cm) |
|
|
|
A |
C |
|
|
B |
|
VEWDO530 |
VEWDO536 |
A |
28-1/4” (71.8 cm) |
34” (86.4 cm) |
B |
23-1/2” (59.7 cm) |
23-1/2” (59.7 cm) |
C |
9-1/4” (23.5 cm) |
9-1/4” (23.5 cm) |
VIKING RANGE, LLC 111 FRONT STREET GREENWOOD, MISSISSIPPI 38930 |
USA |
For detailed product information, model numbers, or to request a quote call 1-888-845-4641 or visit vikingrange.com |
|
© 2014 Viking Range, LLC All rights reserved. Specifications subject to change without notice. |
|
