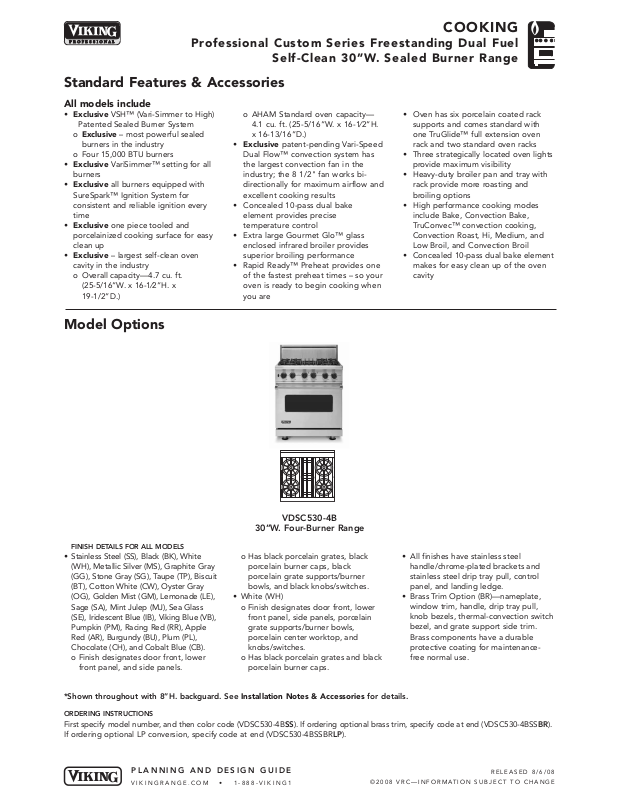

Viking VDSC530-4B User Manual

Professional Custom Series Freestanding Dual Fuel

Self-Clean 30”W. Sealed Burner Range

Standard Features & Accessories

All models include

• Exclusive VSH™ (Vari-Simmer to High)
Patented Sealed Burner System

o Exclusive – most powerful sealed

burners in the industry

o Four 15,000 BTU burners

• Exclusive VariSimmer™ setting for all

burners

• Exclusive all burners equipped with

SureSpark™ Ignition System for
consistent and reliable ignition every
time

• Exclusive one piece tooled and

porcelainized cooking surface for easy
clean up

• Exclusive – largest self-clean oven

cavity in the industry
o Overall capacity—4.7 cu. ft.

(25-5/16”W. x 16-1⁄2”H. x
19-1/2”D.)

o AHAM Standard oven capacity—

4.1 cu. ft. (25-5/16”W. x 16-1⁄2”H.
x 16-13/16”D.)

• Exclusive patent-pending Vari-Speed
Dual Flow™ convection system has
the largest convection fan in the
industry; the 8 1/2" fan works bi­directionally for maximum airflow and
excellent cooking results

• Concealed 10-pass dual bake
element provides precise
temperature control

• Extra large Gourmet Glo™ glass
enclosed infrared broiler provides
superior broiling performance

• Rapid Ready™ Preheat provides one
of the fastest preheat times – so your
oven is ready to begin cooking when
you are

COOKING

• Oven has six porcelain coated rack
supports and comes standard with
one TruGlide™ full extension oven
rack and two standard oven racks

• Three strategically located oven lights
provide maximum visibility

• Heavy-duty broiler pan and tray with
rack provide more roasting and
broiling options

• High performance cooking modes
include Bake, Convection Bake,
TruConvec™ convection cooking,
Convection Roast, Hi, Medium, and
Low Broil, and Convection Broil

• Concealed 10-pass dual bake element
makes for easy clean up of the oven
cavity

Model Options

FINISH DETAILS FOR ALL MODELS

• Stainless Steel (SS), Black (BK), White
(WH), Metallic Silver (MS), Graphite Gray
(GG), Stone Gray (SG), Taupe (TP), Biscuit
(BT), Cotton White (CW), Oyster Gray
(OG), Golden Mist (GM), Lemonade (LE),
Sage (SA), Mint Julep (MJ), Sea Glass
(SE), Iridescent Blue (IB), Viking Blue (VB),
Pumpkin (PM), Racing Red (RR), Apple
Red (AR), Burgundy (BU), Plum (PL),
Chocolate (CH), and Cobalt Blue (CB).
o Finish designates door front, lower

front panel, and side panels.

VDSC530-4B

30”W. Four-Burner Range

o Has black porcelain grates, black

porcelain burner caps, black
porcelain grate supports/burner
bowls, and black knobs/switches.

• White (WH)
o Finish designates door front, lower

front panel, side panels, porcelain
grate supports/burner bowls,
porcelain center worktop, and
knobs/switches.

o Has black porcelain grates and black

porcelain burner caps.

• All finishes have stainless steel
handle/chrome-plated brackets and
stainless steel drip tray pull, control
panel, and landing ledge.

• Brass Trim Option (BR)—nameplate,
window trim, handle, drip tray pull,
knob bezels, thermal-convection switch
bezel, and grate support side trim.
Brass components have a durable
protective coating for maintenance­free normal use.

*Shown throughout with 8”H. backguard. See Installation Notes & Accessories for details.

ORDERING INSTRUCTIONS

First specify model number, and then color code (VDSC530-4BSS). If ordering optional brass trim, specify code at end (VDSC530-4BSSBR).
If ordering optional LP conversion, specify code at end (

P L A N N I N G A N D D E S I G N G U I D E

V I K I N G R A N G E . C OM • 1 - 8 8 8 - V I K I N G 1

VDSC530-4B

SSBRLP).

R E L E A S E D 8 / 6 / 0 8

© 2 0 0 8 V R C — I N F O R M A T I O N S U B J E C T T O C H A N G E

2

9

-

7

/

8

”

(

7

5

.

9

c

m

)

3

5

-

7

/

8

”

(

9

1

.

1

c

m

)

m

i

n

.

t

o

3

7

”

(

9

4

.

0

c

m

)

m

a

x

.

8

”

(

2

0

.

3

c

m

)

2

8

-

1

/

1

6

”

(

7

1

.

3

c

m

)

2

8

-

1

1

/

1

6

”

(

7

2

.

9

c

m

)

2

5

-

3

/

4

”

(

6

5

.

4

c

m

)

COOKING

25-3/4” (65.4 cm)

45-1/8” (114.6 cm)

19-3/8”

(49.2 cm)

8-1/8”

(20.6 cm)

26” (66 cm)

1-5/8”

(4.1 cm)

8”

(20.3 cm)

24-5/16”

(61.8 cm)

Professional Custom Series Freestanding Dual Fuel

Self-Clean 30”W. Sealed Burner Range

Please see



Installation Notes &

Accessories

for important

installation

information

including

backguard, high-

shelf, island trim,

and curb base front.

ALL MODELS

Star-K Kosher
Certification for
use on the Jewish
Sabbath or Jewish
holidays

Dimensions & Specifications

PRODUCT DIMENSIONS & DOOR SWING

VDSC53 0-4B

30”W. Four-Burner

Range

Overall width 29-7/8” (75.9 cm)
Overall height

Overall depth (from rear)

Oven

Base height

To top of grate support 35-7/8” (91.1 cm) min. to 37” (94.0 cm) max.

Legs adjust (with “spindles” fully extended) 1-1/8” (2.9 cm)

Additions to base height
To top of island trim Add 1-1/4” (3.2 cm)
To top of 8” backguard Add 8” (20.3 cm)
To top of high shelf Add 23-1/2” (59.7 cm)

To end of side panel 24-5/16” (61.8 cm)
To front of door 25-3/4” (65.4 cm)
To end of landing ledge 28-1/16” (71.3 cm)
To end of door handle 28-11/16” (72.9 cm)

Interior width 25-5/16” (64.6 cm)
Interior height 16-1/2” (41.9 cm)
Interior depth 16-13/16” (42.7 cm)
Overall interior size 4.1 cu. ft.

P L A N N I N G A N D D E S I G N G U I D E

V I K I N G R A N G E . C O M • 1 - 8 8 8 - V I K I N G 1

VDSC530-4B

R E L E A S E D 8 / 6 / 0 8

© 2 0 0 8 V R C — I N F O R M A T I O N S U B J E C T T O C H A N G E

Professional Custom Series Freestanding Dual Fuel

4

2

”

m

in

.

(

1

0

6

.

7

c

m)

1

3

”

m

a

x

.

(

3

3

.0

c

m

)

6

”

m

in

.

(

1

5

.

2

c

m)

1

8

”

m

in

.

(

4

5

.

7

c

m

)

3

/

8

”

(

0

.

9

5

c

m

)

3

6

”

(

9

1

.

4

c

m

)

2

9

-

7

/

8

”

(7

5

.9

c

m)

Dimensions & Specifications

CLEARANCE DIMENSIONS

COOKING

Self-Clean 30”W. Sealed Burner Range

Minimum clearances from adjacent
combustible construction

• Below cooking surface (36” [91.4 cm]
and below)
o Sides—0”
o Top grate support - 36” (91.4 cm)

• Above cooking surface (above
36” [91.4 cm])
o Sides—6” (15.2 cm)
o Within 6” (15.2 cm) side clearance,

wall cabinets no deeper than 13”
(33.0 cm) must be minimum 18”
(45.7 cm) above cooking surface

o Wall cabinets directly above product

must be a minimum of 42” (106.7
cm) above cooking surface

o Rear—0” with 8” backguard or high

shelf; 0” with island trim and non­combustible rear wall;

o 6” (15.2 cm) with island trim and

combustible rear wall

1.This range may be installed directly
adjacent to existing 36” (91.4 cm) high
base cabinets. Important: The top
grate support must be 3/8” (0.95 cm)
above the adjacent base cabinet
countertop. This may be accomplished
by raising the unit using the
adjustment spindles on the legs.

2.The range cannot be installed directly
adjacent to sidewalls, tall cabinets, tall
appliances, or other side vertical
surfaces above 36” (91.4 cm) high.
There must be a minimum of
6” (15.2 cm) side clearance from the
range to such combustible surfaces
above the 36” (91.4 cm) counter height.

3.Within the 6” (15.2 cm) side clearance
to combustible vertical surfaces above
36” (91.4 cm), the maximum wall
cabinet depth must be 13” (33.0 cm)
and wall cabinets within this 6” (15.2
cm) side clearance must be 18” (45.7
cm) above the 36” (91.4 cm) high
countertop.

4.Wall cabinets above the range must be
a minimum of 36” (91.4 cm) above the
range cooking surface for the full width
of the range. This minimum height
requirement does not apply if a
rangehood is installed over the
cooking surface.

P L A N N I N G A N D D E S I G N G U I D E

V I K I N G R A N G E . C O M • 1 - 8 8 8 - V I K I N G 1

R E L E A S E D 8 / 6 / 0 8

© 2 0 0 8 V R C — I N F O R M A T I O N S U B J E C T T O C H A N G E

Professional Custom Series Freestanding Dual Fuel

2”

(5.1 cm)

Dia.

2-3/4”

(7.0 cm)

4-3/8”

(11.1 cm)

2-1/2”

(6.4 cm)

1-3/4”

(4.4 cm)

31-1/16”

(78.9 cm)

28-5/16”

(71.9 cm)

23-7/16”

(59.5 cm)

Gas or Electrical
connection in
this area

Gas connection
in this area

Installation Requirements

ACCESS REQUIREMENTS

COOKING

Self-Clean 30”W. Sealed Burner Range

UTILITY

EQUI RE MENTS

R

GAS

Shipped natural gas standard;

•
onvert to LP/propane with optional

c

ccessory kit or order as LP by

a

dding LP after color code

a

• Gas manifold pressure

o

Natural gas 5.0” W.C.P.

o

LP/Propane 10.0” W.C.P.

ELECTRICAL

40-208 VAC, 60 Hz electrical

• 2

onnection box on product, connect

c

ith locally supplied 3-wire, flexible

w

field

cord or “pigtail” rated 40 amp 125­250 VAC minimum. Cord must be
agency approved for use with

ousehold electric ranges.

h
Maximum amp usage—

•
40 - 208/120 VAC/60 Hz

2
o 4B

• 240V—6098 watts; 25.4 amps

• 208V—4757 watts; 22.9 amps

PLUMBING

ot applicable

N

Surface burner rating

Left front grated burner 15,000 BTU Nat. (4.4 kW)/13,500 BTU LP (4.0 kW)
Left rear grated burner 15,000 BTU Nat. (4.4 kW)/13,500 BTU LP (4.0 kW)
Right front grated burner 15,000 BTU Nat. (4.4 kW)/13,500 BTU LP (4.0 kW)
Right rear grated burner 15,000 BTU Nat. (4.4 kW)/13,500 BTU LP (4.0 kW)

P L A N N I N G A N D D E S I G N G U I D E

V I K I N G R A N G E . C O M • 1 - 8 8 8 - V I K I N G 1

VDSC530-4B

R E L E A S E D 8 / 6 / 0 8

© 2 0 0 8 V R C — I N F O R M A T I O N S U B J E C T T O C H A N G E

COOKING

Professional Custom Series Freestanding Dual Fuel

Self-Clean 30”W. Sealed Burner Range

Installation Notes & Accessories



A backguard, high-shelf, or island trim must be used for all installations.

8”H. Backguard

• Stainless Steel (SS)
Coordinates with all finishes

•

• Included (and shipped) automatically with 30”W. ranges

Model Description Approx. ship wt. lbs. (kg)

P30BG8 30”W. backguard 14 (6.3)

High-shelf

• Stainless Steel (SS)

• Coordinates with all finishes

• Shelf comes attached to a 24”H. backguard

Model Description Approx. ship wt. lbs. (kg)

B30HS24 30”W. high-shelf 45 (20.3)

Island Trim

• Stainless Steel (SS)

• Coordinates with all finishes

• For island/peninsula installation

• Can replace backguard if wall is non-combustible

Model Description Approx. ship wt. lbs. (kg)

P30TII 30”W. island trim 10 (4.5)

Countertop Side Trim

• Stainless Steel (SS)

• Coordinates with all finishes

• One pair of trim

• Installs on side of unit; overlaps countertop

Model Description Approx. ship wt. lbs. (kg)

P24CST Side trim 2 (0.9)

Curb Base Front Custom Curb Base Front

• Stainless Steel (SS) • Remove stainless steel front and recycle

• Coordinates with all finishes

• Front only • Conceals range legs

•

Conceals range legs • Completely assembled

•

Completely assembled

• Easily clips onto range legs after range is installed

Model Description Approx. ship wt. lbs. (kg)

P30CBF4 30”W. curb base front 9 (4.1)

•

Attach locally supplied trim

•

Easily clips onto range legs after range is installed

•

Provides drop-in range look

P L A N N I N G A N D D E S I G N G U I D E

V I K I N G R A N G E . C O M • 1 - 8 8 8 - V I K I N G 1

R E L E A S E D 8 / 6 / 0 8

© 2 0 0 8 V R C — I N F O R M A T I O N S U B J E C T T O C H A N G E

COOKING

Professional Custom Series Freestanding Dual Fuel

Self-Clean 30”W. Sealed Burner Range

Installation Notes & Accessories



LP/Propane Conversion Kit

• Allows for field conversion of range from natural gas to LP

Model Description Approx. ship wt. lbs. (kg)

LPKPDF Natural to LP/propane conversion kit 2 (0.9)

Compliance Information

WARRANTY INFORMATION*

• One-year full warranty—complete product

• Ten-year limited warranty—porcelain oven and porcelain inner door panel

• Five-year limited warranty—surface burners, griddle burners, grill burners, and oven burner

• Ninety-day limited warranty—cosmetic parts such as glass, painted, and decorative items

* For complete warranty see

Use & Care Guide

P L A N N I N G A N D D E S I G N G U I D E

V I K I N G R A N G E . C O M • 1 - 8 8 8 - V I K I N G 1

. Warranty valid on Viking products shipped within the United States and Canada.
