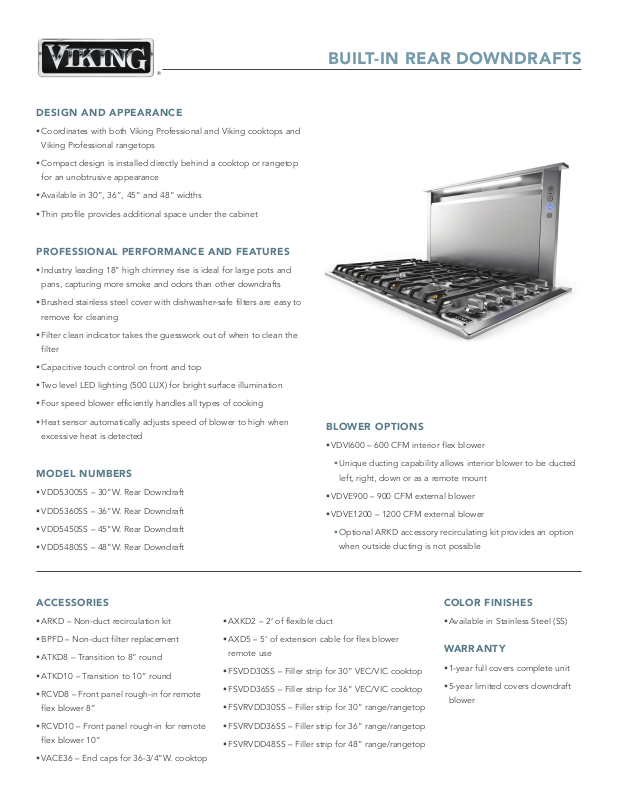

Viking VDD5300SS, VDD5480SS, VDD5450SS Specification Sheet
®
DESIGN AND APPEARANCE
§ Coordinates with both Viking Professional and Viking cooktops and
Viking Professional rangetops
§ Compact design is installed directly behind a cooktop or rangetop
for an unobtrusive appearance
§ Available in 30”, 36”, 45” and 48” widths
§ Thin profile provides additional space under the cabinet
PROFESSIONAL PERFORMANCE AND FEATURES
§ Industry leading 18” high chimney rise is ideal for large pots and
pans, capturing more smoke and odors than other downdrafts
§ Brushed stainless steel cover with dishwasher-safe filters are easy to
remove for cleaning
§ Filter clean indicator takes the guesswork out of when to clean the
filter
BUILT-IN REAR DOWNDRAFTS
§ Capacitive touch control on front and top
§ Two level LED lighting (500 LUX) for bright surface illumination
§ Four speed blower efficiently handles all types of cooking
§ Heat sensor automatically adjusts speed of blower to high when
excessive heat is detected
MODEL NUMBERS
§ VDD5300SS – 30”W. Rear Downdraft
§ VDD5360SS – 36”W. Rear Downdraft
§ VDD5450SS – 45”W. Rear Downdraft
§ VDD5480SS – 48”W. Rear Downdraft
ACCESSORIES
§ ARKD – Non-duct recirculation kit
§ BPFD – Non-duct filter replacement
§ ATKD8 – Transition to 8” round
§ ATKD10 – Transition to 10” round
§ RCVD8 – Front panel rough-in for remote
flex blower 8”
§ AXKD2 – 2’ of flexible duct
§ AXD5 – 5’ of extension cable for flex blower
remote use
§ FSVDD30SS – Filler strip for 30” VEC/VIC cooktop
§ FSVDD36SS – Filler strip for 36” VEC/VIC cooktop
§ FSVRVDD30SS – Filler strip for 30” range/rangetop
BLOWER OPTIONS
§ VDVI600 – 600 CFM interior flex blower
§ Unique ducting capability allows interior blower to be ducted
left, right, down or as a remote mount
§ VDVE900 – 900 CFM external blower
§ VDVE1200 – 1200 CFM external blower
§ Optional ARKD accessory recirculating kit provides an option
when outside ducting is not possible
COLOR FINISHES
§ Available in Stainless Steel (SS)
WARRANTY
§ 1-year full covers complete unit
§ 5-year limited covers downdraft
blower
§ RCVD10 – Front panel rough-in for remote
flex blower 10”
§ VACE36 – End caps for 36-3/4”W. cooktop
§ FSVRVDD36SS – Filler strip for 36” range/rangetop
§ FSVRVDD48SS – Filler strip for 48” range/rangetop
BUILT-IN REAR DOWNDRAFTS
®
BUILT-IN REAR DOWNDRAFTS
MODEL NUMBER CFM RECOMMENDED DUCT SIZE MAX DUCT RUN 120 V/60 HZ MAX AMPS
VDVI600 (interior) – NEW 600 8” round 40 feet (12.2m) 3.0
VDVE900 (exterior) – NEW 900 10” round 50 feet (15.2m) 5.7
VDVE1200 (exterior) – NEW 1200 10” round 50 feet (15.2m) 6.0
Please do not prepare installation from brochure data only. See installation instructions for important clearance/installation information.
30”W. Model 36”W. Model 45”W. Model 48”W. Model
A 47.875” 47.875” 47.875” 47.875”
B 18.5” 18.5” 18.5” 18.5”
C 27.375” 33.375” 43.375” 45.375”
D 2.25” 2.25” 2.25” 2.25”
E 25.5” 31.5” 40.5” 43.5”
F 1.75” 1.75” 1.75” 1.75”
G 29.375” 29.375” 29.375” 29.375”
H 27.125” 33.125” 42.125” 45.125”
I 2.5” 2.5” 2.5” 2.5”
VIKING R ANGE, LLC 111 FRONT STREET GREENWOOD, MISSISSIPPI 38930 USA
For detailed product information, model numbers, or to request a quote call 1-888-845-4641 or visit vikingrange.com
© 2015 Viking Range, LLC All rights reserved. Specifications subject to change without notice.
F60343 0516
