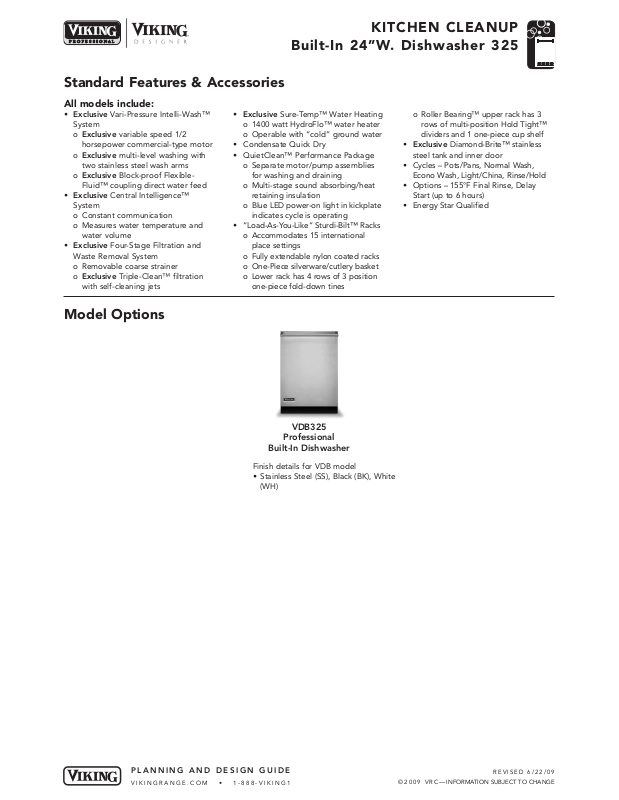

Standard Features & Accessories
All models include:
• Exclusive Vari-Pressure Intelli-Wash™
System
o Exclusive variable speed 1/2
horsepower commercial-type motor
o Exclusive multi-level washing with
two stainless steel wash arms
o Exclusive Block-proof Flexible-
Fluid™ coupling direct water feed
• Exclusive Central Intelligence™
System
o Constant communication
o Measures water temperature and
water volume
• Exclusive Four-Stage Filtration and
Waste Removal System
o Removable coarse strainer
o Exclusive Triple-Clean™ filtration
with self-cleaning jets
• Exclusive Sure-Temp™ Water Heating
o 1400 watt HydroFlo™ water heater
o Operable with “cold” ground water
• Condensate Quick Dry
• QuietClean™ Performance Package
o Separate motor/pump assemblies
for washing and draining
o Multi-stage sound absorbing/heat
retaining insulation
o Blue LED power-on light in kickplate
indicates cycle is operating
• “Load-As-You-Like” Sturdi-Bilt™ Racks
o Accommodates 15 international
place settings
o Fully extendable nylon coated racks
o One-Piece silverware/cutlery basket
o Lower rack has 4 rows of 3 position
one-piece fold-down tines
Model Options
KITCHEN CLEANUP
Built-In 24”W. Dishwasher 325
o Roller Bearing™ upper rack has 3
rows of multi-position Hold Tight™
dividers and 1 one-piece cup shelf
• Exclusive Diamond-Brite™ stainless
steel tank and inner door
• Cycles – Pots/Pans, Normal Wash,
Econo Wash, Light/China, Rinse/Hold
• Options – 155°F Final Rinse, Delay
Start (up to 6 hours)
• Energy Star Qualified
VDB325
Professional
Built-In Dishwasher
Finish details for VDB model
• Stainless Steel (SS), Black (BK), White
(WH)
P L A N N I N G A N D D E S I G N G U I D E
V I K I N G R A N G E . C O M • 1 - 8 8 8 - V I K I N G 1
R E V I SE D 6 / 2 2 / 09
© 2 0 0 9 V R C — INFORMATION SUBJECT TO CHANGE
Built-In 24”W. Dishwasher 325
2
3
-
7
/
8
”
(
6
0
.
6
c
m
)
3
3
-
7
/
8”
(
8
6
.
0
c
m
)
m
i
n
.
t
o
3
5
”
(
8
9
.
0
c
m
)
m
a
x
.
2
4
”
(
6
1
.
0
c
m
)
23-3/4”
(60.3 cm)
Cabinet flush
20-1/4”
(51.4 cm)
49”
(124.5 cm)
23-1/8”
(59.0 cm)
Panel flush
Dimensions & Specifications
PRODUCT DIMENSIONS
VDB325
Professional
Built-In Dishwasher
KITCHEN CLEANUP
Note: If the dishwasher is installed in a corner, there must be a minimum clearance of 2” (5.1 cm) from the
side wall so the door can open.
Overall width 23-7/8” (60.6 cm)
Overall height (from floor) 33-7/8” (86.0 cm) min. to 35” (89.0 cm) max.
Overall depth (from rear)
To edge of side (includes door panel) 24” (61.0 cm)—includes door panel
With door open 49” (124.5 cm)
P L A N N I N G A N D D E S I G N G U I D E
V I K I N G R A N G E . C O M • 1 - 8 8 8 - V I K I N G 1
All models
R E V I SE D 6 / 2 2 / 09
© 2 0 0 9 V R C — INFORMATION SUBJECT TO CHANGE
A 2” cut-out is required
for water supply and
discharge lines.
2
4
”
(
6
1
.
0
c
m
)
2
4
”
(
6
1
.
0
c
m
)
3
4
”
m
i
n
.
(
8
6
.
4
c
m
)
t
o
3
5
”
m
a
x
.
(
8
9
.
0
c
m
)
KITCHEN CLEANUP
Built-In 24”W. Dishwasher 325
UTILITY
REQUIREMENTS
GAS
ot applicable
N
LECTRICAL
E
Five-foot (1.5 m),
•
electrical cord with 90
degree 3-prong plug
120V/60 Hz
•
• Maximum amp
usage—15.0 amps
Water-heating
•
element rating—
1,400 watts
PLUMBING
• 120°F (49°C) hot
water recommended;
dishwasher will,
however, perform
properly with cold
water*
• Inlet water pressure
operating range—
10 – 125 psi (0.69 –
8.62 bar)
• Five foot (1.5 m)
braided stainless steel
water line with 3/8”
(0.95 cm)
compression fitting
supplied with
dishwasher
• Seven-foot (2.13 m)
1/2” (1.3 cm) ID
“crimp-proof”
flexible drain hose
with clamp attached
to dishwasher;
connections provided
for 5/8” (1.5 cm), 3/4”
(1.9 cm), or 1” (2.5
cm) cut as required
• High loop of drain
hose required; min.
height from floor—
20” (50.8 cm)
• Check local codes
for drain air gap
requirement
Installation Requirements
ACCESS REQUIREMENTS
VDB325
Professional
Built-In Dishwasher
*Cycle times will be
extended
All models
Cutout width 24” (61.0 cm)
Cutout height 34” (86.4 cm) min. to 35” (89.0 cm) max.
Cutout depth 24” (61.0 cm)
P L A N N I N G A N D D E S I G N G U I D E
V I K I N G R A N G E . C O M • 1 - 8 8 8 - V I K I N G 1
R E V I SE D 6 / 2 2 / 09
© 2 0 0 9 V R C — INFORMATION SUBJECT TO CHANGE
KITCHEN CLEANUP
Built-In 24”W. Dishwasher 325
Compliance Information
WARRANTY INFORMATION*
• One-year full warranty—all components
• Lifetime limited warranty—stainless steel tanks, inner door liner
• Five-year limited warranty—electronic control, racks, motor/pump assemblies, and water distribution system
• Ninety-day limited warranty—cosmetic parts (painted and decorative items)
*For complete warranty information info see Use & Care Guide. Warranty valid on Viking products shipped within the United States and Canada.
P L A N N I N G A N D D E S I G N G U I D E
V I K I N G R A N G E . C O M • 1 - 8 8 8 - V I K I N G 1
© 2 0 0 9 V R C — INFORMATION SUBJECT TO CHANGE
R E V I SE D 6 / 2 2 / 09
Standard Features & Accessories
All models include:
• Exclusive Vari-Pressure Intelli-Wash™
System
o Exclusive variable speed 1/2
horsepower commercial-type motor
o Exclusive multi-level washing with
two stainless steel wash arms
o Exclusive Block-proof Flexible-
Fluid™ coupling direct water feed
• Exclusive Central Intelligence™
System
o Constant communication
o Measures water temperature and
water volume
• Exclusive Five-Stage Filtration and
Waste Removal System
o Removable coarse strainer
o Exclusive Triple-Clean™ filtration
with self-cleaning jets
o Exclusive ultra hard food waste
disposer/motor/pump
• Exclusive Sure-Temp™ Water Heating
o 1400 watt HydroFlo™ water heater
o Operable with “cold” ground water
• Air-Flo™ Gentle Drying
o Gentle, effective and safe heated
fan-driven system
o Fan circulates gentle air over, under
and around dishes
• QuietClean™ Performance Package
o Separate motor/pump assemblies
for washing and draining
o Multi-stage sound absorbing/heat
retaining insulation
o Blue LED power-on light in kickplate
indicates cycle is operating
• “Load-As-You-Like” Versa-Load™ Racks
o Accommodates 15 international
place settings
o Fully extendable nylon coated racks
o Two-Piece silverware/cutlery basket
o Lower rack has 4 rows of 3 position
one-piece fold-down tines
KITCHEN CLEANUP
Built-In 24”W. Dishwasher 450
o Roller Bearing™ upper rack has 3
rows of multi-position Hold Tight™
dividers, 1 one-piece stemware
cradle/cup shelf and 1 one-piece cup
shelf
• Exclusive Diamond-Brite™ stainless
steel tank and inner door
• Cycles – Pots/Pans, Normal Wash,
Econo Wash, Light/China, Rinse/Hold
• Options – Econo Dry, 155°F Final Rinse,
Top Wash Only, Delay Start (up to 10
hours)
• Energy Star Qualified
Model Options
VDB450
Professional
Built-In Dishwasher
Finish details for VDB model
• Stainless Steel (SS)
DFB450
Custom Front
Built-In Dishwasher
Finish details for DFB model
• Handles not included–opt for custom
handles or purchase a Viking
Professional or Designer handle kit
(see Installation Notes & Accessories)
• Door panel not included.*
• See Custom Panels section for more
information and additional
specifications.
ORDERING INSTRUCTIONS
*Door panel not included. Must order either a Professional w/o louvers (PDDP24), Professional w/louvers (PDDPL24), or Designer (DDDP24)
door panel if a custom panel will not be used. Specify color code at end (PDDP24SS). If ordering optional brass trim, specify code at end
(PDDP24SSBR). If ordering a custom model (to be fit with a custom panel or with a color panel), use no color or trim code (DFB450).
P L A N N I N G A N D D E S I G N G U I D E
V I K I N G R A N G E . C O M • 1 - 8 8 8 - V I K I N G 1
© 2 0 0 9 V R C — INFORMATION SUBJECT TO CHANGE
R E V I SE D 3 / 1 3 / 09
KITCHEN CLEANUP
2
3
-
7
/
8
”
(
6
0
.
6
c
m
)
3
3
-
7
/
8”
(
8
6
.
0
c
m
)
m
i
n
.
t
o
3
5
”
(
8
9
.
0
c
m
)
m
a
x
.
2
4
”
(
6
1
.
0
c
m
)
23-3/4”
(60.3 cm)
Cabinet flush
20-1/4”
(51.4 cm)
49”
(124.5 cm)
23-1/8”
(59.0 cm)
Panel flush
Built-In 24”W. Dishwasher 450
Please see
!
Installation Notes &
Accessories
for important
installation
information,
including panel and
handle kits.
Dimensions & Specifications
PRODUCT DIMENSIONS
VDB450
Professional
Built-In Dishwasher
DFB450
Custom Front
Built-In Dishwasher
See Custom Panels section for
more information and additional
specifications.
Note: If the dishwasher is installed in a corner, there must be a minimum clearance of 2” (5.1 cm) from the
side wall so the door can open.
Overall width 23-7/8” (60.6 cm)
Overall height (from floor) 33-7/8” (86.0 cm) min. to 35” (89.0 cm) max.
Overall depth (from rear)
To edge of side (includes door panel) 24” (61.0 cm)—includes door panel
With door open 49” (124.5 cm)
Note: This unit is NOT designed to be installed without trim. All dimensions include trim.
P L A N N I N G A N D D E S I G N G U I D E
V I K I N G R A N G E . C O M • 1 - 8 8 8 - V I K I N G 1
All models
R E V I SE D 3 / 1 3 / 09
© 2 0 0 9 V R C — INFORMATION SUBJECT TO CHANGE
A 2” cut-out is required
for water supply and
discharge lines.
2
4
”
(
6
1
.
0
c
m
)
2
4
”
(
6
1
.
0
c
m
)
3
4
”
m
i
n
.
(
8
6
.
4
c
m
)
t
o
3
5
”
m
a
x
.
(
8
9
.
0
c
m
)
KITCHEN CLEANUP
Built-In 24”W. Dishwasher 450
UTILITY
REQUIREMENTS
GAS
ot applicable
N
LECTRICAL
E
Five-foot (1.5 m),
•
electrical cord with 90
degree 3-prong plug
120V/60 Hz
•
• Maximum amp
usage—15.0 amps
Water-heating
•
element rating—
1,400 watts
PLUMBING
• 120°F (49°C) hot
water recommended;
dishwasher will,
however, perform
properly with cold
water*
• Inlet water pressure
operating range—
10 – 125 psi (0.69 –
8.62 bar)
• Five foot (1.5 m)
braided stainless steel
water line with 3/8”
(0.95 cm)
compression fitting
supplied with
dishwasher
• Seven-foot (2.13 m)
1/2” (1.3 cm) ID
“crimp-proof”
flexible drain hose
with clamp attached
to dishwasher;
connections provided
for 5/8” (1.5 cm), 3/4”
(1.9 cm), or 1” (2.5
cm) cut as required
• High loop of drain
hose required; min.
height from floor—
20” (50.8 cm)
• Check local codes
for drain air gap
requirement
Installation Requirements
ACCESS REQUIREMENTS
VDB450
Professional
Built-In Dishwasher
See Custom Panels section for
more information and additional
specifications.
DFB450
Custom Front
Built-In Dishwasher
*Cycle times will be
extended
All models
Cutout width 24” (61.0 cm)
Cutout height 34” (86.4 cm) min. to 35” (89.0 cm) max.
Cutout depth 24” (61.0 cm)
P L A N N I N G A N D D E S I G N G U I D E
V I K I N G R A N G E . C O M • 1 - 8 8 8 - V I K I N G 1
R E V I SE D 3 / 1 3 / 09
© 2 0 0 9 V R C — INFORMATION SUBJECT TO CHANGE
KITCHEN CLEANUP
Built-In 24”W. Dishwasher 450
Installation Notes & Accessories
!
Door Panel Kits
• For use with DFB450 custom front dishwasher
• Kit includes one panel and installation hardware
Add BR to end of model number for brass trim option
•
Model Description Approx. ship wt. lbs. (kg)
PDDP24-SS Professional door panel – no louvers (Stainless Steel) 14 (6.3)
PDDP24-BK Professional door panel – no louvers (Black) 14 (6.3)
PDDP24-WH Professional door panel – no louvers (White) 14 (6.3)
PDDP24-MS Professional door panel – no louvers (Metallic Silver) 14 (6.3)
PDDP24-GG Professional door panel – no louvers (Graphite Gray) 14 (6.3)
PDDP24-SG Professional door panel – no louvers (Stone Gray) 14 (6.3)
PDDP24-TP Professional door panel – no louvers (Taupe) 14 (6.3)
PDDP24-BT Professional door panel – no louvers (Biscuit) 14 (6.3)
PDDP24-CW Professional door panel – no louvers (Cotton White) 14 (6.3)
PDDP24-OG Professional door panel – no louvers (Oyster Gray) 14 (6.3)
PDDP24-GM Professional door panel – no louvers (Golden Mist) 14 (6.3)
PDDP24-LE Professional door panel – no louvers (Lemonade) 14 (6.3)
PDDP24-SA Professional door panel – no louvers (Sage) 14 (6.3)
PDDP24-MJ Professional door panel – no louvers (Mint Julep) 14 (6.3)
PDDP24-SE Professional door panel – no louvers (Sea Glass) 14 (6.3)
PDDP24-IB Professional door panel – no louvers (Iridescent Blue) 14 (6.3)
PDDP24-VB Professional door panel – no louvers (Viking Blue) 14 (6.3)
PDDP24-PM Professional door panel – no louvers (Pumpkin) 14 (6.3)
PDDP24-RR Professional door panel – no louvers (Racing Red) 14 (6.3)
PDDP24-AR Professional door panel – no louvers (Apple Red) 14 (6.3)
PDDP24-BU Professional door panel – no louvers (Burgundy) 14 (6.3)
PDDP24-PL Professional door panel – no louvers (Plum) 14 (6.3)
PDDP24-CH Professional door panel – no louvers (Chocolate) 14 (6.3)
PDDP24-CB Professional door panel – no louvers (Cobalt Blue) 14 (6.3)
PDDPL24-SS Professional door panel – louvers (Stainless Steel) 14 (6.3)
lDDDP24-SS Designer door panel (Stainless Steel) 14 (6.3)
DDDP24-BK Designer door panel (Black) 14 (6.3)
DDDP24-WH Designer door panel (White) 14 (6.3)
DDDP24-MS Designer door panel (Metallic Silver) 14 (6.3)
DDDP24-GG Designer door panel (Graphite Gray) 14 (6.3)
DDDP24-SG Designer door panel (Stone Gray) 14 (6.3)
DDDP24-TP Designer door panel (Taupe) 14 (6.3)
DDDP24-BT Designer door panel (Biscuit) 14 (6.3)
DDDP24-CW Designer door panel (Cotton White) 14 (6.3)
DDDP24-OG Designer door panel (Oyster Gray) 14 (6.3)
DDDP24-GM Designer door panel (Golden Mist) 14 (6.3)
DDDP24-LE Designer door panel (Lemonade) 14 (6.3)
DDDP24-SA Designer door panel (Sage) 14 (6.3)
DDDP24-MJ Designer door panel (Mint Julep) 14 (6.3)
DDDP24-SE Designer door panel (Sea Glass) 14 (6.3)
DDDP24-IB Designer door panel (Iridescent Blue) 14 (6.3)
DDDP24-VB Designer door panel (Viking Blue) 14 (6.3)
DDDP24-PM Designer door panel (Pumpkin) 14 (6.3)
DDDP24-RR Designer door panel (Racing Red) 14 (6.3)
DDDP24-AR Designer door panel (Apple Red) 14 (6.3)
DDDP24-BU Designer door panel (Burgundy) 14 (6.3)
DDDP24-PL Designer door panel (Plum) 14 (6.3)
DDDP24-CH Designer door panel (Chocolate) 14 (6.3)
DDDP24-CB Designer door panel (Cobalt Blue) 14 (6.3)
P L A N N I N G A N D D E S I G N G U I D E
V I K I N G R A N G E . C O M • 1 - 8 8 8 - V I K I N G 1
R E V I SE D 3 / 1 3 / 09
© 2 0 0 9 V R C — INFORMATION SUBJECT TO CHANGE
KITCHEN CLEANUP
Built-In 24”W. Dishwasher 450
Installation Notes & Accessories
!
Handle Kits
• For use on locally supplied full overlay panels
• Includes handle and installation hardware
Allows dishwashers with full overlay panel to coordinate with other Professional and Designer products
•
Model Description Approx. ship wt. lbs. (kg)
PHK23-SS Professional handle (Stainless Steel) 5 (2.3)
PHK23-BR Professional handle (Brass) 5 (2.3)
DHK20-SS Designer handle (Stainless Steel) 5 (2.3)
DHK20-BR Designer handle (Brass) 5 (2.3)
Compliance Information
WARRANTY INFORMATION*
• One-year full warranty—all components
• Lifetime limited warranty—stainless steel tanks, inner door liner
• Five-year limited warranty—electronic control, racks, motor/pump assemblies, and water distribution system
• Ninety-day limited warranty—cosmetic parts (painted and decorative items)
*For complete warranty information info see Use & Care Guide. Warranty valid on Viking products shipped within the United States and Canada.
P L A N N I N G A N D D E S I G N G U I D E
V I K I N G R A N G E . C O M • 1 - 8 8 8 - V I K I N G 1
© 2 0 0 9 V R C — INFORMATION SUBJECT TO CHANGE
R E V I SE D 3 / 1 3 / 09
KITCHEN CLEANUP
Undercounter 24”W. Dishwasher
P L A N N I N G A ND D ES I G N G UI DE
V I K I N GR A N G E . C O M • 1 - 8 88 - V I K I N G 1
R E LE A S ED 12 / 1/ 07
© 2 00 7 VR C — INFORMATION SUBJECT TO CHANGE
All models include
• Capacity—accommodates 16
international place settings
• Automatic water heating
(85°F – 170°F, depending on cycle)
o
1,200-watt heater
o
Two separate thermostats
• Extremely efficient, energy- and water-
saving operation
• Electronic controls offer wash cycles
and options that reduce energy costs
o
Cycles: Pots/Pans, Heavy, Normal,
Light/China, Quick, Rinse/Hold
o
Options: Temperature Selection,
Extra Dry, Five-Hour Delay
o
Controls on inside top of door—
hidden when door is closed
• Commercial construction and design
o
Rustproof surgical stainless steel
tank/inner door
o
Counterbalanced, heavy-duty door
springs
o
Tough, zinc-coated steel frame and
one-piece galvanized steel base pan
o
Twin fill valve and overflow
protection switch
• Quiet Clean System™ with asphalt,
felt, and foam insulation
o
Absorbs sound
o
Retains heat
• Super-extendable graphite nylon racks
o
Adjustable tines
o
Taller upper rack with two dual-level
cup racks
o
Silverware/cutlery basket with lidded
compartment for small items
• Multi-level wash system
o
Stainless steel lower and upper
wash arms turn opposite directions
for complete coverage
o
Additional spray zone targets
heavily soiled dishes
• Triple filtration and waste removal
system
o
Separate motors/pumps for
circulation and drain
• Drains quietly
o
Anti-jam, auto-reversing pump
o
Removable strainer
o
Removable, self-cleaning fine filter
captures smaller particles
• Convect-Air™ fan drying safely vents
away from controls and cabinets
• Extra-tall tank
o
Eliminates need for top fill strip
o
Allows loading of full-size plates in
top rack
• Automatic detergent/rinse agent
dispensers
• End of cycle signal
• Shipped with stainless steel door
installed, or with no front—to accept
custom front panel or optional door
panel
• Shipped with two stainless steel side
trim strips (1⁄4”W.)
Step-up features on 142 models
• Special cradle for long knives and
utensils
• Express and Top or Bottom Rack Only
cycle options
• Control lock safety feature
• Halogen interior light—turns on when
door is opened
FINISH DETAILS FOR 042/142 MODELS
• Door not included—opt for a 3/4”-
thick custom panel (locally supplied), or
purchase a Viking Professional Series or
Designer Series door panel kit (see
Installation Notes & Accessories)
• Handle not included—opt for a custom
handle, or purchase a Viking
Professional Series or Designer Series
handle kit (see Installation Notes &
Accessories)
• See Custom Panels section for more
information and additional
specifications.
FINISH DETAILS FOR 042/142 MODELS
• Stainless Steel (SS), Black (BK), White
(WH), Metallic Silver (MS), Graphite Gray
(GG), Stone Gray (SG), Taupe (TP), Biscuit
(BT), Cotton White (CW), Oyster Gray
(OG), Golden Mist (GM), Lemonade (LE),
Sage (SA), Mint Julep (MJ), Sea Glass
(SE), Iridescent Blue (IB), Viking Blue (VB),
Pumpkin (PM), Racing Red (RR), Apple
Red (AR), Burgundy (BU), Plum (PL),
Chocolate (CH), and Cobalt Blue (CB).
• Cast stainless steel handle.
• Brass Trim Option (BR)—nameplate
and handle. Brass components have a
durable protective coating for
maintenance-free normal use.
FINISH DETAILS FOR 042/142 MODELS
• Stainless Steel (SS), Black (BK), White
(WH), Metallic Silver (MS), Graphite Gray
(GG), Stone Gray (SG), Taupe (TP), Biscuit
(BT), Cotton White (CW), Oyster Gray
(OG), Golden Mist (GM), Lemonade (LE),
Sage (SA), Mint Julep (MJ), Sea Glass
(SE), Iridescent Blue (IB), Viking Blue (VB),
Pumpkin (PM), Racing Red (RR), Apple
Red (AR), Burgundy (BU), Plum (PL),
Chocolate (CH), and Cobalt Blue (CB).
• Stainless steel handle with chromeplated brackets.
• Brass Trim Option (BR)—nameplate and
handle/brackets. Brass components have
a durable protective coating for
maintenance-free normal use.
Standard Features & Accessories
Model Options
*Shown throughout with door panel. See Installation Notes & Accessories for details.
ORDERING INSTRUCTIONS
Must order either a Professional (PTD24) or Designer (DTD24) door panel if a custom panel will not be used. Specify color code at end
(PTD24SS). If ordering a custom model (to be fit with a custom panel or with a color panel), use no color or trim code (DFUD042).
DFUD042/142*
Professional
DFUD042/142*
Designer
DFUD042/142
Custom Front
P L A N N I N G A ND D ES I G N G UI DE
V I K I N GR A N G E . C O M • 1 - 8 88 - V I K I N G 1
R E LE A S ED 12 / 1/ 07
© 2 00 7 VR C — INFORMATION SUBJECT TO CHANGE
KITCHEN CLEANUP
Undercounter 24”W. Dishwasher
✪
Please see
Installation
Notes &
Accessories
for important
information,
including door
panel and handle
kits.
DFUD042P/142P
Professional
DFUD042D/142D
Designer
DFUD042/142
Custom Front
34-1/8”
(86.7 cm)
min.
to
36-7/8”
(93.7 cm)
m
ax.
23-7/8”
(60.6 cm)
with side trim
1-
1
/2”– 4-
7/
8”
(3.8 c
m –
12.9
c
m)
adjus
t toe kick
24”
(61.0 cm)
24”
(61.0 c
m)
3-1/2” – 6-1/4”
(8.9 cm – 15.9 c
m)
34-1/8”
(86.7 cm)
min.
to
36-7/8”
(93.7 cm)
m
ax.
23-7/8”
(60.6 cm)
with side trim
1-
1
/2”– 4-
7/
8”
(3.8 c
m –
12.9
c
m)
adjus
t toe kick
24”
(61.0 c
m)
3-1/2” –
6-1/4”
(8.9 cm – 15.9 cm)
All models
Overall width
With side trims 23-7/8” (60.6 cm)
Without side trims 23-1/2” (59.7 cm)
Overall height (from floor)
With top trim 34-1/8” (86.7 cm) min. to 36-7/8” (93.7 cm) max.
Without top trim 33-3/4” (85.7 cm)
Overall depth (from rear)
To front edge of side trim 24” (61.0 cm)—includes drain hose + door panel
With door open 49” (124.5 cm)
See Custom Panels section for
more information and additional
specifications.
Dimensions & Specifications
PRODUCT DIMENSIONS
PROFESSIONAL DESIGNER
DFUD042/142
Custom Front
PROFESSIONAL
DESIGNER
8-1/2” (21.6 cm) to
11” (27.9 cm)
34-1/8” (86.7 cm) min.
36-7/8” (93.7 cm) max.
49” (124.5 cm)
23” (58.4 cm) 24-1/2” (62.2 cm) 1-1/2” (3.8 cm)
22-1/2” (57.2 cm)
21-3/4” (55.3 cm)
8-1/2” (21.6 cm) to
11” (27.9 cm)
34-1/8” (86.7 cm) min.
36-7/8” (93.7 cm) max.
49” (124.5 cm)
23” (58.4 cm) 24-1/2” (62.2 cm) 1-1/2” (3.8 cm)
22-1/2” (57.2 cm)
21-3/4” (55.3 cm)
P L A N N I N G A ND D ES I G N G UI DE
V I K I N GR A N G E . C O M • 1 - 8 88 - V I K I N G 1
R E LE A S ED 12 / 1/ 07
© 2 00 7 VR C — INFORMATION SUBJECT TO CHANGE
KITCHEN CLEANUP
Undercounter 24”W. Dishwasher
Dimensions & Specifications
DOOR SWING
See Custom Panels section for
more information and additional
specifications.
Note: If the dishwasher is installed in a corner, there must be a minimum clearance of 2” (5.1 cm) from the side wall so the door can
open.
DFUD042P/142P
Professional
DFUD042D/142D
Designer
24”
(61.0 cm)
34-1/4” min.
(87.0 cm
)
37” max.
(94.0 cm
)
Note: A 1-1/2”
cutout is required
for water supply
and discharge lines.
24”*
(61.0 cm
)
DFUD042P/142P
Professional
DFUD042D/142D
Designer
DFUD042/142
Custom Front
See Custom Panels section for
more information and additional
specifications.
P L A N N I N G A ND D ES I G N G UI DE
V I K I N GR A N G E . C O M • 1 - 8 88 - V I K I N G 1
R E LE A S ED 12 / 1/ 07
© 2 00 7 VR C — INFORMATION SUBJECT TO CHANGE
KITCHEN CLEANUP
Undercounter 24”W. Dishwasher
UTILITY
REQUIREMENTS
GAS
Not applicable
ELECTRICAL
• 6’ (1.8 m), two-wire
cord with grounded,
three-prong plug
supplied with unit
• 120 VAC/60 Hz
• Maximum amp
usage—15.0
• Water-heating
element rating—1,200
watts
PLUMBING
• 120°F (49°C) hot
water recommended;
dishwasher will,
however, perform
properly with cold
water (Cycle times
will vary)
• Inlet water pressure
operating range—18
– 176 psi (125 – 1,227
kPa)
• 6-1/2’ (2.0 m) 3/4”
(1.9 cm) ID “crimpproof” rubber drain
hose with clamp
attached to
dishwasher; can be
extended up to a
maximum of 10’ (3.0 m)
with 3/4” (1.9 cm) ID
copper tubing
• High loop of drain
hose required; min.
height from floor—
24” (61.0 cm); max.
height—35” (88.9 cm)
• 6’ (1.8 m) PEX water
line with 3/8” (0.95
cm) compression
fitting (NPT female
connection) supplied
with unit
• Check local codes for
drain air gap
requirement
Installation Requirements
ACCESS REQUIREMENTS
All models
Cutout width 24” (61.0 cm)
Cutout height 34-1/4” (87.0 cm) min. to 37” (94.0 cm) max.
Cutout depth 24” (61.0 cm)
*When installing the dishwasher without the side trim, the cutout must be 23-5/8” (60.0 cm), and
approximately 4” (10.2 cm) of the inside cabinets must be finished.
KITCHEN CLEANUP
Undercounter 24”W. Dishwasher
P L A N N I N G A ND D ES I G N G UI DE
V I K I N GR A N G E . C O M • 1 - 8 88 - V I K I N G 1
R E LE A S ED 12 / 1/ 07
© 2 00 7 VR C — INFORMATION SUBJECT TO CHANGE
Door Panel Kits
• For use with DFUD042/142 custom front dishwasher
• Kit includes one panel and installation hardware
• Add BR to end of model number for brass trim option
Handle Kits
• For use with DFUD042/142 custom front dishwasher
• Handle allows dishwashers with custom door panel to coordinate with the Professional and Designer products
• Kit includes one handle and installation hardware
Compliance Information
WARRANTY SUMMARY*
• One-year full warranty—all components
• Twenty-five-year limited warranty—stainless steel tank, inner door liner
• Five-year limited warranty—racks, motors/pumps assemblies (2), and water distribution system
• Ninety-day limited warranty—cosmetic parts (painted and decorative items)
*For complete warranty see
Use & Care Guide
. Warranty valid on Viking products shipped within the United States and Canada.
✪
Installation Notes & Accessories
Model Description Approx. ship wt. lbs. (kg)
PTD24-SS Professional door panel (Stainless Steel) 14 (6.3)
PTD24-BK Professional door panel (Black) 14 (6.3)
PTD24-WH Professional door panel (White) 14 (6.3)
PTD24-AL Professional door panel (Almond) 14 (6.3)
PTD24-BT Professional door panel (Biscuit) 14 (6.3)
PTD24-SG Professional door panel (Stone Gray) 14 (6.3)
PTD24-GG Professional door panel (Graphite Gray) 14 (6.3)
PTD24-BU Professional door panel (Burgundy) 14 (6.3)
PTD24-LE Professional door panel (Lemonade) 14 (6.3)
PTD24-MJ Professional door panel (Mint Julep) 14 (6.3)
PTD24-FG Professional door panel (Forest Green) 14 (6.3)
PTD24-VB Professional door panel (Viking Blue) 14 (6.3)
PTD24-CB Professional door panel (Cobalt Blue) 14 (6.3)
PTD24-EP Professional door panel (Eggplant) 14 (6.3)
DTD24-SS Designer door panel (Stainless Steel) 14 (6.3)
DTD24-BK Designer door panel (Black) 14 (6.3)
DTD24-WH Designer door panel (White) 14 (6.3)
DTD24-BT Designer door panel (Biscuit) 14 (6.3)
DTD24-SG Designer door panel (Stone Gray) 14 (6.3)
DTD24-GG Designer door panel (Graphite Gray) 14 (6.3)
Model Description Approx. ship wt. lbs. (kg)
PHK23-SS Professional handle (Stainless Steel) 5 (2.3)
PHK23-BR Professional handle (Brass) 5 (2.3)
DHK20-SS Designer handle (Stainless Steel) 5 (2.3)
DHK20-BR Designer handle (Brass) 5 (2.3)
KITCHEN CLEANUP
Undercounter 18”W. Trash Compactor
P L A N N I N G A ND D ES I G N G UI DE
V I K I N GR A N G E . C O M • 1 - 8 88 - V I K I N G 1
R E LE A S ED 12 / 1/ 07
© 2 00 7 VR C — INFORMATION SUBJECT TO CHANGE
All models include
• Trash drawer capacity—1.7 cu. ft.—
the largest capacity trash drawer on
the market
o
Allows random loading of bulky
items
• Machine easily compacts and holds
the weekly trash of a family of four
• Commercial-type construction—the
most powerful home compactor
• Professional styling
• Built-in small litter area
o
Allows loading of small items
without opening large drawer
o
May be opened during operation
• Built-in storage compartment
• Easy-glide drawer allows for smooth
opening and closing
• Breakaway trash basket with pressure
release handle/plate for easy removal
o
Easy to empty and clean
o
May be used with or without bags
• Activated charcoal filter and fan with
control panel switch (shipped with one
filter)
o
Removes odors
o
Eliminates the need for perfumed
deodorizers
o
A control panel light indicates fan is
operating
• 1⁄2 horsepower, high-torque motor
with 3,000 lbs. of force (delivered at
all positions and at all points of the
ram head)
• 3-Point Drive System avoids jamming,
which can result from uneven loading
o
In 35 seconds, this system reduces
trash to 1/4 its original size
• 3-Piece Ram encloses motor and drive
system, for quiet operation
• Durable, heavy-gauge steel frame and
double-reinforced base withstand
heavy loads
• Key-start operation with safety lock
o
Positive drawer closing—compactor
will not operate while drawer is
open
• Shipped with five grip/slip plastic bags
with ties
o
Outside grips to hold bag in place;
inside slips for easy compacting
o
Specifically designed to fit 18”W.
compactor
o
A tough 3.5 mil. thick
o
Punched holes match bag retainer
buttons
VUC181
Professional
FINISH DETAILS FOR DFC MODEL
• Stainless Steel control panel.
• Handle not included—opt for a custom
handle, or purchase a Viking
Professional Series or Designer Series
handle kit (see Installation Notes &
Accessories)
• Accepts 3/4”-thick custom panel
• See Custom Panels section for more
information and additional
specifications.
FINISH DETAILS FOR DUC MODEL
• Stainless Steel (SS), Black (BK), White
(WH), Metallic Silver (MS), Graphite Gray
(GG), Stone Gray (SG), Taupe (TP), Biscuit
(BT), Cotton White (CW), Oyster Gray
(OG), Golden Mist (GM), Lemonade (LE),
Sage (SA), Mint Julep (MJ), Sea Glass
(SE), Iridescent Blue (IB), Viking Blue (VB),
Pumpkin (PM), Racing Red (RR), Apple
Red (AR), Burgundy (BU), Plum (PL),
Chocolate (CH), and Cobalt Blue (CB).
• Finish designates door and control
panel. Cast stainless steel handle.
• Brass Trim Option (BR)—handle and
release lever. Brass components have a
durable protective coating for
maintenance-free normal use.
FINISH DETAILS FOR VUC MODEL
• Stainless Steel (SS), Black (BK), White
(WH), Metallic Silver (MS), Graphite Gray
(GG), Stone Gray (SG), Taupe (TP), Biscuit
(BT), Cotton White (CW), Oyster Gray
(OG), Golden Mist (GM), Lemonade (LE),
Sage (SA), Mint Julep (MJ), Sea Glass
(SE), Iridescent Blue (IB), Viking Blue (VB),
Pumpkin (PM), Racing Red (RR), Apple
Red (AR), Burgundy (BU), Plum (PL),
Chocolate (CH), and Cobalt Blue (CB).
• Finish designates door and drawer
panels. Stainless steel control panel
(with black graphics), litter door pull,
handle (with chrome-plated brackets);
black control panel switches.
• Brass Trim Option (BR)—nameplate,
handle/brackets, and litter door pull.
Brass components have a durable
protective coating for maintenance-free
normal use.
DUC180
Designer
DFC180
Custom Front
Standard Features & Accessories
Model Options
ORDERING INSTRUCTIONS
First specify model number, followed by color code (VUC181SS). If ordering optional brass trim, specify code at end (VUC181SSBR).
P L A N N I N G A ND D ES I G N G UI DE
V I K I N GR A N G E . C O M • 1 - 8 88 - V I K I N G 1
R E LE A S ED 12 / 1/ 07
© 2 00 7 VR C — INFORMATION SUBJECT TO CHANGE
KITCHEN CLEANUP
Undercounter 18”W. Trash Compactor
✪
Please see
Installation Notes &
Accessories
for important
information,
including handle
kits, bags/ties,
and filters.
VUC181
Professional
DUC180
Designer
DFC180
Custom Front
23-5/8”
(60.0 cm)
2-7/8”
(7.3 cm)
34-3/16”
(86.8 cm) min.
to
35-11/16”
(90.6 cm) max.
3-1/2”
(8.9 cm)
17-13/16”
(45.2 cm)
23-7/8”
(60.6 cm)
2-7/8”
(7.3 cm)
34-1/8”
(86.7 cm) min.
to
35-1/2”
(90.2 cm) max.
3-1/2”
(8.9 cm)
17-13/16”
(45.2 cm)
VUC181 DUC180 DFC180
Overall width 17-13/16” (45.2 cm)
Overall height 34-3/16” (86.8 cm) min. to 34-1/8” (86.7 cm) min. to 34-1/8” (86.7 cm) min. to
35-11/16” (90.6 cm) max. 35-1/2” (90.2 cm) max. 35-1/2” (90.2 cm) max.
Overall depth
To edge of side
(includes door panel) 23-5/8” (60.0 cm) 23-7/8” (60.6 cm) 23-7/8” (60.6 cm)
With door open 48-1/8” (122.2 cm) 45-3/4” (109.8 cm) 45-3/4” (109.8 cm)
Dimensions & Specifications
PRODUCT DIMENSIONS
PROFESSIONAL DESIGNER
See Custom Panels section for
more information and additional
specifications.
KITCHEN CLEANUP
Undercounter 18”W. Trash Compactor
DFC180
Custom Front
P L A N N I N G A ND D ES I G N G UI DE
V I K I N GR A N G E . C O M • 1 - 8 88 - V I K I N G 1
R E LE A S ED 12 / 1/ 07
© 2 00 7 VR C — INFORMATION SUBJECT TO CHANGE
Dimensions & Specifications
DOOR SWING
24-1/2”
(62.2 cm)
2-7/8”
(7.3 cm)
26-1/16” (66.2 cm)
23-5/8” (60.0 cm)
25” (63.5 cm) clearance is
needed to fully open or
remove compactor drawer
6” (15.2 cm)
clearance right side
of drawer for bag removal
1/4” (0.6 cm) min.
clearance from compactor
top to underside of counter
CLEARANCE DIMENSIONS
21-7/8”
(49.2 cm)
2-7/8”
(7.3 cm)
25-7/8” (65.7 cm)
23-7/8” (60.6 cm)
See Custom Panels section for
more information and additional
specifications.
PROFESSIONAL DESIGNER
VUC181
Professional
DUC180
Designer
DFC180
Custom Front
A
1/4” (0.6 cm)
min. clearance
from compactor
top to underneath
side of countertop
18”
(45.7 cm)
min.
(61.0 cm)
min.
24”
12”
(30.5 cm)
min.
VUC181
Professional
DUC180
Designer
P L A N N I N G A ND D ES I G N G UI DE
V I K I N GR A N G E . C O M • 1 - 8 88 - V I K I N G 1
R E LE A S ED 12 / 1/ 07
© 2 00 7 VR C — INFORMATION SUBJECT TO CHANGE
KITCHEN CLEANUP
Undercounter 18”W. Trash Compactor
UTILITY
REQUIREMENTS
GAS
Not applicable
ELECTRICAL
• 72” (182.9 cm)
three-wire cord
with grounded,
three-prong plug
supplied with unit
(bracket to end—
54”, 137.2 cm)
• 115 VAC/60 Hz
• Maximum amp
usage—9.0
PLUMBING
Not applicable
Installation Requirements
ACCESS REQUIREMENTS
VUC181 DUC180 DFC180
Cutout width 18” (45.7 cm) min.
Cutout height (A) 34-7/16” (87.5 cm) min. to 34-3/8” (86.4 cm) min. to 34-3/8” (86.4 cm) min. to
35-15/16” (91.3 cm) max. 35-3/4” (90.8 cm) max. 35-3/4” (90.8 cm) max.
Cutout depth 24” (61.0 cm) min.
See Custom Panels section for
more information and additional
specifications.
KITCHEN CLEANUP
Undercounter 18”W. Trash Compactor
P L A N N I N G A ND D ES I G N G UI DE
V I K I N GR A N G E . C O M • 1 - 8 88 - V I K I N G 1
R E LE A S ED 12 / 1/ 07
© 2 00 7 VR C — INFORMATION SUBJECT TO CHANGE
Handle Kits
• For use with full overlay compactor
• For use on locally supplied custom panels
• Handle allows compactors with full overlay panel to coordinate with other Professional and Designer products
• Kit includes one handle and installation hardware
Bags & Ties
• Specifically designed to fit 18”W. compactor
• Outside grips to hold bag in place; inside slips for easy compacting
• Punched holes match retainer buttons
• Bags are 3.5 mil. thick
• Fifteen of each per box (twelve boxes per order)
Charcoal Filter
• Activated charcoal captures and removes odors, as opposed to a perfumed approach
• To be replaced every six to nine months (one filter shipped with product)
Compliance Information
WARRANTY SUMMARY*
• One-year full warranty—complete compactor
• Twenty-five-year limited warranty—stainless steel tank/inner door liner
• Five-year limited warranty—1/2 horsepower drive system motor
• Ninety-day limited warranty—cosmetic parts (painted and decorative items)
*For complete warranty see
Use & Care Guide
. Warranty valid on Viking products shipped within the United States and Canada.
✪
Installation Notes & Accessories
Model Description Approx. ship wt. lbs. (kg)
TCBC15-VUC Compactor bags/ties 38 (17.1)
Model Description Approx. ship wt. lbs. (kg)
PHK17-SS Professional handle (Stainless Steel) 2 (0.9)
PHK17-BR Professional handle (Brass) 2 (0.9)
DHK17-SS Designer handle (Stainless Steel) 2 (0.9)
DHK17-BR Designer handle (Brass) 2 (0.9)
Model Description Approx. ship wt. lbs. (kg)
ACF-VUC Charcoal filter 1 (0.5)
KITCHEN CLEANUP
Heavy-Duty Food Waste Disposer
P L A N N I N G A N D D E S I G N G U I D E
V I K I N GR A N G E . C O M • 1 - 8 88 - V I K I N G 1
R E LE A S ED 12 / 1/ 07
© 2 00 7 VR C — INFORMATION SUBJECT TO CHANGE
Both models include
• Capacitor start motor is one of most
powerful residential motors available
• Convenient wall switch start
o
Operates with or without cover for
easy loading of food waste
• Super-quiet operation
o
Sound-absorbing, grind-area
insulation
o
Six isolating gaskets in key
operating areas for sound
absorption and reduced vibration
o
Quiet, efficient fixed impellers
eliminate noise generated by
ordinary swivel blades and will not
swing away from waste
• Durable components
o
Stainless steel corrosion-resistant
upper housing
o
Cast aluminum drain chamber with
protective polymer shield
o
Permanently lubricated primary
bronze bearing
• Quick groove-twist lock installation
makes it easy to install, or to replace
your old disposer
• Anti-jam auto reversing
o
Grind wheel moves in opposite
direction with each start, breaking
the jams that stop ordinary disposers
o
Reverse action doubles cutter life
• Exclusive grind system
o
Solid cast grind wheel
o
Two fixed stainless steel impellers
for quick, quiet grinding
o
Continuous cutting from 18
uppercutters and 16 undercutters
o
Precision balanced for smooth,
vibration-free performance
• Solid cast shredder ring
o
45 double-edge cutters
o
Exclusive—1.4 million
uppercuttings and 1.3 million
undercuttings per minute (15
times that of the nearest high-end
competitor)
• Highly effective for use with septic
tanks
VCFW750
3/4 HP
1 HP CONTINUOUS FEED DISPOSER
INCLUDES
• 1 horsepower motor
• Ten-year full warranty
• Exclusive Power Plus Jam-inator®
button—this solid-state device causes
the grind wheel to oscillate approx.
7,000 times per minute, pulverizing
even the toughest jams.
3/4 HP CONTINUOUS FEED DISPOSER
INCLUDES
• 3/4 horsepower motor
• Seven-year full warranty
VCFW1000
1 HP
Standard Features & Accessories
Model Options
KITCHEN CLEANUP
Heavy-Duty Food Waste Disposer
P L A N N I N G A N D D E S I G N G U I D E
V I K I N GR A N G E . C O M • 1 - 8 88 - V I K I N G 1
R E LE A S ED 12 / 1/ 07
© 2 00 7 VR C — INFORMATION SUBJECT TO CHANGE
VCFW750 VCFW1000
13-11/16”
(34.8 cm)
6-13/16”*
(17.3 cm)
4”
(10.2 cm)
10-1/16”
(25.6 cm)
5-3/4”
(14.6 cm)
All models
Overall width 10-1/16” (25.6 cm)
Overall height 13-11/16” (34.8 cm)
Overall depth 10-1/16” (25.6 cm)
Dimensions & Specifications
PRODUCT DIMENSIONS
Note: Centerline of disposer discharge to centerline at waste pipe entering wall—must be greater than 1/4”
(0.6 cm) to prevent standing water in disposer.
*Add 1/2” (1.3 cm) when stainless steel sink is used.
UTILITY
REQUIREMENTS
GAS
Not applicable
ELECTRICAL
• Hard wire direct
with two-wire with
ground
• 120 VAC/60 Hz
• Maximum amp
usage—
o 750—8.0
o 1000—10.0
PLUMBING
• Shipped with
1-1⁄2” OD waste
line spout with
gasket and 7⁄8”
OD dishwasher
connect tube
P L A N N I N G A N D D E S I G N G U I D E
V I K I N GR A N G E . C O M • 1 - 8 88 - V I K I N G 1
R E LE A S ED 12 / 1/ 07
© 2 00 7 VR C — INFORMATION SUBJECT TO CHANGE
Batch Feed Accessory Kit
• Kit converts a continuous feed disposer into magnetically activated batch feed unit
Counter/Sink Switch Kit
• Easily mounts to sink or countertop
• Perfect for island installations
• Air-activated
• Provides extra outlet
• Kit includes chrome and white buttons
Sink Stopper
• Available in Brass (BR), White (WH), and Biscuit (BT), to coordinate with sink flanges
• Master pack of five
Sink Flange
• Available in Brass (BR), White (WH), and Biscuit (BT)
• Master pack of five
Deep Sink Flange
• Available in Stainless Steel (SS)
• Accommodates up to 1-3/4”-thick sinks (farmhouse style)
• Master pack of five
Compliance Information
WARRANTY SUMMARY*
• Ten-year full warranty for 1000 model—covers complete disposer
• Seven-year full warranty for 750 model
• Ninety-day limited warranty—cosmetic parts (painted and decorative items)
*For complete warranty see
Use & Care Guide
. Warranty valid on Viking products shipped within the United States and Canada.
✪
Installation Notes & Accessories
Model Description Approx. ship wt. lbs. (kg)
BFAK Batch feed converter 3 (1.4)
Model Description Approx. ship wt. lbs. (kg)
SFLG5 Sink flanges 5 (2.3)
Model Description Approx. ship wt. lbs. (kg)
SFLGD5 Deep sink flanges 6 (2.7)
Model Description Approx. ship wt. lbs. (kg)
STSK Counter/sink switch 2 (0.9)
KITCHEN CLEANUP
Heavy-Duty Food Waste Disposal
Model Description Approx. ship wt. lbs. (kg)
SSTP5 Sink stoppers 5 (2.3)
Loading...
