Page 1

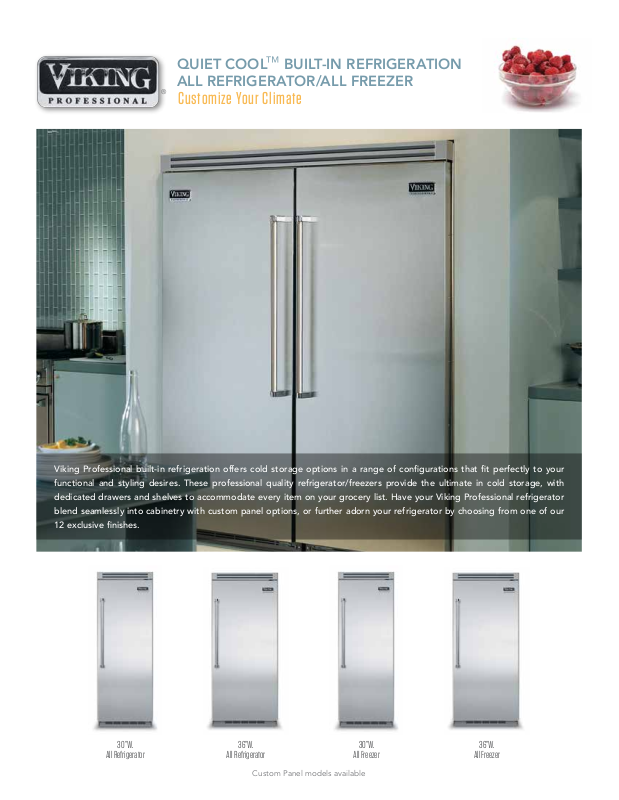

QUIET COOL™ BUILT-IN REFRIGERATION
ALL REFRIGERATOR/ALL FREEZER
®
Customize Your Climate
Viking Professional built-in refrigeration offers cold storage options in a range of configurations that fit perfectly to your
functional and styling desires. These professional quality refrigerator/freezers provide the ultimate in cold storage, with
dedicated drawers and shelves to accommodate every item on your grocery list. Have your Viking Professional refrigerator
blend seamlessly into cabinetry with custom panel options, or further adorn your refrigerator by choosing from one of our
12 exclusive finishes.
30”W.
All Refrigerator
36”W.
All Refrigerator
30”W.
All Freezer
36”W.
All Freezer
Custom Panel models available
Page 2
ALL REFRIGERATOR/ALL FREEZER FEATURES
®
ProChill™ Temperature Management System
§ Variable Speed DC Overdrive™ Compressor is one of the quietest, most
technologically advanced compressors available
§ Electronic controls maintain even temperatures within one degree to keep food
fresher longer
§ Multi-channel airflow system and Odor Eliminator™ Evaporator remove odors and
excess humidity
§ Maintenance-free Super Clog Resistant™ Condenser provides expense free peace
of mind
§ Adaptive defrost on All Freezer models control the timing of the defrost periods,
instead of an electromechanical defrost timer
Filter-Free Freshness (All Refrigerator)
§ EXCLUSIVE Plasmacluster* Ion Air Purifier uses advanced ion technology to
eliminate airborne bacteria, mold, and odors to enhance food preservation
§ Functions at 100% capacity, never degrades and never needs replacing
LED Lighting
§ All items are in clear view with bright energy efficient LED theater lighting from top
and sidewalls
§ Ramp on theater lighting provides better visibility
The Latest in Spill Control Technology (All Refrigerator)
§ New Spillproof Plus™ Shelves with Nano technology create an invisible barrier to
contain spills
§ Seamless glass shelves make cleanup easy and maximize usable space
§ 3/8” thick tempered glass shelves provide industry leading durability
Adjustable ColdZone™ Drawer (All Refrigerator)
§ Adjustable temperature control keeps food fresher longer
§ Intuitive icon based control displays the optimal setting for your food type
§ Extra-large capacity accommodates full deli tray
§ Allows storage of foods 3-5 degrees colder than main compartment
§ Prolongs the life of fresh meats 3-5 days longer without freezing
§ Can also be used as a quick chill area
*Plasmacluster™ is a trademark of Sharp Corporation
Page 3
ALL REFRIGERATOR/ALL FREEZER FEATURES
®
Specialized Door and Drawer Storage (All Refrigerator)
§ New soft-close feature on deli and HumidityZone™ drawers delivers a smooth
motion as the drawer eases into the closed position
§ EXCLUSIVE adjustable metal door bins securely store heavy items
Functional Shelving and Storage (All Freezer)
§ Adjustable half-width wire shelves along with one full-width metal shelf and two full-
width slide-out wire baskets with tempered glass fronts allows for increased stoarge
options
§ EXCLUSIVE adjustable metal door bins to securely store heavy items
§ Full-extension precision ball bearing slides on all baskets and drawers allow for
drawers to easily glide open and close for access
» All Freezer models are Energy Star Qualified
Automatic Ice Maker (All Freezer)
§ Factory-installed automatic ice maker with full-width large-capacity ice drawer
includes two separate ice pans for maximum ice production and storage
The Industry’s Best and Most Comprehensive Warranty
§ 3-year full – complete product
§ 6-year full – sealed refrigeration system
§ 90-day full – cosmetic parts such as glass, painted items and decorative items
§ 12-year limited – sealed refrigeration system
Available in Seven Exclusive Color Finishes
Stainless Steel (SS), Black (BK), White (WH), Apple Red (AR),
Burgundy (BU), Cobalt Blue (CB), Graphite Gray (GG)
Page 4
SPECIFICATIONS*
30” All Refrigerator/All Freezer
Description VCFB5302 (All Freezer) VCRB5302 (All Refrigerator)
Overall width 30” (76.2 cm)
Overall height (from bottom) 82-3/4” (210.2 cm) min. to 84-1/16” (213.5 cm) max.
Overall depth from rear
To front edge of side trim:
To front of top grille:
To front of handle endcap:
Cutout width 29-5/8” (75.2 cm) min. to 29-3/4” (75.6 cm) max.
Cutout height 82-7/8” (210.5 cm) min. to 84-1/16” (213.5 cm) max.
Cutout depth 24” (61.0 cm) min.
Electrical requirements
Maximum amp usage 9.1 amps 5.7 amps
1/4” copper tubing inlet
Inlet water requirements
Overall interior dimensions
Total capacity
Approx. shipping weight 530 lbs. (238.5 kg) 505 lbs. (227.3 kg)
waterline; minimum 20 psi;
maximum 120 psi
15.9 cu. ft. (450 liters) 18.4 cu. ft. (522 liters)
115 volt, 60 Hz, 15 amp dedicated circuit; 3-wire cord with
grounded 3-prong plug attached to product
22-3/16” (56.4 cm)
24” (61.0 cm)
26-1/2” (67.3 cm)
N/A
36” All Refrigerator/All Freezer
Description VCFB5362 (All Freezer) VCRB5362 (All Refrigerator)
Overall width 36” (91.5 cm)
Overall height (from bottom) 82-3/4” (210.2 cm) min. to 84-1/16” (213.5 cm) max.
Overall depth from rear
To front edge of side trim:
To front of top grille:
To front of handle endcap:
Cutout width 35-5/8” (90.5 cm) min. to 35-3/4” (90.8 cm) max.
Cutout height 82-7/8” (210.5 cm) min. to 84-1/16” (213.5 cm) max.
Cutout depth 24” (61.0 cm) min.
Electrical requirements
Maximum amp usage 9.5 amps 6.5 amps
1/4” copper tubing inlet
Inlet water requirements
Overall interior dimensions
Total capacity
Approx. shipping weight 585 lbs. (263.3 kg) 570 lbs. (256.5 kg)
waterline; minimum 20 psi;
maximum 120 psi
19.2 cu. ft. (544 liters) 22.8 cu. ft. (646 liters)
115 volt, 60 Hz, 15 amp dedicated circuit; 3-wire cord with
grounded 3-prong plug attached to product
22-3/16” (56.4 cm)
24” (61.0 cm)
26-1/2” (67.3 cm)
N/A
F60314 – 0514
For detailed product information, model numbers, or to request a quote call 1-888-845-4641 or visit vikingrange.com
Always refer to installation instructions included with product or visit vikingrange.com/specs for the most accurate cutouts and installation requirements.
