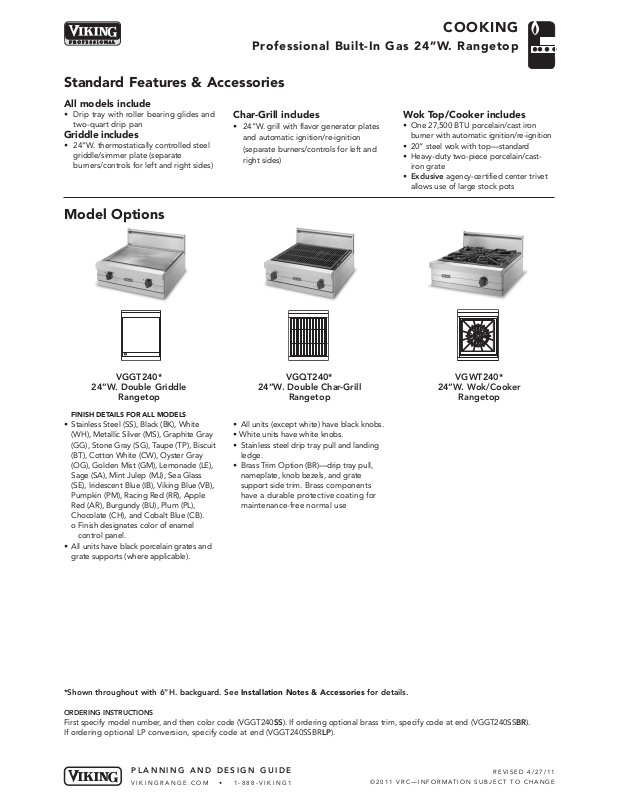

Viking T24BG6 User Manual

Professional Built-In Gas 24”W. Rangetop

Standard Features & Accessories

All models include

• Drip tray with roller bearing glides and
two-quart drip pan

Griddle includes

• 24”W. thermostatically controlled steel
griddle/simmer plate (separate
burners/controls for left and right sides)

Char-Grill includes

• 24”W. grill with flavor generator plates
and automatic ignition/re-ignition
(separate burners/controls for left and
right sides)

Model Options

COOKING

Wok Top/Cooker includes

• One 27,500 BTU porcelain/cast iron
burner with automatic ignition/re-ignition

• 20” steel wok with top—standard

• Heavy-duty two-piece porcelain/cast­iron grate

• Exclusive agency-certified center trivet
allows use of large stock pots

VGGT240*

24”W. Double Griddle

Rangetop

FINISH DETAILS FOR ALL MODELS

• Stainless Steel (SS), Black (BK), White
(WH), Metallic Silver (MS), Graphite Gray
(GG), Stone Gray (SG), Taupe (TP), Biscuit
(BT), Cotton White (CW), Oyster Gray
(OG), Golden Mist (GM), Lemonade (LE),
Sage (SA), Mint Julep (MJ), Sea Glass
(SE), Iridescent Blue (IB), Viking Blue (VB),
Pumpkin (PM), Racing Red (RR), Apple
Red (AR), Burgundy (BU), Plum (PL),
Chocolate (CH), and Cobalt Blue (CB).
o Finish designates color of enamel

control panel.

• All units have black porcelain grates and
grate supports (where applicable).

VGQT240*

24”W. Double Char-Grill

Rangetop

• All units (except white) have black knobs.

• White units have white knobs.

• Stainless steel drip tray pull and landing
ledge.

• Brass Trim Option (BR)—drip tray pull,
nameplate, knob bezels, and grate
support side trim. Brass components
have a durable protective coating for
maintenance-free normal use

VGWT240*

24”W. Wok/Cooker

Rangetop

*Shown throughout with 6”H. backguard. See Installation Notes & Accessories for details.

ORDERING INSTRUCTIONS

First specify model number, and then color code (VGGT240SS). If ordering optional brass trim, specify code at end (VGGT240SSBR).
If ordering optional LP conversion, specify code at end (

P L A N N I N G A N D D E S I G N G U I D E

V I K I N G R A N G E . C OM • 1 - 8 8 8 - V I K I N G 1

VGGT240

SSBRLP).

R E V I S E D 4 / 2 7 / 1 1

© 2 0 1 1 V R C — I N F O R M AT I O N S U B J E C T T O C H A N G E

COOKING

2

4

”

(

6

1

c

m

)

2

5

-

3

/

4”

(

65

.

4

c

m

)

2

7

-

3

/

4”

(

7

0

.

5

cm

)

2

3

-

7

/

8

”

(

6

0

.

6

c

m

)

7

-

7

/

8

”

(

2

0

cm

)

1

3

-

7

/

8

”

(

3

5

.

2

cm

)

Professional Built-In Gas 24”W. Rangetop

Please see

!

Installation Notes &

Accessories

for important

installation

information,

including backguard

and island trim.

LL MODELS

A

Star-K Kosher
Certification for
use on the Jewish
Sabbath or Jewish
holidays

Dimensions & Specifications

PRODUCT DIMENSIONS

VGGT240

24”W. Double Griddle

Rangetop

24”W. Double Char-Grill

VGQT240

Rangetop

VGWT240

24”W. Wok/Cooker

Rangetop

Overall width 23-7/8” (60.6 cm)
Overall height (from bottom)

To cooking surface 7-7/8” (20.0 cm)
To top of island trim 8-7/8” (22.5 cm)
To top of 6” backguard 13-7/8” (35.2 cm)
To top of high-shelf 31-3/8” (79.7 cm)

Overall depth (from rear)

To end of side panel 24” (61.0 cm)
To end of control panel 25-3/4” (65.4 cm)
To end of knobs 27-3/4” (70.5 cm)

P L A N N I N G A N D D E S I G N G U I D E

V I K I N G R A N G E . C O M • 1 - 8 8 8 - V I K I N G 1

All models

R E V I S E D 4 / 2 7 / 1 1

© 2 0 1 1 V R C — I N F O R M AT I O N S U B J E C T T O C H A N G E

1

8

”

m

i

n

.

(

45

.

7

c

m

)

4

2”

m

i

n

.

*

(

1

0

6

.

7

c

m

)

2

4

”

m

i

n

.

(

6

0

.

9

c

m

)

3

6

”

(

9

1

.

4

c

m

)

1

3

”m

a

x

.

(

3

3

.

0

c

m

)

A

A
VGWT 6” (15.2 cm)
VGGT 6” (15.2 cm)
VGQT 9” (22.9 cm)

7

-

5

/

8

”

(

1

9

.

4

c

m

)

Dimensions & Specifications

CLEARANCE DIMENSIONS

COOKING

Professional Built-In Gas 24”W. Rangetop

Minimum clearances from adjacent
combustible construction

• Cooking surface and below, i.e., 36”
(91.4 cm) and below
o Sides—0”
o Rear

o Top grate support—3/8” (1.0 cm)

• Above cooking surface, i.e., above 36”
(91.4 cm)
o Sides
o VGWT/VGGT—6” (15.2 cm)
o VGQT—9” (22.9 cm)

• 0” with backguard or high-shelf

• 0” with island trim and non-

combustible rear wall

• 6” (15.2 cm) with island trim and

combustible rear wall

above countertop

P L A N N I N G A N D D E S I G N G U I D E

V I K I N G R A N G E . C O M • 1 - 8 8 8 - V I K I N G 1

o Within the side clearance, wall

cabinets no deeper than 13” (33.0
cm) must be minimum 18” (45.7 cm)
above cooking surface.

• Wall cabinets directly above product
must be minimum 42” (106.7 cm)

* This minimum height requirement does

not apply if a rangehood is installed
over the cooking surface.

Do not install two or more units
side-by-side.

R E V I S E D 4 / 2 7 / 1 1

© 2 0 1 1 V R C — I N F O R M AT I O N S U B J E C T T O C H A N G E

2

4”

(6

0

.

9

c

m

)

2-

1

/

4

”

(

5

.

7

c

m

)

2

4

”

(60

.

9

c

m

)

m

in

.

2

5

-

3

/

4

”

(

6

5

.

4

c

m

)

m

a

x

.

3

”

(

7

.

6

c

m)

3

/

4

”

(

1

.

9

c

m

)

m

i

n

.

7

-

1

/

2

”

(

1

9.

1 c

m

)

2

4

”

(6

0

.

9

c

m

)

2-

1

/

4”

(

5

.

7

c

m

)

2

4

”

(

6

0

.

9

c

m

) m

i

n.

2

5

-

3

/

4

”

(65

.

4

c

m)

m

a

x

.

3

”

(

7

.

6

c

m

)

4

”

(

1

0

.

2

c

m

)

*

m

i

n

.

7

-

1

/

2

”

(

1

9

.

1

c

m

)

1

6

”

(

4

0

.

6

c

m

)

4

”

(

1

0

.

2

c

m

)

*

*

m

i

n

.

COOKING

Professional Built-In Gas 24”W. Rangetop

UTIL I TY

REQU IR EMENT S

GAS

o Shipped natural

gas standard;
convert to
LP/propane with
standard
convertible
regulator

o Accepts standard

residential 1/2”
(1.3 cm) ID gas
service line

o Gas manifold

pressure

o Natural gas 4.0”

W.C.P.

o LP/Propane

10.0" W.C.P.

ELECTRICAL

• Four-foot (121.9
cm) cord included
with rangetop

• Three-wire with
ground/three­prong plug

• 120 V/60 Hz

• Maximum amp
usage—

o GT—7.2
o QT—0.5
o WT—0.08

Installation Requirements

ACCESS REQUIREMENTS

VGGT240

24”W. Double Griddle

24”W. Double Char-Grill

Rangetop

VGWT/VGGT

VGQT240

Rangetop

VGWT240

24”W. Wok/Cooker

Rangetop

*

PLUMBING

Not applicable

*

VGQT

*120 VAC/60 Hz within 48” (121.9 CM) of right rear unit

**This area must remain open for ventilation

Cutout width 24” (61.0 cm)
Cutout height 7-1/2” (19.1 cm)***
Cutout depth 24” (61.0 cm) min. to 25-3/4” (65.4 cm) max.
Surface burner rating

Two griddles (each) 15,000 BTU Nat. (4.4 kW)/

Two grills (each) 15,000 BTU Nat. (4.4 kW)/

One grated wok burner 27,500 BTU Nat./LP (8.1 kW)

***Top of grate support should be 3/8” (0.95 cm) above countertop.

P L A N N I N G A N D D E S I G N G U I D E

V I K I N G R A N G E . C O M • 1 - 8 8 8 - V I K I N G 1

VGGT240 VGQT240 VGWT240

13,500 BTU LP (4.0 kW)

14,000 BTU LP (4.1 kW)

© 2 0 1 1 V R C — I N F O R M AT I O N S U B J E C T T O C H A N G E

R E V I S E D 4 / 2 7 / 1 1

COOKING

Professional Built-In Gas 24”W. Rangetop

Installation Notes & Accessories

!

A backguard or island trim must be used for all installations

6”H. Backguard

• Stainless Steel (SS)

Coordinates with all finishes

•

Model Description Approx. ship wt. lbs. (kg)

T24BG6 Backguard 14 (6.3)

Island Trim

• Stainless Steel (SS)

• Coordinates with all finishes

• For island/peninsula installation

• Can replace backguard if wall is non-combustible

Model Description Approx. ship wt. lbs. (kg)

T24TII Island trim 9 (4.1)

High-shelf

• Stainless Steel (SS)

• Coordinates with all finishes

• Shelf comes attached to a 24”H. backguard

Model Description Approx. ship wt. lbs. (kg)

T24HS24 24”W. high-shelf 40 (18.0)

Countertop Side Trim

• Stainless Steel (SS)

• Coordinates with all finishes

• Installs on side of unit; overlaps countertop

• One pair of trim

Model Description Approx. ship wt. lbs. (kg)

T24CST Side trim for wok/cooker 2 (0.9)
TE24CST Side trim for griddle/grill 2 (0.9)

LP/Propane Conversion Kit

• Allows for field conversion of range from natural gas to LP

Model Description Approx. ship wt. lbs. (kg)

LPKPDR Natural to LP/propane conversion kit 2 (0.9)

Compliance Information

WARRANTY INFORMATION*

• Three-year full warranty—complete product

• Five-year limited warranty—surface burners, griddle burners, and grill burners

• Ninety-day limited warranty—cosmetic parts such as glass, painted, and decorative items

* For complete warranty see Use & Care Guide. Warranty valid on Viking products shipped within the United States and Canada.

P L A N N I N G A N D D E S I G N G U I D E

V I K I N G R A N G E . C O M • 1 - 8 8 8 - V I K I N G 1

© 2 0 1 1 V R C — I N F O R M AT I O N S U B J E C T T O C H A N G E

R E V I S E D 4 / 2 7 / 1 1
