Page 1
PPrraaccttiicce
e
T
T
EELLEECCOOM
M
S
S
OOLLUUTTIIOONNSSFFOORRTTHHE
E
221
1
SST
T
C
C
EENNTTUURRY
Y
TECHNICAL
TECHNICAL

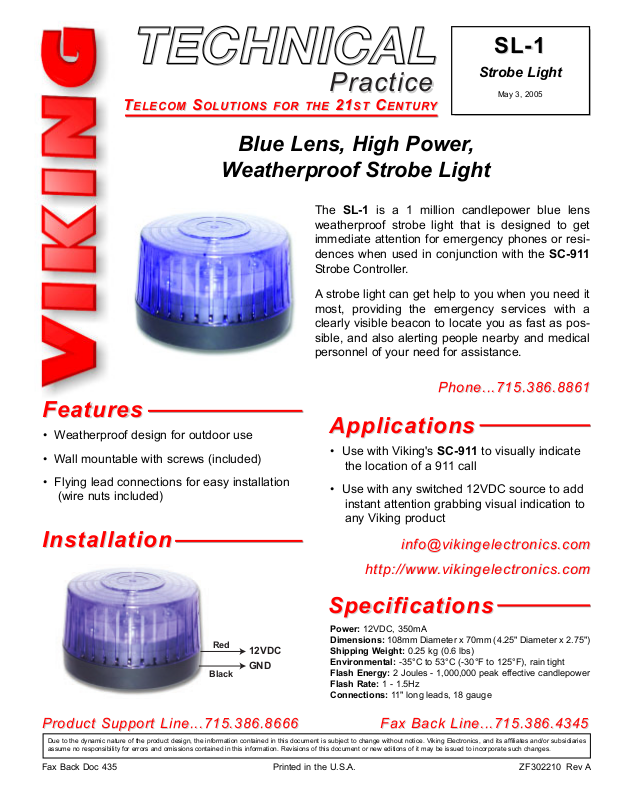

The SL-1 is a 1 million candlepower blue lens
weatherproof strobe light that is designed to get
immediate attention for emergency phones or residences when used in conjunction with the SC-911
Strobe Controller.
A strobe light can get help to you when you need it
most, providing the emergency services with a
clearly visible beacon to locate you as fast as possible, and also alerting people nearby and medical
personnel of your need for assistance.
Blue Lens, High Power,
Weatherproof Strobe Light
PPhhoonnee......771155..338866..8888661
1
• Weatherproof design for outdoor use
• Wall mountable with screws (included)
• Flying lead connections for easy installation
(wire nuts included)
Power: 12VDC, 350mA
Dimensions: 108mm Diameter x 70mm (4.25" Diameter x 2.75")
Shipping Weight: 0.25 kg (0.6 lbs)
Environmental: -35°C to 53°C (-30°F to 125°F), rain tight
Flash Energy: 2 Joules - 1,000,000 peak effective candlepower
Flash Rate: 1 - 1.5Hz
Connections: 11" long leads, 18 gauge
FFeeaattuurrees
s
SSppeecciiffiiccaattiioonns
s
• Use with Viking's SC-911 to visually indicate
the location of a 911 call
• Use with any switched 12VDC source to add
instant attention grabbing visual indication to
any Viking product
AApppplliiccaattiioonns
s
SL-1
SL-1
Strobe Light
May 3, 2005
iinnffoo@@vviikkiinnggeelleeccttrroonniiccss..ccoom
m
hhttttpp::////wwwwww..vviikkiinnggeelleeccttrroonniiccss..ccoom
m
Due to the dynamic nature of the product design, the information contained in this document is subject to change without notice. Viking Electronics, and its affiliates and/or subsidiaries
assume no responsibility for errors and omissions contained in this information. Revisions of this document or new editions of it may be issued to incorporate such changes.
Fax Back Doc 435 ZF302210 Rev APrinted in the U.S.A.
PPrroodduuccttSSuuppppoorrttLLiinnee......771155..338866..8866666
6
FFaaxxBBaacckkLLiinnee......771155..338866..4433445
5
IInnssttaallllaattiioon
n
Red
Black
12VDC
GND
