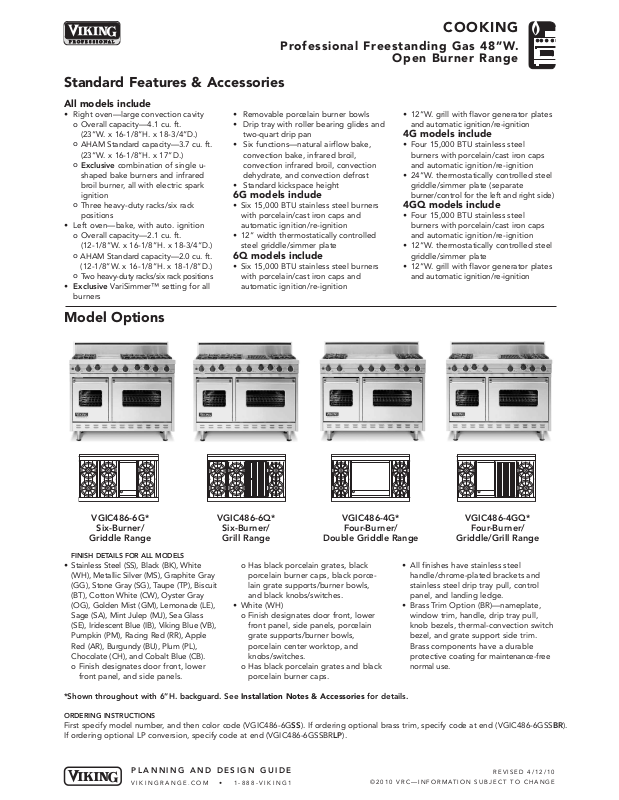

Viking RS48CBF4 User Manual

Standard Features & Accessories

All models include

• Right oven—large convection cavity
o Overall capacity—4.1 cu. ft.

(23”W. x 16-1/8”H. x 18-3/4”D.)

o

AHAM Standard capacity—3.7 cu. ft.
(23”W. x 16-1/8”H. x 17”D.)

o

Exclusive combination of single u­shaped bake burners and infrared
broil burner, all with electric spark
ignition

o

Three heavy-duty racks/six rack
positions

• Left oven—bake, with auto. ignition
o Overall capacity—2.1 cu. ft.

(12-1/8”W. x 16-1/8”H. x 18-3/4”D.)

o

AHAM Standard capacity—2.0 cu. ft.
(12-1/8”W. x 16-1/8”H. x 18-1/8”D.)

o

Two heavy-duty racks/six rack positions

• Exclusive VariSimmer™ setting for all
burners

• Removable porcelain burner bowls

• Drip tray with roller bearing glides and
two-quart drip pan

• Six functions—natural airflow bake,
convection bake, infrared broil,
convection infrared broil, convection
dehydrate, and convection defrost

• Standard kickspace height

6G models include

• Six 15,000 BTU stainless steel burners

with porcelain/cast iron caps and
automatic ignition/re-ignition

• 12” width thermostatically controlled

steel griddle/simmer plate

6Q models include

• Six 15,000 BTU stainless steel burners

with porcelain/cast iron caps and
automatic ignition/re-ignition

Model Options

COOKING

Professional Freestanding Gas 48”W.

Open Burner Range

• 12”W. grill with flavor generator plates
and automatic ignition/re-ignition

4G models include

• Four 15,000 BTU stainless steel
burners with porcelain/cast iron caps
and automatic ignition/re-ignition

• 24”W. thermostatically controlled steel
griddle/simmer plate (separate
burner/control for the left and right side)

4GQ models include

• Four 15,000 BTU stainless steel
burners with porcelain/cast iron caps
and automatic ignition/re-ignition

• 12”W. thermostatically controlled steel
griddle/simmer plate

• 12”W. grill with flavor generator plates
and automatic ignition/re-ignition

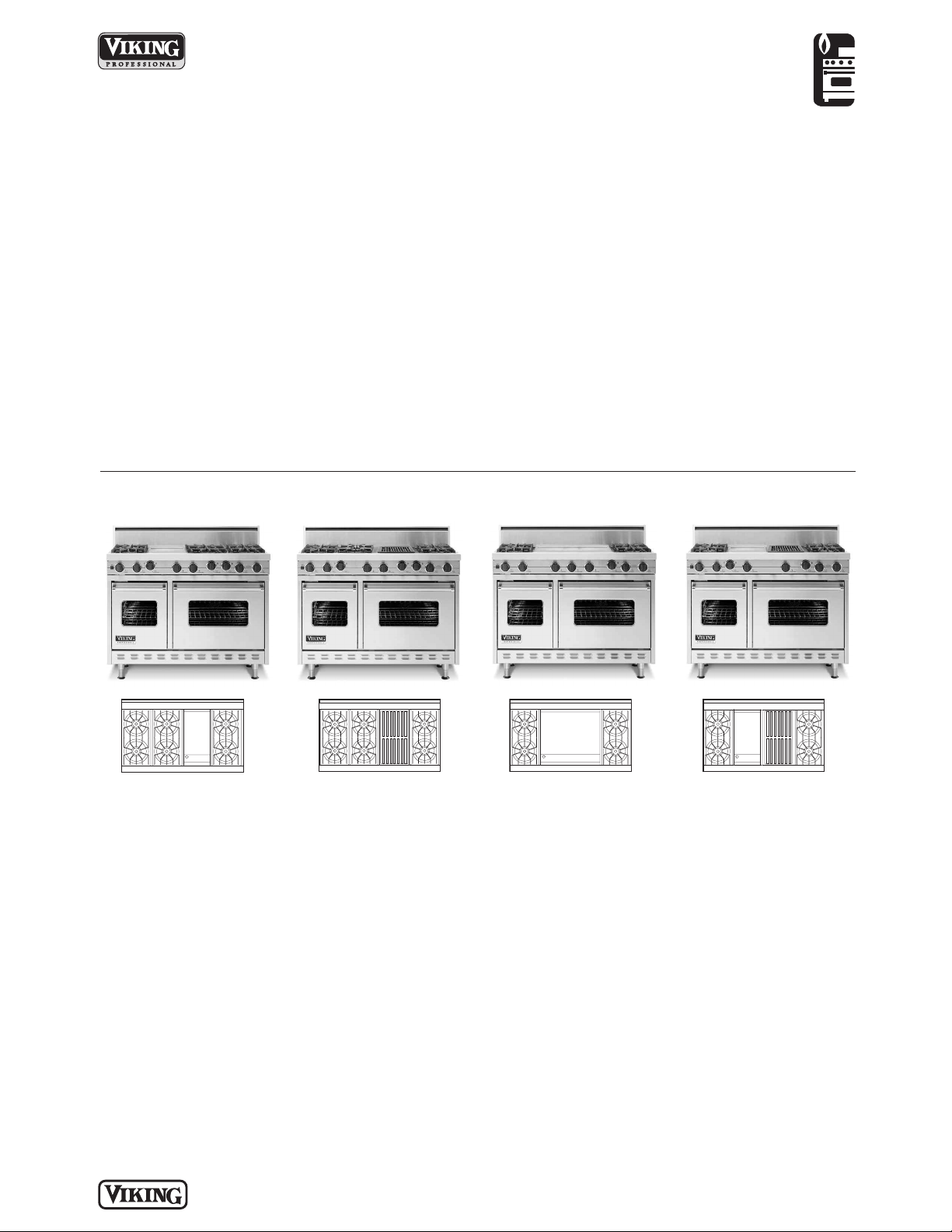

VGIC486-6G*

Six-Burner/

Griddle Range

FINISH DETAILS FOR ALL MODELS

• Stainless Steel (SS), Black (BK), White
(WH), Metallic Silver (MS), Graphite Gray
(GG), Stone Gray (SG), Taupe (TP), Biscuit
(BT), Cotton White (CW), Oyster Gray
(OG), Golden Mist (GM), Lemonade (LE),
Sage (SA), Mint Julep (MJ), Sea Glass
(SE), Iridescent Blue (IB), Viking Blue (VB),
Pumpkin (PM), Racing Red (RR), Apple
Red (AR), Burgundy (BU), Plum (PL),
Chocolate (CH), and Cobalt Blue (CB).
o Finish designates door front, lower

front panel, and side panels.

*Shown throughout with 6”H. backguard. See Installation Notes & Accessories for details.

ORDERING INSTRUCTIONS

First specify model number, and then color code (VGIC486-6GSS). If ordering optional brass trim, specify code at end (VGIC486-6GSSBR).
If ordering optional LP conversion, specify code at end (VGIC486-6GSSBRLP).

P L A N N I N G A N D D E S I G N G U I D E

V I K I N G R A N G E . C OM • 1 - 8 8 8 - V I K I N G 1

VGIC486-6Q*

Six-Burner/
Grill Range

o Has black porcelain grates, black

porcelain burner caps, black porce­lain grate supports/burner bowls,
and black knobs/switches.

• White (WH)
o Finish designates door front, lower

front panel, side panels, porcelain
grate supports/burner bowls,
porcelain center worktop, and
knobs/switches.

o Has black porcelain grates and black

porcelain burner caps.

Double Griddle Range

VGIC486-4G*

Four-Burner/

VGIC486-4GQ*

Four-Burner/

Griddle/Grill Range

• All finishes have stainless steel
handle/chrome-plated brackets and
stainless steel drip tray pull, control
panel, and landing ledge.

• Brass Trim Option (BR)—nameplate,
window trim, handle, drip tray pull,
knob bezels, thermal-convection switch
bezel, and grate support side trim.
Brass components have a durable
protective coating for maintenance-free
normal use.

© 2 0 1 0 V R C — I N F O R M A T I O N S U B J E C T T O C H A N G E

R E V I S E D 4 / 1 2 / 1 0

4

7

-

7

/8

”

(1

2

1

.6

c

m

)

6

”

(

15

.

2

c

m

)

27-

7/8

”

(70

.8

cm

)

24-

15/

16”

(6

3

.6

c

m

)

28-

3/8

”

(7

2

.0

c

m

)

3

5

-

7

/

8

”

(9

5

.1

c

m

)

m

i

n

.

t

o

3

7

-

5

/

8

”

(

95

.6 c

m

)

m

a

x

.

2

4-15/16” (61.8 cm)

42-15/16” (107.5 cm)

1

8” (45.7 cm)

6” (15.2 cm)

26-3/16” (66.5 cm)

1-5/8” (4.1 cm)

6” (15.2 cm)

COOKING

Professional Freestanding Gas 48”W.

Open Burner Range

Please see



Installation Notes &

Accessories

for important

installation

information

including back-

guard, high-shelf,

island trim, and curb

base front.

ALL MODELS

Star-K Kosher
Certification for
use on the Jewish
Sabbath or Jewish
holidays

Dimensions & Specifications

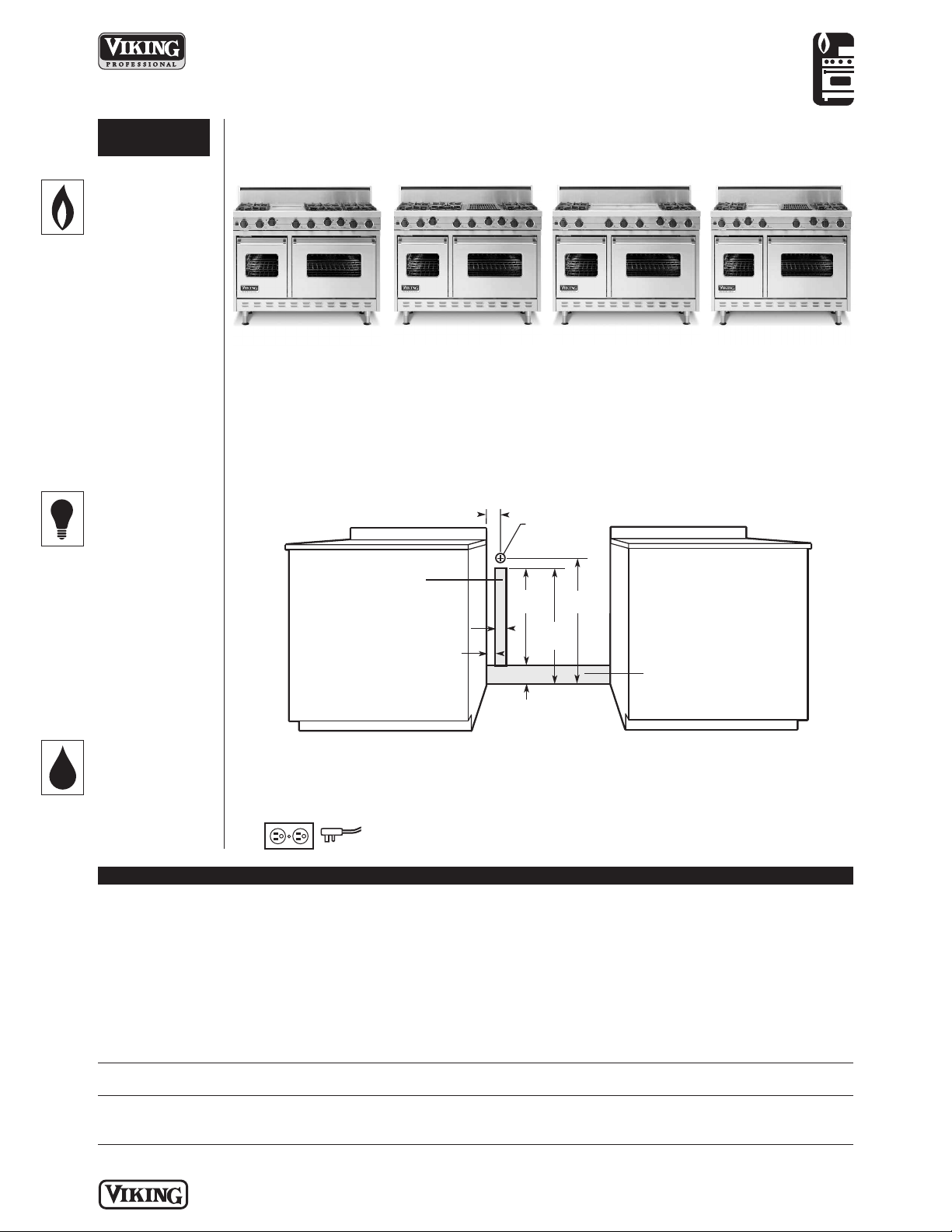

PRODUCT DIMENSIONS & DOOR SWING

VGIC486-6G

Six-Burner/

Griddle Range

VGIC486-6Q

Six-Burner/
Grill Range

VGIC486-4G
Four-Burner/

Double Griddle Range

VGIC486-4GQ

Four-Burner/

Griddle/Grill Range

Overall width 47-7/8” (121.6 cm)
Overall height

Base height

Additions to base height

Overall depth (from rear)

To end of side panel 24-15/16” (63.3 cm)
To end of control panels 27-7/8” (70.8 cm)
To end of knobs 28-3/8” (72.0 cm)

Oven

Interior width

Interior height

Interior depth

Overall interior size

All models

To top of grate support 35-7/8” (91.1 cm) min. to 37-5/8” (95.6 cm) max.
Legs adjust (with “spindles” fully extended) 1-3/4” (4.5 cm)

To top of grate Add 1-1/8” (2.9 cm)
To top of island trim Add 1-1/4” (3.2 cm)
To top of 6” backguard Add 6” (15.2 cm)
To top of 10” backguard Add 10” (25.4 cm)
To top of high-shelf Add 23-1/2” (59.7 cm)

Right 23” (58.4 cm)

Left 12-1/8” (30.8 cm)

Both 16-1/8” (41.0 cm)

Right 17” (43.2 cm)

Left 18-1/8” (45.9 cm)

Right 3.7 cu. ft.

Left 2.0 cu. ft.

P L A N N I N G A N D D E S I G N G U I D E

V I K I N G R A N G E . C O M • 1 - 8 8 8 - V I K I N G 1

© 2 0 1 0 V R C — I N F O R M A T I O N S U B J E C T T O C H A N G E

R E V I S E D 4 / 1 2 / 1 0

36”

m

i

n

.

(9

1

.

4

c

m)

1

3

”

m

a

x

.

(

3

3

.

0

c

m

)

6

”

mi

n

.

(1

5

.

2

c

m)

47-

7

/

8

”

(1

2

1.
6

cm

)

1

8”

mi

n.

(4

5

.

7

c

m)

3

/8

”

(0

.9

5

c

m)

36”

(9

1

.

4

c

m

)

Dimensions & Specifications

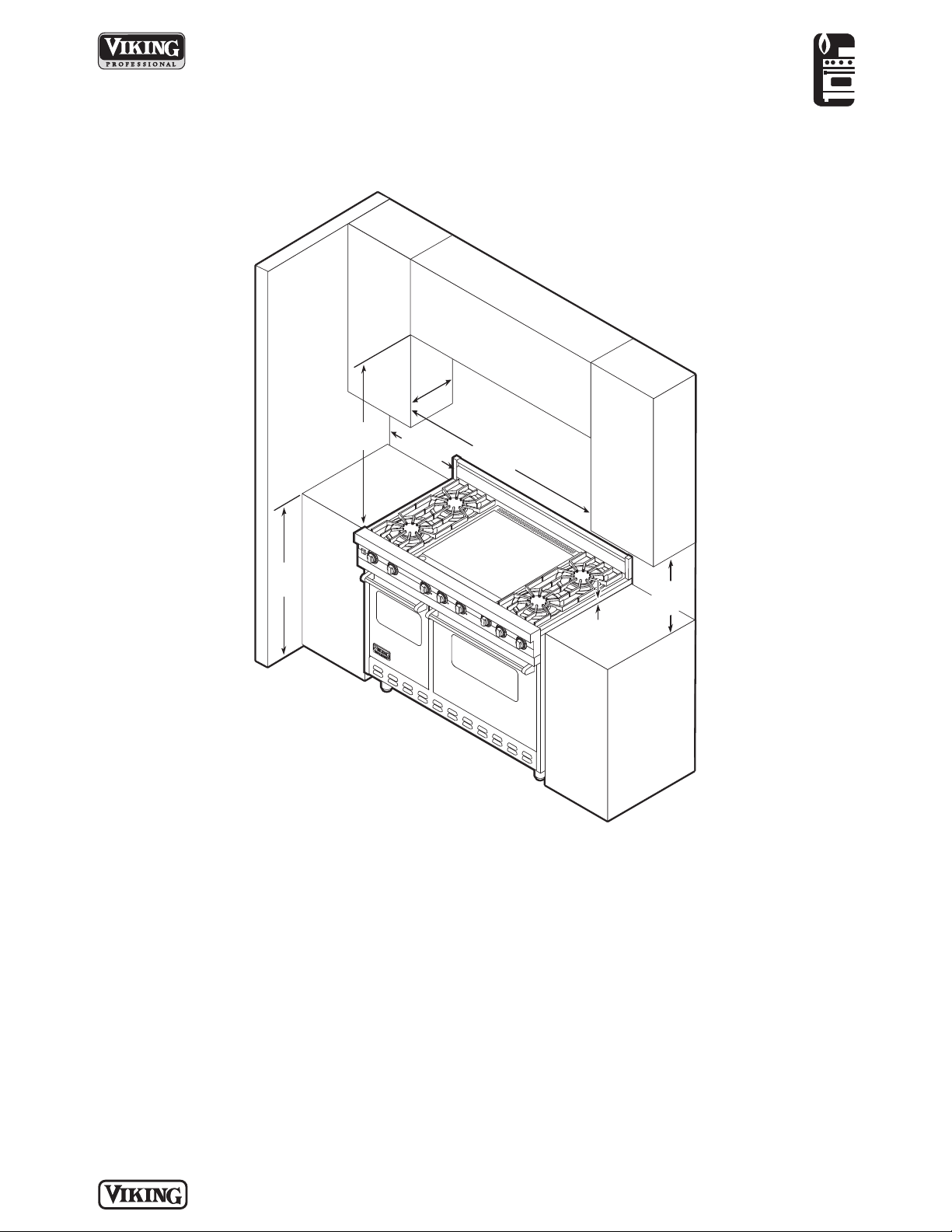

CLEARANCE DIMENSIONS

COOKING

Professional Freestanding Gas 48”W.

Open Burner Range

Minimum clearances from adjacent
combustible construction

• Cooking surface and below, i.e.,
36” (91.4 cm) and below
o Sides—0”
o Rear—0” with backguard or high-

shelf; 0” with island trim and
non-combustible rear wall;
6” (15.2 cm) with island trim and
combustible rear wall

o Top grate support—36” (91.4 cm)

• Above cooking surface, i.e., above
36” (91.4 cm)
o Sides—6” (15.2 cm)
o Within 6” (15.2 cm) side clearance,

wall cabinets no deeper than
13” (33.0 cm) must be minimum
18” (45.7 cm) above cooking surface

o Wall cabinets directly above product

must be minimum 36” (91.4 cm) for
open top burners above cooking
surface

• Use range only with factory supplied
legs

1.This range may be installed directly
adjacent to existing 36” (91.4 cm) high
base cabinets. Important the top grate
support must be 3/8” (0.95 cm) above
the adjacent base cabinet counter­top. This may be accomplished by rais­ing the unit using the adjustment
spindles on the legs.

2.The range cannot be installed directly
adjacent to sidewalls, tall cabinets, tall
appliances, or other side vertical sur­faces above 36” (91.4 cm) high. There
must be a minimum of 6” (15.2 cm)

P L A N N I N G A N D D E S I G N G U I D E

V I K I N G R A N G E . C O M • 1 - 8 8 8 - V I K I N G 1

side clearance from the range to such
combustible surfaces above the 36”
(91.4 cm) counter height.

3.Within the 6” (15.2 cm) side clearance
to combustible vertical surfaces above
36” (91.4 cm), the maximum wall
cabinet depth must be 13” (33.0 cm)
and wall cabinets within this 6” (15.2
cm) side clearance must be 18” (45.7
cm) above the 36” (91.4 cm) high
countertop.

4.Wall cabinets above the range must be
a minimum of 36” (91.4 cm) above the
range cooking surface for the full width
of the range. This minimum height
requirement does not apply if a
range-hood is installed over the
cooking surface.

R E V I S E D 4 / 1 2 / 1 0

© 2 0 1 0 V R C — I N F O R M A T I O N S U B J E C T T O C H A N G E

2”

(5.1 cm)

Dia.

2-3/4”

(7.0 cm)

4-3/8”

(11.1 cm)

2-1/2”

(6.4 cm)

1-3/4”

(4.4 cm)

31-1/16”

(78.9 cm)

28-5/16”

(71.9 cm)

23-7/16”

(59.5 cm)

Gas or Electrical
connection in
this area

Gas connection
in this area

COOKING

Professional Freestanding Gas 48”W.

Open Burner Range

UTILITY

REQU IR EMENT S

GAS

• Shipped natural
gas standard; field
convert to
LP/propane with
optional accessory
kit or order as LP
by adding LP after
color code

• Accepts standard
residential 1/2” ID
gas service line

• Gas manifold
pressure
o Natural gas 5.0”

W.C.P.

o LP/Propane 10.0”

W.C.P.

ELECTRICAL

• Four-foot (121.9 cm)
cord included with
range

• Three-wire with
ground/three­prong plug

• 120 V/60 Hz

• Maximum amp
usage—

o

6G—1.52
o 6Q—1.52
o 4G—1.89
o 4GQ—1.52

Installation Requirements

ACCESS REQUIREMENTS

VGIC486-6G

Six-Burner/

Griddle Range

VGIC486-6Q

Six-Burner/
Grill Range

VGIC486-4G
Four-Burner/

Double Griddle Range

VGIC486-4GQ

Four-Burner/

Griddle/Grill Range

PLUMBING

Not applicable

Surface burner rating

Six grated burners (each) 15,000 BTU Nat. (4.4 kW)/ 15,000 BTU Nat. (4.4 kW)/

Four grated burners (each) 15,000 BTU Nat. (4.4 kW)/ 15,000 BTU Nat. (4.4 kW)/

Two griddles (each) 15,000 BTU Nat. (4.4 kW)/

One griddle 15,000 BTU Nat. (4.4 kW)/ 15,000 BTU Nat. (4.4 kW)/

One grill 18,000 BTU Nat. (5.3 kW)/ 18,000 BTU Nat. (5.3 kW)/

Broil burner rating

Right oven only

Bake burner rating

Right 30,000 BTU Nat./LP (8.8 kW)

Left 15,000 BTU Nat./LP (4.4 kW)

Note: Ground plug and electrical wire toward the direction of the electrical outlet.

VGIC486-6G VGIC486-6Q VGIC486-4G VGIC486-4GQ

13,500 BTU LP (4.0 kW) 13,500 BTU LP (4.0 kW)

13,500 BTU LP (4.0 kW) 13,500 BTU LP (4.0 kW

–

P L A N N I N G A N D D E S I G N G U I D E

V I K I N G R A N G E . C O M • 1 - 8 8 8 - V I K I N G 1

13,500 BTU LP (4.0 kW) 13,500 BTU LP (4.0 kW)

13,500 BTU LP (4.0 kW)

16,000 BTU LP (4.7 kW) 16,000 BTU LP (4.7 kW)

18,000 BTU Nat. (5.3 kW)/16,000 BTU LP (4.7 kW)

R E V I S E D 4 / 1 2 / 1 0

© 2 0 1 0 V R C — I N F O R M A T I O N S U B J E C T T O C H A N G E

COOKING

Professional Freestanding Gas 48”W.

Open Burner Range

Installation & Notes & Accessories



A backguard, high-shelf, or island trim must be used for all installations.

6”H. Backguard

• Stainless Steel (SS)
Coordinates with all finishes

•

Model Description Approx. ship wt. lbs. (kg)

S48BG6 48”W. backguard 24 (10.8)

10”H. Backguard

• Stainless Steel (SS)

• Coordinates with all finishes

Model Description Approx. ship wt. lbs. (kg)

48BG10 48”W. backguard 27 (12.2)

S

High-shelf

• Stainless Steel (SS)

• Coordinates with all finishes

• Shelf comes attached to a 24”H. backguard

Model Description Approx. ship wt. lbs. (kg)

S4HS24 48”W. high-shelf 60 (27.0)

Island Trim

• Stainless Steel (SS)

• Coordinates with all finishes

• For island/peninsula installation

• Can replace backguard if wall is non-combustible

Model Description Approx. ship wt. lbs. (kg)

S48TII 48”W. island trim 15 (6.8)

Countertop Side Trim

• Stainless Steel (SS)

• Coordinates with all finishes

• One pair of trim

• Installs on side of unit; overlaps countertop

Model Description Approx. ship wt. lbs. (kg)

S24CST 24”D. side trim 2 (0.9)

P L A N N I N G A N D D E S I G N G U I D E

V I K I N G R A N G E . C O M • 1 - 8 8 8 - V I K I N G 1

R E V I S E D 4 / 1 2 / 1 0

© 2 0 1 0 V R C — I N F O R M A T I O N S U B J E C T T O C H A N G E

COOKING

Professional Freestanding Gas 48”W.

Open Burner Range

Installation Notes & Accessories



Curb Base Front Custom Curb Base Front

• Stainless Steel(SS) • Remove stainless steel front and recycle

• Coordinates with all finishes • Attach locally supplied trim
Front only • Conceals range legs

•

• Conceals range legs • Completely assembled

• Completely assembled • Easily clips onto range legs after range is installed

• Easily clips onto range legs after range is installed • Provides drop-in range look

Model Description Approx. ship wt. lbs. (kg)

RS48CBF4 48”W. curb base front 11 (5.0)

LP/Propane Conversion Kit

• Allows for field conversion of range from natural gas to LP

Model Description Approx. ship wt. lbs. (kg)

LPKPDR Natural to LP/propane conversion kit 2 (0.9)

Compliance Information

WARRANTY INFORMATION*

• One-year full warranty—complete product

• Ten-year limited warranty—porcelain oven and porcelain inner door panel

• Five-year limited warranty—surface burners, griddle burners, grill burners, and oven burner

• Ninety-day limited warranty—cosmetic parts such as glass, painted, and decorative items

* For complete warranty see Use & Care Guide. Warranty valid on Viking products shipped within the United States and Canada.

P L A N N I N G A N D D E S I G N G U I D E

V I K I N G R A N G E . C O M • 1 - 8 8 8 - V I K I N G 1

© 2 0 1 0 V R C — I N F O R M A T I O N S U B J E C T T O C H A N G E

R E V I S E D 4 / 1 2 / 1 0
