Viking PSSPR3, DSSPR3, DSSPL3 Installation Guide
Viking Installation Guide
U
L
C
U
L
Viking Range Corporation
111 Front Street
Greenwood, Mississippi 38930 USA
(662) 455-1200
For product information,
call 1-888-VIKING1 (845-4641)
or visit the Viking Web site at
vikingrange.com
Side-By-Side &
Bottom-Mount Refrigerator/Freezer
F20842 EN
(011712)
Table of Contents
Warnings & Important Information_____________________________________________________ 3
Professional Side-by-Side
Dimensions & Specifications (Professional 42” & 48”) ________________________________ 6
Dimensions & Specifications (Professional 42” & 48” with flush mount trim) _____________8

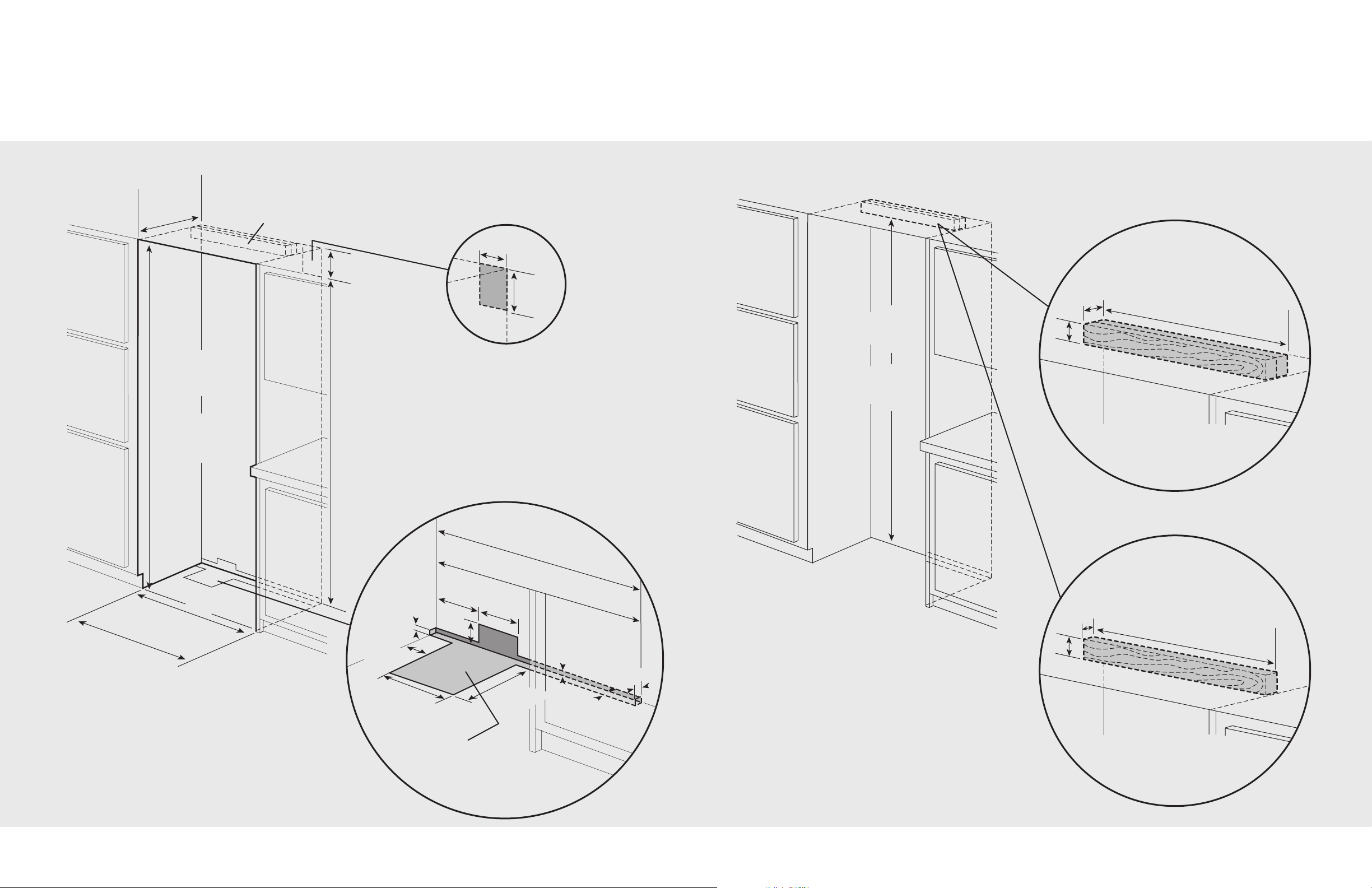

Cutout Dimensions (42”) _________________________________________________________10
Anti-Tip Dimensions (42”) ________________________________________________________11

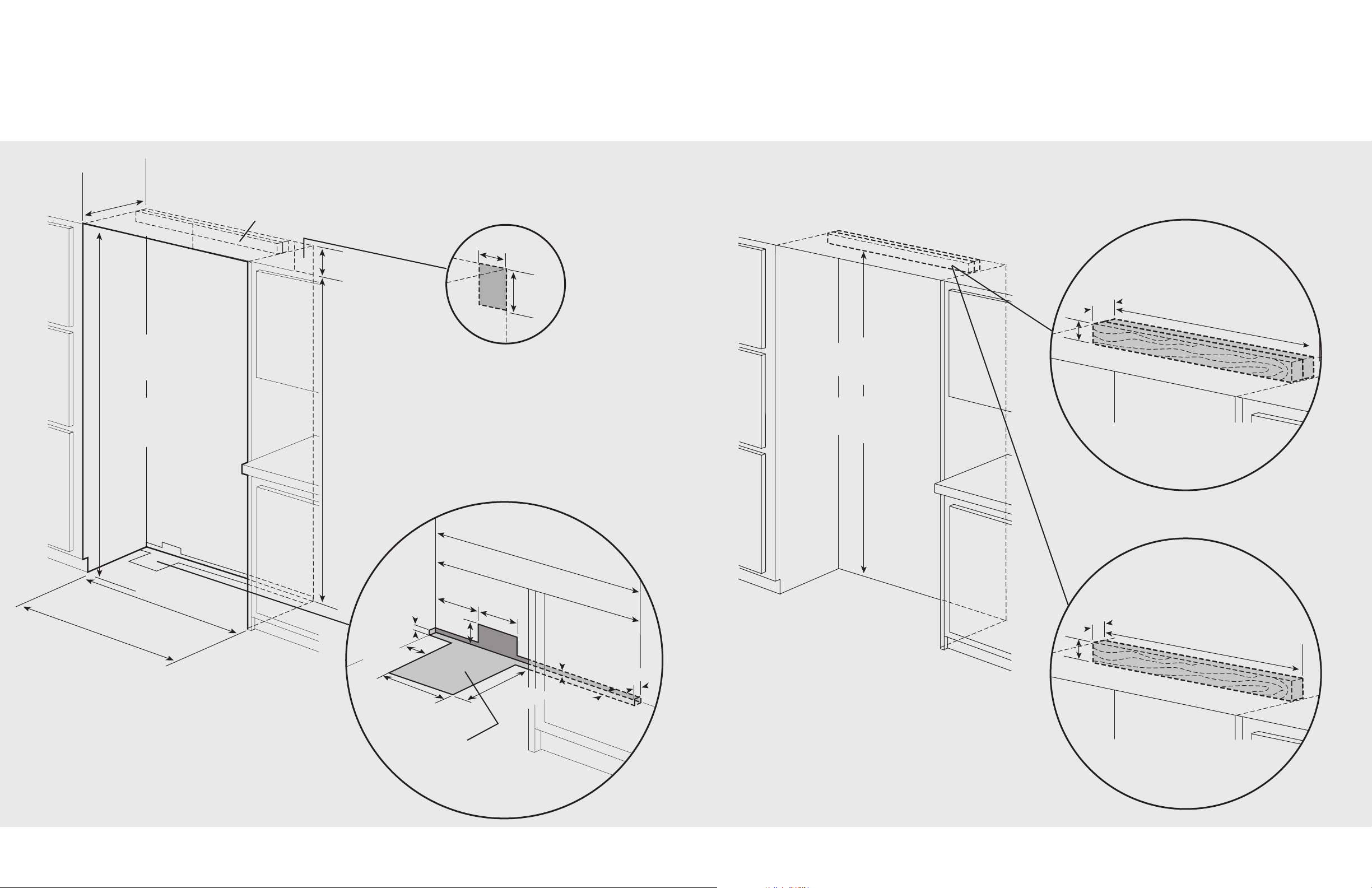

Cutout Dimensions (48”)_________________________________________________________ 12
Anti-Tip Dimensions (48”)________________________________________________________ 13
Professional Bottom-Mount

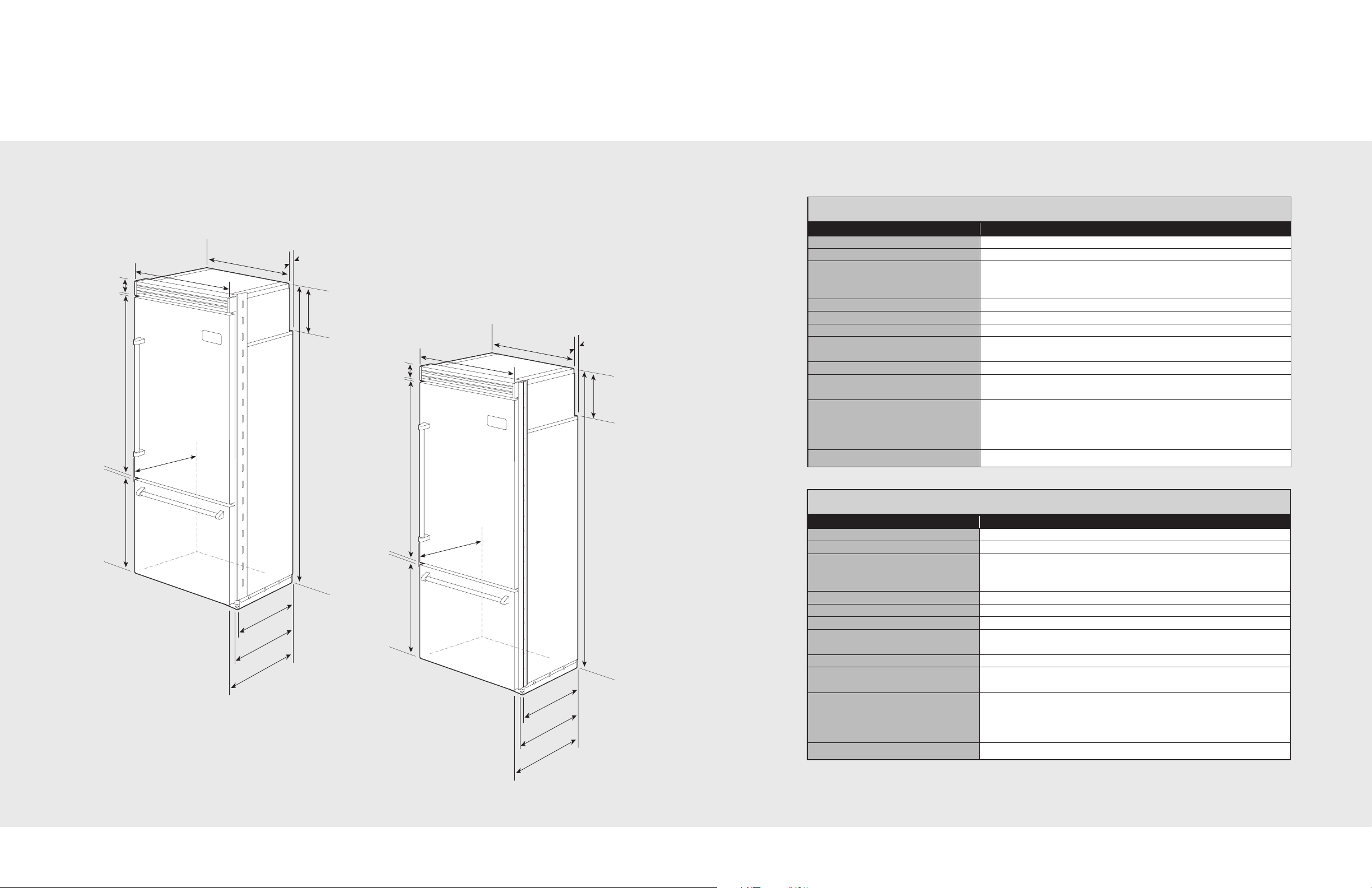

Dimensions & Specifications (36”)_________________________________________________ 14
Cutout Dimensions (36”)_________________________________________________________ 16
Anti-Tip Dimensions (36”)________________________________________________________ 17

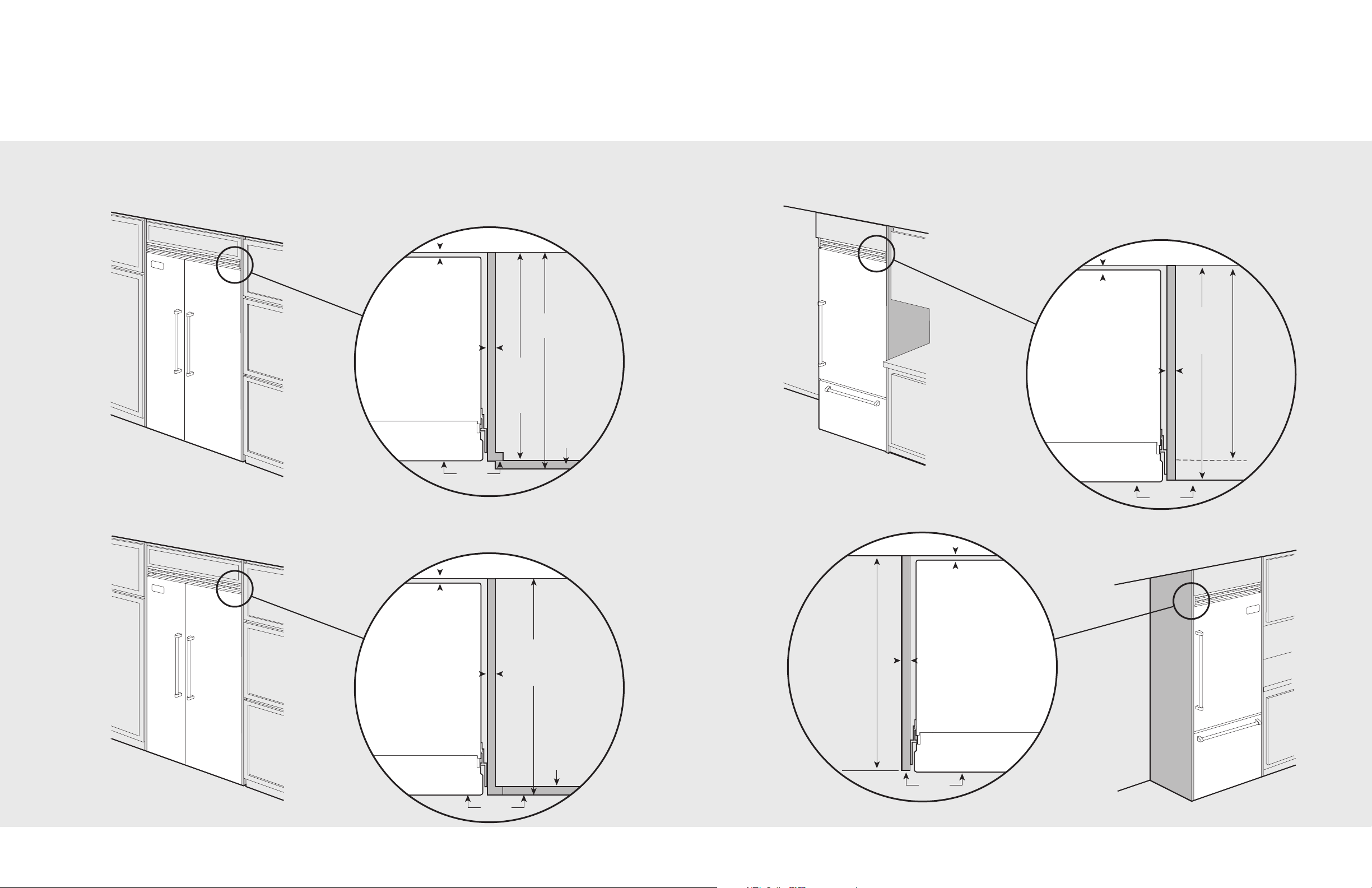

Cabinet Information (Professional) ____________________________________________________18
Cabinet Information (Professional with flush mount trim) ________________________________ 20

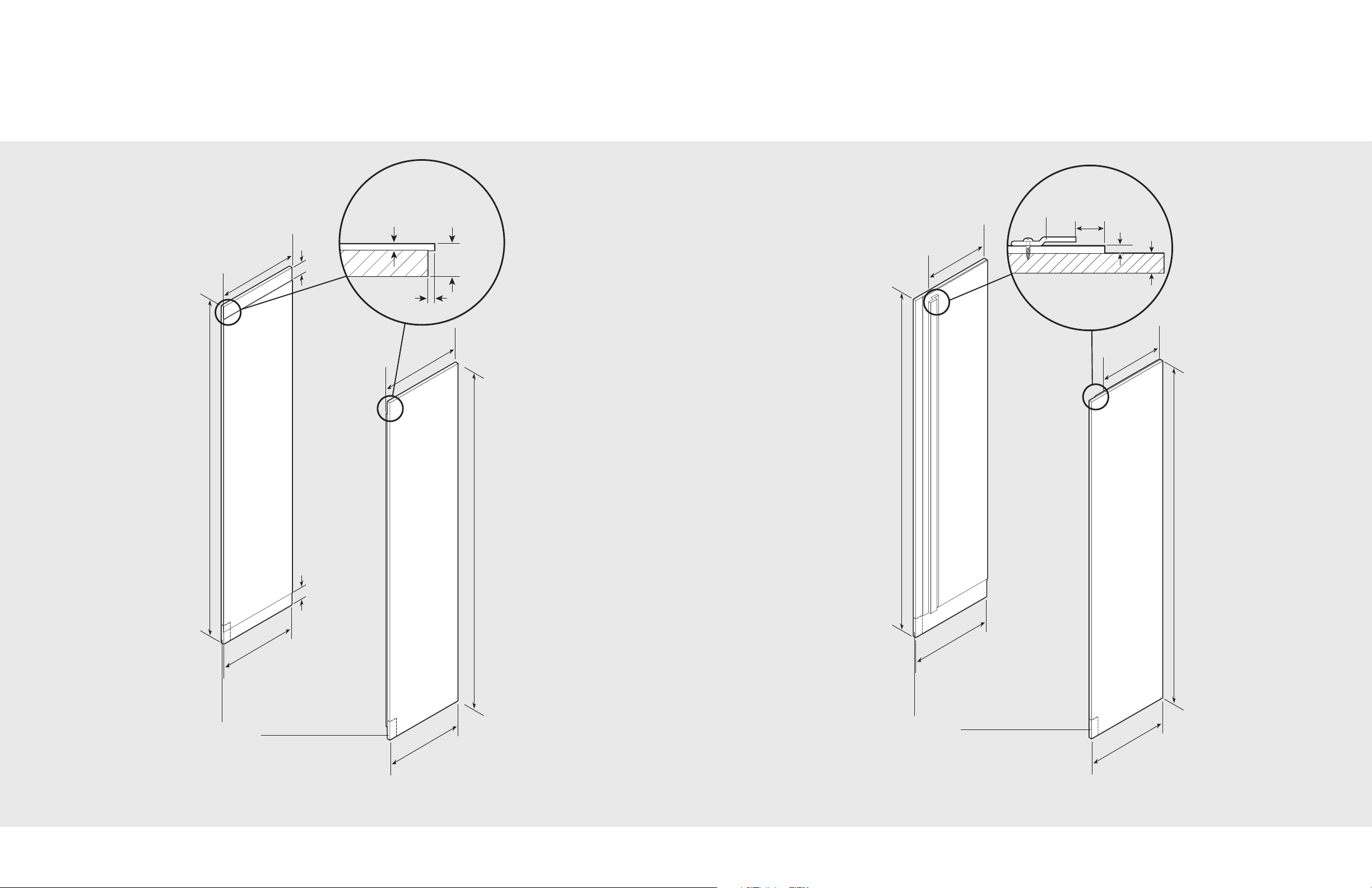

Custom Side Panel Dimensions (Professional) __________________________________________ 22
Custom Side Panel Dimensions (Professional with flush mount trim) ______________________ 23
General Information ________________________________________________________________24

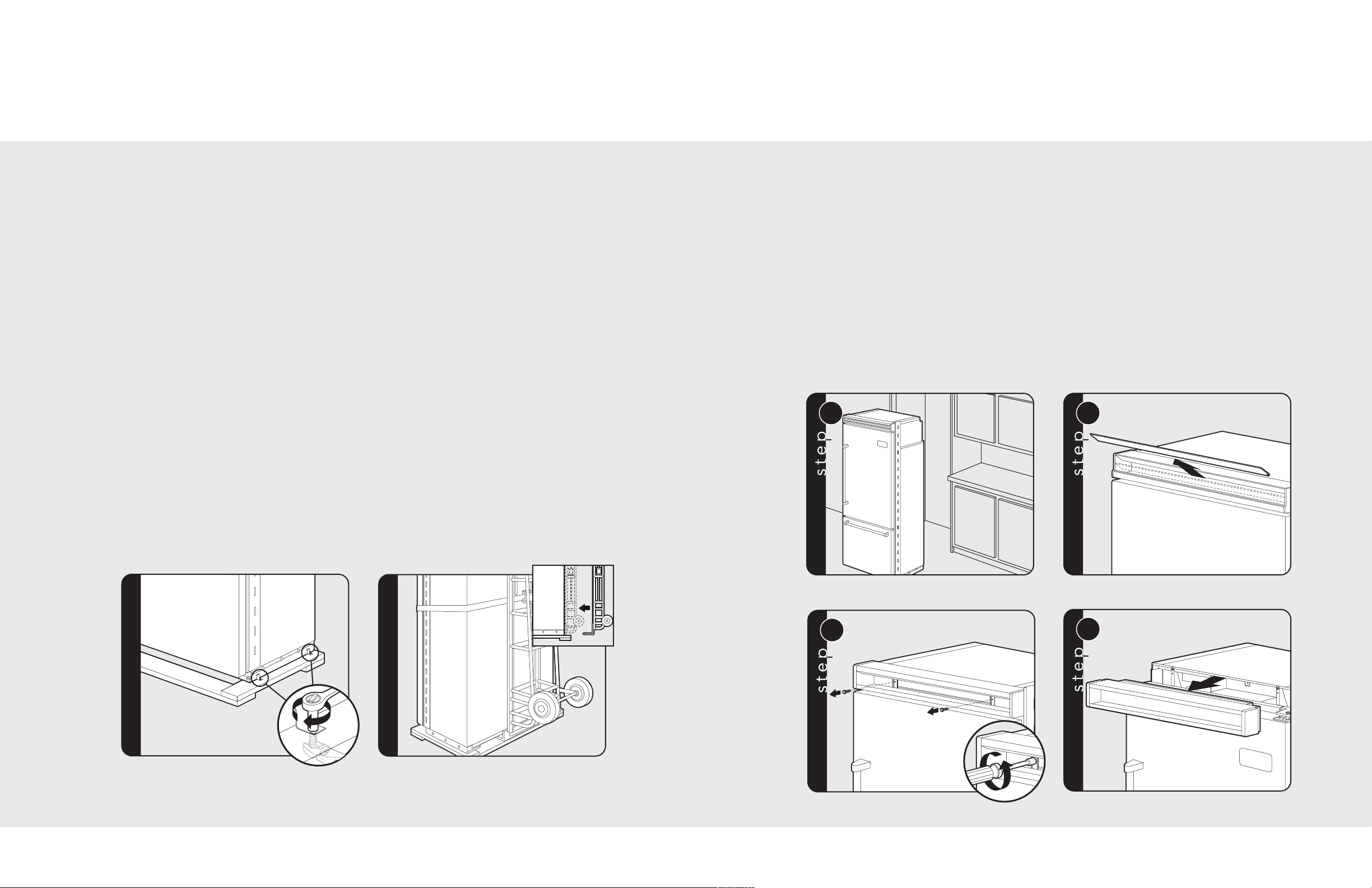

Unpacking & Moving _______________________________________________________________ 26
Flush Mount Side Trim Installation ____________________________________________________ 27
Installation_________________________________________________________________________ 27
Hinge Adjustment ______________________________________________________________ 28
Kickplate Installation ____________________________________________________________ 30
Door Stop Adjustment __________________________________________________________31
Water Filter Installation __________________________________________________________ 32
System Specifications and Data___________________________________________________ 33
Final Installation ________________________________________________________________ 34
Performance Checklist ______________________________________________________________35
Control Panels _____________________________________________________________________ 36
Service & Registration_______________________________________________________________ 37
IMPORTANT–Please Read and Follow!
• Make sure that incoming voltage is the same
as unit rating. An electric rating plate
specifying voltage, frequency, wattage,
amperage, and phase is attached to the
product.
• To reduce the risk of fire, electric shock, or
injury to persons, installation work and
electrical wiring must be done by qualified
people in accordance with all applicable
codes and standards, including fire-rated
construction.
• The installer should leave these instructions
with the consumer who should retain them
for local inspector’s use and for future
reference.
Your safety and the safety of others is
very important.
We have provided many important safety
messages in this manual and on your
appliance. Always read and obey all
safety messages.
This is the safety alert symbol. This
symbol alerts you to hazards that
can kill or hurt you and others.
All safety messages will be preceded by the
safety alert symbol and the word“DANGER”
or “WARNING.” These words mean:
D A N G E R
You will be killed or seriously injured if
you don’t follow instructions.
W A R N I N G
You can be killed or seriously injured if
you don’t follow instructions.
All safety messages will identify the
hazard, tell you how to reduce the chance
of injury, and tell you what can happen if
the instructions are not followed.
2
3
IMPORTANT–Please Read and Follow!
IMPORTANT–Please Read and Follow!
A GFI shall be used if required by NFPA-70 (National Electric Code), federal/state/local
laws, or local ordinances.
• The required use of a GFI is normally related to the location of a receptacle with respect to
any significant sources of water or moisture.
• Viking Range Corporation will NOT warranty any problems resulting from GFI outlets which
are not installed properly or do not meet the requirements below.
If the use of a GFI is required, it should be:
• Of the receptacle type (breaker type or portable type NOT recommended)
• Used with permanent wiring only (temporary or portable wiring NOT recommended)
• On a dedicated circuit (no other receptacles, switches or loads in the circuit)
• Connected to a standard breaker of appropriate size (GFI breaker of the same size NOT
recommended)
• Rated for Class A (5 mA +/- 1 mA trip current) as per UL 943 standard)
• In good condition and free from any loose-fitting gaskets (if applicable in outdoor situations)
• Protected from moisture (water, steam, high humidity) as much as reasonably possible
It is your responsibility to:
• comply with installation specifications and dimensions.
• properly install unit.
• remove any moldings or decorative panels that prevent the unit from being serviced.
• make sure that you have these materials (not provided with your unit), which are necessary
for proper installation:
• 1/4” (6 mm) copper tubing with shutoff valve
• 6– #8 x 3” (7.6 cm) wood screws (longer screws may be required)
• 1– Saddle valve (do not use self-piercing feature of the valve)
• assure that floor will support unit, door panels and contents (approximately 1200 pounds [540 kg]).
• provide a properly grounded electrical outlet.
• assure that location will permit appliance doors to open 90° minimum.
W A R N I N G
ELECTRICAL SHOCK
HAZARD
Disconnect power or turn
power disconnect switch to
OFF position before removing
top grille. Failure to do so can
result in death or electrical shock.
W A R N I N G
TIP OVER HAZARD
Appliance is top
heavy and tips easily
when not completely
installed. Keep doors
closed until appliance
is completely installed
and secured per installation instructions.
Use two or more people to move and
install appliance. Failure to do so can
result in death or serious injury.
Most of the unit’s weight is at the top. Extra care is needed when moving the unit to prevent
tipping. Use cardboard shipping material or plywood under unit until it is installed in the
operating position to protect floor surface.
4
5
Dimensions (Side-By-Side)
2
4
”
(
6
1
.
0
c
m
)
4
1
”
(
1
0
4
.
1
c
m
)
7
5
–
1
5
/
1
6
”
(
1
9
2
.
9
c
m
)
3
–
1
9
/
3
2
”
(
9
.
1
c
m
)
4
2
”
42”
4
2
”
(
1
0
6
.
7
c
m)
9
–5
/
3
2
”
(
2
3
.
3
c
m
)
8
2
–
3
/
4
”
(
2
1
0
.
2
c
m
)
m
i
n
.
to
8
4
–
1
/
1
6
”
(
2
1
3
.
5
c
m
)
m
a
x
.
2
0
–
3
/
4
”
(
5
2
.
7 c
m
)
2
2
–
3
/
1
6
”
(
5
6
.
4
c
m
)
2
4
”
(
6
1
.
0
c
m
)
4
7
”
(
1
1
9
.
4
c
m
)
7
5
–
1
5
/1
6
”
(
1
9
2
.
9
c
m
)
3
–
1
9
/
3
2
”
(
9
.
1
c
m
)
4
8
”
48”
4
8
”
(
1
2
1
.
9
c
m)
9
–5
/
3
2
”
(
2
3
.
3
c
m
)
8
2
–
3
/
4
”
(
2
1
0
.
2
c
m
)
m
i
n
.
to
8
4
–
1
/
1
6
”
(
2
1
3
.
5
c
m
)
m
a
x
.
2
0
–
3
/
4
”
(
5
2
.
7
c
m
)
1
–
1
/
2
”
(
3
.
8
c
m
)
2
2
–
3
/
1
6
”
(
5
6
.
4
c
m
)
2
6
–
1
/
2
”
(
6
7
.
3
c
m
)
1
–
1
/
2
”
(
3
.
8
c
m
)
2
6
–
1
/
2
”
(
6
7
.
3
c
m
)
Specifications (Side-By-Side)
42” Side-By-Side
42” Side-By Side
48” Side-By Side
Description VCSB5421 VCSB5421D
verall width 42” (106.7 cm)
O
Overall height from bottom 82-3/4” (210.2 cm) min. to 84-1/16” (213.5 cm) max.
Overall depth from rear To front edge of side trim: 22-3/16” (56.4 cm)
To front of top grille: 24” (61.0 cm)
To front of handle endcap: 26-1/2” (67.3 cm)
Cutout width 41-5/8” (105.7 cm) min. to 41-3/4” (106 cm) max.
Cutout height 82-7/8” (210.5 cm) min. to 84-1/16” (213.5 cm) max.
Cutout depth 24” (61.0 cm) min.
Electrical requirements 115 volt, 60 Hz, 15 amp dedicated circuit; 3-wire cord with
grounded 3-prong plug attached to product
Maximum amp usage 9.9 amps
Inlet water
Requirements
Overall interior dimensions
Refrigerator 15.0 cu. ft. (425 liters) 15.0 cu. ft. (425 liters)
Freezer 9.0 cu. ft. (255 liters) 8.9 cu. ft. (252 liters)
Total capacity 24.0 cu. ft. (680 liters) 23.9 cu. ft. (677 liters)
Approximate shipping weight 652 lbs. (293.4 kg) 676 lbs. (304.2 kg)
1/4” copper tubing inlet waterline; 1/4” copper tubing inlet waterline;
minimum 20 psi; maximum 120 psi minimum 35 psi; maximum 120 psi
48” Side-By-Side
Description VCSB5481 VCSB5481D
Overall width 48” (121.9 cm)
Overall height from bottom 82-3/4” (210.2 cm) min. to 84-1/16” (213.5 cm) max.
Overall depth from rear To front edge of side trim: 22-3/16” (56.4 cm)
To front of top grille: 24” (61.0 cm)
To front of handle endcap: 26-1/2” (67.3 cm)
Cutout width 47-5/8” (121.0 cm) min. to 47-3/4” (121.3 cm) max.
Cutout height 82-7/8” (210.5 cm) min. to 84-1/16” (213.5 cm) max.
Cutout depth 24” (61.0 cm) min.
Electrical requirements 115 volt, 60 Hz, 15 amp dedicated circuit; 3-wire cord with
grounded 3-prong plug attached to product
Maximum amp usage 9.9 amps
Inlet water
1/4” copper tubing inlet waterline; 1/4” copper tubing inlet waterline;
Requirements minimum 20 psi; maximum 120 psi minimum 35 psi; maximum 120 psi
Overall interior dimensions
Refrigerator 18.5 cu. ft. (524 liters) 18.5 cu. ft. (524 liters)
Freezer 9.0 cu. ft. (255 liters) 8.9 cu. ft. (252 liters)
Total capacity 27.5 cu. ft. (779 liters) 27.4 cu. ft. (776 liters)
Approximate shipping weight 715 lbs. (321.8 kg) 735 lbs. (330.8 kg)
6
7
Dimensions (Side-By-Side with flush mount trim)
2
4
”
(
6
1
.
0
c
m
)
4
1
”
(
1
0
4
.
1
c
m
)
7
5
–
1
5
/
1
6
”
(
1
9
2
.
9
c
m
)
3
–
1
9
/
3
2
”
(
9
.
1
c
m
)
4
2
”
42”4
2
”
(
1
0
6
.
7
c
m)
9
–5
/
3
2
”
(
2
3
.
3
c
m
)
8
2
–
3
/
4
”
(
2
1
0
.
2
c
m
)
m
i
n
.
to
8
4
–
1
/
1
6
”
(
2
1
3
.
5
c
m
)
m
a
x
.
2
0
–
3
/
4
”
(
5
2
.
7 c
m
)
2
3
–
3
/
8
”
(
5
9
.
4
c
m
)
2
4
”
(
6
1
.
0
c
m
)
4
7
”
(
1
1
9
.
4
c
m
)
7
5
–
1
5
/1
6
”
(
1
9
2
.
9
c
m
)
3
–
1
9
/
3
2
”
(
9
.
1
c
m
)
4
8
”
48”4
8
”
(
1
2
1
.
9
c
m)
9
–5
/
3
2
”
(
2
3
.
3
c
m
)
8
2
–
3
/
4
”
(
2
1
0
.
2
c
m
)
m
i
n
.
to
8
4
–
1
/
1
6
”
(
2
1
3
.
5
c
m
)
m
a
x
.
2
0
–
3
/
4
”
(
5
2
.
7
c
m
)
1
–
1
/
2
”
(
3
.
8
c
m
)
2
3
–
3
/
8
”
(
5
9
.
4
c
m
)
2
6
–
1
/
2
”
(
6
7
.
3
c
m
)
1
–
1
/
2
”
(
3
.
8
c
m
)
2
6
–
1
/
2
”
(
6
7
.
3
c
m
)
Specifications (Side-By-Side with flush mount trim)
42” Side-By-Side with Flush Mount Trim
42” Side-By-Side with
Flush Mount Trim
48” Side-By-Side with
Flush Mount Trim
Description VCSB5421/Flush Mount VCSB5421D/Flush Mount
Overall width 42” (106.7 cm)
Overall height from bottom 82-3/4” (210.2 cm) min. to 84-1/16” (213.5 cm) max.
Overall depth from rear To front edge of side trim: 23-3/8” (59.4 cm)
To front of top grille: 24” (61.0 cm)
To front of handle endcap: 26-1/2” (67.3 cm)
Cutout width 42” (106.7 cm)
Cutout height 82-7/8” (210.5 cm) min. to 84-1/16” (213.5 cm) max.
Cutout depth 24” (61.0 cm) min.
Electrical requirements 115 volt, 60 Hz, 15 amp dedicated circuit; 3-wire cord with
grounded 3-prong plug attached to product
Maximum amp usage 9.9 amps
Inlet water
requirements
Overall interior dimensions
Refrigerator 15.0 cu. ft. (425 liters) 15.0 cu. ft. (411 liters)
Freezer 9.0 cu. ft. (255 liters) 8.9 cu. ft. (255 liters)
Total capacity 24.0 cu. ft. (680 liters) 23.9 cu. ft. (677 liters)
Approximate shipping weight 625 lbs. (293.4 kg) 676 lbs. (304.2 kg)
1/4” copper tubing inlet waterline; 1/4” copper tubing inlet waterline;
minimum 20 psi; maximum 120 psi minimum 35 psi; maximum 120 psi
48” Side-By-Side with Flush Mount Trim
Description VCSB5481/Flush Mount VCSB5481D/Flush Mount
Overall width 48” (121.9 cm)
Overall height from bottom 82-3/4” (210.2 cm) min. to 84-1/16” (213.5 cm) max.
Overall depth from rear To front edge of side trim: 23-3/8” (59.4 cm)
To front of top grille: 24” (61.0 cm)
To front of handle endcap: 26-1/2” (67.3 cm)
Cutout width 48” (121.9 cm)
Cutout height 82-7/8” (210.5 cm) min. to 84-1/16” (213.5 cm) max.
Cutout depth 24” (61.0 cm) min.
Electrical requirements 115 volt, 60 Hz, 15 amp dedicated circuit; 3-wire cord with
grounded 3-prong plug attached to product
Maximum amp usage 9.9 amps
Inlet water
1/4” copper tubing inlet waterline; 1/4” copper tubing inlet waterline;
requirements minimum 20 psi; maximum 120 psi minimum 35 psi; maximum 120 psi
Overall interior dimensions
Refrigerator 18.5 cu. ft. (524 liters) 18.5 cu. ft. (507 liters)
Freezer 9.0 cu. ft. (255 liters) 8.9 cu. ft. (252 liters)
Total capacity 27.5 cu. ft. (779 liters) 27.4 cu. ft. (776 liters)
Approximate shipping weight 715 lbs. (321.8 kg) 735 lbs. (330.8 kg)
Note: Flush Mount Trim is shipped with the refrigerator in a box
marked “Refrigerator Trim Parts - DO NOT DISCARD”.
8
9
Two 2”x 4” Mounting Boards
3” (7.6 cm) x 3-1/2” (8.9 cm)
NOTE: If unit is installed deeper than
24” (61.0 cm),then shim behind the mounting
board by the difference.
One 2”x 4” Mounting Board
3” (7.6 cm) x 3-1/2” (8.9 cm)
NOTE: If unit is installed deeper than
24” (61.0 cm), then shim behind the mounting
board by the difference.
Bottom of anti-tip board is 3–7/8” (9.8 cm) below opening height.
NOTE: Top of unit must be placed firmly under anti-tip board.
Anti-Tip Location
Flush Mount Anti-Tip Location
79
–
3
/
8
”
(
2
0
1
.
6
c
m
)
m
i
n
.
t
o
b
o
t
t
o
m
o
f
a
n
t
i
-
t
i
p
b
o
a
r
d
80
–
1
/
2
”
(
2
0
4
.
6
c
m
)
m
a
x.
t
o
b
o
t
t
o
m
o
f
a
n
t
i
-
t
i
p
b
o
a
r
d
3
5
”
(
8
8
.
9
c
m
)
3
–
1
/
2
”
(
8
.
9
c
m
)
3
”
(
7
.
6
c
m
)
3
5
”
(
8
8
.
9
c
m
)
3
–
1
/
2
”
(
8
.
9
c
m
)
1
.
5
”
(
3
.
8
c
m
)
9
”
(
2
2
.
9
c
m)
7
3
-
3
/
8
”
(1
8
6
.
4
c
m
)
82
–
7
/
8
”
(
2
1
0
.
5
c
m
)
m
i
n
.
a
n
t
i
-
t
i
p
b
o
a
r
d
&
o
p
e
n
i
n
g
h
e
i
g
h
t
8
4
–
1
/
1
6
”
(
2
1
3
.
5
c
m
)
m
a
x
.
a
n
t
i
-
t
i
p
b
o
a
r
d
&
o
p
e
n
i
n
g
h
e
i
g
h
t
4
1
–
5
/
8
”
(
1
0
5
.
7
c
m
)
m
i
n
.
t
o
4
1
–
3
/
4
”
(
1
0
6
.
0
c
m
)
m
a
x
.
4
2
”
(
1
0
6
.
7
c
m
)
F
l
u
s
h
M
o
u
n
t
o
n
l
y
2
4
”
(
6
1
.
0
c
m
)
Electric Outlet Location
Water Line Entry Area
6
–
3
/
4
”
(
1
7
.
1
c
m
)
7
–
5
/
8
”
(
1
9
.
4
c
m
)
3
”
(
7
.
6
c
m
)
5
/
8
”
(
1
.
6
c
m
)
5
/
8
”
(
1
.
6
c
m
)
1
0
–
1
/
2
”
(
2
6
.
7
c
m
)
5
/
8
”
(
1
.
6
c
m
)
10
–
3/
4
”
(
2
7
.
3
c
m
)
1
”
(
2
.
5
c
m
)
3
–
5
/
8
”
(
9
.
2
c
m
)
O
p
t
i
on
a
l
f
l
o
o
r
w
a
t
e
r
l
i
n
e
e
n
t
r
y
4
2
”
(
1
0
6
.
7
c
m
)
F
l
u
s
h
M
o
u
n
t
o
n
l
y
4
1
–
5
/
8
”
(
1
0
5
.
7
c
m
)
S
e
e
A
n
t
i
-
T
i
p
b
o
a
r
d
i
n
s
t
a
l
l
a
t
i
o
n
6
”
(
1
5
.
2
c
m
)
9
”
(
2
2
.
9
c
m
)
Cutout Dimensions (Side-By-Side)
Anti-Tip Dimensions (Side-By-Side)
42” Side-By-Side
42” Side-By-Side
10
11
Loading...
