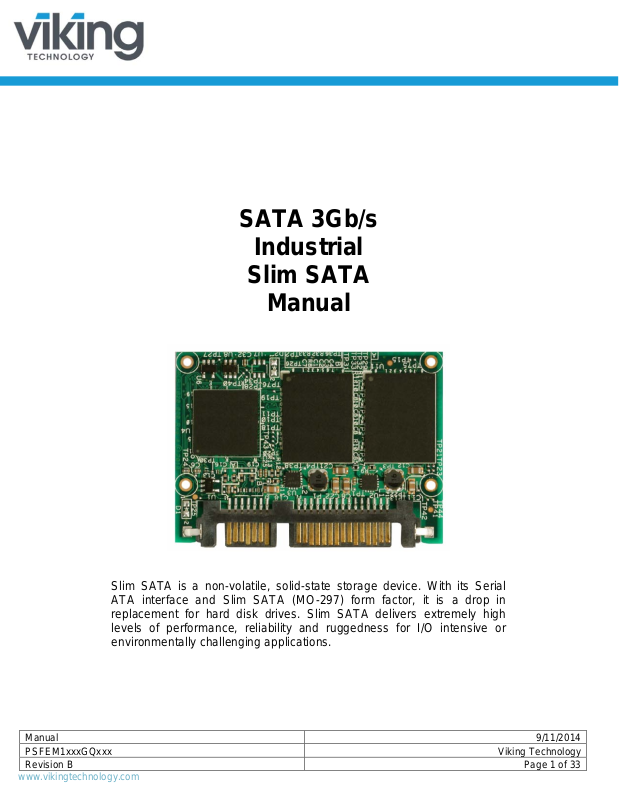

SATA 3Gb/s
Industrial
Slim SATA
Manual
Slim SATA is a non-volatile, solid-state storage device. With its Serial
ATA interface and Slim SATA (MO-297) form factor, it is a drop in
replacement for hard disk drives. Slim SATA delivers extremely high
levels of performance, reliability and ruggedness for I/O intensive or
environmentally challenging applications.
www.vikingtechnology.com
Manual
9/11/2014
PSFEM1xxxGQxxx
Viking Technology
Revision B
Page 2 of 33
Revision History
Date
Revision
Description
Checked by
Add SMART table for 3Gps. Revised
Added AES info
Add product image to 1st page.
5/10/13 A Initial Release
6/27/13 A1 Update PN table for new PN’s
7/11/13 A2 Labeled and revised SMART table
7/24/13 A3
9/09/13 A4
1/02/14 A5 Revised datasheet format
9/11/14 B Revise IOP values (7/29/14, A6)
performance numbers per lab data.
Create separate datasheets for
3Gbps. Revised extended SMART
attributes. Changed Client to
Industrial. Add MLC PN’s. Revised
performance #s. Revised PN table to
avoid confusion on I- temperature
and commercial temperature PN’s.
www.vikingtechnology.com
Manual
9/11/2014
PSFEM1xxxGQxxx
Viking Technology
Revision B
Page 3 of 33
Legal Information
Legal Information
Copyright© 2014 Sanmina Corporation. All rights reserved. The information in
this document is proprietary and confidential to Sanm ina Corporation. No part of
this document may be reproduced in any form or by any means or used to make
any derivative work (such as translation, transformation, or adaptation) without
written permission from Sanmina. Sanmina reserves the right to revise this
documentation and to make changes in content from time to time without
obligation on the part of Sanmina to provide notification of such revision or
change.
Sanmina provides this documentation without warranty, term or conditio n of any
kind, either expressed or implied, including, but not limited to, expressed and
implied warranties of merchantability, fitness for a particular purpose, and noninfringement. While the information contained herein is believed to be accurate,
such information is preliminary, and should not be relied upon for accuracy or
completeness, and no representations or warranties of accuracy or
completeness are made. In no event will Sanmina be liable for d amages arising
directly or indirectly from any use of or reliance upon the information contained in
this document. Sanmina may make improvements or changes in the product(s)
and/or the program(s) described in this documentation at any time.
Sanmina, Viking Technology, Viking Modular Solutions, and Element logo are
trademarks of Sanmina Corporation. Other company, pr oduct or service names
mentioned herein may be trademarks or service marks of their respective
owners.
www.vikingtechnology.com
Manual
9/11/2014
PSFEM1xxxGQxxx
Viking Technology
Revision B
Page 4 of 33
(GB)
(GB)1
LBA Mode
Range
Ordering Information: Slim SATA SSD Solid-State Drive
Raw
Capacity
Part Numbers
SATA
Interface
Application
VRFEM1008GQCQMxx 3Gbps Industrial 8 8 15,625,000 MLC 0 to 70c
VRFEM1016GQCQMxx 3Gbps Industrial 16 16 31,277,232 MLC 0 to 70c
VRFEM1032GQCRMxx 3Gbps Industrial 32 32 62,533,296 MLC 0 to 70c
VRFEM1064GQCSMxx 3Gbps Industrial 64 64 125,045,424 MLC 0 to 70c
VRFEM1008GQIQMxx 3Gbps Industrial 8 8 15,625,000 MLC -40 to 85c
VRFEM1016GQIQMxx 3Gbps Industrial 16 16 31,277,232 MLC -40 to 85c
VRFEM1032GQIRMxx 3Gbps Industrial 32 32 62,533,296 MLC -40 to 85c
VRFEM1064GQISMxx 3Gbps Industrial 64 64 125,045,424 MLC -40 to 85c
VRFEM14096QCGSxx 3Gbps Industrial 4 4 7,812,500 SLC 0 to 70c,
VRFEM18192QCHSxx 3Gbps Industrial 8 8 15,625,000 SLC 0 to 70c
VRFEM18192QCQQSxx 3Gbps Industrial 8 8 15,625,000 SLC 0 to 70c
VRFEM1016GQCQSxx 3Gbps Industrial 16 16 31,277,232 SLC 0 to 70c
VRFEM1032GQCRSxx 3Gbps Industrial 32 32 62,533,296 SLC 0 to 70c
VRFEM1064GQCSSxx 3Gbps Industrial 64 64 125,045,424 SLC 0 to 70c
VRFEM14096QIGSxx 3Gbps Industrial 4 4 7,812,500 SLC -40 to 85c
VRFEM18192QIHSxx 3Gbps Industrial 8 8 15,625,000 SLC -40 to 85c
VRFEM18192QIQQSxx 3Gbps Industrial 8 8 15,625,000 SLC -40 to 85c
VRFEM1016GQIQSxx 3Gbps Industrial 16 16 31,277,232 SLC -40 to 85c
VRFEM1032GQIRSxx 3Gbps Industrial 32 32 62,533,296 SLC -40 to 85c
VRFEM1064GQISSxx 3Gbps Industrial 64 64 125,045,424 SLC -40 to 85c
Notes:
1) Usable capacity based on a level of over-provisioning applied to wear leveling, bad sectors, index tables etc.
2) Higher capacity points may be available based on customer application. Consult your local Viking Field Application
Engineer.
3) SSD’s ship unformatted from the factory unless otherwise requested.
4) 1 GB = 1,000,000,000 Byte
5) One Sector = 512 Byte.
6) Contact Viking for the characters that “x” and “y” represent in the part number.
7) xx is a wild card to indicate customer sp ecific BOM, NAND configuration and/or manufacturing location
Useable
Capacity
Addressable
Sectors in
NAND
Technology
Temperature
www.vikingtechnology.com
Manual
9/11/2014
PSFEM1xxxGQxxx
Viking Technology
Revision B
Page 5 of 33
Product Picture(s)
Slim SATA Top View
www.vikingtechnology.com
Manual
9/11/2014
PSFEM1xxxGQxxx
Viking Technology
Revision B
Page 6 of 33
Industrial SSD – Viking’s Industrial SSD contains sophisticated provisio ns to
protect firmware and data from corruption due to unexpected power loss.
However, a Industrial SSD by industry definition does not contain on-board
capacitance. Should power fail unexpectedly, “in-flight” write data may be lost .
Industrial SSD’s are best used in designs that manage power fail events at the
system level.
www.vikingtechnology.com
Manual
9/11/2014
PSFEM1xxxGQxxx
Viking Technology
Revision B
Page 7 of 33
Table of Contents
1 INTRODUCTION 10
1.1 Features 10
1.2 Block Diagram 11
1.3 SATA Interface 12
2 PRODUCT SPECIFICATIONS 13
2.1 Performance 13
2.2 Timing 13
2.2.1 STANDBY IMMEDIATE Command 14
2.3 Electrical Characteristics 14
2.3.1 Absolute Maximum Ratings 14
2.3.2 Supply Voltage 14
2.3.3 Power Consumption 15
2.4 Environmental Conditions 15
2.4.1 Temperature and Altitude 15
2.4.2 Shock and Vibration 15
2.4.3 Electromagnetic Immunity 15
2.5 Reliability 16
2.6 Data Security 16
3 MECHANICAL INFORMATION 17
3.1 Slim SATA SSD Weight 18
4 PIN AND SIGNAL DESCRIPTIONS 18
4.1 Pin Locations 18
4.2 Signal and Power Description Tables 18
4.3 Hot Plug Support 19
5 COMMAND SETS 19
www.vikingtechnology.com
Manual
9/11/2014
PSFEM1xxxGQxxx
Viking Technology
Revision B
Page 8 of 33
5.1 ATA Commands 19
5.1.1 48-Bit Address Command Set 20
5.1.2 ATA General Feature Command Set 21
5.1.3 Device Configuration Overlay Command Set 21
5.1.4 General Purpose Log Command Set 21
5.1.5 Host Protected Area Command Set 21
5.1.6 Power Management Command Set 22
5.1.7 Security Mode Feature Set 22
5.1.8 Identify Device Data 23
5.1.1 S.M.A.R.T. Support 26
5.1.2 S.M.A.R.T. Command Set 27
5.2 SATA Commands 31
5.2.1 Native Command Queuing (NCQ) 31
6 REFERENCES 32
7 GLOSSARY 33
www.vikingtechnology.com
Manual
9/11/2014
PSFEM1xxxGQxxx
Viking Technology
Revision B
Page 9 of 33
Table of Tables
Table 2-1: Maximum Sustained Read and Write Bandwidth ____________________________ 13
Table 2-2: Random Read and Write Input/Out put Operations per Second (IOPS) ___________ 13
Table 2-3: Timing Specifications _________________________________________________ 13
Table 2-4: STANDBY IMMEDIATE Timing _________________________________________ 14
Table 2-5: Absolute Maximum Ratings ____________________________________________ 14
Table 2-6: Operating Voltage ___________________________________________________ 14
Table 2-7: Typical Power Consumption ___________________________________________ 15
Table 2-8: Temperature and Altitude Related Specifications ___________________________ 15
Table 2-9: Shock and Vibration Specifications ______________________________________ 15
Table 2-10: Reliability Specifications ______________________________________________ 16
Table 4-1: Serial ATA Connector Pin Signal Definit i ons _______________________________ 18
Table 4-2: Serial ATA Power Pin Definitions ________________________________________ 19
Table 5-1: Supported ATA Commands ____________________________________________ 19
Table 5-2: List of Device Identification ____________________________________________ 23
Table 5-3: Capacity specific Device Identifi cat i on ____________________________________ 26
Table 5-4: S.M.A.R.T. Command Set _____________________________________________ 28
Table 5-5: Extended SMART Attribute Table _______________________________________ 28
Table 5-6: Extended SMART Attribute Act ual Dat a ___________________________________ 29
Table 5-7: Supported S.M.A.R.T. EXECUTE OFF-LINE IMMEDIATE Subcommands ________ 31
Table of Figures
Figure 1-1: High-Level Block Diagram for VRFEM1xxxGQxxx __________________________ 11
Figure 3-1: Dimensions ________________________________________________________ 17
Figure 4-1: Layout of Signal and Power Segment Pins ________________________________ 18
www.vikingtechnology.com
Manual
9/11/2014
PSFEM1xxxGQxxx
Viking Technology
Revision B
Page 10 of 33
1 Introduction
Viking’s rugged industrial designed SSD’s offer the highest flash storage
reliability and performance in harsh environments such as shock, vibration,
humidity, altitude, ESD, and extreme temperatures.
1.1 Features
The SSD delivers the following features:
• Offers seamless SATA Revision 2.6 interface support for SATA up to
3Gb/s
• Low overall SSD power consumption
• Supports Native Command Queuing (NCQ) to 32 commands
• Compatible with all major SLC, MLC and eMLC flash technologies
• S.M.A.R.T.
• Superior wear-leveling algorithm
• Efficient error recovery
www.vikingtechnology.com
Manual
9/11/2014
PSFEM1xxxGQxxx
Viking Technology
Revision B
Page 11 of 33
1.2 Block Diagram
Figure 1-1: High-Level Block Diagram for VRFEM1xxxGQxxx
www.vikingtechnology.com
Manual
9/11/2014
PSFEM1xxxGQxxx
Viking Technology
Revision B
Page 12 of 33
1.3 SATA Interface
• The Serial ATA (SATA) interface is com pliant with the SATA IO Serial
ATA specification, revision 2.6 that supports SATA up to 3Gb/s.
• The SATA interface connects the host computer to the SSD subsystem.
• The SATA interface runs at a maximum speed of 3.0Gbps (Giga-bits per
second). If the host computer is unable to negotiate a speed of 3.0Gbps,
the SATA interface automatically renegotiates to a speed of 1.5Gbps.
For a list of supported commands and other specifics, please see Chapter 5.
www.vikingtechnology.com
Manual
9/11/2014
PSFEM1xxxGQxxx
Viking Technology
Revision B
Page 13 of 33
Access Type
VRFEM1xxxGQxxx
Sequential Read, 256K
Up to 197 MB/s
Sequential Write, 256K
Up to 85 MB/s
Access Type
VRFEM1xxxGQxxx
Read, 4K
Up to 5270 IOPS
Write, 4K
Up to 65 IOPS
Type
Average Latency
Power-On-to-Ready (POR)
550 ms
Command to DRQ
600 µsec
6
2 Product Specifications
2.1 Performance
Table 2-1: Maximum Sustained Read and Write Bandwidth
Notes:
1. Performance measured using IOmeter 06 with qu eue depth set to 32.
2. Write Cache enabled with DDR cache.
3. Refer to Application Note AN0006 for Viking SSD Benchmarking Methodology.
Table 2-2: Random Read and Write Input/Output Operations per Second
(IOPS)
Notes:
1. Performance measured using Iometer 06 with queue depth set to 32.
2. Write Cache enabled with DDR cache.
3. Random IO P S cover the entire range of legal logic al block addresses (LBA’s). Measur em ents are
performed on a full drive (all LBA’s have valid content)
4. Performance may vary by NAND type and host.
5. Refer to Application Note AN0006 for Viking SSD Benchmarking Methodology.
6. Data is based on SSD’s using Synchronous NA ND devices (ONFI or toggle mode) 32GB TosMLC
2.2 Timing
Table 2-3: Timing Specifications
Time to Erase (ATA Secure Erase) 9 sec
Notes:
1. Device measured using Drivemaster.
2. Sector Rea d/Write latency measured up to 2048 bl ock transfers (512B/sector = 1 Bl ock)
3. Queue depth set to 32 for NCQ
4. Sequential IOPS cover the entire range of legal logical block addresses (LBA’ s). Measurements are
performed on a full drive (all LBA’s have valid content)
5. DRQ (Data Transfer Requested) bit being asserted
6. Data is based on SSD’s using Synchronous NA ND devices (ONFI or toggle mode)
www.vikingtechnology.com
Manual
9/11/2014
PSFEM1xxxGQxxx
Viking Technology
Revision B
Page 14 of 33
2.2.1 STANDBY IMMEDIATE Command
Power Cycle Endurance
Min
Max
Unit
STANDBY IMMEDIATE to WE completed
-
72.9
ms
Description
Min
Max
Unit
Maximum Voltage Range for Vin
-0.2 6 V
Maximum Temperature Range
-40
85
c
Description
Min
Max
Unit
Operating Voltage for 5.0 V (+/- 5%)
4.75
5.25
V
Read/Writes (Average RMS)
215 / 310
mA
Idle
25
mA
Slumber
10
mA
The Power-On-to-Ready time assumes a proper shutdown (power removal
preceded by STANDBY IMMEDIATE comman d. A STANDBY IMMEDIATE
before power down always performs a graceful shutdown and does not require
the use of the hold-up circuit. Note that SMART attribute 174 "Unexpected Power
Loss" records the number of non-graceful power cycle events.
Table 2-4: STANDBY IMMEDIATE Timing
Notes:
1. From Standby Immediate command to NAND Write Protect enable.
2.3 Electrical Characteristics
2.3.1 Absolute Maximum Ratings
Values shown are stress ratings only. Functional operation outside normal
operating values is not implied. Extended exposure to absolute maximum ratings
may affect reliability.
Table 2-5: Absolute Maximum Ratings
2.3.2 Supply Voltage
The operating voltage is 5V.
Table 2-6: Operating Voltage
Table 2-8: Current Draw – SATA
Mode Typical1 Unit
Notes:
1. Measured using 16GB SLC, VRFEM1016GQCQS
www.vikingtechnology.com
Manual
9/11/2014
PSFEM1xxxGQxxx
Viking Technology
Revision B
Page 15 of 33
2.3.3 Power Consumption
Mode
Typical
Unit
Active
tbd
W
Idle
tbd
W
Conditions
Operating
Shipping
Storage
Commercial
- Ambient
0 to 70°C
-40 to 85°C
-40 to 85°C
Industrial
- Ambient
-40 to 85°C
-40 to 85°C
-40 to 85°C
Humidity (noncondensing)
95% under 55C
95% under 55C
95% under 55C
Description
50g, 11ms, 3 shocks applied in each direction on 3 mutually perpendicular
axes X, Y, Z
Vibration
16.4g rms 10-2,000 Hz, 3 axes
All onboard power requirements of the SSD are derived from the SATA 5.0V
input rail.
Table 2-7: Typical Power Consumption
2.4 Environmental Conditions
2.4.1 Temperature and Altitude
Table 2-8: Temperature and Altitude Related Specifications
Temperature
Temperature
Notes:
1. SLC flash based products may be available in the following temperature ranges:
a) Commercial temperature range of 0 to 70°C (32 to 158° F)
b) Industrial temperature range -40 to 85°C (-40 to 185° F)
(32 to 158° F)
(-40 to 185° F)
(-40 to 185° F)
(-40 to 185° F)
(-40 to 185° F)
(-40 to 185° F)
2.4.2 Shock and Vibration
SSD products are tested in accordance with environmental specification for
shock and vibration
Table 2-9: Shock and Vibration Specifications
Shock
2.4.3 Electromagnetic Immunity
SSD is an embedded product for host systems and is designed not to impair with
system functionality or hinder system EMI/FCC compliance.
www.vikingtechnology.com
Manual
9/11/2014
PSFEM1xxxGQxxx
Viking Technology
Revision B
Page 16 of 33
2.5 Reliability
Parameter
VRFEM1xxxGQxxx
Read Endurance
Unlimited
Write Endurance
(specified by the flash component)
Data retention
> 90 days at NAND expiration
Table 2-10: Reliability Specifications
ECC 44-bit per 1KByte
2.6 Data Security
Viking’s Slim SATA SSD’s are self-encrypting drives ( SED), with a bulk data
encryption feature that provides automatic hardware-based data security and
enhanced secure erase capability.
A self-encrypting drive, scrambles data using a data encryption key as it is
written to the drive and then descrambles it with the key as it is retrieved. This
gives the user the highest level of data protection available and provides a fast
erase simply by deleting the encryption key, eliminating the need for time
consuming data-overwrite. Data on the drive is instantly rendered unreadable.
The Slim SATA SSD supports AES-128 encryption, AES-256 encryption and
ATA Secure Erase features to protect sensitive data. The drive is also available
with TCG security enhancements.
www.vikingtechnology.com
Manual
9/11/2014
PSFEM1xxxGQxxx
Viking Technology
Revision B
Page 17 of 33
Capacity (GB)
Height (mm)
Width (mm)
Length (mm)
8 to 120
4.00 max
54 max
39.82 max
3 Mechanical Information
Figure 3-1: Dimensions
Note:
• All dimensions are in inches [millimeters].
www.vikingtechnology.com
Manual
9/11/2014
PSFEM1xxxGQxxx
Viking Technology
Revision B
Page 18 of 33
3.1 Slim SATA SSD Weight
Pin
Function
Definition
Mating Order
S1
SGND_1
Signal Ground
1st
S2
RX+ on SSD, TX+ on Host
Differential Signal
2nd
S3
RX- on SSD, TX- on Host
Differential Signal
2nd
S4
SGND_2
Signal Ground
1st
S5
TX- on SSD, RX- on Host
Differential Signal
2nd
S6
TX+ on SSD, RX+ on Host
Differential Signal
2nd
S7
SGND_3
Signal Ground
1st
The weight of a Slim SATA (MO-297) SSD is approximately 8.0 grams.
4 Pin and Signal Descriptions
4.1 Pin Locations
Figure 4-1: Layout of Signal and Power Segment Pins
Signal Segment S1 Power Segment P1
4.2 Signal and Power Description Tables
Table 4-1: Serial ATA Connector Pin Signal Definitions
Notes:
1. Key and spacing separate signal and power segments. Pin locations and layout are consistent with SATA
specification.
www.vikingtechnology.com
Manual
9/11/2014
PSFEM1xxxGQxxx
Viking Technology
Revision B
Page 19 of 33
Table 4-2: Serial ATA Power Pin Definitions
Pin
Function
Definition
Mating Order
P1
3.3V_1
No connection
2nd
P2
3.3V_2
No connection
2nd
P3
3.3V_3
No connection
1st
P4
GND_1
Ground
1st
P5
GND_2
Ground
1st
P6
GND_3
Ground
1st
P7
5V_1
5VDC Power (pre-charge)
1st
P8
5V_2
5VDC Power
2nd
P9
5V_3
5VDC Power
2nd
P10
GND_4
Ground
1st
P11
Activity
Device Activity Signal (See note1)
2nd
P12
GND_5
Ground
1st
P13
12V_1
No connection
1st
P14
12V_2
No connection
2nd
P15
12V_3
No connection
2nd
Op
Code
Op
Code
Notes:
1) Remote LED is not implemented, pin 1 1 m ay be connected to GND to allow the ACTIVITY LED to remain
on to indicate a Power On condition when using a standard ATX type power supply.
4.3 Hot Plug Support
Hot Plug insertion and removal are supported in the presence of a proper
connector and appropriate operating system (OS) support as described in the
SATA 2.6 specification. This product supports Asynchronous Signal Recovery
and will issue an unsolicited COMINIT when first mated with a powered
connector to guarantee reliable detection by a host system without hardware
device detection.
5 Command Sets
5.1 ATA Commands
Table 5-1: Supported ATA Commands
Description
Check power mode E5h Security Disable Password F6h
Data Set management 06h Security Erase Prepare F3h
DCO B1h Security Erase Unit F4h
Download Microcode PIO 92h Security Freeze Lock F5h
Download Microcode DMA 93h Security Set Password F1h
Execute drive diagnostic 90h Security Unlock F2h
Flush cache E7h Seek 70h
www.vikingtechnology.com
Description
Manual
9/11/2014
PSFEM1xxxGQxxx
Viking Technology
Revision B
Page 20 of 33
Description
Op
Code
Op
Code
Flush cache Ext EAh Set features EFh
Identify device ECh Set Max Address F9h
Idle E3h Set Max Address Ext 37h
Idle immediate E1h Set multiple mode C6h
Initialize drive parameters 91h Sleep E6h
Read buffer E4h Smart B0h
Read DMA (w/o retry) C9h Standby E2h
Read DMA (w/retry) C8h Standby immediate E0h
Read DMA Ext 25h Write buffer E8h
Read FPDMA QUEUED 60h Write DMA ( w/o retry) CBh
Read Log Ext 2Fh Write DMA (w/retry) CAh
Read multiple C4h Write DMA Ext 35h
Read multiple Ext 29h Write DMA FUA Ext 3Dh
Read native max address F8h Write FPDMA QUEUED 61h
Read native max Ext 27h Write Log Ext 3Fh
Read sector(s) (w/o retry) 21h Write multiple C5h
Read sector(s) (w/retry) 20h Write multiple Ext 39h
Read sector(s) Ext 24h Write multiple FUA Ext CEh
Read Verify Ext 42h Write sector(s) (w/o retry) 31h
Read verify sector(s) (w/o retry) 41h Write sector(s) (w/retry) 30h
Read verify sector(s) (w/retry) 40h Write sector(s) Ext 34h
Recalibrate 10h Write uncorrectable 45h
Description
5.1.1 48-Bit Address Command Set
SSD supports the 48-Bit Address command set consisting of:
• Flush Cache Ext
• Read DMA Ext
• Read native Max Address Ext
• Read Sector(s) Ext
• Set Max Address Ext
• Write DMA Ext
• Write Multiple Ext
• Write Sector(s) Ext
www.vikingtechnology.com
Manual
9/11/2014
PSFEM1xxxGQxxx
Viking Technology
Revision B
Page 21 of 33
5.1.2 ATA General Feature Command Set
SSD supports the ATA General Feature command set consisting of:
• Download Microcode
• Executive Device Diagnostics
• Flush Cache
• Identify Device
• NOP (optional)
• Read Buffer (optional)
• Read DMA
• Read Multiple
• Read Sector(s)
• Read Verify Sector(s)
• Seek
• Set Features
• Set Multiple Mode
• Write Buffer (optional)
• Write DMA
• Write Multiple
• Write Sector(s)
5.1.3 Device Configuration Over la y Comm a nd Set
SSD supports the Device Configuration Overlay command set consisting of:
• Device Configuration Freeze Lock
• Device Configuration Identity
• Device Configuration Restore
• Device Configuration Set
5.1.4 General Purpose Log Command Set
SSD supports the General Purpose Log command set consisting of:
• Read Log Ext
• Write Log Ext
5.1.5 Host Protected Area Command Set
SSD supports the Host Protected Area command set consisting of:
• Read Native Max Address
• Read Native Max Address Ext
• Set Max Address
• Set Max Address Ext
• Set Max Freeze Lock (optional)
• Set Max Lock (optional)
• Set Max Set Password (optional)
• Set Max Unlock (optional)
www.vikingtechnology.com
Manual
9/11/2014
PSFEM1xxxGQxxx
Viking Technology
Revision B
Page 22 of 33
5.1.6 Power Management C ommand Set
SSD supports the Power Management command set consisting of:
• Check Power Mode
• Idle
• Idle Immediate
• Sleep
• Standby
• Standby Immediate
• Slumber
• Partial Mode
5.1.7 Security Mode Feature Set
SSD supports the Security Mode command set consisting of:
• Security Set Password (OPCODE: F1h)
• Security Unlock (OPCODE: F2h)
• Security Erase Prepare (OPCODE: F3h)
• Security Erase Unit (OPCODE: F4h)
• Security Freeze Lock (OPCODE: F5h)
• Security Disable Password (OPCODE: F6h)
• Standby Immediate
www.vikingtechnology.com
Manual
9/11/2014
PSFEM1xxxGQxxx
Viking Technology
Revision B
Page 23 of 33
F: Fixed
X: Both
General configuration bit-significant
information
Obsolete – Number of logical cylinders
(16383)
4-5
X
00000000h
Retired
Obsolete – Number of logical sectors per
logical track (63)
Reserved for assignment by the Compact
Flash Association
22
X
0000h
Obsolete
7:0- Maximum number of sectors transferred
per interrupt on MULTIPLE commands
51-52
X
000000000h
Obsolete
Obsolete – Number of logical cylinders
(16383)
55
X
0010h
Obsolete – Number of logical heads (16)
Obsolete – Number of logical sectors per tra ck
(63)
Number of sectors transferred per inter rupt on
MULTIPLE commands
63
F
0407h
Multi-word DMA modes supported/selected
Minimum Multiword DMA transfer cycle time
per word
5.1.8 Identify Device Data
The table below lists the sector data that will be returned by the SSD upon an
IDENTIFY DEVICE command.
Table 5-2: List of Device Identification
Word
0 F 0040h
1 X 3FFFh
2 V C837h Specific configuration
3 X 0010h Obsolete – Number of logical heads (16)
6 X 003Fh
7-8 V 00000000h
9 X 0000h Retired
10-19 F Varies Serial number (20 ASCII characters)
20-21 X 0000h Retired
23-26 F Varies Firmware revision (8 ASCII characters)
27-46 F Varies Model number (xxxxxxxx)
47 F 8010h
48 F 0000h Reserved
49 F 2F00h Capabilities
50 F 4000h Capabilities
V: Variable
Default Value Description
53 F 0007h Words 88 and 70:64 valid
54 X 3FFFh
56 X 003Fh
57-58 X 00FBFC10h Obsolete – Current capacity in sectors –
59 F 0110h
60-61 F 8GB-128GB Total number of user addressable sectors
62 X 0000h Obsolete
64 F 0003h PIO modes supported
65 F 0078h
www.vikingtechnology.com
Manual
9/11/2014
PSFEM1xxxGQxxx
Viking Technology
Revision B
Page 24 of 33
Word
F: Fixed
X: Both
Manufacturer’s recommended Multiword DMA
transfer cycle time
control
Minimum PIO transfer cycle time with IORDY
flow control
microcode DMA)
000000000000000
0h
Reserved for the IDENTIFY PACKET DEVICE
command
75
F
001Fh
Queue depth
78
F
0044h
Serial ATA features supported
79
V
0040H
Serial ATA features enabled
82
F
346Bh
Command set supported
83
F
70D9h
Command set supported
87
V
6023h
Command set/feature default
Time required for security erase unit
completion
Time required for Enhanced security erase
completion
92
V
FFFEh
Master Password Revision Code
Hardware reset result. The contents of the bi ts
the execution of s hardware reset.
Vendor’s recommended and actual acoustic
management value
97
V
0000h
Streaming Access Latency – DMA and PIO
Maximum user LBA for 48 bit Address feature
set
104
V
0000h
Streaming Transfer Time – PIO
Maximum number of 512-byte blocks per
DATA SET MANAGEMENT command
66 F 0078h
V: Variable
Default Value Description
67 F 0078h
68 F 0078h
69 F 0100h
70 F 0000h Reserved
71-74 F
76 F 0706h Serial SATA capabilities
77 F 0000h Reserved for future Serial ATA definition
80 F 01F8h Major Version Number
81 F 0000h Minor Version Number
84 F 6023h Command set/feature supported extension
85 V 3469h Command set/feature enabled
86 V BC01h Command set/feature enabled
88 V 003Fh Ultra DMA Modes
Minimum PIO transfer cycle time without flow
Additional Supported (support download
89 F 001Eh
90 F 001Eh
91 V 0000h Current advanced power management value
93 F 0000h
94 V 0000h
95 F 0000h Stream Minimum Request Size
96 V 0000h Streaming Transfer Time – DMA
98-99 F 0000h Streaming Performance Granularity
100-103 V 8GB-256GB
105 F 0000h
106 F 4000h Physical sector size / Logical sector size
(12:0) of this word shall change only during
www.vikingtechnology.com
Manual
9/11/2014
PSFEM1xxxGQxxx
Viking Technology
Revision B
Page 25 of 33
Word
F: Fixed
X: Both
Inter-seek delay for ISO-7779 acoustic testing
in microseconds
0h
000000000000000
0h
116
V
0000h
Reserved
117-118
F
00000000h
Words per logical Sector
Removable Media Status Notification feature
set support
129-159
X
0h
Vendor specific
Compact Flash Association (CFA) power
mode 1
5h: < 1.8 inch
supported
206
F
0h
SCT Command Transport(
Alignment of logical blocks within a physi cal
block
Write-Read-Verify Sector Count Mode 3 (not
supported)
Write-Read-Verify Sector Count Mode 2 (not
supported)
214-216 0000h
NV Cache relate (not supported)
220
V
0h
Write read verify feature set current mode
223
F
0h
Transport minor version number
224-229 0h
reserved
Minimum number of 512-byte data blocks per
DOWNLOAD MICROCODE command for
107 F 0000h
V: Variable
Default Value Description
108-111 F
112-115 F
119 F 4015h Supported settings
120 F 4015h Command set/Feature Enabled/Supported
121-126 F 0h Reserved
127 F 0h
128 V 0021h Security status
160 F 0h
161-167 X 0h Reserved for assignment by the CFA
168 F
169 F 0001h
170-173 F 0h Additional Product Identifier
174-175 0h Reserve
176-205 V 0h Current media serial number
000000000000000
3h: 2.5 inch
4h: 1.8 inch
Unique ID
Reserved
Device Nominal Form Factor
DATA SET MANAGEMENT command is
207-208 F 0h Reserved
209 F 4000h
210-211 V 0000h
212-213 F 0000h
217 F 0001h Non-rotating media device
218 F 0h Reserved
219 F 0h NV Cache relate (not supported)
221 0h Reserved
222 F 101Fh Transport major version number
230-233 0h Extend number of user addressable sectors
234 0001h
www.vikingtechnology.com
Manual
9/11/2014
PSFEM1xxxGQxxx
Viking Technology
Revision B
Page 26 of 33
Word
F: Fixed
X: Both
mode 03h
Maximum number of 512-byte data blocks per
mode 03h
XX is variable
(GB)
*1
*2
*3
*4
(Word 1/Word 54)
(Word 57-58)
(Word 60-61)
(Word 100-103)
64
tbd
tbd
tbd
tbd
128
tbd
tbd
tbd
tbd
256
tbd
tbd
tbd
tbd
512
tbd
tbd
tbd
tbd
1000
tbd
tbd
tbd
tbd
V: Variable
Default Value Description
235 00FFh
236-254 F 0h Reserved
255 X
XXA5h
DOWNLOAD MICROCODE command for
Integrity word (Checksum and Signature)
Table 5-3: Capacity specific Device Identification
Capacity
5.1.1 S.M.A.R.T. Support
Data storage drives capture a variety of information during operation that may be
used to analyze drive ―health. SATA drives provide Se lf-Monitoring, Analysis
and Reporting Technology (SMART) features that include monitoring and storing
critical performance and calibration parameters to attempt to predict the
likelihood of near-term degradation or fault conditions. Drive manuf acturers have
adopted S.M.A.R.T. to help warn system software, a system administrator, or a
user of impending drive failure, while time remains to take preventive action.
It provides the host system with the knowledge of a negative reliability condition
to allow the host system to warn the user of the impending risk of data loss and
advise the user of the appropriate action.
The technical documentation for S.M.A.R.T. is captured in the AT Attachment
(ATA) standard. The standard defines the protocols for reporting errors and f or
invoking self-tests to collect and analyze data on demand. The ATA specification
is flexible and provides for individual manufacturers to define their own unique
vendor specific information. This section describes the baseline suppor t ed
S.M.A.R.T. command attributes. The information herein should be used in
conjunction with the ATA standard and related documents, which may serve as
www.vikingtechnology.com
Manual
9/11/2014
PSFEM1xxxGQxxx
Viking Technology
Revision B
Page 27 of 33
references for topics and details not addressed here. Further, it is recommended
to consult the list of public S.M.A.R.T. attributes.
See the AT Attachment standard for implementation details.
5.1.2 S.M.A.R.T. Command Set
The supported S.M.A.R.T. command set is listed in the table below. See the AT
Attachment standard for implementation details.
www.vikingtechnology.com
Manual
9/11/2014
PSFEM1xxxGQxxx
Viking Technology
Revision B
Page 28 of 33
Value (hex)
Command
00-CF
Reserved
D0
S.M.A.R.T. read attributes
D1*
S.M.A.R.T. read threshold
D3*
S.M.A.R.T. save attribute values
D4
S.M.A.R.T. execute off-line immediate
D5
S.M.A.R.T. read log sector
D6
S.M.A.R.T. write log sector
D7*
S.M.A.R.T. write attribute threshold
D8
S.M.A.R.T. enable operations
D9
S.M.A.R.T. disable operations
DA
S.M.A.R.T. return status
DB
S.M.A.R.T. enable/disable automatic off -line
* Note that D1, D3, and D7 have been made obsolete in the
ATA-8 specification.
SMART Attribute
ID
Description
01h
Read Error Rate
05h
Reallocated sector Count
09h
Power-On hours Count
0Ch
on/off cycles)
20h
Write Protect
A7h
SSD Protect Mode
A8h
FIS CRC
A9h
Total Bad Block Count
AAh
count)
ACh
Erase Fail Count
ADh
Erase count (average, max, erase count)
B1h
Wear Range delta
B5h
Program Fail Count
Table 5-4: S.M.A.R.T. Command Set
D2 S.M.A.R.T. enable/disable attribute aut osave
DC-FF Reserved (Vendor Specific)
5.1.2.1 Extended SMART Attributes
Table 5-5: Extended SMART Attribute Table
Drive Power Cycle Count (Number of accumulation of power
SATA PHY Error Count (only reco rd from power on, when power
off this value will clear to zero) this value include all PHY error
count, ex data FIS CRC ,code error, disparity error ,command
Max Bad Block Count (will show early bad and later bad block
www.vikingtechnology.com
Manual
9/11/2014
PSFEM1xxxGQxxx
Viking Technology
Revision B
Page 29 of 33
SMART Attribute
ID
Description
B6h
Erase Failure Block Count
B7h
Erase Count
BBh
Reported Uncorrectable Errors
C0h
Unexpected Power Loss Count
C2h
Temperature (only Toshiba or thermo sensor embedded)
C4h
Max Bad Block Count
C7h
Ultra CRC Error Count
DAh
Number of accumulation CRC error (read/write data FIS CRC
error)
E7h
Wear Range delta/SSD life remaining
E8h
Read Failure Block Count
E9h
Lifetime Writes to Flash
F1h
Host Writes
F2h
Host Reads
F6h
Total Erase Count
Table 5-6: Extended SMART Attribute Actual Data
0 1 2 3 4 5 6 7 8 9 10 11
ID Flag Flag Value Worse DATA Threshold
01h 0Bh 00h 64h 64h 0 0
05h 13h 00h 64h 64h 0 0 0 0 0 0 0 32h
09b 12h 00h 64h 64h Power on hour 0 0 0 0 0 00h
0Ch 12h 00h 64h 64h Power on/off cycles 0 0 0 00h
A8h 12h 00h 64h 64h SATA PHY error count 0 0 0 00h
A9h 13h 00h Fla6 Fla6 E (Note) D (Note)
AAh 02h 00h Fla10 Fla10 Early Bad Block 0 0
ACh 32h 00h 64h 64h Erase Fail Count 0 0 0 0 0 00h
ADh 12h 00h 64h 64h Max Erase Count
Uncorrectable ECC
Count
Ave Erase Count
(Fla4)
0 0 0 32h
Total Bad
Block Count
Later Bad
Block
0 0 0 00h
0 0Ah
0 0Ah
www.vikingtechnology.com
Manual
9/11/2014
PSFEM1xxxGQxxx
Viking Technology
Revision B
Page 30 of 33
0 1 2 3 4 5 6 7 8 9 10 11
ID Flag Flag Value Worse DATA Threshold
B1h 00h 00h 00h 00h Fla7 0 0 0 0 0 0 00h
B5h 12h 00h 64h 64h
Program Fail
Count
0 0 0 0 0 00h
B6b 32h 00h 00h 00h Erase Fail Count 0 0 0 0 0 00h
B7h 12h 00h 64h 64h Fla4 Max Erase Count
BBh 32h 00h 64h 64h
C0h 12h 00h 64h 64h
C2h 23h 00h
100-
Current
Temp
100-
Highest
Value
Uncorrectable
Count
0 0 0 0 0 00h
Number of Accidental Power
Loss Count
Current Temp Lowest Temp Highest Temp 0 1Eh
Min Erase
Count
0 64h
0 0 0 00h
C4b 13h 00h Fla8 Fla8 B (Note) A (Note) C (Note) 0Ah
C7h 32h 00h 64h 64h CRC Error Count 0 0 0 0 0 00h
DAh 0Bh 00h 64h 64h CRC Error Count 0 0 0 32h
E7h 13h 00h 64h 64h Fla9 0 0 0 0 0 0 00h
Read
E8h 0Bh 00h 64h 64h
Fail
0 0 0 0 0 0 00h
Count
E9h 0Bh 00h 64h 64h Lifetime Writes to Flash by Sector 0 00h
F1h 12h 00h 64h 64h Lifetime Writes from Host by Sector 0 00h
F2h 12h 00h 64h 64h Lifetime Reads from Host by Sector 0 00h
F6h 12h 00h 64h 64h Total Erase Count 0 00h
Notes:
Formula:
Fla4 = Total Erase Count / disk Total B l ocks (average Erase Count
Fla6 = (100 * (D- Total Bad Block Count) / (D-E)) Max = 100, Min = 1
Fla7 = 100*((Max Erase Count- F1a4)/Flash PE Cycle (MLC 3000, SLC 10000) )
Fla8 = (100*(A-C))/A (Note) Min = 1
Fla9 = 100- (100*(F1a4/ Flash PE Cycle (MLC 3000, SLC 10000)
Fla10 = (100*G)/F Max = 100, Mi n = 1
www.vikingtechnology.com
Manual
9/11/2014
PSFEM1xxxGQxxx
Viking Technology
Revision B
Page 31 of 33
A: Number of free blocks when SSD changes to Write protect mode. (Plane)
Value
Description
02h
Execute S.M.A.R.T. Extended self-test routine immediately in off-line mode
04h
Execute S.M.A.R.T. Selective self-test routine immediately in off-line mode
7Fh
Abort off-line mode self-test routine
81h
Execute S.M.A.R.T. Short self-test routine immediately in captive mode
82h
Execute S.M.A.R.T. Extended self-test routine immediately in captive mode
84h
Execute S.M.A.R.T. Selective self-test routine immediately in captive mode
B: Maximum Acceptable Number of Bad Blocks (Plane)
C: Number of Maximum Bad Blocks (Plane)
D: Number of free blocks when SSD change s to Write protect mode. (All Plane)
E: Acceptable Number of Bad Blocks (All Plane)
5.1.2.2 Off-line Mode
SSD’s support the optional 28-bit S.M.A.R.T. EXECUTION OFF-LINE
IMMEDIATE (B0h/D4h) command per the ATA-8 specification. This command
causes the SSD to initiate the collection of S.M.A.R.T. data in an off-line mode
and then preserves this data across power and reset events. Supported
subcommands include those shown in the table below. Reference the ATA-8
specification for subcommand detail.
Table 5-7: Supported S.M.A.R.T. EXECUTE OFF-LINE IMMEDIATE
Subcommands
00h Execute S.M.A.R.T. off-line routine immediately in off-line mode
01h Execute S.M.A.R.T. Short self-test routine immediately in off-line mode
5.2 SATA Commands
The SATA 2.6 specification is a super set of the ATA/ATAPI-7 specification with
regard to supported commands. SSD’s support the following features that are
unique to the SATA specification.
5.2.1 Native Command Queuing (NCQ)
SSD’s support the Native Command Queuing (NCQ) command set, which
consists of
• READ FPDMA QUEUED
• WRITE FPDMA QUEUED
Note: With a maximum queue depth less than or equal to 32.
www.vikingtechnology.com
Manual
9/11/2014
PSFEM1xxxGQxxx
Viking Technology
Revision B
Page 32 of 33
6 References
• Serial ATA Specification, Revision 2 .6
www.vikingtechnology.com
Manual
9/11/2014
PSFEM1xxxGQxxx
Viking Technology
Revision B
Page 33 of 33
Term
Definition
ATA
Advanced Technology Attachment
ATAPI
Advanced Technology Attachment Packet Interface
BER
Bit error rate, or percentage of bits that have errors relative to the total number of bits
received
DIPM
power state changes.
DMA
Direct Memory Access
eMLC
Enterprise Multi-Level Cell
EXT
Extended
FP
First Party
GB
Giga-byte defined as 1x109 bytes
HDD
Hard Disk Drive
Hot Plug
A term used to describe the removal or insertion of a S ATA storage drive when the
system is powered on.
IOPS
Input output operations per second
LBA
Logical Block Address
MB
Mega-bytes defined as 1x106 bytes
MLC
Multi-Level Cell
MTBF
Mean Time Between Failures
NCQ
commands to maximize execution efficiency.
NOP
No Operation
OS
Operating System
Port
The point at which a SATA drive physically conne cts to the SATA controller.
RMS
Root Mean Squared
RPM
Revolutions Per Minute
SAS
Serial Attached SCSI
SATA
Serial ATA
SFF
Small Form Factor
SLC
Single Level Cell
S.M.A.R.T.
reports potential problems.
SSD
Solid-State Drive
7 Glossary
This document incorporates many industry and device specific words. The
following list defines a variety of these terms and acronyms.
Device Initiated Link Power Management. The abi l i ty of the device to request SATA link
Native Command Queuing. The ability of the SATA hard drive to queue and re-order
Self-Monitoring, Analysis and Reporting Technolo gy: an open standard for developing
hard drives and software systems that aut om atically monitors a hard drive’s health and
www.vikingtechnology.com
Loading...
