Viking Professional VDB450SS, Professional 450 Series, Designer 450 Series, Professional 200 Series, Designer 325 Series Installation Manual
Viking Range Corporation
111 Front Street
Greenwood, Mississippi 38930 USA
(662) 455-1200
For product information,
call 1-888-VIKING1 (845-4641)
or visit the Viking Web site at
vikingrange.com
F20408G EN
(122109J)

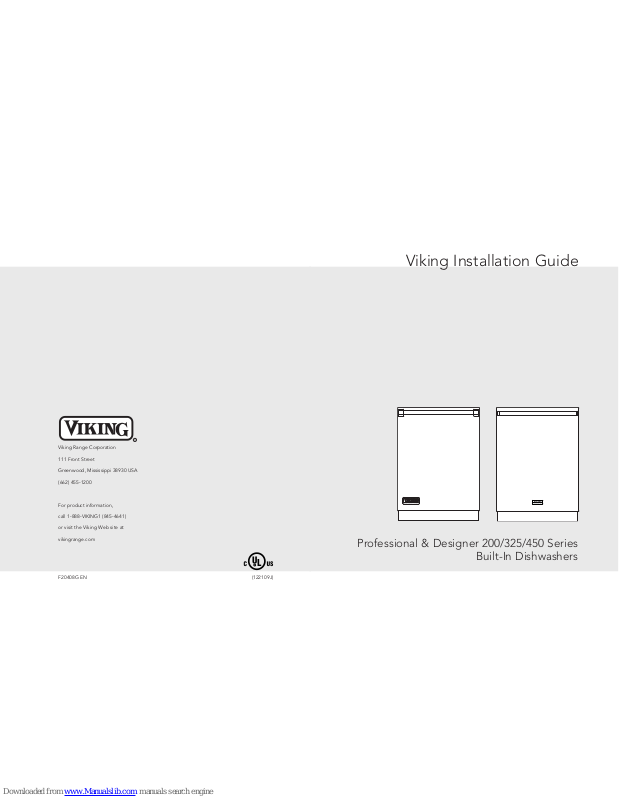

Professional & Designer 200/325/450 Series
Built-In Dishwashers
Viking Installation Guide
IMPORTANT–Please Read and Follow!
3
Site Preparation
It is recommended that a thorough site inspection be
conducted PRIOR to unpacking and moving this appliance.
WARNING
Make sure that incoming voltage is the
same as unit rating. An electric rating
plate specifying voltage, hertz, and amps
is attached to the product. Wiring the
dishwasher with more voltage than it is
rated for may cause severe damage. To
reduce the risk of fire, electric shock, or
injury to persons, installation work and
electrical wiring must be done by qualified
technician in accordance with all
applicable codes and standards, including
fire-rated conditions.
WARNING
The dishwasher door may not stay open
by itself until the door panel is installed.
Be aware of this when fastening the
dishwasher to the cabinet.
WARNING
Plumbing connections must comply with
applicable sanitary, safety and plumbing
codes.
WARNING
Electrical power must be turned off at
circuit breaker or fuse box before making
electrical connections. Disconnect the
electrical power supply and place a tag at
the disconnect switch indicating that you
are working on the circuit.
• Before beginning–please read these
instructions completely and carefully.
• Do not remove permanently affixed labels,
warnings, or rating plates from the
dishwasher. This may void warranty or
create an unsafe product.
• Please observe all national and local
codes.
• Please ensure that this product is properly
grounded.
• The installer should leave these
instructions with the consumer who should
retain for local inspector’s use and for
future reference.
• The dishwasher has a factory installed
backflow preventer. Do not add an
additional check valve.
• Failure to provide a 20” above floor level
(50.8 cm) high loop may result in improper
operation of the dishwasher.
Table of Contents
Warnings & Important Information ______________________________________ 3
Dimensions & Cutout Dimensions ______________________________________ 6
Specifications ________________________________________________________ 7
Custom Door Panel Specifications ______________________________________ 8
Custom Door Panel Installation Option _________________________________ 9
General Information _________________________________________________ 10
Site Preparation __________________________________________________ 10
Water Supply ____________________________________________________ 10
Drain____________________________________________________________ 10
Electrical Connections ____________________________________________ 11
Hardwire Conduit Option _____________________________________________ 12
Trim Installation Options _____________________________________________ 13
Counter Balance Spring Adjustment ___________________________________ 16
Installation Procedure_________________________________________________ 17
Performance Checklist _______________________________________________ 21
Testing for Leaks _________________________________________________ 21
Final Preparation _________________________________________________ 21
Service & Registration ________________________________________________ 22
2
54
IMPORTANT–Please Read and Follow!
IMPORTANT–Please Read and Follow!
A GFI shall be used if required by NFPA-70 (National Electric Code), federal/state/local
laws, or local ordinances.
• The required use of a GFI is nor mally related to the location of a receptacle with respect to
any significant sources of water or moisture.
• Viking Range Corporation will NOT warranty any problems resulting from GFI outlets which
are not installed properly or do not meet the requirements below.
If the use of a GFI is required, it should be:
• Of the receptacle type (breaker type or portable type NOT recommended)
• Used with permanent wiring only (temporary or portable wiring NOT recommended)
• On a dedicated circuit (no other receptacles, switches or loads in the circuit)
• Connected to a standard breaker of appropriate size (GFI breaker of the same size NOT
recommended)
• Rated for Class A (5 mA +/- 1 mA trip current) as per UL 943 standard
• In good condition and free from any loose-fitting gaskets (if applicable in outdoor situations)
• Protected from moisture (water, steam, high humidity) as much as reasonably possible
WARNING
Tip Over Hazard
Do not use dishwasher until completely installed.
Do not push down on open door.
Doing so can result in serious injury or cuts.
WARNING
Electrical Shock Hazard
Electrically ground dishwasher.
Connect ground wire to green ground connector
in terminal box.
Do not use an extension cord.
Failure to follow these instructions, can result in
death, fire or electrical shock.
WARNING
Excessive Weight Hazard
Use two or more people to move and install
dishwasher.
Failure to do so can result in back or other injury.
Dimensions & Cutout Dimensions
6 7
2
3
-
7
/
8
”
(
6
0
.
6
c
m
)
2
8
-
3
/
4
”
(
7
3
.
0
c
m
)
3
3
-
7
/
8
”
(
8
6
.
0
c
m
)
4
9
”
(
1
2
4
.
5
c
m
)
26-3/8”
23-3/4”
2-5/8”
26-3/8”
23-1/8”
3-3/16”
Cabinet Flush
Panel Flush
26-3/8”
23-1/8”
2-7/8”
26-3/8”
23-3/4”
2-1/4”
Panel FlushCabinet Flush
23-1/8”
23-3/4”
Panel FlushCabinet Flush
Designer Series
Professional Series
Custom Panel (200/450 Models)
2
4
”
(
6
1
.
0
c
m
)
2
4
”
(
6
1
.
0
c
m
)
3
4
”
mi
n
.
(
8
6
.
4
c
m
)
3
5
”
m
a
x
.
(
8
9
.
0
c
m
)
Note: A 2”
(5.1 cm) cut-out is
required for
water supply and
discharge lines.
(
59.0 cm)
(60.3 cm)
(6.7 cm)
(8.1 cm)
(
67.0 cm)
(
67.0 cm)
(67.0 cm)
(60.3 cm)
(60.3 cm)
(67.0 cm)
(59.0 cm)
(7.3 cm)
(5.7 cm)
(59.0 cm)
Specifications
Built-In Dishwasher
Description
200/325/450 Models
Overall width
23-7/8” (60.6 cm)
Overall height from floor
33-7/8” (86.0 cm) min. to 35” (89.0 cm) max.
Overall depth from rear–Professional
To edge of side - 24” (61.0 cm) - includes door panel
With door open - 49” (124.5 cm)
Overall depth from rear–Designer
To edge of side - 24” (61.0 cm) - includes door panel
With door open - 49” (124.5 cm)
Cutout width
24” (61.0 cm)
Cutout height
34” (86.4 cm) min. to 35” (89.0 cm) max.
Cutout depth
24” (61.0 cm)
Electrical requirements
15.0 amps, 120VAC/60 Hz;
Power cord must be
p
urchased separately.
15.0 amps, 120VAC/60 Hz;
5’ (1.8 m) electrical cord
3
prong
plug supplied with unit.
15.0 amps, 120VAC/60 Hz;
5’ (1.8 m) electrical cord
3
prong
plug supplied with unit.
Water-heating element rating
200 model - 1200 watts 325/450 model - 1400 watts 325/450 model - 1400 watts
Inlet water temperature
120°F (49°C) recommended;
Dishwasher will perform properly with cold water
Note: Cycle times will vary
Inlet water pressure operating range
10 to 125 psi (.69 to 8.62 bar)
Inlet water hose
5’
(1.5 m) braided stainless steel water line with 3/8” (0.95 cm) compression
fitting connected to dishwasher
Drain hose
7’ (2.13 m) 1/2” (1.3 cm) ID “crimp-proof” flexible drain hose attached to
dishwasher, connections provided for 5/8” (1.6 cm),
3/4” (1.9 cm) or
1” (2.5 cm), cut as required
Drain hose high loop required
Height from floor - 20” (51.0 cm) min.
Approximateshipping weight
200 model - 147 lbs.
(66.7 kg)
325 model - 152 lbs.
(68.9 kg)
450 model - 157 lbs.
(71.2 kg)
