CCoonnggrraattuullaattiioonnss .. .. ..

Your purchase of this product attests to the importance you
place upon the quality and performance of the major appliances you
use. With minimal care, as outlined in this guide, this product is
designed to provide you with years of dependable service. Please take
the few minutes necessary to learn the proper and efficient use and
care of this quality product.

We appreciate your choosing a Viking Range Corporation
product, and hope that you will again select our products for your
other major appliance needs.

TTaabbllee ooff CCoonntteennttss

Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Important Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . 4

Cooking Utensils . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Before Your Use Your New Range . . . . . . . . . . . . . . . . . . . . . 7

Basic Functions of Your Oven . . . . . . . . . . . . . . . . . . . . . . . . . 7

Using Your Range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Oven Operations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

Cleaning and Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . .32

Self-Clean Cycle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37

Power Failure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39

Service Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40

Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Rear Cover

3

--DDoo nnoott ssttoorree oorr uussee ggaassoolliinnee oorr ootthheerr ffllaammmmaabbllee vvaappoorrss aanndd
lliiqquuiiddss iinn tthhee vviicciinniittyy ooff tthhiiss oorr aannyy o

otthheerr aapppplliiaannccee..

WWHHAATT TTOO DDOO IIFF YYOOUU SSMMEELLLL GGAASS

--DDoo nnoott ttrryy ttoo lliigghhtt aannyy aapppplliiaannccee

--DDoo nnoott ttoouucchh aannyy eelleeccttrriiccaall sswwiittcchh;; ddoo nnoott uussee aannyy pphhoonnee iinn
yyoouurr

bbuuiillddiinngg..

--IImmmmeeddiiaatteellyy ccaallll yyoouurr ggaass ssuupppplliieerr ffrroomm aa nneeiigghhbboorr’’ss pphhoonnee..
FFoollllooww tthhee ggaass ssuupppplliieerr’’ss iinns

sttrruuccttiioonnss..

--IIff yyoouu ccaannnnoott rreeaacchh yyoouurr ggaass ssuupppplliieerr,, ccaallll tthhee ffiirree ddeeppaarrttmmeenntt..

--IInnssttaallllaattiioonn aanndd sseerrvvi

iccee mmuusstt bbee ppeerrffoorrmmeedd bbyy aa qquuaalliiffiieedd

iinnssttaalllleerr,, sseerrvviiccee aaggeennccyy,, oorr tthhee ggaass ssuupppplliieerr..

WWAARRNNIINNGG

IIff tthhee iinnffoorrmmaattiioonn iinn tthhiiss mmaannuuaall iiss nnoott ffoolllloowweedd eexxaaccttllyy,, aa ffiirree

oorr eexxpplloossiioonn mmaayy rreessuulltt ccaauussiinngg pprro

oppeerrttyy ddaammaaggee,, ppeerrssoonnaall

iinnjjuurryy oorr ddeeaatthh..

WWAARRNNIINNGG

11.. RReeaadd aallll iinnssttrruuccttiioonnss bbeeffoorree uussiinngg tthhee pprroodduucctt..

22.. IInnssttaallll oorr llooccaattee tthhee pprroodduucctt oonnllyy iinn aaccccoorrdda

annccee wwiitthh tthhee

pprroovviiddeedd IInnssttaallllaattiioonn IInnssttrruuccttiioonnss..

WWAARRNNIINNGG

••TTHHIISS RRAANNGGEE CCAANN TTIIPP

••IINNJJUURRYY TTOO PPEERRSSOONNSS CCOOUULLDD RREESSUULLTT

••IINNSSTTAALLLL AANNTTII--TTIIPP DDEEVVIICCEE PPAACCEEDD
WWIITTHH RRAANNGGEE

••SSEEEE IIN

NSSTTAALLLLAATTIIOONN IINNSSTTRRUUCCTTIIOONNSS

5

10. The flame of the open-top burner should be adjusted to just cover
the bottom of the pan or pot. Excessive burner setting may cause
scorching of adjacent countertop surfaces, as well as the outside of
the utensil. This is based on safety considerations.

11. Use dry pot holders. Moist or damp pot holders on hot surfaces
may result in burns from steam. Do not let potholder touch hot
surface areas. Do not use a towel or other bulky cloth.

12. To reduce the risk of burns, ignition of flammable materials, and
spillage due to unintentional contact with the utensil, the handle of
a utensil should be positioned so that it is turned inward toward
the center of the range, and so that it does not extend over
adjacent burners.

13. Surface areas near burners may become hot enough to cause
burns. During and after use, do not touch areas near burners until
they have had sufficient time to cool.

14. Once the unit is installed as outlined in the Installation Instructions,
it is important that the fresh air supply is not obstructed.

15. The flueway must also remain clear.

16. Storage cabinet area above the unit must be 36” (91.4 cm) and
cannot project more than 13” (33.0 cm) outward from the rear wall.
Beware of potential hazards associated with retrieving items from
such cabinets when the unit is in operation.

17. Keep area clean and free from combustible material, gasoline, and
other flammable liquids.

4

IImmppoorrttaanntt SSaaffeettyy IInnssttrruuccttiioonnss

1. Your unit should be installed by a qualified technician. The
appliance must be installed and electrically grounded according to
local codes. Have the technician show the location of the gas
shut-off valve on the range so you know where and how to turn off
the gas if necessary.

2. Do not attempt to repair or replace any part of this appliance
unless specifically recommended in this manual. All servicing
should be referred to a qualified technician. Warranty service must
be performed by an authorized service agency.

3. The “push-to-turn” knobs of this range are designed to be child­safe. However, children should not be left alone in the kitchen
while the range is in use. Do not store items of interest to children
over the unit.

CCAAUUTTIIOONN::

Children climbing to reach items could

be seriously injured.

4. GREASE is flammable and should be handled carefully. Do not
use water on grease fires. Never pick up a flaming pan. Smother
flaming pan by covering utensil completely with well-fitting lid,
cookie sheet or flat tray. Flaming grease outside of utensil can be
extinguished with baking soda or, if available, a multipurpose dry
chemical or foam type extinguisher.

5. Never leave the surface area unattended at high heat setting.
Boil-overs cause smoking and greasy spill-overs which may ignite.

6. If you are “flaming” liquor or other spirits under an exhaust,

TTUURRNN

TTHHEE FFAANN OOFFFF..

The draft could cause the flames to spread out of

control.

7. Wear proper apparel. Loose-fitting or hanging garments should
never be worn while using the appliance.

8. Never use your range for warming or heating a room. This is
based on safety considerations.

9. Use proper pan size. Select utensils having flat bottoms large
enough to cover the burner. Using undersized utensils allows the
flame to come up the side of the utensil, scorching the outside of
the utensil and making cleanup harder.

WWAARRNNIINNGG

To reduce the risk of fire, electrical shock, injury to persons, or damage
when using the oven, follow basic precautions, including the following:

7

BBeeffoorree YYoouu UUssee YYoouurr NNeeww RRaannggee

All products are wiped clean with solvents at the factory to
remove any visible signs of dirt, oil, and grease which may have
remained from the manufacturing process. Before starting to cook,
clean the range thoroughly with hot, soapy water.

SStteeeell GGrriiddddllee//SSiimmmmeerr PPllaattee

The griddle is a heavy-weight, polished steel griddle that has a
USDA authorized protective coating. No additional seasoning is
needed for efficient use. Before using, remove protective coating with
vinegar and water and rinse well. After rinsing, coat griddle well with
an unsalted cooking oil or spray.

GGrriillll ((IIff aapppplliiccaabbllee))

The grates should be removed and washed in hot soapy water,
rinsed and then replaced prior to use. Other grill parts should be
removed, dusted, and replaced making sure that no flammable
materials have been accidentally placed in the grill.

DDrriipp TTrraayy//PPaann

The drip tray should be pulled out and checked for flammable
materials. Make sure to unwrap the drip pan and replace it in its
proper place under the griddle or grill (if applicable).

OOvveenn

Before first use, wipe interior with soapy water and dry thoroughly.
Then set the oven thermostat to 250

o

F and operate for an hour.

BBaassiicc FFuunnccttiioonnss ooff YYoouurr OOvveenn

NNAATTUURRAALL AAIIRRFFLLOOWW BBAAKKEE
Heat is radiated from the U­shaped bake burner in the bottom
of the oven cavity and is circulated
with natural airflow. This is your
traditional bake setting

6

18. No attempt should be made to operate the appliance during
power outage.

19. A risk of tip-over may result if the appliance is not installed in
accordance with installation instructions including excessive
loading of the oven door or from abnormal usage.

20. Do not attempt to operate the appliance during power failure.

21. Do not heat unopened food containers; buildup of pressure may
cause the container to explode and result in injury.

22. Never sit, step, stand, or lean on any part of the oven, or injury
may result.

23. Use care when opening oven door. Let hot air or steam escape
before removing or replacing food.

24. Do not clean door gasket. It is essential for a good, tight seal.
Care should be taken not to rub, damage, or move the gasket.

25.

NNoo ccoommmmeerrcciiaall oovveenn cclleeaanneerr oorr oovveenn lliinneerr pprrootteeccttiivvee ccooaattiinngg ooff
aannyy kkiinndd sshhoouulldd bbee uusseedd

iinn oorr aarroouunndd aannyy ppaarrtt ooff tthhee oovveenn..

26.

BBeeffoorree sseellff--cclleeaanniinngg tthhee oovveenn,, rreemmoovvee bbrrooiilleerr ppaann,, bbrrooiilleerr ggrriidd,

,

oovveenn rraacckkss,, rraacckk ssuuppppoorrttss,, aanndd ootthheerr uutteennssiillss.. DDoo nnoott uussee yyoouurr
oovveenn ttoo cclleeaann ootthheerr ppaarrttss.. AA ffaann n

nooiissee sshhoouulldd bbee hheeaarr ssoommeettiimmee

dduurriinngg tthhee cclleeaanniinngg ccyyccllee.. IIff nnoott,, ccaallll sseerrvviiccee bbeeffoorree sseellff--cclleeaanniinngg
aa

ggaaiinn..

CCooookkiinngg UUtteennssiillss

Each cook has his or her own preference for the particular
cooking utensils that are most appropriate for the type cooking being
done. Any and all cooking utensils are suitable for use in the range
and it is not necessary to replace your present domestic utensils with
commercial cookware. This a matter of personal choice. As with any
cookware, yours should be in good condition and free from excessive
dents on the bottom to provide maximum performance and
convenience.

NNOOTTEE:: WWHHEENN UUSSIINNGG BBIIGG PPOOTTSS AANNDD//OORR HHIIGGHH
FFLLAAMMEESS,, IITT IISS RREECCOOMMMMEENNDDEEDD TTOO UUSSEE TTHHEE FFRROONNTT BBUURRNNEERRSS..
TTHHEERREE I

ISS MMOORREE RROOOOMM IINN TTHHEE FFRROONNTT AANNDD PPOOTTEENNTTIIAALL CCLLEEAANNUUPP

OOFF RREEAARR OORR AAPPPPLLIIAANNCCEE DDUUEE TTOO SSTTAAIINNIINNGG OORR DDIISSCCOOLLOORRAATTIIOON

N

WWIILLLL BBEE MMIINNIIMMIIZZEEDD..

9

CCOONNVVEECCTTIIOONN DDEEHHYYDDRRAATTEE
With the temperature control on
175

o

F, warm air is radiated from the U­shaped bake burner in the bottom of
the oven cavity and is circulated by a
motorized fan in the rear of the oven.
Over a period of time, the water is
removed from the food by
evaporation. Removal of water
inhibits growth of microorganisms and
retards the activity of enzymes. It is
important to remember that
dehydration does not improve the
quality , so only fresh, top-quality
foods should be used.

CCOONNVVEECCTTIIOONN DDEEFFRROOSSTT
With temperature control off, air is
circulated by a motorized fan in the
rear of the oven. The fan accelerates
natural defrosting of the food without
heat. To avoid sickness and food
waste, do not allow defrosted food to
remain in the oven for more than two
hours.

SSEELLFF--CCLLEEAANN
This range features an automatic
pyrolytic self-cleaning cycle. During
this cycle, the oven reaches elevated
temperatures in order to burn off soils
and deposits. A powder ash residue
is left in the bottom of the oven after
completion of the self-clean cycle.
When oven has cooled, remove ash
with a damp sponge or cloth.

8

IINNFFRRAARREEDD BBRROOIILL
The broil burner at the top of the
oven heats the metal screen until it
glows. The glowing screen
produces the infrared heat, searing
the outside of broiled foods and
sealing in juices.

CCOONNVVEECCTTIIOONN BBAAKKEE
Heat is radiated from the U-shaped
bake burner in the bottom of the
oven cavity and is circulated by the
motorized fan in the rear of the
oven. It provides more even heat
distribution throughout the oven
cavity for all uses. Multiple rack use
is possible for the largest baking
job. When roasting, cool air is
quickly replaced - searing meats on
the outside and retaining more
juices and natural flavor on the
inside with less shrinkage.

IINNFFRRAARREEDD CCOONNVVEECCTTIIOONN BBRROOIILL
Exactly the same as regular broiling
with the additional benefit of air
circulation by the motorized fan in
the rear of the oven. The cool air is
quickly replaced-improving the
already high performance of the
infrared broil burner.

11

SSuurrffaaccee CCooookkiinngg TTiippss

•Use low or medium flame heights when cooking in utensils that are
poor conductors of heat, such as glass, ceramic, and cast-iron.
Reduce the flame height until it covers approximately 1/3 of the
utensil diameter. This will ensure more even heating within the utensil
and reduce the likelihood of burning or scorching the food.

•Reduce the flame if it is extending beyond the bottom of the utensil.
A flame that extends along the sides of the utensil is potentially
dangerous, heats the utensil handle and kitchen instead of the food,
and wastes energy.

•Reduce the flame height to the minimum level necessary to perform
the desired cooking process. Remember that food cooks just as
quickly at a gentle boil as it does at a rolling boil. Maintaining a
higher boil than is necessary wastes energy, cooks away moisture, and
causes a loss in food flavor and nutrient level.

TTEEMMPPEERRAATTUURREE SSEETTTTIINNGG GGUUIIDDEELLIINNEESS**

HEA

T SETTING USE

Simmer Melting small quantities.

Steaming rice.

HI-Simmer Simmering small quantities, sauces.

Low Melting large quantities
Low - Med Low-temperature frying. (eggs, etc.)

Simmering large quantities
Heating milk, cream sauces, gravies, puddings.

Med Sauteing and browning

Braising, pan-frying
Maintaining slow boil on large quantities.

Med-HI High-temperature frying.

Pan broiling
Maintaining fast boil on large quantities

HI Boiling water quickly.

Deep-fat frying in large utensil

*NOTE: The above information is given as a guide only. You may

need to vary the heat settings to suit your personal
requirements.

10

UUssiinngg YYoouurr RRaannggee

LLiigghhttiinngg tthhee BBuurrnneerrss

SSuurrffaaccee BBuurrnneerrss--AAuuttoommaattiicc RReeiiggnniittiioonn

To light the surface burners, turn the appropriate control knob
counter clockwise to any position. This control is both a gas valve and
an electric switch. Burners will ignite at any “on” position with the
automatic reignition system. If the flame goes out for any reason, the
burners will automatically reignite if the gas is still flowing. When gas is
permitted to flow to the burners, the electric igniters start sparking.
On all surface igniters you should hear a “clicking” sound. If you do
not, turn off the control and check that the unit is plugged in and that
the fuse or circuit breaker is not blown or tripped.

Within a few moments, enough gas will have traveled to the
burner to light. When the burner lights, turn the burner control to any
position to adjust the flame size. Setting the proper height for the
desired cooking process and selected utensil will result in superior
cooking performance, while also saving time and energy.

SSIIMMMMEERR

HHII

LOW

13

GGrriillll OOppeerraattiioonn

•Turn on ventilator (separate product).

•Turn control knob to HI.

•Preheat on HI for 5 to 10 minutes.

•Place food on grill, cook as desired.

GGrriillll CCooookkiinngg TTiippss

•When grilling chicken, roasts, well done steaks or chops and thick
pieces of meat, sear on HI. Then, reduce the heat setting to prevent
excessive flare-up. This will allow the food to cook through without
burning the outside.

•After steaks, chops, or hamburgers have been allowed to sear for
approximately 1 minute, you may slide a spatula under the meat and
turn it approximately 90

o

so that a waffle pattern will be seared onto

the food.

•Use a metal spatula instead of tongs or a fork to turn the meat. A
spatula will not puncture the meat allowing juices to escape.

•Turn the meat over only once. Juices are lost when steaks, chops or
hamburgers are turned several times. The best time to turn the meat
is after the juices have begun to bubble to the surface.

•To test for doneness, make a small slash in the center of the meat, not
the edge. This will prevent loss of juices.

•Occasionally there may be flare-ups or flames above the grill due to
drops of fat falling onto the flame spreader. It is normal to have some
flare-up during grilling. Use a long handled spatula to move food to
another area until the flames subside.

GGrriiddddllee CCooookkiinngg CChhaarrtt

FFoooodd

oo

FF

oo

CC
Eggs 250-300 121-149
Bacon 325-300 163-177
Pancakes 375-400 191-177
French Toast 400 205
Fish Fillets 300 149
Hamburger 350 177
Steaks 350 177

12

GGrriiddddllee//SSiimmmmeerr PPllaattee,, BBaakkee BBuurrnneerr,, IInnffrraarreedd BBuurrnneerr

Turning the thermostat counter clockwise to any “on” position
activates a glo-bar igniter and opens an electromechanical valve in the
system to start the gas valve. The griddle has a power “ON” light
which glows when the griddle thermostat is turned on. the light cycles
on and off with the burner. It is not possible to use both the infrared
burner and the bake burners at the same time. The design of the
system will not permit this, both for control of bake/broiler and for
safety of use.

GGrriiddddllee//SSiimmmmeerr PPllaattee OOppeerraattiioonn

•Turn the griddle control knob to desired temperature setting.

•Always turn off when not in use, or lower the heat between cooking

loads.

CCooookkiinngg TTiippss

•Preheat griddle to the desired temperature. Wait until light cycles off

for indication that the desired temperature has been reached and the
griddle is preheated.

•Use liquid cooking oil, cooking sprays, or butter for eggs, pancakes,

French toast, fish and sandwiches. This will help to reduce sticking.
Meats usually have enough natural oils.

•Remove food particles with a metal spatula during cooking to make

the cleanup easier and to avoid including those particles in the food.

•Do not overheat the griddle. Turn off when not in use, or lower heat

between cooking loads.

•After using and cleaning the griddle, the surface should be wiped with

a light film of cooking oil to protect the finish from rust and corrosion.

15

FFOOOODD WWEEIIGGHHTT FFLLAAMMEE TTOOTTAALL SSUUGGGGEESSTTEEDD SSPPEECCIIAALL IINNSSTTRRUUCCTTIIOONNSS

OORR SSIIZZEE CCOOOOKKIINNGG TTIIMMEE AANNDD TTIIPPSS

T

THHIICCKKNNEESSSS

MEATS
PPoorrkk
Chops 1/2”(1.3 cm) Med 20-40 minutes Remove excess fat from

1”(2.5cm) Med 35-60 minutes edge. Slash remaining fat at

two-inch intervals to keep
edges from curling. Grill,
turning once, and moving if
necessary. Cook well done.

RRiibbss

Med 45-60 minutes Grill, turning occasionally.

During the last few minutes,
brush with barbeque sauce,
turning several times.

Ham Steaks 1/2” High 12-15 minutes Remove excess fat from
(fully cooked) (1.3 cm) edge. Slash remaining fat at

two-inch intervals. Grill,
turning once.

Hot Dogs Med 5-10 minutes Slit skin before cooking.

Grill, turning once.

PPOOUULLTTRRYY
CChhiicckkeenn
Broiler/Fryer 2-3 pounds Low or 1-1 1/2 hours Place skin side up. Grill,

Halves or (.9-1.4 kg) Med 40-60 minutes turn, and brush frequently
Quarters with melted butter,

margarine, oil, or marinade.

FFIISSHH AANNDD
SSEEAAFFOOOODD

Steaks

Halibut 3/4”-1” Med 8-15 minutes Grill, turning once; brush
Salmon (1.9-2.5 cm) to High with melted butter,
Swordfish margarine, or oil to keep fish

moist.

Whole

Catfish 4-8 ounces Med 12-20 minutes

(Same as for steaks)

Trout (113-227g) to High

GGrriillll CCooookkiinngg CChhaarrtt

14

GGrriillll CCooookkiinngg CChhaarrtt

FFOOOODD WWEEIIGGHHTT FFLLAAMMEE TTOOTTAALL SSUUGGGGEESSTTEEDD SSPPEECCIIAALL IINNSSTTRRUUCCTTIIOONNSS

OORR SSIIZZEE CCOOOOKKIINNGG TTIIMMEE AANNDD TTIIPPSS

T

THHIICCKKNNEESSSS

BBeeeeff
Hamburger 1/2-3/4” Med 8-15 minutes Grill, turning once when

(1.3-1.9cm) juices rise to the surface.

We recommend that ground
chuck be used for
hamburgers, as it will give
you a juicer hamburger than
ground round. Do not leave
hamburgers unattended
since a flare-up could occur
quickly.

SStteeaakkss
Rib, Club,
Porterhouse,
T-Bone
Sirloin
Rare 1”(2.5 cm) High 8-12 minutes Remove excess fat from
(140

o

F/60oC) 1 1/2” High 11-16 minutes edge. Slash remaining fat at

(3.8 cm) 2” (5.1 cm) intervals to keep

edges from curling. Grill,
Medium 1”(2.5 cm) Med 12-20 minutes turning once.
(160

o

F/71oC) 1 1/2” to High 16-25 minutes

(3.8 cm)

Well-done 1”(2.5 cm) Med 20-30 minutes
(170

o

F/77oC) 1 1/2” to High 25-35 minutes

(3.8 cm)

Tenderloin 5 pounds High 30-40 minutes Remove surface fat and

(2.3 kg) connective tissue. Fold over

thin end to form uniformly

thick piece. Bind with string.

Grill turning to brown evenly.

Brush often with melted

butter, margarine or oil.

Cook until rare.

17

KKiittcchheenn EEqquuiivvaalleennttss aanndd MMeettrriiccss

Measur

e Equivalent Metric*
1 tablespoon 3 teaspoons 15 mL
2 tablespoons 1 ounce 30 mL
1 jigger 1 1/2 ounces 45 mL
1/4 cup 4 tablespoons 60 mL
1/3 cup 5 tbsp. plus 1 tsp. 80 mL
1/2 cup 8 tablespoons 125 mL
1 cup 16 tablespoons 250 mL
1 pint 2 cups 30 grams
1 pound 16 ounces 454 grams

2.21 pounds 35.3 ounces 1 kilogram

*Rounded for easier measuring

OOvveenn OOppeerraattiioonn

OOvveenn FFuunnccttiioonn SSeelleeccttoorr
Each oven has an oven function selector.
There are five settings on the selector.

•Bake: Heat is radiated from the U-shaped
bake burner in the bottom of the oven
cavity and is circulated with natural airflow.
This is your traditional bake setting. Use
this setting for baking and roasting on a
single rack, preferably in the center of the
oven.

•Infrared Broil: The broil burner at the top of the oven heats the metal
screen until it glows. The glowing screen produces the infrared heat,
searing the outside of broiled foods and sealing in juices.

•Convection Bake: Heat is radiated from the U-shaped bake burner in
the bottom of the oven cavity and is circulated by the motorized fan in
the rear of the oven. It provides more even heat distribution
throughout the oven cavity for all uses. Multiple rack use is possible for
the largest baking job.

SSEELLFF--

CCLLEEAANN

CCOONNVV

BBRROOIILL

BBRROOIILL

16

CCooookkiinngg SSuubbssttiittuuttee CChhaarrttss

In many cases, a recipe requires an ingredient which is not readily
available or calls for a unit of measure that is not easily recognized.
The following charts have been provided as useful guides in these
situations.

IInnggrreeddiieenntt SSuubbssttiittuutteess

Recipe calls for: Use:
1 Tbsp. cornstarch 2 Tbsp. flour (thickening)

1 whole egg 2 egg yolks plus 1 Tbsp. water

1 c. whole milk 1 c. skim milk plus 2 Tbsp.

margarine or

1/2 c. evaporated milk plus

1/2 c. water

1 oz unsweetened chocolate 3 Tbsp. cocoa powder plus

1 Tbsp. margarine

1 Tbsp. baking powder 1/2 tsp. cream of tartar plus

1/4 tsp. baking soda

1/2 c. butter 7 Tbsp. margarine or shortening

1 c. dairy sour cream 1 Tbsp. lemon juice plus

1 c. evaporated milk

CCaannnneedd FFoooodd SSiizzeess

Sizes

Contents Sizes Contents
8 oz 1 cup No. 303 2 cups
Picnic 1 3/4 cups No. 2 2 1/2 cups
No. 300 1 3/4 cups No. 3 4 cups
No. 1 tall 2 cups No. 10 12 cups

19

CCoonnvveeccttiioonn BBaakkiinngg
Convection baking is the process of cooking food with a flow of heated
air circulating throughout the oven cavity. The even circulating of this
air equalizes the temperature throughout the oven cavity and
eliminates the hot and cold spots found in conventional ovens. This
feature can make a significant difference in foods prepared in the oven.
A major benefit of convection baking is the ability to prepare food in
quantity. The uniform air circulation makes this possible . . . a feature
not possible in a standard oven. With this heating system, the air is
distributed evenly throughout the oven by the hot air fan. The heat
therefore reaches the food to be baked or roasted more quickly. With
this heating method, foods can be baked and roasted at the same time
with minimal taste transfer, even when different dishes are involved,
such as cakes, fish, or meat. The hot air system is especially
economical when thawing frozen food.

RRaacckk PPoossiittiioonnss
Each convection oven is equipped with three tilt-proof racks, and each

convectional oven is equipped with three-tilt proof racks. All ranges
have six rack positions. Position 6 is the farthest from the oven bottom.
Position 1 is the closest to the oven bottom. The racks can be easily
removed and arranged at various levels. For best results with
conventional baking, do not use more than one rack at a time. It is
also recommended when using two racks, to bake with the racks on
position 5 and 3.

PPoossiittiioonn 66
PPoossiittiioonn 55
PPoossiittiioonn 44
PPoossiittiioonn 33
PPoossiittiioonn 22
PPoossiittiioonn 11

18

•Infrared Convection Broil: Exactly the same as regular broiling with the
additional benefit of air circulation by the motorized fan in the rear of
the oven. The cool air is quickly replaced-improving the already high
performance of the infrared broil burner.

•Self-Clean: This range features an automatic pyrolytic self-cleaning
cycle. During this cycle, the oven reaches elevated temperatures in
order to burn off soils and deposits.

NNOOTTEE::

Ranges that have two

ovens, only one oven can be self-cleaned at a time.

TTeemmppeerraattuurree CCoonnttrroollss

Each oven has a temperature control dial.
The control can be used to set any
temperature from 150

0

F to 5500F, broil, or
self-clean. Always be sure the controls are in
the “Off” position when the oven is not in
use.

NNaattuurraall AAiirrffllooww BBaakkiinngg// CCoonnvveeccttiioonn BBaakkiinngg

PPrreehheeaattiinngg
Preheating the oven is not necessary when using temperatures below

250

0

F. For best results, it is extremely important that you preheat the
oven when baking cakes and other items that have critical baking
temperatures. After the temperature control has been set, the Oven
Indicator light goes out when the oven reaches that temperature.
Preheating normally takes no longer than 10-15 minutes.

NNaattuurraall AAiirrffllooww BBaakkiinngg
This conventional baking/roasting is particularly suitable for dishes

which require a high temperature. Many cookbooks contain recipes to
be cooked in the conventional manner. This bake setting is only
recommended for single-rack baking.

220000

330000

21

BBaakkiinngg TTiippss

•

AAss aa ggeenneerraall rruullee,, ttoo ccoonnvveerrtt ccoonnvveennttiioonnaall rreecciippeess ttoo ccoonnvveeccttiioonn
rreecciippeess,, rreedduuccee tthhee ccooookkiinngg ttiimmee b

byy aapppprrooxxiimmaatteellyy 1100 ttoo 1155%%..

•Some recipes, especially those that are homemade, may require
adjustment and testing when converting from standard to convection
modes. If unsure how to convert a recipe, begin by preparing the
recipe in conventional bake. After achieving acceptable results, follow
the convection guidelines listed for the similar food type. If the food
is not prepared to your satisfaction during the first convection trial,
adjust only one recipe variable at a time (cooking time, rack position,
or temperature) and repeat the convection test. Continue adjusting
one recipe variable at a time until satisfactory results are achieved.

•Make sure the oven racks are in the desired positions before you turn
the oven on.

•For best results, always preheat the oven with the convection fan off.

•Do not open the oven door frequently during baking. If you must
open the door, the best time is during the last quarter of the baking
time.

•Bake to shortest time suggested and check for doneness before
adding more time. For baked goods, a stainless steel knife placed in
the center of the product should come clean when done.

•Use good quality baking pans and sizes recommended in the recipe;
warped, dented, or burned pans should not be used.

•Shiny metal pans are preferred for baking items such as cakes,
cookies, and muffins because they produce light, golden crusts due to
heat being reflected by the metal.

•Glass pans may also be used for cake baking. Reduce the oven
temperature by 25 degrees when using a glass pan, but bake for the
same amount of time called for in the recipe.

•Pies are best baked in pans which absorb and hold heat. Glass,
enamel, dull-finished metal, and porcelain enamel finish give pies a
golden brown crust.

20

TToo BBaakkee::

1. Arrange the oven racks in the desired position BEFORE heating the
oven. If cooking on two racks at the same time, use rack positions 3
and 5.

2. Turn the Oven Function selector to desired function. Cooking starts
immediately and stops when the Oven Function selector is turned
to OFF.

3. Set the Temperature Control to the desired temperature.

4. Place the food in the oven after the Oven Indicator light goes out.

PPaann PPllaacceemmeenntt TTiippss

•When using large (15” x 13” [38 cm x 33 cm]) flat pans or trays that

cover most of the rack, rack positions 2 or 3 produce the best results.

•Stagger pans in opposite directions when two racks and several pans

are used. No pan should be directly above another.

•Allow 1 1/2” to 2” (3.8 cm to 5.1 cm) of air space around all sides of

each pan for even air circulation.

•When baking on

more than one rack,
it is recommended
to use the 3rd and
5th position for
more consistent
even baking.

23

SSoollvviinngg BBaakkiinngg PPrroobblleemmss

Baking problems can occur for many reasons. Check the chart for the
causes and remedies for the most common problems. It is important
to remember that the temperature setting and cooking times you are
accustomed to using with your previous oven may vary slightly from
those required with this oven. If you find this to be true, it is necessary
for you to adjust your recipes and cooking times accordingly.

BBAAKKIINNGG PPRROOBBLLEEMM RREEMMEEDDIIEESS
PPRROOBBLLEEMM CCAAUUSSEE RREEMMEEDDYY
Food browns Improper heating Preheat until oven
unevenly indicator light goes out.

Aluminum foil on rack Remove foil.
or oven bottom
Baking utensils too large Use correct size utensil.
for the recipe or oven.
Several utensils crowded Leave at least 1 1/2”
together (3.8 cm) or more space

between all utensils and

oven walls.
Food too brown Baking utensil too large Use correct utensil
on bottom Baking utensil dark or glass Lower oven temperature

25

o

F (-3.8 oC) for this type

of utensil.
Food dries Oven temperature too high Lower oven temperature
before Oven door opened too Check food at minimum
browning frequently time.
Cookies too Pans too deep Use a cookie sheet (not a
brown on baking pan).
bottom Dark cookie sheet Use light, shiny cookie

sheet.

Oven temperature too high Lower oven temperature
Cookies too Hot cookie sheet Allow cookie sheet to
flat cool between batches.
Cake too brown Oven temperature too high Lower temperature;
on bottom or if using glass pan, lower
crust forms on 25

o

F (-3.8 oC)

bottom
Cakes burns on Oven too hot Reduce temperature.
sides or not Wrong pan size Use recommended pan
done in center size; fill pan no more

than 2/3 full.

22

CCoonnvveennttiioonnaall BBaakkiinngg CChhaarrtt

RReeccoommmmeennddeedd

CCoonnvveennttiioonnaall CCoonnvveeccttiioonn

PPaann TTeemmppeerraattuurree TTiimmee TTiimmee

((

oo

FF)) ((ooCC)) ((mmiinn..)) ((mmiinn..))
BBRREEAADDSS
Yeast Loaf Loaf Pan 375 191 30-35 25-35

Yeast Rolls Cookie Sheet 400 204 12-15 11-13
Biscuits Cookie Sheet 400 204 8-10 7-9
Nut Breads Loaf Pan 375 191 30-35 20-25
Cornbread 8”x8” (20x20 cm) 400 204 25-30 15-20
Corn Muffins Muffin Tin 375 191 15-20 10-12
Fruit Muffins Muffin Tin 475 191 15-20 12-15

CCAAKKEESS//CCOOOOKKIIEESS
Angelfood Tube Pan 375 191 35-45 30-35
Bundt Tube Pan 350 177 45-50 35-40
Cupcakes Muffin tin 350 177 16-20 15-17
Layer, Sheet 13”x9” (23x33 cm) 350 177 40-50 30-35
Layer, Two 9” (23 cm) round 350 177 30-35 25-30
Pound Loaf Pan 350 177 60-65 45-50
Brownies 13”x9” (23x33 cm) 350 177 25-30 20-25
Choc. Chip Cookie Sheet 350 177 12-15 9-10
Sugar Cookies Cookie Sheet 350 177 10-12 7-10

PPIIEESS//PPAASSTTRRYY
Pie Crust 9” (23 cm) round 425 218 10-12 7-9
Two Crust, Fruit 9” (23 cm) round 375 191 55-60 50-55
Pumpkin Pie 9” (23 cm) round 375 191 40-45 35-40
Custard 6 - 4 oz cups 350 177 35-40 Not Rec.
Cream Puffs Cookie Sheet 400 204 30-35 25-27

MMIISSCCEELLLLAANNEEOOUUSS
Baked Potatoes (4) 8 oz (227 gm) 375 191 60-75 50-55
Lasagna 9”x5” (23x13 cm) 375 191 55-60 45-50
Cheese Souffle 1 qt. (.95 L) 350 177 45-50 35-40
Stuffed Peppers 13”x9” (23x33 cm) 375 191 60-70 45-50
Quiche 9” (23 cm) round 400 204 25-30 Not Rec.

*Note: These charts are recommended only as a guide for times and
temperatures. Times and temperatures may vary depending on conditions
and food type. For best results, always check food at minimum time.

25

CCoonnvveennttiioonnaall RRooaassttiinngg CChhaarrtt

TTyyppee aanndd WWeeiigghhtt TTeemmppeerraattuurree

CCoonnvveennttiioonnaall CCoonnvveeccttiioonn

IInntteerrnnaall

CCuutt ooff MMeeaatt ((llbbss)) TTiimmee TTiimmee TTeemmppeerraattuurree

((ooFF)) ((ooCC)) ((mmiinn..//llbb..))((mmiinn..//llbb..)) ((ooFF)) ((ooCC))
BBEEEEFF
Rib Roast 4 -6 325 163

•Rare 25 20 140 60

•Medium 30 24 155 68

•Well Done 40 30 170 77

Rump Roast 4 - 6 325 163

•Medium 25 20 155 68

•Well Done 30 24 170 77

Tip Roast 3 - 4 325 163

•Medium 35 30 155 68

•Well Done 40 35 170 77

LLAAMMBB
Leg of Lamb 3 - 5 350 163 30 25 180 82

PPOORRKK
Pork Loin 3 - 5 325 163 35 30 180 82
Pork Chops

1” (2.5 cm) thick 1 - 1.5 350 177 25 20 180 82

(Total Time)
Shoulder 5 - 8 325 163 30 25 180 82
(Bone-in)
Ham,
(fully cooked) 5 325 163 18 15 140 60

PPOOUULLTTRRYY
Chicken, whole 3 - 4 375 191 30 25 180 82
Chicken, 4 350 177 20 15 180 82

quarters

Turkey, 12 - 16 325 163 16 11 180 82

unstuffed

Turkey, 12 - 16 325 163 18 15 180 82

stuffed
Turkey Breasts 4 - 6 350 177 25 20 180 82
Cornish Hens 1 - 2 350 177 55-60 45-50 180 82

(Total Time)

24

CCoonnvveennttiioonnaall//CCoonnvveeccttiioonn RRooaassttiinngg TTiippss

Always use the broiler pan and grid supplied with each oven. The hot
air must be allowed to circulate around the item being roasted. Do not
cover what is being roasted. Convection roasting seals in juices quickly
for a moist, tender product. Poultry will have a light, crispy skin, and
meats will be browned, not dry or burned. Cook meats and poultry
directly from the refrigerator. There is no need for meat or poultry to
stand at room temperature.

•Always roast meats fat side up. No basting is required when the fat
side is up. Do not add water to the pan, as this will cause a steamed
effect. Roasting is a dry-heat process.

•Poultry should be placed breast side up on the grid in the broiler pan.
Brush poultry with melted butter, margarine, or oil before and during
roasting.

•For convection roasting, do not use pans with tall sides, as this will
interfere with the circulation of heated air over the food.

•If using a cooking bag, foil tent, or other cover, use conventional
baking rather than convection.

•When using a meat thermometer, insert the probe halfway into the
center of the thickest portion of the meat. (For poultry, insert the
thermometer probe between the body and leg into the thickest part
of the inner thigh.) The tip of the probe should not touch bone, fat,
or gristle to ensure an accurate reading. Check the meat
thermometer 2/3 of the way through the recommended roasting time.
After reading the thermometer once, insert it 1/2” (1.3 cm) further into
the meat, then take a second reading. If the second reading registers
below the first, continue cooking the meat.

•Roasting times always vary according to the size, shape, and quality of
meats and poultry. Less tender cuts of meat are best prepared in the
conventional bake setting and may require moist cooking techniques.
Remove roasted meats from the oven when the thermometer registers
5

O

F to 10oF (-15oC to -12oC) lower than the desired doneness. The
meat will continue to cook after removal from the oven. Allow roasts
to stand 15 to 20 minutes after roasting in order to make carving
easier.

27

TToo uussee tthhee IInnffrraarreedd BBrrooiilleerr::

1. Arrange the oven racks in the desired position.

2. Center food on cold broiler pan and grid supplied with your oven.
Place broiler pan in oven and close the door.

3. Set the Oven Function selector to either BROIL or CONV BROIL.

4. Set the Temperature Control dial to BROIL.

BBrrooiilliinngg TTiippss

•Always use a broiler pan and grid for broiling. They are designed to

provide drainage of excess liquid and fat away from the cooking
surface to help prevent spatter, smoke and fire.

•Place broiler pan with food in recommended rack position.

•To keep meat from curling, slit fatty edge.

•Brush chicken and fish with butter several times as they broil to

prevent drying out. To prevent sticking, lightly grease broiler grid.

•Broil on first side for slightly more than half the recommended time,

season and turn. Season second side just before removing.

•Always pull rack out to stop position before turning or removing food.

•Use tongs or a spatula to turn meats. Never pierce meat with a fork

as this allows the juices to escape.

•Remove the broiler pan from the oven when you remove the food.

Drippings will bake onto the pan if it is left in the heated oven after
broiling. While pan is hot, place damp paper towel over grid. Drizzle
with liquid dishwashing detergent and pour water over grid. This will
make cleaning of the pan easier, or the broiler pan can be lined with
aluminum foil to make cleaning easier. Be sure the foil extends up the
side of the pan. Although it is not recommended, the grid can also
be covered with foil. Be sure to slit openings to conform with the
openings in the grid so melted fat can drain through to prevent
spattering, smoking or possibility of grease fire.

26

IInnffrraarreedd CCoonnvveennttiioonnaall BBrrooiilliinngg

The broiler is an in-the-oven infrared broiler design-certified for
residential use. The method preferred by professional cooks to sear in
the nutrition, flavors, and juices of meat, poultry, and fish is now
possible in the home. The infrared broiler cooks up to 50% faster than
other methods. Its intense, penetrating heat produces a more
attractive, professional finish. The broil burner heats the metal screen
located at the top of the oven until it glows. The glowing screen
produces the infrared heat, searing the outside of broiled food and
sealing in the juices.

Broiling is a dry-heat cooking method using direct or indirect radiant
heat. It is used for small individualized cuts such as steaks, chops, and
patties. Broiling is most successful for cuts 1-2 inches (2.54-5.1 cm)
thick. Conventional broiling is also more suitable for flat pieces of
meat.

IInnffrraarreedd CCoonnvveeccttiioonn BBrrooiilliinngg

Convection broiling has the advantage of broiling food slightly quicker
than conventional. Convection broiling of meats produces better
results especially for extra thick cuts. The meat sears on the outside
and retains more juices and natural flavor inside with less shrinkage.

RRaacckk PPoossiittiioonnss::
The broiler uses infrared heat rays to help cook the food. Because
these rays can travel only in straight lines, the effective cooking area of
the broiler is reduced when using the higher rack positions. At high
rack positions, the rays cannot reach all corners of the broiler grid, so
larger pieces of meat
might not broil
sufficiently at the outer
edges. Position 6 is the
closest to the broiler
and position 1 is the
closest to the oven
bottom. The effective
cooking areas on the
broiler grid for each rack
position are as follows:

1155%%
2200%%
3355%%
4455%%
6655%%
9955%%

29

CCoonnvveeccttiioonn DDeehhyyddrraattiioonn

This oven is designed not only to cook, but also to dehydrate fruits and
vegetables.

•Prepare the food as recommended.

•Arrange the food on drying racks. (Not included with oven; Contact a

local store handling specialty cooking utensils.)

•Set the appropriate “low” temperature and turn the Oven Function

selector to CONV BAKE

CCoonnvveeccttiioonn DDeeffrroossttiinngg

•Place the frozen food on a baking sheet.

•Set Temperature Control “

OOFFFF””

.*

•Turn Oven Function selector to CONV BAKE.

**IIMMPPOORRTTAANNTT::

DDoo nnoott ttuurrnn tthhee TTeemmppeerraattuurree CCoonnttrrooll oonn.. TTuurrnniinngg tthhee ccoonnvveeccttiioonn ffaann

oonn wwiillll aaccc

ceelleerraattee tthhee nnaattuurraall ddeeffrroossttiinngg ooff tthhee ffoooodd wwiitthhoouutt tthhee hheeaatt..

**WWAARRNNIINNGG::

TToo aavvooiidd ssiicckknneessss aanndd ffoooodd wwa

assttee,, ddoo nnoott aallllooww ddeeffrroosstteedd ffoooodd ttoo

rreemmaaiinn iinn tthhee oovveenn ffoorr mmoorree tthhaann ttwwoo hhoouurrss..

28

CCoonnvveennttiioonnaall//CCoonnvveeccttiioonn BBrrooiilliinngg CChhaarrtt

TTyyppee aanndd WWeeiigghhtt RRaacckk CCoonnvveennttiioonnaall CCoonnvveeccttiioonn
CCuutt ooff MMeeaatt TTiimmee ((MMiinn..)) TTiimmee ((MMiinn..))
BBEEEEFF
Sirloin, 1” 12 oz 5

(2.54 cm)

•Rare 9 7

•Medium 11 9

•Well-done 14 11

T-Bone, 3/4” 10 oz 5

(1.9 cm)

•Rare 7 5

•Medium 9 7

•Well-done 11 9

Hamburger, 1/2” 4 oz. 5

(1.3 cm)

•Rare 7 4

•Medium 9 7

•Well-done 11 9

CCHHIICCKKEENN
Bnls Breast 1lb 4 18 15
Bone-in Breast 2 - 2 1/2 lb. 4 20 18
Quarters 2 - 2 1/2 4 18 15

HHAAMM
Ham slice, 1” 1lb. 4 22 18

(2.54 cm)
LLAAMMBB
Rib Chops 12 oz. 5 9 7
Shoulder 1lb. 5 7 6

PPOORRKK
Loin Chops, 3/4” 1lb. 4 14 12

(1.9 cm)

Bacon 1 lb. 4 8 6

FFIISSHH
Salmon Steak 1 lb. 5 9 7
Fillets 1 lb. 5 8 6

3130

CClleeaanniinngg aanndd MMaaiinntteennaannccee

Any piece of equipment works better and lasts longer when maintained
properly and kept clean. Cooking equipment is no exception. Your
range must be kept clean and maintained properly.

OOppeenn SSuurrffaaccee BBuurrnneerrss ((IIff aapppplliiccaabbllee))
Wipe up spill-overs as soon as possible after they occur and before
they get a chance to burn in and cook solid. In the event of a spill­over, follow these steps:

1. Allow the burner and grate to cool to a safe temperature level.

2. Lift off the open burner grates.

3. If the spill is contained in the bowl of the grate support, just remove
the bowl and clean in warm soapy water.

4. Lift the grate support off.

5. Wash parts in hot, soapy water and rinse clean.

6. If the spill has gone lower than the grate supports, draw out the
drip pan and wash with hot, soapy water.

If ports on the burners are clogged, clean with a straight pin. Do not
enlarge or distort the ports. Do not use a toothpick to clean the ports.
When replacing burner caps, carefully align the tabs underneath the
cap with the outside edge of burner. Make sure the tabs are not
aligned with the igniter and the burner cap is level.

SSeeaalleedd SSuurrffaaccee BBuurrnneerrss ((IIff aapppplliiccaabbllee))
Wipe up spill-overs as soon as possible after they occur and before
they get a chance to burn in and cook solid. In the event of a spill­over, follow these steps:

1. Allow the burner and grate to cool to a safe temperature level.

2. Lift off the burner grates.

3. Remove teh burner cap and clean per instructions below.

4. Wipe up any spills which remains on the sealed top surface.

5. Wash grates and burner caps in hot, soapy water and rinse clean.

6. Replace burner cop and grate after drying thoroughly.

If ports on the burners are clogged, clean with a straight pin. Do not
enlarge or distort the ports. Do not use a toothpick to clean the ports.
When replacing burner caps, carefully align the tabs underneath the
cap with the outside edge of burner. Make sure the tabs are not
aligned with the igniter and the burner cap is level.

BBuurrnneerr CCaappss
The surface burner caps should be routinely removed and cleaned.
Always clean the burner caps after a spill over. Keeping the burner
caps clean will prevent improper ignition and uneven flames. To clean,
pull burner cap straight up from the burner base. Wipe off surface
burner caps with warm, soapy water and a soft cloth after each use.
Use a a non-abrasive cleanser such as Bon Ami and a soft brush or soft
scotch brite

TM

pad for cooked-on foods. Dry thoroughly after cleaning.
For best cleaning and to avoid possible rusting, do not clean in
dishwasher or self-cleaning oven.

SSeeaalleedd BBuurrnneerr AAlluummiinnuumm BBaassee ((IIff aapppplliiccaabbllee))
The aluminum base should be wiped regularly withhot soapy water at
the end of each cooling period.

DDOO NNOOTT

use steel wool, abrasive
cloths, cleanser, or powders. To remove encrusted materials, soak the
area with a hot towel to loosen the material, then use a wooden nylon
spatula.

DDOO NNOOTT

use a metal knife, spatula, or any other metal tool to

scrape the aluminum base.

NNOOTTEE

: For stubborn stains, use a non

abrasive cleanser such as Bon Ami

TM

and a soft brush or soft Scoth

Brite

TM

pad.

CCoonnttrrooll KKnnoobbss
MAKE SURE THE CONTROL KNOBS POINT TO THE OFF POSITION
BEFORE REMOVING. Pull the knobs straight off. Wash in detergent
and warm water. Do not soak knobs. Dry completely and replace by
pushing firmly onto stem. DO NOT USE any cleaners containing
ammonia or abrasives. They could remove the graphics from the knob.

CCoonnttrrooll PPaanneell
DDOO NNOOTT UUSSEE aannyy cclleeaanneerrss ccoonnttaaiinniinngg aammmmoonniiaa oorr aabbrraassiivveess

. They
could remove the graphics from the control panel. Use hot, soapy
water and a soft clean cloth.

33

Clean greasy parts with a household grease solvent such as household
ammonia and water. If necessary, a soap filled steel wool pad can be
used on the grill frame shield, grill burner, and grill heat deflector.

After using the grill, always remove the drip pan located below it by
pulling the drip pan toward you. The drip pan needs to be cleaned
after each use of the grill. Wash in hot soapy water or with an
antibacterial cleaner. If grease is permitted to accumulate, fire hazard
could occur, since the grill burners are directly above the pan.

32

GGrriillll
The grill grate may be cleaned immediately after cooking is complete
and before turning off the flame. Wearing a barbecue mitt to protect
your hand from heat, use a soft bristle barbecue brush to scrub the grill
grate. Dip the brush frequently in a bowl of water. Steam is created as
the water contacts the hot grate. The steam assists the cleaning
process by softening the food particles. For thorough cleaning of the
grill grate, soak 15 to 30 minutes in a hot water and detergent solution.
After soaking, scrub with a soft scotch brite

TM

pad. DO NOT USE a
steel wool pad or abrasive cleaners. They could damage the porcelain
finish. To disassemble for thorough cleaning, remove parts after they
have cooled in the following order:

1. Grill grates

2. Smoke
generator
plates

3. Grill frame

4. Grill burner
shield

5. Heat deflector
shields

(Grill burner ­DDoo NNoott
RReemmoovvee))

GGrriiddddllee//SSiimmmmeerr PPllaattee

1. After using the griddle, always remove the drip pan located below it
by pulling the drip pan toward you. The drip pan needs to be
cleaned after each use of the griddle. Cooked-off grease will drain
from the griddle through the drain tube and accumulate in the drip
pan. Wash in hot soapy water or with an antibacterial cleaner. The
drip pan needs to be cleaned after each use. If grease is permitted
to accumulate, fire hazard could occur, since the griddle burners are
directly above the pan.

2. Rub the surface of a hot griddle with unsalted solid shortening,
vegetable oil or spray it with a non-stick cooking spray. Thoroughly
wipe it with a burlap or another rough cloth to remove food
particles and other residue.

3. Stubborn spots may be removed by rubbing the surface with a
rough grained nylon scrubbing pad with cooking oil. If necessary,
flush the surface of a warm griddle (200

o

F/93oC) with club soda and
wipe over entire surface with a paper towel. Coat lightly with
cooking oil.

4. Special griddle cleaners are commercially available which may be
used to remove heavy soil build-up. Follow manufacturer’s
directions exactly. Rinse the griddle with a vinegar and water
solution after using these cleaners, rinse with clear water, dry and
coat lightly with cooking oil. Use griddle stones only when
absolutely necessary and then with extreme caution. Wipe away
any griddle-stone dust and food particles and coat lightly with
cooking oil.

5. Using hot soapy water to clean the griddle will remove the cooked­in seasoning and will require re-seasoning by coating lightly with
cooking oil.

6.

NNeevveerr fflloooodd aa hhoott ggrriiddddllee wwiitthh ccoolldd wwaatteerr!!

This promotes griddle
warping and can cause the griddle plate to crack if continued over a
period of time.

35

SSeellff--CClleeaann CCyyccllee

CCAAUUTTIIOONN::

DDoo nnoott ttoouucchh tthhee eexxtteerriioorr ppoorrttiioonnss ooff tthhee oovveenn aafftteerr sseellff--cclleeaanniinngg ccyyccllee
hhaass bbeegguunn,, ssiinnccee ssoommee ppaarrttss

bbeeccoommee eexxttrreemmeellyy hhoott ttoo tthhee ttoouucchh!!

DDuurriinngg tthhee ffiirrsstt ffeeww ttiimmeess tthhee sseellff--cclleeaanniinngg ffeeaattuurree iiss uusseedd,, tthhe

erree mmaayy

bbee ssoommee ooddoorr aanndd ssmmookkiinngg ffrroomm tthhee ““ccuurriinngg”” ooff tthhee bbiinnddeerr iinn tthhee
hhiigghh--ddeennssiittyy iinnssuullaattiioonn uusseedd

iinn tthhee oovveenn.. WWhheenn tthhee iinnssuullaattiioonn iiss

tthhoorroouuggllyy ccuurreedd,, tthhiiss ooddoorr wwiillll ddiissaappppeeaarr.. DDuurriinngg ssuubbsseeqquueenntt s

seellff--

cclleeaanniinngg ccyycclleess,, yyoouu mmaayy sseennssee aann ooddoorr cchhaarraacctteerriissttiicc ooff hhiigghh
tteemmppeerraattuurreess..

KKEEEEPP TTHHEE KKIITTCCHHEENN WWE

ELLLL--VVEENNTTEEDD DDUURRIINNGG TTHHEE SSEELLFF--CCLLEEAANN

CCYYCCLLEE..

WWAARRNNIINNGG::

BBUURRNN OORR EELLEECCTTRRIICCAALL SSHHOOCCKK HHAAZZAARRDD

MMaakkee ssuurree aallll ccoonnttrrooll aarree OOFFFF aanndd oovveenn iiss CCOOOOLL bbeeffoorree cclleeaanniinngg..
FFaaiilluurree ttoo ddoo ssoo ccaann rreessuulltt iinn bbuurrnnss o

orr eelleeccttrriiccaall sshhoocckk..

IIMMPPOORRTTAANNTT

DDoo nnoott cclleeaann,, mmoovvee,, wweett,, oorr bbeenndd ddoooorr ggaasskkeett.. PPoooorr cclleeaanniinngg aanndd
bbaakkiinngg mmaayy rreessuulltt..

This range features an automatic pyrolytic self-cleaning cycle. During
this cycle, the oven reaches elevated tempertures in order to burn off
soil and deposits. A powder ash residue is left in the bottom of the
oven after completion of the self-clean cycle. The door latch is
automatically activated after selecting the self-clean setting. The latch
ensures that the door cannot be opened while the oven interior is at
clean temperatures.

WWAARRNNIINNGG:: DDoo nnoott uussee ccoommmmeerrcciiaall oovveenn cclleeaanneerrss iinnssiiddee tthhee oovveenn..
UUssee ooff tthheessee cclleeaanneerrss ccaann pprroodduuccee hhaaz

zaarrddoouuss ffuummeess oorr ccaann ddaammaaggee tthhee

ppoorrcceellaaiinn ffiinniisshheess.. DDoo nnoott lliinnee tthhee oovveenn wwiitthh aalluummiinnuumm ffooiill oorr ootthheer

r

mmaatteerriiaallss.. TThheessee iitteemmss ccaann mmeelltt oorr bbuurrnn dduurriinngg aa sseellff--cclleeaann ccyyccllee,,
ccaauussiinngg ppeerrmmaanneenntt ddaammaaggee ttoo tthhe

e oovveenn..

NNEEVVEERR UUSSEE AAMMMMOONNIIAA,, SSTTEEEELL WWOOOOLL PPAADDSS,, AABBRRAASSIIVVEE CCLLOOTTHHSS,,
AABBRRAASSIIVVEE CCLLEEAANNEERRSS,, CCAAUUSSTTIICC OOVVEENN CCLLEEAANNEERRS

S,, OORR AABBRRAASSIIVVEE

PPOOWWDDEERRSS.. TTHHEEYY CCAANN PPEERRMMAANNEENNTTLLYY DDAAMMAAGGEE YYOOUURR OOVVEENN..

34

GGllaassss SSuurrffaaccee
Clean with detergent and warm water. Glass cleaner can be used to
remove fingerprints. If using glass cleaner ammonia, make sure that it
does not run down on exterior door surface.

BBrraassss PPaarrttss
CCAAUUTTIIOONN::

All brass special ordered parts are coated with an epoxy

coating.

DDOO NNOOTT UUSSEE BBRRAASSSS OORR AABBRRAASSIIVVEE CCLLEEAANNEERRSS OONN TTHHEE

BBRRAASSSS OOPPTTIIOONN PPAARRT

TSS..

All brass parts should be wiped regularly with

hot soapy water.

BBrrooiilleerr
There is no special care required for the infrared broiler. It is designed
as self-contained unit, and no adjustments or cleaning are possible. Do
not attempt to clean it. Its own operation burns off any impurities
which may condense on it.

Clean the broiler pan and grid after each use with detergent and hot
water. for stubborn spots, use a soap-filled steel wool pad. The broiler
pan and grid is also dishwasher safe.

OOvveenn RRaacckkss
Clean with detergent and hot water. Stubborn spots can be scoured
with a soap-filled steel wool pad.

DDOO NNOOTT CCLLEEAANN TTHHEE OOVVEENN RRAACCKKSS

OORR RRAACCKK SSUUPPPPOORRTTSS UUSSIINNGG TTHHEE SSEELLFF--CCLLEEAANN CCYYCCL

LEE..

They could

sustain damage due to the extreme heat of the Self-Clean cycle.

SSttaaiinnlleessss SStteeeell PPaarrttss
All stainless steel parts should be wiped regularly with hot, soapy water
at the end of each cooling period and with liquid stainless steel cleaner
when soapy water will not do the job.

DDoo nnoott uussee sstteeeell wwooooll,, aabbrraassiivvee

ccllootthhss,, aabbrraassiivvee cclleeaanneerrss,, oorr ppoowwddeerrss

. If necessary to scrap stainless
steel to remove encrusted materials, soak the area with hot towels to
loosen the material, then use a wooden or nylon spatula or scraper.
DDoo nno

ott uussee aa mmeettaall kknniiffee,, ssppaattuullaa,, oorr aannyy ootthheerr mmeettaall ttooooll ttoo ssccrraappee

ssttaaiinnlleessss sstteeeell.. FFoorr ooccccaassiioonnaall hheea

avvyy cclleeaanniinngg uussee,, aa cclleeaanneerr ssuucchh aass

LLiiqquuiidd ZZuudd

TTMM

ccaann bbee uusseedd aaccccoorrddiinngg ttoo ppaacckkaaggee ddiirreeccttiioonnss.. DDoo nnoott

ppeerrmmiitt cciittrruuss oorr ttoommaattoo jjuuiiccee ttoo rreemmaaiinn oonn ssttaaiin

nlleessss sstteeeell ssuurrffaaccee,, aass

cciittrriicc aacciidd wwiillll ppeerrmmaanneennttllyy ddiissccoolloorr ssttaaiinnlleessss sstteeeell.. WWiippee uupp aannyy ssppiillllss
iim

mmmeeddiiaatteellyy..

1. Unsnap glass light cover at opposite
end from metal hinge.

2. Firmly grasp light bulb and pull out.

3. Replace with a 64405, 12V-5W bulb.

4. Replace the light cover by first
sliding into metal hinge and then
snapping close on opposite end.

5. Reconnect power at the main fuse or
circuit breaker.

37

RReeppllaacciinngg IInntteerriioorr OOvveenn LLiigghhttss

PPoowweerr FFaaiilluurree

If power failure occurs, the electric ignitors will not work. The range
surface burners can still be used, but only when the burners are lit
manually with a match. The griddle cannot be used at all. Do not
attempt to operate the oven. Make sure the oven control is in the
“OFF” position.

DDuuee ttoo ssaaffeettyy ccoonnssiiddeerraattiioonnss

and the possibility of personal injury in
attempting to light and extinguish the burner, the grill should, under no
circumstances, be used during a power failure. The grill burner control
should always remain in the “OFF” position during a power failure.

Momentary power failure can occur unnoticed. The range is affected
only when the power is interrupted. When it comes back on, the range
will function properly without any adjustments. A “brown-out” may or
may not affect range operation, depending on how severe the power
loss is.

If the range is in the self-clean cycle when the power failure occurs,
wait until power is restored and allow door to unlock automatically.
Turn all controls off and restart self-clean cycle again, according to
instructions.

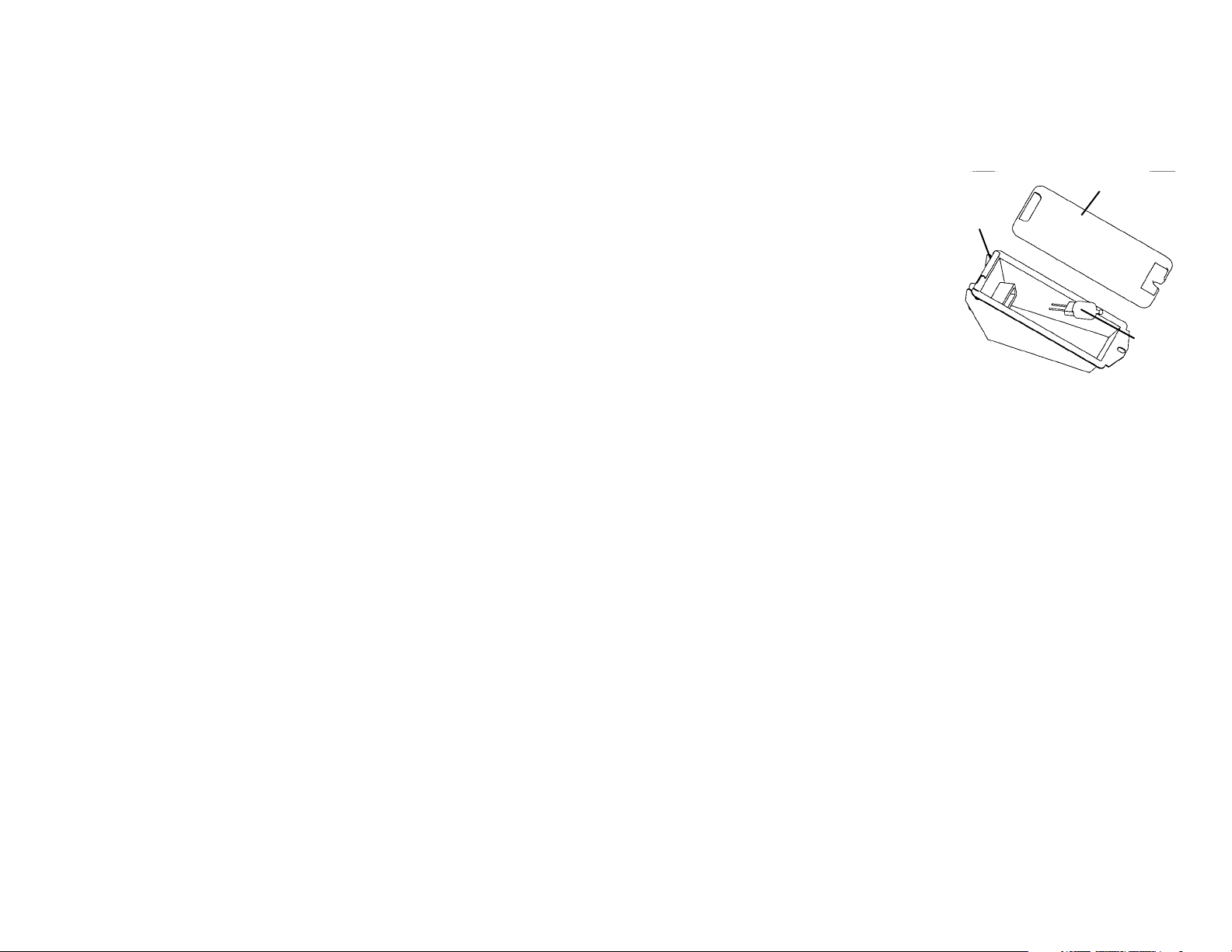

Metal
hinge

Glass light cover

Light
bulb

CCAAUUTTIIOONN:: DDIISSCCOONNNNEECCTT TTHHEE EELLEECCTTRRIICC PPOOWWEERR AATT TTHHEE MMAAIINN FFUUSSEE
OORR CCIIRRCCUUIITT BBRREEAAKKEERR BBEEFFOORREE RREEPPLLAACCIINNGG BBUULLBB..

DDoo nnoott ttoouucchh bbuullbb

wwiitthh bbaarree hhaannddss.. CClleeaann aannyy ssiiggnnss ooff ooiill ooffff ooff tthhee bbuullbb aanndd hhaannddllee wwiitthh
aa ssoofftt ccl

lootthh..

36

BBeeffoorree ssttaarrttiinngg tthhee SSeellff--CClleeaann ccyyccllee::

1.

RReemmoovvee tthhee oovveenn rraacckkss,, rraacckk ssuuppppoorrttss,, aanndd aannyy ootthheerr iitteemmss//uutteen

nssiillss

ffrroomm tthhee oovveenn

. The high heat generated during the cleaning cycle
can discolor, warp, and damage these items. Do not use foil or
liners in the oven. During the Self-Clean cycle, foil can burn or melt
and damage the oven surface.

2. Wipe off any large spills from the oven bottom and sides.

NNeevveerr
uussee oovveenn cclleeaanneerrss iinnssiiddee aa sseellff--cclleeaanniinngg oovveenn oorr oonn rraaiisseedd ppoorrttiioonnss
ooff t

thhee ddoooorr..

3. Some areas of the oven must be cleaned by hand before the cycle
begins. Soil in these areas will be baked on and very difficult to
clean if not removed first. Clean the door up to the gasket, the
door frame, and up to two inches inside the frame with detergent
and hot water. Rinse thoroughly and dry.

TToo ssttaarrtt tthhee SSeellff--CClleeaann ccyyccllee::

1. Close the oven door completely.

2. Turn the Oven Function selector knob clockwise to the self-clean
mode. At this time the clean indicator light will come on.

3. Turn the Temperature Control knob past the clean setting until the
knob stops. At this time, the temperature indicator light will come
on and within 30 seconds, the automatic door latch engages. The
temperature indicator light will remain on until the oven reaches the
self-clean temperature and will then cycle on and off during the
cycle.

4. The cleaning cycle will last approximately 3 1/2 hours with an
additional 30 minutes needed for the oven to cool down enough for
the door latch to disengage.

5. When the cycle is completed, turn both the Oven Function selector
and the Temperature Control knob to ”OFF” At this time the clean
indicator light will go off.

6. When the oven has completely cooled, open door and remove any
ash from the oven surfaces with a damp cloth.

TToo ssttoopp tthhee SSeellff--cclleeaann ccyyccllee::
To cancel or interrupt the self-cleaning cycle, turn both the
Temperature Control knob and Oven Function selector to “OFF”.
When the oven temperature drops to a safe temperature, the
automatic door latch will release and the oven door can be opened.

PPRROOFFEESSSSIIOONNAALL SSEERRIIEESS

FFRREEEESSTTAANNDDIINNGG GGAASS SSEELLFF--CCLLEEAANN RRAANNGGEESS WWAARRRRAANNTTYY

OONNEE YYEEAARR FFUULLLL WWAARRRRAANNTTYY

Freestanding gas self-clean ranges and all of their component parts, except as detailed below*, are warranted to be free
from defective materials or workmanship in normal household use for a period of twelve (12) months from the date of
original retail purchase. Viking Range Corporation, warrantor, agrees to repair or replace, at its option, any part which fails
or is found to be defective during the warranty period.

*Glass (including light bulbs), painted and decorative items are warranted to be free from defective materials or
workmanship for a period of ninety (90) days from the date of original retail purchase. ANY DEFECTS MUST BE REPORTED
TO THE SELLING DEALER WITHIN NINETY (90) DAYS FROM DATE OF ORIGINAL RETAIL PURCHASE.

FFIIVVEE YYEEAARR LLIIMMIITTEEDD WWAARRRRAANNTTYY

Any surface burner, griddle burner, grill burner, or oven burner which fails due to defective materials or workmanship in
normal household use during the second through fifth year from the date of original retail purchase will be repaired or
replaced, free of charge for the part itself, with the owner paying all other costs, including labor.

TTEENN YYEEAARR LLIIMMIITTEEDD WWAARRRRAANNTTYY

Any porcelain oven or porcelain inner door panel which rusts through due to defective materials or workmanship in normal
household use during the second through the tenth year from the date of original retail purchase will be repaired or
replaced, free of charge for the part itself, with the owner paying all other costs, including labor.

NINETY (90) DAY RESIDENTIAL PLUS WARRANTY This warranty applies to applications where use of the product
extends beyond normal residential use. Examples are, but not limited to, bed and breakfasts, fire stations, private clubs,
churches, etc. This warranty excludes all commercial locations such as restaurants, food service locations and institiutional
food service locations.

This warranty extends to the original purchaser of the product warranted hereunder and to each transferee owner of the
product during the term of the warranty.

This warranty shall apply to products purchased and located in the United States and Canada. Pr

oducts must be purchased
in the country where service is requested. Warranty labor shall be performed by an authorized Viking Range Corporation
service agency or representative. Warranty shall not apply to damage resulting from abuse, accident, natural disaster, loss of
electrical power to the product for any reason, alteration, outdoor use, improper installation, improper operation, or repair or
service of the product by anyone other than an authorized Viking Range Corporation service agency or representative. This
warranty does not apply to commercial usage. Warrantor is not responsible for consequential or incidental damage whether
arising out of breach of warranty, breach of contract, or otherwise. Some jurisdictions do not allow the exclusion or limitation
of incidental of consequential damages, so the above limitation or exclusion may not apply to you.

Owner shall be responsible for proper installation, providing normal care and maintenance, providing proof of purchase
upon request, and making the appliance reasonably accessible for service. If the product or one of its component parts
contains a defect or malfunction during the warranty period, after a reasonable number of attempts by the warrantor to
remedy the defects or malfunctions, the owner is entitled to either a refund or replacement of the product or its component
part or parts. Warrantor’s liability on any claim of any kind, with respect to the goods or services covered hereunder, shall in
no case exceed the price of the goods or service or part thereof which gives rise to the claim.

WWAARRRRAANNTTYY SSEERRVVIICCEE

: Under the terms of this warranty, service must be performed by a factory authorized Viking Range
Corporation service agent or representative. Service will be provided during normal business hours, and labor performed at
overtime or premium rates shall not be covered by this warranty. To obtain warranty service, contact the dealer from whom
the product was purchased, an authorized Viking Range Corporation service agent, or Viking Range Corporation. Provide
model and serial number and date of original purchase. For the name of your nearest authorized Viking Range Corporation
service agency, call the dealer from whom the product was purchased or Viking Range Corporation.

IIMMPPOORRTTAANNTT

: Retain

proof of original purchase to establish warranty period.

The r

eturn of the Owner Registration Card is not a condition of warranty coverage. You should, however, return the Owner
Registration Card so that Viking Range Corporation can contact you should any question of safety arise which could affect
you.

Any implied warranties of merchantability and fitness applicable to the above described surface burner, griddle burner, grill
burner, oven burner, porcelain oven, or porcelain inner door panel are limited in duration to the period of coverage of the
applicable express written limited warranties set forth above. Some jurisdictions do not allow limitations on how long an
implied warranty lasts, so the above limitation may not apply to you. This warranty gives you specific legal rights, and you
may also have other rights which may vary from jurisdiction to jurisdiction.

Specifications subject to change without notice

38 39

SSeerrvviiccee IInnffoorrmmaattiioonn

If service is required after checking the troubleshooting guide:

1. Call your dealer or authorized service agency. The name of the
authorized service agency can be obtained from the dealer or
distributor in your area.

2. Have the following information readily available:

Model Number
Serial Number
Date of Purchase
Name of dealer from whom purchased

3. Clearly describe the problem that you are having.

If you are unable to obtain the name of an authorized service agency,
or if you continue to have service problems, contact Viking Range
Corporation at [phone] or write to:

VVIIKKIINNGG RRAANNGGEE CCOORRPPOORRAATTIIOONN

PPRREEFFEERRRREEDD SSEERRVVIICCEE

111 Front Street

Greenwood, Mississippi 38930 USA

Record the following information indicated below. You will need it if
service is ever required. The serial number and model number for your
range is located on the left side of the burner box.

Model Number Serial Number

Date of Purchase Date Installed

Dealer’s Name

Address

If service requires installation of parts, use only authorized parts to
ensure protection under the warranty.

PPlleeaassee rreettaaiinn tthhee mmaannuuaall ffoorr ffuuttuurree rreeffeerre

ennccee
