Standard Features & Accessories
REFRIGERATION
Undercounter/Freestanding
15”W. Beverage Center
All models include
• Electronic controls with digital temperature readout
o
Inside temperature can be adjusted
from 36 – 48ºF
o
Factory set at 42ºF
o
Sabbath mode
o
Temperature can be displayed in
either Fahrenheit or Celsius
• Capacity—3.0 cu. ft. (84.9 L)
• One full-extension wire shelf
o
75 lbs. capacity
o
Removable and adjustable
• Two full-extension wine shelves
Model Options
VBCI1150G
Professional
o
Accommodate 8 bottles of wine
o
Shelves can be removed and
adjusted to store large bottles
• Dual pane and argon-filled Low-E
energy efficient glass doors
• LED display lighting
• Forced air cooling system with
powerful 700 BTU compressor
• Tru-Flush™ design allows unit to fit
flush in 24” deep cutout
• Undercounter or freestanding
installation
• Self-closing door
• Super quiet 32-39 db sound rating
• Black kickplate
• Adjustable leveling legs
• Must be ordered right or left hinge
(As you face unit, RIGHT has hinge on
right side and handle on left side;
LEFT has hinge on left side and handle on right side.)
FBCI1150G
Custom Panel
FINISH DETAILS FOR VBCI MODELS
• Clear glass doors
o
Stainless Steel (SS)—stainless steel
frame around large window door,
stainless steel handle with chromeplated brackets, and stainless steel
exterior cabinet
o
Stainless steel interior
ORDERING INSTRUCTIONS
First specify model number, then specify hinge preference (“R” for right or “L” for left), and then color code (VBCI1150GRSS).
FINISH DETAILS FOR FBCI MODELS
•Clear glass doors
• Stainless steel interior
• Handle not included—opt for custom handle, or purchase a Viking
Professional Series handle kit (see
Installation Notes & Accessories).
•Accept 3/4”-thick custom wood
frame
• See Custom Panels section for
more information and additional
specifications.
P LA N N I N G A N D D E S I G N G U I D E
V I K I N G R A N G E . C O M • 1 - 8 8 8 - V I K I N G 1
R E L E AS ED 1 1 / 1/ 11
© 2 0 1 1 V R C — INFORMATION SUBJECT TO CHANGE
Page 2
REFRIGERATION
2
2
-
1
/
1
6
”
(
5
6
.
0
c
m
)
2
4
-
1
/
1
6
”
(
6
1
.
1
c
m
)
2
6
-
9
/
1
6
”
(
6
7
.
5
c
m
)
3
4
-
1
/4
”
(
8
7
.
0
c
m
)
m
i
n
.
t
o
3
5
”
(
8
9
.
0
c
m
)
m
a
x
.
1
4
-
7
/
8
”
(
3
7
.
8
c
m
)
14-7/8”
(37.8 cm)
1
4
-
7
/
8
”
(
3
7
.
8
c
m
)
3
0
-
1
/8
”
(
7
6
.
5
c
m
)
Undercounter/Freestanding
15”W. Beverage Center
Please see
✪
Installation Notes &
Accessories
for important
information,
including handle
and trim kits.
Dimensions & Specifications

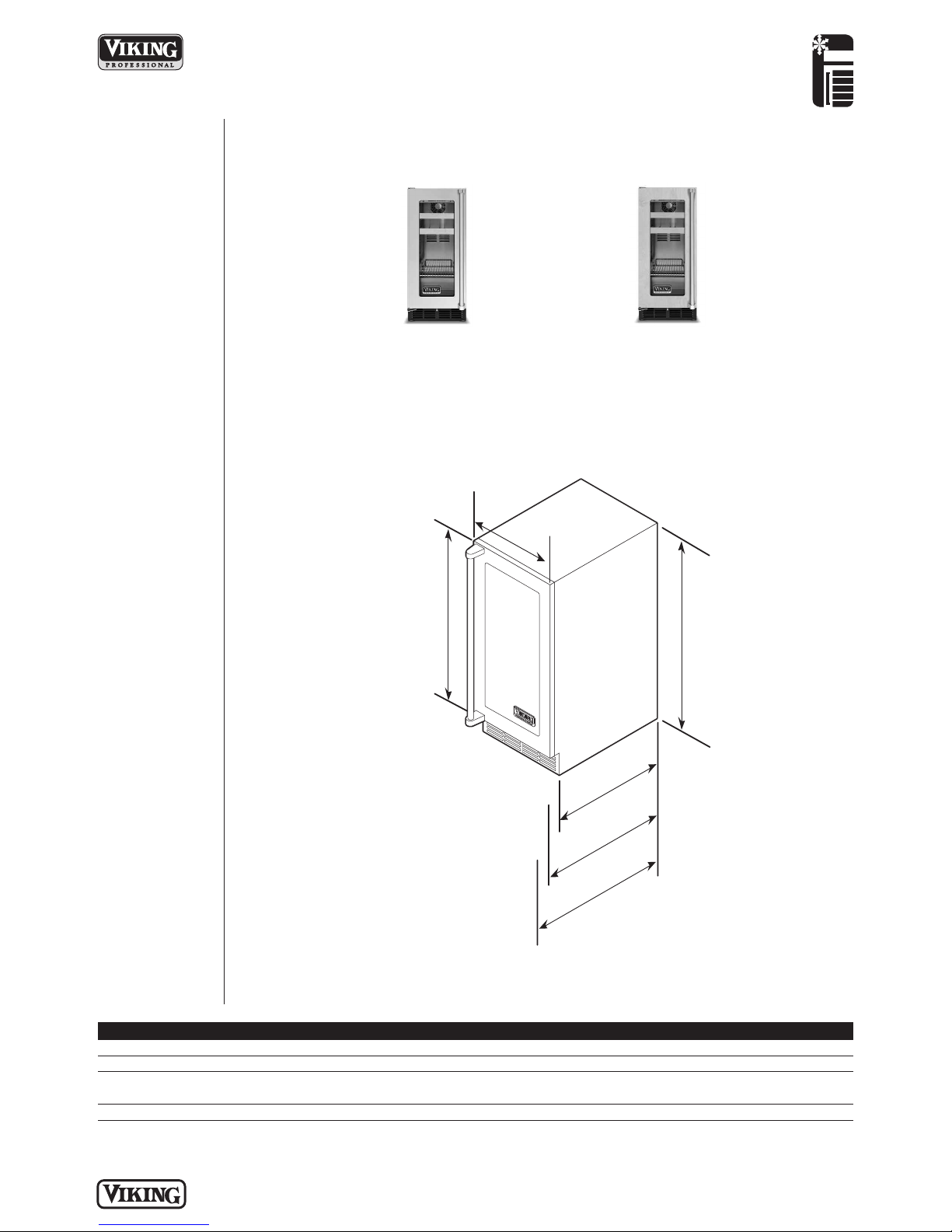

PRODUCT DIMENSIONS
VBCI1150G
Professional
FBCI1150G
Custom Panel
See Custom Panels section for
more information and additional
specifications.
Overall width 14-7/8” (37.8 cm)
Overall height 34-1/4” (87.0 cm) min. to 35” (89.0 cm) max.
Overall depth (from rear)
To front of handle 26-9/16” (67.5 cm) Varies
Approx. ship weight 175 lbs. (79 kg)
P LA N N I N G A N D D E S I G N G U I D E
V I K I N G R A N G E . C O M • 1 - 8 8 8 - V I K I N G 1
PROFESSIONAL
VBCI1150G FBCI1150G
© 2 0 1 1 V R C — INFORMATION SUBJECT TO CHANGE
R E L E AS ED 1 1 / 1/ 11
Page 3
5-1/16”
(12.9 cm)

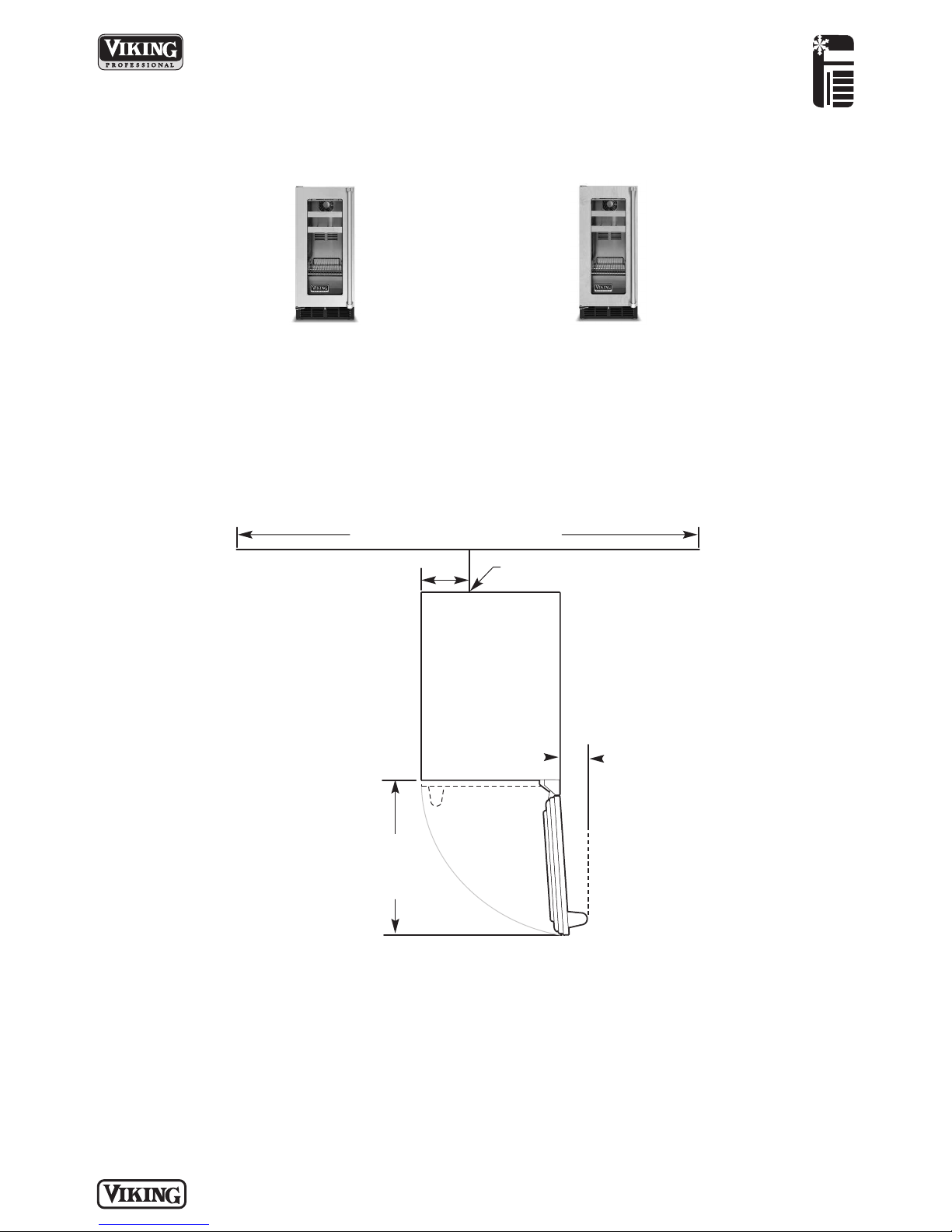

94.0° Swing
required for
pull-out shelf
clearance
2-3/16”
(5.6 cm) min.
clearance
from a corner
to achieve 94°
door swing
15-25/32”
(40.1 cm)
min. clearance
for door swing
Power cord 6-5/8”
(16.8 cm) off floor.*
50” (127.0 cm) area in which
electrical outlet must be located
Dimensions & Specifications
DOOR SWING
REFRIGERATION
Undercounter/Freestanding
15”W. Beverage Center
VBCI1150G
Professional
PROFESSIONAL
FBCI1150G
Custom Panel
See Custom Panels section for
more information and additional
specifications.
P LA N N I N G A N D D E S I G N G U I D E
V I K I N G R A N G E . C O M • 1 - 8 8 8 - V I K I N G 1
R E L E AS ED 1 1 / 1/ 11
© 2 0 1 1 V R C — INFORMATION SUBJECT TO CHANGE
Page 4
REFRIGERATION
15” (38.1 cm)
34-1/2” (87.6 cm) min.
35-1/2” (90.2 cm) max.
2
4
”
(
6
1
.
0
c
m
)
Undercounter/Freestanding
15”W. Beverage Center
UTILITY
REQUIREMENTS
GAS
Not applicable
ELECTRICAL
• Three-wire cord
with grounded
three-prong plug
attached to
product
• 115V/60 Hz; 15
amp dedicated
circuit
• Maximum amp
usage—3.0
Installation Requirements

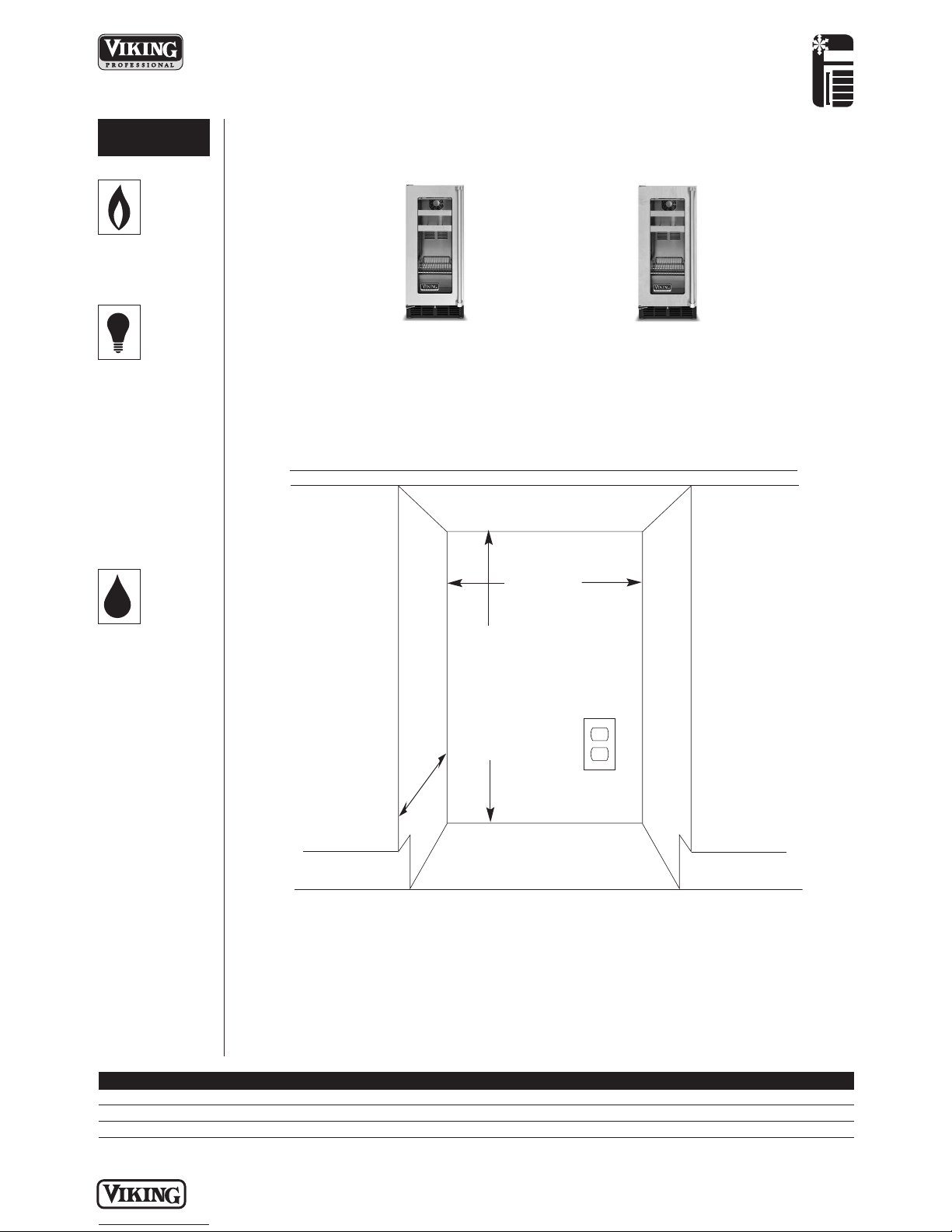

ACCESS REQUIREMENTS
VBCI1150G
Professional
FBCI1150G
Custom Panel
See Custom Panels section for
more information and additional
specifications.
PLUMBING
• Not applicable
Cutout width 15” (38.1 cm)
Cutout height 34-1/2” (87.6 cm) min. to 35-1/2” (90.2 cm) max.
Cutout depth 24” (61.0 cm)
All models
P LA N N I N G A N D D E S I G N G U I D E
V I K I N G R A N G E . C O M • 1 - 8 8 8 - V I K I N G 1
R E L E AS ED 1 1 / 1/ 11
© 2 0 1 1 V R C — INFORMATION SUBJECT TO CHANGE
Page 5
REFRIGERATION
Undercounter/Freestanding
15”W. Beverage Center
Installation Notes & Accessories
✪
Handle Kits
•
For use with custom panel 15”W. beverage center
• For use on locally supplied custom panels
Handles allow custom panel products to coordinate with other Professional products
•
• Kit includes one handle and installation hardware
Model Description Approx. ship wt. lb. (kg)
HK30-SS Professional handle (Stainless Steel) 6 (2.7)
P
Compliance Information
WARRANTY SUMMARY*
• Three-year full warranty—complete unit
• Six-year full warranty—sealed refrigeration system (includes compressor, condenser,
dryer/strainer, evaporator, and connecting tubing)
• Twelve-year limited warranty—sealed refrigeration system
• Ninety-day limited warranty—cosmetic parts such as glass, painted items, and decorative items
*For complete warranty see Use & Care Guide. Warranty valid on Viking products shipped within the United States and Canada.
P LA N N I N G A N D D E S I G N G U I D E
V I K I N G R A N G E . C O M • 1 - 8 8 8 - V I K I N G 1
R E L E AS ED 1 1 / 1/ 11
© 2 0 1 1 V R C — INFORMATION SUBJECT TO CHANGE
