Viking F60044H User Manual

M0508F60044H

Professional Performance for the Home

™

®

Viking Range Corporation

111 Front Street

Greenwood, Mississippi 38930 USA

[phone]

For product information,

call 1-888-VIKING1 (845-4641),

or visit the Viking Web site at

vikingrange.com

®

VikingR_Ventilation_F60044H 6/13/08 9:13 AM Page 2

As a gourmet,you want to fill your kitchen

with only the freshest ingredients – including the air. And Viking ventilation

systems not only silently subdue even the most pungent cooking aromas,

they look fantastic doing it.

You also have plenty of looks to choose from. Although the styles

are divided into Professional Series and Designer Series, feel free to mix and

match. A Designer hood looks great above a Professional range, and vice

versa. It’s your kitchen. It’s your taste.

®

3

2

VikingR_Ventilation_F60044H 6/13/08 9:13 AM Page 4

The Viking Professional Line

of ventilation products offer the classic Viking look – heavy-duty, yet stylish. It’s hard to

imagine something so bold could be so quiet. But be careful – it controls odors so well,

you might forget all about the fish stock simmering on the back burner.

4 5

VikingR_Ventilation_F60044H 6/13/08 9:13 AM Page 6

24" deep models

24" width – VWH2448
30" width – VWH3048
36" width – VWH3648
42" width – VWH4248
48" width – VWH4848
54" width – VWH5448
60" width – VWH6048
66" width – VWH6648

27" deep models

36" width – VWH3678
48" width – VWH4878
60" width – VWH6078

Wall and island hoods

Appearance and design

■

Heavy-duty construction; professional-type size,

construction, design, and styling

■

Virtually seamless design with no visible screws

■

Halogen lights for better visibility and efficiency

• Dimmer on lights allows custom lighting –
separate on/off switch allows consumer to leave
dimmer at favorite position

■

Heat sensor turns ventilator on full power when

cooking temperatures reach uncomfortable levels

■

Heat lamps are standard on all 18" high wall hoods;
24", 30", 36", and 42" wide hoods have one lamp; 48",
54", 60", and 66" wide hoods have two lamps
(250-watt bulbs not included)

Interior- or exterior-power ventilators

■

Variable speed controls for custom venting –
separate on/off switch allows consumer to leave
ventilator at favorite setting

■

18" High Wall and Island Hoods

• Interior-power ventilator kits – 300 CFM (VIV300),
600 CFM (VIV600), or 1,200 CFM (VIV1200)

• Exterior-power ventilator kits – 900 CFM (VEV900),
1,200 CFM (VEV1200), or 1,500 CFM (VEV1500)

• See specification chart for compatibility

■

Chimney Wall and Island Hoods

• Interior-power ventilator kits – 300 CFM (DIV300),
600 CFM (DIV600), or 1,200 CFM (DIV1200)

• Exterior-power ventilator kits – 900 CFM (DEV900),
1,200 CFM (DEV1200), or 1,500 CFM (DEV1500)

• See specification chart for compatibility

Heat lamps are a much-

appreciated convenience

when cooking large meals.

Halogen lights with
dimmer controls provide
exceptional visibility.

18" HIGH PROFESSIONAL WALL HOOD

■

One ventilator, one duct run for any size hood/ventilator

■

Must use Viking ventilator kits with Viking hoods; use

of non-Viking kits voids product warranty

Easy cleanup

■

Commercial-type baffle filter system efficiently removes
grease and heated vapors from the air; especially
designed for use with commercial-type products

■

Dishwasher-safe filters are easily removed for
quick cleaning

■

All 18" high hoods have a removable trough which
catches liquefied grease, making cleanup quick and easy

■

Design of low profile filter system means less interior
hood space to be cleaned

■

Interior of rangehood canopy has stainless steel
liner for increased rigidity, seamless appearance, and
easy cleaning

10" high interior-power wall hoods

■

Allow replacement of most older, low-performance
hoods with minimal cabinet alteration

■

460 CFM interior-power ventilator comes standard
with product

■

Recommended for use with 24" wide non-griddle/grill
ranges, 30" wide ranges, rangetops, and cooktops, and
36" wide non-griddle/grill ranges, rangetops, and cook­tops; for larger equipment, use 18" high wall hood

Professional Wall Hood

Professional Island Hood

6 7

VikingR_Ventilation_F60044H 6/13/08 9:14 AM Page 8

Professional Island Hood

10"High Professional Wall Hood with

Standard Interior-Power Ventilator

Professional Chimney Wall Hood Professional Chimney Island Hood

24" width – VWH2410
30" width – VWH3010
36" width – VWH3610

30" width – VCWH3048
36" width – VCWH3648
42" width – VCWH4248
48" width – VCWH4848
54" width – VCWH5448
60" width – VCWH6048
66" width – VCWH6648

36" width – VIH3608
42" width – VIH4208
54" width – VIH5408
66" width – VIH6608

36" width – VCIH3608
42" width – VCIH4208
54" width – VCIH5408
66" width – VCIH6608

8 9

VikingR_Ventilation_F60044H 6/13/08 9:14 AM Page 10

Built-in custom ventilation systems

Appearance and design

■

Custom Professional Systems

•Wall hoods – 30" (VBCV3038), 36" (VBCV3638),
42" (VBCV4238), 48" (VBCV4838), 54" (VBCV5438),
60" (VBCV6038), and 66" (VBCV6638) widths

•Island hoods – 36" (VICV3698), 42" (VICV4298),
54" (VICV5498), and 66" (VICV6698) widths

■

Easily installs into almost any custom hood application

■

Heavy-duty construction; professional-type design

and styling

■

Virtually seamless design

■

Halogen lights for better visibility and efficiency

•Dimmer on lights allows custom lighting –
separate on/off switch allows consumer to leave
dimmer at favorite position

■

Heat sensor turns ventilator on full power when cooking

temperatures reach uncomfortable levels

■

Heat lamps are standard on wall hoods: 30", 36", and
42" wide hoods have one lamp; 48", 54", 60", and 66" wide
hoods have two lamps (250-watt bulbs not included)

Interior- or exterior-power ventilators

■

Variable speed controls for custom venting – separated
on/off switch allows consumer to leave ventilator at
favorite setting

■

Wall Hoods

•Interior-power ventilator kits – 300 CFM (VIV300),
600 CFM (VIV600), or 1200 CFM (VIV1200)

•Exterior-power ventilator kits – 900 CFM (VEV900),
1200 CFM (VEV1200), or 1500 CFM (VEV1500)

■

Island Hoods

•Interior-power ventilator kits – 600 CFM (VIV600) or
1200 CFM (VIV1200)

•Exterior-power ventilator kits – 900 CFM (VEV900),
1200 CFM (VEV1200), or 1500 CFM (VEV1500)

■

One ventilator, one duct run for any size hood/ventilator

■

Must use Viking ventilator kits with Viking hoods; use of

non-Viking kits voids product warranty

Easy cleanup

■

Commercial-type baffle filter system efficiently removes
grease and heated vapors from the air; especially
designed for use with commercial-type products

■

Dishwasher-safe filters are easily removed for quick
cleaning

■

Removable trough catches liquefied grease; making
cleanup quick and easy

■

Design of low profile filter system means less interior
hood space to be cleaned

■

Interior of rangehood canopy has stainless steel liner
for increased rigidity, seamless appearance, and easy
cleaning

VBCV3638 – 36" wide
custom ventilator and hood

10

Wall Hood Custom Ventilator Island Hood Custom Ventilator

11

VikingR_Ventilation_F60044H 6/13/08 9:14 AM Page 12

Convection microwave hood

Professional features

■

Instant sensor settings for cooking, reheating foods,

and popping popcorn

■

Four convection settings: ConvecBroil, ConvecRoast,

ConvecBake, and a manual convection setting option

■

Low Mix Bake and High Mix Roast settings offer use of
convection heat to seal and brown outside of foods
while using microwave energy to ensure the interior is
cooked

■

Add-A-Minute allows a minute of extra cooking time
to be added with the touch of a button

■

Child Lock safety feature locks the control panel to
prevent unwanted operation

■

Convection microwave cookbook comes standard

with unit

■

Built-in exhaust system

• 300 CFM

• Unit shipped assembled to recirculate; may also
be vented out of the rear or vertically

Spacious oven cavity

■

1.1 (31.2 liters) cubic ft. oven capacity

■

13" (33.0 cm) diameter turntable

■

Interior light

Installation options

■

For use with Viking 24" or 30" wide non-grill cooking

products

VMOR205 – 30" wide
convection microwave hood

Convection Microwave Hood

13

Four convection cooking modes
and an exhaust system offer the
performance to go from light and
fluffy to seared and juicy.

12

VikingR_Ventilation_F60044H 6/13/08 9:14 AM Page 14

MODELS WITH CONTROLS
ON DOWNDRAFT

30" width – VIPR101
36" width – VIPR161
48" width – VIPR181

MODELS WITH REMOTE­MOUNTED CONTROLS

30" width – VIPR101R
36" width – VIPR161R
48" width – VIPR181R

Appearance and design

■

For use with Viking Professional rangetops (non-grill

models only) and cooktops

■

Suitable for island and wall installations

■

Downdraft raises and lowers at the touch of a button

• When not in use, unit retracts and rests flush with
cooking surface

■

Four variable fan speeds ensure efficient ventilation

■

Delay/off feature allows operation for 10 minutes

before automatically shutting off

■

Removable, easy-to-clean filters are dishwasher-safe

and sized

• Filter alert reminds user to clean filters after
approximately 30 hours of use

■

Can be ordered with controls on intake top or with a
separate remote-mounted control which can be
installed on the countertop

• Remote-mounted control allows user to operate
the downdraft without having to reach over
cooking surface/vessels

• Remote-mounted control must be used when
downdraft is installed with Viking rangetops

■

Must use Viking ventilator kits with Viking downdrafts;

use of non-Viking kits voids product warranty

VersaVentTMrear downdrafts

Retractable downdrafts quietly
do their job, then disappear
into your countertop.

■

Interior- or exterior-power ventilators available

• Interior-power ventilator kit – 500 CFM (VIDV500)

• Exterior-power ventilator kits – 900 CFM (VEDV900)
or 1,200 CFM (VEDV1200) (for use with 48" wide
downdraft only)

■

Do not install with a Viking rangetop that has a gas
char-grill or wok; warranty is voided and performance
may be below expectations

• When selecting the power and high performance
of a Viking gas char-grill, a Viking 18" high
overhead hood is highly recommended

■

Stainless steel finish

Variable fan speeds offer settings to tame
everything from boiled cabbage to pan-fried trout.

14 15

VikingR_Ventilation_F60044H 6/13/08 9:14 AM Page 16

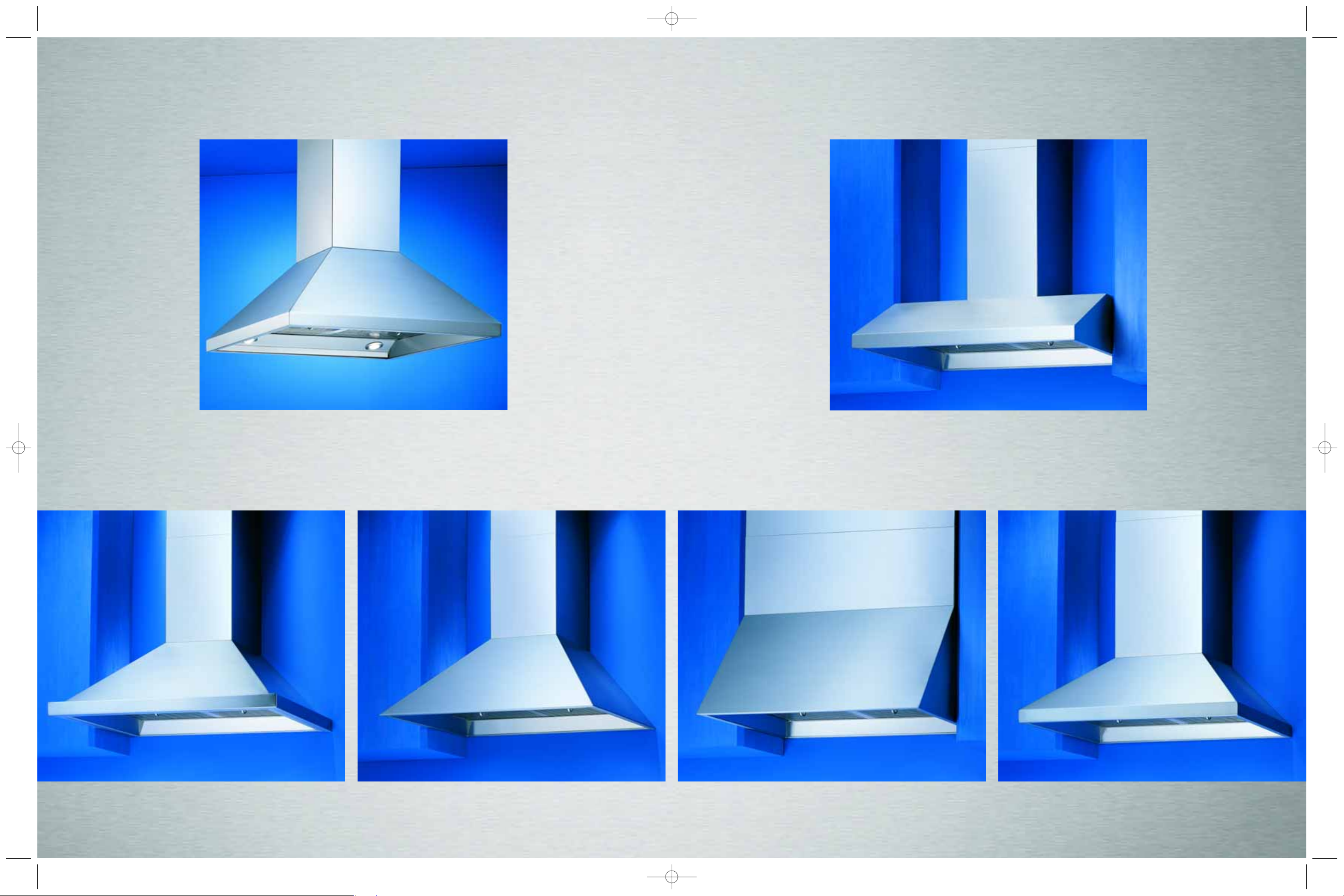

The Designer Collection

of ventilation systems definitely fit in with any Viking kitchen. They just present a bit

sleeker look to easily blend into the decor. These hoods also offer their own delay feature,

allowing the cook to set the vent to shut down after dinner is served and the air is clear.

16 17

VikingR_Ventilation_F60044H 6/13/08 9:15 AM Page 18

30" width – DCWH3042
36" width – DCWH3644
42" width – DCWH4244
48" width – DCWH4844

Wall and island hoods

Appearance and design

■

Heavy-duty construction; elegant design and styling

■

Virtually seamless design with no visible screws

■

Halogen lights for better visibility and efficiency

• Dimmer on lights allows custom lighting – separate
on/off switch allows consumer to leave dimmer at
favorite position

■

Heat sensor turns ventilator on full power when

cooking temperatures reach uncomfortable levels

■

Delay feature allows consumer to set the ventilator to

shut off on its own from 10 to 30 minutes later

■

12-hour timer built into ventilator controls; excellent

for use with Designer cooking products

Interior- or exterior-power ventilators

■

Variable speed controls for custom venting –
separate on/off switch allows consumer to leave
ventilator at favorite setting

■

Wall and Island Hoods

• Interior-power ventilator kits – 300 CFM (DIV 300 or
VIV300), 440 CFM (DIV440), 600 CFM (DIV600 or
VIV600), 880 CFM (DIV880), or 1,200 CFM (DIV1200
or VIV1200)

• Exterior-power ventilator kits – 900 CFM (DEV900 or
VEV900), 1,200 CFM (DEV1200 or VEV1200), or
1,500 CFM (DEV1500 or VEV1500)

• See specification chart for compatibility

■

One ventilator, one duct run for any size hood/ventilator

■

Must use Viking ventilator kits with Viking hoods; use

of non-Viking kits voids product warranty

Easy cleanup

■

Mesh filters made entirely of stainless steel for durability
and long life; efficiently remove grease and heated
vapors from air

■

Dishwasher-safe filters are easily removed for
quick cleaning

■

Design of low profile filter system means less interior
hood space to be cleaned

■

Interior of rangehood canopy has stainless steel
liner for increased rigidity, seamless appearance,
and easy cleaning

12" high interior-power
classic chimney wall hoods

■

DCH models offer the same features as other Designer
hoods and are excellent for builder projects

■

Available in 30" and 36" widths

■

460 CFM interior-power ventilator comes standard
with product

■

Recommended for use with 30" and 36" wide
non-griddle/grill ranges, rangetops, and cooktops;
for larger equipment, use 14" high wall hood

Stainless steel mesh filters

efficiently clean your air – and

your dishwasher cleans them.

CLASSIC CHIMNEY
WALL HOOD

18 19

VikingR_Ventilation_F60044H 6/13/08 9:15 AM Page 20

Classic Chimney with Ledge Wall Hood Classic Chimney Ledgeless Wall Hood

Classic Chimney Island Hood Slim Traditional Wall Hood

Tall Traditional Ledgeless Wall Hood

Classic Chimney Wall Hood with

Standard Interior-Power Ventilator

30" width – DTWN3048
36" width – DTWN3648
42" width – DTWN4248
48" width – DTWN4848

30" width – DCH3042
36" width – DCH3642

30" width – DCWN3042
36" width – DCWN3644
42" width – DCWN4244
48" width – DCWN4844

36" width – DCIH3604
42" width – DCIH4204
54" width – DCIH5404

33" width – DCWL3342
39" width – DCWL3944
45" width – DCWL4544
51" width – DCWL5144

30" width – DTWS3049
36" width – DTWS3649
42" width – DTWS4249
48" width – DTWS4849

2120

VikingR_Ventilation_F60044H 6/13/08 9:15 AM Page 22

Built-in custom ventilation systems

■

Delay feature allows consumer to set the ventilator to
shut off on its own from 10 to 30 minutes later

■

12-hour timer built into ventilator controls; excellent
for use with Designer cooking products

Interior- or exterior-power ventilators

■

Variable speed controls for custom venting –
separate on/off switch allows consumer to leave
ventilator at favorite setting

■

Wall and Island Hoods

• Interior-power ventilator kits – 300 CFM (DIV300),
440 CFM (DIV440), or 880 CFM (DIV880)

• Exterior-power ventilator kits – 900 CFM (DEV900),
1,200 CFM (DEV1200), or 1,500 CFM (DEV1500)

• See specification chart for compatibility

■

One ventilator, one duct run for any size hood/ventilator

■

Must use Viking ventilator kits with Viking hoods; use

of non-Viking kits voids product warranty

Easy cleanup

■

Mesh filters made entirely of stainless steel for durability
and long life; efficiently remove grease and heated
vapors from air

■

Dishwasher-safe filters are easily removed for
quick cleaning

■

Design of low profile filter system means less interior
hood space to be cleaned

■

Interior of rangehood canopy has stainless steel
liner for increased rigidity, seamless appearance,
and easy cleaning

DBCV3638 – 36" wide
custom ventilator and hood

The low profile filter
design and stainless
liner make cleaning the
hood quick and easy.

Variable speed
controls retain
preferred settings,
allowing for
custom venting.

Island Hood Custom VentilatorWall Hood Custom Ventilator

22 23

Appearance and design

■

Custom Designer Systems

• Wall hoods – 30" (DBCV3082), 36" (DBCV3682),
42" (DBCV4282), and 48" (DBCV4882) widths

• Island hoods – 36" (DICV3632), 42" (DICV4232),
54" (DICV5432) widths

■

Easily installs into almost any custom hood application

■

Heavy-duty construction; elegant design and styling

■

Virtually seamless design

■

Halogen lights for better visibility and efficiency

• Dimmer on lights allows custom lighting – separate
on/off switch allows consumer to leave dimmer at
favorite position

■

Heat sensor turns ventilator on full power when

cooking temperatures reach uncomfortable levels

VikingR_Ventilation_F60044H 6/13/08 9:15 AM Page 24

VMOR205 – 30" wide
convection microwave hood

24 25

Multiple convection settings plus built-in
exhaust handle everything from
baking to broiling – and all
aromas in between.

Convection microwave hood

Professional features

■

Instant sensor settings for cooking, reheating foods,

and popping popcorn

■

Four convection settings: ConvecBroil, ConvecRoast,

ConvecBake, and a manual convection setting option

■

Low Mix Bake and High Mix Roast settings offer use of
convection heat to seal and brown outside of foods
while using microwave energy to ensure the interior is
cooked

■

Add-A-Minute allows a minute of extra cooking time
to be added with the touch of a button

■

Child Lock safety feature locks the control panel to
prevent unwanted operation

■

Convection microwave cookbook comes standard

with unit

■

Built-in exhaust system

• 300 CFM

• Unit shipped assembled to recirculate; may also
be vented out of the rear or vertically

Spacious oven cavity

■

1.1 (31.2 liters) cubic ft. oven capacity

■

13" (33.0 cm) diameter turntable

■

Interior light

Installation options

■

For use with Viking 24" or 30" wide non-grill cooking

products

Convection Microwave Hood

VikingR_Ventilation_F60044H 6/13/08 9:15 AM Page 26

Appearance and design

■

For use with Viking Designer cooktops

■

Suitable for both island and wall installations

■

Available with remote-mounted control only

• Installs on countertop and allows user to operate
downdraft without having to reach over cooking
surface/vessels

■

Downdraft raises and lowers at the touch of a button

• When not in use, unit retracts and rests flush with
cooking surface

■

Four variable fan speeds ensure efficient ventilation

■

Delay/off feature allows operation for 10 minutes

before automatically shutting off

■

Removable, easy-to-clean filters are dishwasher-safe

and sized

■

Filter alert reminds user to clean filters after

approximately 30 hours of use

■

Must use Viking ventilator kits with Viking downdrafts;

use of non-Viking kits voids the product warranty

■

Interior- or exterior-power ventilators available

• Interior ventilator kit – 500 CFM (VIDV500)

• Exterior ventilator kits – 900 CFM (VEDV900) or
1,200 CFM (VEDV1200) (for use with 45" wide
downdraft only)

■

Stainless steel finish is standard; remote-mounted

control is black with stainless steel frame

Remote-mounted control
panels install anywhere on
your countertop.

No matter what you

cook, the downdraft

is right on top of it.

VersaVentTMrear downdrafts

30" width – DIPR100R
36" width – DIPR160R
45" width – DIPR150R

26 27

VikingR_Ventilation_F60044H 6/13/08 9:16 AM Page 28

Optional accessories

Professional Recirculating Hood

Conversion Kit

Wall Hood

Backsplashes

Wall Hood

Warming Shelf

Panels

Accessory Rail

Professional Series

Recirculating Hood Conversion Kits

■

Convert 10" high hoods to recirculating/ductless hoods

■

4" high grille easily installs on top of hood

■

Charcoal filters/frame (standard with kit) attach to
commercial-style stainless steel baffle filters included with
hood – (replacement charcoal filters sold separately)

■

24" (VRK24), 30" (VRK30), and 36" (VRK36) widths

■

Available in Stainless Steel (SS) only

Wall and Island Hood Duct Covers

■

Wall hood duct covers available in all widths

■

Island hood duct covers available in all widths

■

12" height

■

Available in finishes to match hood

Chimney Wall Hood Duct Covers

■

Adjustable duct cover comes standard – for ceilings
up to 9' high

■

Available in finishes to match hood

Chimney Wall Hood Duct Cover Extensions

■

Extend height of duct cover by up to 12 inches
(for 10’ high ceilings)

■

Available in all widths

■

Available in finishes to match hood and duct cover

Chimney Island Hood Duct Covers

■

Available in all widths

Wall Hood Warming Shelf Panels

■

Hold cookware and condiments; may be used with a

heat lamp to keep food warm

■

Fold up/down, heavy-duty warming shelves

• 15 7/8" wide by 10 1/8" deep

■

24" (WGP24) and 30" (WGP30) wide models have

one shelf

■

36" (WGP36), 42" (WGP42), 48" (WGP48), and

54" (WGP54) wide models have two shelves

■

60" (WGP60) and 66" (WGP66) wide models have

three shelves

■

Available in Stainless Steel (SS) only

Wall Hood Backsplashes

■

Protect wall space below hood and create a

continuous finish between cooking surface and hood

■

Low maintenance, easy to clean

■

24" (BKS24), 30" (BKS30), 36" (BKS36), 42" (BKS42),
48" (BKS48), 54" (BKS54), 60" (BKS60), 66" (BKS66) widths;
30" high

■

Available in Stainless Steel (SS) only

Accessory Rail

■

Decorative yet functional trim must be factory installed

■

Available in Chrome or Brass finish

• Front of wall hoods (CR or BR)

• Front and back of island hoods (CR2 or BR2)

• Front, back, and sides of island hoods (CR4 or BR4)

Designer Series

Recirculating Hood Conversion Kits

■

Convert DCH Classic Chimney wall hoods with interior-

power ventilators to recirculating/ductless hoods

■

2" high grille easily installs on top of hood

■

Charcoal filters/frame (standard with kit) attach to
stainless steel mesh filters included with hood –
(replacement charcoal filters sold separately)

■

30" (DRK30) and 36" (DRK36) widths

■

Available in Stainless Steel (SS) only

Wall and Island Hood Duct Covers

■

Classic Chimney wall hoods with standard interior­power ventilator

• Adjustable duct cover for ceilings up to 9' high

■

Classic Chimney wall hoods and Slim Traditional
wall hoods

• Adjustable duct cover comes standard – for
ceilings up to 9' high

■

Tall Traditional wall hoods

• Available in all widths

• 12" height

■

Classic Chimney island hoods

• Available in all widths

• Sizes available for installations with 8’, 9’, or 10’
high ceilings

■

Available in finishes to match hood

Duct Cover Extensions

■

Available for Classic Chimney, Classic Chimney with
Ledge, Classic Chimney Ledgeless, and Slim Traditional
hoods only

■

Extend height of duct cover by up to 12 inches

■

Available in all widths

■

Available in finishes to match hood and duct cover

Wall Hood Backsplashes

■

Protect wall space below hood and create a continuous
surface between cooking appliance and hood

■

Low maintenance, easy to clean

■

30" (BKS30), 36" (BKS36), 42" (BKS42), and 48" (BKS48)
widths; 30" high

■

Available in Stainless Steel (SS) only

Accessory Rail

■

Decorative yet functional trim must be factory installed

■

Available on all hoods except "ledge" and "ledgeless"
models; standard on Box wall hoods

■

Available in Chrome or Brass finish

• Front of wall hoods (CR or BR)

• Front, back, and sides of island hoods (CR4 or BR4)

Replacement Remote-Mounted Control

■

Available for Designer downdraft

■

Gray with stainless steel frame – for use with Designer
Stainless Steel/White glass cooktops

Charcoal Filters

Remote-Mounted Control

Designer Recirculating Hood

Conversion Kit

Duct Covers

28 29

VikingR_Ventilation_F60044H 6/13/08 9:16 AM Page 30

Design integrity

■

Hoods available in Stainless Steel (SS), Black (BK), White
(WH), Metallic Silver (MS), Graphite Gray (GG), Stone
Gray (SG), Taupe (TP), Biscuit (BT), Cotton White (CW),
Oyster Gray (OG), Golden Mist (GM), Lemonade (LE),
Sage (SA), Mint Julep (MJ), Sea Glass (SE), Iridescent Blue
(IB), Viking Blue (VB), Pumpkin (PM), Racing Red (RR),
Apple Red (AR), Burgundy (BU), Plum (PL), Chocolate
(CH), and Cobalt Blue (CB)

■

For brass trim, order Accessory Rail in brass (all
Professional hoods and Designer classic chimney wall
and island hoods only); all brass components have a
durable, protective coating for maintenance-free
normal use

■

Rear downdrafts available in Stainless Steel (SS)

■

Convection microwave hoods available in Stainless

Steel (SS)

■

Viking uses the most up-to-date processes and best
materials available to produce all color finishes.
However, slight color variation may be noticed
because of the inherent differences in painted parts
and porcelain parts, as well as differences in room
lighting, product locations, and other factors.

Warranty highlights

■

One-year full – complete unit

■

Lifetime limited – stainless steel exterior

■

Five-year limited – all ventilator motors

■

Ninety-day limited – cosmetic parts such as glass,
painted items, and decorative items

Exclusive finishes

30 31

Consistency in both performance and design should be
a major consideration when building or remodeling a
home. With the complete Viking indoor or outdoor
kitchen, every single product works together in form and
function with the same level of excellence. It’s something
Viking calls Design Integrity™.

Viking is the only company that offers complete ultra­premium kitchens – so Viking is also the only company
that can offer truly consistent design, while delivering the
quality and performance that makes Viking the true
market leader. Across all product categories, the knobs,
handles, bezels, curves, angles, and lines all follow the
same design cues – even the grain of stainless is the same
from product to product. This enables the designer to
create a perfectly harmonious kitchen in one of three
Viking product offerings – Professional Indoor, Designer
Indoor, or Professional Outdoor.

You wouldn’t install mismatched cabinets and drawers
or countertops. Yet design differences are even more
dramatic between multiple appliance manufacturers.
Traditional or contemporary. Stainless or color finish. No
matter the look you’re going for, no one can match the
Viking kitchen and Viking Design Integrity.

plum

black

chocolate cobalt blue

oyster gray

golden mist

lemonade

sage

stainless steel

metallic silver

graphite gray

stone gray

taupe

biscuit

cotton white

white

mint julep

sea glass iridescent blue viking blue

pumpkin racing red

apple red burgundy

VikingR_Ventilation_F60044H 6/13/08 9:16 AM Page 32

10" HIGH WALL HOODS – 21" DEEP (OPTIONAL DUCT COVER SOLD SEPARATELY)

A 460 CFM blower is shipped with hood.

24" W. VWH2410 23 7/8" 12" 12" 2 2 N/A N/A N/A 7" N/A 5.6 N/A
30" W. VWH3010 29 7/8" 12" 12" 2 2 N/A N/A N/A 7" N/A 5.6 N/A
36" W. VWH3610 35 7/8" 12" 12" 2 2 N/A N/A N/A 7" N/A 5.6 N/A

18" HIGH WALL HOODS – 24" DEEP (OPTIONAL DUCT COVER SOLD SEPARATELY)

24" W. VWH2448 23 7/8" 12" 12" 2 2 1 VIV300/VIV600* VEV900/VEV1200* 7" 10" 5.0/6.2 8.7/6.1
30" W. VWH3048 29 7/8" 12" 12" 2 2 1 VIV300/VIV600/ VEV900/VEV1200* 7"/10" 10" 5.0/6.2/ 8.7/6.1

VIV1200* 8.7

36" W. VWH3648 35 7/8" 12" 12" 2 2 1 VIV300/VIV600/ VEV900/VEV1200* 7"/10" 10" 5.0/6.2/ 8.7/6.1

VIV1200* 8.7
42" W. VWH4248 41 7/8" 12" 12" 2 2 1 VIV600/VIV1200* VEV900/VEV1200* 7"/10" 10" 6.2/8.7 8.7/6.1
48" W. VWH4848 47 7/8" 12" 12" 3 3 2 VIV1200 VEV1200/VEV1500** 10" 10" 11.1 8.4/9.1
54" W. VWH5448 53 7/8" 12" 12" 3 3 2 VIV1200 VEV1200/VEV1500** 10" 10" 11.1 8.4/9.1
60" W. VWH6048 59 7/8" 12" 12" 4 4 2 VIV1200 VEV1200/VEV1500** 10" 10" 11.5 8.8/9.5
66" W. VWH6648 65 7/8" 12" 12" 4 4 2 VIV1200 VEV1200/VEV1500** 10" 10" 11.5 8.8/9.5

18" HIGH WALL HOODS – 27" DEEP (OPTIONAL DUCT COVER SOLD SEPARATELY)

36" W. VWH3678 35 7/8" 12" 12" 2 2 1 VIV300/VIV600/ VEV900/VEV1200* 7"/10" 10" 5.0/6.2/ 8.7/6.1

VIV1200* 8.7
48" W. VWH4878 47 7/8" 12" 12" 3 3 2 VIV1200 VEV1200/VEV1500** 10" 10" 11.1 8.4/9.1
60" W. VWH6078 59 7/8" 12" 12" 4 4 2 VIV1200 VEV1200/VEV1500** 10" 10" 11.5 8.8/9.5

Model

Duct Covers

Width

Basic specifications – Professional hoods

*

A 1,200 CFM interior- or exterior-power ventilator should be used when installed over range/rangetop with gas char-grill.

**

It is recommended that the 1,500 CFM ventilator be used with longer duct runs.
Please note: Maximum amp rating for hoods includes recommended ventilator kit rating; all products must be hard wired with 2-wire with ground.
An interior- or exterior-power ventilator kit must be purchased for installation with all 18" high hoods.

Number

of

Lights

Number

of

Filters

Heat

Lamps

Interior Exterior

Recommended Ventilator Kits

Depth Height

Recommended

Duct Size

Interior Exterior

Interior Exterior

Designer hoods

WALL AND ISLAND HOODS

Duct Covers

Width

Number

of

Lights

Number

of

Filters

Interior Exterior

Recommended Ventilator Kits

Depth Height

Maximum

Amps

Interior Exterior

Recommended

Duct Size

Interior Exterior

Maximum

Amps

WALL AND ISLAND HOODS

Model

30" W./12"H. DCH3042
36" W./12"H. DCH3642

CLASSIC CHIMNEY WALL HOODS – 24" DEEP (DUCT COVER STANDARD)

30" W./12" H. DCWH3042 10" 12" 18"-30" 2 2 DIV300/DIV440* DEV900/DEV1200* 7" 10" 1.7/3.2 6.6/3.9
36" W./14" H. DCWH3644 12" 12" 16"-28" 2 2 DIV300/DIV600* DEV900/DEV1200* 7" 10" 1.7/3.9 6.6/3.9
42" W./14" H. DCWH4244 12" 12" 16"-28" 2 3 DIV600* DEV900/DEV1200* 7" 10" 3.9 6.6/3.9
48" W./14" H. DCWH4844 18" 12" 16"-28" 3 3 DIV1200 DEV1200/DEV1500** 10" 10" 7.3 4.3/5.1

CLASSIC CHIMNEY WITH LEDGE WALL HOODS – 25 1/2" DEEP (DUCT COVER STANDARD)

33" W./12" H. DCWL3342 10" 12" 18"-30" 2 2 DIV300/DIV440* DEV900/DEV1200* 7" 10" 1.7/3.2 6.6/3.9
39" W./14" H. DCWL3944 12" 12" 16"-28" 2 2 DIV300/DIV600* DEV900/DEV1200* 7" 10" 1.7/3.9 6.6/3.9
45" W./14" H. DCWL4544 12" 12" 16"-28" 2 3 DIV600* DEV900/DEV1200* 7" 10" 3.9 6.6/3.9
51" W./14" H. DCWL5144 18" 12" 16"-28" 3 3 DIV1200 DEV1200/DEV1500** 10" 10" 7.3 4.3/5.1

CLASSIC CHIMNEY LEDGELESS WALL HOODS – 24" DEEP (DUCT COVER STANDARD)

30" W./12" H. DCWN3042 10" 12" 18"-30" 2 2 DIV300/DIV440* DEV900/DEV1200* 7" 10" 1.7/3.2 6.6/3.9
36" W./14" H. DCWN3644 12" 12" 16"-28" 2 2 DIV300/DIV600* DEV900/DEV1200* 7" 10" 1.7/3.9 6.6/3.9
42" W./14" H. DCWN4244 12" 12" 16"-28" 2 3 DIV600* DEV900/DEV1200* 7" 10" 3.9 6.6/3.9
48" W./14" H. DCWN4844 18" 12" 16"-28" 3 3 DIV1200 DEV1200/DEV1500** 10" 10" 7.3 4.3/5.1

CLASSIC CHIMNEY WALL HOODS WITH STANDARD INTERIOR-POWER VENTILATOR – 24" DEEP (OPTIONAL DUCT COVER SOLD SEPARATELY)

A 460 CFM blower is shipped with hood.

16" 12" 18"-30" 2 2 N/A N/A 7" – 5.6 N/A
16" 12" 18"-30" 2 2 N/A N/A 7" – 5.6 N/A

*

A 1,200 CFM interior- or exterior-power ventilator should be used when installed over range/rangetop with gas char-grill.

**

It is recommended that the 1,500 CFM ventilator be used with longer duct runs.
Please note: Maximum amp rating for hoods includes recommended ventilator kit rating; all products must be hard wired with 2-wire with ground. Refer to chart on next page
for additional information regarding use of Designer hoods with Professional cooking products. An interior- or exterior-power ventilator kit must be purchased for installation with
all Designer hoods.

32 33

18" HIGH CHIMNEY WALL HOODS – 24" DEEP (ADJUSTABLE DUCT COVER STANDARD)

30" W. VCWH3048 12" 12" 12"-24" 2 2 1 DIV300/DIV600* DEV900/DEV1200* 7" 10" 3.9/6.0 8.7/6.0
36" W. VCWH3648 12" 12" 12"-24" 2 2 1 DIV300/DIV600* DEV900/DEV1200* 7" 10" 3.9/6.0 8.7/6.0
42" W. VCWH4248 12" 12" 12"-24" 2 2 1 DIV600* DEV900/DEV1200* 7" 10" 6.0 8.7/6.0
48" W. VCWH4848 18" 12" 12"-24" 3 3 2 DIV1200 DEV1200/DEV1500** 10" 10" 11.5 8.5/9.2
54" W. VCWH5448 18" 12" 12"-24" 3 3 2 DIV1200 DEV1200/DEV1500** 10" 10" 11.5 8.5/9.2
60" W. VCWH6048 24" 12" 12"-24" 4 4 2 DIV1200 DEV1200/DEV1500** 10" 10" 11.9 8.9/9.6
66" W. VCWH6648 24" 12" 12"-24" 4 4 2 DIV1200 DEV1200/DEV1500** 10" 10" 11.9 8.9/9.6

18" HIGH ISLAND HOODS – 30" DEEP (OPTIONAL DUCT COVER SOLD SEPARATELY)

36" W. VIH3608 35 7/8" 12" 12" 4 4 N/A VIV600/VIV1200* VEV900/VEV1200* 7"/10" 10" 4.9/7.4 7.4/4.7
42" W. VIH4208 41 7/8" 12" 12" 4 4 N/A VIV600/VIV1200* VEV900/VEV1200*/ 7"/10" 10" 4.9/7.4 7.4/4.7/5.5

VEV1500**
54" W. VIH5408 53 7/8" 12" 12" 6 6 N/A VIV1200 VEV1200/VEV1500** 10" 10" 8.2 5.5/6.2
66" W. VIH6608 65 7/8" 12" 12" 8 8 N/A VIV1200 VEV1200/VEV1500** 10" 10" 9.0 6.3/7.1

18" HIGH CHIMNEY ISLAND HOODS – 30" DEEP (OPTIONAL DUCT COVER SOLD SEPARATELY)

36" W. VCIH3608 12" 12"

12"-24"-36”

4 4 N/A DIV600* DEV900/DEV1200* 7" 10" 3.9 6.6/3.9

42" W. VCIH4208 12" 12"

12"-24"-36”

4 4 N/A DIV600* DEV900/DEV1200*/ 7" 10" 4.7 7.4/4.8/5.5

DEV1500**

54" W. VCIH5408 18" 12"

12"-24"-36”

6 6 N/A DIV1200 DEV1200/DEV1500** 10" 10" 8.6 5.6/6.4

66" W. VCIH6608 24" 12"

12"-24"-36”

8 8 N/A DIV1200 DEV1200/DEV1500** 10" 10" 9.5 6.5/7.3

SLIM TRADITIONAL WALL HOODS – 24" DEEP (DUCT COVER STANDARD)

30" W./9" H. DTWS3049 12" 12" 21"-33" 2 2 DIV300/DIV440 DEV900/DEV1200 7" 10" 1.7/3.2 6.6/3.9
36" W./9" H. DTWS3649 12" 12" 21"-33" 2 2 DIV300/DIV440 DEV900/DEV1200 7" 10" 1.7/3.2 6.6/3.9
42" W./9" H. DTWS4249 12" 12" 21"-33" 2 3 DIV440 DEV900/DEV1200 7" 10" 3.2 6.6/3.9
48" W./9" H. DTWS4849 20" 12" 21"-33" 3 3 DIV880 DEV1200/DEV1500** 10" 10" 5.6 4.3/5.1

TALL TRADITIONAL LEDGELESS WALL HOODS – 24" DEEP (OPTIONAL DUCT COVER SOLD SEPARATELY)

30" W./18" H. DTWN3048 29 7/8" 12" 12" 2 2 VIV300/VIV600/ VEV900/VEV1200* 7"/10" 10" 2.4/4.6/ 6.6/3.9

VIV1200* 6.6

36" W./18" H. DTWN3648 35 7/8" 12" 12" 2 2 VIV300/VIV600/ VEV900/VEV1200* 7"/10" 10" 2.4/4.6/ 6.6/3.9

VIV1200* 6.6

42" W./18" H. DTWN4248 41 7/8" 12" 12" 2 3

VIV600/VIV1200*

VEV900/VEV1200* 7"/10" 10" 4.6/6.6 6.6/3.9

48" W./18" H. DTWN4848 47 7/8" 12" 12" 3 3 VIV1200 VEV1200/VEV1500** 10" 10" 7.0 4.3/5.1

CLASSIC CHIMNEY ISLAND HOODS – 30" DEEP (OPTIONAL DUCT COVER SOLD SEPARATELY)

36" W./14" H. DCIH3604 12" 12" 16", 28", or 40" 4 2 DIV600 DEV900/DEV1200 7" 10" 3.9 6.6/3.9
42" W./14" H. DCIH4204 12" 12" 16", 28", or 40" 4 3 DIV600 DEV900/DEV1200/ 7" 10" 4.7 7.4/4.7/

DEV1500** 5.5

54" W./14" H. DCIH5404 18" 12" 16", 28", or 40" 6 3 DIV1200 DEV1200/DEV1500** 10" 10" 8.6 5.6/6.4

VikingR_Ventilation_F60044H 6/13/08 9:16 AM Page 34

BUILT-IN CUSTOM VENTILATION SYSTEMS

Model

Number

of

Lights

Number

of

Filters

Heat

Lamps

Interior Exterior

Recommended Ventilator Kits

Recommended

Duct Size

Interior Exterior

Maximum

Amps

Interior Exterior

*

A 1,200 CFM interior- or exterior-power ventilator should be used when installed over range/rangetop with gas char-grill.

**

It is recommended that the 1,500 CFM ventilator be used with longer duct runs.

An interior- or exterior-power ventilator kit must be purchased for installation with all Custom Ventilator Systems.

*

A 1,200 CFM interior- or exterior-power ventilator should be used when installed over range/rangetop with gas char-grill.

**

It is recommended that the 1,500 CFM ventilator be used with longer duct runs.

An interior- or exterior-power ventilator kit must be purchased for installation with all Custom Ventilator Systems.

Built-in custom ventilation systems – Professional

BUILT-IN CUSTOM VENTILATION SYSTEMS

Model

Number

of

Lights

Number

of

Filters

Interior Exterior

Recommended Ventilator Kits

Recommended

Duct Size

Interior Exterior

Maximum

Amps

Interior Exterior

Built-in custom ventilation systems – Designer

WALL HOODS – 18" DEEP

30" W./12" H. DBCV3082 2 2 DIV300/DIV440* DEV900/DEV1200* 7" 10" 1.7/3.2 6.6/3.9
36" W./14" H. DBCV3682 2 2 DIV300/DIV440* DEV900/DEV1200* 7" 10" 1.7/3.2 6.6/3.9
42" W./14" H. DBCV4282 2 3 DIV440* DEV900/DEV1200* 7" 10" 3.2 6.6/3.9
48" W./14" H. DBCV4882 2 3 DIV880* DEV1200/DEV1500** 10" 10" 5.6 4.3/5.1

ISLAND HOODS – 23" DEEP

36" W./12" H. DICV3632 4 2 DIV440 DEV900/DEV1200 7" 10" 4.0 7.5/5.2
42" W./14" H. DICV4232 4 2 DIV440 DEV900/DEV1200/DEV1500** 7" 10" 4.0 7.5/5.2/6.0
54" W./14" H. DICV5432 4 3 DIV880 DEV1200/DEV1500** 10" 10" 6.4 5.2/6.0

34 35

WALL HOODS – 22" DEEP

30" W. VBCV3038 2 2 1

VIV300/VIV600/VIV1200*VEV900/VEV1200

* 7"/10" 10" 5.0/6.7/8.7 8.7/6.1

36" W. VBCV3638 2 2 1

VIV300/VIV600/VIV1200*VEV900/VEV1200

* 7"/10" 10" 5.0/6.7/8.7 8.7/6.1

42" W. VBCV4238 2 2 1

VIV600/VIV1200

*

VEV900/VEV1200

* 7"/10" 10" 6.2/8.7 8.7/6.1

48" W. VBCV4838 3 3 2

VIV1200 VEV1200/VEV1500

** 10" 10" 11.1 8.7/6.1

54" W. VBCV5438 3 3 2

VIV1200 VEV1200/VEV1500

** 10" 10" 11.1 8.7/6.1

60" W. VBCV6038 4 4 2

VIV1200 VEV1200/VEV1500

** 10" 10" 11.1 8.8/9.5

66" W. VBCV6638 4 4 2

VIV1200 VEV1200/VEV1500

** 10" 10" 11.1 8.8/9.5

ISLAND HOODS – 18" DEEP

36" W. VICV3698 4 4 –

VIV600/VIV1200

*

VEV900/VEV1200

* 7" 10" 4.9/7.4 7.4/4.7

42" W. VICV4298 4 4 –

VIV600/VIV1200

*

VEV900/VEV1200*/VEV1500**

7" 10" 4.9/7.4 7.4/4.8/5.4

54" W. VICV5498 6 6 –

VIV1200

VEV900/VEV1200*/VEV1500**

7" 10" 8.2 7.4/5.6/6.2

66" W. VICV6698 8 8 –

VIV1200

VEV900/VEV1200*/VEV1500**

7" 10" 9.0 7.4/6.3/7.1

Width: 17 1/8" (43.5 cm)
Height: 8 1/16" (20.5 cm)
Depth: 13 13/16" (35.1 cm)
Overall: 1.1 cu. ft.

1.6 kW, 13.2 A

15 5/16" (38.9 cm)

Microwave hood – Professional

VMOR205

Overall Width

29 15/16" (76.1 cm)

Overall Height
Overall Depth
Electrical Requirements
Maximum Amp Usage

Description

MICROWAVE HOOD

16 6/16" (41.7 cm)

120 V, single phase, 60 Hz, AC only

Overall Interior
Dimensions

Approximate Shipping
Weight

85 lb. (38.6 kg)

Width: 17 1/8" (43.5 cm)
Height: 8 1/16" (20.5 cm)
Depth: 13 13/16" (35.1 cm)
Overall: 1.1 cu. ft.

1.6 kW, 13.2 A

15 5/16" (38.9 cm)

Microwave hood – Designer

DMOR205

Overall Width

29 15/16" (76.1 cm)

Overall Height
Overall Depth
Electrical Requirements
Maximum Amp Usage

Description

MICROWAVE HOOD

16 6/16" (41.7 cm)

120 V, single phase, 60 Hz, AC only

Overall Interior
Dimensions

Approximate Shipping
Weight

85 lb. (38.6 kg)

VikingR_Ventilation_F60044H 6/13/08 9:16 AM Page 36

DESIGNER HOODS*

VENTILATOR KIT

(when used over ranges/rangetops with char-grill)

WALL AND ISLAND HOODS

All 18" high rangehood ventilator kits include rough-in kit, transition to round duct ( 7" round for VIV600 – all other 10" round), and damper (if applicable).
All ventilator kits use 120VAC/60Hz.

Proper installation is extremely important to ensure maximum performance from any ventilation product.

1. All CFMs stated based on tests with .1 static pressure; without applying static pressure (some brands consciously do not), CFM could be greatly overstated.

2. Duct run length is for general reference only; for longer duct runs, increase duct size and contact a qualified and trained installer.

• Straight runs and gradual turns are best; for example, each 90-degree elbow is equal to 5-10 feet (1.52-3.05 m) of straight run.

• Never use flexible duct; it creates back pressure/air turbulence and greatly reduces performance.

• Proper performance is dependent upon proper ducting; make sure that a qualified and trained installer is used.

• Check with a qualified and trained installer or local codes for makeup air requirements, if any.

DOWNDRAFTS

300 440 600 880 1,200 900 1,200 1,500 500 900 1,200
See Specifications 3 1/4"x10" 10" round

(can transition
to 6" round)*

50 ft. (15.2 m) 75 ft.(22.8 m) 40 ft.(12.1 m)

See Specifications 4.0 6.0

Model

Interior

Ventilators

Ventilator kits – Professional and Designer

Exterior

Ventilators

Exterior

Ventilators

Interior

Ventilators

DIV440 VIV600

DIV600

DIV880 VIV1200

DIV1200

VEV900
DEV900

VEV1200
DEV1200

VIDV500 VEDV900 VEDV1200

APPROXIMATE CFM

1

RECOMMENDED
DUCT SIZE

MAXIMUM DUCT RUN

2

MAXIMUM AMPS

30", 33", 36", 39", 42", and 45" wide hoods – Classic Chimney models and
Built-in Custom Ventilator Systems as noted below
36" and 42" wide hoods – Tall Traditional models as noted below

48" wide hoods – Tall Traditional models as noted below

48" and 51" wide hoods – Classic Chimney models and Built-in Custom
Ventilator Systems as noted below

1,200 CFM exterior ventilator kit (DEV1200)

1,200 CFM interior or exterior ventilator kit (VIV1200 or VEV1200)
1,200 CFM interior or exterior ventilator kit (VIV1200 or VEV1200)
or 1,500 CFM exterior ventilator kit (VEV1500)
1,200 CFM interior or exterior ventilator kit (DIV1200 or DEV1200)
or 1,500 CFM exterior ventilator kit (DEV1500)

*

Includes the following wall hoods: Classic Chimney, Classic Chimney with Ledge, Classic Chimney Ledgeless, Built-in Custom Ventilation Systems (for wall hoods),
Tall Traditional with Ledge, and Tall Traditional Ledgeless. (Slim Traditional wall hoods, Box wall hoods, Classic Chimney island hoods, and Island Custom Ventilator Systems
should not be installed over Professional ranges and rangetops with the gas char-grill feature.)

Designer hoods can be installed over Professional cooking products. However, when choosing a Professional range or rangetop with the
gas char-grill feature, the following ventilator kits must be used to ensure proper performance:

VEV1500
DEV1500

VIV300
DIV300

Requirements for Designer hoods installed over Professional
cooking products with char-grill feature

36 37

REAR DOWNDRAFTS

Model

Number

of Filters

Interior Exterior

Recommended Ventilator Kits

Recommended Duct Size

Interior Exterior

Maximum Amps

Interior Exterior

Rear downdrafts – Professional

30" W. VIPR101(R)SS 2

VIDV500 VEDV900/VEDV1200

10" 10" 4.0 6.0

36" W. VIPR161(R)SS 2

VIDV500 VEDV900/VEDV1200

10" 10" 4.0 6.0

48" W. VIPR181(R)SS 2

VIDV500 VEDV900/VEDV1200

10" 10" 4.0 6.0

(can transition

to 6" round)

(can transition

to 6" round)

(can transition

to 6" round)

REAR DOWNDRAFTS

Model

Number

of Filters

Interior Exterior

Recommended Ventilator Kits

Recommended Duct Size

Interior Exterior

Maximum Amps

Interior Exterior

Rear downdrafts – Designer

30" W. DIPR100RSS 2

VIDV500 VEDV900/VEDV1200

10" 10" 4.0 6.0

36" W. DIPR160RSS 2

VIDV500 VEDV900/VEDV1200

10" 10" 4.0 6.0

45" W. DIPR150RSS 2

VIDV500 VEDV900/VEDV1200

10" 10" 4.0 6.0

(can transition

to 6" round)

(can transition

to 6" round)

(can transition

to 6" round)

VikingR_Ventilation_F60044H 6/13/08 9:16 AM Page 38

NotesNotes

39

38

All ventilation

products

All ventilation

products

All models with standard equipment are
design-certified for residential installation.

C

Please do not prepare installation from brochure data only. See installation instructions for
important clearance/installation information.

To receive the most current specification
sheets, call Dimension Express from your fax machine at [phone] or visit their Web site
at www.dexpress.com. Enter the code #8051 for Viking products. This will send you
information on how to use the system and the corresponding model code numbers.
Dimension Express Customer Service number is [phone].

© 2008, Viking Range Corporation
Specifications subject to change without notice.

VikingR_Ventilation_F60044H 6/13/08 9:16 AM Page 40
