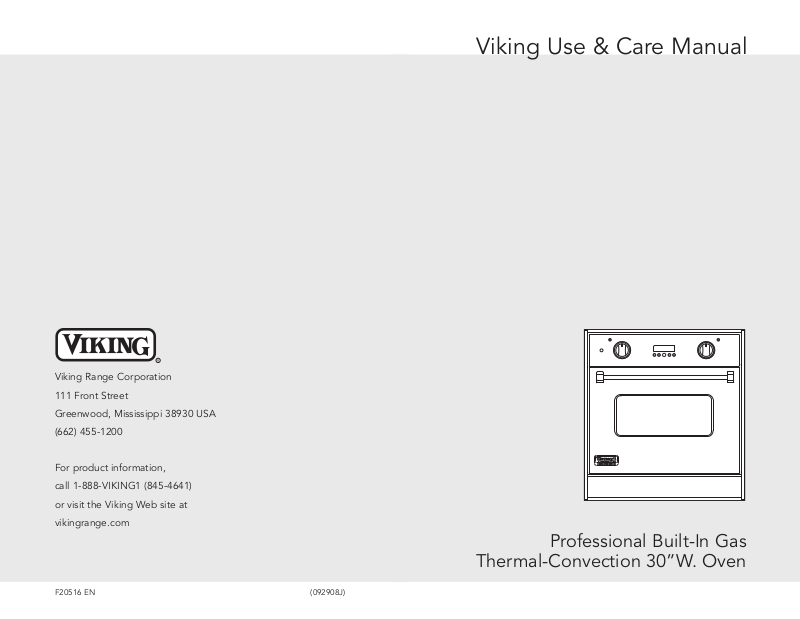

Viking Use & Care Manual

Viking Range Corporation

111 Front Street

Greenwood, Mississippi 38930 USA

(662) 455-1200

For product information,

call 1-888-VIKING1 (845-4641)

or visit the Viking Web site at

vikingrange.com

F20516 EN

Professional Built-In Gas

Thermal-Convection 30”W. Oven

(092908J)

Congratulations

Table of Contents

The purchase of this product attests to the importance you place upon the quality and performance of the major appliances you use. With minimal care, as outlined in this guide, this product is designed to provide you with yearsof dependable service. Please take the few minutesnecessary to learn the proper and efficient use and care of this quality product.

Some of the key features of this appliance include:

• Five performance modes–including convection baking and convection broiling–providing air circulation for shorter cooking times with even results.

• Convection baking with a hidden 30,000 BTU burner provides a fast, even baking for all your casserole dishes as well as easy cleanup.

• The 1500˚F closed door, infrared broiler allows intense heat to sear delicate to thick cuts of meat providing that restaurant taste.

• Four halogen lights illuminate the oven cavity with less glare.

• Six rack positions and three racks provide ample space for your baking needs.

Your complete satisfaction is our ultimate goal. If you have any questions or comments about this product, please contact the dealer from whom you purchased it, or contact our Consumer Support Center at 1-888-VIKING1 (845-4641).

We appreciate your choice of a Viking oven and hope that you will again select our products for your other major appliance needs.

Getting Started

Warnings and Important Safety Information _______________________ 4 Before Using Oven ______________________________________________11

Product Controls

Setting the Clock ________________________________________________12 Oven Features ___________________________________________________ 13 Oven Control Panel ______________________________________________14 Oven Functions and Settings ____________________________________14 Clocks and Timers _______________________________________________ 16

Operation

Using the Oven __________________________________________________19

Rack Positions _________________________________________________ 19 Conventional and Convection Cooking ________________________20

Baking ___________________________________________________________22

Bake (Natural Airflow Baking) __________________________________ 22 Convection Bake ______________________________________________ 22

Broiling __________________________________________________________ 27

Broil (Infrared Broil) ____________________________________________27

Convection Broil (Infrared Convection Broil) ____________________ 27 Convection Dehydrate ___________________________________________ 31 Convection Defrost ______________________________________________ 32

Product Care

Cleaning and Maintenance ______________________________________33 Replacing Oven Lights ___________________________________________ 35 Troubleshooting _________________________________________________36 Service Information ______________________________________________ 37 Warranty_________________________________________________________ 38

For more information about the complete and growing selection of Viking products, contact your dealer or visit us online at vikingrange.com.

DANGER

WARNING

CAUTION

WARNING

WARNING WARNING

Getting Started

IMPORTANT–

Warning and Important Safety Instructions appearing in this manual

Getting Started

are not meant to cover all possible conditions and situations that may occur. Common sense, caution, and care must be exercised when installing, maintaining, or operating the appliance.

ALWAYS contact the manufacturer about problems or conditions you

do not understand.

Please Read and Follow

Recognize Safety Symbols, Words, Labels

Hazards or unsafe practices which WILL result in

severe personal injury or death

IMPORTANT–

If the information in this manual is not followed exactly, a fire or explosion may result causing property damage, personal injury or death.

DO NOT store or use gasoline or other flammable vapors and liquids in

the vicinity of this or any appliance.

WHAT TO DO IF YOU SMELL GAS:

• DO NOT try to light any appliance.

• DO NOT touch any electrical switch.

• DO NOT use any phone in your building.

• Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's instructions.

• If you cannot reach your gas supplier, call the fire department.

Please Read and Follow

Hazards or unsafe practices which COULD result

in death or severe personal injury

Hazards or unsafe practices which COULD result

in minor personal injury.

All safety messages will identify the hazard, tell you how to

reduce the chance of injury, and tell you what can happen if

the instructions are not followed.

Read and follow all instructions before using this appliance to prevent the potential risk of fire, electric shock, personal injury or damage to the appliance as a result of improper usage of the appliance. Use appliance only for its intended purpose as described in this manual.

To ensure proper and safe operation: Appliance must be properly installed and grounded by a qualified technician. DO NOT attempt to adjust, repair, service, or replace any part of your appliance unless it is specifically recommended in this manual. All other servicing should be referred to a qualified servicer. Have the installer show you the location of the gas shutoff valve and how to shut it off in an emergency. A certified technician is required for any adjustments or conversions to Natural or LP gas.

Installation and service must be performed by a qualified installer, service agency or the gas supplier.

DO NOT use commercial oven cleaners inside the oven. Use of these cleaners can produce hazardous fumes or can damage the porcelain finishes.

NEVER cover any slots, holes or passages in the oven bottom or cover an entire rack with materials such as aluminum foil. Doing so blocks air flow through the oven and may cause carbon monoxide poisoning. Aluminum foil linings may also trap heat, causing a fire hazard.

To avoid risk of property damage, personal injury or death; follow information in this manual exactly to prevent a fire or explosion.

IMPORTANT–

Please Read and Follow

IMPORTANT–

Getting Started

Please Read and Follow

To Prevent Fire or Smoke Damage

Getting Started

• Be sure all packing materials are removed from the appliance before operating it.

• Keep area around appliance clear and free from combustible materials, gasoline, and other flammable vapors and materials.

• Many aerosol-type spray cans are EXPLOSIVE when exposed to heat and may be highly flammable. Avoid their use or storage near an appliance.

• Many plastics are vulnerable to heat. Keep plastics away from parts of the appliance that may become warm or hot.

• Combustible items (paper, plastic, etc.) may ignite and metallic items may become hot and cause burns.

leave oven unsupervised when drying herbs, breads, mushrooms,

NOT

etc; fire hazard.

DO NOT

pour spirits over hot foods.

In Case of Fire

Turn off appliance and ventilating hood to avoid spreading the flame. Extinguish flame then turn on hood to remove smoke and odor.

• Smother fire or flame by closing the oven door. DO NOT use water on grease fires. Use baking soda, a dry chemical or foam-

type extinguisher to smother fire or flame.

• GREASE–Grease is flammable and should be handled carefully. Let fat cool before attempting to handle it. around the oven or in vents. Wipe up spillovers immediately.

DO NOT

allow grease to collect

Child Safety

• If storage is provided, it should be limited to items which are used infrequently and which are safely stored in an area subjected to heat from an appliance. Temperatures may be unsafe for some items, such as volatile liquids, cleaners or aerosol sprays.

• NEVER leave children alone or unsupervised near the appliance when it is in use or is still hot.

• NEVER allow children to sit or stand on any part of the appliance as they could be injured or burned.

• DO NOT store items of interest to children over the unit. Children climbing to reach items could be seriously injured.

• Children should be taught that an appliance is not a toy. Children should not be allowed to play with controls or other parts of the appliance.

Cooking Safety

• Use dry, sturdy pot-holders. Damp pot-holders may cause burns from steam. Dishtowels or other substitutes should NEVER be used as potholders because they can get caught on appliance parts.

ALWAYS

• attempting to move or handle.

• Loose-fitting or hanging garments should never be worn while using the appliance. items could ignite and cause burns.

•

ALWAYS

oven rack out to add or remove food, using dry, sturdy pot-holders.

ALWAYS

be moved while hot, use a dry pot-holder.

ALWAYS

•

DO NOT

the container to explode and result in injury.

• Use care when opening the oven door. Let hot air or steam escape before moving or replacing food.

• NEVER use aluminum foil to cover oven racks or oven bottom. This could result in risk of electric shock, fire, or damage to the appliance. Use foil only as directed in this guide.

• PREPARED FOOD WARNING: plastic frozen food container and/or its cover distorts, warps, or is otherwise damaged during cooking, immediately discard the food and its container. The food could be contaminated

• Once the unit has been installed as outlined in the Installation Instructions, it is important that the fresh air supply is not obstructed. The use of a gas cooking appliance results in the production of heat and moisture in the room in which it is installed. Ensure that the kitchen is well-ventilated. Keep natural venting holes open or install a mechanical ventilation device. Prolonged or intensive use of the appliance may call for additional (such as opening a window) or more effective ventilation (such as increasing the level of a mechanical ventilation if present).

let quantities of hot fat used for deep fat frying cool before

DO NOT

place oven racks in the desired positions while oven is cool. Slide

avoid reaching into the oven to add or remove food. If a rack must

turn the oven off at the end of cooking.

heat unopened food containers; buildup of pressure may cause

drape towels or materials on oven door handles. These

Follow food manufacturer's instructions. If a

Burners

• NEVER touch oven burners, areas near broiler and bake burner, or interior

surfaces of oven.

• Burners may be hot even though they are dark in color. Areas near burners and interior surfaces of an oven may become hot enough to cause burns.

WARNING

CAUTION

IMPORTANT–

Please Read and Follow

IMPORTANT–

Getting Started

Please Read and Follow

Burners

Getting Started

• DO NOT TOUCH INTERIOR SURFACES OF OVEN.

(cont.)

Interior surfaces of an oven become hot enough to cause burns. During and after use, DO NOT touch or let clothing or other flammable materials contact interior surfaces of oven until they have had sufficient time to cool. Other surfaces of the oven may become hot enough to cause burns, such as the oven vent opening, the surface near the vent opening, and the oven door window.

ELECTRICAL SHOCK HAZARD

DO NOT

the bulb could break. Should the bulb break, disconnect power to the appliance before removing bulb to avoid electrical shock.

touch a hot oven light bulb with a damp cloth as

Cleaning Safety

• Turn off all controls and wait for appliance parts to cool before touching or cleaning them.

• Clean appliance with caution. Use care to avoid steam burns if a wet sponge or cloth is used to wipe spills on a hot surface. Some cleaners can produce noxious fumes if applied to a hot surface.

•

DO NOT

should be taken not to rub, damage, or move the gasket.

• No commercial oven cleaner or oven liner protective coating such as aluminum foil should be used in or around any part of the oven. Improper oven liners may result in a risk of electric shock or fire. Keep oven free from grease buildup.

clean door gasket. It is essential for a good tight seal. Care

About Your Appliance

NEVER use appliance as a space heater to heat or warm a room to prevent potential hazard to the user and damage to the appliance. Also, DO NOT use the oven as a storage area for food or cooking utensils.

• Avoid touching oven vent area while oven is on and for several minutes after oven is turned off. When the oven is in use, the vent and surrounding area become hot enough to cause burns. After oven is turned off, DO NOT touch the oven vent or surrounding areas until they have had sufficient time to cool.

• The misuse of oven doors (e.g. stepping, sitting, or leaning on them) can result in potential hazards and/or injuries.

• The appliance must be installed and electrically grounded according to local codes. Have the installer identify the location and shut-off valve on the oven so you know where and how to turn off gas if necessary.

KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE.

To avoid sickness and food waste when using automatic time baking:

• DO NOT use foods that will spoil while waiting for cooking to start, such as dishes with milk or eggs, cream soups, custards, fish, pork, poultry, or foods with stuffing.

• Any food that has to wait for cooking to start should be very cold or frozen before it is placed in the oven.

• DO NOT use foods containing baking powder or yeast when automatic time baking. They will not rise properly.

• DO NOT allow food to remain in the oven for more than two hours after the end of the cooking cycle.

• To avoid sickness and food waste, DO NOT allow defrosted food to remain in the oven for more than two hours.

ELECTRICAL SHOCK HAZARD

Disconnect the electric power at the main fuse or circuit breaker before replacing bulb.

BURN OR ELECTRICAL SHOCK HAZARD

Make sure all controls are OFF and oven is COOL before cleaning. Failure to do so can result in burns or electrical shock.

Getting Started

NOTICE

CAUTION

IMPORTANT–

Getting Started

You must carefully check the food during the dehydration process to ensure that it does not catch fire.

Please Read and Follow

Before Using Oven

All products are wiped clean with solvents at the factory to remove any visible signs of dirt, oil, and grease which may have remained from the manufacturing process. There may be some burn off and odors on first use of the appliance–this is normal.

Oven

Important! Before first use, wipe interior with soapy water and dry thoroughly. Then set the oven selector to bake, the thermostat to 350°F, and operate for an hour.

DO NOT turn the Temperature Control on during defrosting. Turning the convection fan on will accelerate the natural defrosting of the food without the heat.

BURN HAZARD

The oven door, especially the glass, can get hot. Danger of burning: DO NOT touch the glass!

DO NOT store items of interest to children over the unit. Children

climbing to reach items could be seriously injured.

• Five performance modes—including convection baking and convection broiling—providing air circulation for shorter cooking times with even results.

• Convection baking with a hidden 30,000 BTU burner provides a fast, even baking for all your casserole dishes as well as easy cleanup.

• The 1500°F closed door, infrared broiler allows intense heat to sear delicate cuts of meat providing that restaurant taste.

• Four halogen lights illuminate the oven cavity with less glare.

• Six rack positions and three racks provide ample space for your baking needs.

• A porcelain removable bottom for easier cleaning.

• This appliance is certifie by Star-K to meet strict regulations in conjunction with specific instructions found on www.star-k.org.

OVEN LIGHT

OVENFUNCTION

SET

OVEN

TEMPERATURE

OFF

400

200

300

500

BROIL

BAKE T

IME

MIN/SEC

IMER

START T

IME

CLOCK/ P

ROBE

BROIL

AKE

ONVECTION

BAKE

ONVECTION

ROIL

Setting the Clock

SET

MIN/SEC

TIMER

BAKE TIME

START

TIME

CLOCK

Oven Features

Digital Display

The time-of-day must be set before any other program can be used. When your oven is first connected to the power in your home, the timer display will show --:--.

To program the time-of-day:

1. Press the “CLOCK” button once. 12:00 will be displayed with the word SET in the upper left corner.

2. Turn the “SET” knob until the correct time-of-day is displayed. AM and PM are not indicated.

3. Press the “CLOCK” button again. The word SET will disappear and

Product Controls

the correct time is now set into the timer.

The time-of-day can be changed by following steps 1 through 3. It cannot be changed while there is a BAKE TIME or START TIME cycle programmed into the timer.

1. Gourmet Glo™ Infrared burner

2. Oven racks (3)

3. Convection fan

4. Bake burner

5. Oven lights (4)

6. Removable

bottom

Product Controls

Oven Control Panel

OVEN L

IGHT

OVEN FUNCTION

SET

OVEN

TEMPERATURE

OFF

400

200

300

500

BROIL

MIN/SEC

TIMER

BAKE TIME

START

TIME

CLOCK

OFF

ROIL

AKE

CONV. BAKE

CONV.

BROIL

Off/On Indicator light

Interior

Oven Light Control

Temperature Control

Each oven has a separate temperature control

dial. The controls can be set at any temperature

from 200˚ F (93° C) to 550˚ F (288° C). ALWAYS

be sure the controls are in the “OFF”

position when the ovens are not in use.

Oven Function

Selector

Electronic Timing Center

The Electronic Timing Center is used to

program and control all timing functions.

IMPORTANT–The time-of-day

must be set before any other program

can be used.

The oven has interior oven lights

that are controlled by one switch

on the control panel. Push the

switch to turn the interior

oven lights on and off.

Oven Control PanelOven Control PanelOven Control Panel

Product Controls

Oven Functions and Settings

BAKE (Natural Airflow Bake)

Use this setting for baking, roasting, and preparing casserole dishes.

CONVECTION BAKE

Use this setting to bake and roast foods at the same time with minimal taste transfer.

BROIL (Infrared Broil)

Use this setting for broiling dark meats at 1” thickness or less where rare or medium doneness is desired.

CONVECTION BROIL (Infrared Convection Broil)

Use this setting to broil thick cuts of meat.

Convection Dehydrate (CONVECTION BAKE)

Use this function to dehydrate fruits and vegetables.

Convection Defrost (CONVECTION BAKE)

Use this function to defrost foods.

Note: For more information on oven functions see “Operation” section.

Clocks and Timers

SET

MIN/SEC

IMER

BAKE T

IME

START

IME

CLOCK

SET

Clocks and Timers

Electronic Timing Center

The Electronic Timing Center is used to program and control all timing functions. It has five display and programming modes that are activated by the

Setting The BAKE TIME Program

The BAKE TIME program is used for controlled timing of baked or roasted foods. At the end of the timed cycle, the oven automatically turns off. The time in the BAKE TIME mode is displayed in hours and minutes, with a setting from 1 minute to 11 hours 59 minutes,

increasing in 1-minute increments. four push buttons and the “SET” knob. Both BAKE TIME and MIN/SEC TIMER can be used to keep time cooking periods.

To Set The Bake Time Program:

1. Set the Oven Function Selector to the BAKE or CONVECTION BAKE position, depending upon the type of baking being used.

Product Controls

Setting the MIN/SEC Timer

The MIN/SEC Timer is designed for accurate timing and is ideal for

2. Set the temperature control knob to the desired temperature and allow for preheating.

baking delicate items such as biscuits, cookies, and popovers, and for precise broiling. The MIN/SEC Timer can be used at the same time the BAKE TIME or START TIME functions are in use. It can be used for

Product Controls

timing up to 11 hrs 59 min. When setting the timer, the time displayed will increase in 1 minute increments. When the timer counts down to 1 minute, the timer alarm will give one beep and the display changes from hours:minutes to seconds only.

3. Press and release the Bake Time Button. The timer will display :00 with the words SET and COOK in the upper left corner of the digital display.

4. Turn the “SET” knob until the desired baking time is displayed in hours and minutes. The word COOK will remain in the display indicating that the BAKE TIME program has been sent.

To Program the MIN/SEC Timer

1. Press the “MIN/SEC TIMER” button. The timer will display :00 and the word TIMER will be displayed in the lower left corner and SET in the top corner.

2. Turn the “SET” knob until the desired duration time is displayed.

The MIN/SEC Timer is now programmed. The alarm will sound at the end of the countdown. The program can be canceled anytime by setting the remaining time to :00. To change back to the time-of-day, press the “CLOCK” button. Notice that a small clock will be displayed in the upper right corner to indicate that a program is in progress. The display will return automatically to the MIN/SEC Timer after a few seconds.

Timer Alarm

At the end of a MIN/SEC Timer program or BAKE TIME program, the alarm will consist of three beeps followed by two beeps every 10 seconds until the “MIN/SEC TIMER” button is pressed. When a valid function key is pressed or when a control function starts automatically, one beep will be sounded. When an invalid function key is pressed, two beeps will be sounded.

Note: The timer will automatically compute a stop time and enter it into the timer memory. The alarm will sound three beeps followed by two beeps every 10 seconds until the BAKE TIME button is pressed. The duration time can be changed anytime during the cooking program by following steps 4 and 5. Setting the remaining duration time to :00 cancels the BAKE TIME Program. To return the timer to the present timeof-day, press the CLOCK button. A small clock will appear in the upper left corner indicating a BAKE TIME program has been set. The timer will go back to the BAKE TIME automatically after a few seconds.

Setting the Automatic Start Time Bake Program

The BAKE TIME and START TIME modes of the timer can be used to automatically turn the oven on and off at a preselected time. The Automatic Time Bake program is ideal for foods with no danger of spoilage during the time the oven is left off.

OVEN

LIGHT

OVEN FUNCTION

SET

OVEN

TEMPERATURE

OFF

400

200

300

500

BROIL

CLEAN

BAKE

HOURS

MIN/SEC TIMER

START TIME

CLOCK/ PROBE

OFF

BROIL

BAKE

CONVECTION

BAKE

CONVECTION

BROIL

Rack

Positions

6 5 4 3 2 1

Clocks and Timers

Using the Oven

To Set The Automatic Time Bake Program:

1. Set the START TIME:

Program the start time by pressing the “START TIME” button and turning the “SET” knob until the desired start time is displayed. This is the time of day you want the food to begin cooking.

Rack Positions

The convection oven is equipped with three tilt-proof racks and six rack positions. Position 6 is the farthest from the oven bottom. Position 1 is the closest to the oven bottom. The racks can be easily removed and arranged at various levels. For best results with conventional baking, do not use more than one rack at a time. It is recommended

2. Set the desired baking time:

when using two racks to do the following: Program the required baking time by pressing the “BAKE TIME” button. The words SET and COOK appear in the upper left corner of the digital display. Turn the “SET” knob until the desired baking time is displayed in hours and minutes. The word SET will disappear and

1. Arrange the oven racks in the desired position BEFORE heating the oven. If cooking on two racks at the same time, use rack positions 3 and 5.

the word DELAY will remain in the display indicating that the BAKE TIME program has been set.

3. Set the Oven Function selector to the desired function – BAKE,

2. Turn the function selector to the desired function.

3. Set the temperature control to the desired temperature.

CONVECTION BAKE, BROIL, or CONVECTION BROIL.

Product Controls

4. Set the temperature control knob to the desired baking

4. Place the food in the oven after preheating. Preheating is complete when the oven indicator light goes out.

temperature.

5. The automatic time bake program is now set.

6. When the specified time is reached, the oven will automatically turn on. It will bake for the programmed amount of time at the selected temperature.

Operation

Note: At one minute from the end of the specified bake program, the oven timer will beep once. At the end of the specified bake program, the oven will automatically turn off and the timer will sound a series of three beeps. This will continue until the “START TIME” button is pressed. The display will then return to displaying the time.

Note: Setting the remaining duration time to :00 will cancel the Automatic Bake program.

Using the Oven Using the Oven

Conventional and Convection Cooking

Because of variations in food density, surface texture and consistency, some foods may be prepared more successfully using the conventional bake setting. For this reason, conventional baking is recommended when preparing baked goods such as custard. The user may find other foods that are also prepared more consistently in conventional bake. It is recommended to use this function for single-rack baking.

Convection Cooking Tips

Convection cooking is a cooking technique which utilizes fan-forced air to circulate throughout the entire oven cavity creating the optimum cooking environment. Cooking with convection is intended when performing multi-rack baking and for heavier foods. Below are some tips which will allow you to get the best results out of your oven when cooking with convection.

• As a general rule, to convert conventional recipes to convection

recipes, reduce the temperature by 25˚ F (10˚ C) when using a convection cooking function.

• Cooking times for standard baking and convection baking will be

the same. However, if using convection to cook a single item or smaller load, then it is possible to have 10-15% reduction in cooking time. (Remember convection cooking is designed for multi-rack baking or cooking large loads.)

• If cooking items which require longer than 45 minutes, then it is

possible to see a 10-15% reduction in cooking time.

• A major benefit of convection cooking is the ability to prepare foods

in quantity. The uniform air circulation makes this possible. Foods that can be prepared on two of three racks at the same time include:

Operation

pizza, cakes, cookies, biscuits, muffins, rolls, and frozen convenience foods.

• For three-rack baking, use any combination of rack positions 2, 3, 4,

and 5. For two-rack baking, use rack positions 2 and 4 or positions 3 and 5. Remember that the racks are numbered from bottom to top.

Convection Cooking Tips (cont.)

• Items cooked in a convection function can be easily over baked. This being the case, it is usually a good idea to pull items out of the oven just before they seem to be done. Items will continue to cook right after they are set out of the oven.

• Some recipes, especially those that are homemade, may require adjustment and testing when converting from standard to convection modes. If unsure how to convert a recipe, begin by preparing the recipe in conventional bake. After achieving acceptable results, follow the convection guidelines listed for the similar food type. If the food is not prepared to your satisfaction during this first convection trial, adjust only one recipe variable at a time (cooking time, rack position, or temperature) and repeat the convection test. Continue adjusting one recipe variable at a time until satisfactory results are achieved.

Operation

Baking

natural airflow bake

OFF

BROIL

BAKE

CONVECTION

BAKE

CONVECTION

BROIL

convection bake

OFF

BROIL

BAKE

CONVECTION

BAKE

CONVECTION

BROIL

Baking

BAKE (Natural Airflow Bake)

Full power heat is radiated from the U-shaped bake burners in the bottom of the oven cavity and is circulated with natural airflow. This function is recommended for single rack baking. Many cookbooks contain recipes to be cooked in the conventional

Pan Placement Tips

• When using large (15" x 13") flat pans or trays that cover most of the rack, rack positions 2 or 3 produce the best results.

• When baking on more than one rack, it is recommended to use the 3rd and 5th position for more consistent even baking.

• Stagger pans in opposite directions when two racks and several pans are used in conventional bake. If possible, no pan should be directly above another.

• Allow 1 to 2 inches of air space around all sides of each pan for even air circulation.

manner. Conventional baking is suitable for dishes that require a high temperature. Use this setting for baking and preparing casserole dishes.

Single Rack Pan

Placement

Multiple Rack Pan

Placement

CONVECTION BAKE

Heat is radiated from the Ushaped bake burners in the bottom of the oven cavity. The heated air is circulated by one motorized fan in the rear of the oven providing a more even heat distribution. Multiple rack use is possible for the largest baking job. When roasting, cool air is quickly replaced—searing meats on the outside and retaining

Operation

more juices and natural flavor on the inside with less shrinkage. This even circulation of air equalizes the temperature throughout the oven cavity

Operation

and eliminates the hot and cold spots found in conventional ovens.

Baking Tips

• Make sure the oven racks are in the desired position before you turn on the oven.

• DO NOT open the door frequently during baking. Look through the door window to check doneness whenever possible. If you must open the door, the best time is during the last quarter of the baking time.

• Bake to the shortest time suggested and check for doneness before adding more time. For baked goods, a stainless steel knife placed in the center of the product should come out clean when done.

• Use the pan size and type recommended by the recipe to ensure best results. Cakes, quick breads, muffins, and cookies should be baked in shiny, reflective pans for light, golden crusts. Avoid the use of old, darkened pans. Warped, dented, stainless steel and tin-coated pans heat unevenly and will not give uniform baking results.

Baking Baking

Conventional Baking Chart

Food Pan Size Position Temp

BREADS

Biscuits Cookie sheet 3 or 4 400˚ F (204˚ C) 10 - 12 Yeast loaf Loaf pan Yeast rolls Cookie sheet Nut bread Loaf pan Cornbread 8" x 8" Gingerbread 8" x 8" Muffins Muffin tin Corn muffins Muffin tin

CAKES

Angel food Tube pan 3 or 4 375 Bundt Tube pan 3 or 4 350 Cupcakes Muffin pan 3 or 4 350 Layer, sheet 13" x 9" 3 or 4 350 Layer, two 9" round 3 or 4 350 Pound Loaf pan 3 or 4 350

Brownies 13" x 9" 3 or 4 350 Choc. chip Cookie sheet 3 or 4 375 Sugar Cookie sheet 3 or 4 375

PASTRY

Cream puffs Cookie sheet 3 or 4 400

PIES

Crust, unfilled 9" round 3 or 4 400 Crust, filled 9" round 3 or 4 350 Lemon meringue 9" round 3 or 4 350 Pumpkin 9" round 3 or 4 350

Operation

Custard 6 - 4 oz cups 3 or 4 350

ENTREES

Egg rolls Cookie sheet 3 or 4 400 Fish sticks Cookie sheet 3 or 4 425 Lasagna, frz Cookie sheet 3 or 4 375 Pot pie Cookie sheet 3 or 4 400 Gr. peppers stuffed Quiche 9" round 3 or 4 400 Pizza, 12" Cookie sheet 3 or 4 400

Mac. & cheese, frz

VEGETABLES

Baked potatoes On rack 3 or 4 375 Spinach souffle 1 qt. casserole 3 or 4 350 Squash Cookie sheet 3 or 4 375 French fries Cookie sheet 3 or 4 425

13" x 9" 3 or 4 375

Cookie sheet 3 or 4 375

Single Rack Time

3 or 4 3 or 4 3 or 4 3 or 4 3 or 4 3 or 4 3 or 4

400

˚ F (204˚ C)

400

˚ F (204˚ C)

375

˚ F(191˚ C)

400

˚ F (204˚ C)

350

˚ F (177˚ C)

375

˚ F (191˚ C)

375

˚ F (191˚ C)

˚ F (191˚ C) ˚ F (177˚ C) ˚ F (177˚ C) ˚ F (177˚ C) ˚ F (177˚ C) ˚ F (177˚ C)

˚ F (177˚ C) ˚ F (191˚ C) ˚ F (191˚ C)

˚ F (204˚ C)

˚ F (204 ˚ C) ˚ F (191˚ C) ˚ F (177˚ C) ˚ F (177˚ C) ˚ F (177˚ C)

˚ F (204˚ C) ˚ F (218˚ C) ˚ F (191˚ C) ˚ F (204˚ C) ˚ F (191˚ C) ˚ F (204˚ C) ˚ F (204˚ C)

˚ F (191˚ C)

˚ F (191˚ C) ˚ F (177˚ C) ˚ F (191˚ C) ˚ F (218˚ C)

(min)

30 - 35 12 - 15 30 - 35 25 - 30 35 - 40 15 - 20 15 - 20

35 - 45 45 - 55 16 - 20 40 - 50 30 - 35 60 - 65

25 - 30 12 - 15 10 - 12

30 - 35

10 - 12 55 - 60 12 - 15 35 - 40 35 - 40

25 - 30 10 - 15 55 - 60 35 - 40 60 - 70 25 - 30 15 - 20

35 - 40

60 - 65 45 - 50 50 - 55 20 - 25

Food Pan Size Position Temp

BREADS

Biscuits Cookie sheet 3 or 4 Yeast loaf Loaf pan 3 or 4 Yeast rolls Cookie sheet 3 or 4 Nut bread Loaf pan 3 or 4 Cornbread 8" x 8" 3 or 4 Gingerbread 8" x 8" 3 or 4 Muffins Muffin tin 3 or 4 Corn muffins Muffin tin 3 or 4

CAKES

Angel food Tube pan Bundt Tube pan 3 or 4 325 Cupcakes Muffin pan Layer, sheet 13" x 9" Layer, two 9" round Pound Loaf pan

Brownies 13" x 9" Choc. chip Cookie sheet Sugar Cookie sheet

PIES

Crust, unfilled 9" round Crust, filled 9" round Lemon meringue 9" round Pumpkin 9" round Custard Not recommended

ENTREES

Egg rolls Cookie sheet Fish sticks Cookie sheet Lasagna, frz Cookie sheet Pot pie Cookie sheet Gr. peppers stuffed Quiche Pizza, 12" Cookie sheet

Mac. & cheese, frz

VEGETABLES

Baked potatoes On rack 3 or 4 350 Spinach souffle 1 qt. casserole 3 or 4 325 Squash Cookie sheet 3 or 4 350 French fries Cookie sheet 3 or 4 400

*Note: The above information is given as a guide only.

Convection Baking Chart

Single Rack Time

375 375 375 350 375 325 350 350

3 or 4

3 or 4 3 or 4 3 or 4 3 or 4

3 or 4 3 or 4 3 or 4

3 or 4 3 or 4 3 or 4 3 or 4

3 or 4 3 or 4 3 or 4

3 or 4 13" x 9" Not recommended

Cookie sheet 3 or 4 350

3 or 4

350

325 325 325 325

325 350 350

375 325 325 325

375 400 350 375 350

375

(min)

˚ F (191˚ C) 7 - 9 ˚ F (191˚ C) 25 - 30 ˚ F (191˚ C) 11 - 13 ˚ F (177˚ C) 25 - 30 ˚ F (191˚ C) 20 - 25 ˚ F (163˚ C) 30 - 35 ˚ F (177° C) 12 - 15 ˚ F (177˚ C) 10 - 12

˚ F (177˚ C) ˚ F (163˚ C) ˚ F (163˚ C) ˚ F (163˚ C) ˚ F (163˚ C) ˚ F (163˚ C)

˚ F (163˚ C) ˚ F (177˚ C) ˚ F (177˚ C)

˚ F (191˚ C) ˚ F (163˚ C) ˚ F (163˚ C) ˚ F (163˚ C)

˚ F (191˚ C) ˚ F (205˚ C) ˚ F (177˚ C) ˚ F (191˚ C) ˚ F (177˚ C)

˚ F (191˚ C) ˚ F (177˚ C)

˚ F (177˚ C) ˚ F (163˚ C) ˚ F (177˚ C) ˚ F (205˚ C)

35 - 40 35 - 40 15 - 17 30 - 35 25 - 30 45 - 50

20 -25

7 -10

7-10

7 - 9 50 - 55 10 - 12 45 - 55

15 - 20

8 - 10 45 - 50 35 - 40 45 - 50

15 - 20 25 - 35

50 - 55 35 - 40 40 - 45 15 - 20

Operation

*Note: The above information is given as a guide only.

2524

Baking

infrared broil

OFF

BROIL

BAKE

ONVECTION

BAKE

CONVECTION

BROIL

infrared convection broil

OFF

ROIL

BAKE

CONVECTION

BAKE

CONVECTION

BROIL

Broiling

Solving Baking Problems

Baking problems can occur for many reasons. Check the chart below for the causes and remedies for the most common problems. It is important to remember that the temperature setting and cooking times you are accustomed to using with your previous oven may vary slightly from those required with this oven. If you find this to be true, it is necessary for you to adjust your recipes and cooking times accordingly.

BROIL (Infrared Broil)

The broil burner at the top of the oven heats the metal screen until it glows. Heat radiates from the GourmetGlo™ infrared broiler located at the top of the oven cavity. The distance between the foods and the broil elements

Common Baking Problems/Remedies

Problems Cause Remedy

Cakes burned on the 1. Oven was too hot 1. Reduce temperature sides or not done in center

2. Wrong pan size 2. Use recom. pan size

3. Too many pans 3. Reduce no. of pans

Cakes crack on top 1. Batter too thick 1. Follow recipe

Add liquid

2. Oven too hot 2. Reduce temperature

3. Wrong pan size 3. Use recom. pan size

Cakes are not level 1. Batter uneven 1. Distribute batter even

2. Oven or rack not level 2. Level oven or rack

3. Pan was warped 3. Use proper pan

Food too brown on 1. Oven door opened 1. Use door window to bottom too often check food

2. Dark pans being used 2. Use shiny pans

Incorrect rack position3.Use recom. rack position

4. Wrong bake setting 4. Adjust to conventional or convection setting as needed

5. Pan too large 5. Use proper pan

Food too brown on 1. Rack position too high 1. Use recom. rack position

Operation

top

2. Oven not preheated 2. Allow oven to preheat

3. Sides of pan too high 3. Use proper pans

Cookies too flat 1. Hot cookie sheet 1. Allow sheet to cool

between batches

Pies burned around 1. Oven too hot 1. Reduce temperature edges

2. Too many pans used 2. Reduce no. of pans

3. Oven not preheated 3. Allow oven to preheat

Pies too light on top 1. Oven not hot enough 1. Increase temperature

2. Too many pans used 2. Reduce no. of pans

Oven not preheated

Allow oven to preheat

broil element or on the top rack. “Fast” broiling is best for meats where rare to medium doneness is desired. Use this setting for broiling small and average cuts of meat.

determines broiling speed. For “fast” broiling, food may be as close as 2 inches (5 cm) to the

CONVECTION BROIL (Infrared Convection Broil)

The top element operates at full power. This function is exactly the same as regular broiling with the additional benefit of air circulation by the motorized fan in the rear of the oven. Smoke is reduced since the airflow also reduces peak temperatures on the food. Use this setting for broiling thick cuts of meats.

Operation

2726

Broiling

OVEN

LIGHT

OVEN FUNCTION

SET

OVEN

TEMPERATURE

OFF

400

200

300

500

BROIL

CLEAN

BAKE HOURS

MIN/SEC

TIMER

START TIME

CLOCK/ PROBE

OFF

BROIL

BAKE

CONVECTION

BAKE

CONVECTION

BROIL

25% 35% 50% 65% 80% 95%

Broiling

Broiling Instructions

Broiling is a dry-heat cooking method using direct or radiant heat. It is used for small, individualized cuts such as steaks, chops, and patties. Broiling speed is determined by the distance between the food and the broil element. Choose the rack position based on desired results.

Broiling Tips

• ALWAYS use a broiler pan and grid for broiling. They are designed to provide drainage of excess liquid and fat away from the cooking surface to help prevent splatter, smoke, and fire.

• To keep meat from curling, slit fatty edge.

• Brush chicken and fish with butter several times as they broil to

Conventional broiling is most successful for cuts of meat 1-2 inches thick and is also more suitable for flat pieces of meat.

Convection broiling has the advantage of broiling food slightly quicker than conventional. Convection broiling of meats produces better results, especially for thick cuts.

prevent drying out. To prevent sticking, lightly grease broiler tray.

• Broil on first side for slightly more than half the recommended time, season, and turn. Season second side just before removing.

• ALWAYS pull rack out to stop position before turning or removing food.

• Use tongs or a spatula to turn meats. NEVER pierce meat with a

The meat sears on the outside and retains more juices and natural flavor inside with less shrinkage.

fork, as this allows the juices to escape.

• Remove the broiler pan from the oven when you remove the food. Drippings will bake onto the pan if it is left in the heated oven after

To Use Broil

1. Arrange the oven rack in the desired position before turning broiler on.

broiling. While pan is hot, place damp paper towel over grid. Drizzle with liquid dishwashing detergent and pour water over grid. This will make cleaning of the pan easier, or the broiler pan can be lined with aluminum foil to make cleaning easier. Be sure the foil extends up

2. Center the food on cold broiler pan and grid supplied with your oven. Place broiler pan in oven.

the side of the pan. Although it is not recommended, the grid can also be covered with foil. Be sure to slit openings to conform with the openings in the grid so melted fat can drain through to prevent

3. Set the oven function selector to “CONVECTION BROIL” or

spattering, smoking, or the possibility of grease fire.

“BROIL” and the temperature control knob to “BROIL”.

Rack Positions for Broiling

4. Close the door. There is not a detent to hold the door in the open broil stop position. With open door broiling the broil element does not cycle on and off. With closed door broiling the broil element

Operation

might cycle on and off if an extended broiling time is required. A built-in smoke "eliminator" in the top of the oven helps reduce

Note: Note the appropriate effective cooking area on the broiler grid for each rack position. Position 1 is the closest to the oven bottom with

95% effective cooking area. Position 6 is the closest to the broiler with 25% effective cooking area.

Operation

smoke and odors.

2928

Broiling

WARNING

DANGER

CAUTION

Convection Dehydrate

Broiling Chart

Type and Time Cut of Meat Weight Setting Rack (min)

BEEF

Sirloin, 1"

Rare 12 oz Broil 34 Medium 12 oz Broil 35 Well done 12 oz Broil 36

T-Bone, 3/4"

Rare 10 oz Broil 34 Medium 10 oz Broil 36 Well done 10 oz Broil 38

Hamburger, 1/2"

Medium 1/4 lb. Broil 36 Well done 1/4 lb. Broil 38

CHICKEN

Bnls breast, 1” 1/2 lb. Broil 3 15 Bnls breast, 1” 1/2 lb. Convection Broil 3 15 Bone-in breast 2 - 3 lbs total Broil 1 22 Bone-in breast 2 - 3 lbs total Convection Broil 1 20 Chicken pieces 2 - 3 lbs total Broil 3 22 Chicken pieces 2 - 3 lbs total Convection Broil 3 20

HAM

Ham slice, 1" 1 lb. Broil 3 10

LAMB

Rib chops, 1" 12 oz. Convection Broil 28

Operation

PORK

Loin chops, 3/4" 1 lb. Convection Broil 2 10 Bacon Broil 23

FISH

Salmon steak 1 lb. Broil 28 Fillets 1 lb. Broil 28

Note: The above information is given as a guide only.

Convection Dehydrate (CONVECTION BAKE)

This oven is designed not only to cook, but also to dehydrate fruits and vegetables. With the selector set to Convection Bake and the

temperature control on 200°F (93.3° C), warm air is circulated by a motorized fan in the rear of the oven. Over a period of time, the water is removed from the food by evaporation. Removal of water inhibits growth of microorganisms and retards the activity of enzymes. It is important to remember that dehydration does not improve the quality, so only fresh, top-quality foods should be used.

1. Prepare the food as recommended.

2. Arrange the food on drying racks (not included with the oven; contact a local store handling specialty cooking utensils).

3. Set the appropriate low temperature and turn the selector to “CONVECTON BAKE”.

You must carefully check the food during the dehydration process to ensure that it does not catch fire.

Operation

Convection Defrost

WARNING

NOTICE

Cleaning and Maintenance

Convection Defrost (CONVECTION BAKE)

With the selector set to CONVECTION BAKE and the temperature control off, air is circulated by a motorized fan in the rear of the oven. The fan accelerates natural defrosting of the food without heat. To avoid sickness and food waste, DO NOT allow defrosted food to remain in the oven for more than two hours.

1. Place the frozen food on a baking sheet.

2. Set the temperature control to “OFF”.

3. Turn the selector to “CONVECTON BAKE”.

To avoid sickness and food waste, DO NOT allow defrosted food to remain in the oven for more than two hours.

DO NOT turn the Temperature Control on during defrosting. Turning the convection fan on will accelerate the natural defrosting of the food without the heat.

Any piece of equipment works better and lasts longer when maintained properly and kept clean. Cooking equipment is no exception. Your oven must be kept clean and maintained properly.

Oven Surfaces

Several different finishes have been used in your oven. Cleaning instructions for each surface are given below. NEVER USE AMMONIA, STEEL WOOL PADS OR ABRASIVE CLOTHS, CLEANSERS, OVEN CLEANERS, OR ABRASIVE POWDERS. THEY CAN PERMANENTLY DAMAGE YOUR OVEN.

Control Knobs

MAKE SURE ALL THE CONTROL KNOBS POINT TO THE OFF POSITION BEFORE REMOVING. Pull the knobs straight off. Wash in detergent and warm water. Dry completely and replace by pushing firmly onto stem. DO NOT USE any cleaners containing ammonia or abrasives. They could remove the graphics from the knob.

Stainless Steel Parts

When the appliance has had sufficient time to cool, all stainless steel body parts should be wiped regularly with hot soapy water and with a liquid cleaner designed for that material when soapy water will not do the job. DO NOT use steel wool, abrasive cloths, cleansers, or powders. If necessary, scrape stainless steel to remove encrusted materials, soak the area with hot towels to loosen the material, then use a wooden or nylon spatula or scraper. DO NOT use a metal knife, spatula, or any other metal tool to scrape stainless steel. DO NOT permit citrus or tomato juice to remain on stainless steel surface, as citric acid will permanently discolor stainless steel. Wipe up any spills immediately.

Operation

Product Care

3332

WARNING

DANGER

CAUTION

WARNING

Cleaning and Maintenance

WARNING WARNING

glass light

cover

access

groove

light bulb

Glass Surfaces

Clean with detergent and warm water. Glass cleaner can be used to remove fingerprints. If using glass cleaner ammonia, make sure that it does not run down on exterior door surface.

Brass Parts

Replacing Oven Lights

ELECTRICAL SHOCK HAZARD

Disconnect the electric power at the main fuse or circuit breaker before replacing bulb.

All special ordered brass parts are coated with an epoxy coating. DO NOT USE BRASS CLEANERS OR ABRASIVE CLEANERS ON ANY BRASS PARTS. All brass body parts should be wiped regularly with hot soapy water. When hot soapy water will not do the job, use every day household cleaners that are not abrasive.

Broiler Pan and Grid

Clean with detergent and hot water. For stubborn spots, use a soap-filled steel wool pad.

Oven Racks

Clean with detergent and hot water. Stubborn spots can be scoured with a soap-filled steel wool pad.

BURN OR ELECTRICAL SHOCK HAZARD

Make sure all controls are OFF and oven is COOL before cleaning. Failure to do so can result in burns or electrical shock.

DO NOT touch bulb with bare hands. Clean off any signs of oil from the bulb and handle with a soft cloth.

Replacing Interior Halogen Lights

1. Unsnap glass light cover using a screwdriver in the access groove.

2. Firmly grasp light bulb and pull out.

3. Replace with halogen bulb using volt and wattage requirements listed on glass cover.

4. Replace the light cover by snapping glass cover onto metal box.

5. Reconnect power at the main fuse or circuit breaker.

Product Care

Power Failure

DO NOT attempt to use during power failure. Unit will not function.

3534

Product Care

Troubleshooting

Service Information

Problem

Oven will not function. Oven is not connected to electrical power:

Broil does not work.

Oven light will not work.

Strong odor and/or smoke is noticed first few times oven is used.

Oven indicator light on; oven will not heat

Possible Cause and/or Remedy

Have electrician check power circuit breaker, wiring, and fuses.

Temperature control knob is rotated too far past broil position.

Light bulb is burned out.

Oven is not connected to power.

This is normal burn off of insulation and protective oils in oven. This will go away after using oven a few times.

Oven is operating properly. Unit will resume heating function once it has cooled.

If service is required, call your dealer or authorized service agency. The name of the authorized service agency can be obtained from the dealer or distributor in your area.

Have the following information readily available.

• Model number

• Serial number

• Date purchased

• Name of dealer from whom purchased

Clearly describe the problem that you are having. If you are unable to obtain the name of an authorized service agency, or if you continue to have service problems, contact Viking Range Corporation at 1-888-VIKING1 (845-4641), or write to:

VIKING RANGE CORPORATION

PREFERRED SERVICE

1803 Hwy 82W

Greenwood, Mississippi 38930 USA

Record the information indicated below. You will need it if service is ever required. The model and serial number for your range can be found by opening door and looking under the control panel.

Model no. _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ Serial no. _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

Date of purchase _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ Date installed _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

Dealer’s name _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

Address _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

If service requires installation of parts, use only authorized parts to insure protection under the warranty.

KEEP THIS MANUAL FOR FUTURE REFERENCE.

Product Care

3736

Warranty

PROFESSIONAL SERIES

BUILT-IN GAS OVENS WARRANTY

Built-in gas ovens (VGSO Series) and all of their component parts, except as detailed below*, are warranted to

e free from defective materials or workmanship in normal household use for a period of twelve (12) months

b from the date of original retail purchase. Viking Range Corporation, warrantor, agrees to repair or replace, at its option, any part which fails or is found to be defective during the warranty period.

*Painted and decorative items are warranted to be free from defective materials or workmanship for a period of ninety (90) days from the date of original retail purchase. ANY DEFECTS MUST BE REPORTED TO THE

ELLING DEALER WITHIN NINETY (90) DAYS FROM DATE OF ORIGINAL RETAIL PURCHASE.

Viking Range Corporation uses the most up-to-date processes and best materials available to produce all color

inishes. However, slight color variation may be noticed because of the inherent differences in painted parts and

f porcelain parts as well as differences in kitchen lighting, product locations, and other factors.

Any oven tubular burner which fails due to defective materials or workmanship in normal household use during the second through fifth year from the date of original retail purchase will be repaired or replaced,

ree of charge for the part itself, with the owner paying all other costs, including labor.

ny porcelain oven or porcelain inner door panel which rusts through due to defective material or

A workmanship in normal household use during the second through the tenth year from the date of original retail purchase will be repaired or replaced, free of charge for the part itself, with the owner paying all other costs, including labor.

This warranty applies to applications where use of the product extends beyond normal residential use. Examples are, but not limited to, bed and breakfasts, fire stations, private clubs, churches, etc. This warranty excludes all commercial locations such as restaurants, food service locations and institiutional food service locations.

This warranty extends to the original purchaser of the product warranted hereunder and to each transferee owner of the product during the term of the warranty.

This warranty shall apply to products purchased and located in the United States and Canada. Products must be purchased in the country where service is requested. Warranty labor shall be performed by an authorized Viking Range Corporation service agency or representative. Warranty shall not apply to damage resulting from abuse, accident, natural disaster, loss of electrical power to the product for any reason, alteration, outdoor use, improper installation, improper operation, or repair or service of the product by anyone other than an authorized Viking Range Corporation service agency or representative. This warranty does not apply to commercial usage. incidental damage whether arising out of breach of warranty, breach of contract, or otherwise. Some jurisdictions do not allow the exclusion or limitation of incidental of consequential damages, so the above limitation or exclusion may not apply to you.

Owner shall be responsible for proper installation, providing normal care and maintenance, providing proof of purchase upon request, and making the appliance reasonably accessible for service. If the product or one of its component parts contains a defect or malfunction during the warranty period, after a reasonable number of attempts by the warrantor to remedy the defects or malfunctions, the owner is entitled to either a refund or replacement of the product or its component part or parts. Warrantor’s liability on any claim of any kind, with respect to the goods or services covered hereunder, shall in no case exceed the price of the goods or service or part thereof which gives rise to the claim.

WARRANTY SERVICE: Under the terms of this warranty, service must be performed by a factory authorized Viking Range Corporation service agent or representative. Service will be provided during normal business hours, and labor performed at overtime or premium rates shall not be covered by this warranty. To obtain warranty service, contact the dealer from whom the product was purchased, an authorized Viking Range Corporation service agent, or Viking Range Corporation. Provide model and serial number and date of original purchase. For the name of your nearest authorized Viking Range Corporation service agency, call the dealer from whom the product was purchased or Viking Range Corporation. IMPORTANT: Retain proof of original purchase to establish warranty period.

The return of the Owner Registration Card is not a condition of warranty coverage. return the Owner Registration Card so that Viking Range Corporation can contact you should any question of safety arise which could affect you.

Any implied warranties of merchantability and fitness applicable to the above described oven tubular burner, porcelain oven, or porcelain inner door panel are limited in duration to the period of coverage of the applicable express written limited warranties set forth above. Some jurisdictions do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you. This warranty gives you specific legal rights, and you may also have other rights which may vary from jurisdiction to jurisdiction.

ONE YEAR FULL WARRANTY

IVE YEAR LIMITED WARRANTY

TEN YEAR LIMITED WARRANTY

NINETY (90) DAY RESIDENTIAL PLUS WARRANTY

Warrantor is not responsible for consequential or

You should, however,

Notes

_____________________________________________________________________________________________________

____________________________________________________________________________________________________

_____________________________________________________________________________________________________

____________________________________________________________________________________________________

_____________________________________________________________________________________________________

Product Care

111 Front Street • Greenwood, Mississippi 38930 USA • (662) 455-1200

VIKING RANGE CORPORATION

3938

Viking F20516 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
