Viking F20512 User Manual
Viking Use & Care Manual
Viking Range Corporation
111 Front Street
Greenwood, Mississippi 38930 USA
(662) 455-1200
For product information,
call 1-888-VIKING1 (845-4641)
or visit the Viking Web site at
vikingrange.com
F20512 EN
Professional Freestanding 30” Gas
and Gas Self-Clean Sealed Burner Range
(031908J)
Congratulations
WARNING
Table of Contents
Congratulations and welcome to the elite world of Viking ownership. We
hope you will enjoy and appreciate the care and attention we have put
into every detail of your new, state-of-the-art self-cleaning range.
Your Viking range is designed to offer years of reliable service. This Use
and Care Manual will provide you with the information you need to
become familiar with your range’s care and operation.
Your complete satisfaction is our ultimate goal. If you have any questions
or comments about this product, please contact the dealer from whom
you purchased it, or contact our Consumer Support Center at 1-888VIKING1 (845-4641).
We appreciate your choice of a Viking range and hope that you will
again select our products for your other major range needs.
For more information about the complete and growing selection
of Viking products, contact your dealer or visit us online at
vikingrange.com.
• THIS RANGE CAN TIP
• INJURIES TO PERSONS CAN RESULT
• INSTALL ANTI-TIP DEVICE PACKED WITH
RANGE
• SEE INSTALLATION INSTRUCTIONS
Getting Started
Warnings ____________________________________________________4
Before Using Range__________________________________________14
Product Controls

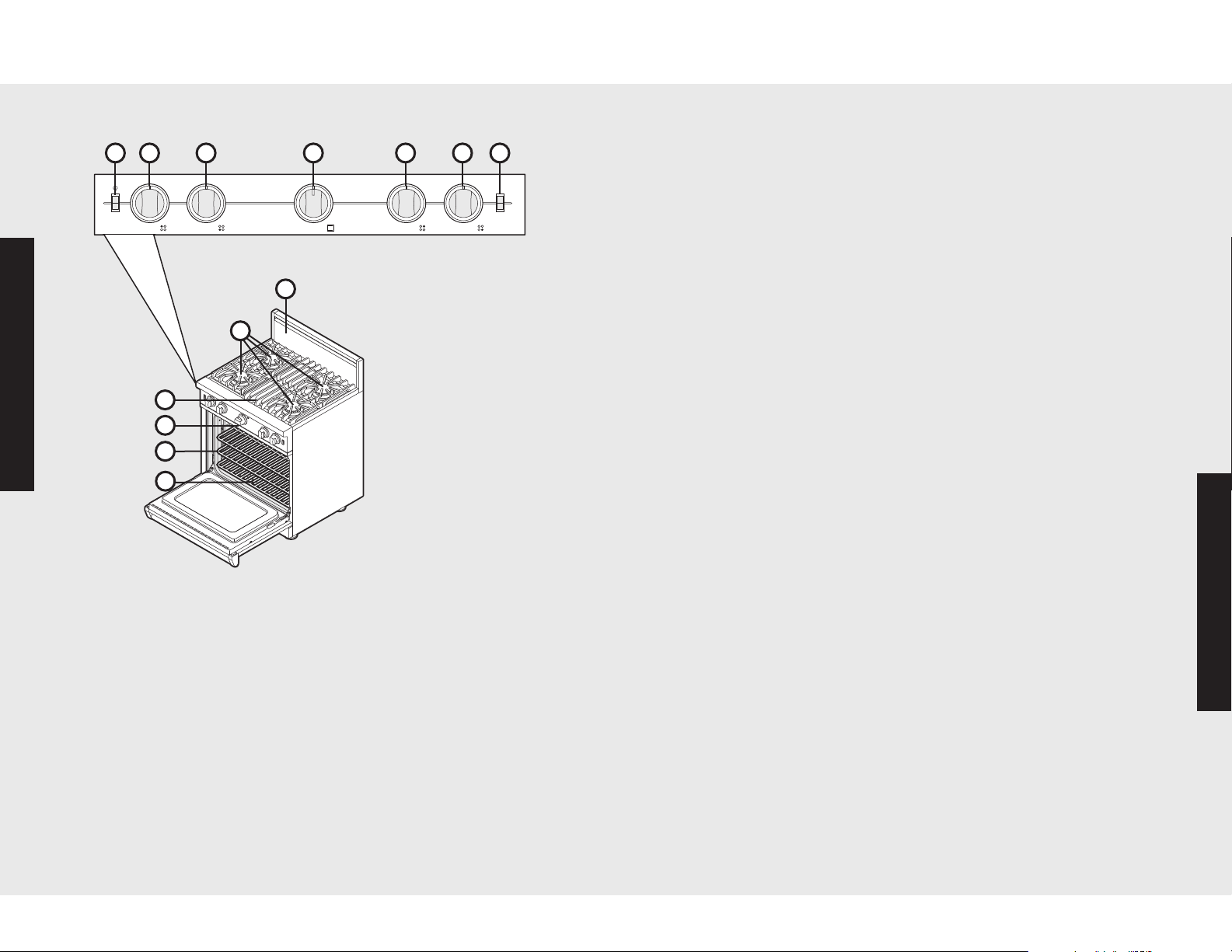

Range Features _____________________________________________15
Oven Functions and Settings _________________________________17
Operation
Surface Operation ___________________________________________18
Lighting Burners___________________________________________18
Surface Burners-Automatic Reignition ________________________18

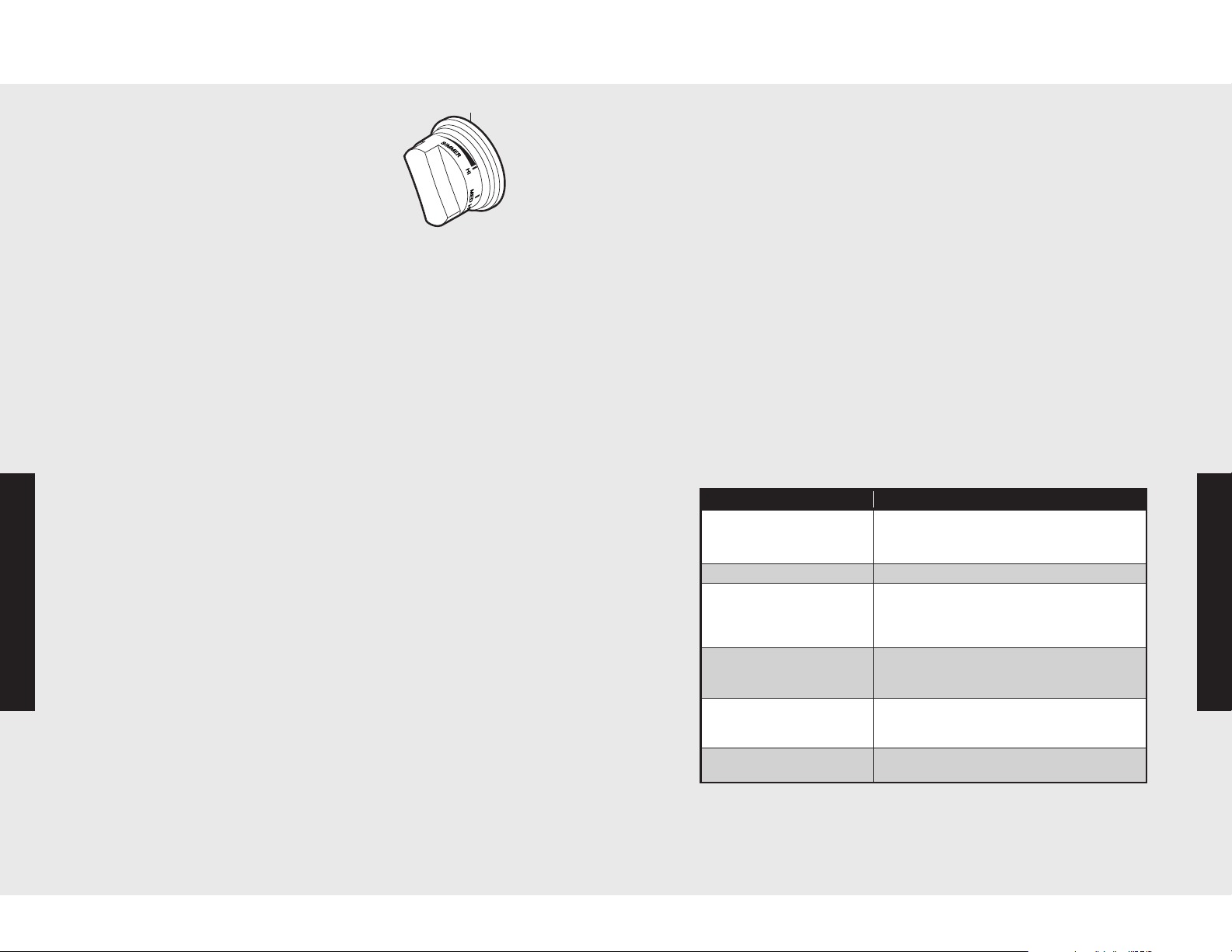

Vari-Simmer_______________________________________________18
Surface Heat Settings* _____________________________________19
Cooking Vessels___________________________________________20

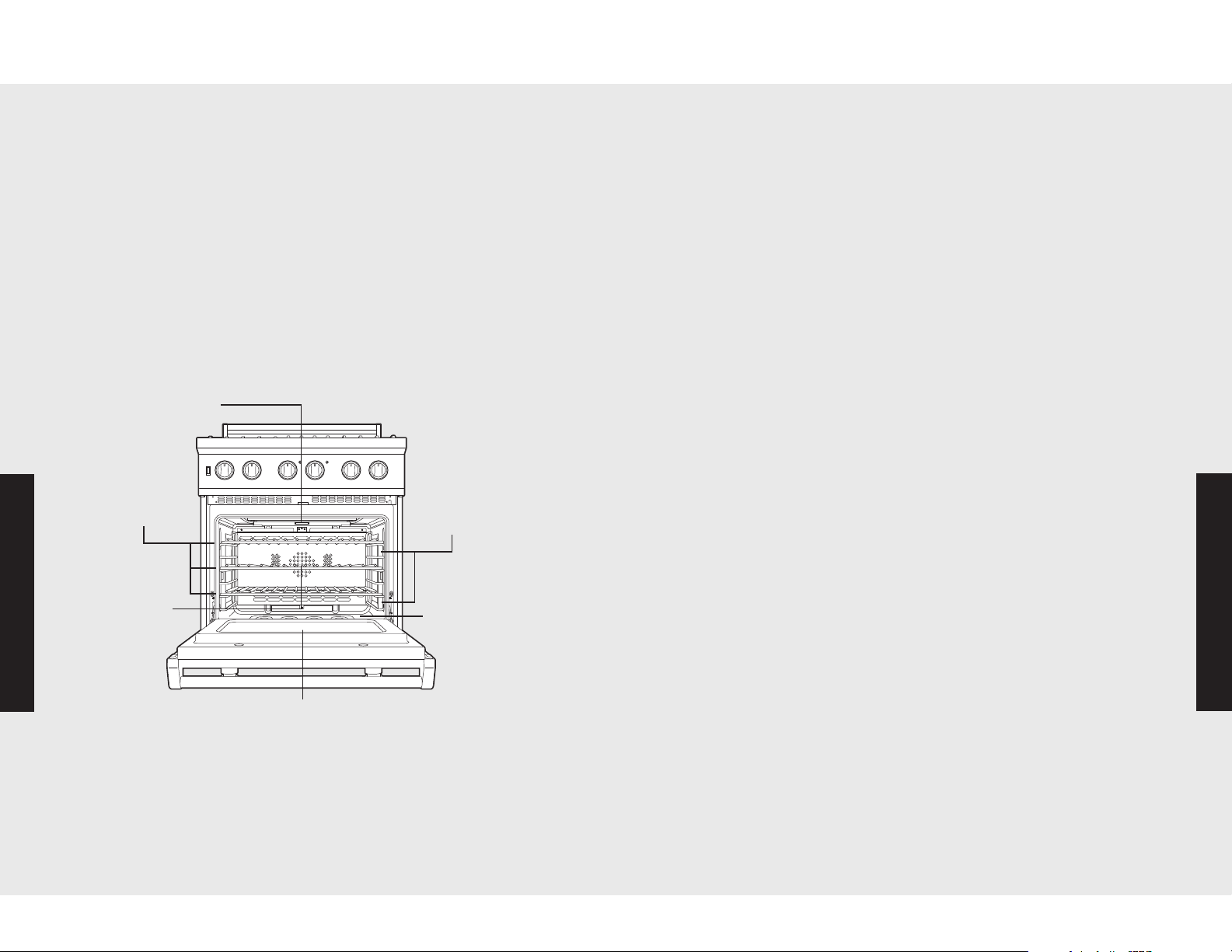

Oven Features ______________________________________________20

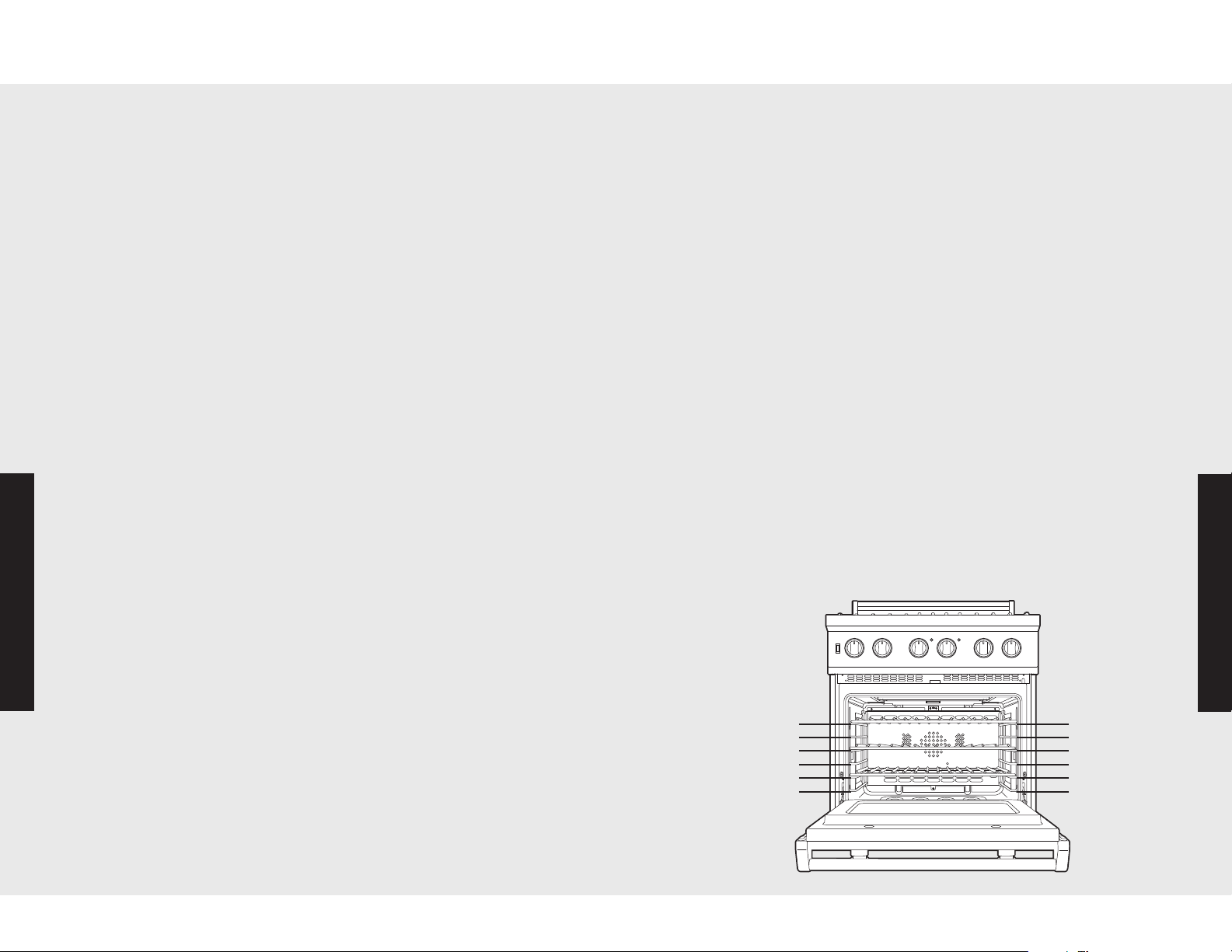

Rack Positions_____________________________________________20
Using the Oven _____________________________________________21

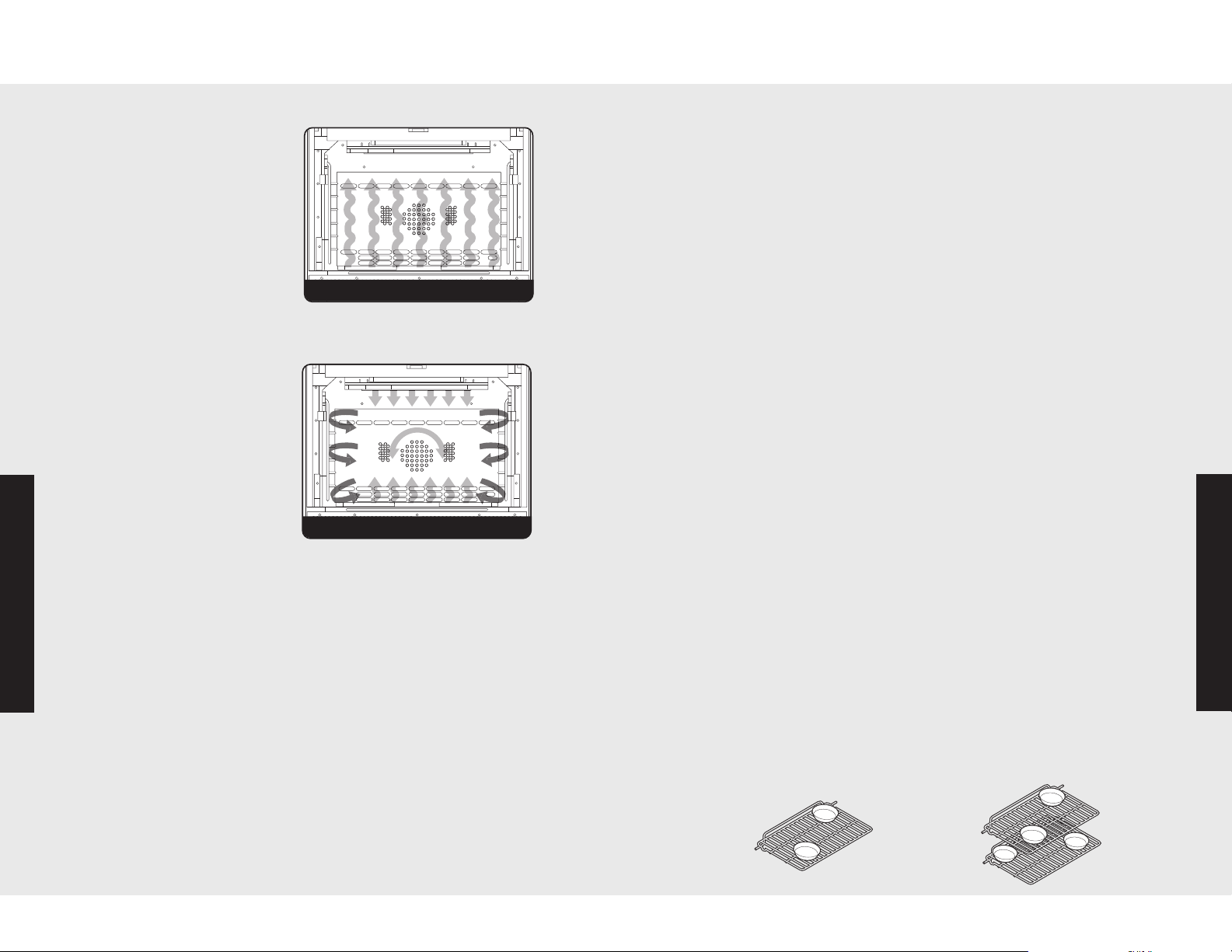

Conventional and Convection Cooking ______________________21
Baking _____________________________________________________22
BAKE(Natural Airflow Bake) _________________________________22
CONVECTION BAKE ______________________________________22

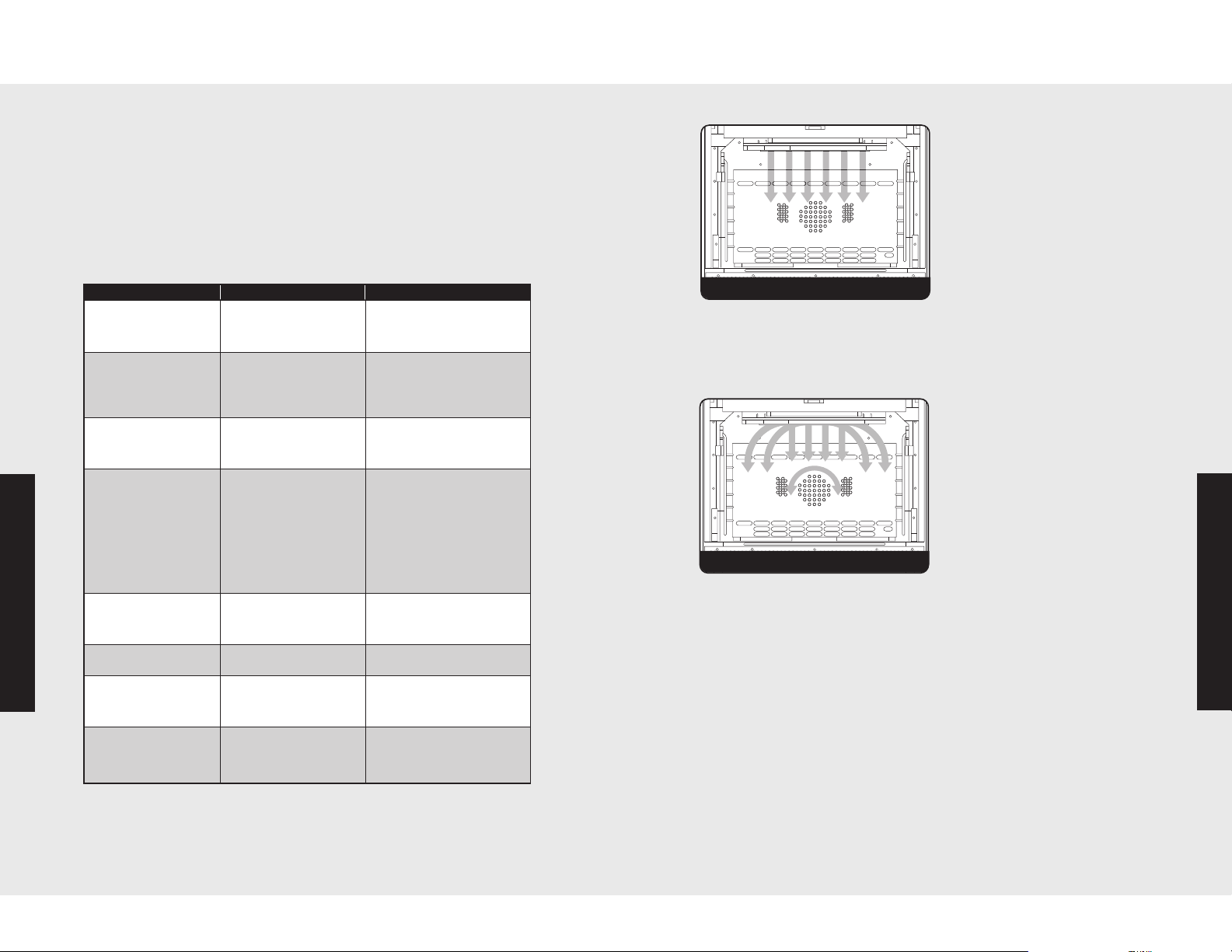

Broiling_____________________________________________________27
BROIL (Infrared Broil) ______________________________________27
CONVECTION BROIL______________________________________27
Convection Dehydrate _______________________________________31
Convection Defrost __________________________________________32
Cooking Substitutes Charts ___________________________________33
Product Care
Cleaning and Maintenance ___________________________________34
Self-Clean Cycle_____________________________________________38

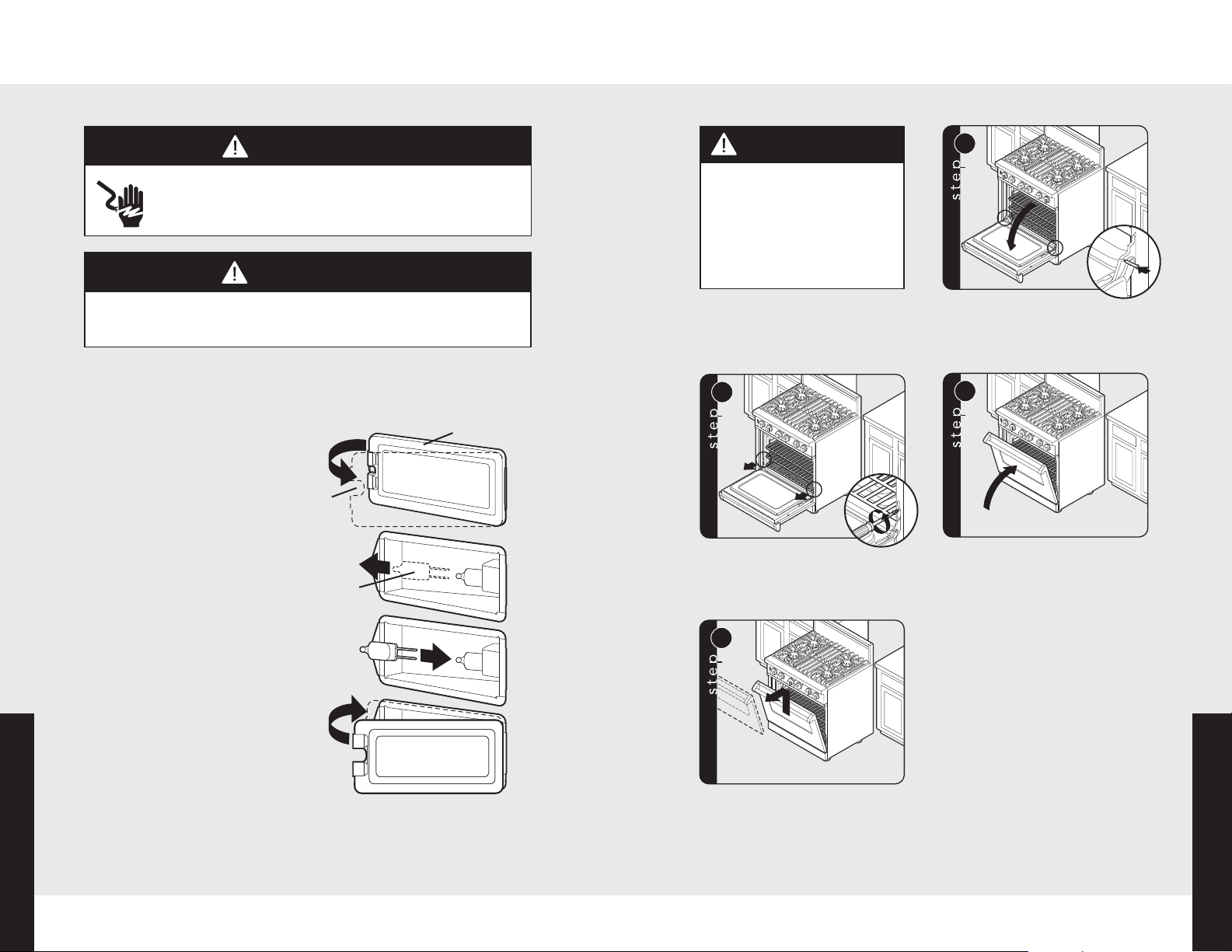

Replacing Oven Lights _______________________________________40
Door Removal_______________________________________________41

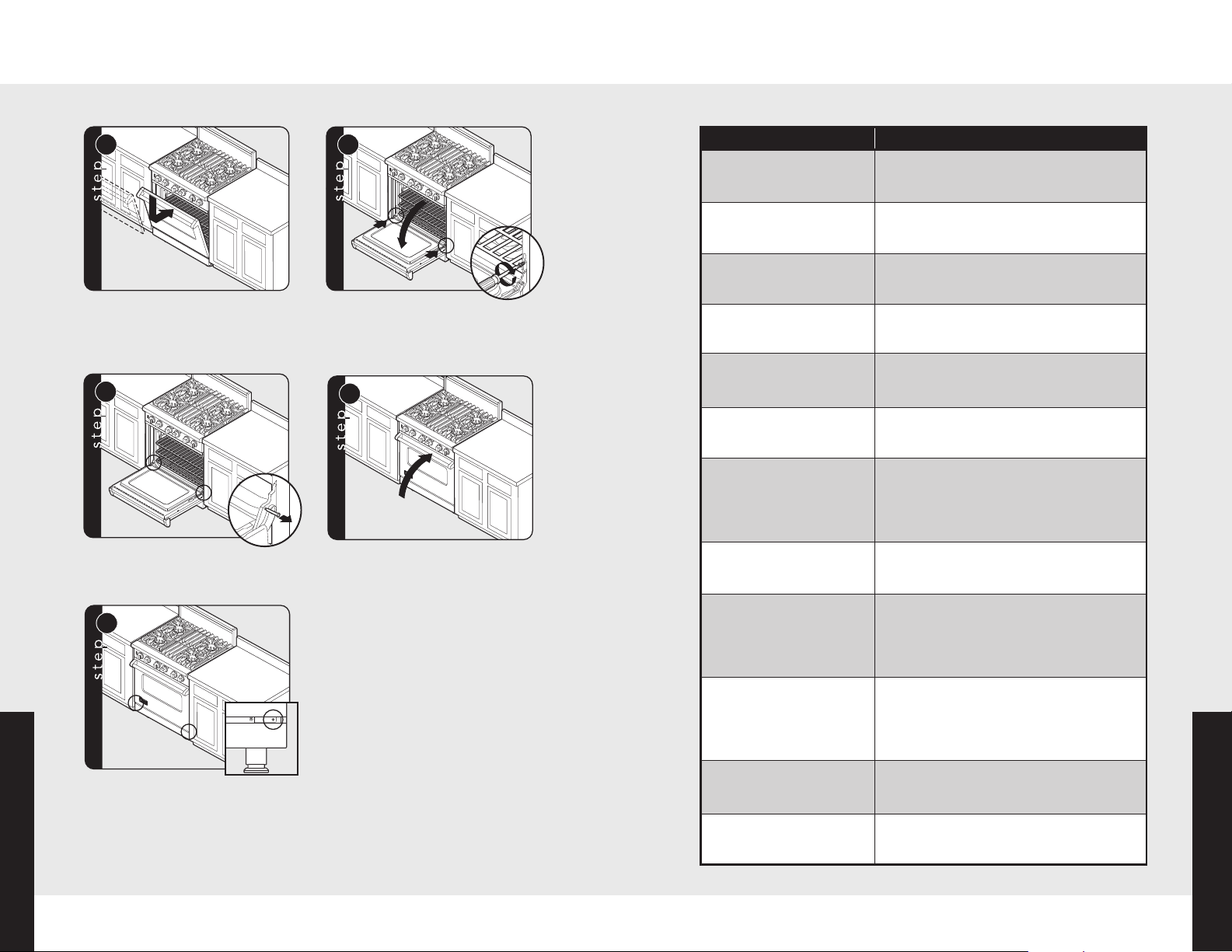

Door Replacement and Adjustment____________________________42
Troubleshooting _____________________________________________43
Service Information __________________________________________44
Warranty ___________________________________________________45
32
Getting Started
WARNING
WARNING
WARNING
DANGER
WARNING
CAUTION
WARNING
Warnings
Warning and Important Safety Instructions appearing in this manual
Getting Started
are not meant to cover all possible conditions and situations that may
occur. Common sense, caution, and care must be exercised when
installing, maintaining, or operating the appliance.
ALWAYS contact the manufacturer about problems or conditions you do not
understand.
Recognize Safety Symbols, Words, Labels
Hazards or unsafe practices which WILL result in
severe personal injury or death
If the information in this manual is not followed exactly,
a fire or explosion may result causing property damage,
personal injury or death.
DO NOT store or use gasoline or other flammable vapors and liquids in
the vicinity of this or any appliance.
WHAT TO DO IF YOU SMELL GAS:
• DO NOT try to light any appliance.
• DO NOT touch any electrical switch.
• DO NOT use any phone in your building.
• Immediately call your gas supplier from a neighbor's phone. Follow
the gas supplier's instructions.
• If you cannot reach your gas supplier, call the fire department.
Hazards or unsafe practices which COULD result in
death or severe personal injury
Hazards or unsafe practices which COULD result in
minor personal injury.
All safety messages will identify the hazard, tell you how
to reduce the chance of injury, and tell you what can happen if
the instructions are not followed.
Read and follow all instructions before using this appliance to prevent the
potential risk of fire, electric shock, personal injury or damage to the
appliance as a result of improper usage of the appliance. Use appliance only
for its intended purpose as described in this manual.
To ensure proper and safe operation: Appliance must be properly installed
and grounded by a qualified technician. DO NOT attempt to adjust, repair,
service, or replace any part of your appliance unless it is specifically
recommended in this manual. All other servicing should be referred to a
qualified servicer. Have the installer show you the location of the gas shutoff
valve and how to shut it off in an emergency. A certified technician is required
for any adjustments or conversions to Natural or LP gas.
Installation and service must be performed by a qualified installer,
service agency or the gas supplier.
• THIS RANGE CAN TIP
• INJURIES TO PERSONS CAN RESULT
• INSTALL ANTI-TIP DEVICE PACKED WITH
RANGE
• SEE INSTALLATION INSTRUCTIONS
DO NOT use commercial oven cleaners inside the oven. Use of these
cleaners can produce hazardous fumes or can damage the porcelain
finishes.
To avoid risk of property damage, personal injury or death;
follow information in this manual exactly to prevent a fire or
explosion.
54
Warnings
Getting Started
To Prevent Fire or Smoke Damage
Getting Started
• Be sure all packing materials are removed from the appliance before
operating it.
• Keep area around appliance clear and free from combustible materials,
gasoline, and other flammable vapors and materials.
• If appliance is installed near a window, proper precautions should be taken to
prevent curtains from blowing over burners.
NEVER leave any items on the rangetop. The hot air from the vent may ignite
•
flammable items and may increase pressure in closed containers which may
cause them to burst.
• Many aerosol-type spray cans are EXPLOSIVE when exposed to heat and may
be highly flammable. Avoid their use or storage near an appliance.
• Many plastics are vulnerable to heat. Keep plastics away from parts of the
appliance that may become warm or hot. DO NOT leave plastic items on the
rangetop as they may melt or soften if left too close to the vent or a lighted
surface burner.
• Combustible items (paper, plastic, etc.) may ignite and metallic items may
become hot and cause burns.
DO NOT
etc; fire hazard.
leave oven unsupervised when drying herbs, breads, mushrooms,
DO NOT
pour spirits over hot foods.
In Case of Fire
Turn off appliance and ventilating hood to avoid spreading the flame. Extinguish
flame then turn on hood to remove smoke and odor.
• Cooktop: Smother fire or flame in a pan with a lid or cookie sheet.
• NEVER pick up or move a flaming pan.
• Oven: Smother fire or flame by closing the oven door. DO NOT use water on
grease fires. Use baking soda, a dry chemical or foam-type extinguisher to
smother fire or flame.
• GREASE–Grease is flammable and should be handled carefully.
use water on grease fires. Flaming grease can be extinguished with baking
soda or, if available, a multipurpose dry chemical or foam type extinguisher.
Let fat cool before attempting to handle it.
around the oven or in vents. Wipe up spillovers immediately.
DO NOT
allow grease to collect
DO NOT
Child Safety
• To eliminate the hazard of reaching over hot surface burners, cabinet storage
should not be provided directly above a unit. If storage is provided, it should
be limited to items which are used infrequently and which are safely stored in
an area subjected to heat from an appliance. Temperatures may be unsafe for
some items, such as volatile liquids, cleaners or aerosol sprays.
• NEVER leave children alone or unsupervised near the appliance when it is in
use or is still hot.
Child Safety (cont.)
• NEVER allow children to sit or stand on any part of the appliance as they could
be injured or burned.
• DO NOT store items of interest to children over the unit. Children climbing to
reach items could be seriously injured.
• Children must be taught that the appliance and utensils in it can be hot. Let
hot utensils cool in a safe place, out of reach of small children. Children should
be taught that an appliance is not a toy. Children should not be allowed to
play with controls or other parts of the appliance.
Cooking Safety
•
ALWAYS
know which knob controls which surface burner. Make sure the correct burner
is turned on and that the burner has ignited. When cooking is completed, turn
burner off before removing pan to prevent exposure to burner flame.
ALWAYS
•
bottom edge of the pan. An excessive flame is hazardous, wastes energy and
may damage the appliance, pan or cabinets above the appliance. This is based
on safety considerations.
• NEVER leave a surface cooking operation unattended especially when using a
high heat setting or when deep fat frying. Boilovers cause smoking and greasy
spillovers may ignite. Clean up greasy spills as soon as possible. DO NOT use
high heat for extended cooking operations.
• DO NOT heat unopened food containers, build up of pressure may cause the
container to explode and result in injury.
• Use dry, sturdy pot-holders. Damp pot-holders may cause burns from steam.
Dishtowels or other substitutes should NEVER be used as potholders
because they can trail across hot surface burners and ignite or get caught on
appliance parts.
ALWAYS
•
attempting to move or handle.
• DO NOT let cooking grease or other flammable materials accumulate in or
near the appliance, hood or vent fan. Clean hood frequently to prevent grease
from accumulating on hood or filter. When flaming foods under the hood turn
the fan off.
• NEVER wear garments made of flammable material or loose fitting or
long-sleeved apparel while cooking. Clothing may ignite or catch utensil
handles. DO NOT
items could ignite and cause burns.
•
ALWAYS
oven rack out to add or remove food, using dry, sturdy pot-holders.
avoid reaching into the oven to add or remove food. If a rack must be moved
while hot, use a dry pot-holder.
place a pan on a surface burner before turning it on. Be sure you
adjust surface burner flame so that it does not extend beyond the
let quantities of hot fat used for deep fat frying cool before
drape towels or materials on oven door handles. These
place oven racks in the desired positions while oven is cool. Slide
ALWAYS
6
7
Warnings
Getting Started
Cooking Safety
Getting Started
• ALWAYS turn the oven off at the end of cooking.
• Use care when opening the oven door. Let hot air or steam escape before
moving or replacing food.
• NEVER use aluminum foil to cover oven racks or oven bottom. This could
result in risk of electric shock, fire, or damage to the appliance. Use foil only
as directed in this guide.
• PREPARED FOOD WARNING:
plastic frozen food container and/or its cover distorts, warps, or is otherwise
damaged during cooking, immediately discard the food and its container. The
food could be contaminated
• If you are “flaming” liquor or other spirits under an exhaust, TURN THE
FAN OFF. The draft could cause the flames to spread out of control.
• Once the unit has been installed as outlined in the Installation
Instructions, it is important that the fresh air supply is not obstructed.
The use of a gas cooking appliance results in the production of heat and
moisture in the room in which it is installed. Ensure that the kitchen is
well-ventilated. Keep natural venting holes open or install a mechanical
ventilation device. Prolonged or intensive use of the appliance may call
for additional (such as opening a window) or more effective ventilation
(such as increasing the level of a mechanical ventilation if present).
(cont.)
Follow food manufacturer's instructions. If a
.
Utensil Safety
• Use pans with flat bottoms and handles that are easily grasped and stay cool.
Avoid using unstable, warped, easily tipped or loose-handled pans. Also avoid
using pans, especially small pans, with heavy handles as they could be
unstable and easily tip. Pans that are heavy to move when filled with food may
also be hazardous.
• Be sure utensil is large enough to properly contain food and avoid boilovers.
Pan size is particularly important in deep fat frying. Be sure pan will
accommodate the volume of food that is to be added as well as the bubble
action of fat.
• To minimize burns, ignition of flammable materials and spillage due to
unintentional contact with the utensil, DO NOT extend handles over adjacent
surface burners. ALWAYS turn pan handles toward the side or back of the
appliance, not out into the room where they are easily hit or reached by
small children.
• NEVER let a pan boil dry as this could damage the utensil and the appliance.
• Follow the manufacturer's directions when using oven cooking bags.
• Only certain types of glass, glass/ceramic, ceramic or glazed utensils are
suitable for rangetop surface or oven usage without breaking due to the
sudden change in temperature. Follow manufacturer's instructions when
using glass.
Utensil Safety
• This appliance has been tested for safe performance using conventional
cookware. DO NOT use any devices or accessories that are not specifically
recommended in this guide. DO NOT use eyelid covers for the surface units,
stovetop grills, or add-on oven convection systems. The use of devices or
accessories that are not expressly recommended in this manual can create
serious safety hazards, result in performance problems, and reduce the life of
the components of the appliance.
• The flame of the burner should be adjusted to just cover the bottom of the
pan or pot. Excessive burner setting may cause scorching of adjacent
counter-top surfaces, as well as the outside of the utensil. This is based on
safety considerations.
Heating Elements
• NEVER touch oven bake and broil burner areas or interior surfaces of oven.
• Bake and broil burners may be hot even though they are dark in color. Areas
near burners and interior surfaces of an oven may become hot enough to
cause burns.
During and after use, DO NOT touch or let clothing or other flammable
•
materials contact heating elements, areas near elements, or interior surfaces of
oven until they have had sufficient time to cool.
may become hot enough to cause burns, such as the oven vent opening,
the surface near the vent opening, and the oven door window.
Cleaning Safety
• Turn off all controls and wait for appliance parts to cool before touching or
cleaning them. DO NOT touch the burner grates or surrounding areas until
they have had sufficient time to cool.
• Clean appliance with caution. Use care to avoid steam burns if a wet sponge
or cloth is used to wipe spills on a hot surface. Some cleaners can produce
noxious fumes if applied to a hot surface.
•
DO NOT
be taken not to rub, damage, or move the gasket.
• No commercial oven cleaner or oven liner protective coating such as
aluminum foil should be used in or around any part of the oven. Improper
oven liners may result in a risk of electric shock or fire. Keep oven free from
grease buildup.
Self-Clean Oven (on VGSC self-clean models)
•
Clean only parts listed in this guide. DO NOT clean door gasket. The door
gasket is essential for a good seal. Care should be taken not to rub, damage, or
move the gasket. DO NOT use oven cleaners of any kind in or around any part
of the self-clean oven.
(cont.)
Other surfaces of the oven
clean door gasket. It is essential for a good tight seal. Care should
8
9
Warnings
WARNING
WARNING
WARNING
Getting Started
Self-Clean Oven
Getting Started
• Before self-cleaning the oven, remove broiler pan, oven racks and other
utensils and wipe up excessive spillovers to prevent excessive
or flaming.
• This range features a cooling fan which operates automatically during a clean
cycle. If the fan does not turn on, cancel the clean operation and contact an
authorized servicer.
• It is normal for the rangetop cooking surface of the range to become hot
during a self-clean cycle. Therefore, touching the rangetop cooking surface
during a clean cycle should be avoided.
(cont.)
smoke, flare-ups
Important Safety Notice and Warning
The California Safe Drinking Water and Toxic Enforcement Act of 1986
(Proposition 65) requires the Governor of California to publish a list of substances
known to the State of California to cause cancer or reproductive harm, and
requires businesses to warn customers of potential exposures to such
substances. Users of this appliance are hereby warned that when the oven is
engaged in the self-clean cycle, there may be some low-level exposure to some
of the listed substances, including carbon monoxide. Exposure to these
substances can be minimized by properly venting the oven to the outdoors by
openingthe windows and/or door in the room where the appliance is located
duringthe self-clean cycle.
Important notice regarding pet birds:
NEVER keep pet birds in the kitchen or in rooms where the fumes from the
kitchen could reach. Birds have a very sensitive respiratory system. Fumes
released during an oven self-cleaning cycle may be harmful or fatal to birds.
Fumes released due to overheated cooking oil, fat, margarine and overheated
non-stick cookware may be equally harmful
.
• Other potentially hot surfaces include rangetop, areas facing the rangetop,
oven vent, surfaces near the vent opening, oven door, areas around the oven
door and oven window.
• The misuse of oven doors (e.g. stepping, sitting, or leaning on them) can result
in potential hazards and/or injuries.
Power Failure
POWER FAILURE WARNING
Due to safety considerations and the possibility of personal injury in
attempting to light and extinguish the burner, the grill should, not under
any circumstances, be used during a power failure. The grill burner
control should always remain in the “OFF” position during a power failure.
If power failure occurs, the electric ignitors will not work. No attempt
should be made to operate the appliance during a power failure. Make
sure the oven control is in the “OFF” position.
Momentary power failure can occur unnoticed. The range is affected only
when the power is interrupted. When it comes back on, the range will
function properly without any adjustments. A “brown-out” may or may not
affect range operation, depending on how severe the power loss is. If the
range is in the self-clean cycle when the power failure occurs, wait until
power is restored and allow door to unlock automatically. Turn all controls
off and restart self-clean cycle again, according to instructions.
About Your Appliance
NEVER use appliance as a space heater to heat or warm a room to
prevent potential hazard to the user and damage to the appliance. Also,
DO NOT use the rangetop or oven as a storage area for food or cooking
utensils.
• For proper oven performance and operation, DO NOT block or obstruct the
oven vent duct located on the right side of the air grille.
• Avoid touching oven vent area while oven is on and for several minutes after
oven is turned off. When the oven is in use, the vent and surrounding area
become hot enough to cause burns. After oven is turned off, DO NOT touch
the oven vent or surrounding areas until they have had sufficient time to cool.
10
ELECTRICAL SHOCK HAZARD
DO NOT
the bulb could break. Should the bulb break, disconnect
power to the appliance before removing bulb to avoid electrical shock.
KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE.
touch a hot oven light bulb with a damp cloth as
11
Getting Started
CAUTION
WARNING
WARNING
CAUTION
CAUTION
WARNING
WARNING
CAUTION
NOTICE
CAUTION
WARNING
Warnings
Getting Started
NEVER
cover any slots, holes or passages in the oven bottom or cover
an entire rack with materials such as aluminum foil. Doing so blocks
air flow through the oven and may cause carbon monoxide posioning.
Aluminum foil linings may also trap heat, causing a fire hazord.
ELECTRICAL SHOCK HAZARD
Disconnect the electric power at the main fuse or circuit
breaker before replacing bulb.
BURN OR ELECTRICAL SHOCK HAZARD
Make sure all controls are OFF and oven is COOL before
cleaning. Failure to do so can result in burns or electrical
shock.
To avoid sickness and food waste, DO NOT allow defrosted food to
remain in the oven for more than two hours.
This range features a self-cleaning cycle. During this cycle, the oven
reaches elevated temperatures in order to burn off soil and deposits.
A powder ash residue is left in the bottom of the oven after completion
of the self-clean cycle.
NOTE: DO NOT use commercial oven cleaners inside the oven. Use
of these cleaners can produce hazardous fumes or can damage the
porcelain finishes. DO NOT line the oven with aluminum foil or other
materials. These items can melt or burn during a self-clean cycle,
causing permanent damage to the oven.
DO NOT touch the exterior portions of the oven after
self-cleaning cycle has begun, since some parts become
extremely hot to the touch!
During the first few times the self-cleaning feature is used, there
may be some odor and smoking from the “curing” of the binder in
the high-density insulation used in the oven. When the insulation is
thoroughly cured, this odor will disappear. During subsequent
self-cleaning cycles, you may sense an odor characteristic of high
temperatures.
KEEP THE KITCHEN WELL-VENTED DURING THE SELFCLEAN CYCLE.
DO NOT turn the Temperature Control on during defrosting. Turning
the convection fan on will accelerate the natural defrosting of the food
without the heat.
BURN HAZARD
The oven door, especially the glass, can get hot. Danger
of burning: DO NOT touch the glass!
12
You must carefully check the food during the dehydration process to
ensure that it does not catch fire.
BURN HAZARD
When self-cleaning, surfaces may get hotter than usual,
therefore, children should be kept away.
DO NOT store items of interest to children over the unit. Children
climbing to reach items could be seriously injured.
13
OVENCLEAN
Dual Fuel
Convection-Self Clean
21 3 4 5 6 7
10
8
9
12
11
13
Before Using Range
All products are wiped clean with solvents at the factory to remove any
Getting Started
visible signs of dirt, oil, and grease which may have remained from the
manufacturing process. Before starting to cook, clean the range
thoroughly with hot, soapy water. There may be some burn off and
odors on first use of the appliance–this is normal.
Oven
Important! Before first use, wipe interior with soapy water and dry
thoroughly. Then set the oven selector to bake, the thermostat to
450°F, and operate for an hour.
All models include:
• Five performance modes—including convection baking and
convection broiling—providing air circulation for shorter cooking
times with even results.
• Exclusive VSH™ Pro Sealed Burner System (VariSimmer™ to
High)—combination of patented burner and top design provide
cleanability plus superior performance at simmer and high.
• Exclusive one-piece tooled and porcelainized cooking surface
contains spills for easy cleaning.
• Convection baking with a hidden 30,000 BTU burner provides a
fast, even baking for all your casserole dishes as well as easy
cleanup.
• The 1500°F closed door, infrared broiler allows intense heat to
sear delicate cuts of meat providing that restaurant taste.
• Four lights illuminate the oven cavity with less glare.
• Six rack positions and three racks provide ample space for your
baking needs.
• This appliance is certified by Star-K to meet strict regulations in
conjunction with specific instructions found on www.star-k.org
VGSC Self-Cleaning Range Features
Product Controls
1. Interior oven light switch
2. Left rear burner control knob
3. Left front burner control knob
4. Oven function selector knob
5. Oven temperature control knob
6. Right rear burner control knob
7. Right front burner control knob
8. 8”H. stainless steel backguard
9. Four 15,000 BTU sealed burner with porcelain/cast iron caps and
automatic ignition/re-ignition
10. Center grate
11. Identification plate
12. Three standard heavy-duty tilt-proof racks. Six rack positions
13. Broiler pan–located inside oven
14
15
Loading...
